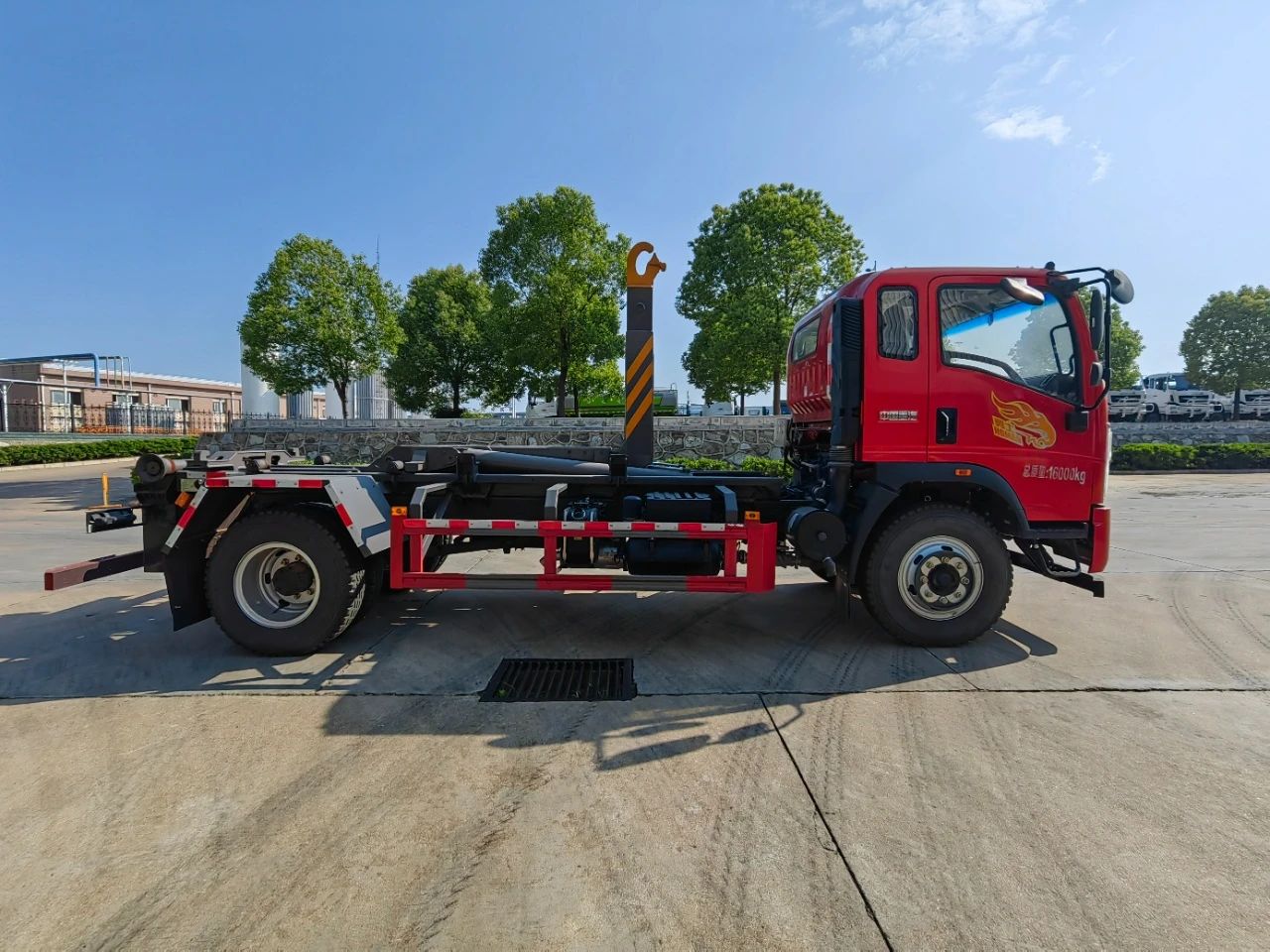

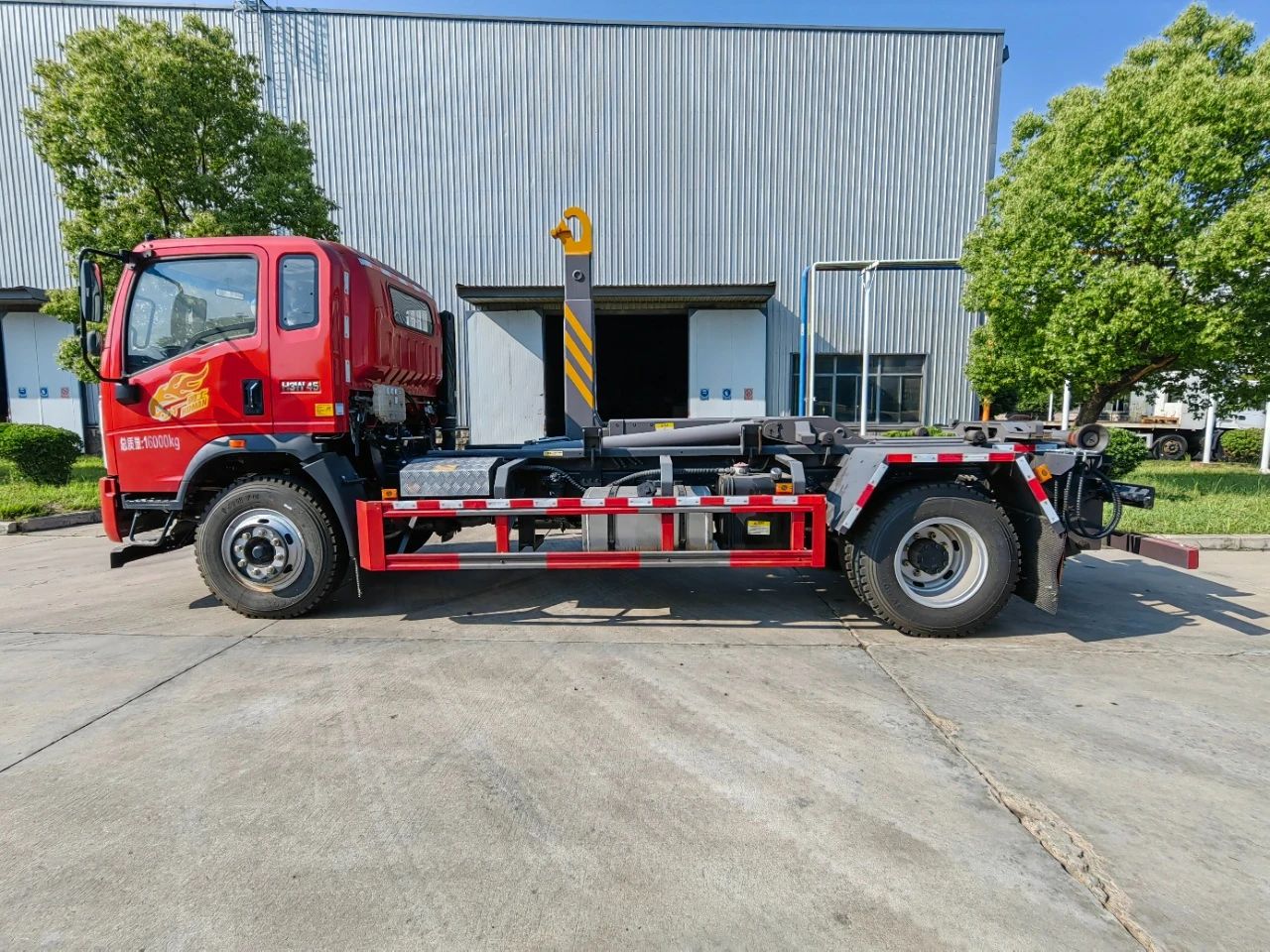

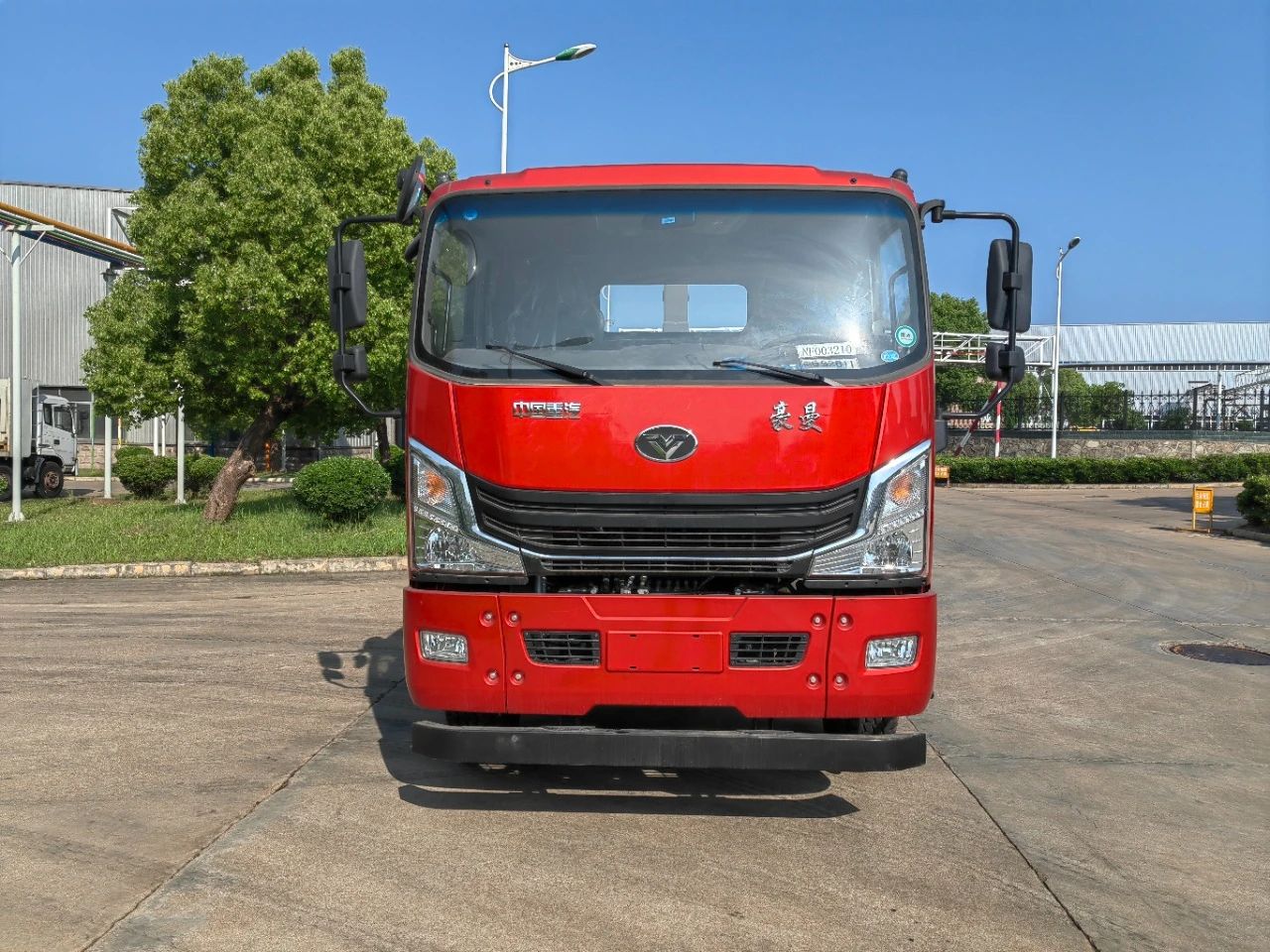

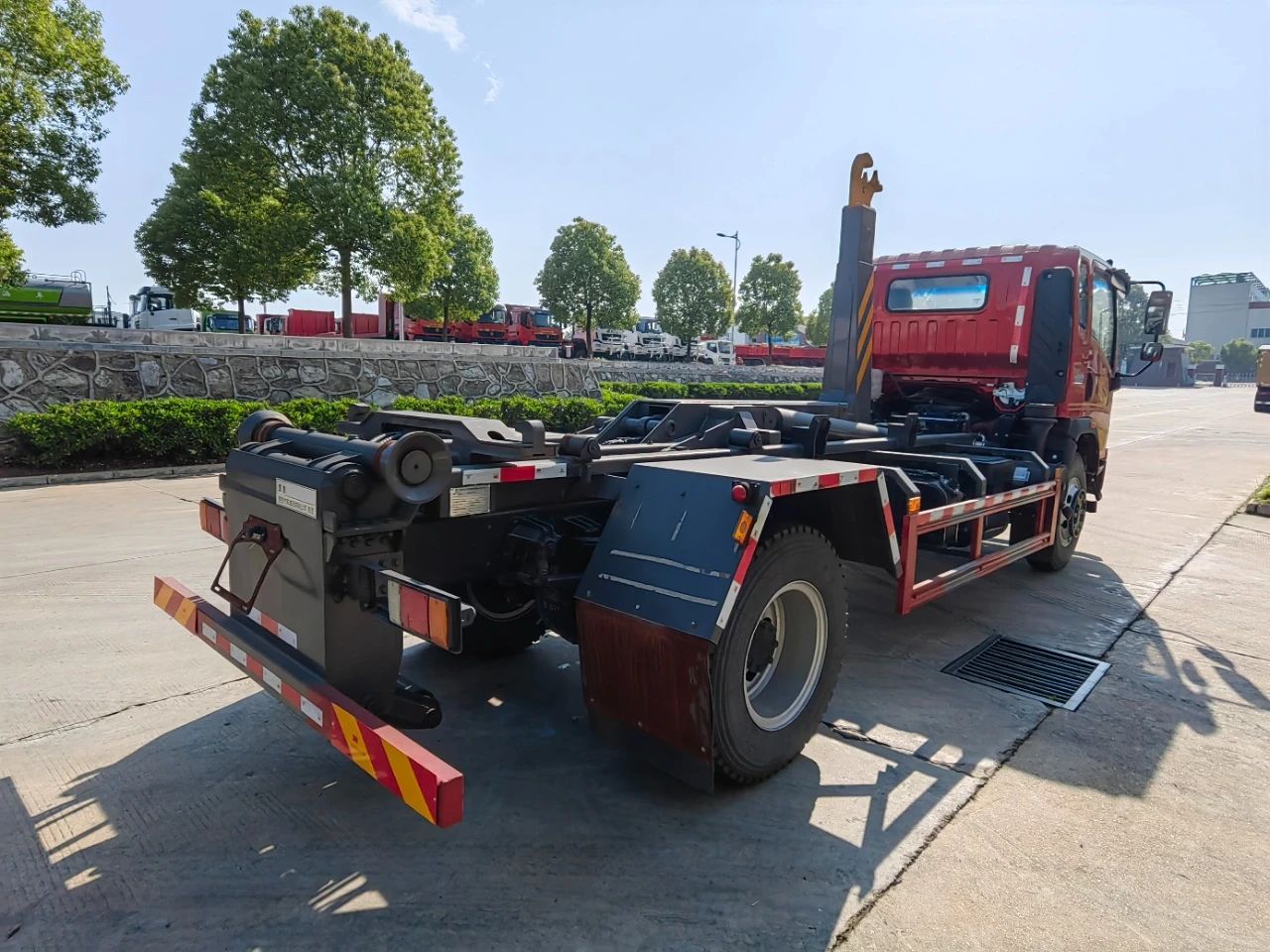

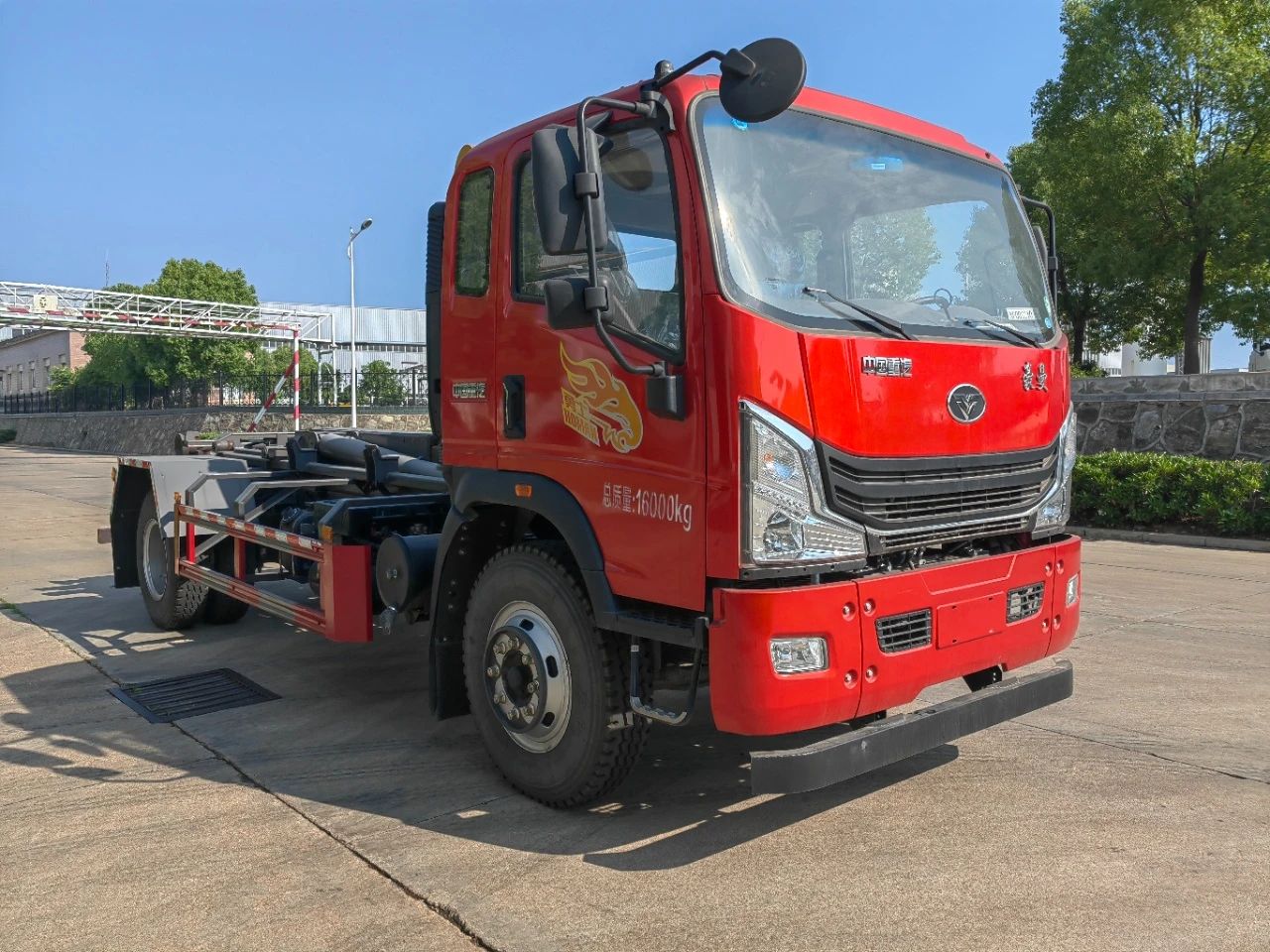

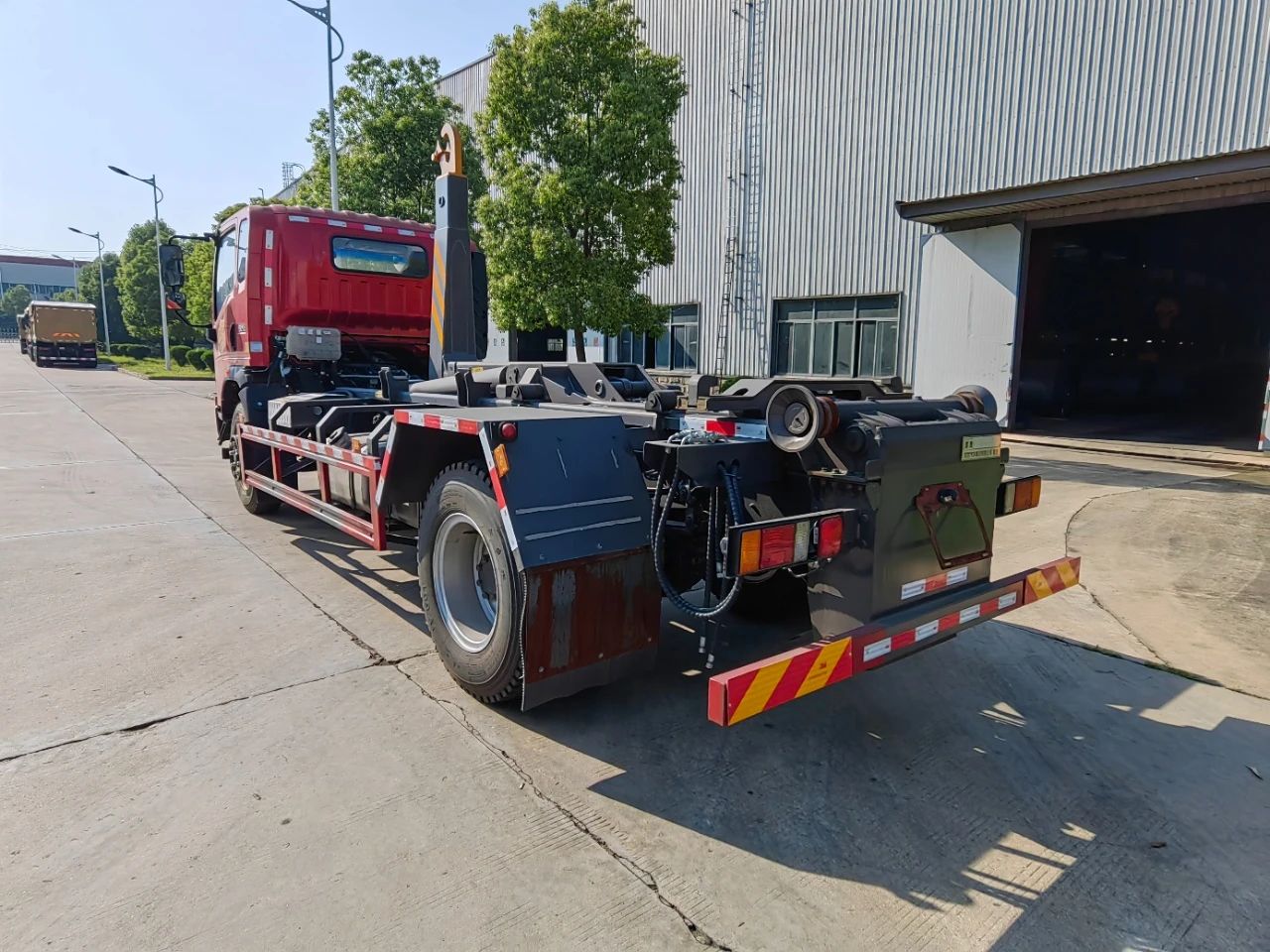

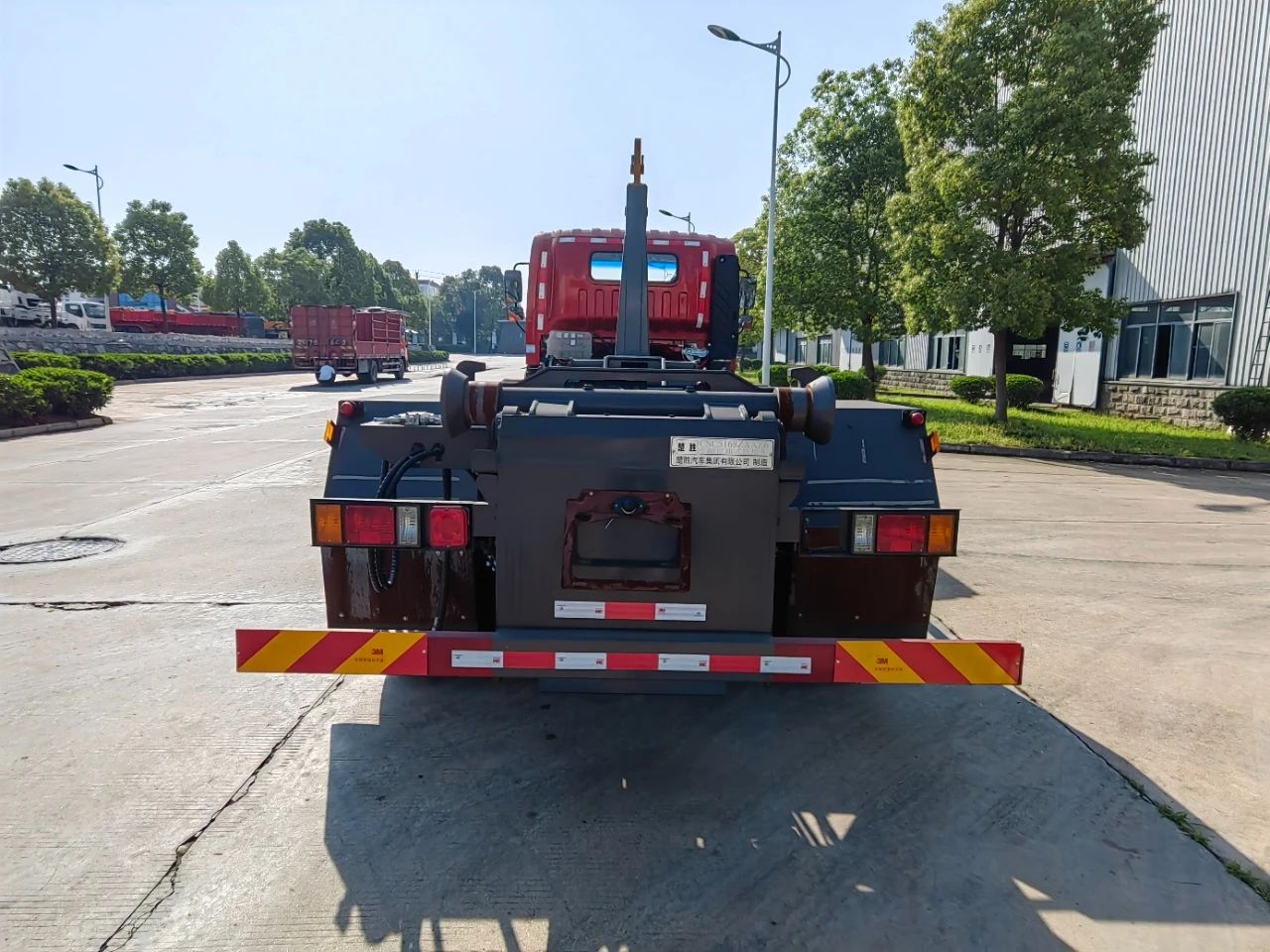

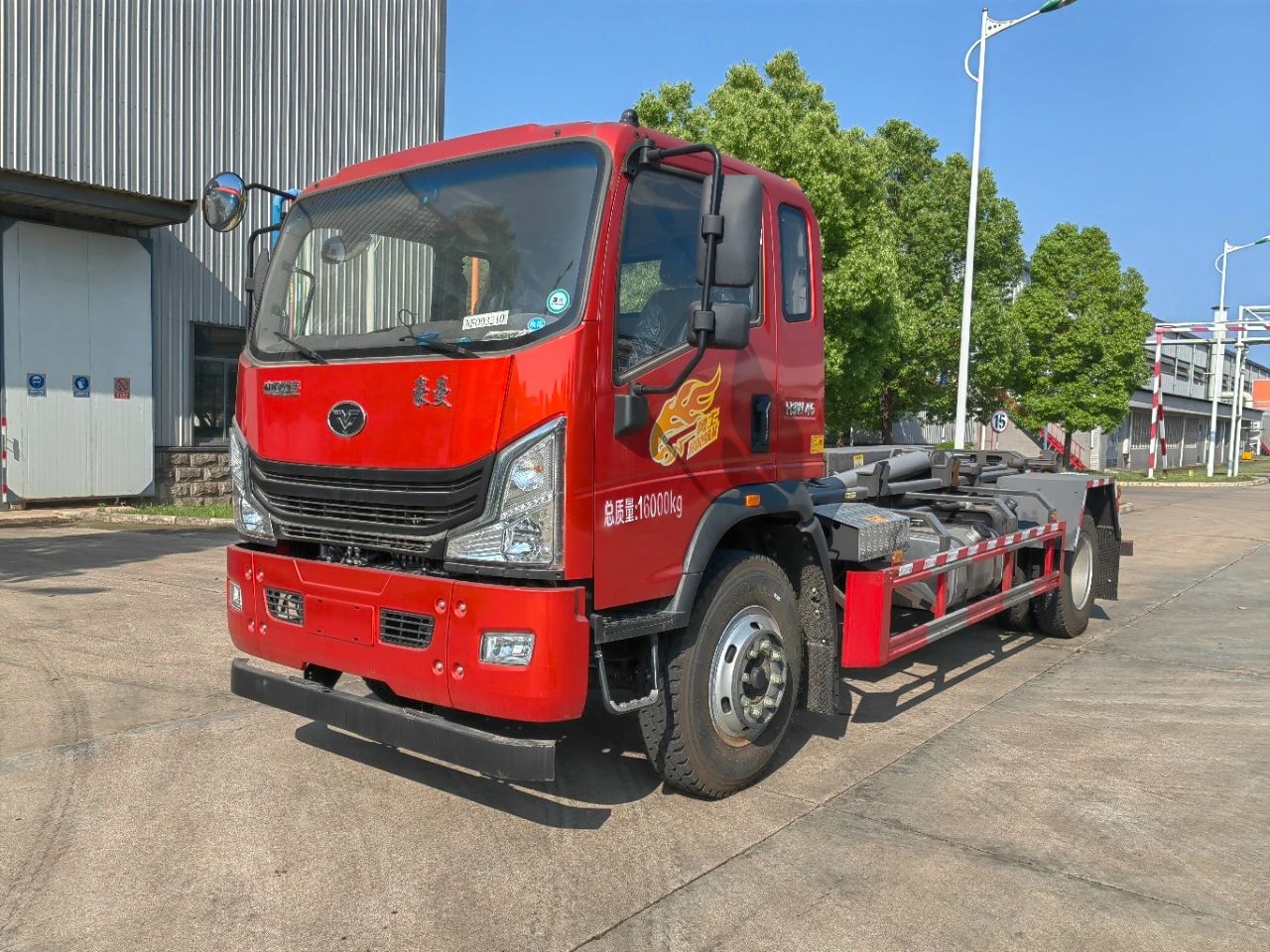

Sinotruk Haoman 4X2 16T-20T hook arm garbage truck

Chassis configuration:2.1-meter new semi cab, Weichai 190 horsepower engine, 8-speed Fast gearbox, 153 rear axle, 250mm three-layer beam, 8.25R20 steel tires, electric doors and windows, central locking, remote key, aluminum alloy fuel tank, air conditioning
Upper configuration:The main structure is made of a high-strength square tube with a telescopic arm, a flashlight dual-use valve with wireless remote control, a dual hydraulic oil cylinder lifting design, a main arm oil cylinder, a movable sleeve arm, a sleeve arm oil cylinder, an attached frame, a flip frame, a hydraulic rear support leg, a locking frame, a locking oil cylinder, and a multi way directional valve. The pull arm has a telescopic function, a balance valve, a hydraulic lock, high-strength precision castings, and the auxiliary beam has brackets on both sides to prevent the box from sliding.

Product Name： Sinotruk Haoman 4X2 16T-20T hook arm garbage truck
Driving Type： 4X2
Gross vehicle weight(Kg)： 16000(Kg)
Curb weight(Kg)： 7500,7855(Kg)

Product Features

Hook arm garbage truck, also known as a detachable garbage truck, is a type of garbage truck. Mainly suitable for collecting and transporting various types of garbage in municipal sanitation, property management, large factories, industrial and mining areas, and other places.
The hook arm garbage truck adopts a fully hydraulic control operating system, and the garbage compartment and chassis can be completely separated. It has the advantages of reasonable structure, easy operation, stability, high efficiency, good sealing performance, and convenient dumping. It can achieve joint operation of one vehicle and multiple garbage compartments, circular transportation, and fully improve the transportation capacity of the vehicle. Can carry multiple boxes in one car, efficient, energy-saving, and cost-effective.

Product parameters

Product Name	Sinotruk Haoman 4X2 16T-20T hook arm garbage truck
Driving Type	4X2
Gross vehicle weight(Kg)	16000(Kg)
Curb weight(Kg)	7500,7855(Kg)
Rated weight(kg)	8370,8305,8015,7950(Kg)
Wheelbase(mm)	3900(mm)
Overall Dimension(mm)	7300,6950,6600×2500,2380,2320×3050,2910,2780(mm)
Garbage container size(mm)	××(mm)
Cab	2.1-meter new one and a half row cab
Engine brand & model	WP4.1NQ190E61，Weichai 190hp
Axle Quantity	2
Transmission Type	FAST 8-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	8.25R20 steel wire tire ,6+1 spare
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
