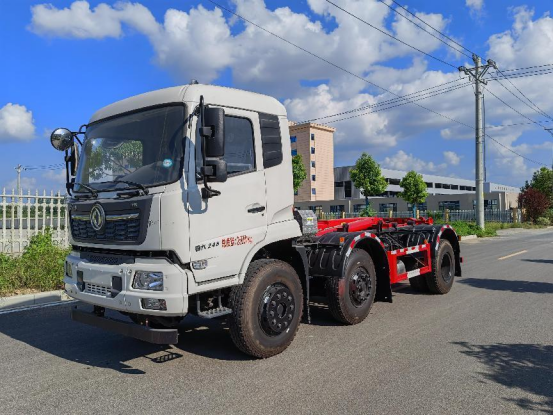

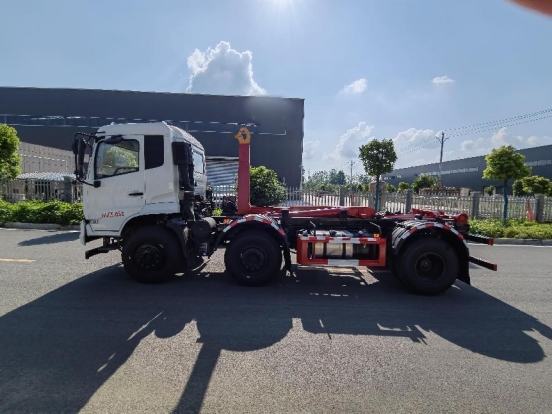

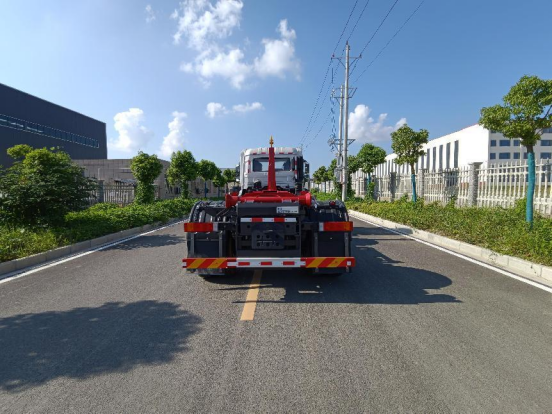

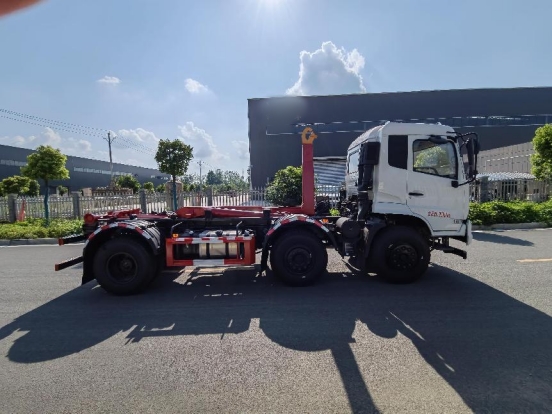

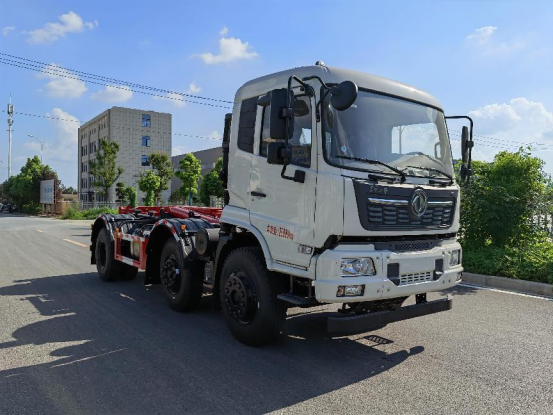

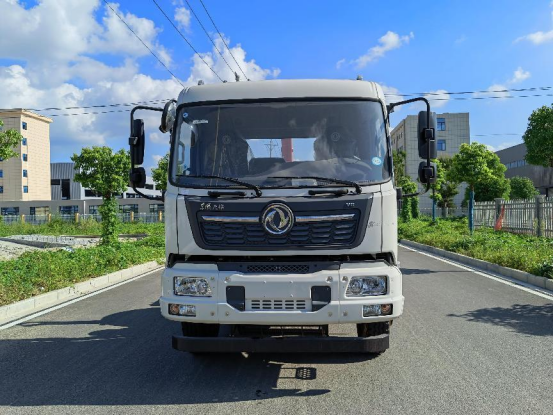

Dongfeng Tianjin 6X2 hook arm garbage truck with 15-18m³ hook arm garbage bin

Chassis configuration:equipped with Dongfeng Tianjin luxury cab, Yuchai 245 horsepower engine, 1850+3200mm wheelbase, 11.00R20 18PR steel wire tire, steel plate spring 10/10/10+8, 5T front axle, 13T rear axle, Fast 8-speed transmission, centraldoor lock, electric doors and windows, airbag seats.
Upper configuration:manual and electric dual-use with remote control operation, equipped with rear hydraulic support legs, reinforced large arm (sleeve arm), equipped with a middle plum balance valve, thickened 180 cylinder lifting cylinder, main arm cylinder, movable sleeve arm, sleeve arm cylinder, attached frame, flip frame, hydraulic rear support leg, lateral locking, locking frame, locking cylinder and multi way directional valve, etc. The pull arm has telescopic function, hydraulic lock, English Papu gear pump, high-strength precision casting parts, auxiliary beam has brackets on both sides to prevent the box from sliding.

Product Name： Dongfeng Tianjin 6X2 hook arm garbage truck with 15-18m³ hook arm garbage bin
Driving Type： 6X2
Gross vehicle weight(Kg)： 25000(Kg)
Curb weight(Kg)： 15205(Kg)

Product Features

Hook arm garbage truck, also known as a detachable garbage truck, is a type of garbage truck. Mainly suitable for collecting and transporting various types of garbage in municipal sanitation, property management, large factories, industrial and mining areas, and other places.
The hook arm garbage truck adopts a fully hydraulic control operating system, and the garbage compartment and chassis can be completely separated. It has the advantages of reasonable structure, easy operation, stability, high efficiency, good sealing performance, and convenient dumping. It can achieve joint operation of one vehicle and multiple garbage compartments, circular transportation, and fully improve the transportation capacity of the vehicle. Can carry multiple boxes in one car, efficient, energy-saving, and cost-effective.

Product parameters

Product Name	Dongfeng Tianjin 6X2 hook arm garbage truck with 15-18m³ hook arm garbage bin
Driving Type	6X2
Gross vehicle weight(Kg)	25000(Kg)
Curb weight(Kg)	15205(Kg)
Rated weight(kg)	9600(Kg)
Wheelbase(mm)	1850+3200(mm)
Overall Dimension(mm)	7750×2550×3150(mm)
Garbage container size(mm)	××(mm)
Cab	Dongfeng Tianjin luxury cab
Engine brand & model	YCS06245-60，Yuchai 140hp
Axle Quantity	3
Transmission Type	FAST 8-speed
Steering Type	LHD or RHD with power steering
Tire Spec. & size	11.00R20 18PR,8+1 spare
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
