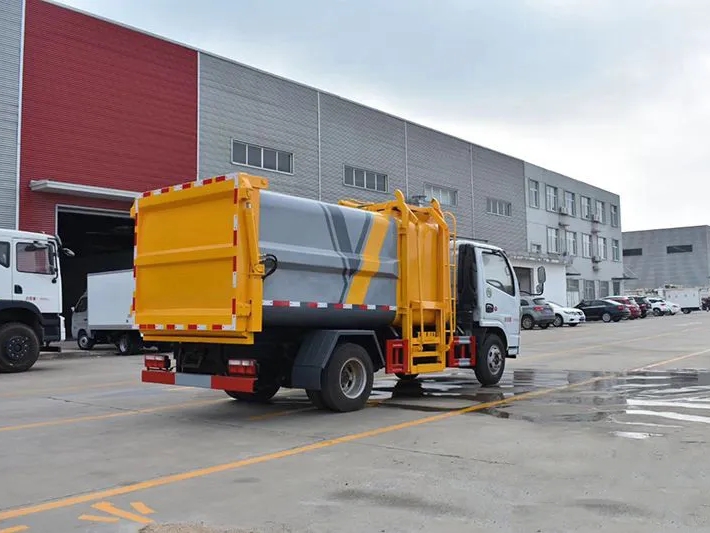

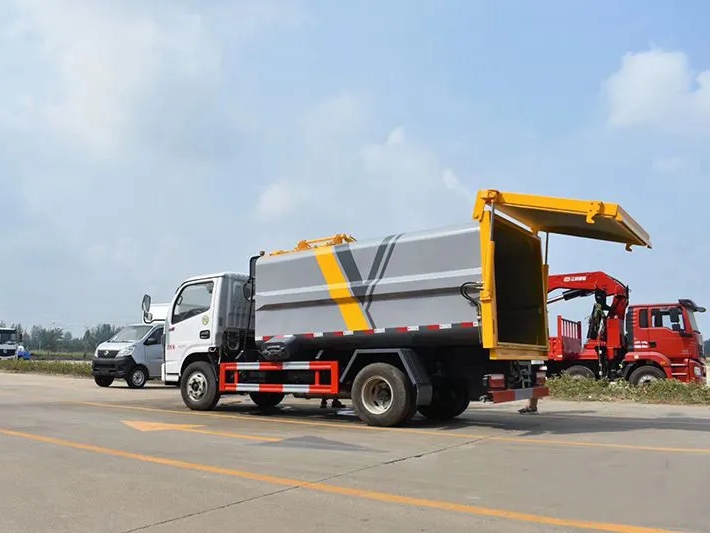

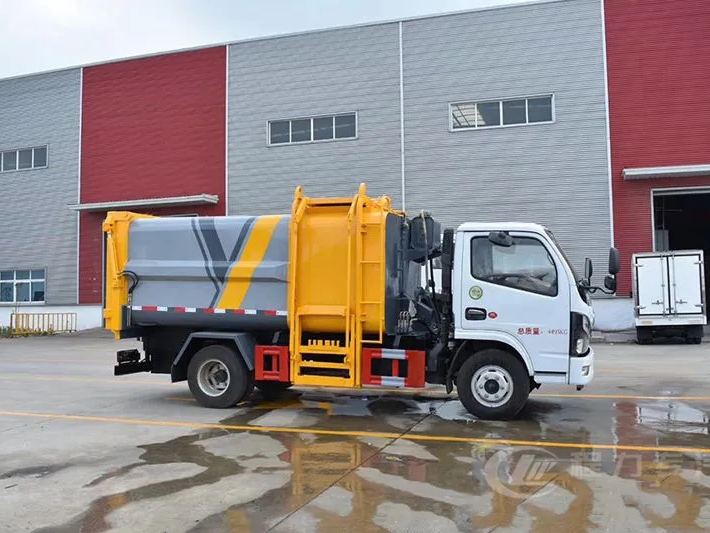

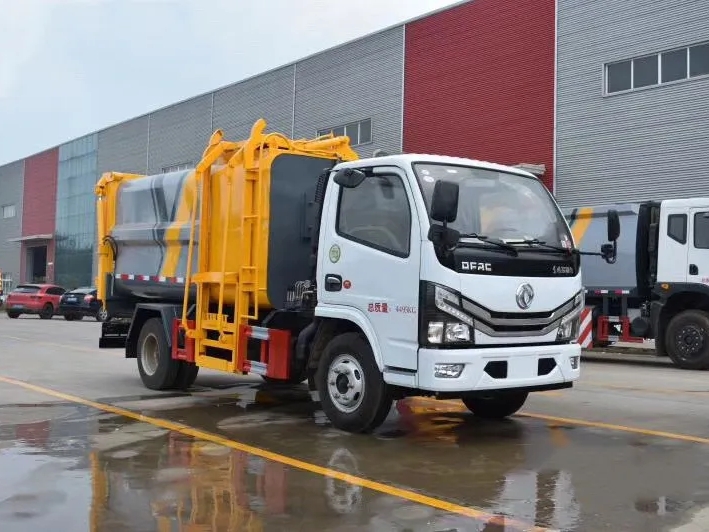

Dongfeng D6 7m³ compressed garbage truck

The introduction of Dongfeng D6 7m³ compressed garbage truck:
Chassis configuration: Equipped with Dongfeng D6 1730 single row cab, 3308mm wheelbase, CY4BK461 Chaochai 130 horsepower engine (available in multiple engines including Quanchai, Yuchai, and Yunnei), , 6-speed gearbox, 7.00R16 steel wire tires, 1.8/3.5 front and rear axles, with power steering, clutch assist, ABS, exhaust braking, electrically controlled windows, central locking, and air conditioning. (The chassis configuration may vary slightly depending on the engine model. Please refer to the purchase contract for actual specifications.)
Upper configuration: The new box body is beautiful and atmospheric, using Q345 manganese plate with a thickness of 3mm on the sides and 4mm on the bottom. The box body is made of Wugang carbon steel plate material, and the interior of the box body is treated with anti-corrosion and rust prevention. The arc-shaped pressure resistant box body is equipped with a full push device, and the rear door is hydraulically locked, with good overall sealing. The rear of the car is equipped with a thick rubber sealing strip and a sewage collection tank to prevent sewage dripping. The effective volume is 7.8m ³, and it adopts Jiangsu Zhongmei multi way valve, Hefei Changyuan hydraulic pump, electric and manual dual control system. It can be operated indoors and outdoors. The side of the box body is equipped with a hanging bucket rack flipping feeding mechanism, and the box body can be spray.

Product Name： Dongfeng D6 7m³ compressed garbage truck
Driving Type： 4x2
Weight /Volume：
Garbage container volume(cbm)： 7

Product Features

Dongfeng D6 7m³compressed garbage truck

Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.

Product parameters

Product Name	Dongfeng D6 7m³ compressed garbage truck
Driving Type	4x2
Weight /Volume
Garbage container volume(cbm)	7
Rated payload weight(kg)	2650
Dimensions
Wheelbase(mm)	3308
Overall Dimension(mm)	5995,5637,5387×2250×2650
Engine
Engine brand & model	Chaochai CY4BK461
Displacement(L)/Power(kw)	3.71L/97kw
Chassis
Axle Quantity	2
Transmission Type	6 forward gears and 1 reverse gear
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16, 6 with a spare
Cab
Standard configuration	D6 1730 single row cab
Air conditioning	YES
Performance parameter
Garbage container material	Q345 manganese plate and carbon steel plate
Standard configuration	1. Pressure filling mechanism 2. Feeding device 3. Lift the pressure filling device 4. Sewage collection tank 5. Rear electronic control operation 6. Front manual operation
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
