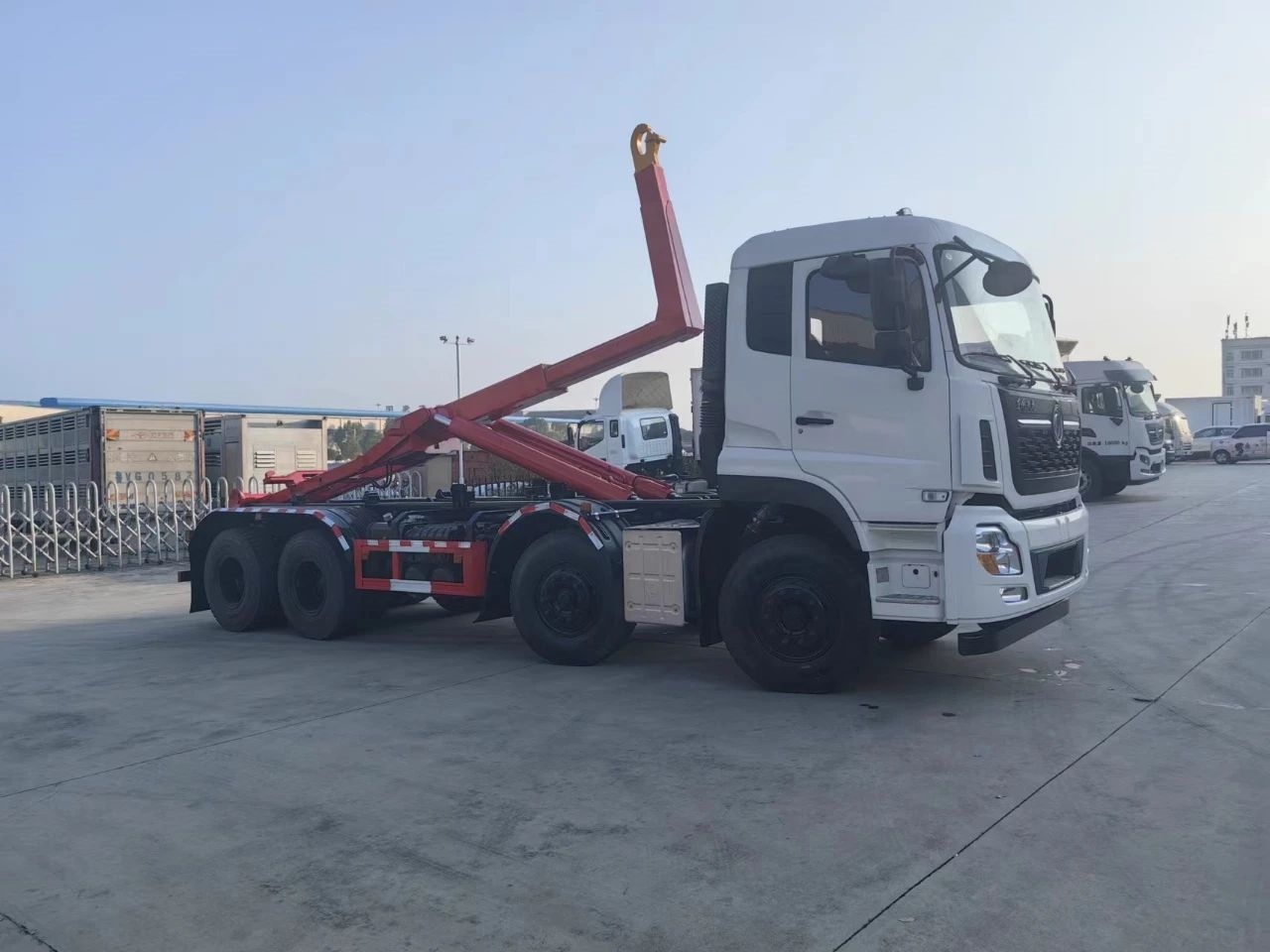

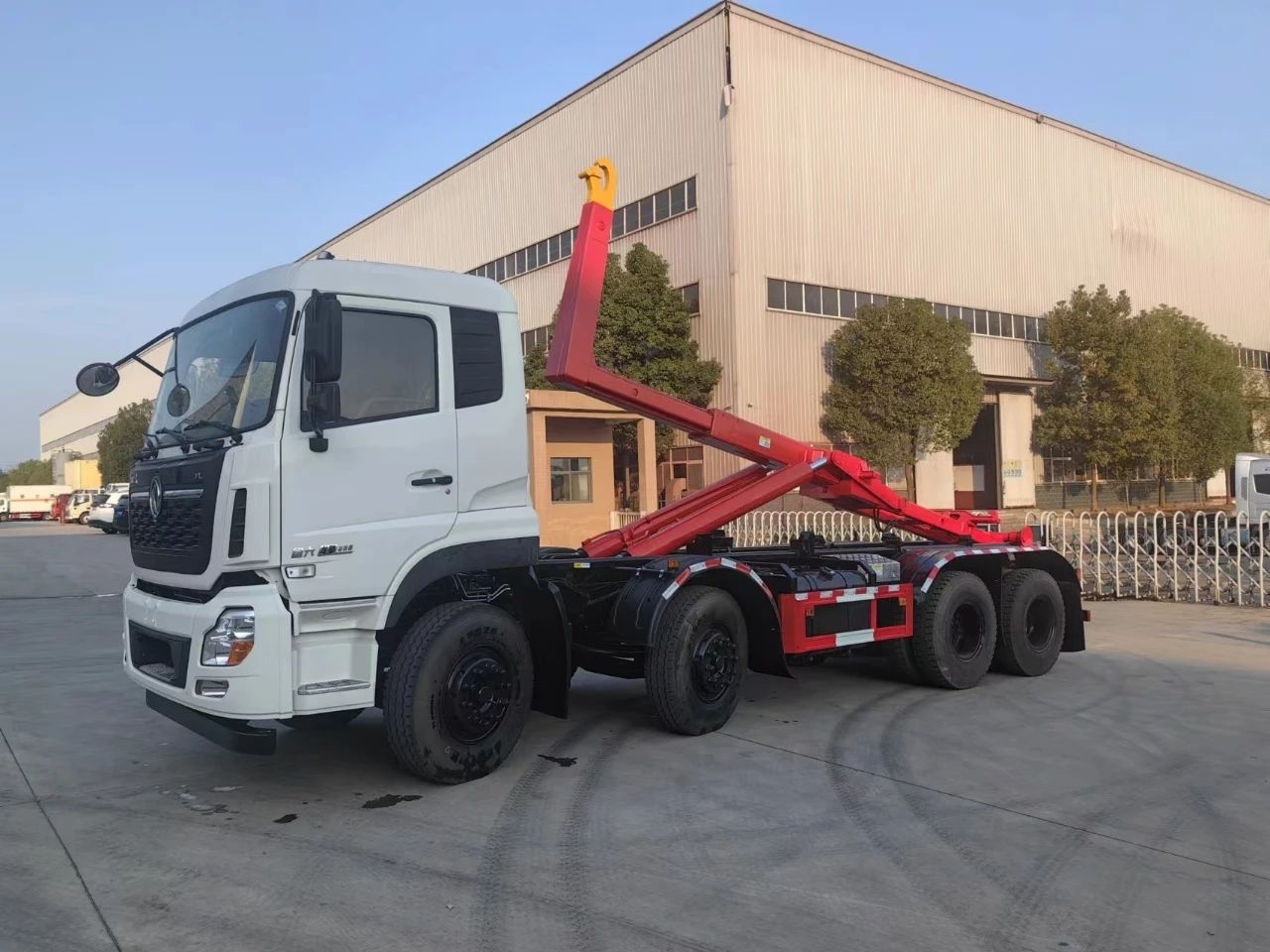

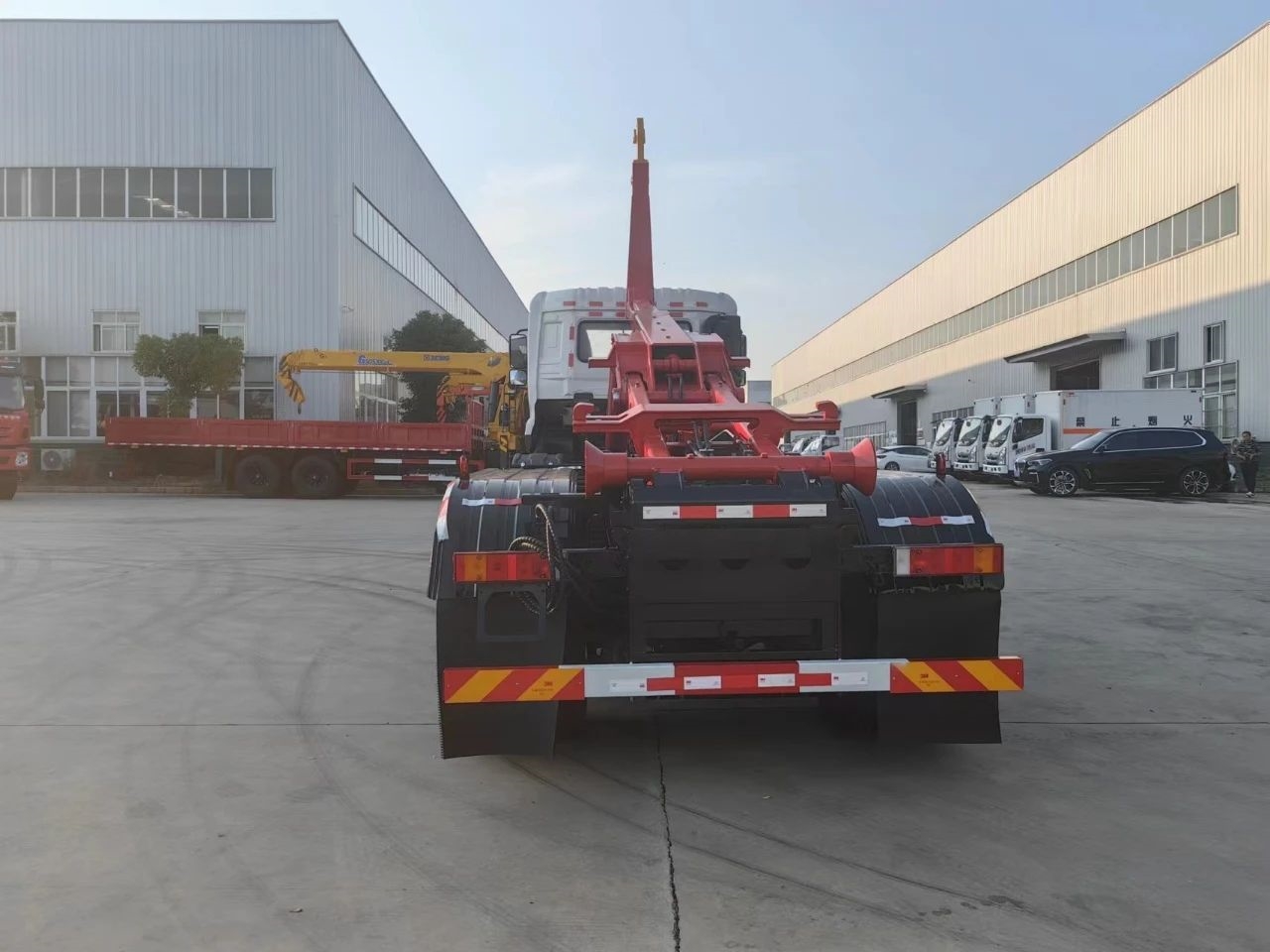

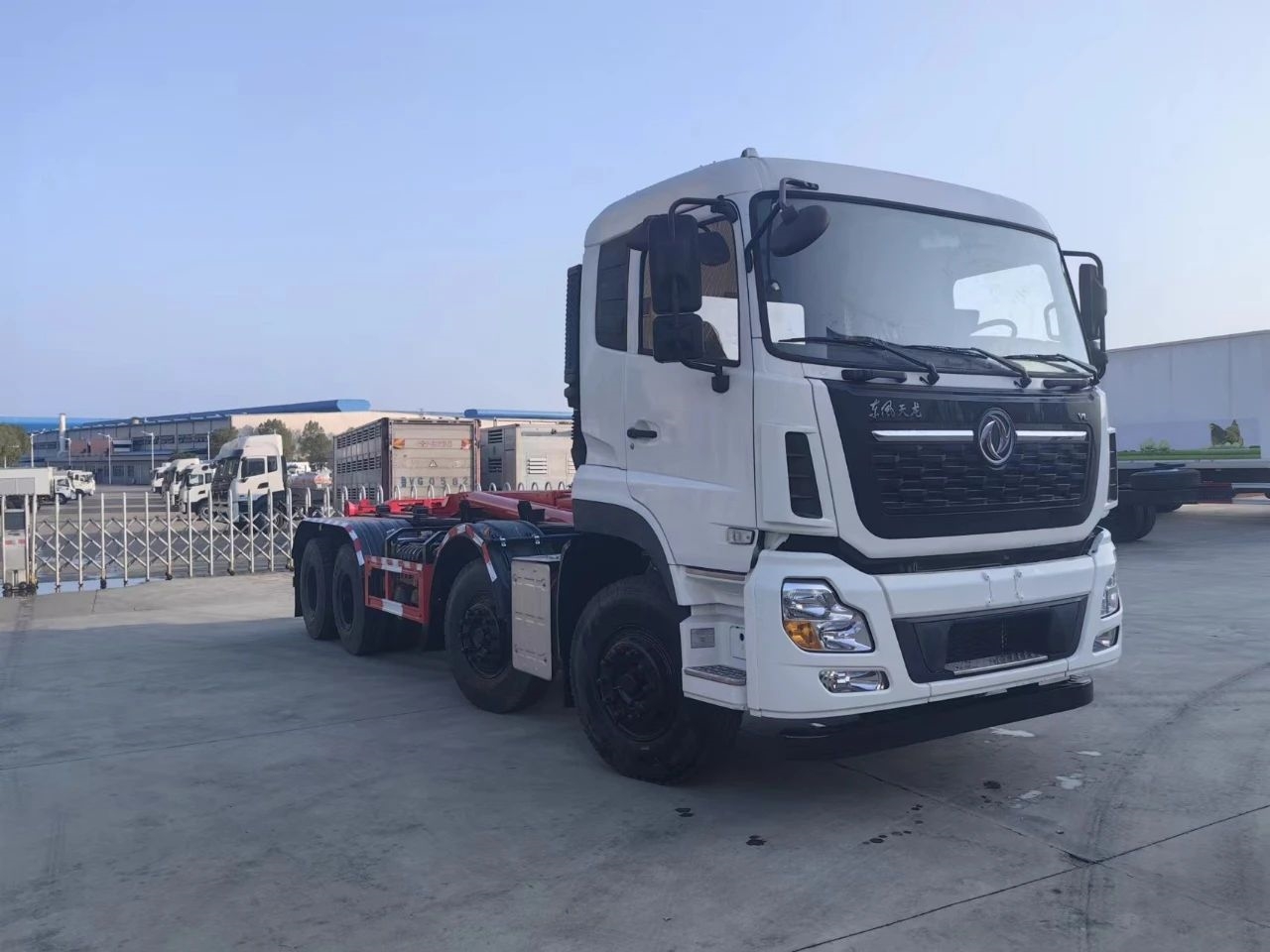

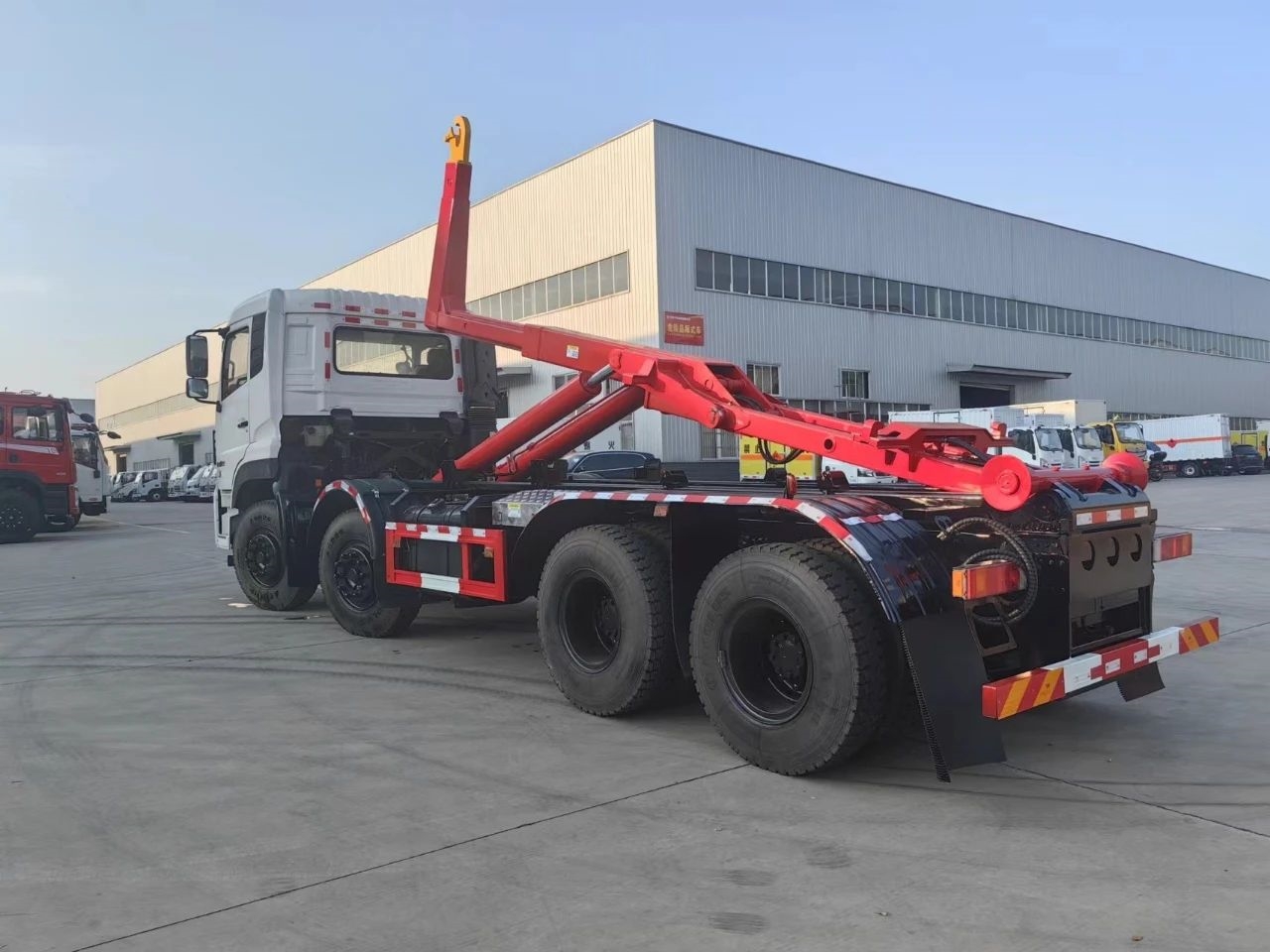

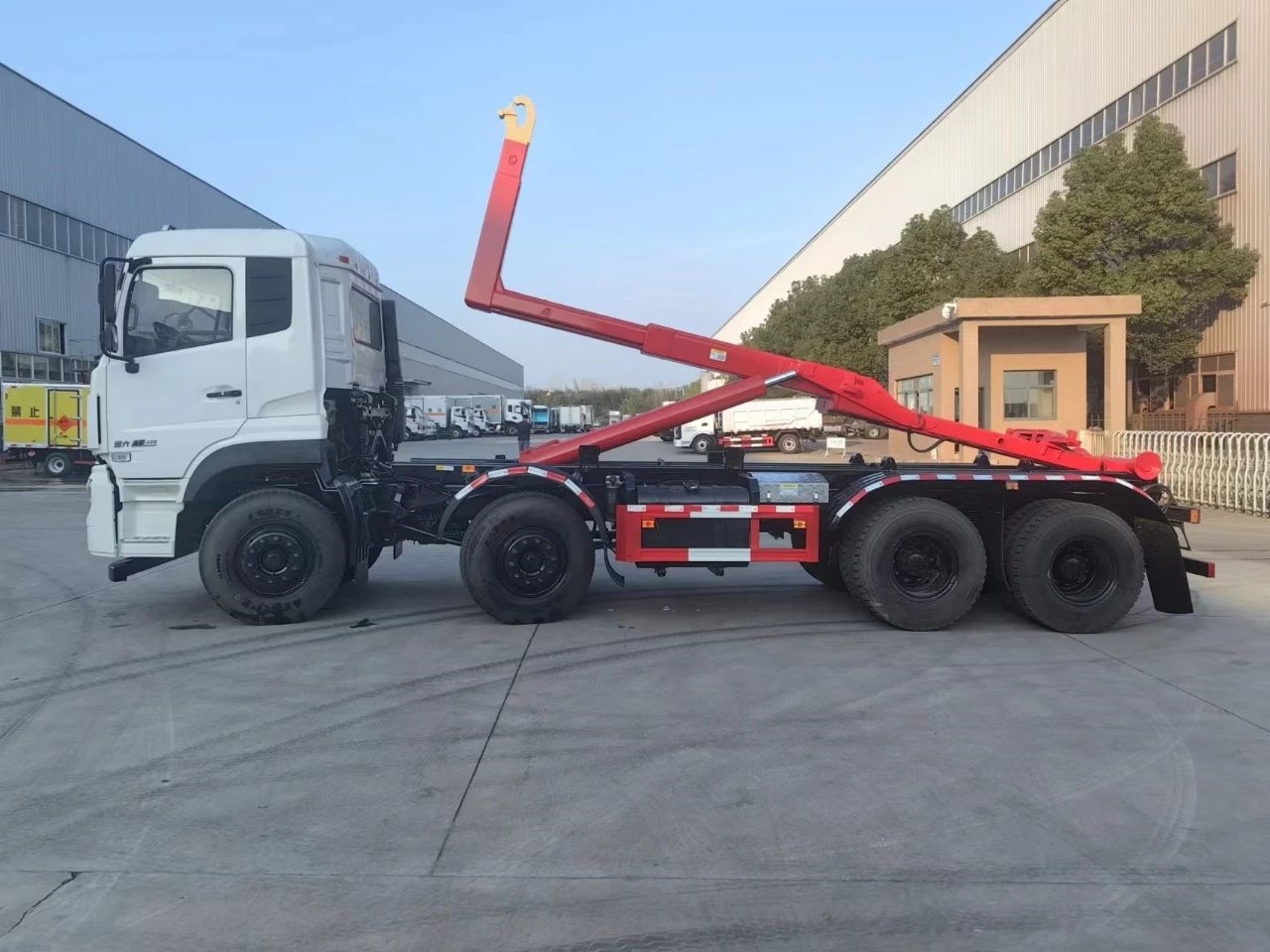

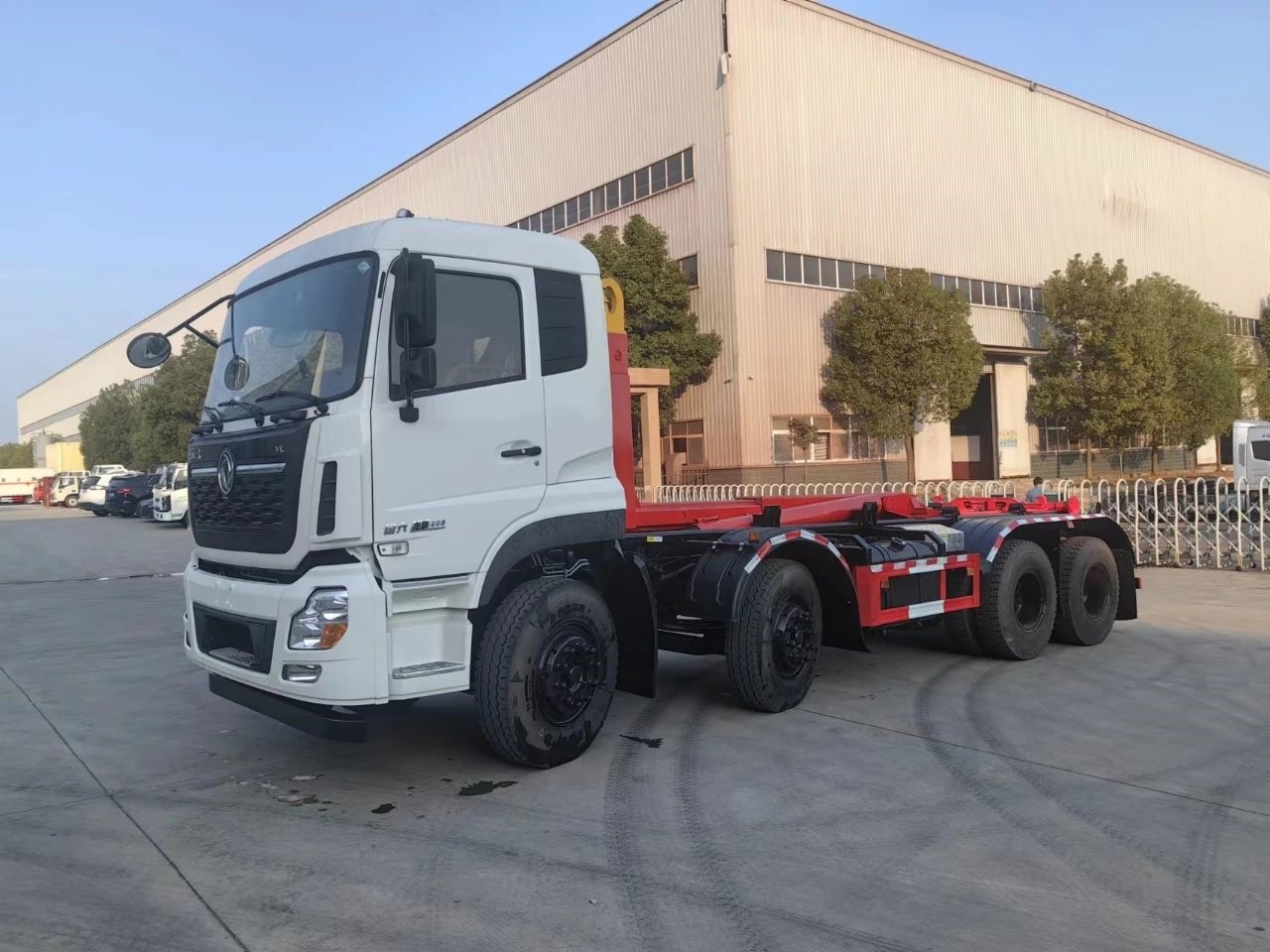

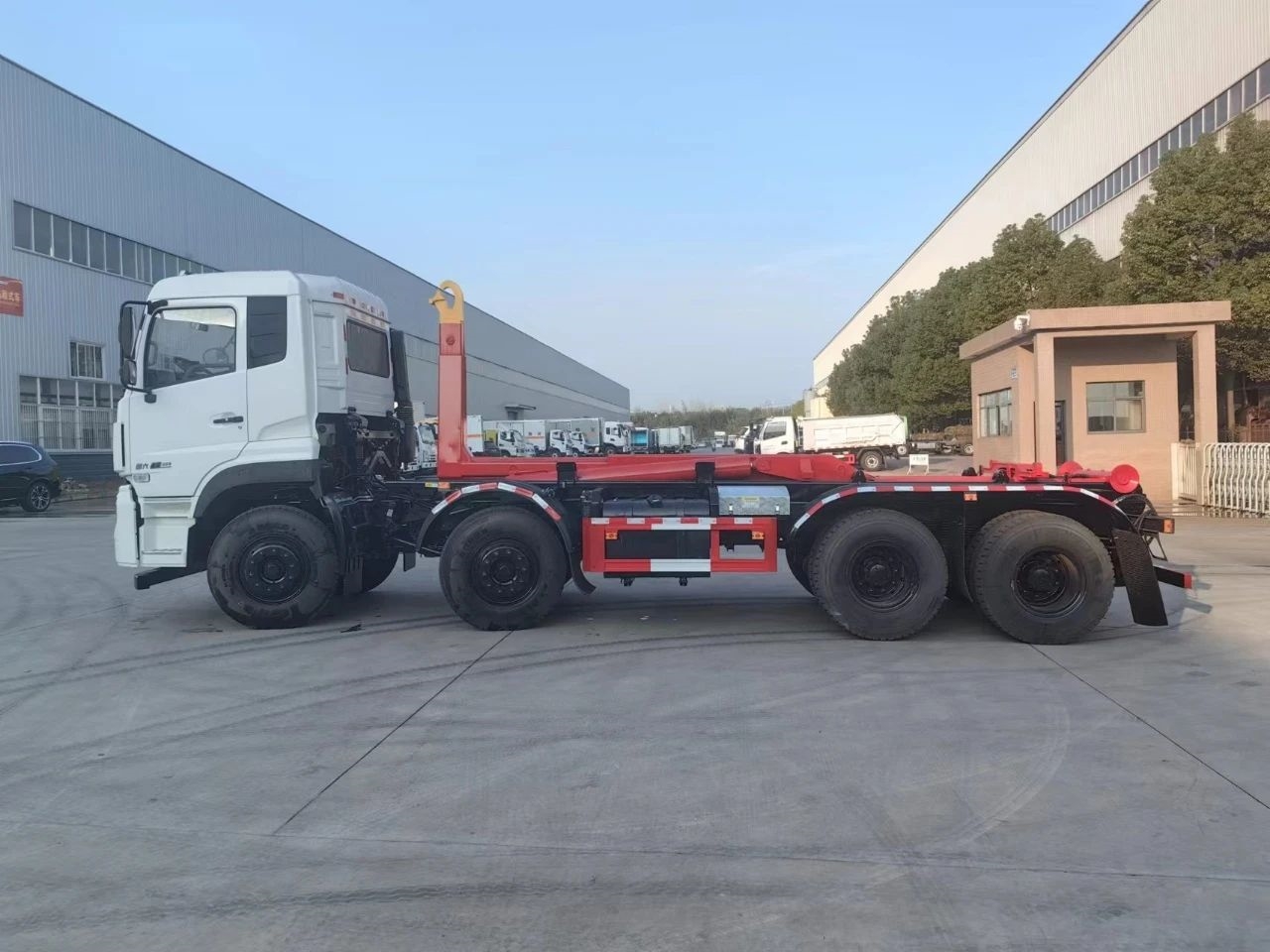

Dongfeng Tianlong 8X4 hook arm garbage truck

Chassis configuration:Equipped with Dongfeng Tianlong D310VL cab, DDI 350 horsepower 6-cylinder engine, Shaanxi 9-speed gearbox (high and low gears), 11.00 steel wire tires, all steel 350L fuel tank, air conditioning electric doors and windows, remote key, airbag seats, driving recorder, seat belt reminder, brake pad wear alarm. ABS air brake, directional assistance, clutch assistance. Wheelbase 1995+3200+1350mm,
Upper configuration:Telescopic hook arm assembly, thickened 203 Starlight oil cylinder, Zhongmei multi way valve, main structure made of high-strength steel, hydraulic roller support legs at the bottom of the tail, 100 flow plug pump, maximum load capacity of 28 tons, system pressure of 25-30 Mpa, hook height of 1570, guide rail width of 1060.

Product Name： Dongfeng Tianlong 8X4 hook arm garbage truck
Driving Type： 8X4
Gross vehicle weight(Kg)： 31000(Kg)
Curb weight(Kg)： 12495(Kg)

Product Features

Hook arm garbage truck, also known as a detachable garbage truck, is a type of garbage truck. Mainly suitable for collecting and transporting various types of garbage in municipal sanitation, property management, large factories, industrial and mining areas, and other places.
The hook arm garbage truck adopts a fully hydraulic control operating system, and the garbage compartment and chassis can be completely separated. It has the advantages of reasonable structure, easy operation, stability, high efficiency, good sealing performance, and convenient dumping. It can achieve joint operation of one vehicle and multiple garbage compartments, circular transportation, and fully improve the transportation capacity of the vehicle. Can carry multiple boxes in one car, efficient, energy-saving, and cost-effective.

Product parameters

Product Name	Dongfeng Tianlong 8X4 hook arm garbage truck
Driving Type	8X4
Gross vehicle weight(Kg)	31000(Kg)
Curb weight(Kg)	12495(Kg)
Rated weight(kg)	18375,18310(Kg)
Wheelbase(mm)	1995+3200+1350(mm)
Overall Dimension(mm)	9200×2520,2550×3100,3180(mm)
Garbage container size(mm)	××(mm)
Cab	Dongfeng Tianlong D310VL cab
Engine brand & model	DDi75E350-60，350hp
Axle Quantity	4
Transmission Type	Shaanxi 9-speed gearbox (high and low gears)
Steering Type	LHD or RHD with power steering
Tire Spec. & size	11.00 steel wire tire, 12+1 spare
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
