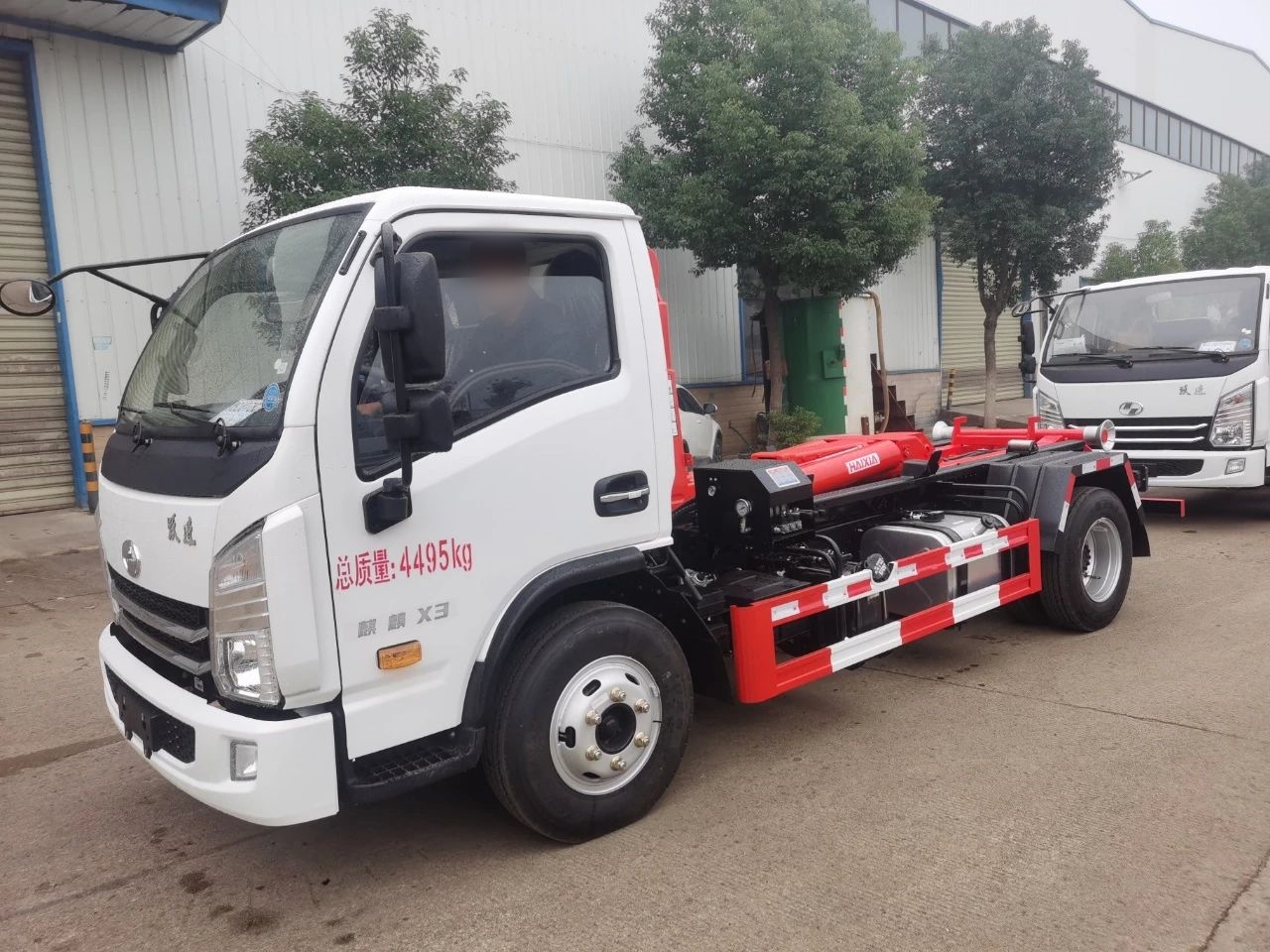

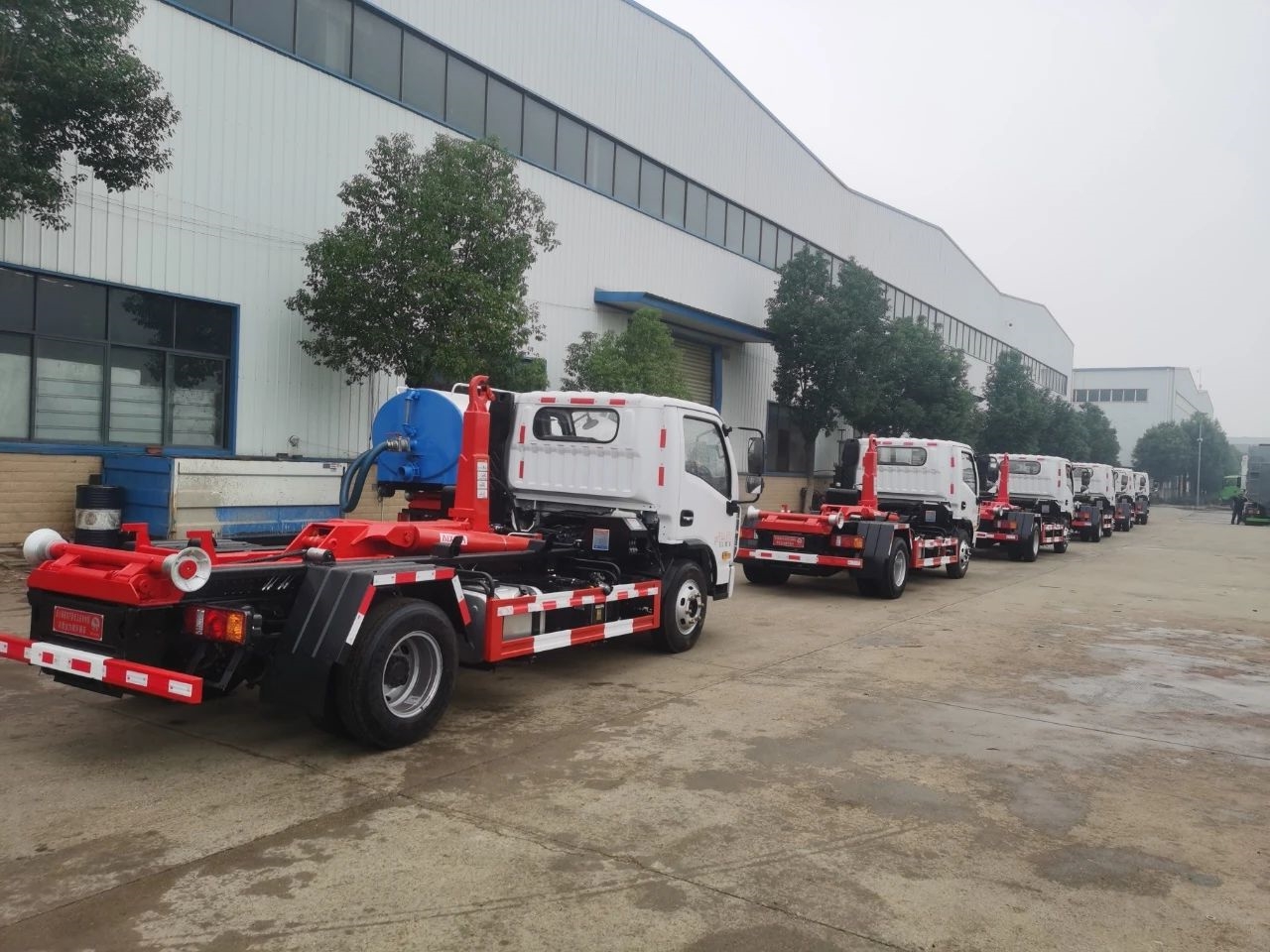

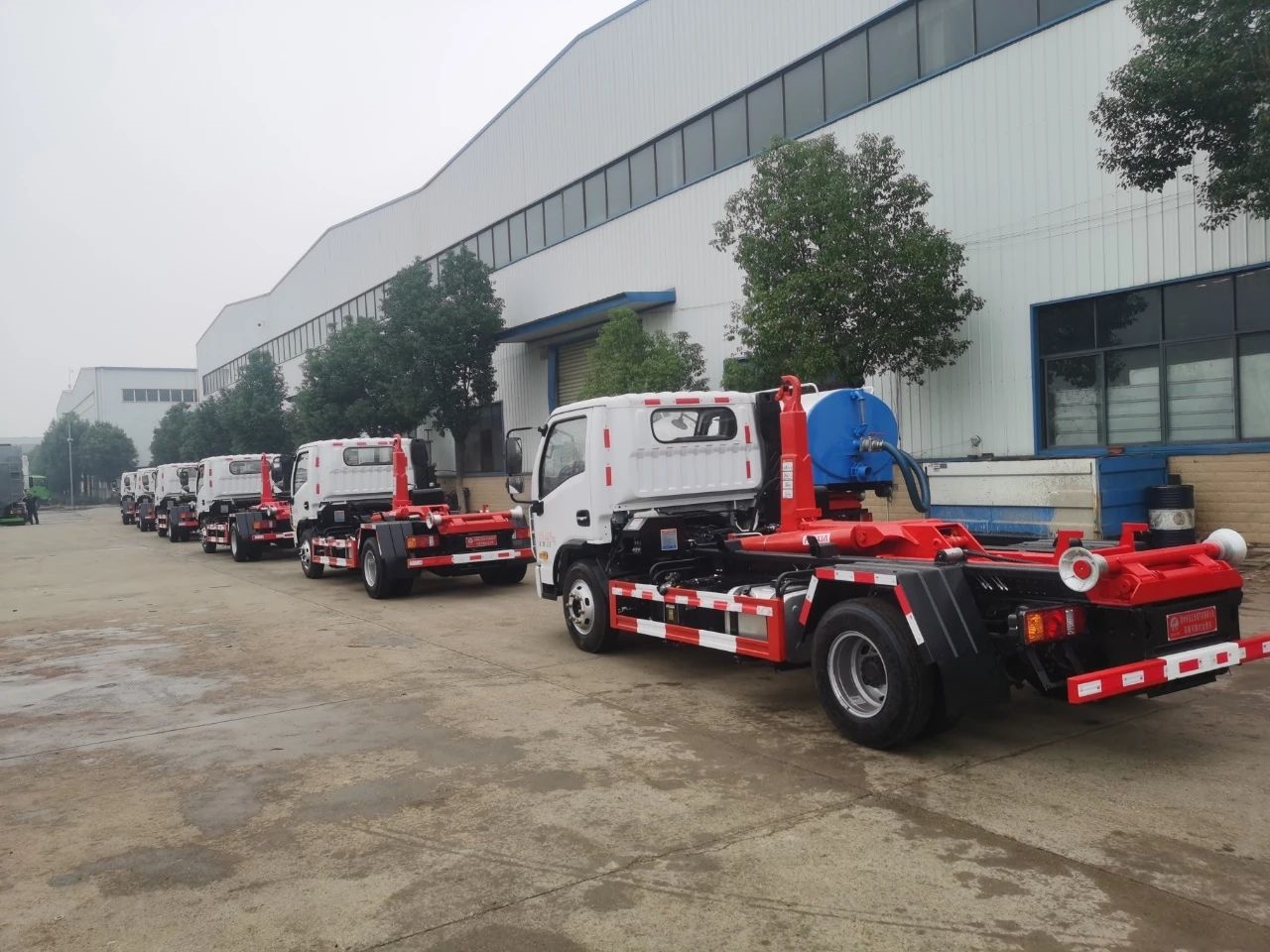

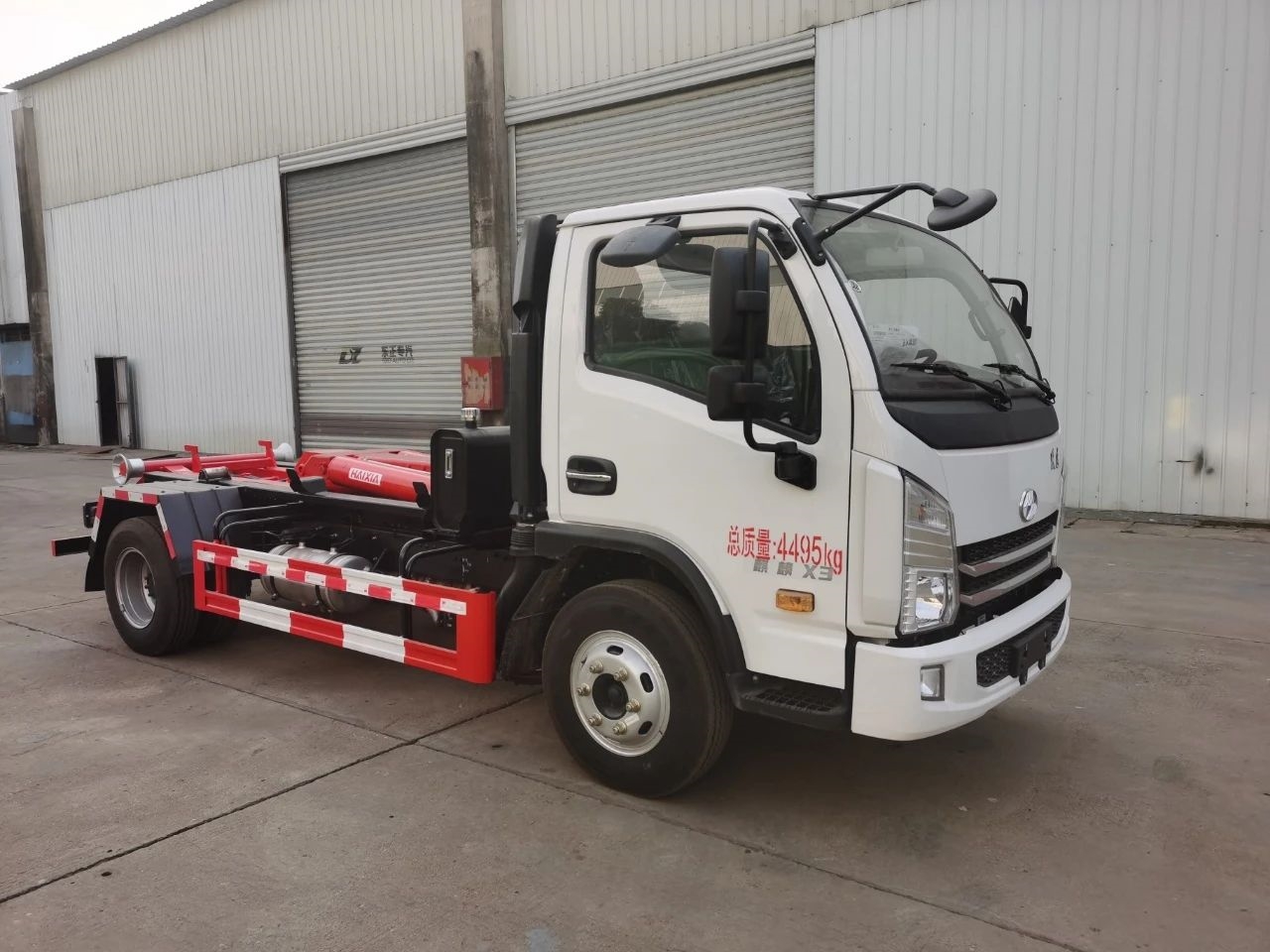

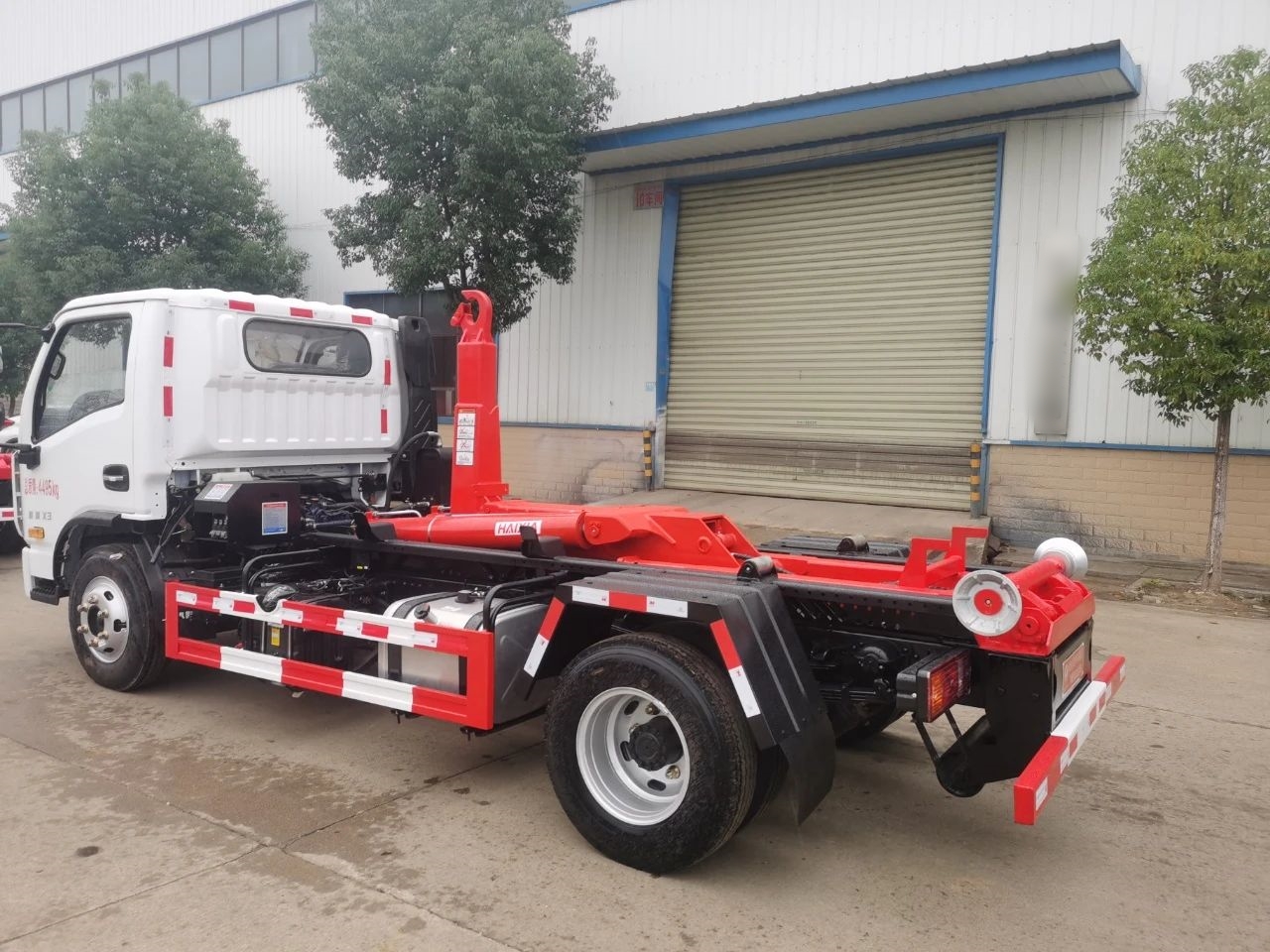

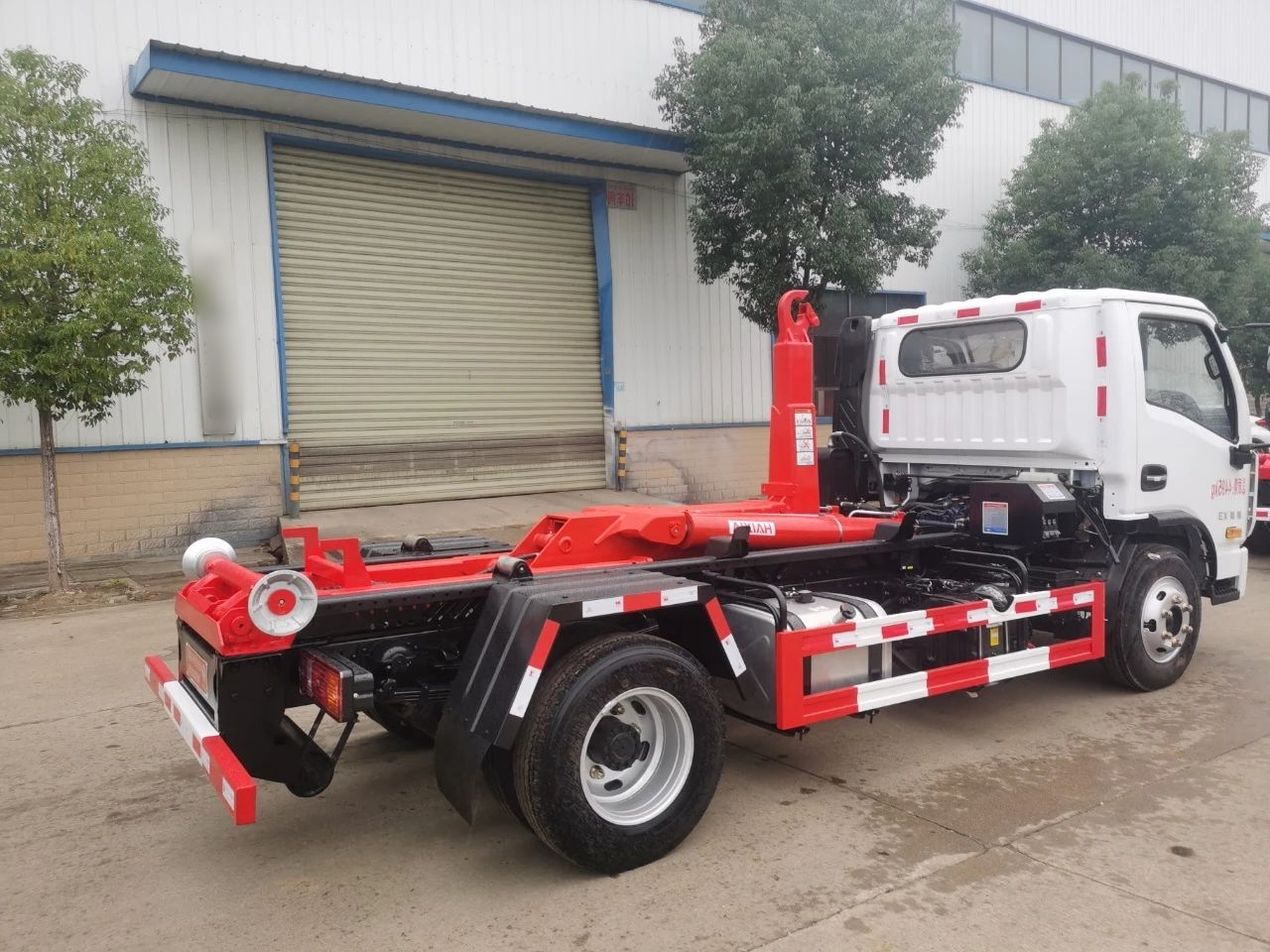

SAIC Yuejin 4X2 Hook arm Garbage Truck

Chassis configuration:

【 Wheelbase 】 3300mm
【 Engine 】 WP2.3NQ130E61 ，Weichai 130 horsepower
【 Transmission 】 Wanliyang 5-speed with auxiliary
【 Other standard equipment 】 1080B rear axle, 7.00R16 (basement version), Wanliyang 5-speed with auxiliary, 200 straight beam (6+4 thick double-layer beam), power steering, ABS+self adjusting clearance+air brake, original air conditioning, electric doors and windows+central locking+remote key, T-BOX (remote control system), combination reversing mirror, radio+MP3+USB+Bluetooth, multifunctional steering wheel, intelligent working condition, aluminum alloy air storage cylinder, LCD instrument panel (driving computer), no spare tire.

Product Name： SAIC Yuejin 4X2 Hook arm Garbage Truck
Driving Type： 4X2
Gross vehicle weight(Kg)： 4495(Kg)
Curb weight(Kg)： 3430,3660,3760(Kg)

Product Features

SAIC Yuejin 4X2 Hook arm Garbage Truck

Hook arm garbage truck, also known as a detachable garbage truck, is a type of garbage truck. Mainly suitable for collecting and transporting various types of garbage in municipal sanitation, property management, large factories, industrial and mining areas, and other places.
The hook arm garbage truck adopts a fully hydraulic control operating system, and the garbage compartment and chassis can be completely separated. It has the advantages of reasonable structure, easy operation, stability, high efficiency, good sealing performance, and convenient dumping. It can achieve joint operation of one vehicle and multiple garbage compartments, circular transportation, and fully improve the transportation capacity of the vehicle. Can carry multiple boxes in one car, efficient, energy-saving, and cost-effective.

Installation configuration of SAIC Yuejin 4X2 Hook arm Garbage Truck
The third-generation telescopic arm structure, forged steel pull arm hook, with anti decoupling device, mechanical locking hook, thickened high-pressure oil cylinder, HYDFLY pull arm hook dedicated control valve, imported quality balance valve, hydraulic lock, pull arm hook dedicated high-pressure oil pump, cast steel guide wheel, reinforced hydraulic support leg, suitable for 6-8 square garbage bins, construction waste and sand and gravel can also be easily lifted. It is also equipped with remote wireless remote control, and the driver can complete the operation without getting off the car, saving time and effort. It has multiple boxes in one vehicle, cycle operation, and all functions of a dump truck.

Product parameters

Product Name	SAIC Yuejin 4X2 Hook arm Garbage Truck
Driving Type	4X2
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	3430,3660,3760(Kg)
Rated weight(kg)	935,870,705,640,605,540(Kg)
Wheelbase(mm)	3300,2850,3100(mm)
Overall Dimension(mm)	5490,5670×2000×2150,2200,2270(mm)
Garbage container size(mm)	××(mm)
Engine brand & model	WP2.3NQ130E61,Weichai 130hp, 96kw
Axle Quantity	2
Transmission Type	Wanliyang 5-speed with auxiliary transmission
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	6.50R16LT 12PR,7.00R16LT 8PR, 6+1 spare
Cab	SAIC Yuejin Cab
Garbage container material	High strength Q345 square tube made telescopic arm for the main structure
Standard configuration	Upper configuration: The main structure is made of high-strength Q345 square tube with telescopic arm, reinforced double-layer large arm column, flashlight dual-purpose valve operation, dual hydraulic thickening oil cylinder lifting design, main arm oil cylinder, movable sleeve arm, sleeve arm oil cylinder, attached frame, flip frame, hydraulic rear support leg, locking frame, locking oil cylinder and multi way directional valve. The arm is equipped with telescopic function, balance valve hydraulic lock, English Papu plunger pump, integrated horizontal locking and safety limit installation, high-strength precision casting parts, and auxiliary beam with brackets on both sides to prevent the box from sliding.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
