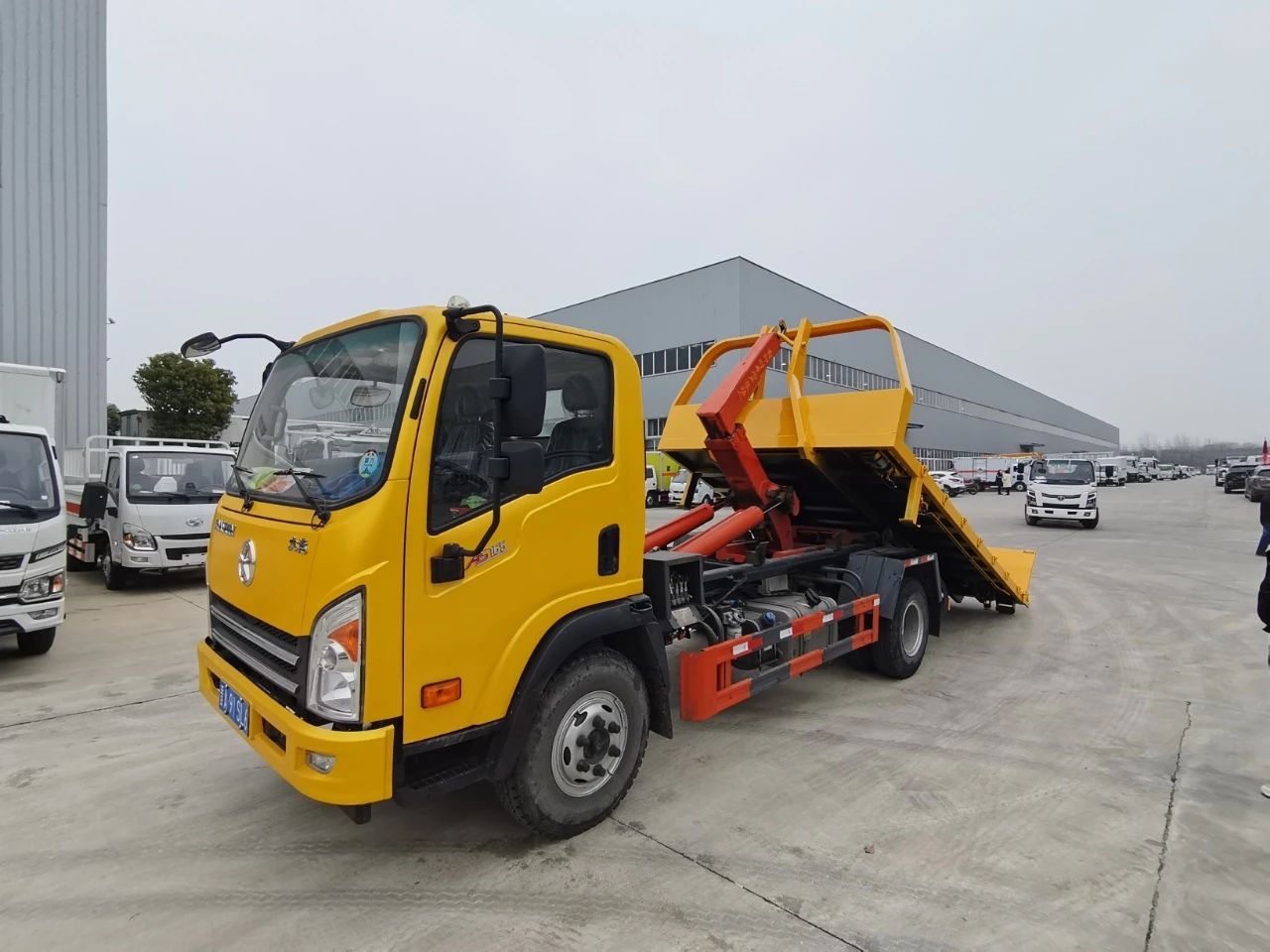

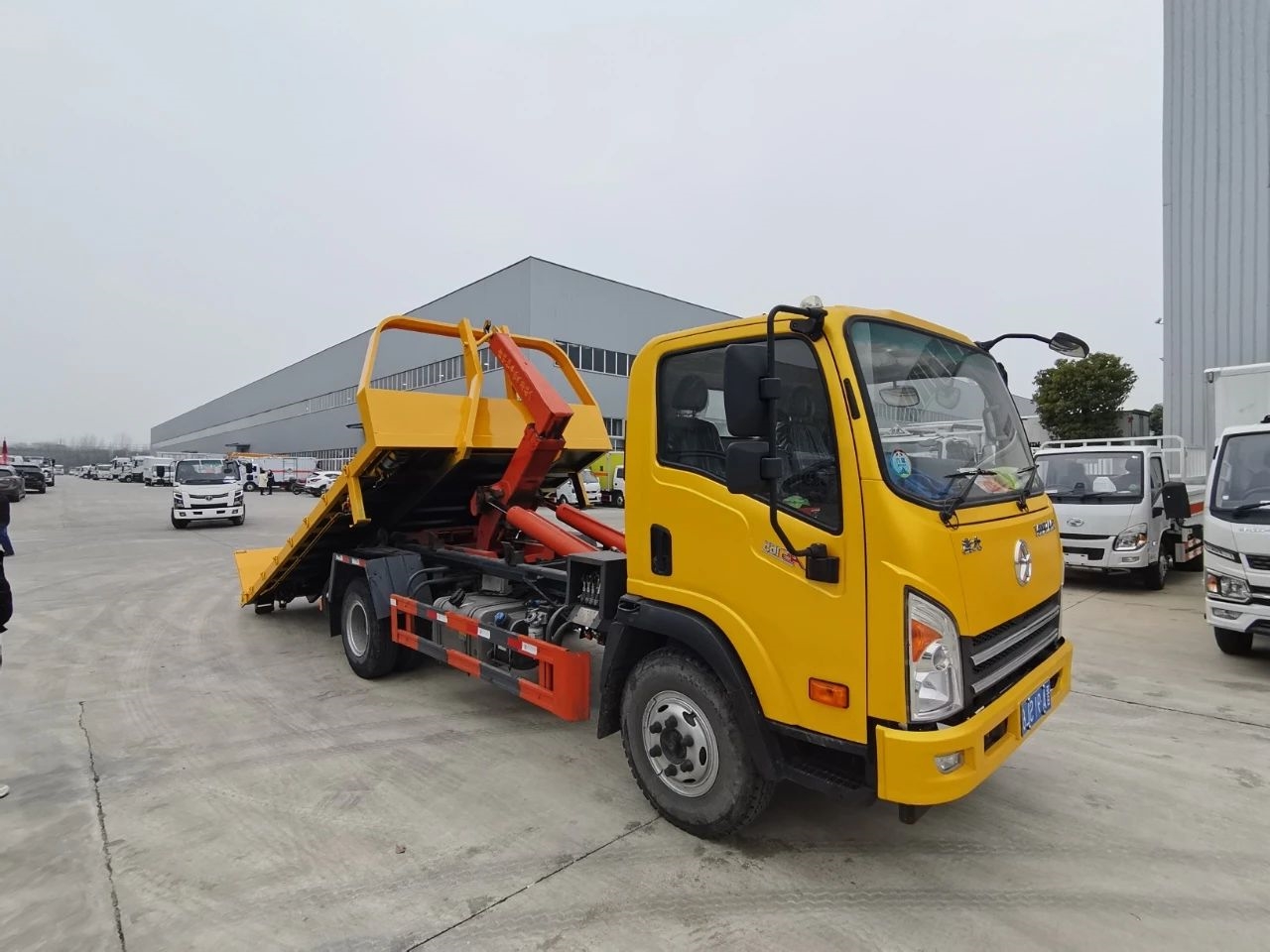

Dayun 4X2 Hook arm Garbage Truck

Chassis configuration:

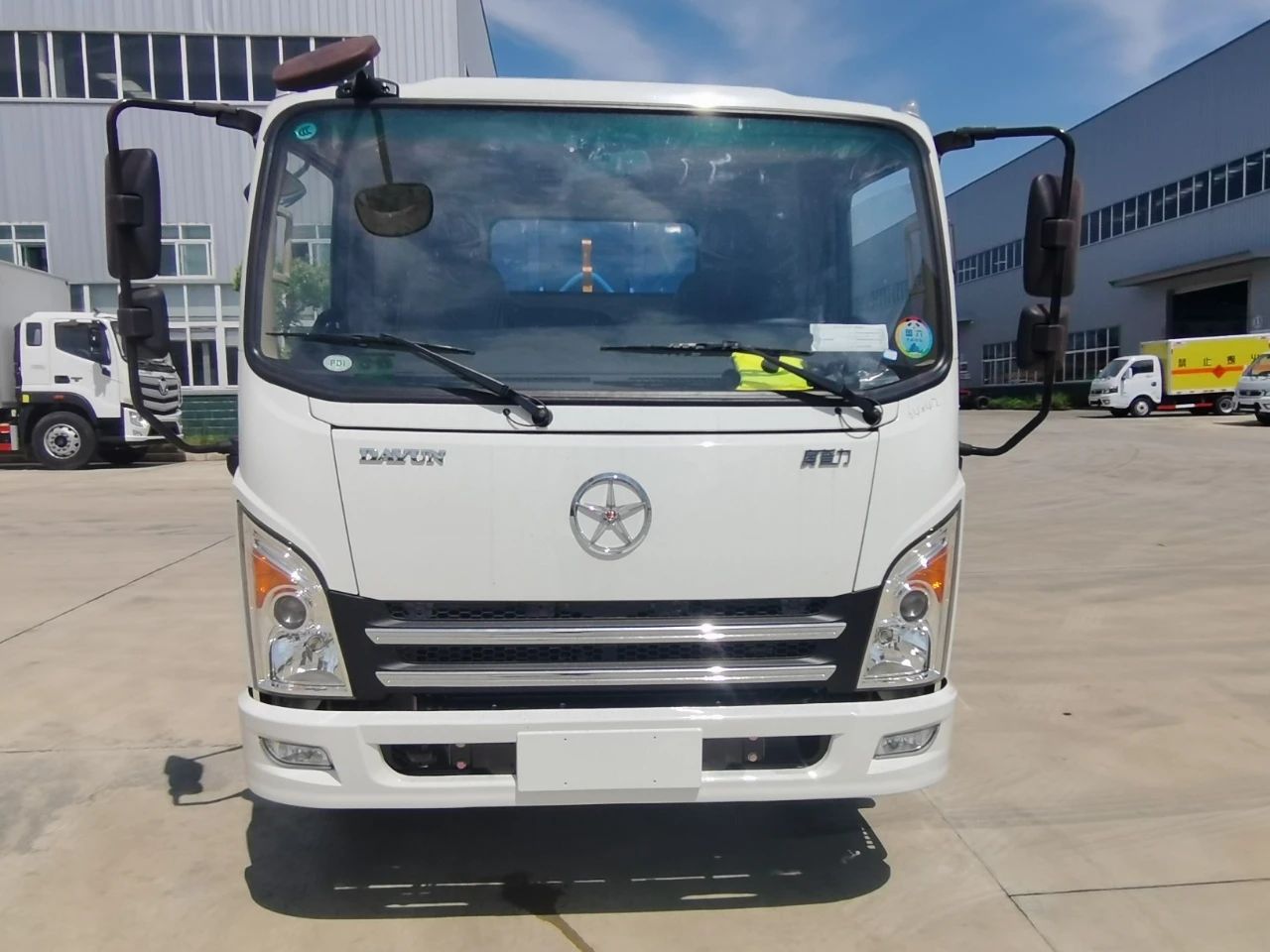

Cab: New Opli (1995mm)
Vehicle height: 2370/2420mm
Wheelbase: 3550mm
Engine: Yuchai 165 horsepower (YCY30165-60)
Transmission: Fast eight speed
Rear bridge: 1070 engineering type rear bridge
Tire: 8.25R16 8PR
Main beam: 200X7mm
Note: Original factory air conditioner, ABS, Remote key, central locking, electric doors and windows, air brake, directional assist, aluminum alloy fuel tank

Product Name： Dayun 4X2 Hook arm Garbage Truck
Driving Type： 4X2
Gross vehicle weight(Kg)： 11200(Kg)
Curb weight(Kg)： 4335,4550,4765(Kg)

Product Features

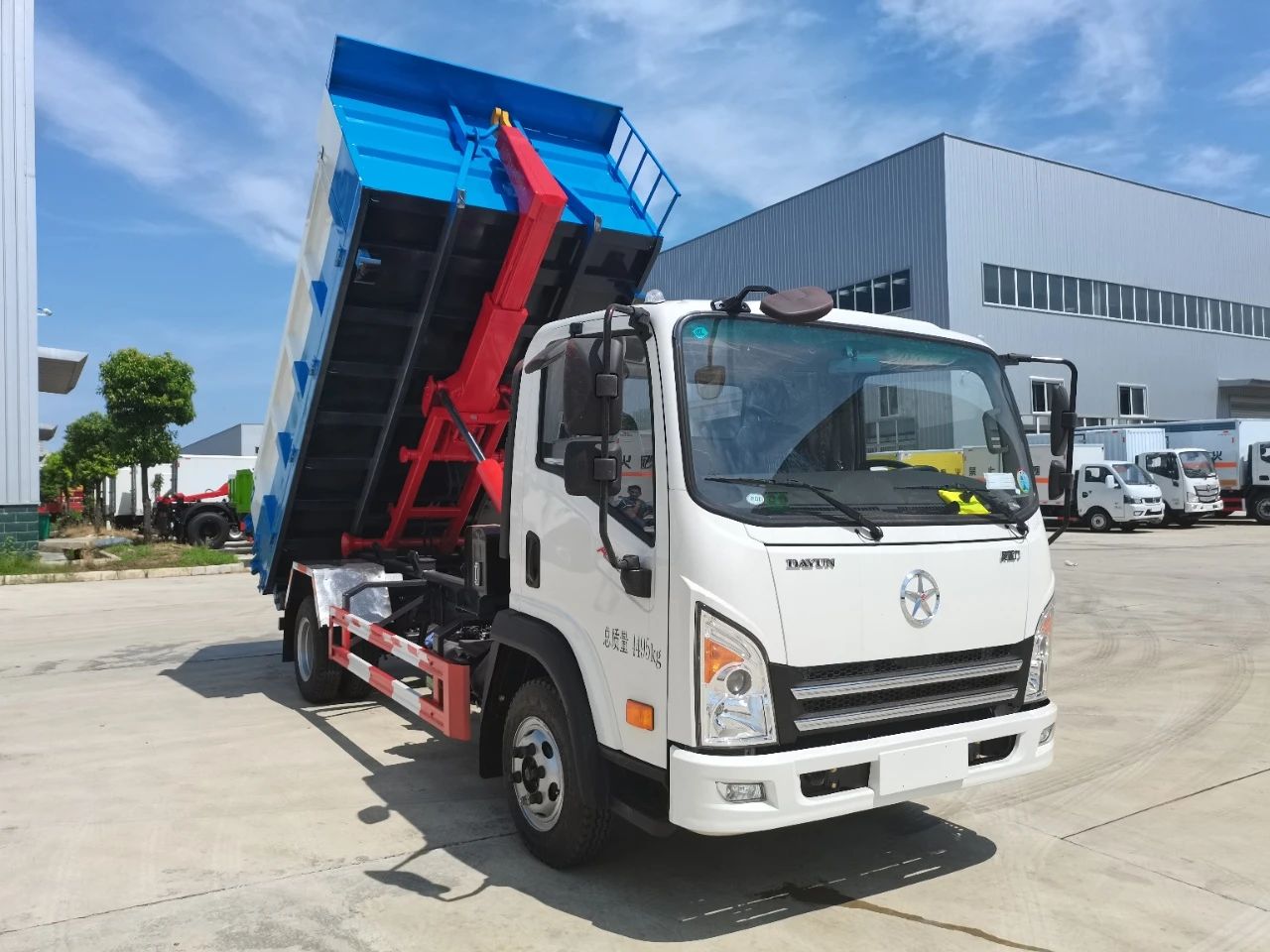

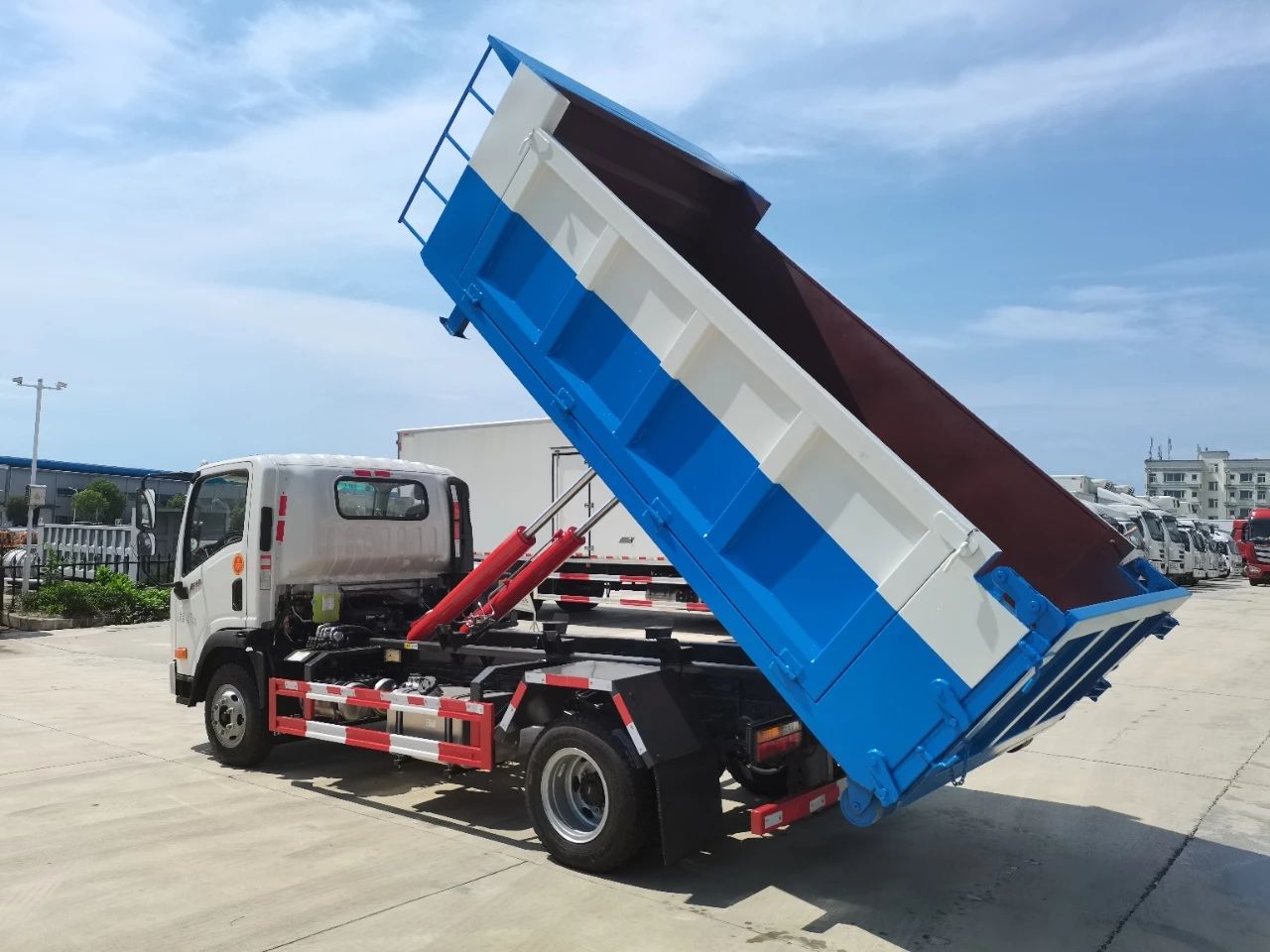

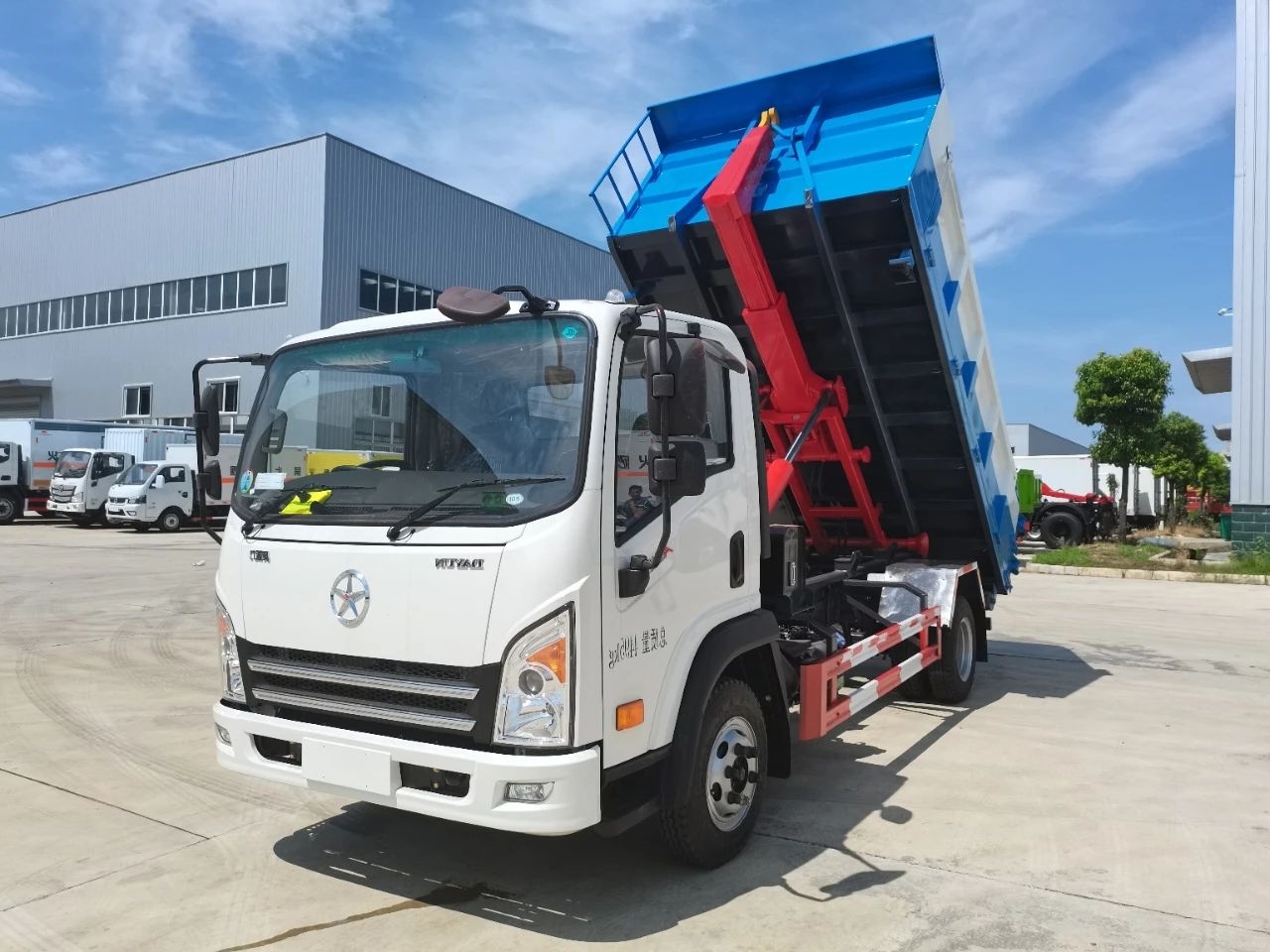

Dayun 4X2 Hook arm Garbage Truck

Hook arm garbage truck, also known as a detachable garbage truck, is a type of garbage truck. Mainly suitable for collecting and transporting various types of garbage in municipal sanitation, property management, large factories, industrial and mining areas, and other places.

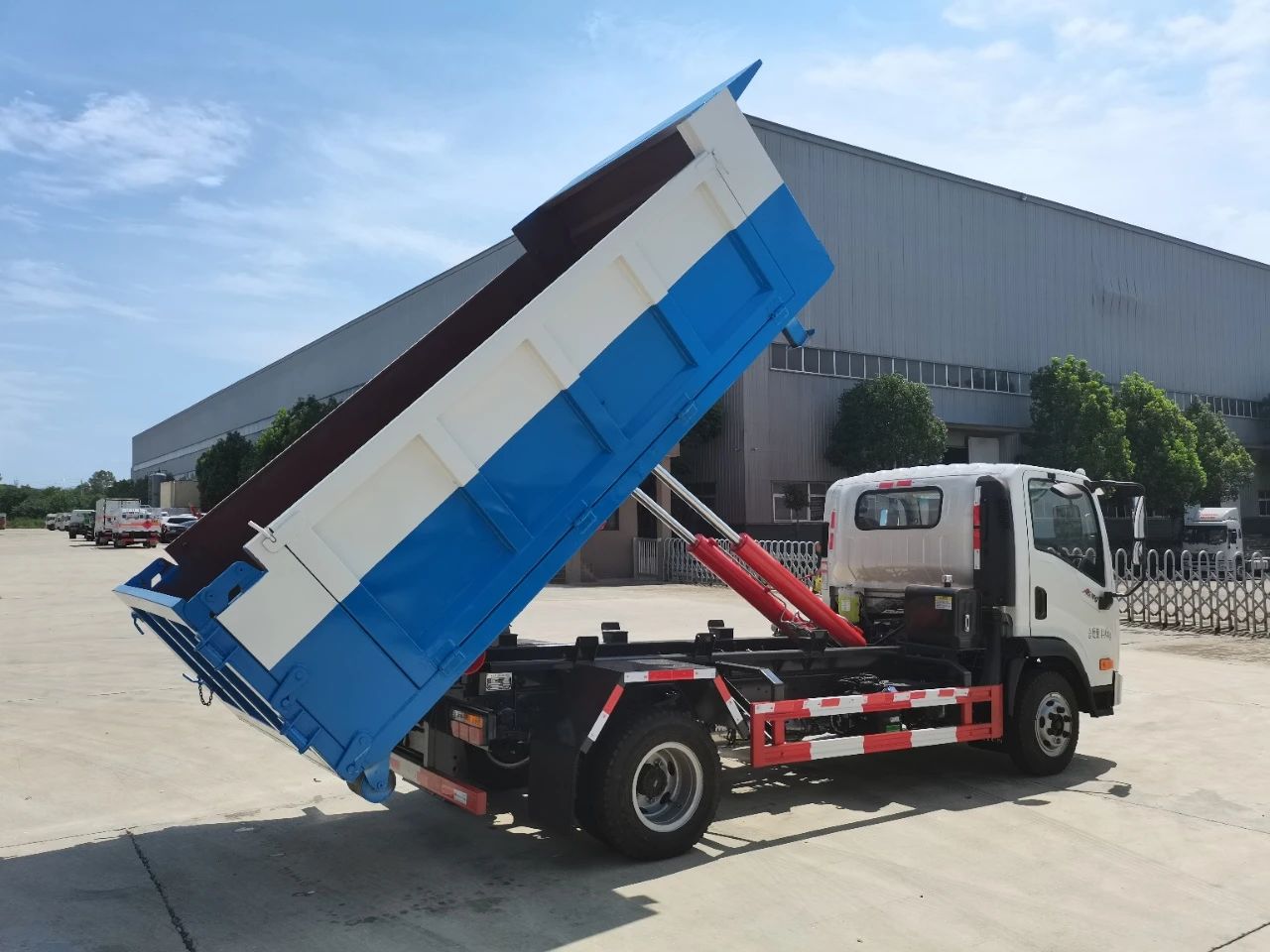

The hook arm garbage truck adopts a fully hydraulic control operating system, and the garbage compartment and chassis can be completely separated. It has the advantages of reasonable structure, easy operation, stability, high efficiency, good sealing performance, and convenient dumping. It can achieve joint operation of one vehicle and multiple garbage compartments, circular transportation, and fully improve the transportation capacity of the vehicle. Can carry multiple boxes in one car, efficient, energy-saving, and cost-effective.

Installation configuration:

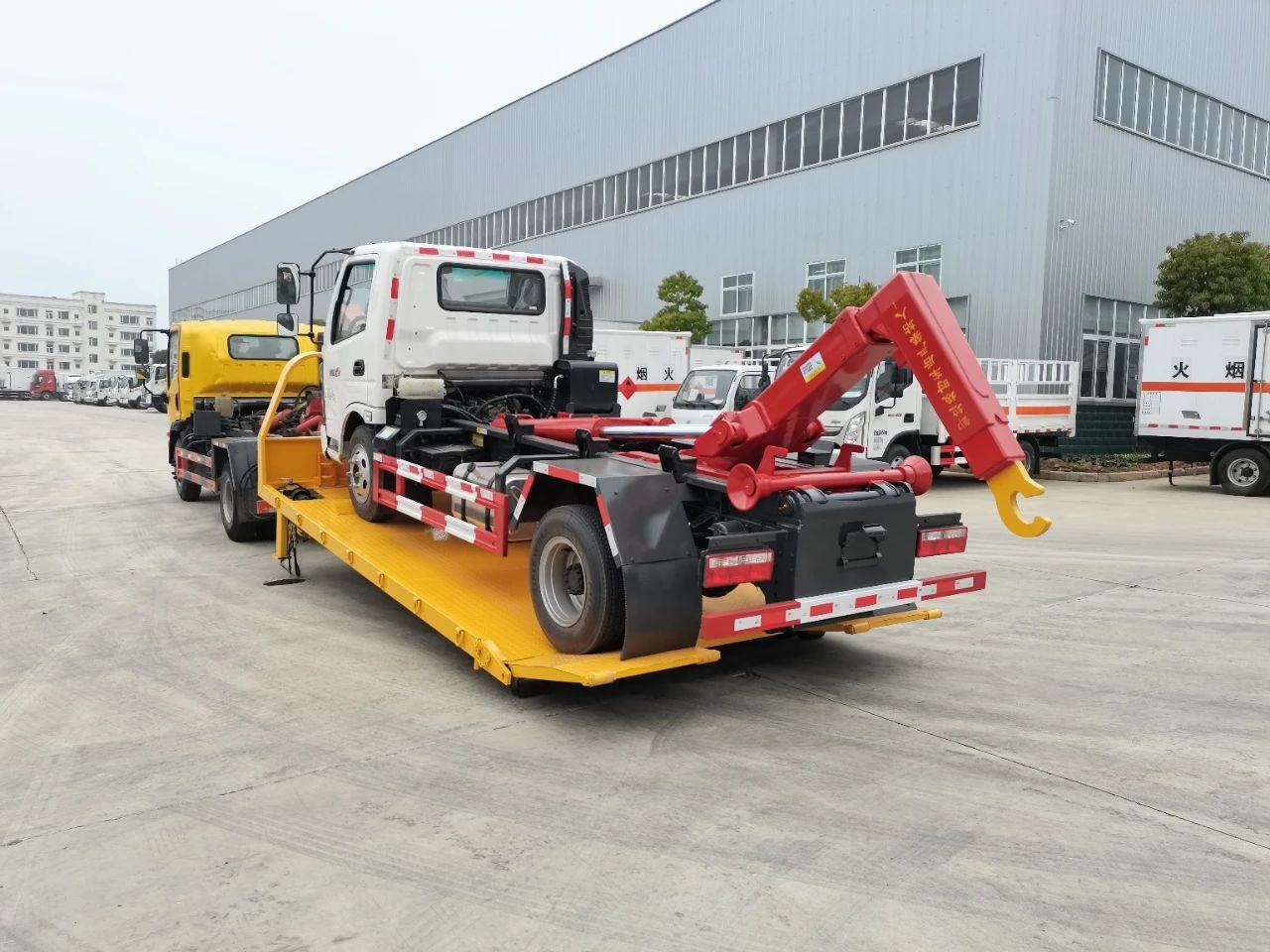

The upper part adopts a reinforced pull arm, and the main structure is made of high-strength Q460 square tube with telescopic arm. The flashlight dual-purpose valve is equipped with wireless remote control, and the double hydraulic oil cylinder lifting design is used. The main arm oil cylinder, movable sleeve arm, sleeve arm oil cylinder, attached frame, flip frame, hydraulic rear support leg, locking frame, locking oil cylinder and multi way directional valve are composed. The pull arm has telescopic function, integrated linkage locking and safety limit installation, high-strength precision casting parts, and the auxiliary beam has pulley brackets on both sides to effectively reduce resistance and improve work efficiency.

Product parameters

Product Name	Dayun 4X2 Hook arm Garbage Truck
Driving Type	4X2
Gross vehicle weight(Kg)	11200(Kg)
Curb weight(Kg)	4335,4550,4765(Kg)
Rated weight(kg)	6670,6735,6455,6520,6240,6305(Kg)
Wheelbase(mm)	3550(mm)
Overall Dimension(mm)	5550,5800,5900×2080,2180,2220,2340,2380×2190,2220,2270,2320,2400(mm)
Garbage container size(mm)	××(mm)
Engine brand & model	Yuchai 165 horsepower (YCY30165-60)
Axle Quantity	2
Transmission Type	FAST 8-speed
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	8.25R16 8PR, 6+1 spare
Cab	New Opli Cab (1995mm)
Garbage container material	High strength Q345 square tube made telescopic arm for the main structure
Standard configuration	Upper configuration: The main structure is made of high-strength Q345 square tube with telescopic arm, reinforced double-layer large arm column, flashlight dual-purpose valve operation, dual hydraulic thickening oil cylinder lifting design, main arm oil cylinder, movable sleeve arm, sleeve arm oil cylinder, attached frame, flip frame, hydraulic rear support leg, locking frame, locking oil cylinder and multi way directional valve. The arm is equipped with telescopic function, balance valve hydraulic lock, English Papu plunger pump, integrated horizontal locking and safety limit installation, high-strength precision casting parts, and auxiliary beam with brackets on both sides to prevent the box from sliding.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
