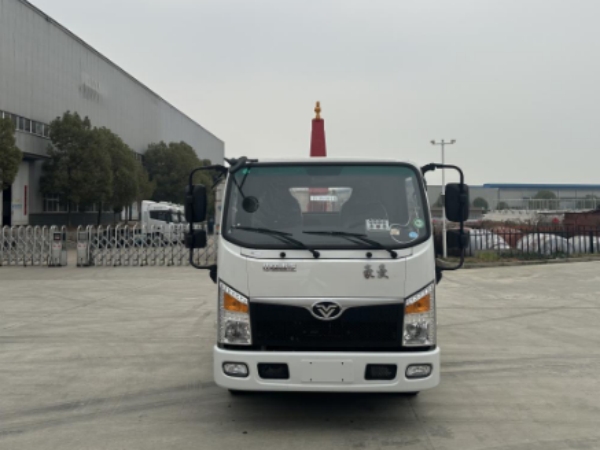

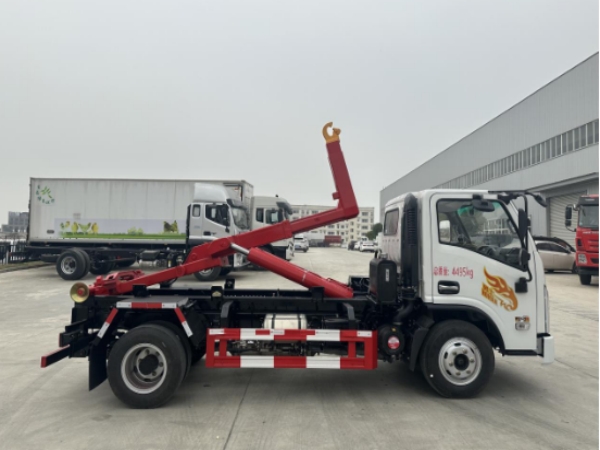

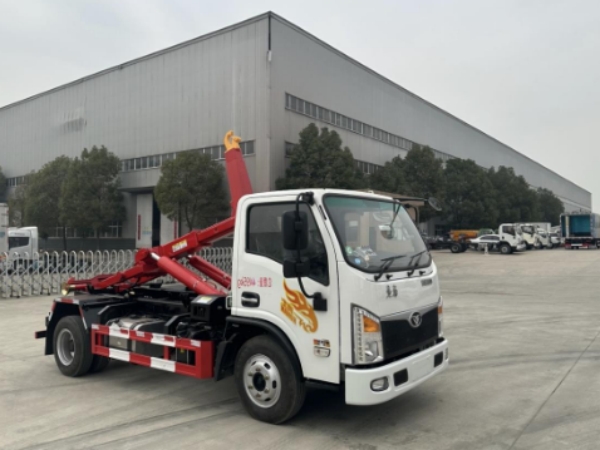

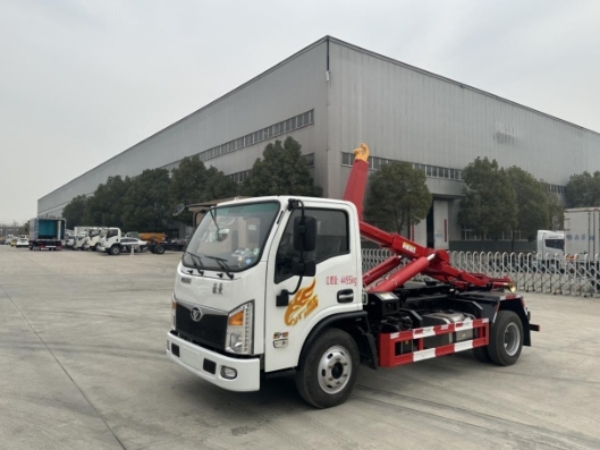

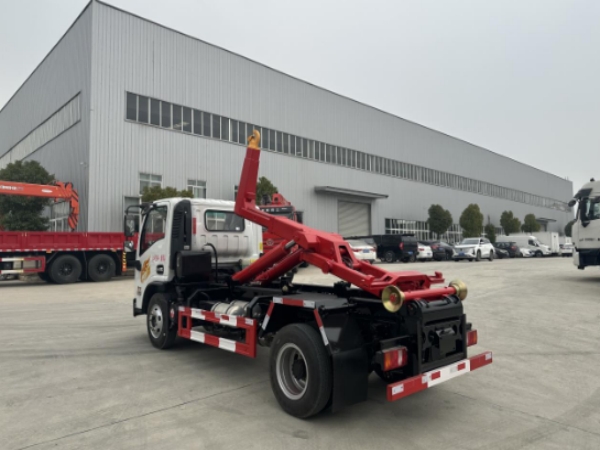

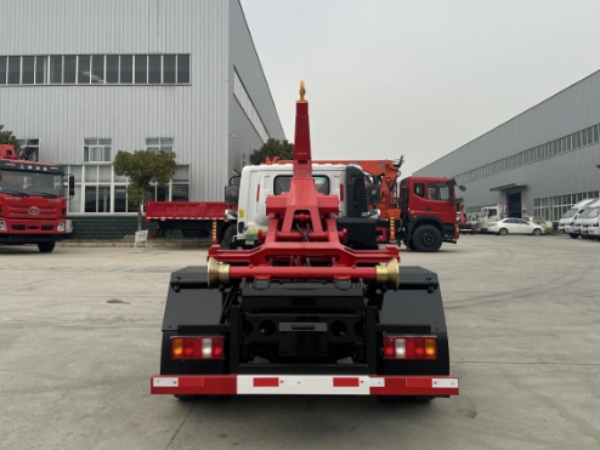

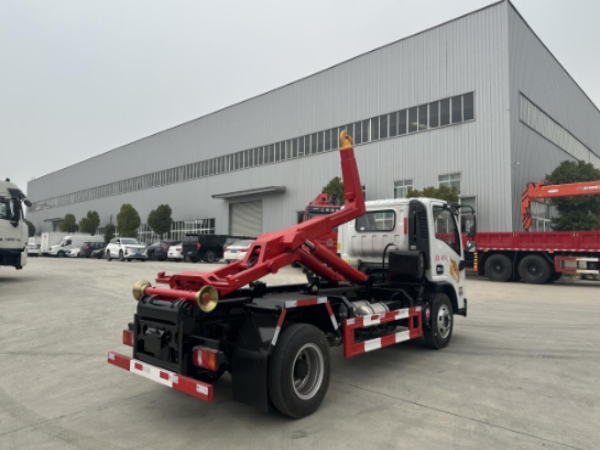

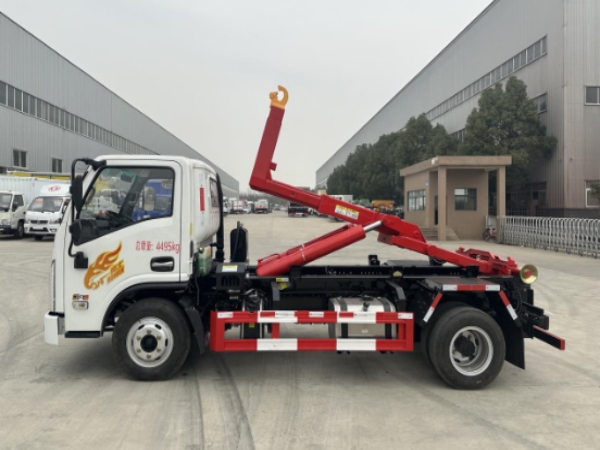

Sinotruk Haoman 4X2 Hook arm Garbage Truck

Chassis configuration:

1. Engine: WP2.5NQ160E61,Weichai 160hp, 118kw

2.Transmission type: Fast 8-speed gearbox

3.Wheelbase: 3280(mm)

4.Tyre: 11.00R20 18PR, 8+1 spare

5.Other: Sinotruk Haoman Cab

Product Name： Sinotruk Haoman 4X2 Hook arm Garbage Truck
Driving Type： 4X2
Gross vehicle weight(Kg)： 4495(Kg)
Curb weight(Kg)： 3450,3790(Kg)

Product Features

Sinotruk Haoman 4X2 Hook arm Garbage Truck

Hook arm garbage truck, also known as a detachable garbage truck, is a type of garbage truck. Mainly suitable for collecting and transporting various types of garbage in municipal sanitation, property management, large factories, industrial and mining areas, and other places.
The hook arm garbage truck adopts a fully hydraulic control operating system, and the garbage compartment and chassis can be completely separated. It has the advantages of reasonable structure, easy operation, stability, high efficiency, good sealing performance, and convenient dumping. It can achieve joint operation of one vehicle and multiple garbage compartments, circular transportation, and fully improve the transportation capacity of the vehicle. Can carry multiple boxes in one car, efficient, energy-saving, and cost-effective.

Installation configuration of Sinotruk Haoman 4X2 Hook arm Garbage Truck
The main structure consists of a high-strength square tube made telescopic arm, a flashlight dual-use valve with wireless remote control, a dual hydraulic oil cylinder lifting design, a main arm oil cylinder, a movable sleeve arm, a sleeve arm oil cylinder, an attached frame, a flip frame, a hydraulic rear support leg, a locking frame, a locking oil cylinder, and a multi way directional valve. The telescopic arm has a telescopic function, an integrated linkage locking and safety limit installation, high-strength precision castings, and a bracket on both sides of the auxiliary beam to prevent the box from sliding.

Product parameters

Product Name	Sinotruk Haoman 4X2 Hook arm Garbage Truck
Driving Type	4X2
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	3450,3790(Kg)
Rated weight(kg)	850,915,575,510(Kg)
Wheelbase(mm)	3280(mm)
Overall Dimension(mm)	4985,5510,5590×1930,1980×2150,2180,2100(mm)
Garbage container size(mm)	××(mm)
Engine brand & model	WP2.5NQ160E61,Weichai 160hp, 118kw
Axle Quantity	2
Transmission Type	Fast 8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16LT 8PR, 6+1 spare
Cab	Sinotruk Haoman Cab
Garbage container material	High strength Q345 square tube made telescopic arm for the main structure
Standard configuration	Upper configuration: The main structure is made of high-strength Q345 square tube with telescopic arm, reinforced double-layer large arm column, flashlight dual-purpose valve operation, dual hydraulic thickening oil cylinder lifting design, main arm oil cylinder, movable sleeve arm, sleeve arm oil cylinder, attached frame, flip frame, hydraulic rear support leg, locking frame, locking oil cylinder and multi way directional valve. The arm is equipped with telescopic function, balance valve hydraulic lock, English Papu plunger pump, integrated horizontal locking and safety limit installation, high-strength precision casting parts, and auxiliary beam with brackets on both sides to prevent the box from sliding.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
