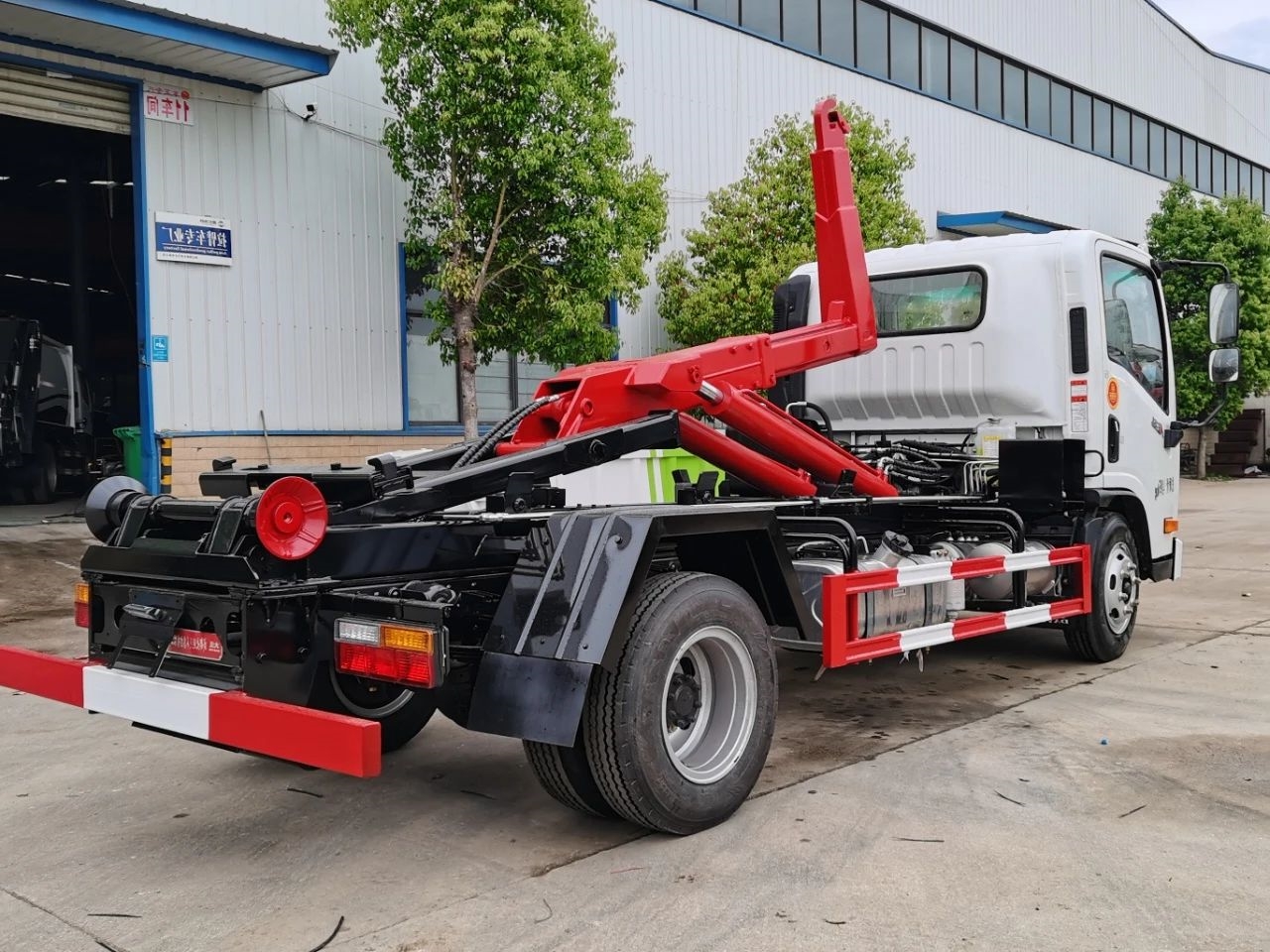

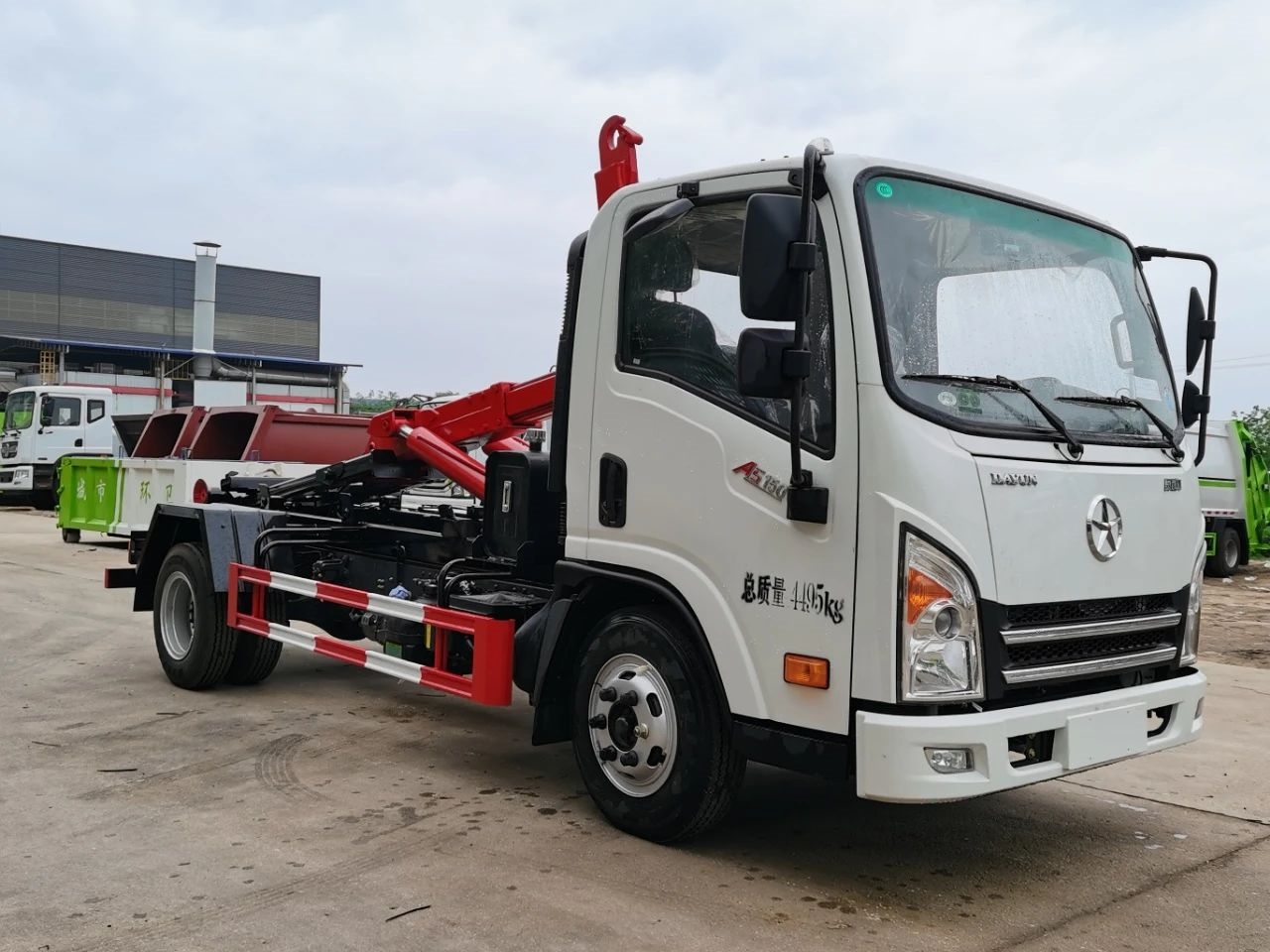

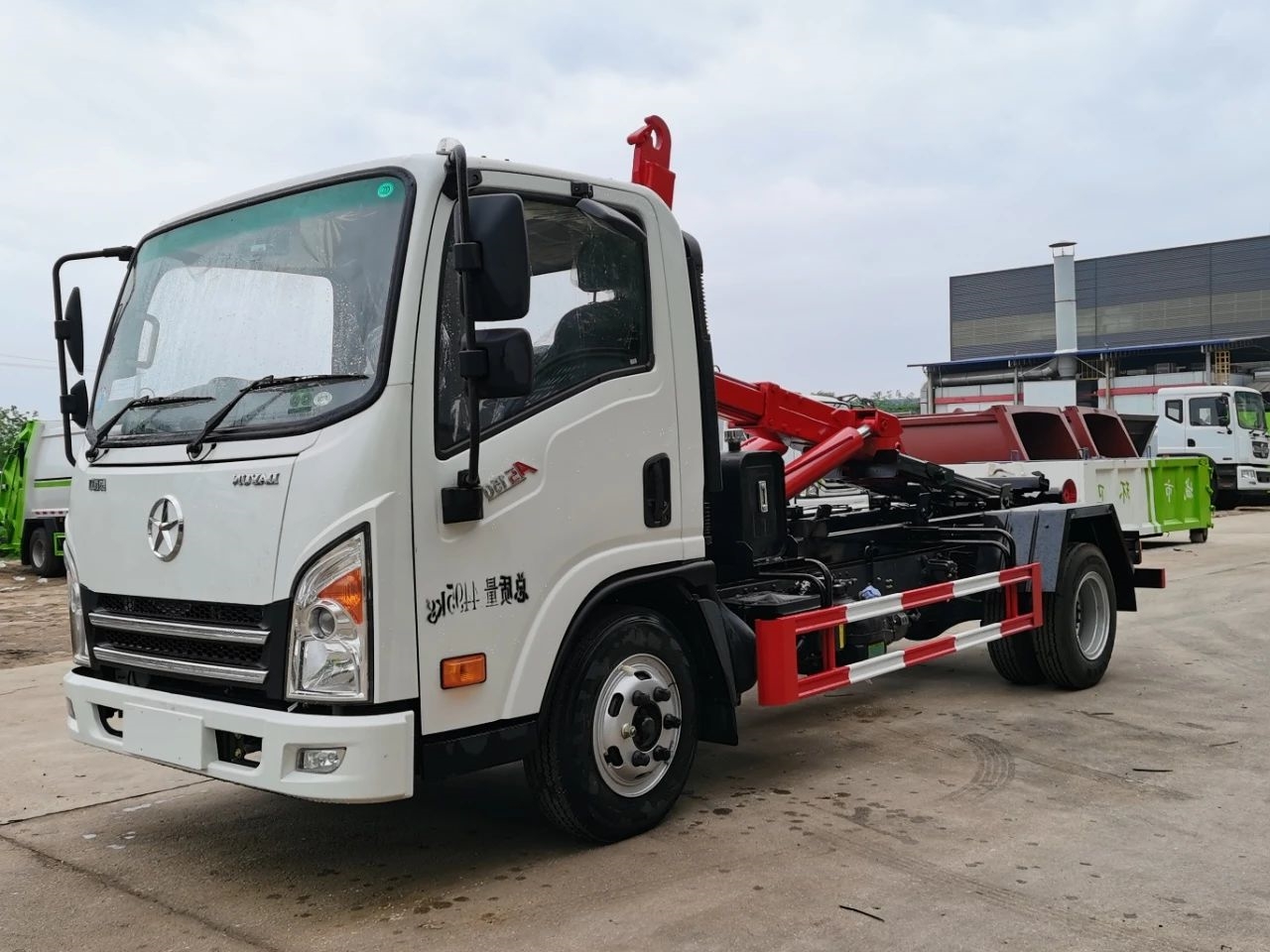

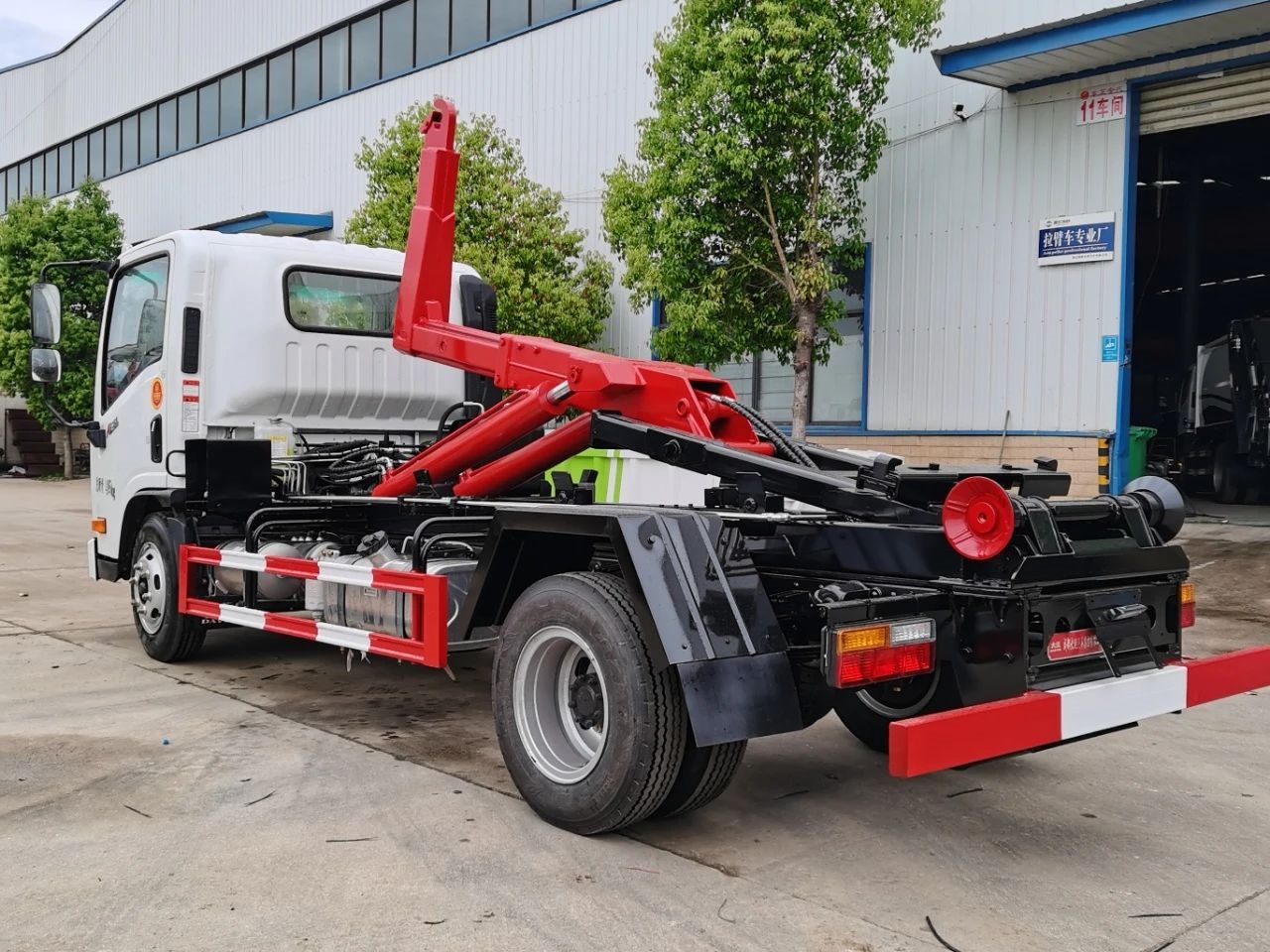

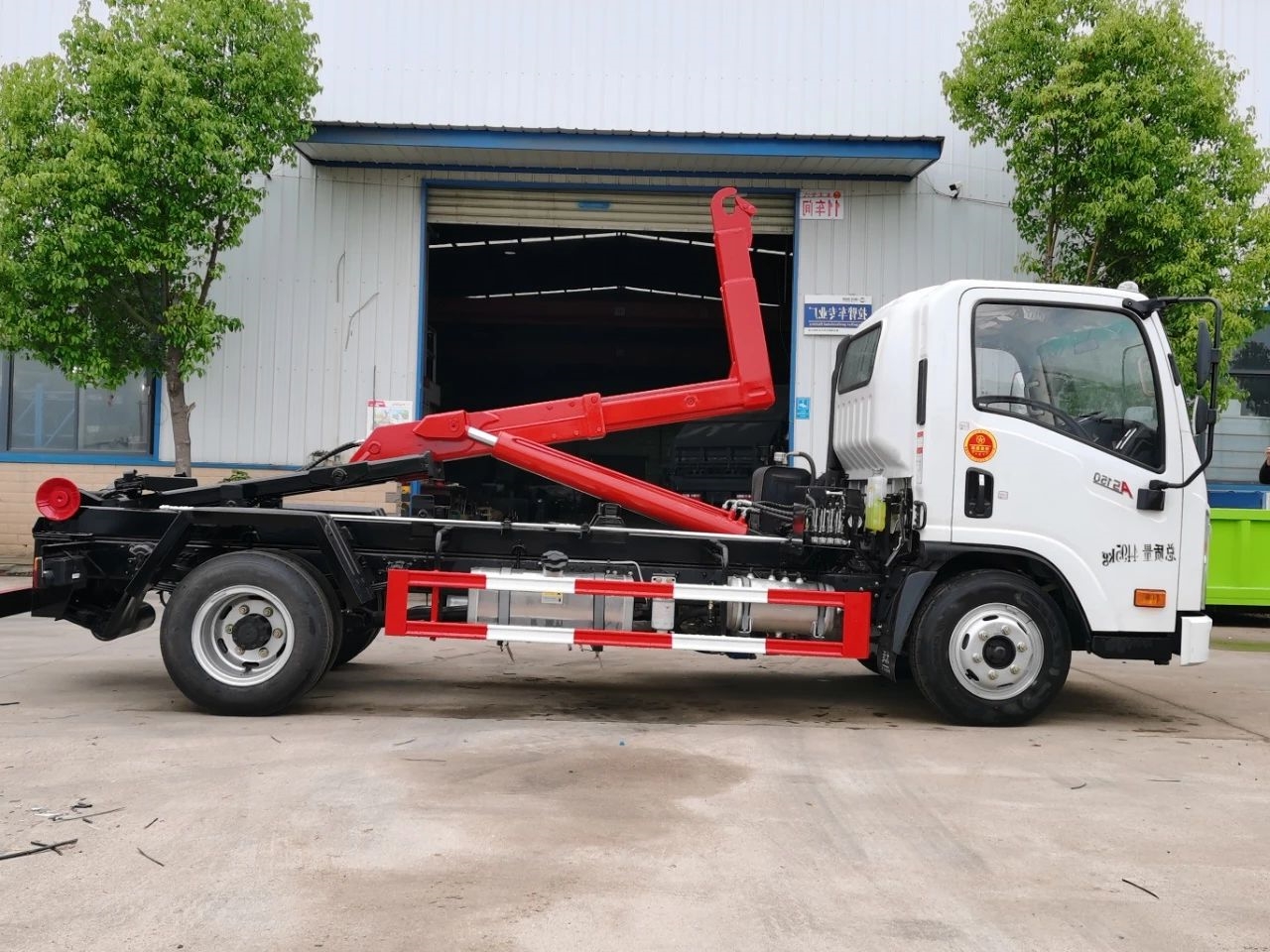

Dayun 4x2 basement detachable garbage truck

Chassis configuration:
Wheelbase: 3550mm
Engine: Yunnei 150 horsepower (D25TCIF1)
Transmission: Wanliyang 8-speed
Rear bridge: 1080 engineering type rear bridge
Tire: 7.00R16 8PR
Main beam: double-layer main beam 200X (4.5+3mm)
Curb weight: 3865 (Kg)
Chassis weight: 2600KG
Remarks: Original power take-off, remote key, central control lock, electric doors and windows, air brake, directional assist, aluminum alloy fuel tank, can enter the basement
[Function and Usage]
1. It is possible to transport construction waste (household waste) in the basement.
2 . Transport of sand and gravel materials in the engineering fleet!
3. One vehicle can carry multiple garbage bins,

Product Name： Dayun 4x2 basement detachable garbage truck
Driving Type： 4x2

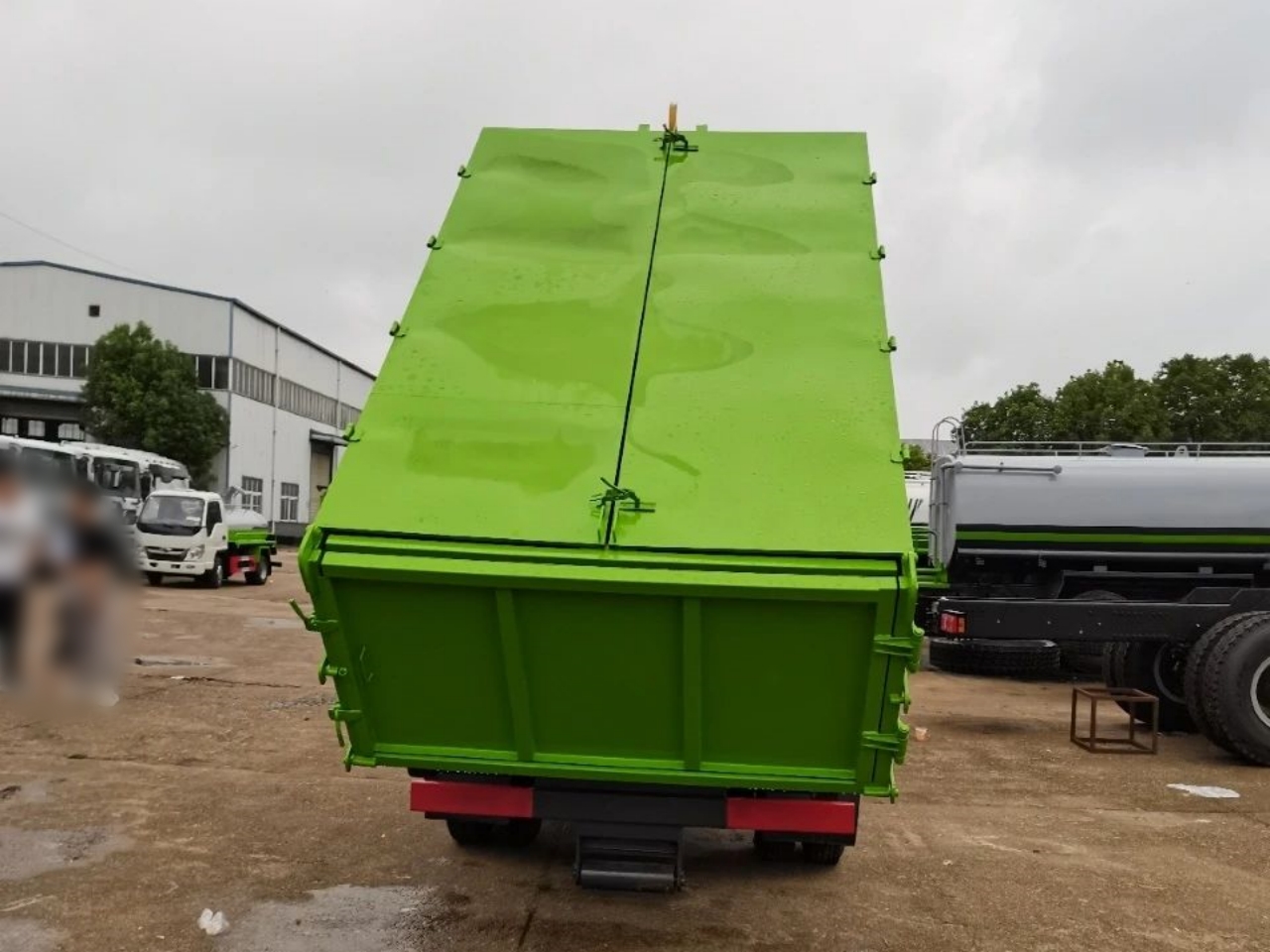

Garbage container size(mm)： 3500×1900×900(mm)
Gross vehicle weight(Kg)： 4495(Kg)

Product Features

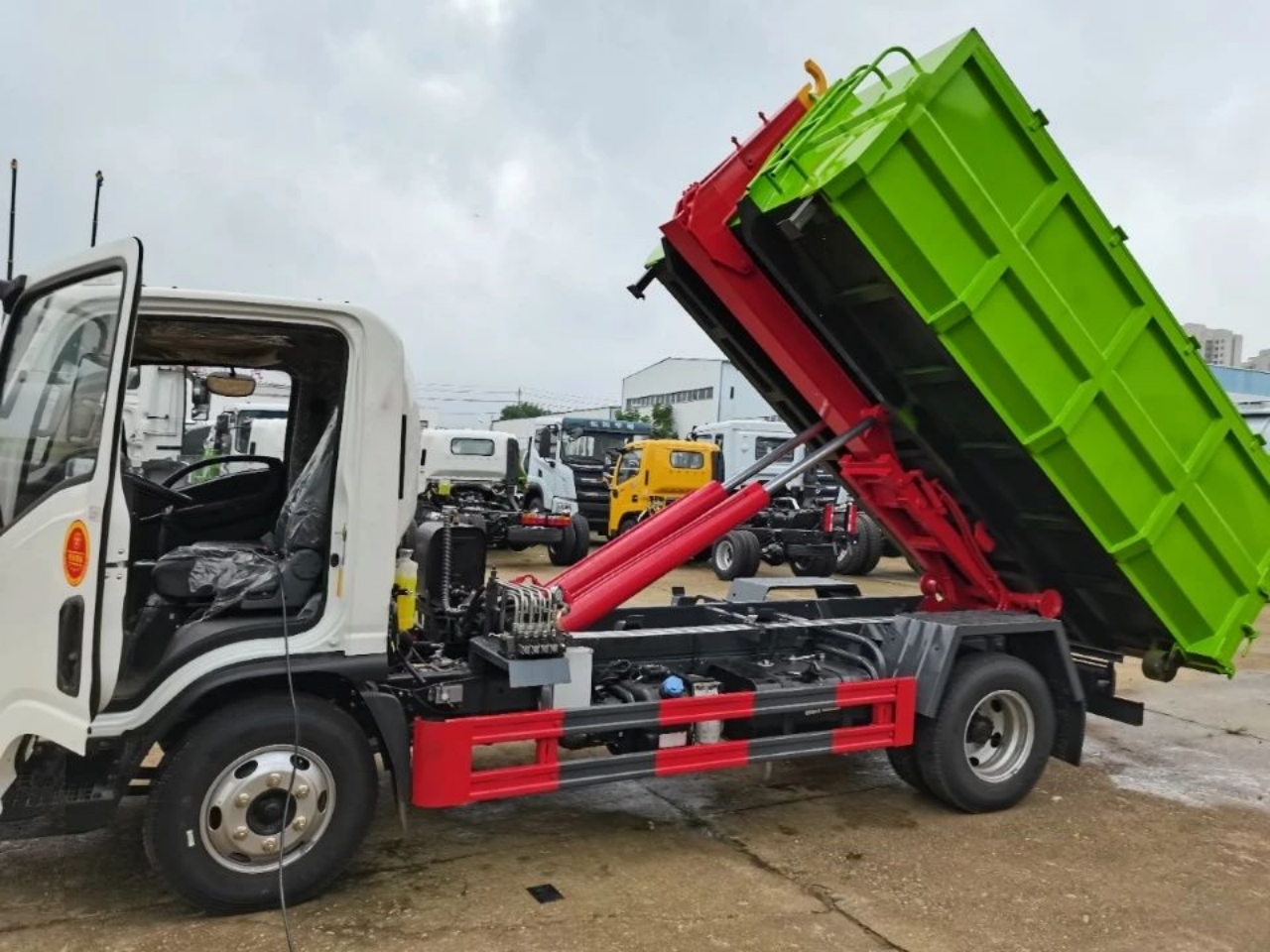

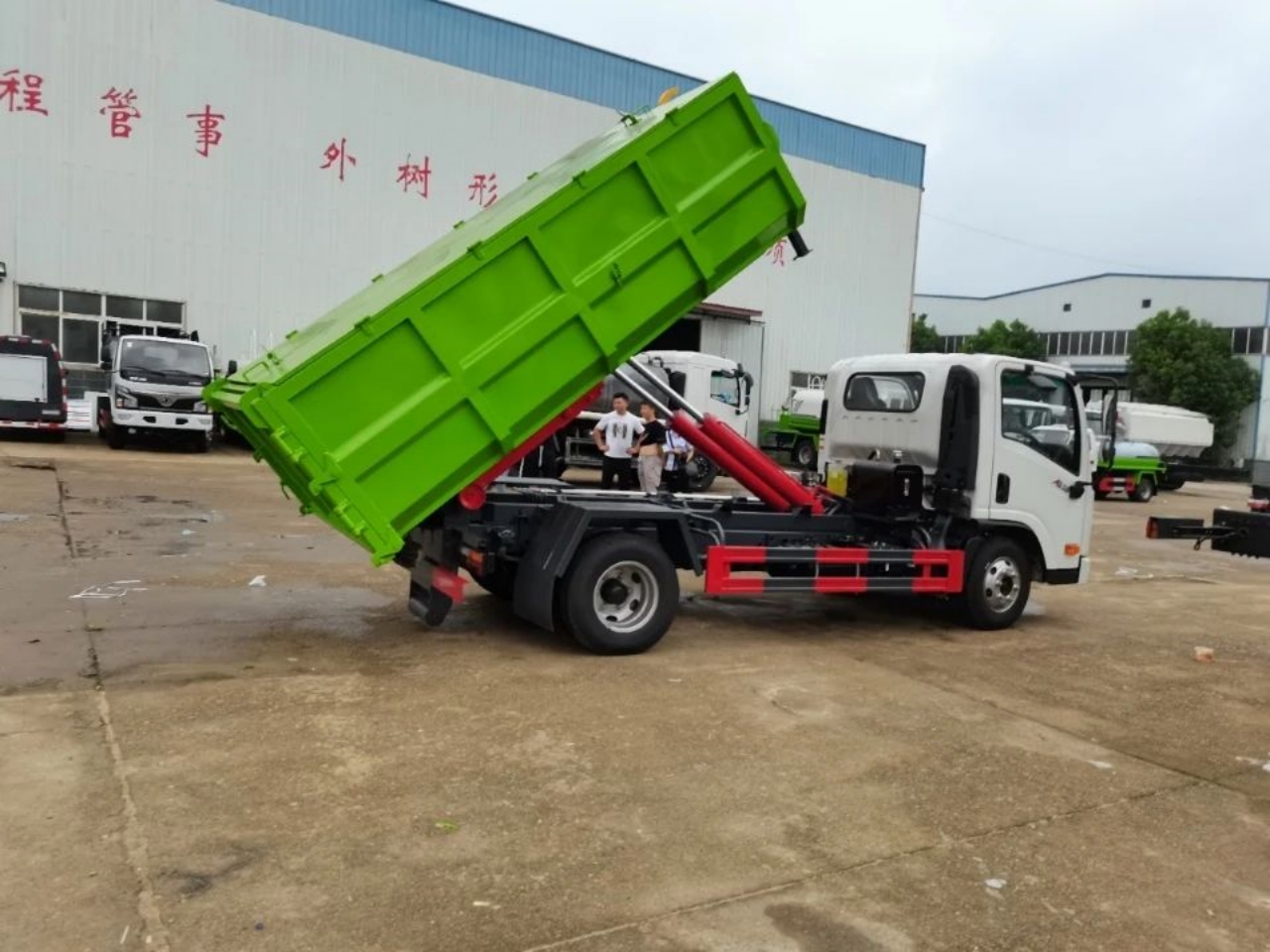

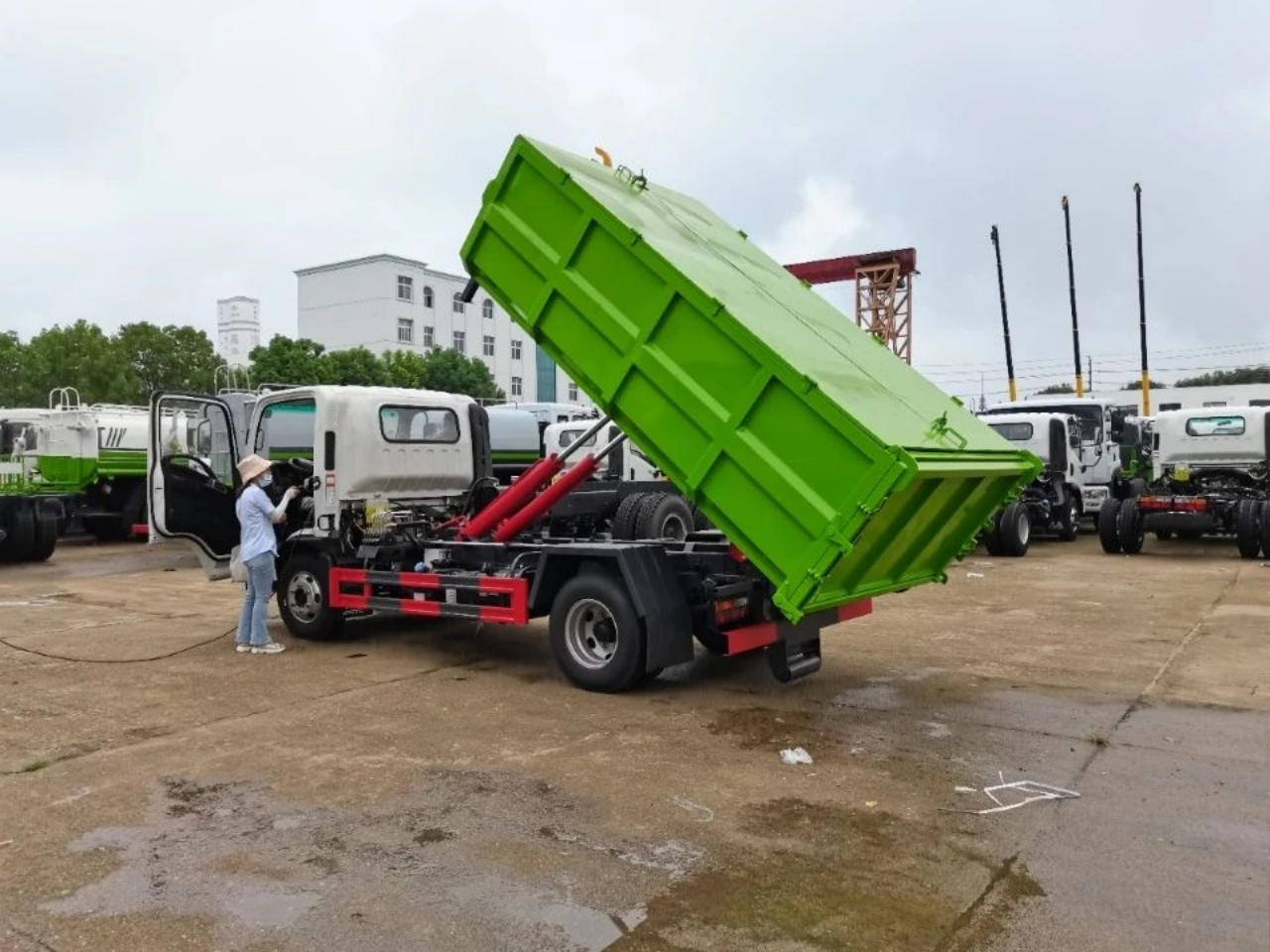

The detachable garbage truck, also known as hook arm garbage truck, is a type of environmental sanitation equipment that uses high-tech design and extendable hook arms to achieve secondary lifting of the garbage truck, self lifting and self dumping of garbage. The design of this vehicle aims to improve the efficiency of garbage collection and transportation, reduce manpower requirements, and lower the risk of secondary pollution.

Installation configuration of Dayun 4x2 basement detachable garbage truck

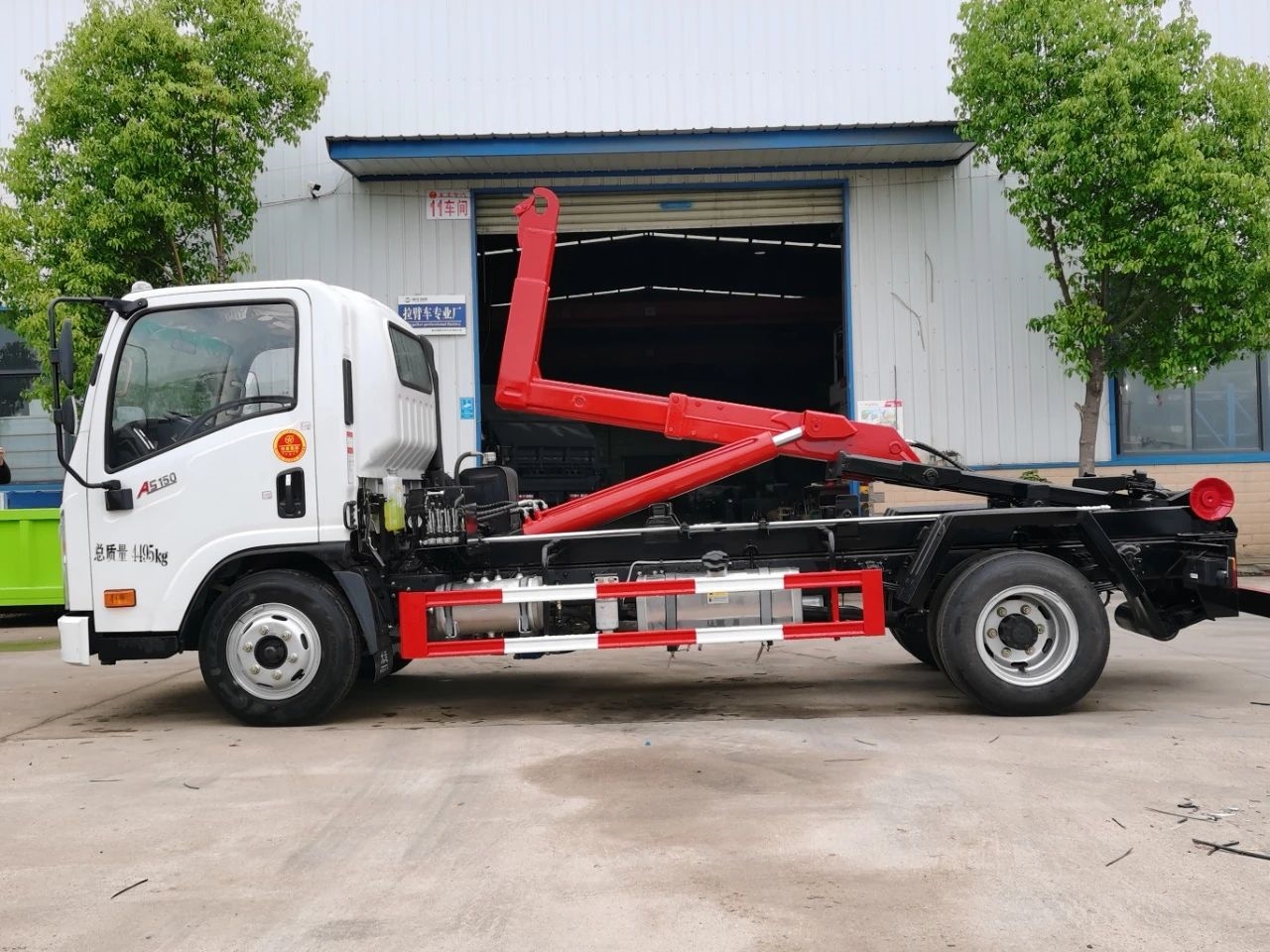

The main structure is made of high-strength Q460 square tube telescopic arm, with a flashlight dual-use valve with wireless remote control, hydraulic rear support leg, horizontal locking, integrated linkage locking and safety limit installation, high-strength precision casting parts, and auxiliary beams with brackets and guide wheels on both sides to prevent the box from sliding Others are standard in the factory
Product parameters

Product Name	Dayun 4x2 basement detachable garbage truck
Driving Type	4x2
Garbage container size(mm)	3500×1900×900(mm)
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	3750,3850,3950(Kg)
Rated weight(kg)	615,550,515,450,415,350(Kg)
Wheelbase(mm)	3550mm
Overall Dimension(mm)	5550,5800×2080,2180,2220,2340,2360,2470×2220,2270,2320,2370,2420,2600,2190(mm)
Engine brand & model	D25TCIF1, Yunnei 150 hp
Axle Quantity	2
Transmission Type	Wanliyang 8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16 8PR, 6+1 spare
Cab	New Opli cab (1835mm)
Garbage container material	Manganese steel and high-strength steel
Standard configuration	The main structure is made of high-strength Q460 square tube telescopic arm, with a flashlight dual-use valve with wireless remote control, hydraulic rear support leg, horizontal locking, integrated linkage locking and safety limit installation, high-strength precision casting parts, and auxiliary beams with brackets and guide wheels on both sides to prevent the box from sliding Others are standard in the factory
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
