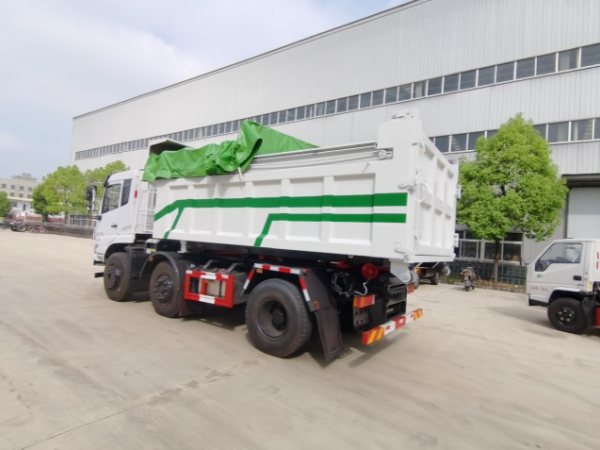

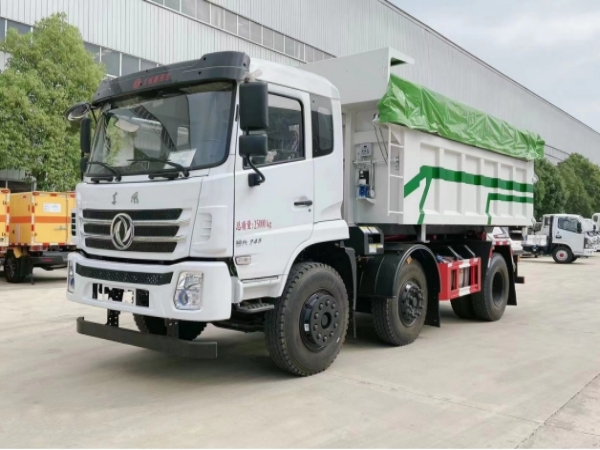

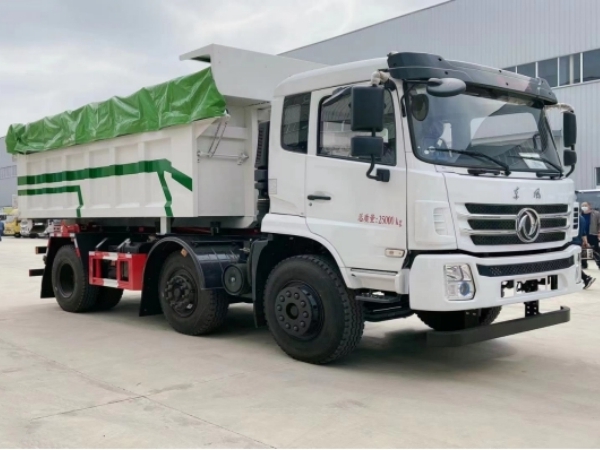

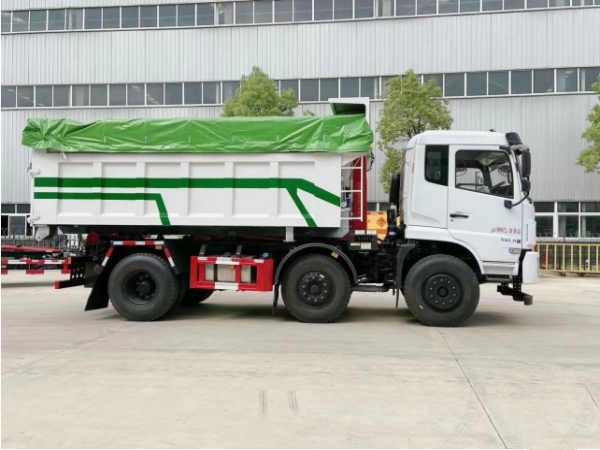

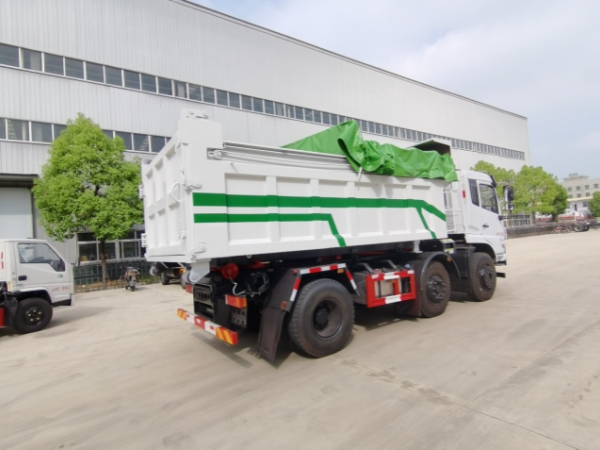

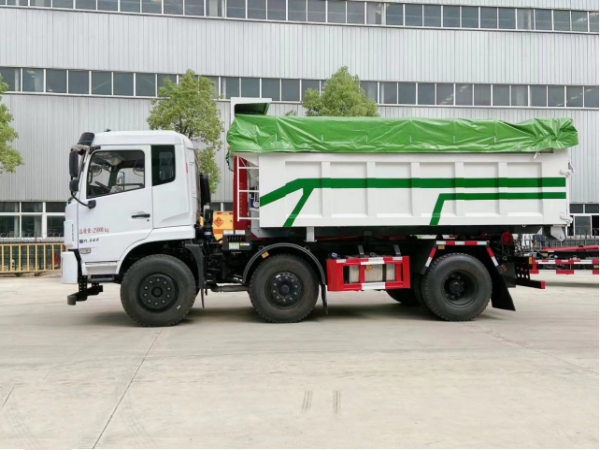

Dogfeng 6X2 hook arm garbage truck

Chassis configuration:
Adopting Dongfeng's original 6X2 chassis, National VI engine, Yuchai 245 horsepower, 1850+3200mm wheelbase, Dongfeng D17 cab, Fast 8JS105 gearbox, 5t dual front axle/13t rear axle, 11.00 steel wire tires, 280mm frame, air conditioning, airbag seats, central control, multifunctional steering wheel

Product Name： Dogfeng 6X2 hook arm garbage truck
Driving Type： 6X2
Gross vehicle weight(Kg)： 25000(Kg)
Curb weight(Kg)： 9600(Kg)

Product Features

Hook arm garbage truck, also known as a detachable garbage truck, is a type of garbage truck. Mainly suitable for collecting and transporting various types of garbage in municipal sanitation, property management, large factories, industrial and mining areas, and other places.

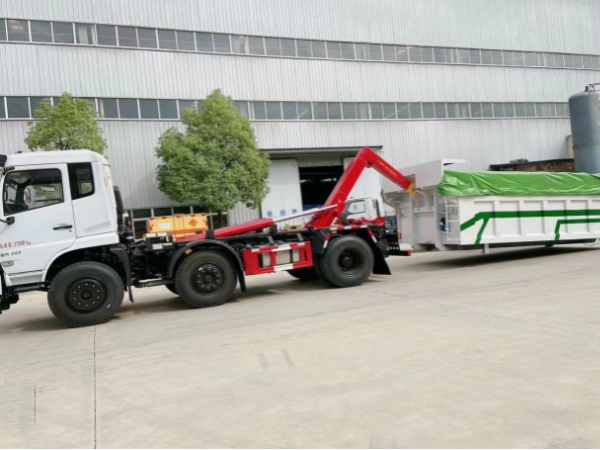

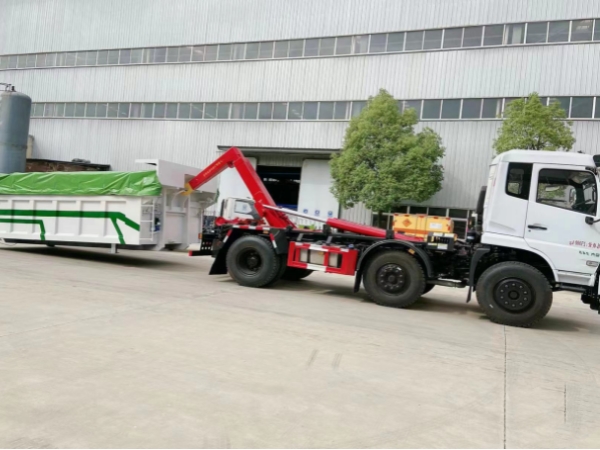

The hook arm garbage truck adopts a fully hydraulic control operating system, and the garbage compartment and chassis can be completely separated. It has the advantages of reasonable structure, easy operation, stability, high efficiency, good sealing performance, and convenient dumping. It can achieve joint operation of one vehicle and multiple garbage compartments, circular transportation, and fully improve the transportation capacity of the vehicle. Can carry multiple boxes in one car, efficient, energy-saving, and cost-effective.

Installation configuration of Dogfeng 6X2 hook arm garbage truck
Upper configuration: The main structure is made of high-strength Q345 square tube with telescopic arm, reinforced double-layer large arm column, flashlight dual-purpose valve operation, dual hydraulic thickening oil cylinder lifting design, main arm oil cylinder, movable sleeve arm, sleeve arm oil cylinder, attached frame, flip frame, hydraulic rear support leg, locking frame, locking oil cylinder and multi way directional valve. The arm is equipped with telescopic function, balance valve hydraulic lock, English Papu plunger pump, integrated horizontal locking and safety limit installation, high-strength precision casting parts, and auxiliary beam with brackets on both sides to prevent the box from sliding.
Product parameters

Product Name	Dogfeng 6X2 hook arm garbage truck
Driving Type	6X2
Gross vehicle weight(Kg)	25000(Kg)
Curb weight(Kg)	9600(Kg)
Rated weight(kg)	15205(Kg)
Wheelbase(mm)	1850+3200(mm)
Overall Dimension(mm)	7750×2550×3150(mm)
Garbage container size(mm)	××(mm)
Engine brand & model	YCS06245-60,Yuchai 245hp
Axle Quantity	3
Transmission Type	Fast 8JS105 gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	11.00 steel wire tire, 8+1 spare
Cab	Dongfeng D17 cab, air conditioning, airbag seats, center console, multifunctional steering wheel
Garbage container material	High strength Q345 square tube made telescopic arm for the main structure
Standard configuration	Upper configuration: The main structure is made of high-strength Q345 square tube with telescopic arm, reinforced double-layer large arm column, flashlight dual-purpose valve operation, dual hydraulic thickening oil cylinder lifting design, main arm oil cylinder, movable sleeve arm, sleeve arm oil cylinder, attached frame, flip frame, hydraulic rear support leg, locking frame, locking oil cylinder and multi way directional valve. The arm is equipped with telescopic function, balance valve hydraulic lock, English Papu plunger pump, integrated horizontal locking and safety limit installation, high-strength precision casting parts, and auxiliary beam with brackets on both sides to prevent the box from sliding.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
