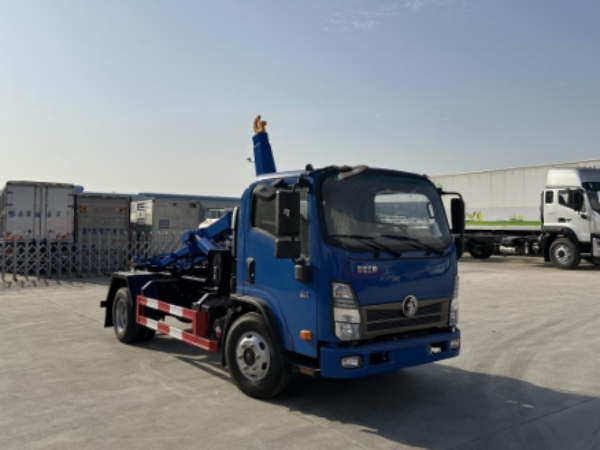

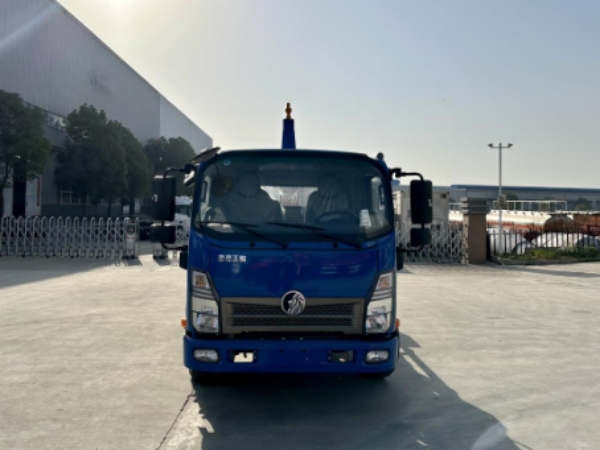

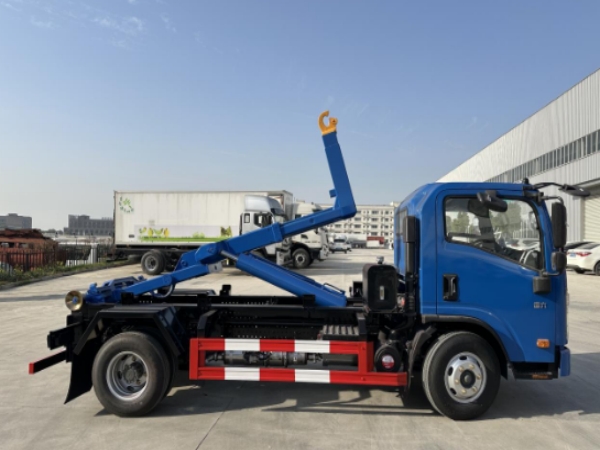

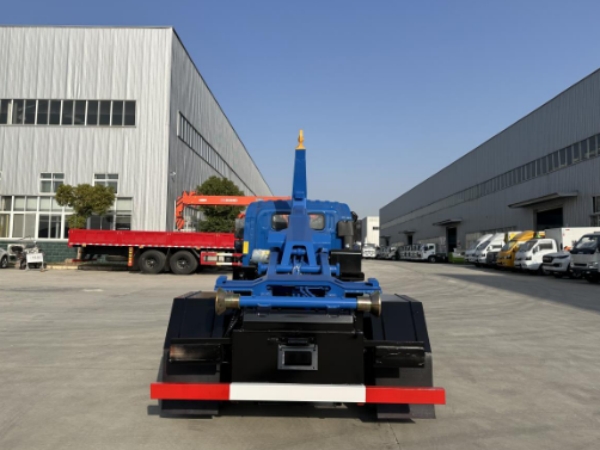

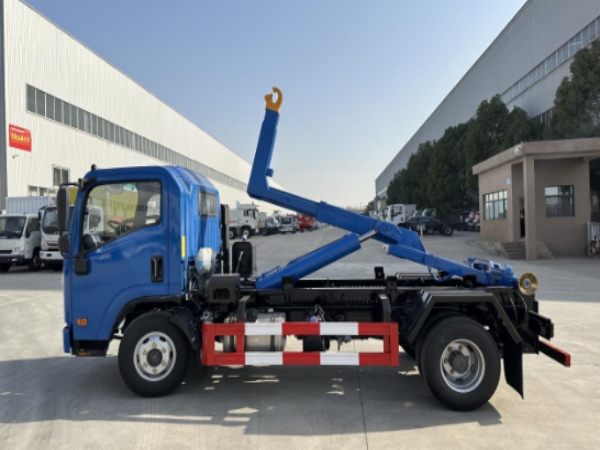

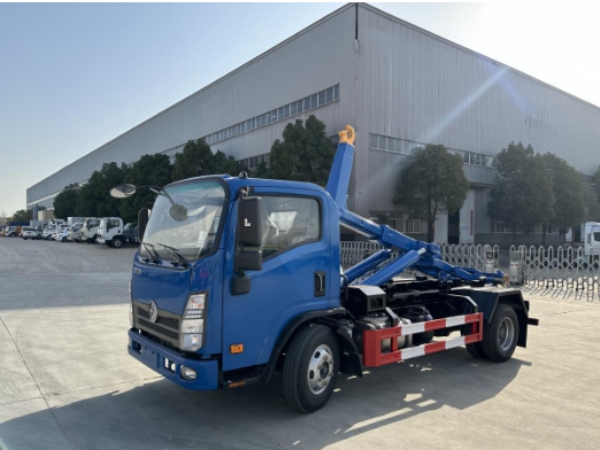

4X2 Sinotruk Wangpai Hook Arm Garbage Truck

Chassis configuration:
Wheelbase: 3360
Engine : Yuchai 150 horsepower
Transmission : Wanliyang 8-speed transmission
Chassis Standard : 760 cab, vehicle height 2.08, 8-ton rear axle, 7.00 steel wire tires,
200 direct engineering beams Original factory air conditioning, directional assistance, electric doors and windows, remote control key.
Product Highlights:
1. Adopting the aviation warehouse design concept, fully automated welding forming, 16 national patents
German style design, tall, grand, and upscale;
2. Adopting sedan style dual cathode electrophoretic primer technology and five layer top-level paint film process, it does not rust for five years and has a service life longer than competitors by more than two years;
3. Ace special large beam, the first patented single-layer large beam in China, made of high-strength manganese steel P610 material, formed by one-time rolling with a 5000 ton press machine, with high strength, no deformation, and higher market value retention rate; The reason why the competitor is a double-layer beam is that the pressure machine is below 3000 tons, and the pressure
Not enough, it needs to be pressed twice before riveting. Long time and heavy load can easily cause misalignment and deformation
4. Specialized chassis design, no need to modify chassis layout
5. Adopting the globally leading German Faux (V0SS) structure quick insertion system, it is leak proof and easy to maintain;
6. ABS adopts the industry's highest standard 4S4M system (4 ABS valves and 4 sensors), with 13cm widened brake pads on the front axle and 16cm widened brake pads on the rear axle, resulting in higher braking performance. The braking distance per hundred kilometers is shortened by 10 meters compared to competitors, and the safety performance is better;
7. Dedicated chassis, designed specifically for mountainous and hilly areas, with a short wheelbase, heavy-duty version, heavier weight than competitors, no tilting head, and good passability.

Product Name： 4X2 Sinotruk Wangpai Hook Arm Garbage Truck
Driving Type： 4x2
Garbage container volume(cbm)： 7-8
Rated payload weight(kg)： 1805(Kg)

Product Features

Hook arm garbage truck, also known as a detachable garbage truck, is a type of garbage truck. Mainly suitable for collecting and transporting various types of garbage in municipal sanitation, property management, large factories, industrial and mining areas, and other places.
The hook arm garbage truck adopts a fully hydraulic control operating system, and the garbage compartment and chassis can be completely separated. It has the advantages of reasonable structure, easy operation, stability, high efficiency, good sealing performance, and convenient dumping. It can achieve joint operation of one vehicle and multiple garbage compartments, circular transportation, and fully improve the transportation capacity of the vehicle. Can carry multiple boxes in one car, efficient, energy-saving, and cost-effective.

Product parameters

Product Name	4X2 Sinotruk Wangpai Hook Arm Garbage Truck
Driving Type	4x2
Garbage container volume(cbm)	7-8
Rated payload weight(kg)	1805(Kg)
Wheelbase(mm)	3360mm
Overall Dimension(mm)	5360,5570×2030,2080,2120,2130×2100,2150,2235,2240,2250(mm)
Engine brand & model	Yuchai 150hp, YCDV2561-150
Axle Quantity	2
Transmission Type	Wanliyang 8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16LT 8PR, 6 with a spare
Cab	760 cab
Garbage container material	Manganese steel and high-strength steel
Standard configuration	/
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
