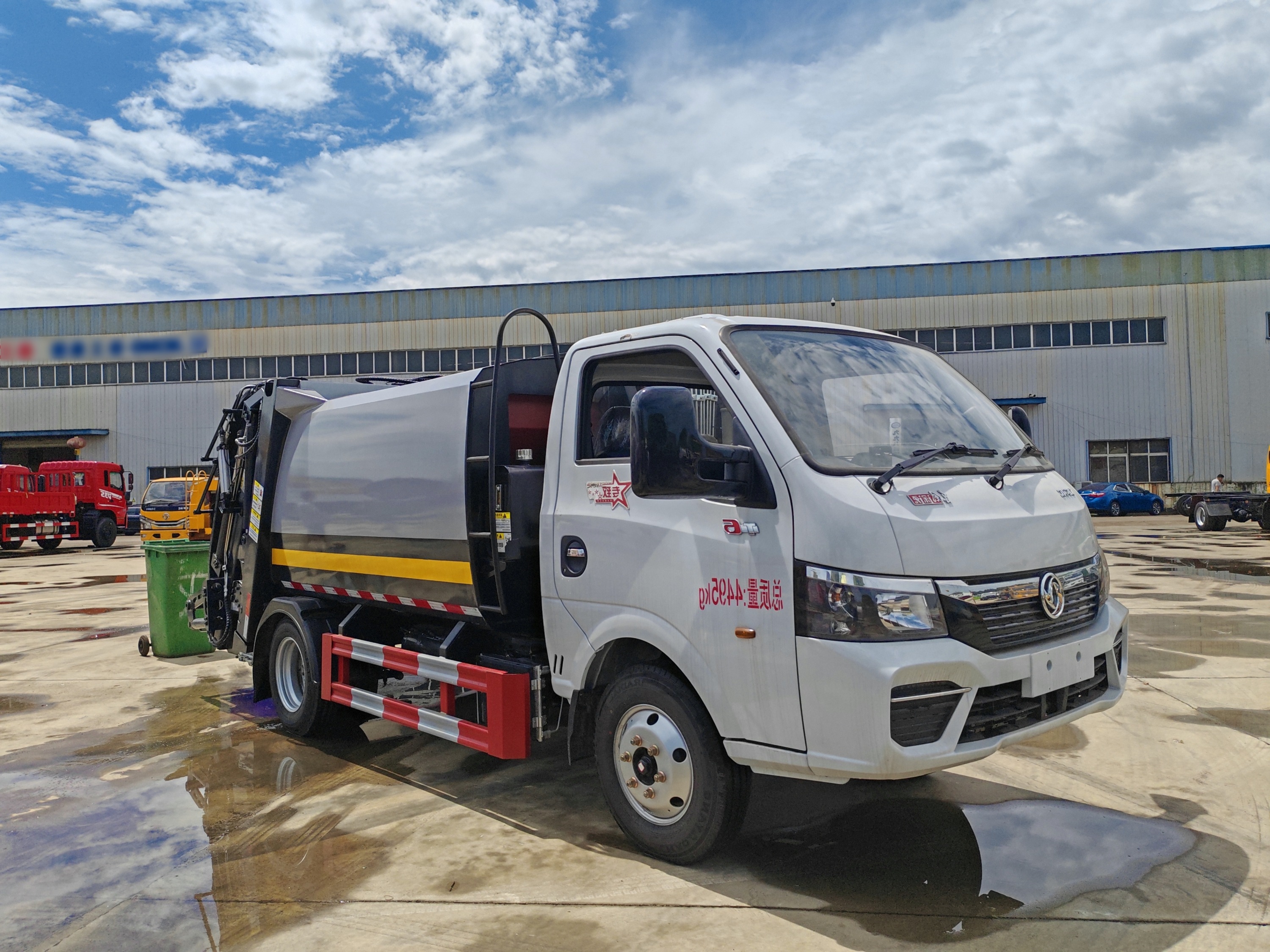

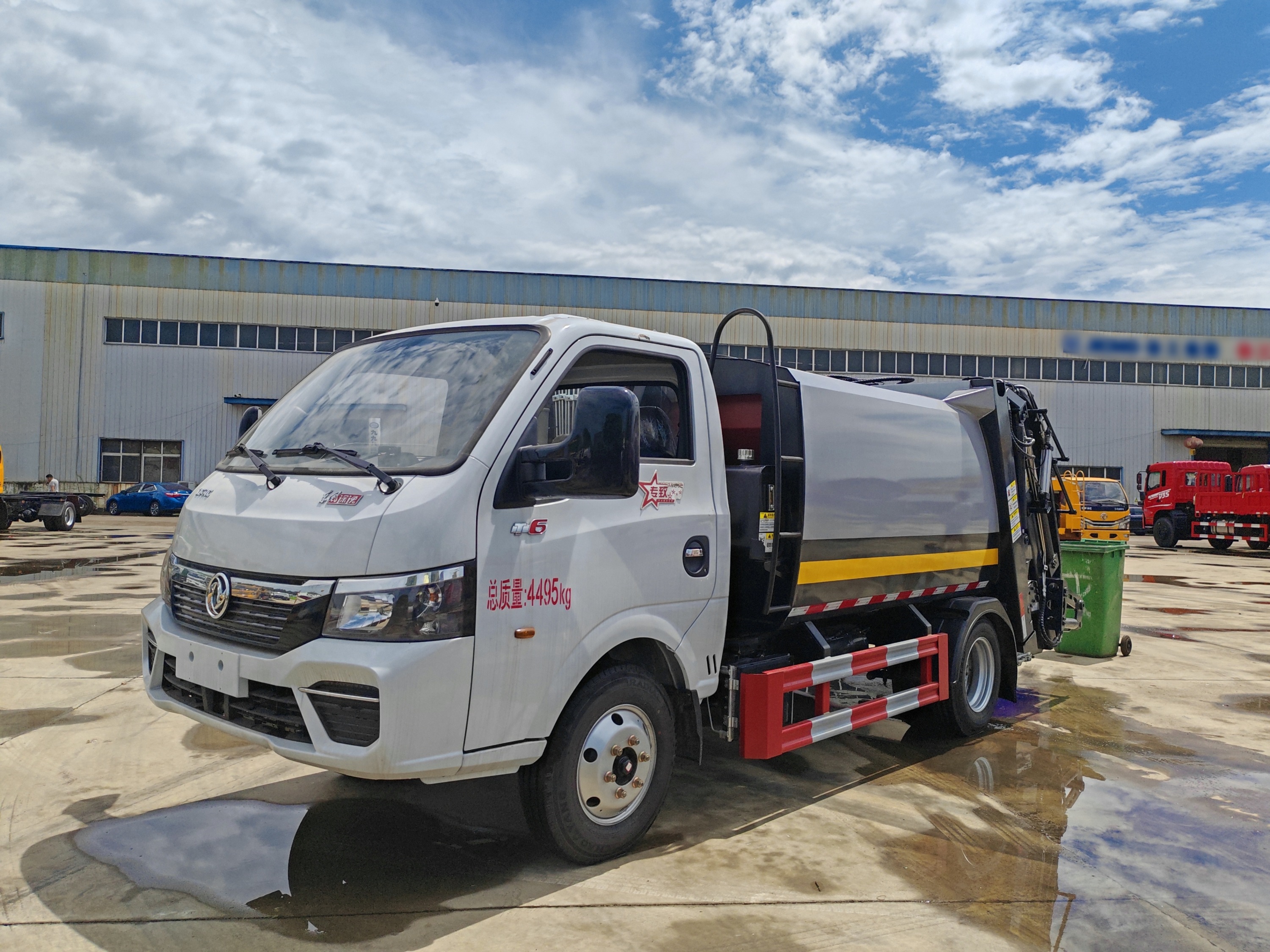

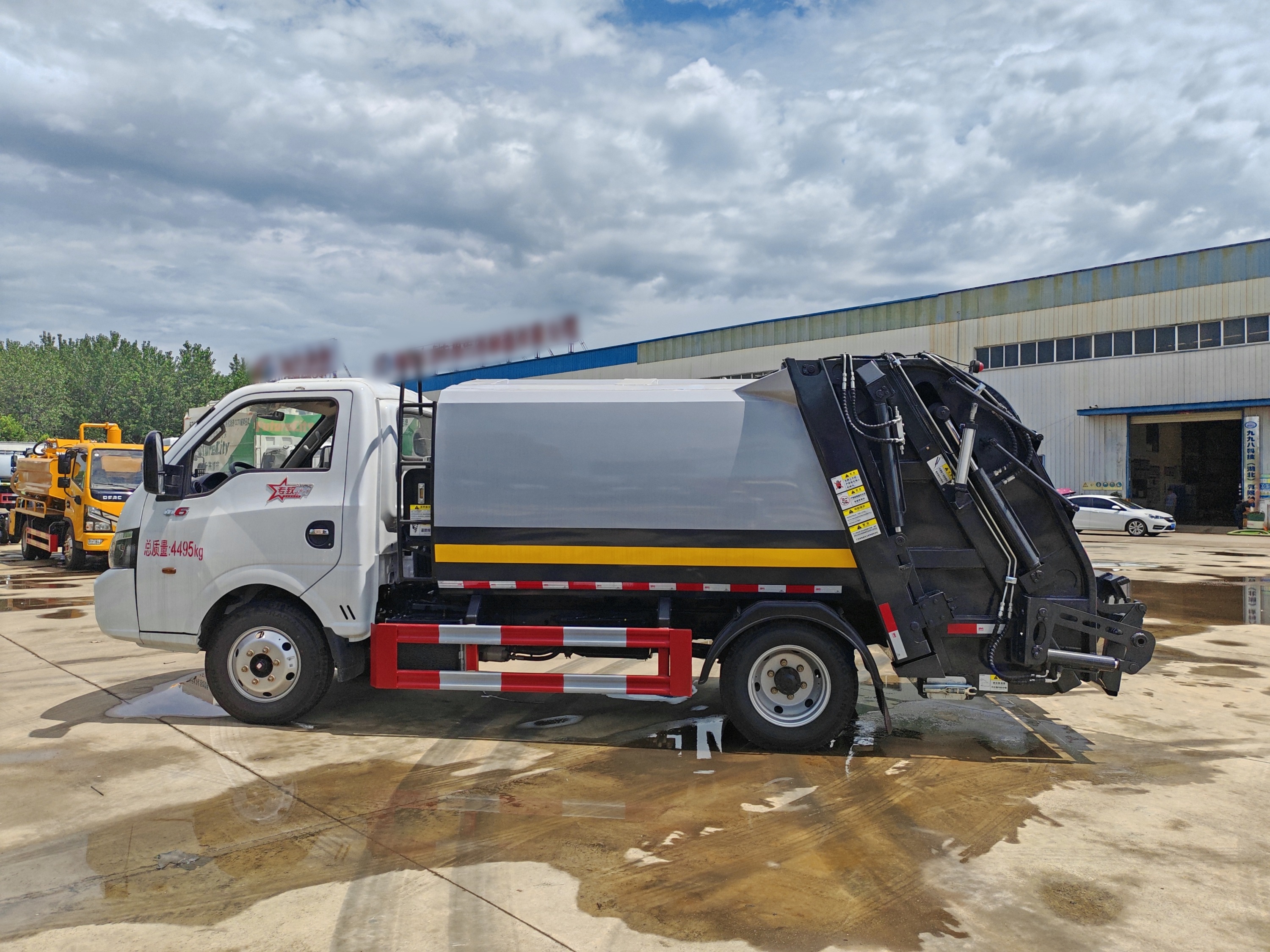

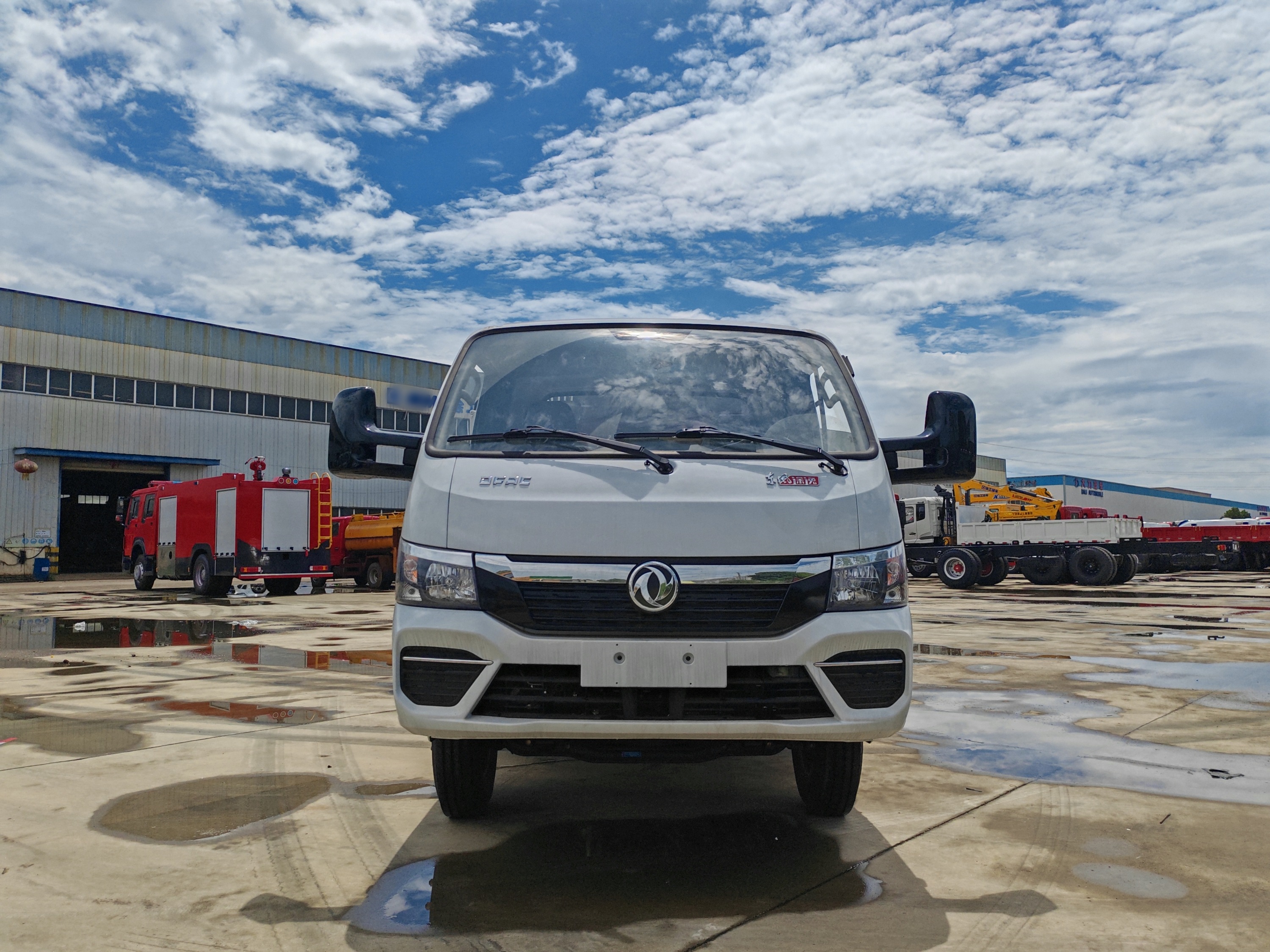

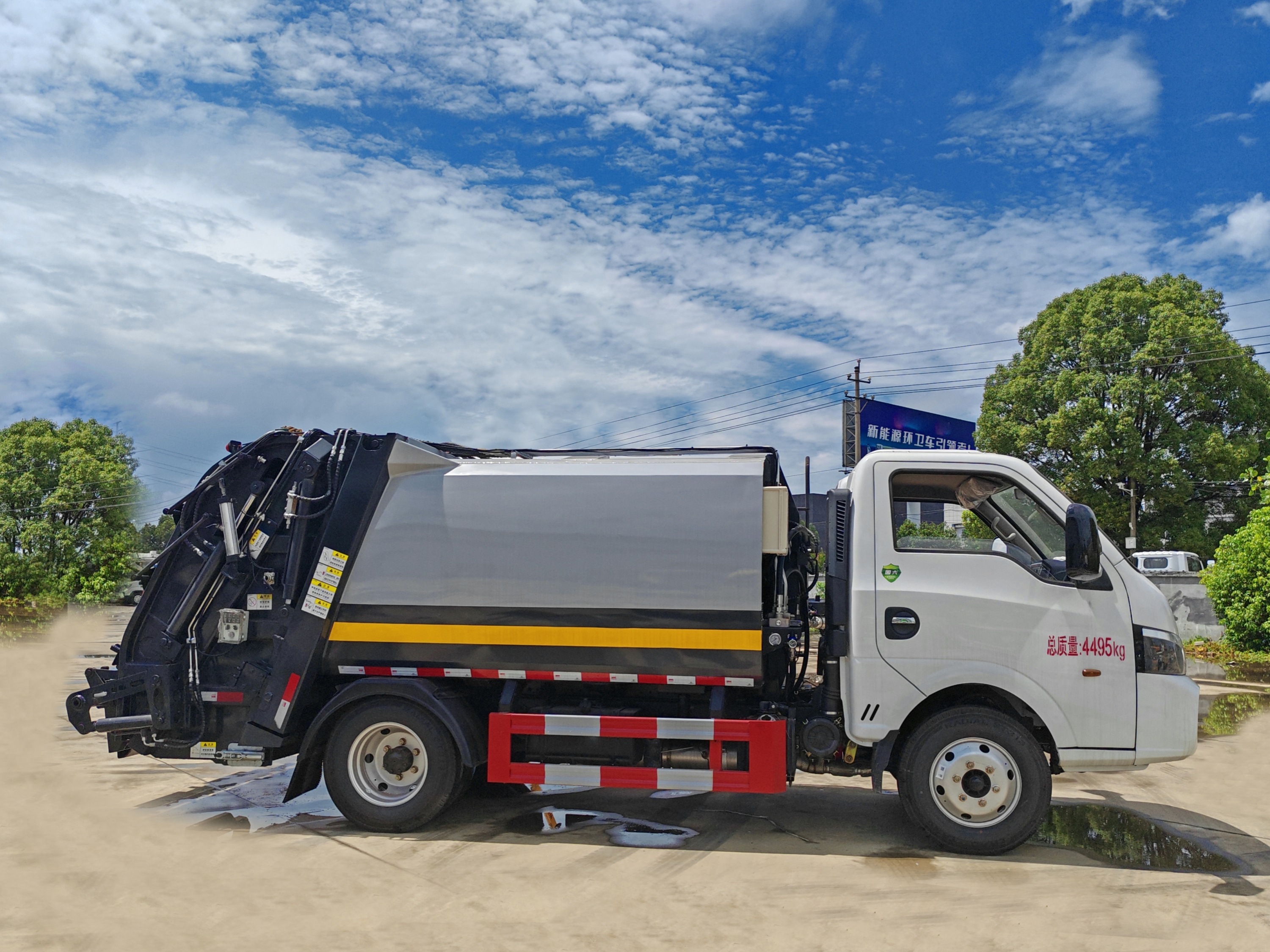

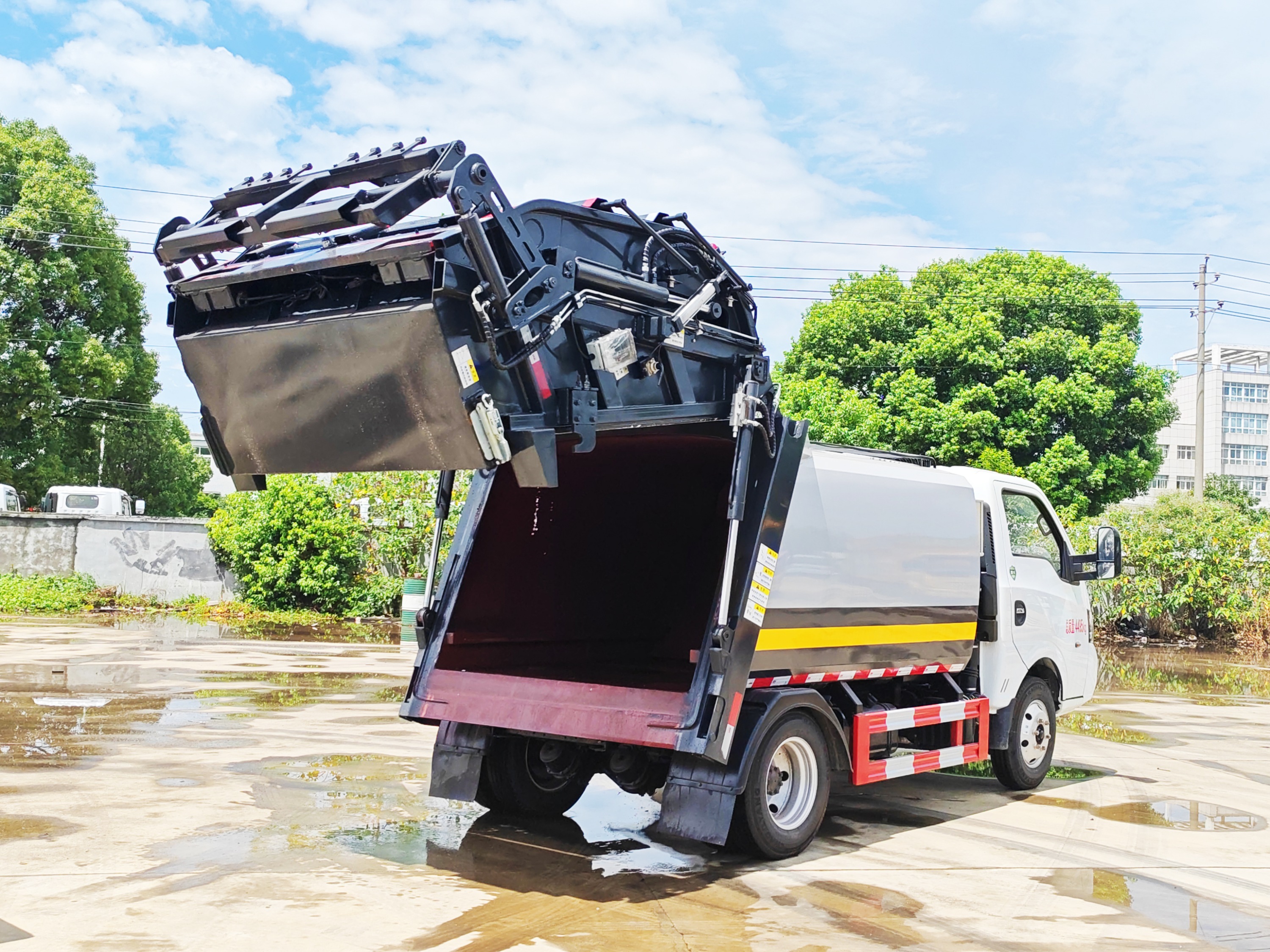

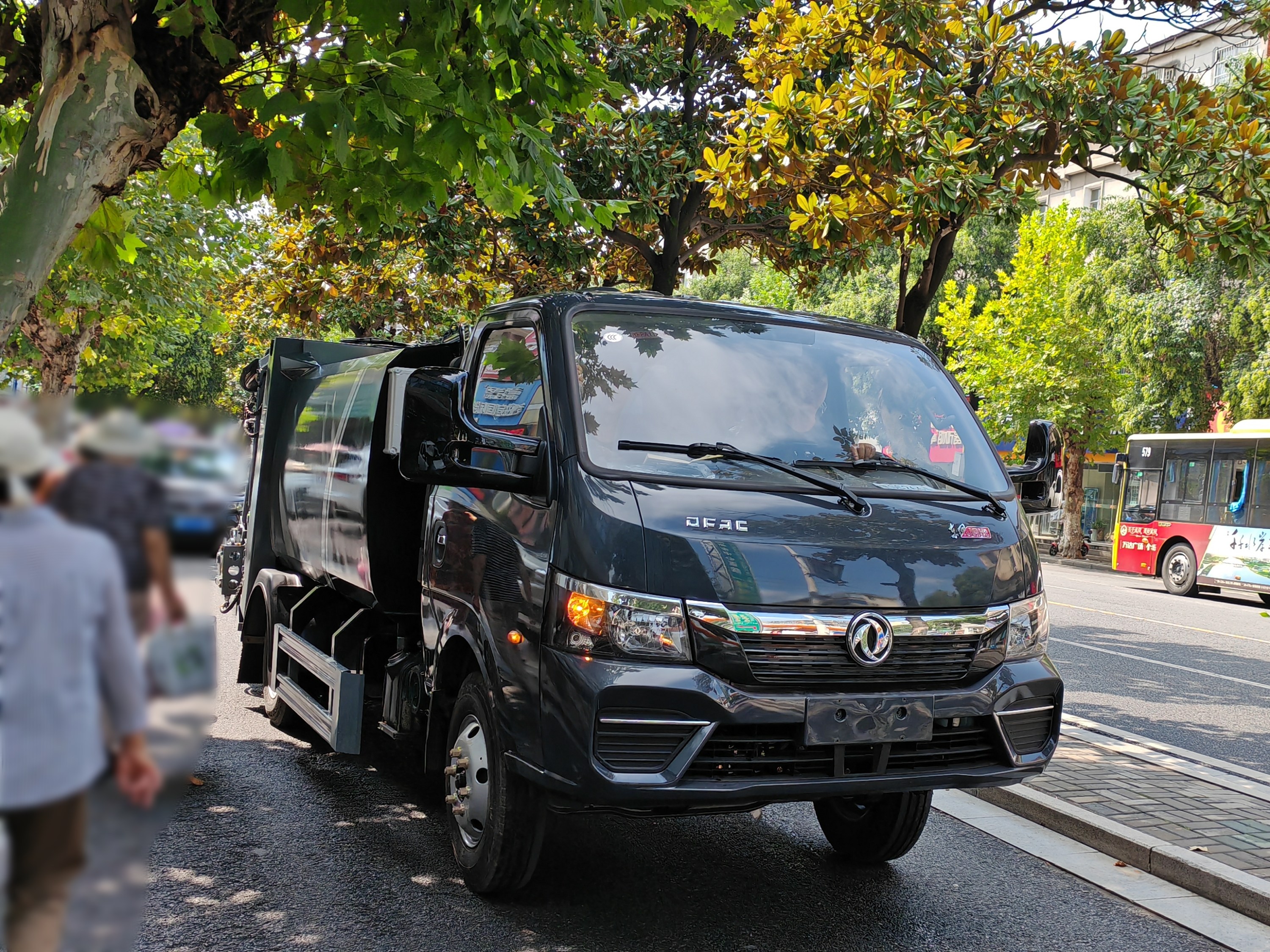

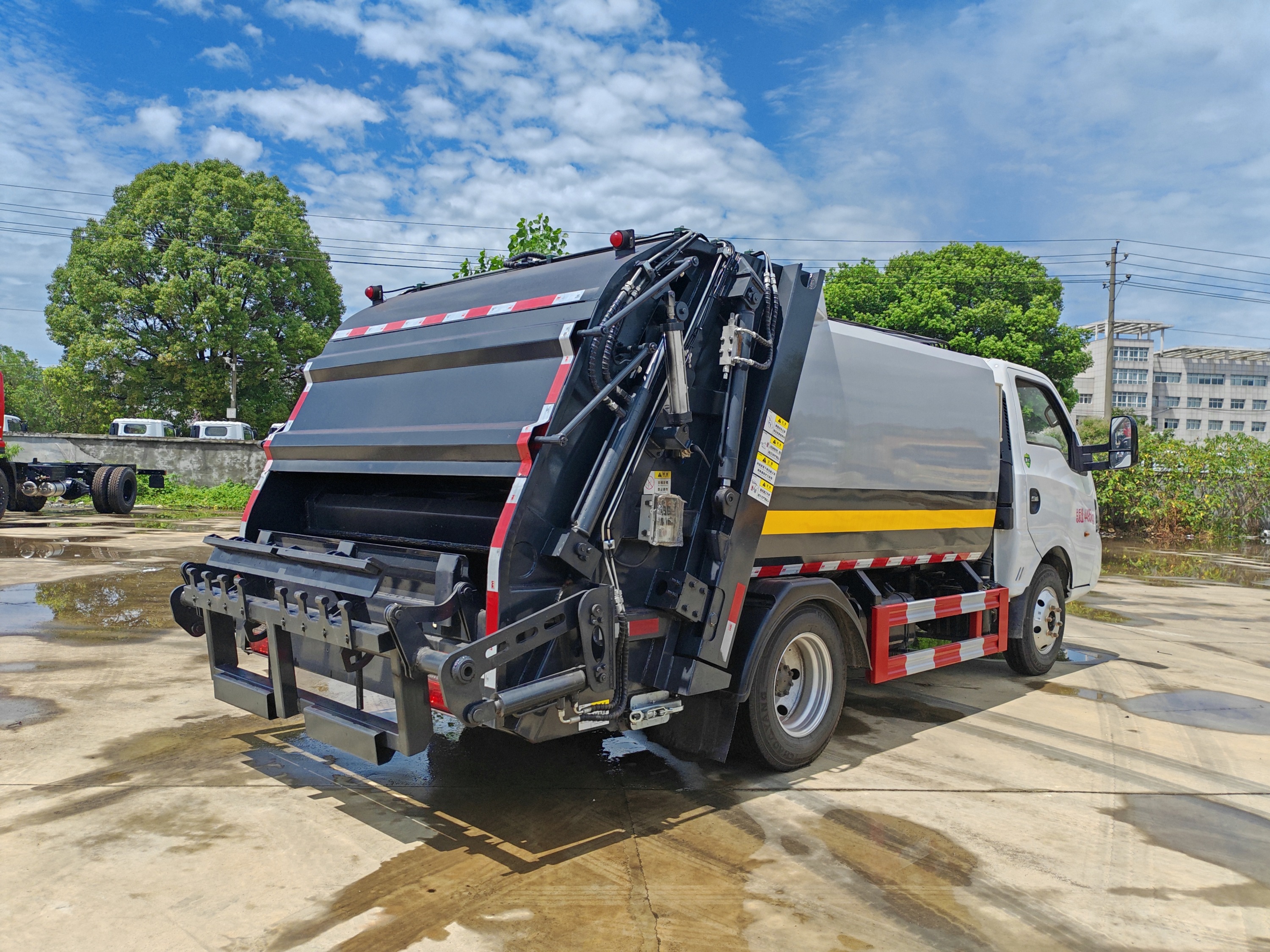

Dongfeng Tuxiaowei air brake compressed garbage truck

Chassis configuration:
1800/single row, engine Q23-132E60, Quanchai 132 horsepower, Wanliyang 5-speed gearbox, 6.50R16 steel wire tires, front and rear axles 1.5/3.5170 straight through beam, dynamic rotation, clutch assist, air brake, air conditioning, electric window central locking, ABS。
Top configuration:

Adopting T700 high-strength board arc-shaped box, with 2mm edges and 3mm bottom, lightweight design, large capacity.
Note: Optional box height (excluding ladder height), height 2300mm, volume 5.8m³, height 2180mm, volume 5m³, height 2100mm, volume 4.8m³

Product Name： Dongfeng Tuxiaowei air brake compressed garbage truck
Driving Type： 4x2
Garbage container volume(cbm)： 6.5m³
Gross vehicle weight(Kg)： 4495(Kg)

Product Features

Dongfeng Tuxiaowei air brake compressed garbage truck

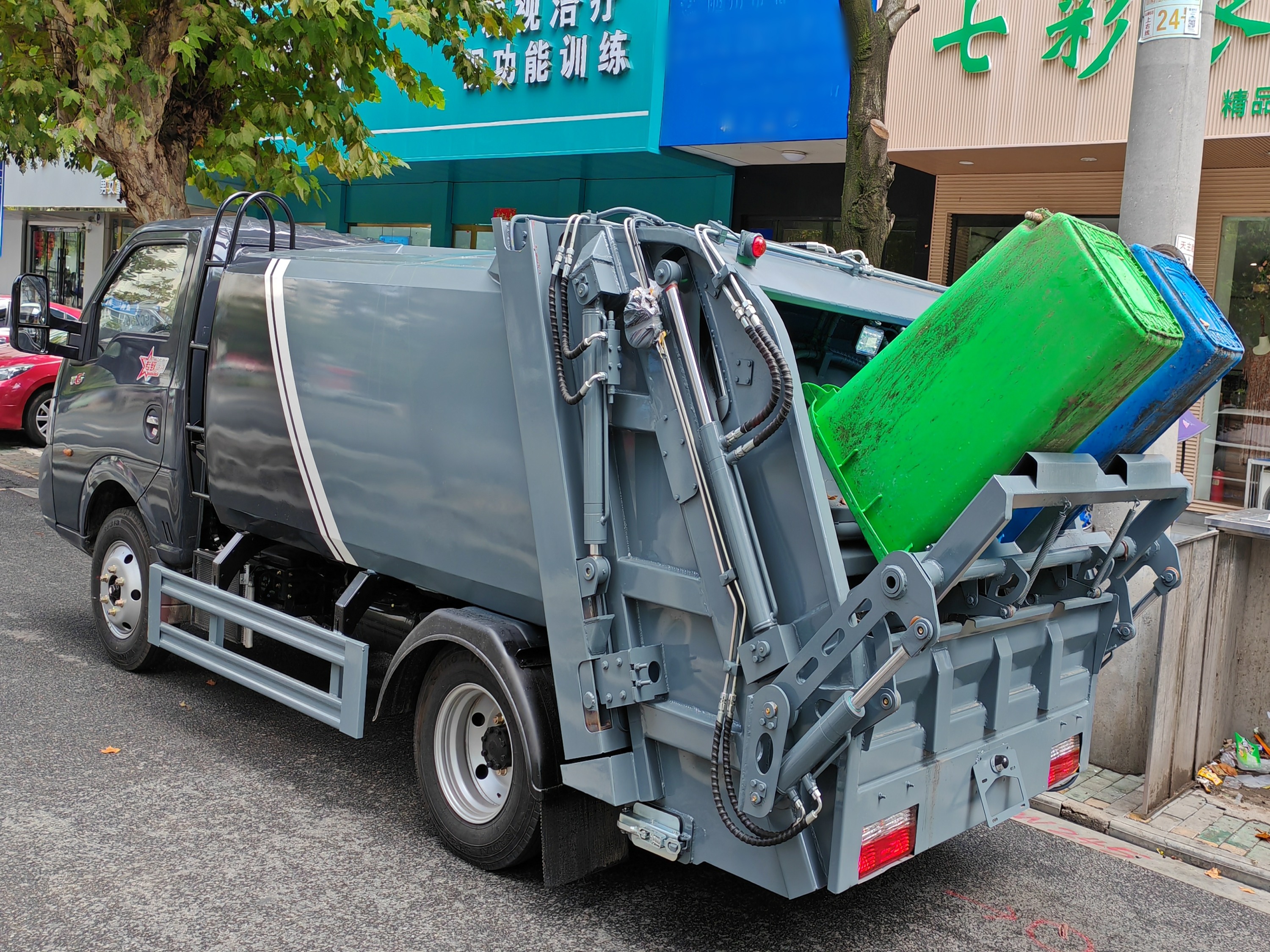

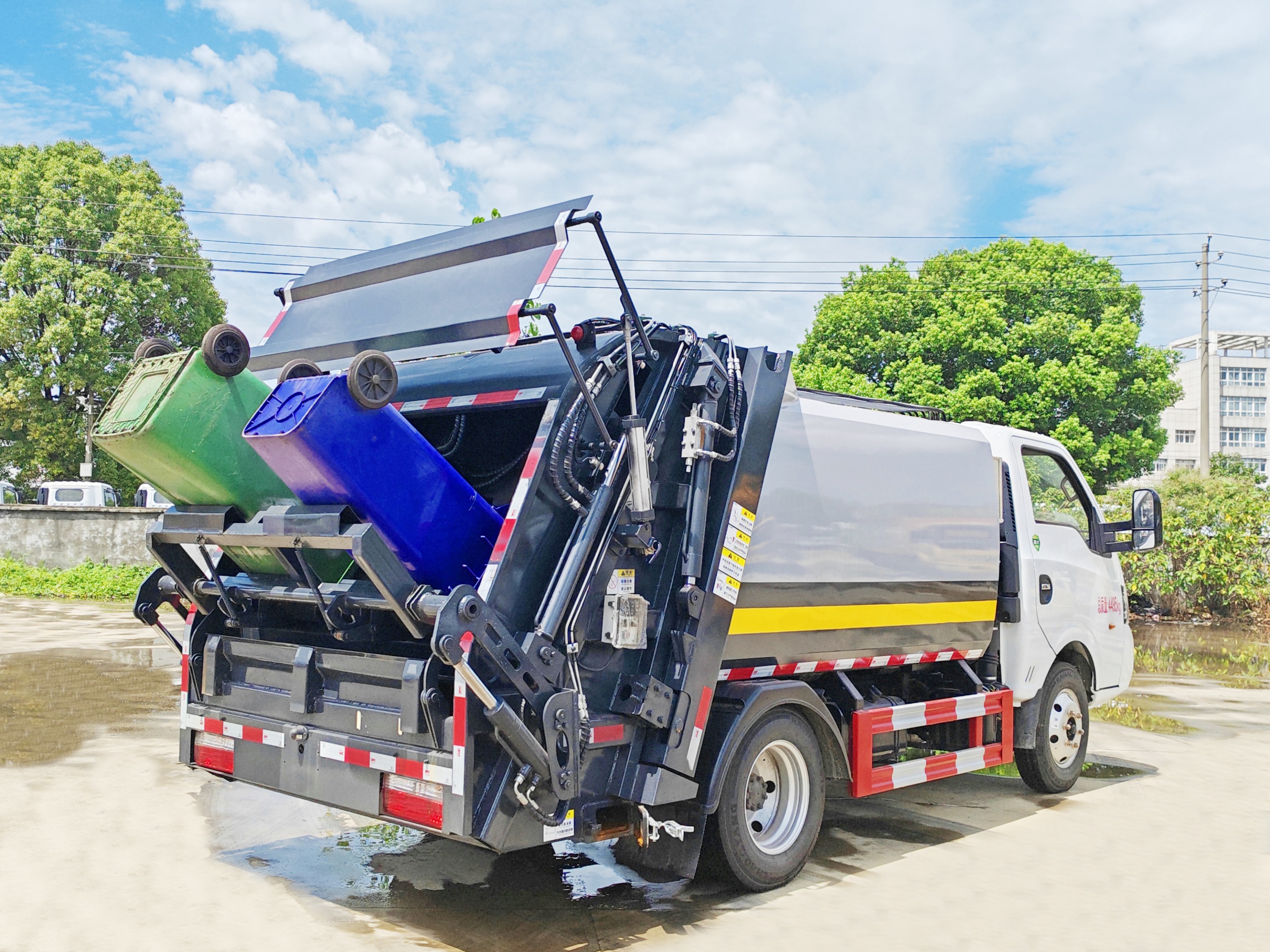

A compression garbage truck is a vehicle specifically designed for compressing and transporting garbage, consisting mainly of a sealed garbage bin, hydraulic system, and operating system.

Product parameters

Product Name	Dongfeng Tuxiaowei air brake compressed garbage truck
Driving Type	4x2
Garbage container volume(cbm)	6.5m³
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	3865(Kg)
Rated weight(kg)	500(Kg)
Wheelbase(mm)	3000(mm)
Overall Dimension(mm)	5995×2060,2160×2090,2250,2450(mm)
Engine	Q23-132E60, Quanchai 132hp
Axle Quantity	2
Transmission Type	Wanliyang 5-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	6.50R16 steel wire tire, 6+1 spare
Cab	1800/single row cab
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
