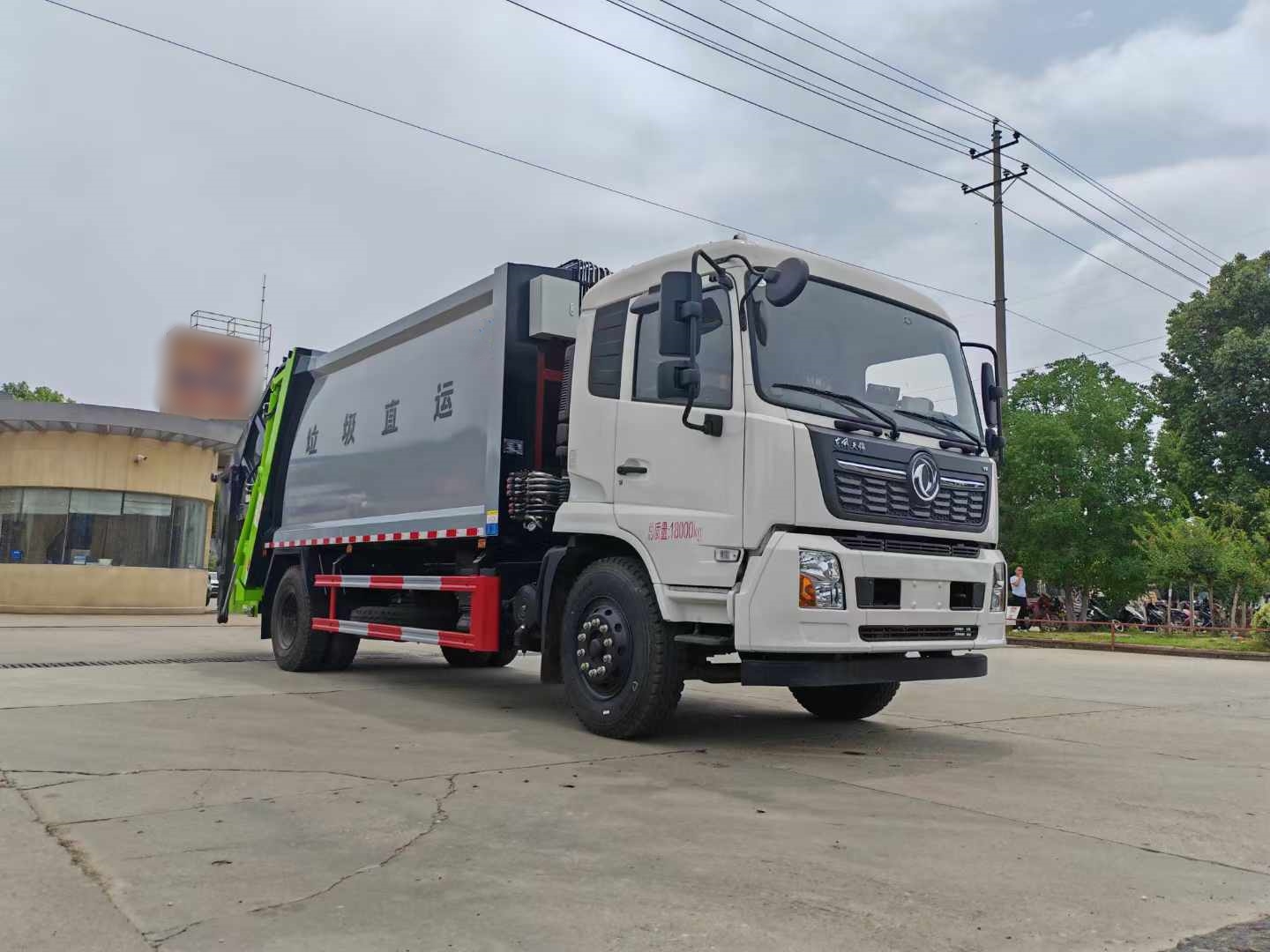

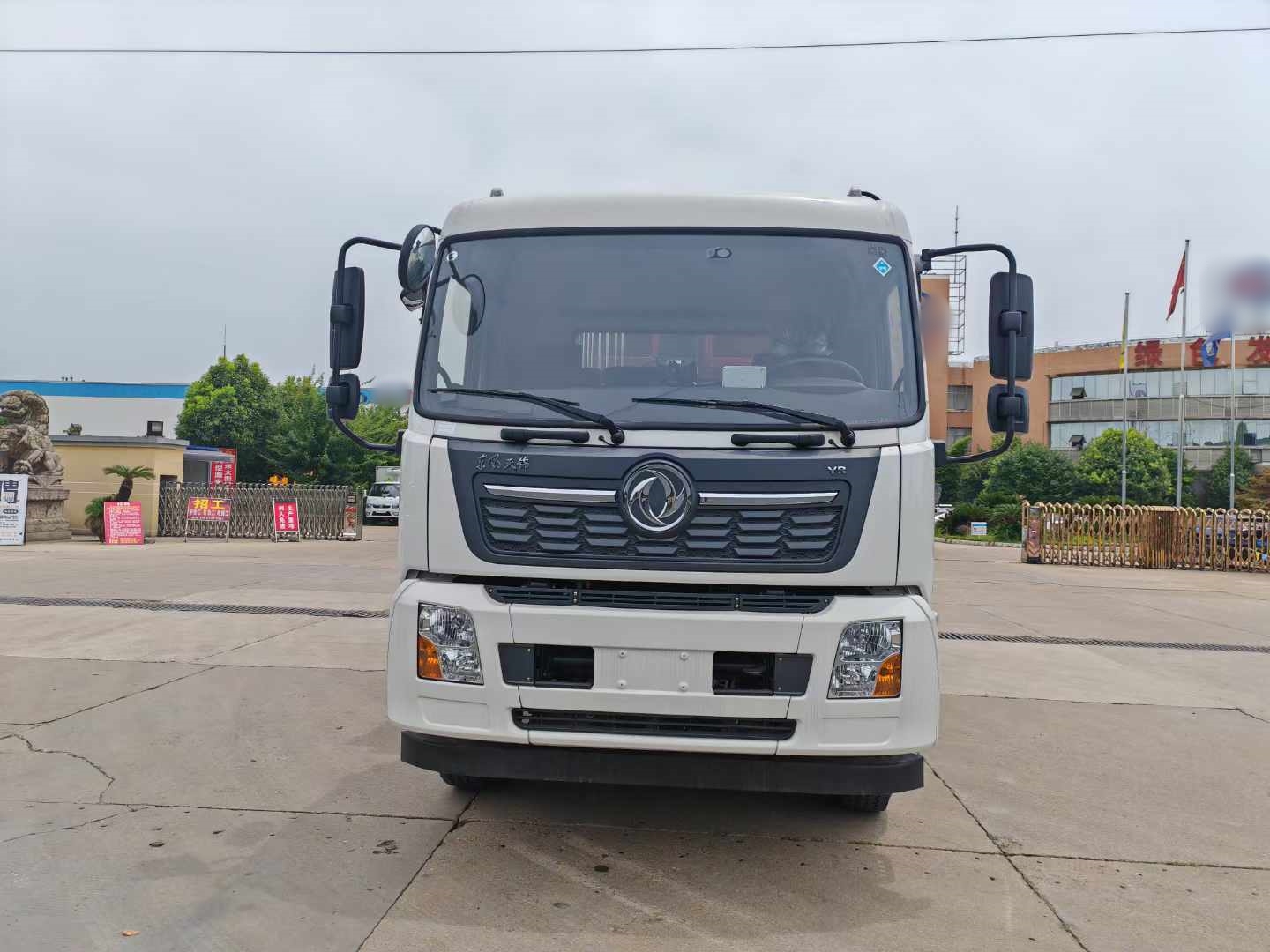

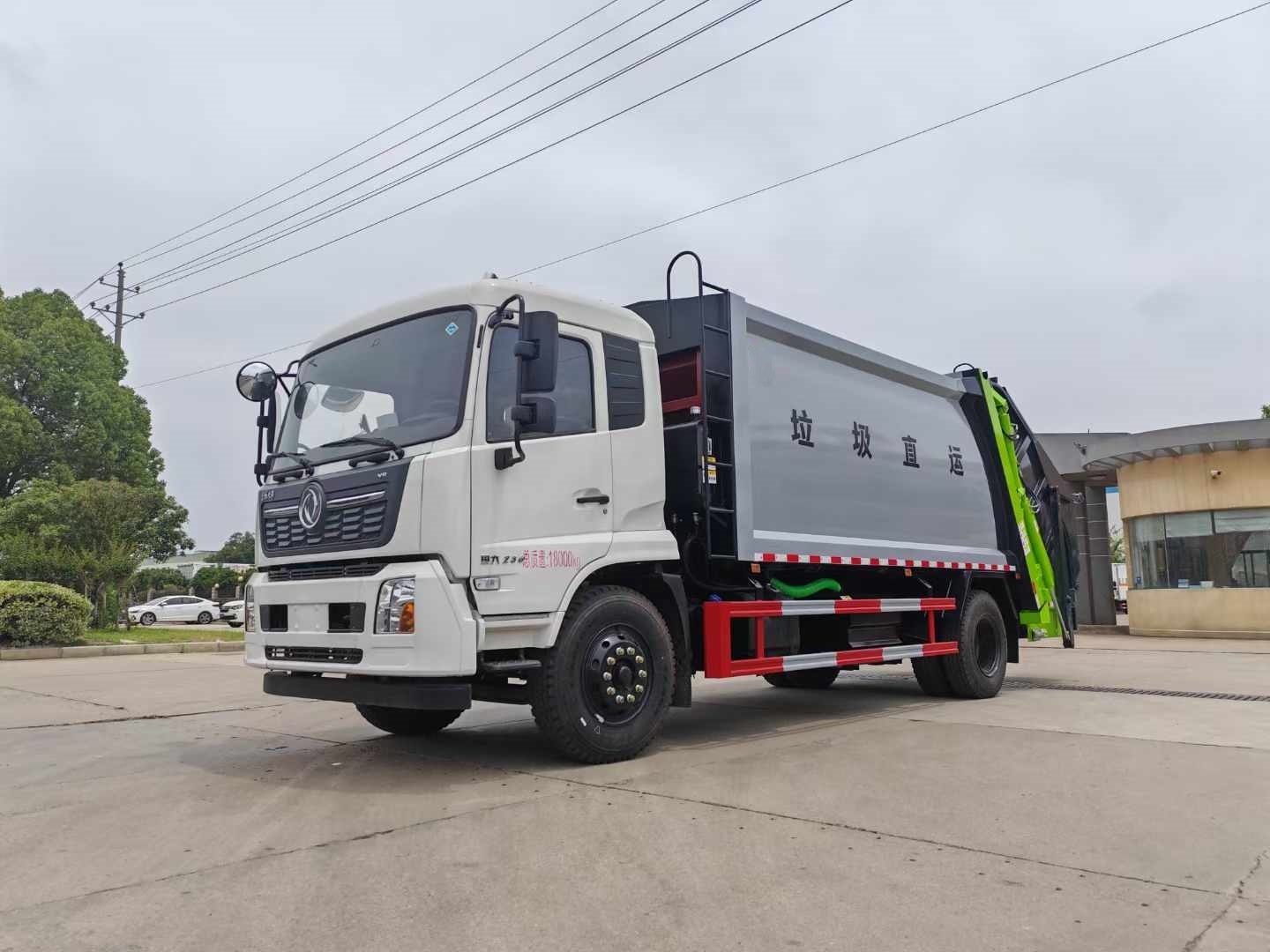

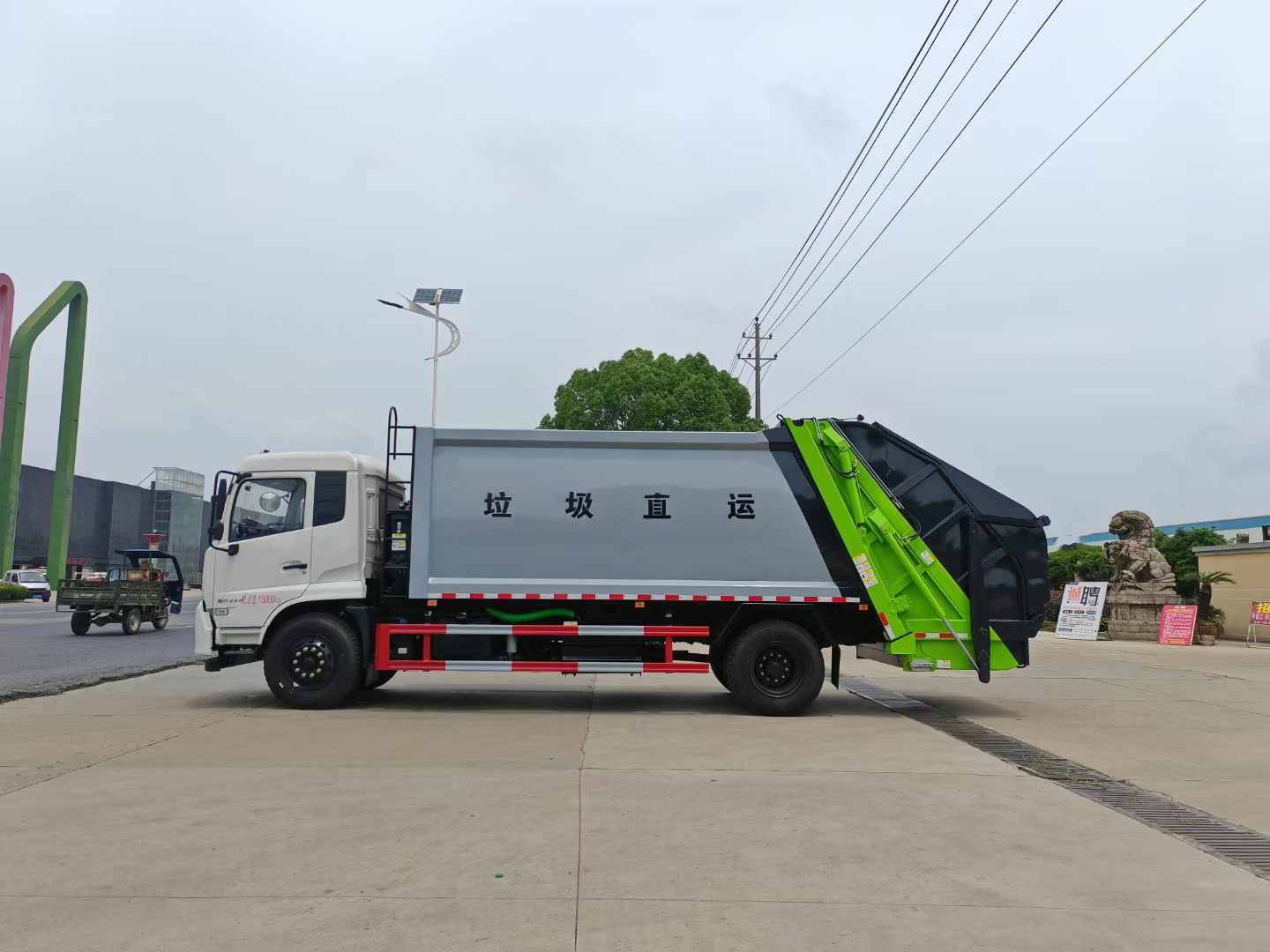

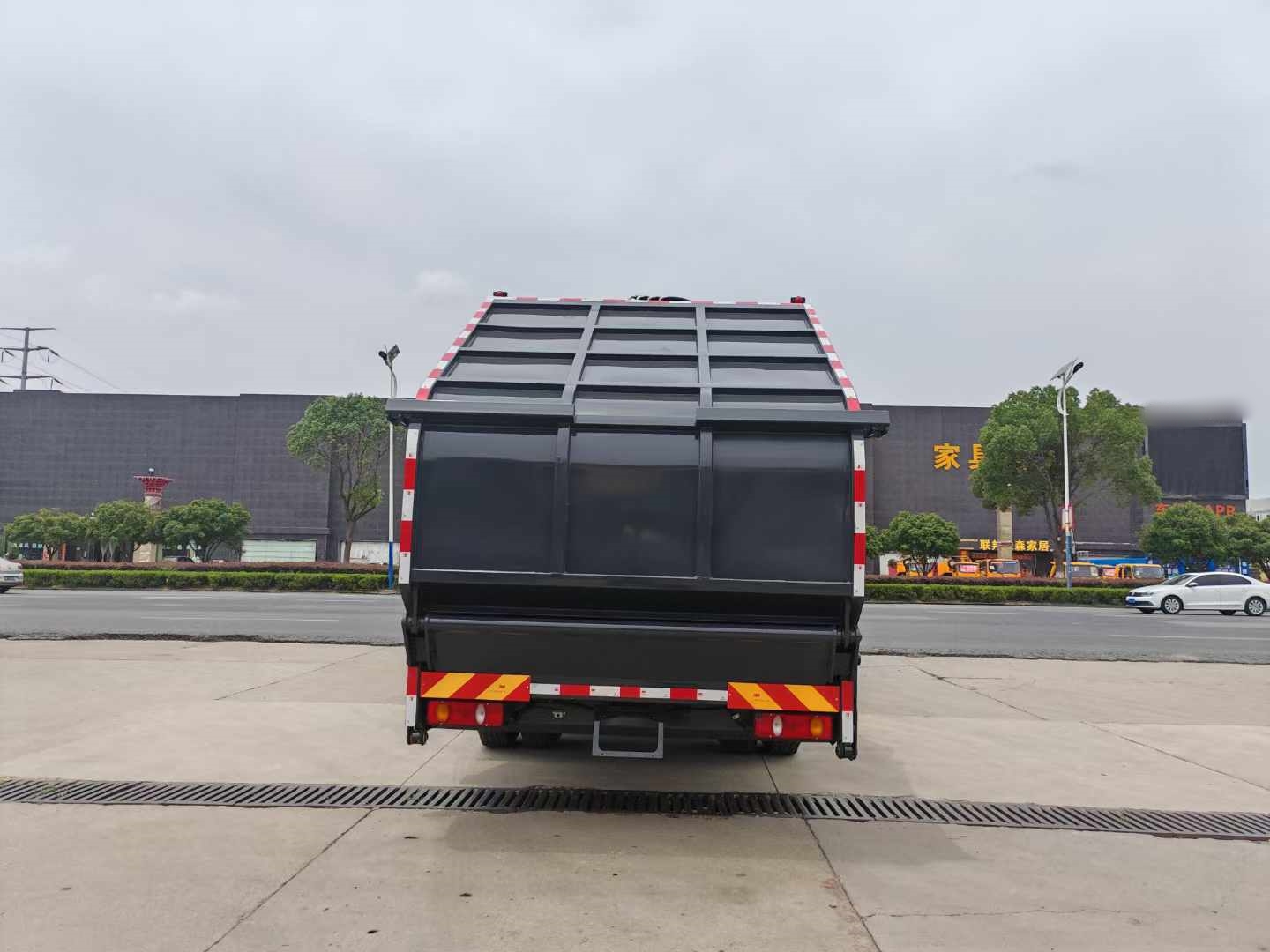

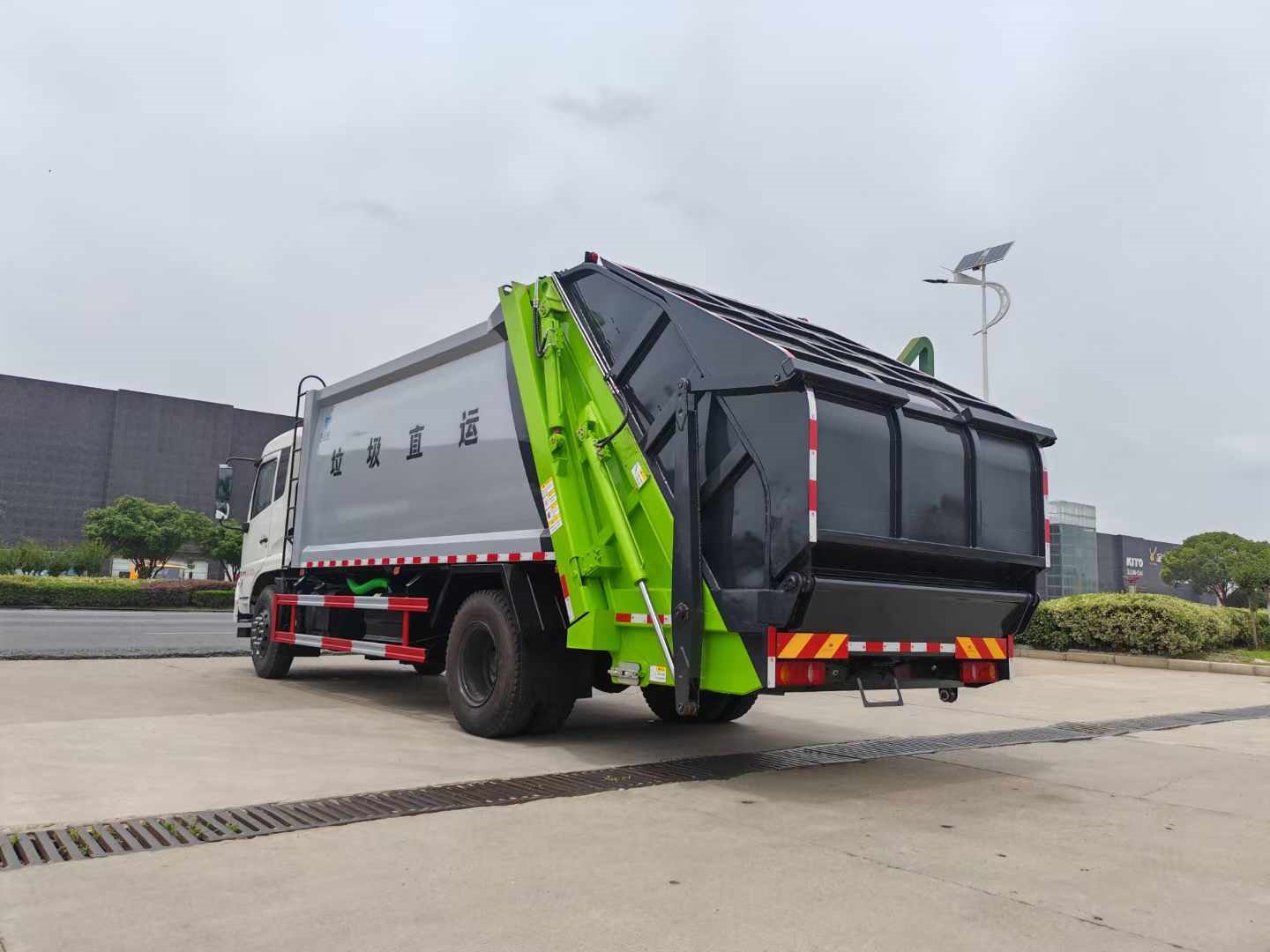

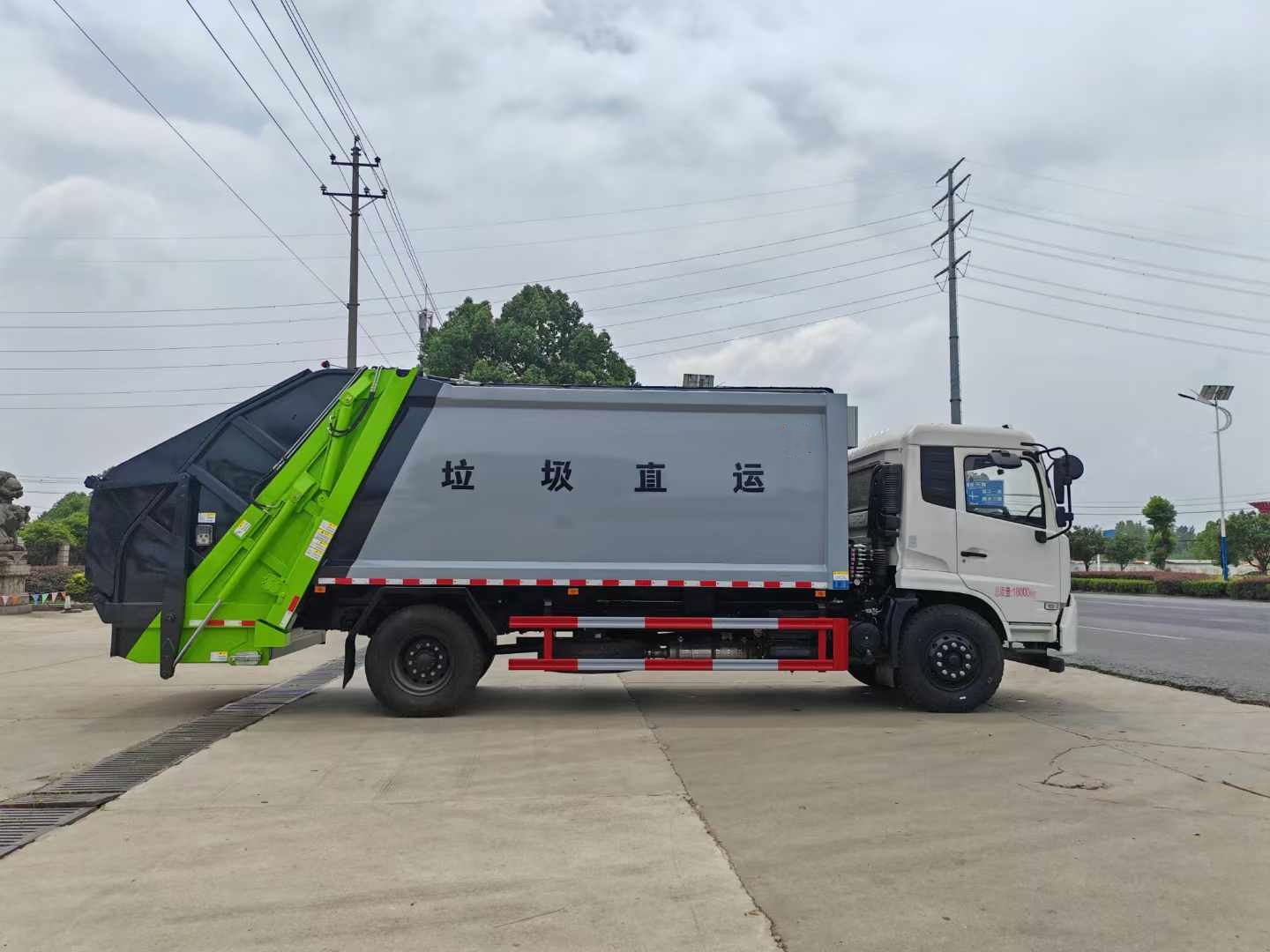

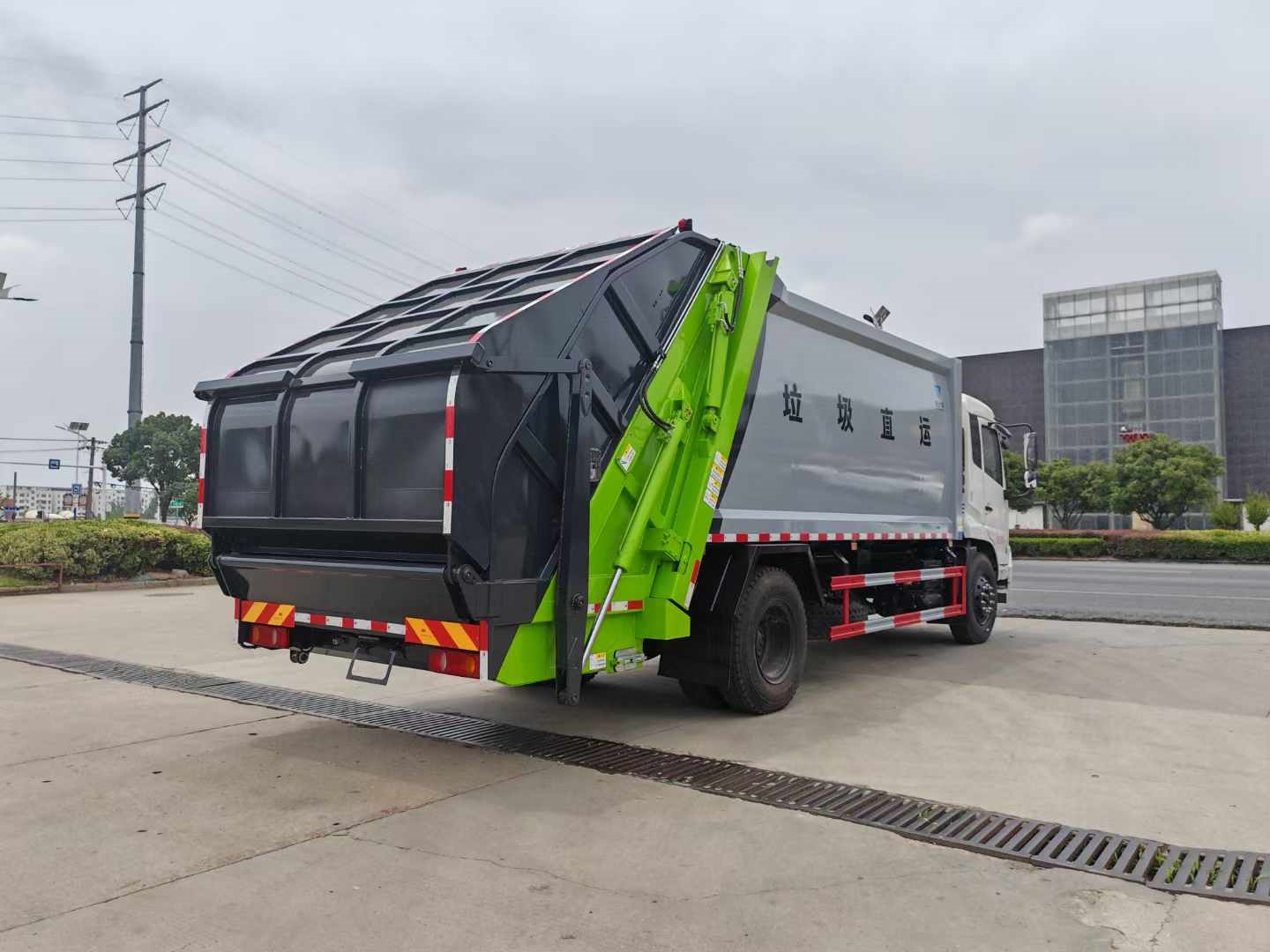

Dongfeng Tianjin 4X2 Compressed Garbage Truck

Chassis configuration:

B6.2NS6B230 engine, Fast 8-speed transmission, 2315 cab, 4.5T front axle, 10T rear axle, 10.00 steel tires, 25mm beam, air brake, air conditioning, electric doors and windows, central locking system.
Installation configuration:
The Q345 manganese steel high-strength plate arc-shaped box is used, with a side of 5mm and a bottom of 6mm. It is composed of a hydraulic mechanism consisting of a box body, a loading mechanism, a compression mechanism, a unloading mechanism, an oil pump, an oil cylinder, a control valve, etc. The loading mechanism consists of a bracket, a connecting rod mechanism, a cam, a hook, etc., and it undergoes bi-directional peristaltic compression. Domestic well-known brand hydraulic systems (Anhui Wanye Pump, Hunan Changsha Domestic Famous Multi way Valve, Compression Special Customized Oil Cylinder, Zhejiang Jiashan Power Takeoff); The same CAN bus control system is used for centralized electronic control inside the driver's cab and outside the vehicle; High position clearance lights/edge lights/work lighting on the vehicle, equipped with a double pressure valve and dual pump as standard.

Product Name： Dongfeng Tianjin 4X2 Compressed Garbage Truck
Driving Type： 4x2
Garbage container volume(cbm)： 18m³
Gross vehicle weight(Kg)： 18000(Kg)

Product Features

Dongfeng Tianjin 4X2 Compressed Garbage Truck

A compressed garbage truck is a vehicle specifically designed for compressing and transporting garbage, consisting mainly of a sealed garbage bin, hydraulic system, and operating system. Its design features include a fully sealed body, self compression and dumping functions, and effective treatment of sewage in the garbage during the compression process, avoiding secondary pollution during transportation.

Product parameters

Product Name	Dongfeng Tianjin 4X2 Compressed Garbage Truck
Driving Type	4x2
Garbage container volume(cbm)	18m³
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	11250,12150(Kg)
Rated weight(kg)	6620,6555,5720,5655(Kg)
Wheelbase(mm)	5000(mm)
Overall Dimension(mm)	8890,9090,9390,9010,9210,9510×2500×3300(mm)
Engine	B6.2NS6B230, Cummins 230hp
Axle Quantity	2
Transmission Type	Fast 8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	10.00R20 steel wire tire, 6+1 spare
Cab	Dongfeng Tianjin cab
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
