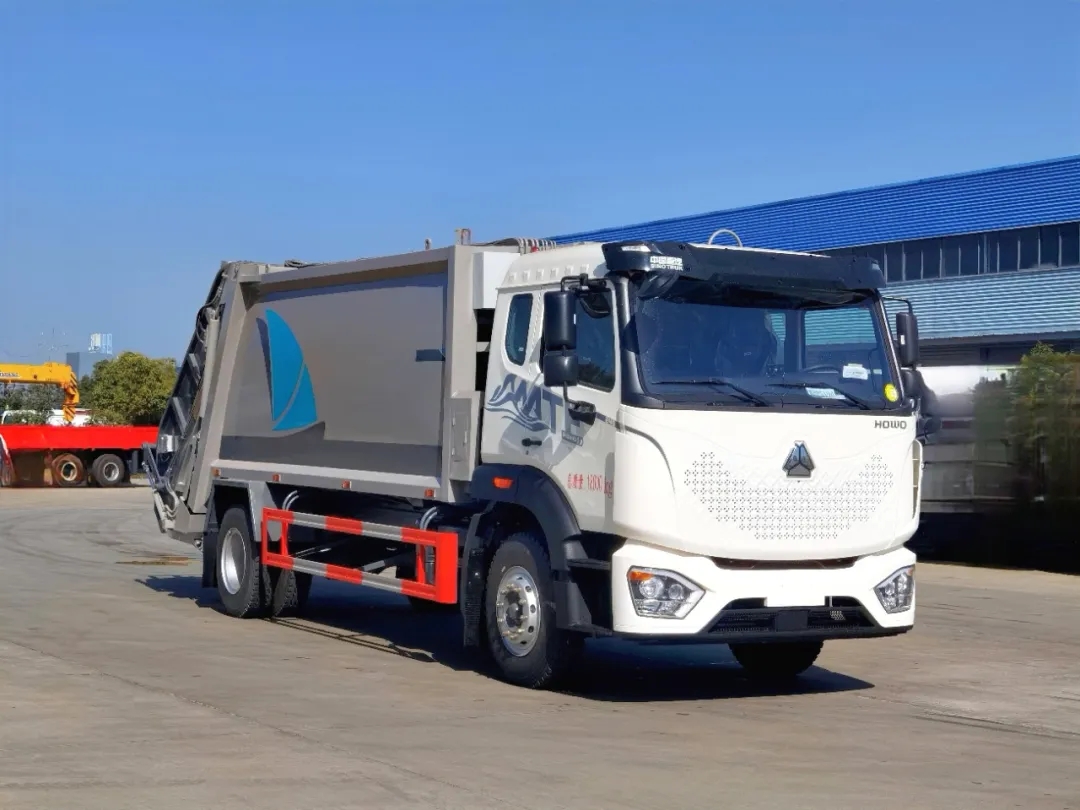

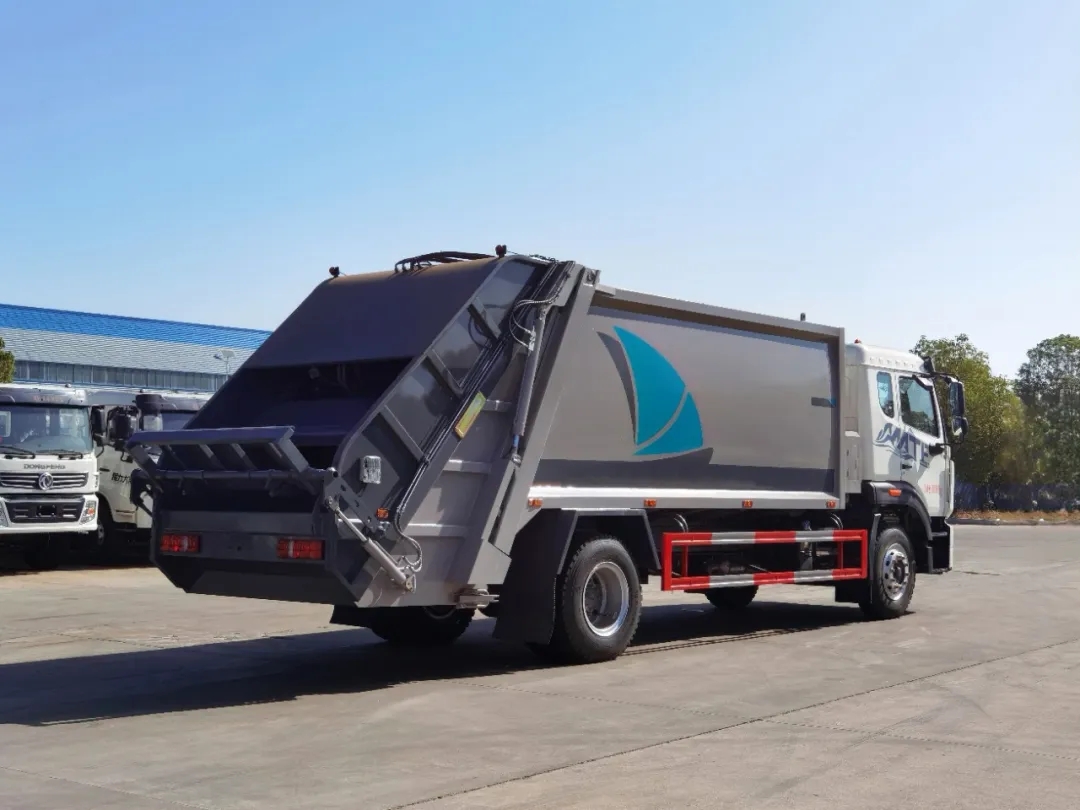

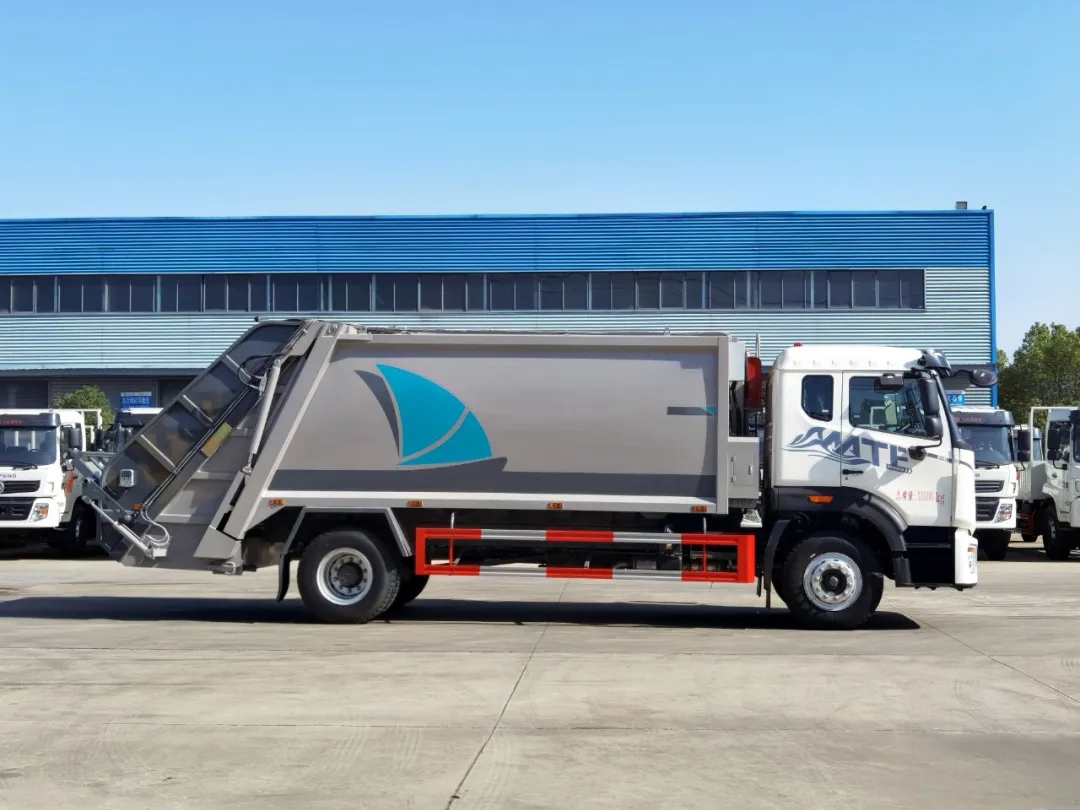

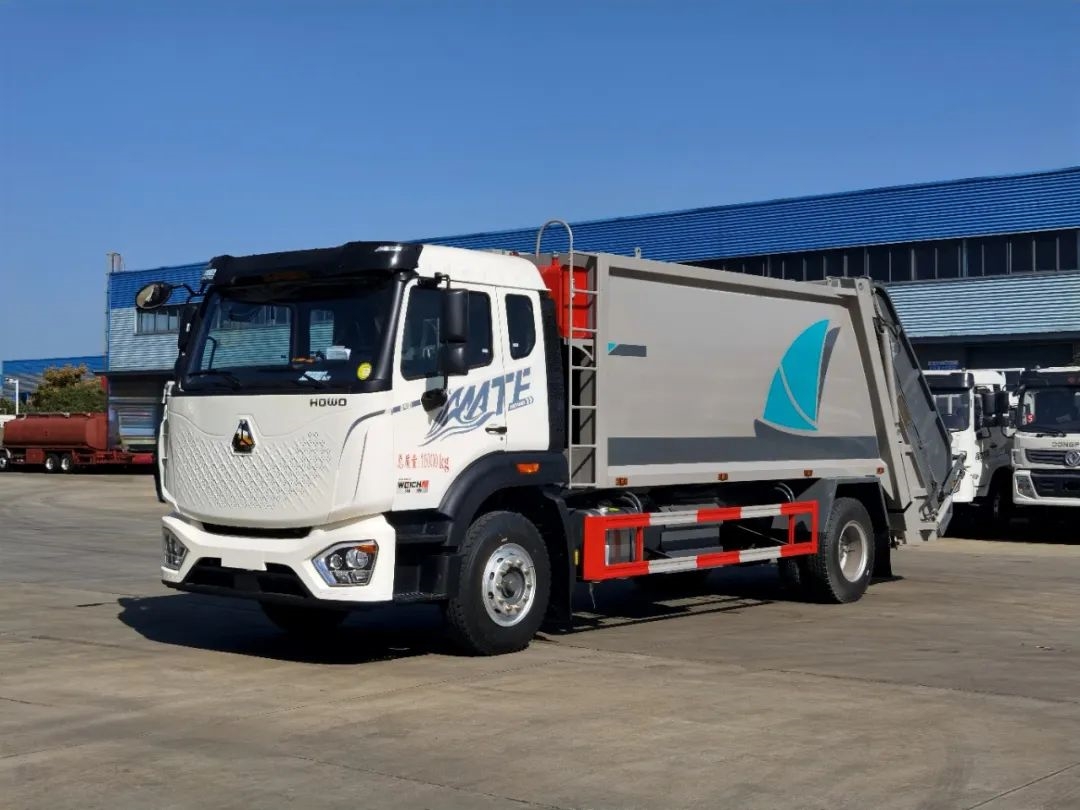

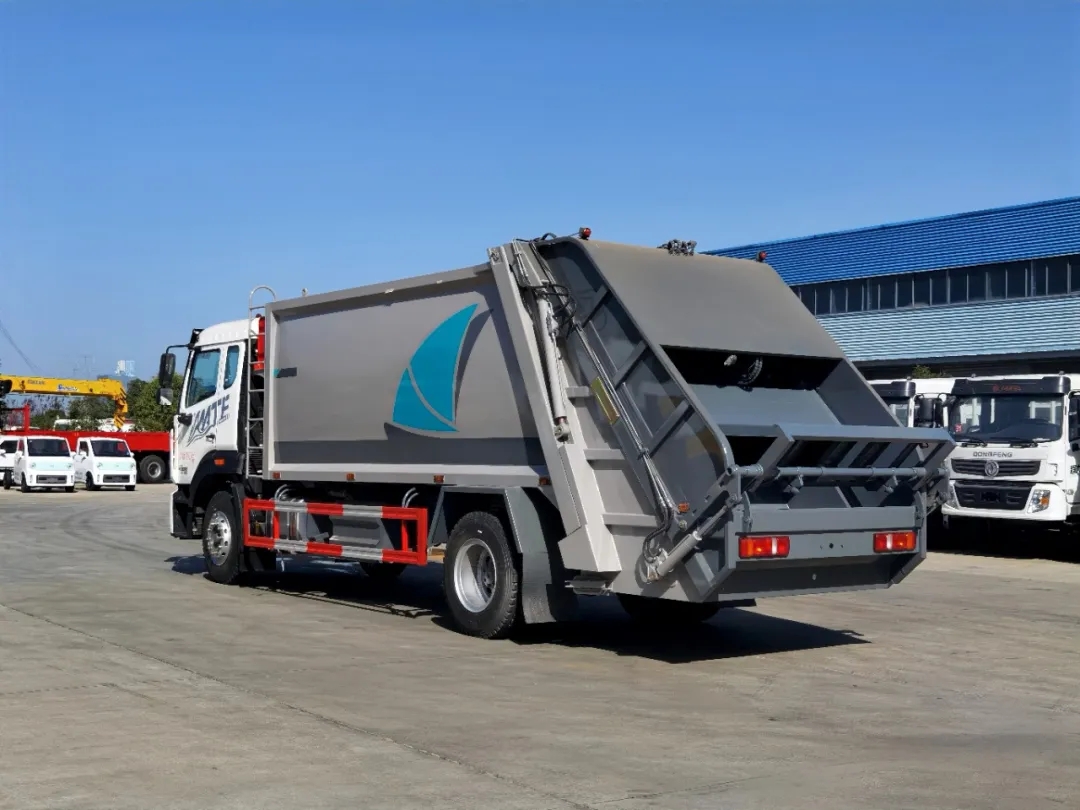

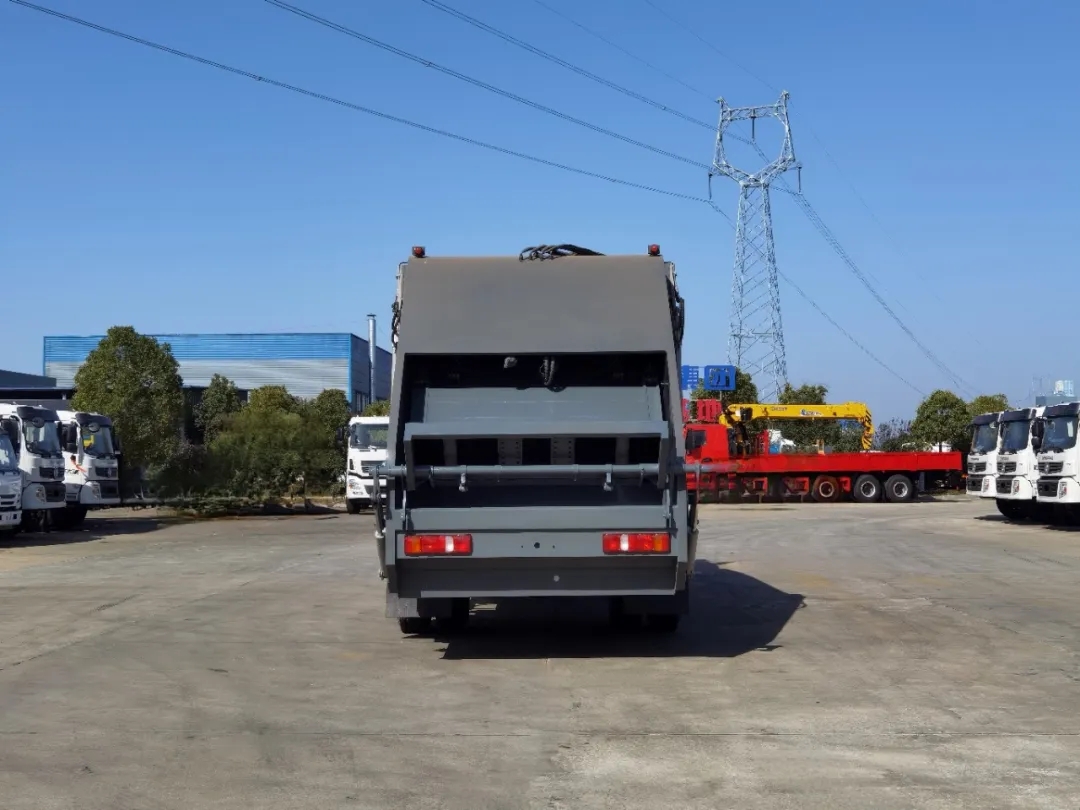

Sinotruk HOWO 14m³-18m³ compressed garbage truck

Chassis configuration:

1. Engine: Weichai 240hp, WP4.6NQ240E62

2.Transmission type: Howo 8 speed gear

3.Tyre: 10.00R20 steel wire tire, 6 with a spare

4.Wheelbase:4500/4700/5100mm

5.Other:Airbag seats, automatic electronic control constant temperature air conditioning, electric doors and windows
Central control room, remote key, ABS, adjustable headlights, electric glass remote control. High end sedan configuration

Product Name： Sinotruk HOWO 14m³-18m³ compressed garbage truck
Driving Type： 4x2
Garbage container volume(cbm)： 14-18
Rated payload weight(kg)： 7170,7105,6970,6905,6870,6805,6670,6605,6370,6305(Kg)

Product Features

Sinotruk HOWO 14m³-18m³ compressed garbage truck

Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.

1-The upper part is made of high-quality high-strength steel plate to create a box with a capacity of approximately 18 cubic meters,
2- Double sewage tanks on the tail side, one sewage outlet on the side, and a push plate and scraper to complete the garbage compression function,
3- Wanye gear oil pump (double pump), Hepres hydraulic cylinder, Zhongmei multi way directional valve,
4. Tail flip rack, capable of hanging 2 240L trash cans simultaneously,
5-Equipped with wireless remote control, CAN/PLC bus control operation, compaction valve, and night work light.
6-The tail can be equipped with pneumatic sealing cover/triangular bucket/large landing bucket/swing arm device

Product parameters

Product Name	Sinotruk HOWO 14m³-18m³ compressed garbage truck
Driving Type	4x2
Garbage container volume(cbm)	14-18
Rated payload weight(kg)	7170,7105,6970,6905,6870,6805,6670,6605,6370,6305(Kg)
Wheelbase(mm)	4500/4700/5100mm
Overall Dimension(mm)	8900,9100,9300,9600,9800,8950,9150,9650×2550×3250(mm)
Engine brand & model	Weichai 240hp, WP4.6NQ240E62
Axle Quantity	2
Transmission Type	Howo 8 speed gear
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	10.00R20 steel wire tire, 6 with a spare
Cab	Heavy truck 2350mm cab with 700mm sleeper, four point suspension airbag seat, the largest cab and sleeper on the same platform!
Garbage container material	Manganese steel and high-strength steel
Standard configuration	1-The upper part is made of high-quality high-strength steel plate to create a box with a capacity of approximately 18 cubic meters, 2- Double sewage tanks on the tail side, one sewage outlet on the side, and a push plate and scraper to complete the garbage compression function,
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
