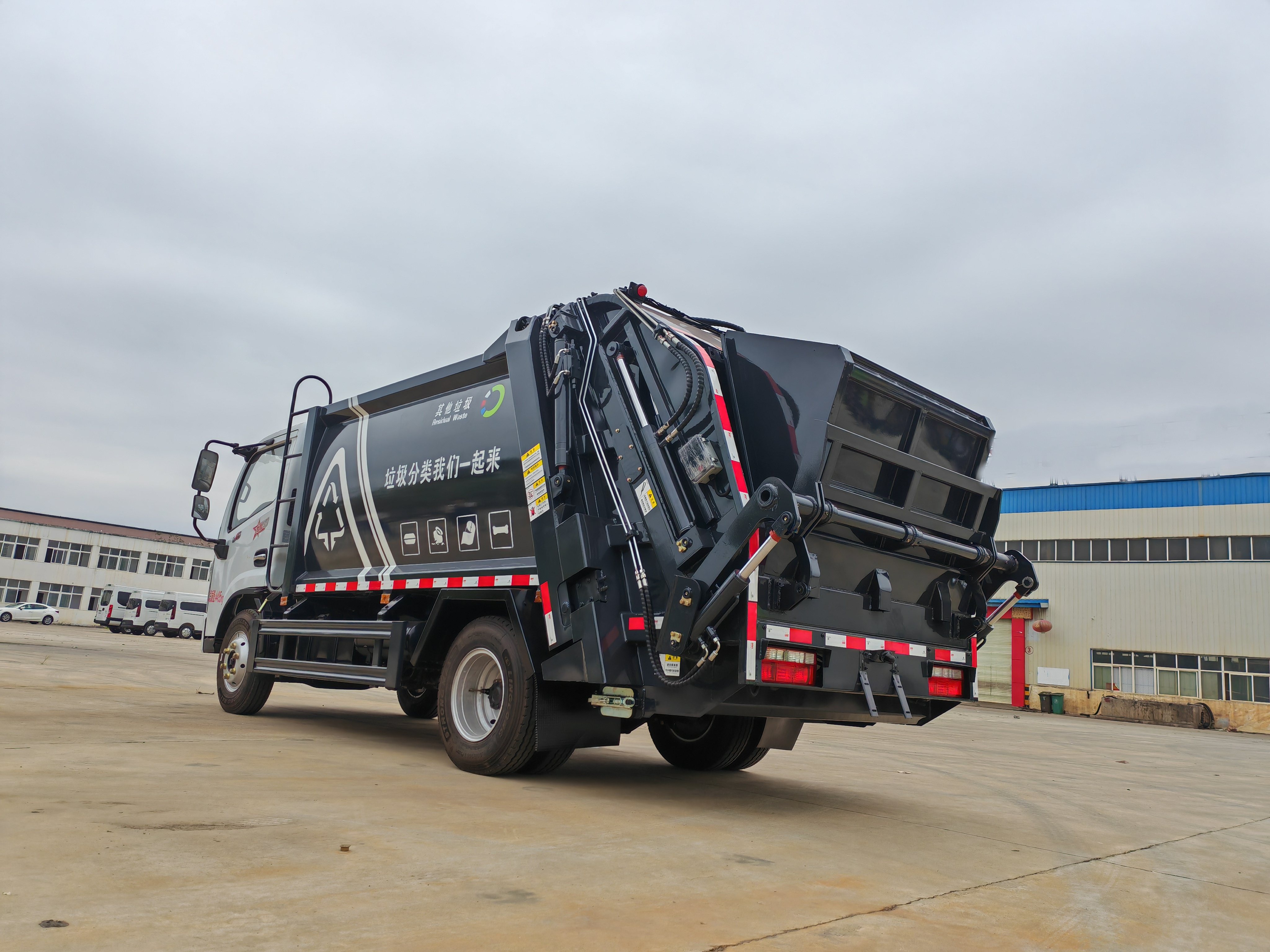

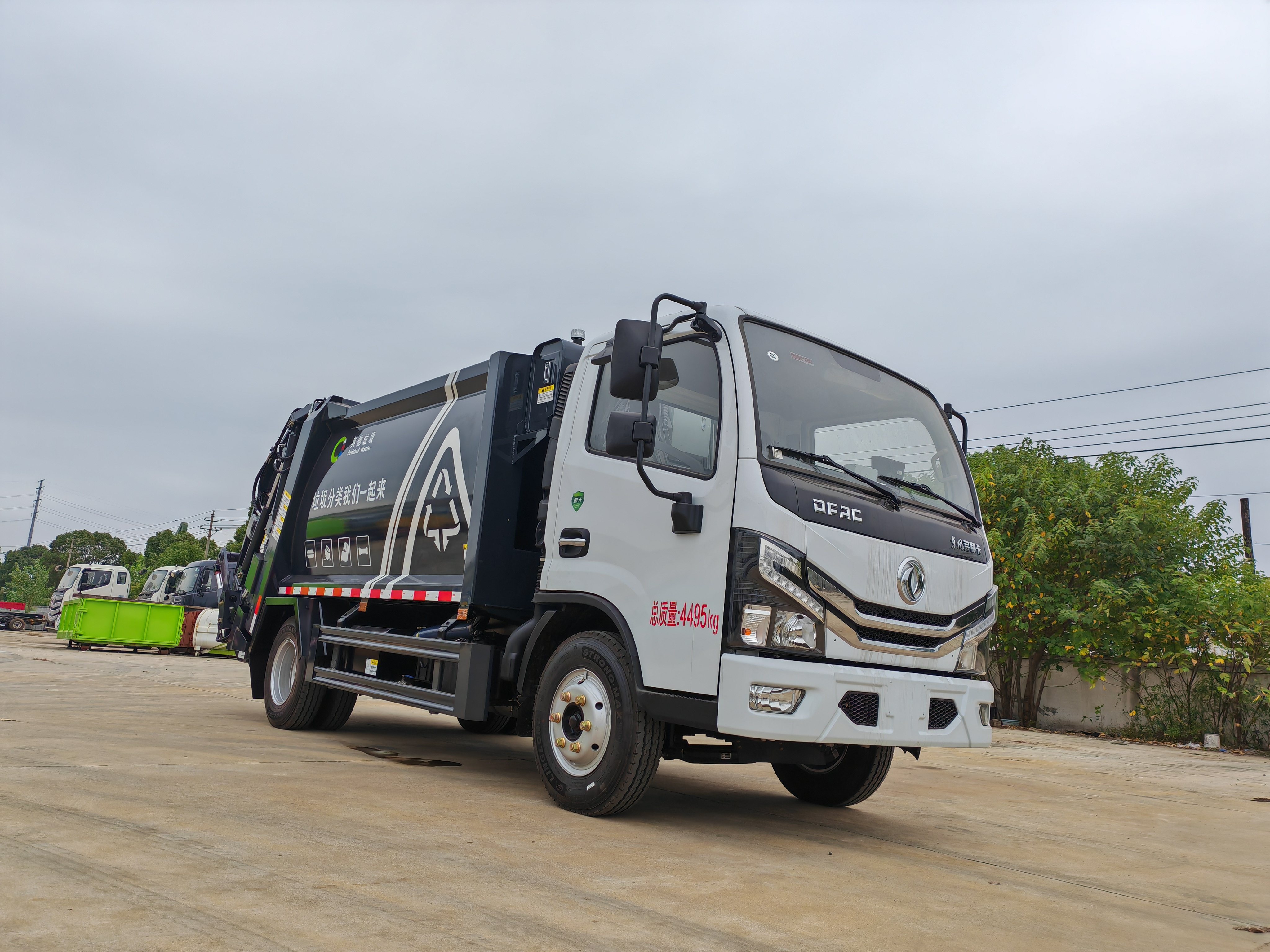

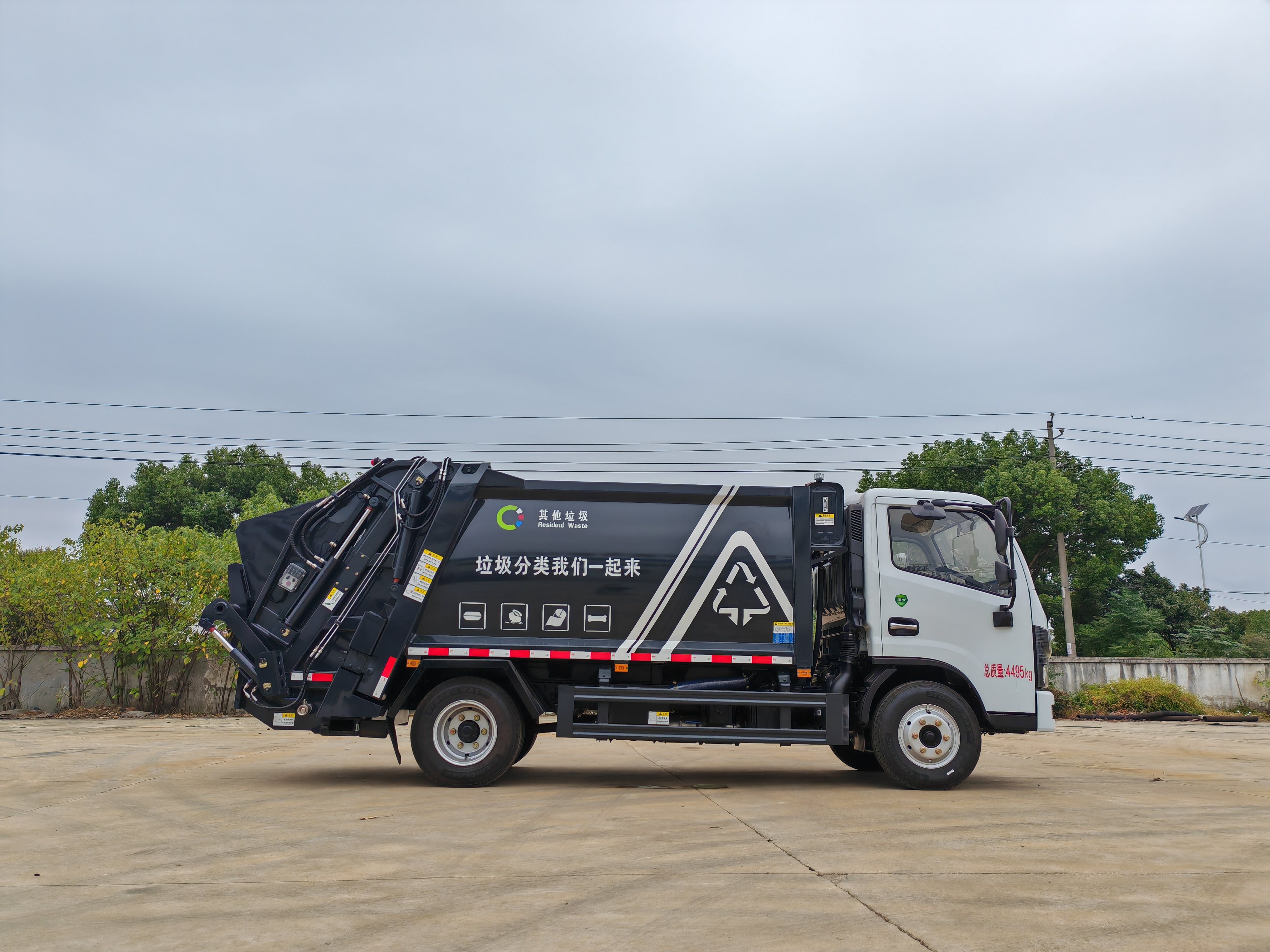

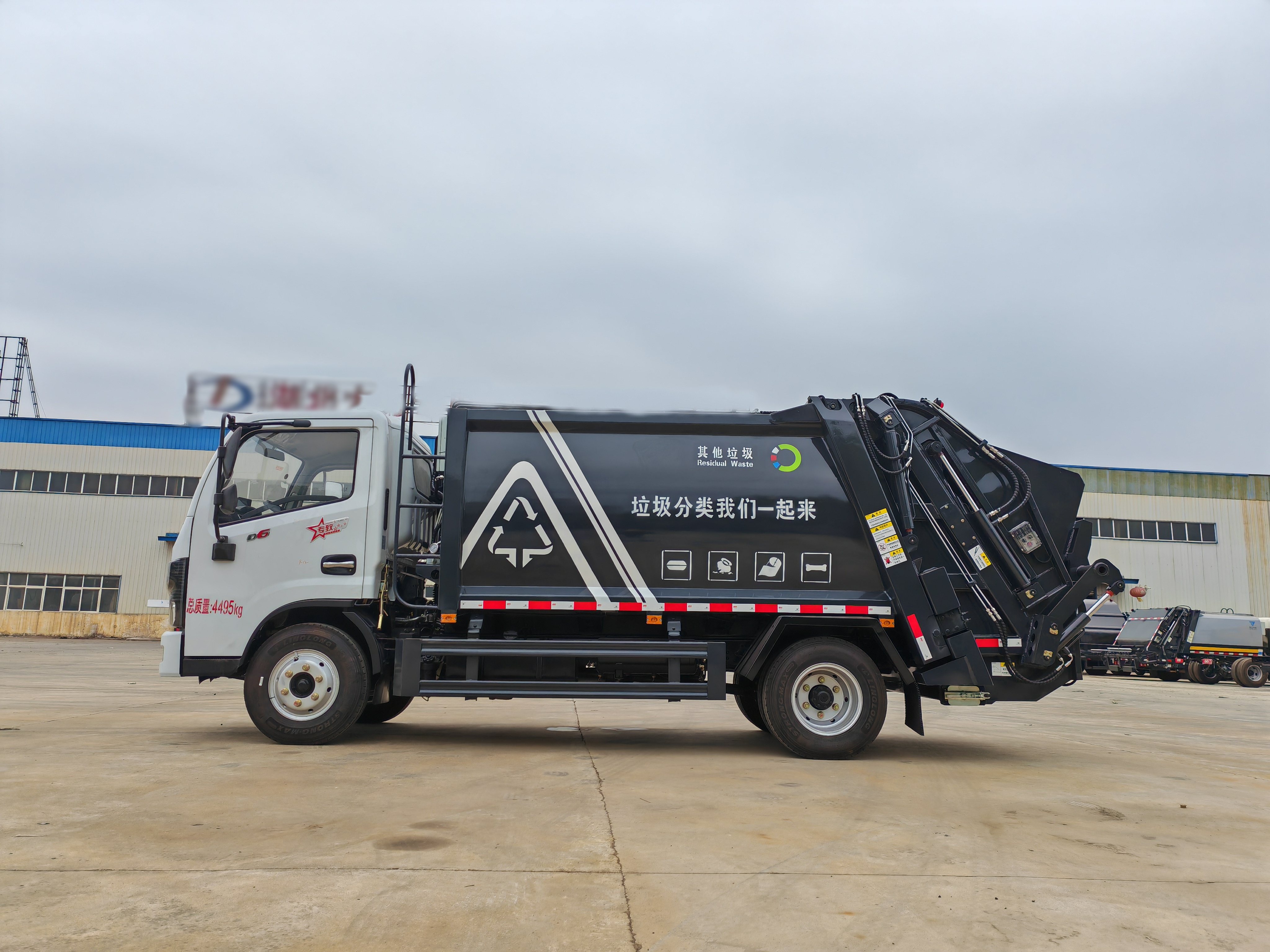

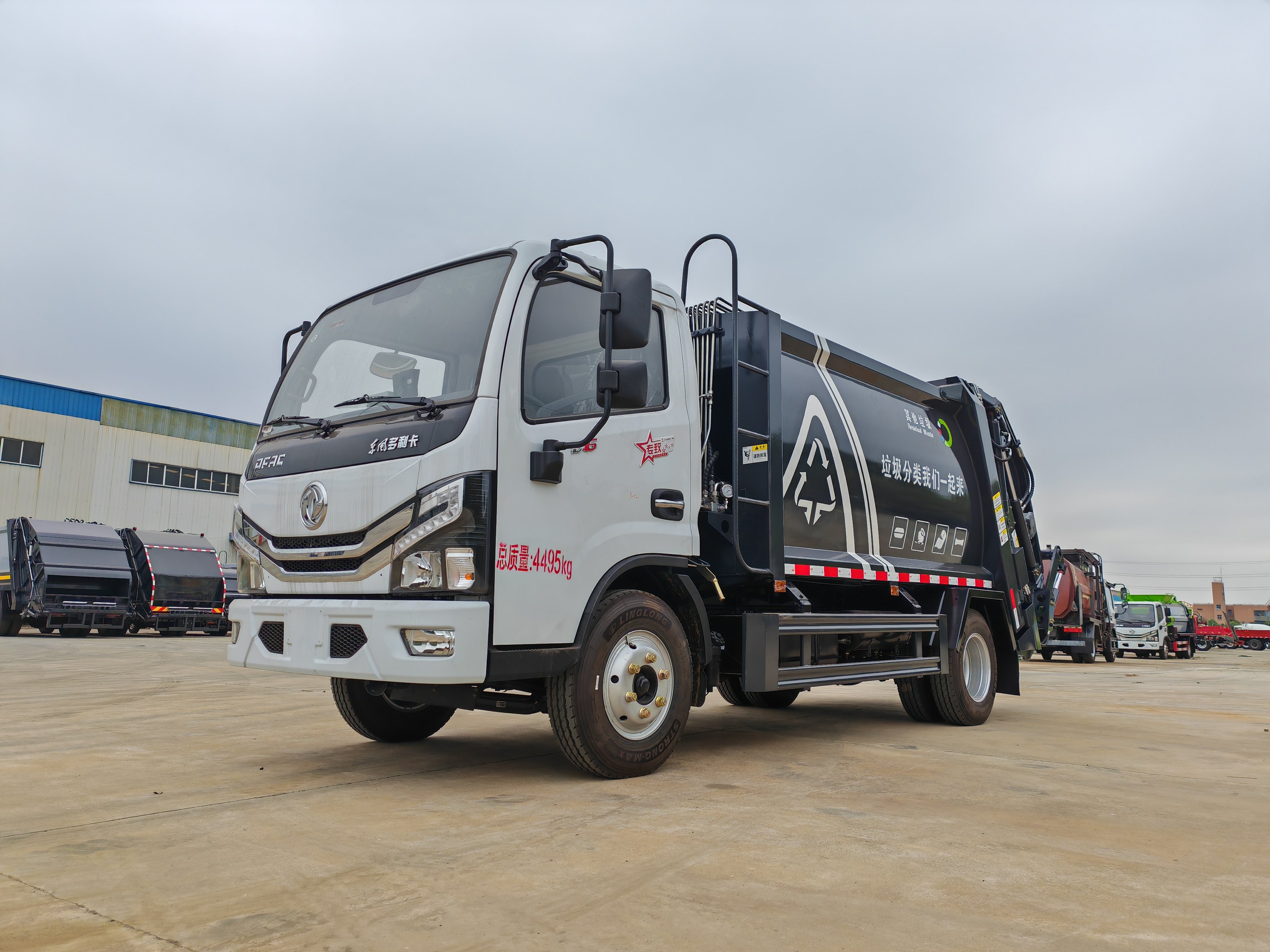

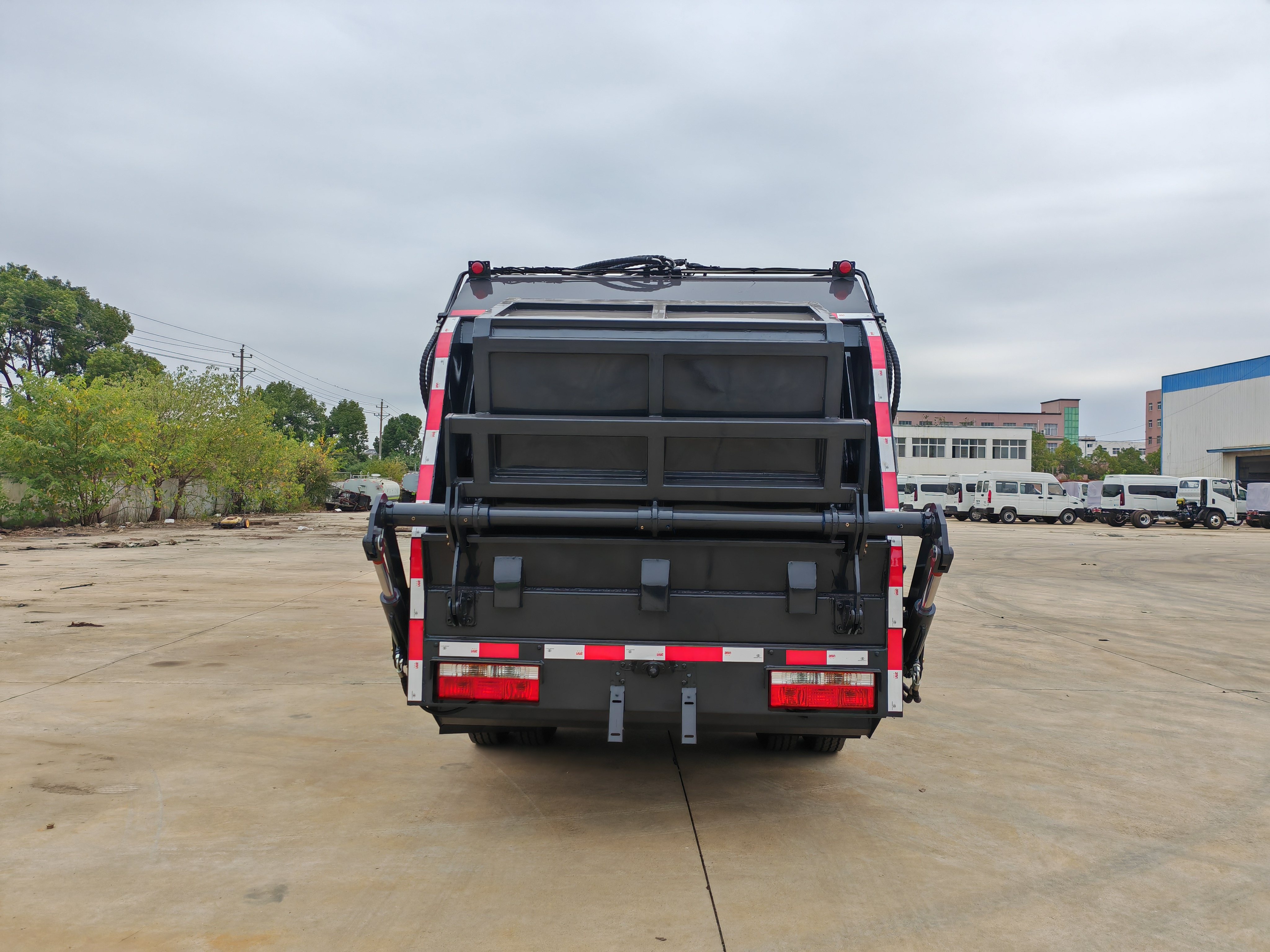

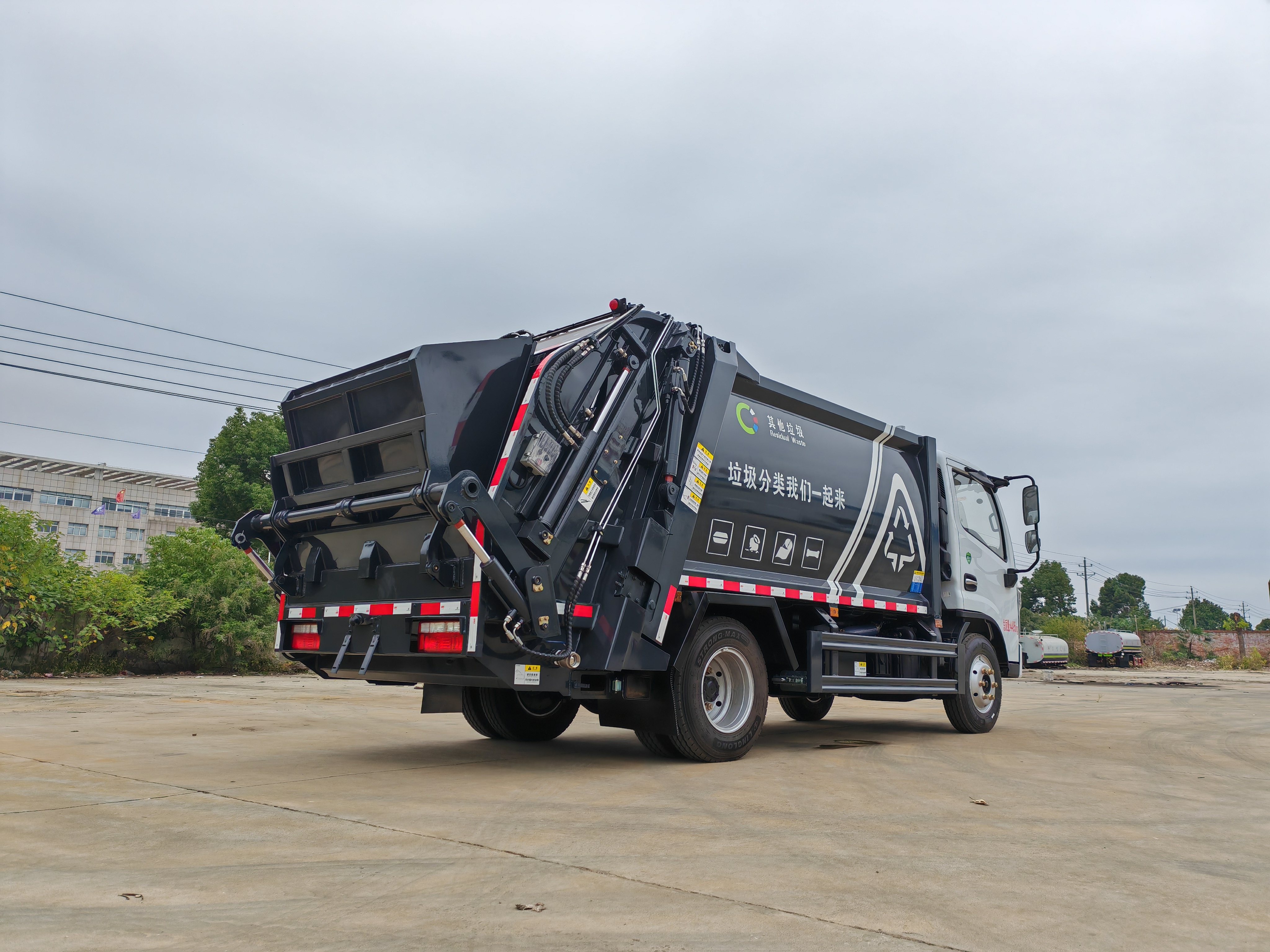

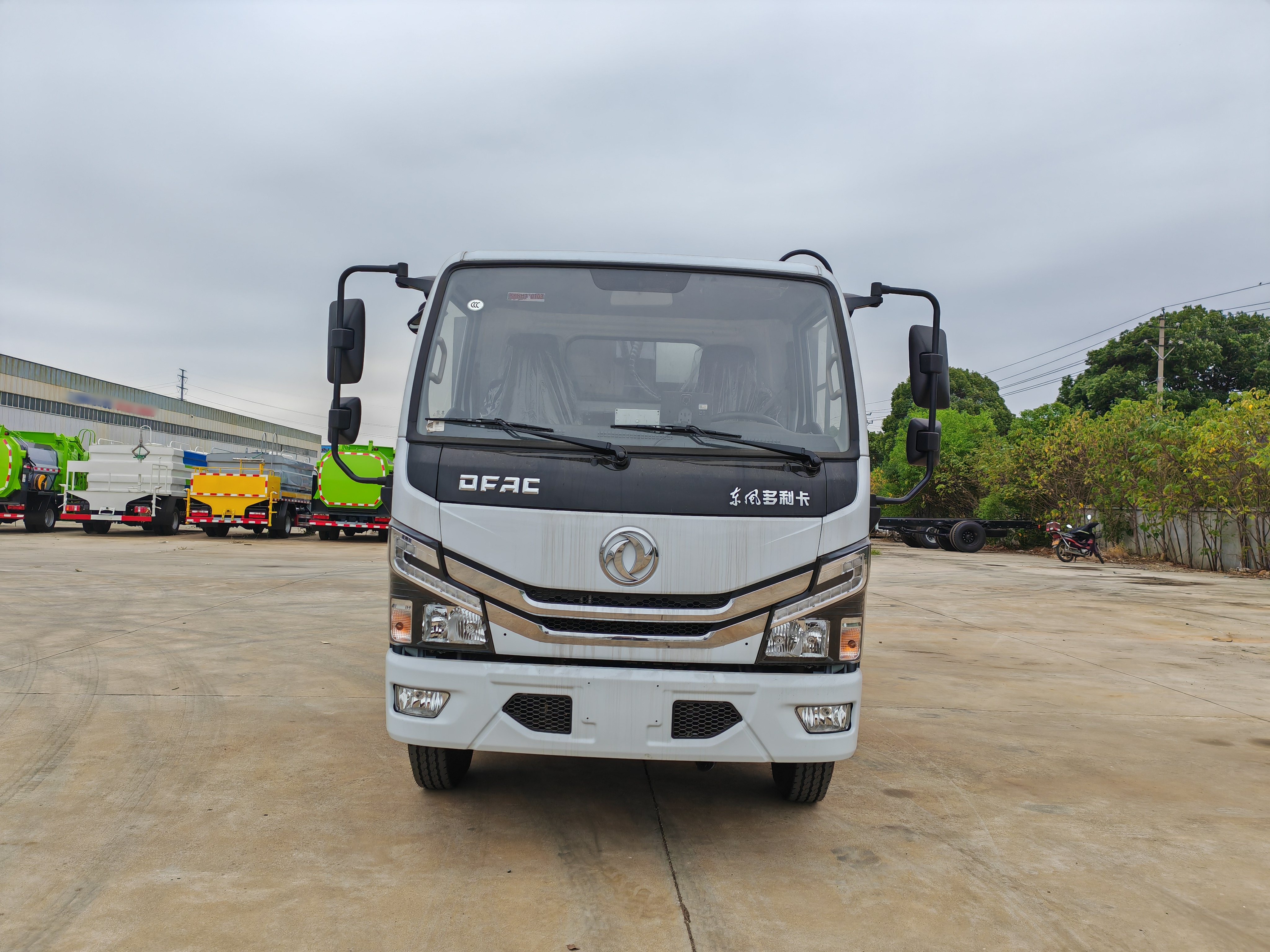

Dongfeng D6 6m³ compressed garbage truck

Chassis configuration of Dongfeng D6 6m³ compressed garbage truck

Dongfeng Dorica D6 sanitation vehicle chassis, all diesel 136 horsepower National VI engine, 6-speed gearbox, 3308mm wheelbase, 7.00 steel wire tires, ABS, electric doors and windows, central locking, air brake, air conditioning, wheelbase: 3308mm Engine: Full diesel 136 horsepower

Product Name： Dongfeng D6 6m³ compressed garbage truck
Driving Type： 4x2
Garbage container volume(cbm)： 6m³
Gross vehicle weight(Kg)： 4495(Kg)

Product Features

Dongfeng D6 6m³ compressed garbage truck

Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.

Upper configuration: It adopts T700 high-strength plate arc-shaped box body, with a 2mm edge and a 3mm bottom, lightweight design, large capacity, blue plate upper, and a hydraulic mechanism composed of a box body, loading mechanism, compression mechanism, unloading mechanism, oil pump, oil cylinder, control valve, etc. The loading mechanism consists of a bracket, a connecting rod mechanism, a cam, a hook, etc., and it undergoes bi-directional peristaltic compression. Domestic well-known brand hydraulic systems (Anhui Wanye Pump, Hunan Changsha Domestic Famous Multi way Valve, Compression Special Customized Oil Cylinder, Zhejiang Jiashan Power Takeoff); The same CAN bus control system is used for centralized electronic control inside the driver's cab and outside the vehicle; Vehicle high position clearance lights/edge lights/work lighting, equipped with wireless remote control and pressure doubling valve for convenient operation.

Product parameters

Product Name	Dongfeng D6 6m³ compressed garbage truck
Driving Type	4x2
Garbage container volume(cbm)	6m³
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	3865(Kg)
Rated weight(kg)	500(Kg)
Wheelbase(mm)	3308(mm)
Overall Dimension(mm)	5995,5700×1960×2600(mm)
Engine brand & model	Q23-136E60, Quanchai 136hp
Axle Quantity	2
Transmission Type	6-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16 steel wire tire, 6+1 spare
Cab	D6 cab, ABS, electric doors and windows, central locking system, air conditioning
Garbage container material	T700 high-strength board arc-shaped box, with a 2mm edge and a 3mm bottom
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
