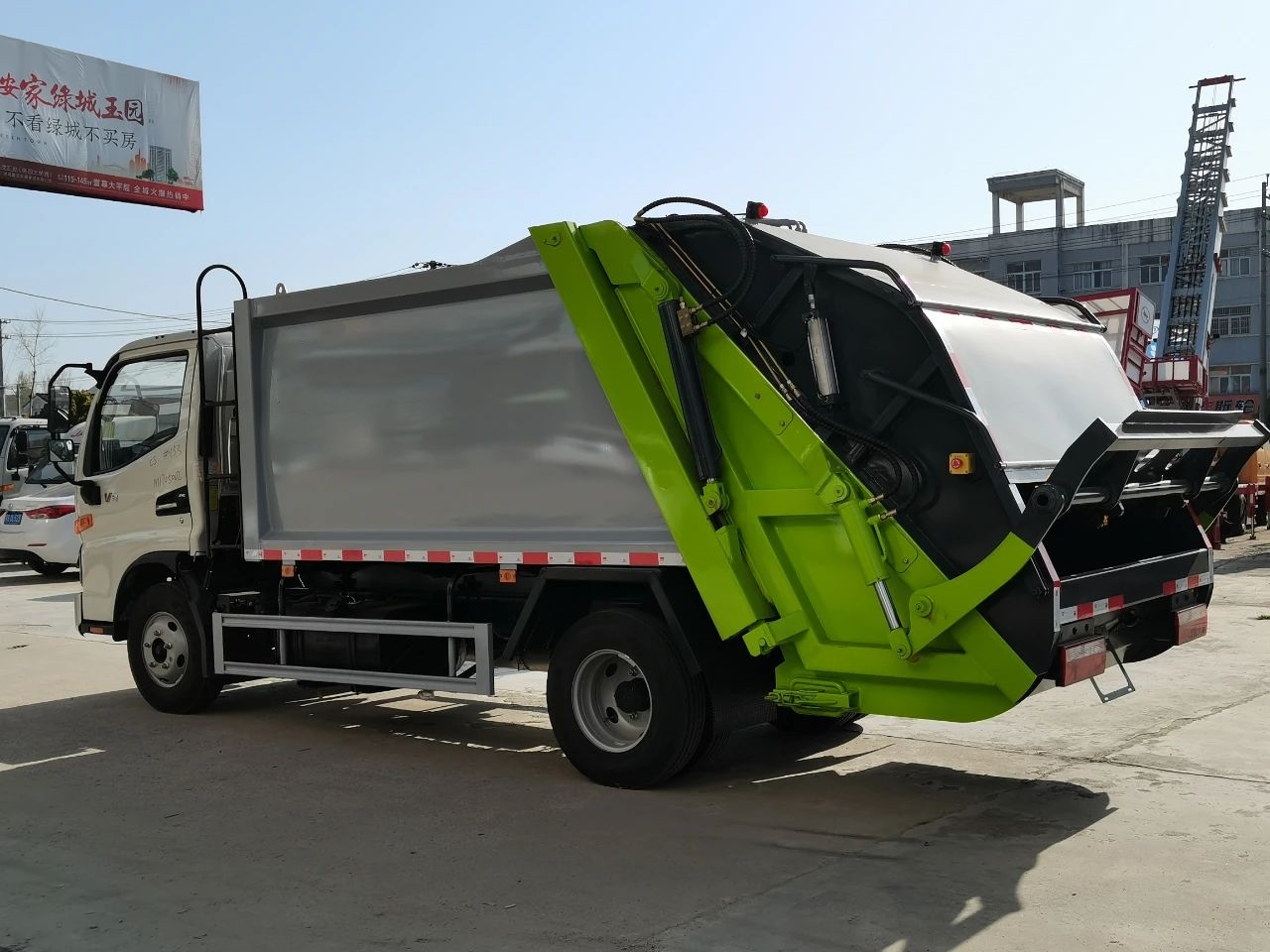

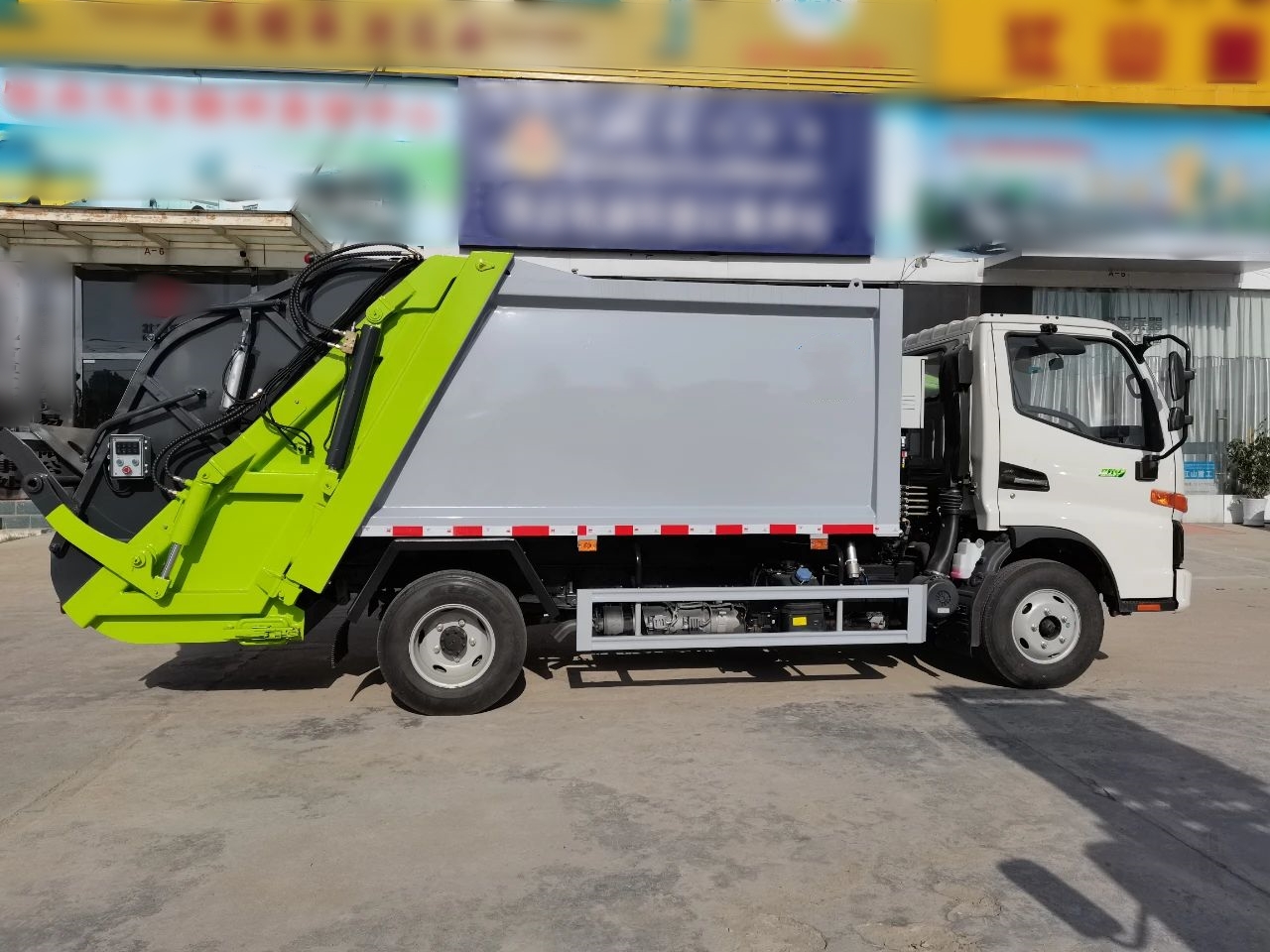

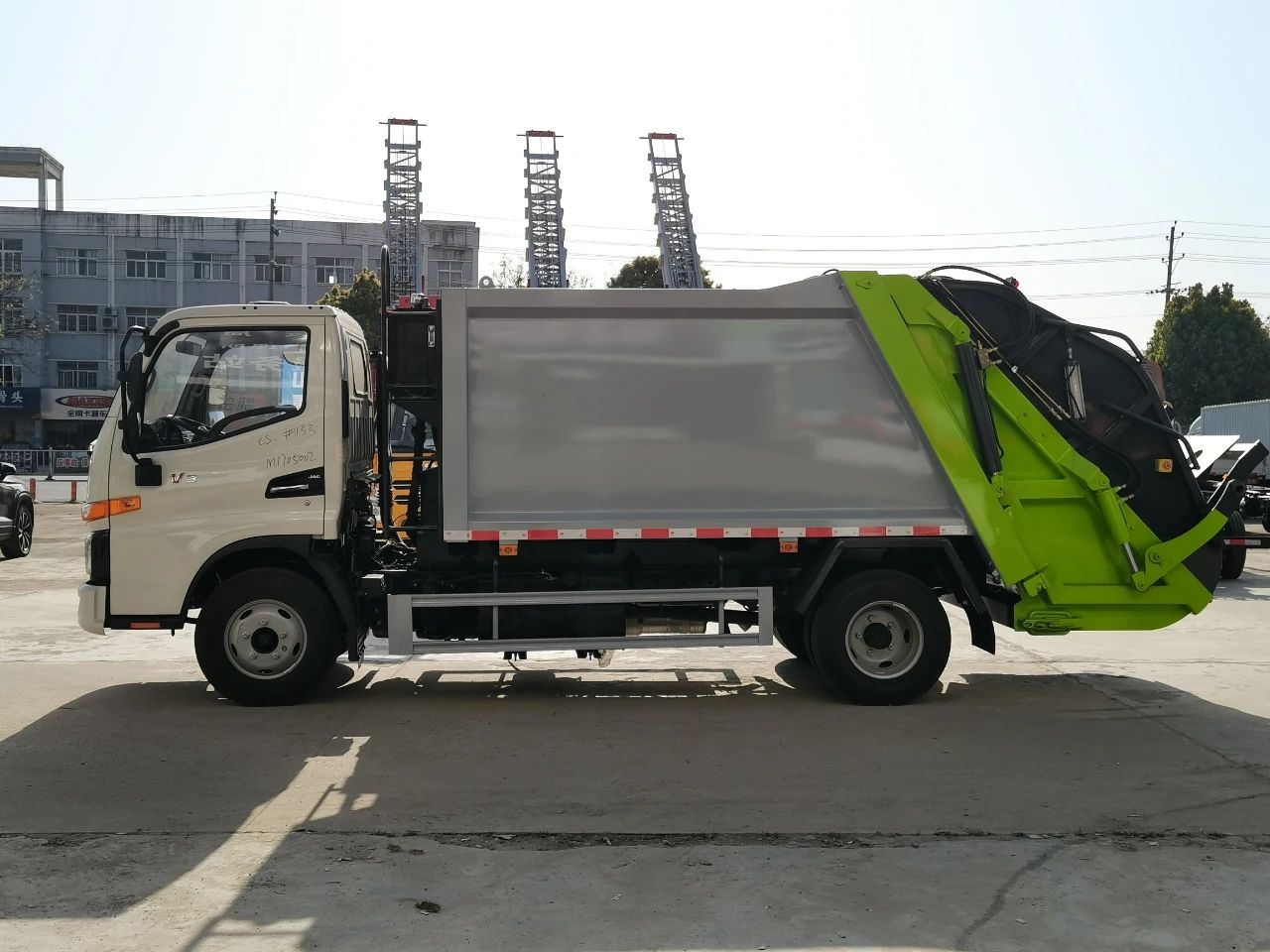

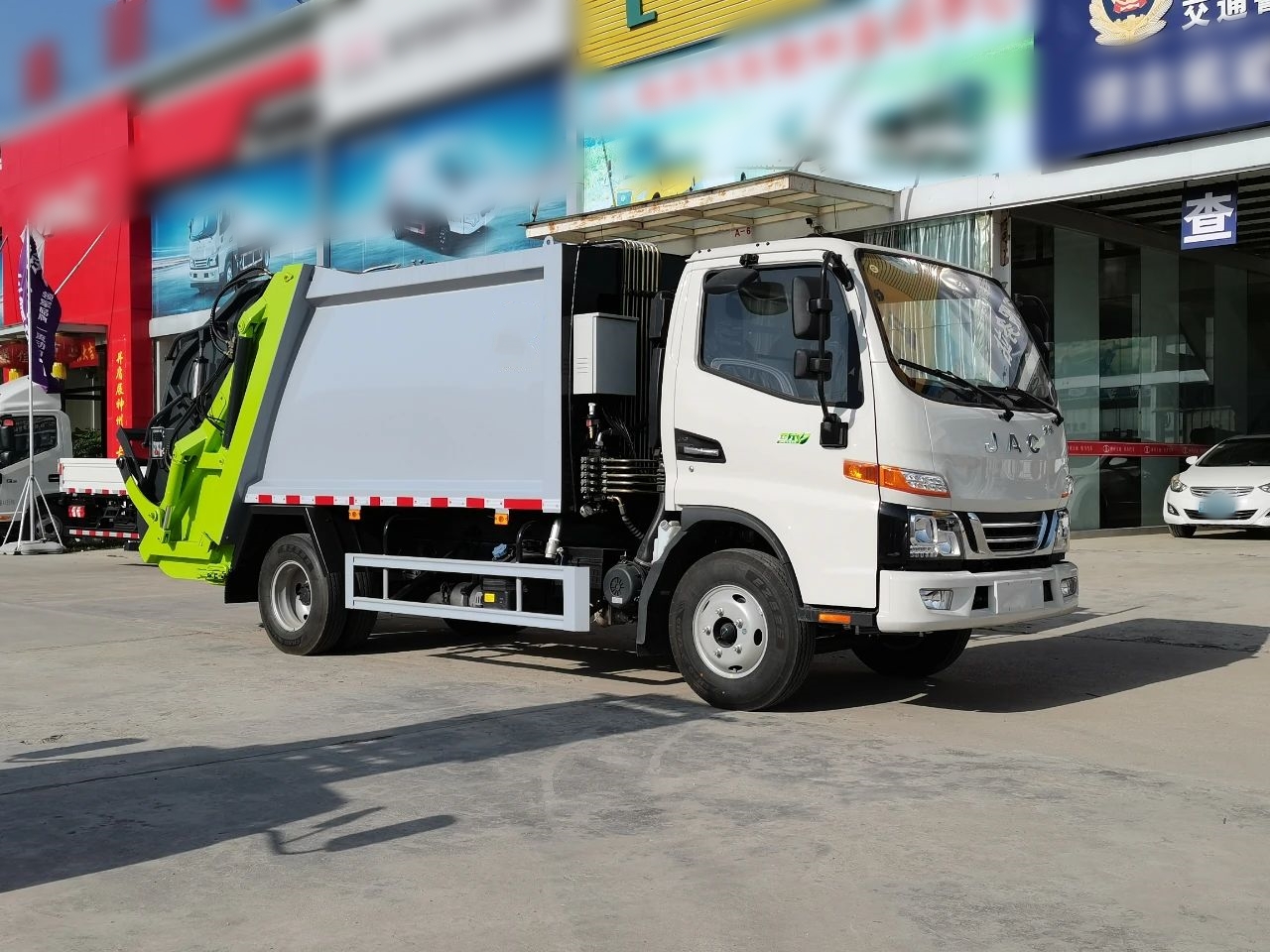

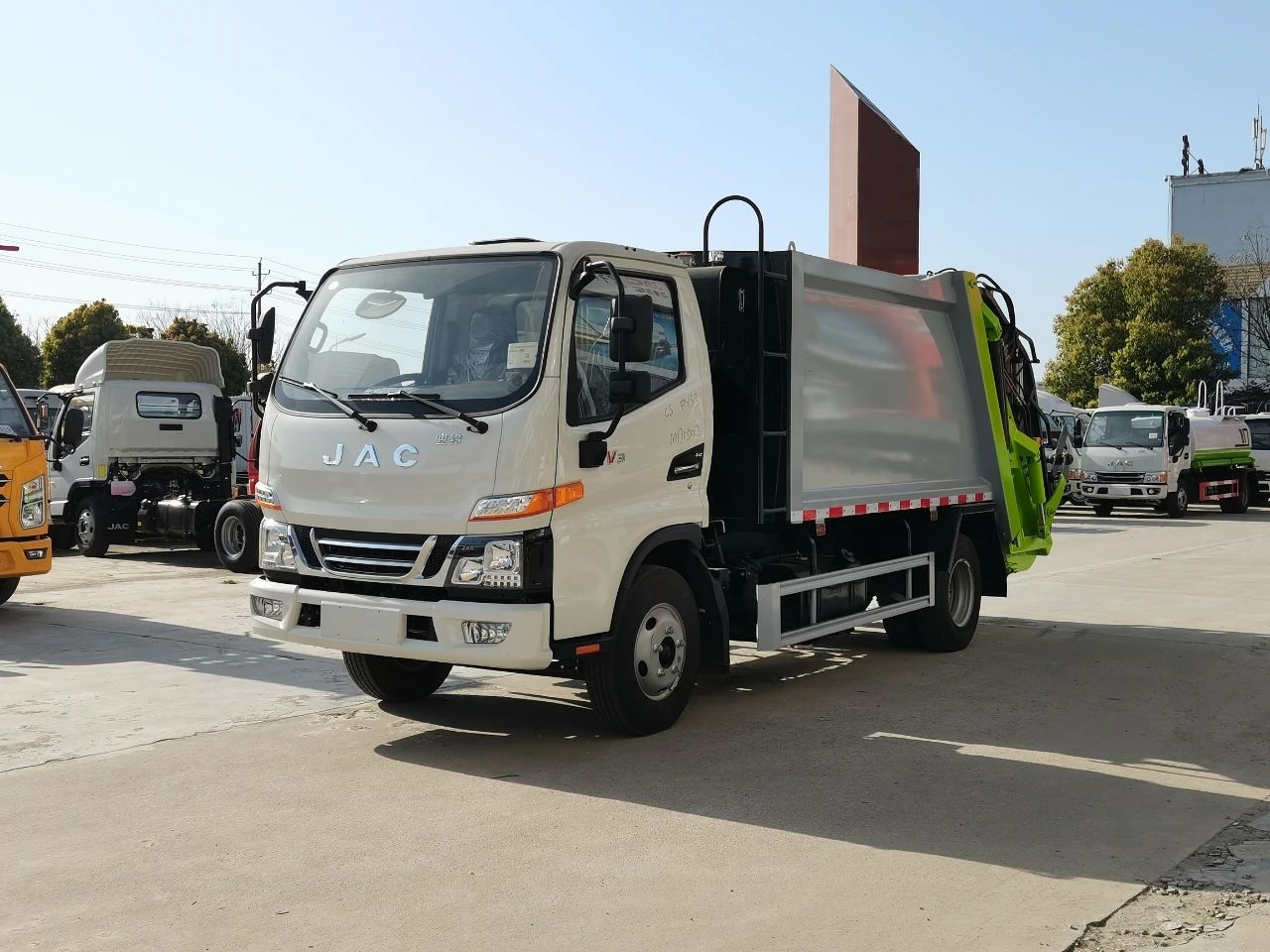

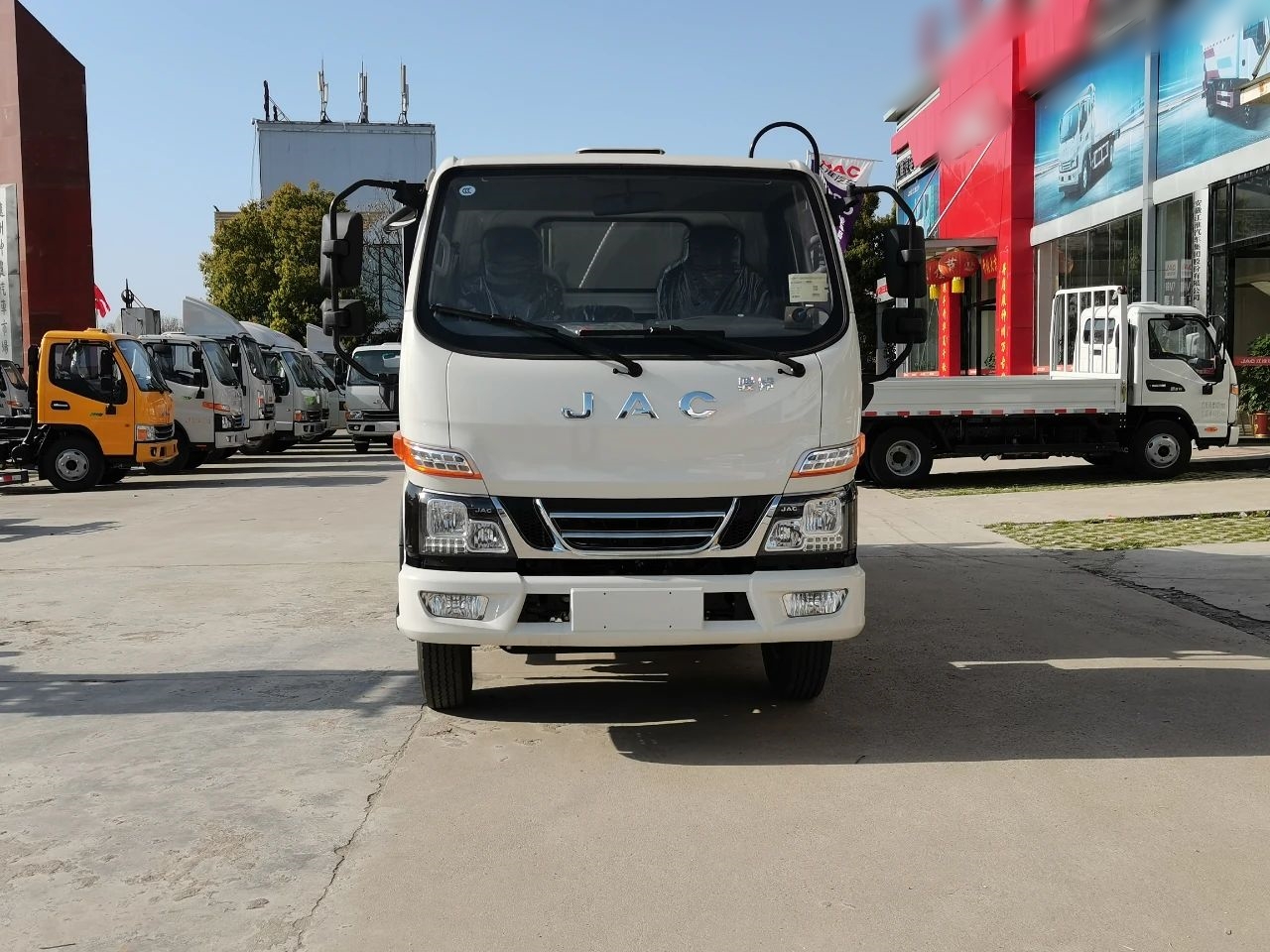

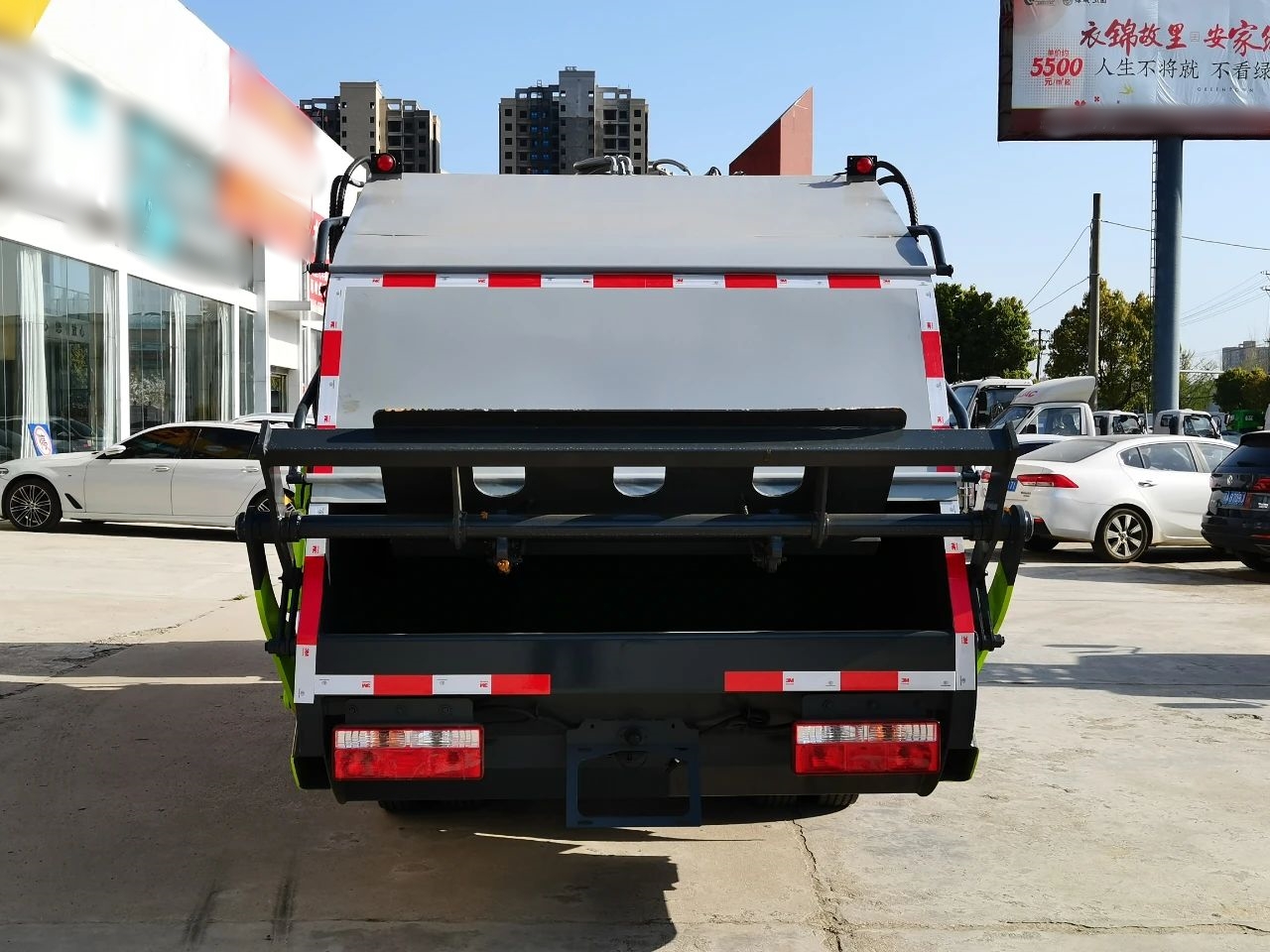

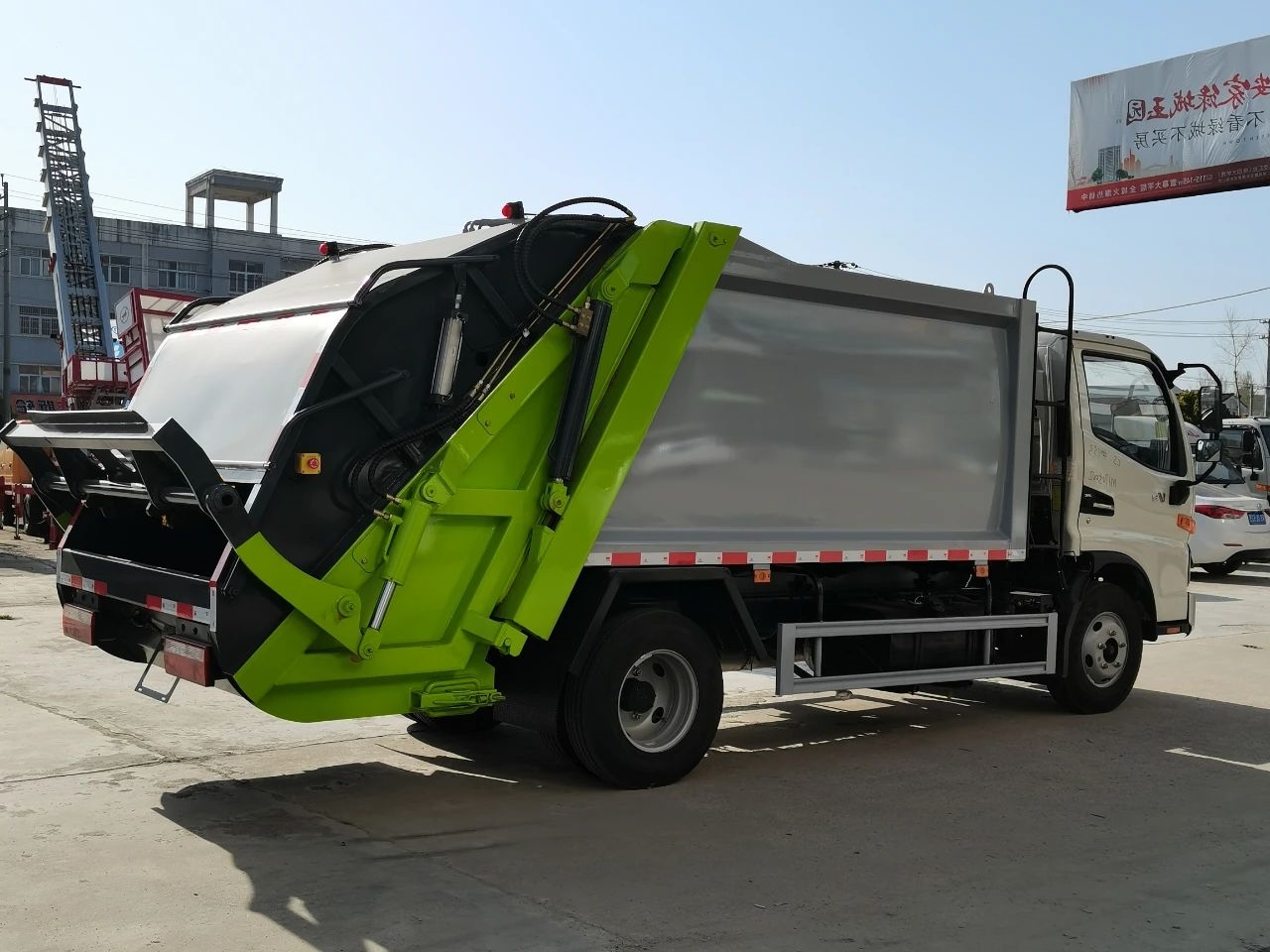

JAC Junling V3 6.5m³ Compressed Garbage Truck

Chassis configuration:
The JAC Junling V3 6.5m³ compressed garbage truck is a fully sealed type, which compresses, pours, and all the sewage during the compression process enters the sewage tank, completely solving the problem of secondary pollution in garbage transportation and avoiding inconvenience to people. The key components are imported, with advantages such as high pressure, good sealing, easy operation, and safety.

Product Name： JAC Junling V3 6.5m³ Compressed Garbage Truck
Driving Type： 4x2
Garbage container volume(cbm)： 6.5m³
Gross vehicle weight(Kg)： 7360(Kg)

Product Features

A compression garbage truck is a vehicle specifically designed for compressing and transporting garbage, consisting mainly of a sealed garbage bin, hydraulic system, and operating system.

JAC Junling V3 6.5m³ compressed garbage truck consists of a sealed garbage compartment, hydraulic system, and operating system. It can be equipped with a rear hanging bucket flipping mechanism or a garbage hopper flipping mechanism.

Product parameters

Product Name	JAC Junling V3 6.5m³ Compressed Garbage Truck
Driving Type	4x2
Garbage container volume(cbm)	6.5m³
Gross vehicle weight(Kg)	7360(Kg)
Curb weight(Kg)	5200,5400(Kg)
Rated weight(kg)	1830,2030(Kg)
Wheelbase(mm)	3365(mm)
Overall Dimension(mm)	6580,6740,6780,6980×2050×2240,2650(mm)
Engine	Yunnei Dewei high-end power, D25TCIF1,Yunnei 150hp
Axle Quantity	2
Transmission Type	Anhui Xingrui 6-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	700R16LT 14PR steel wire tire, 6+1 spare
Cab	Junling V3 cab
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
