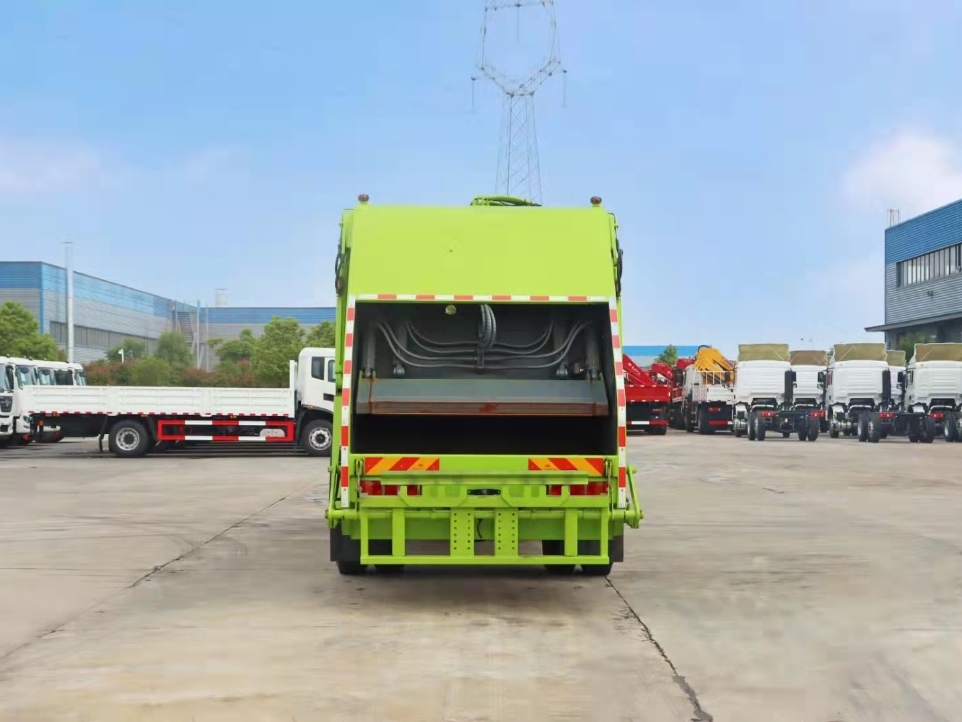

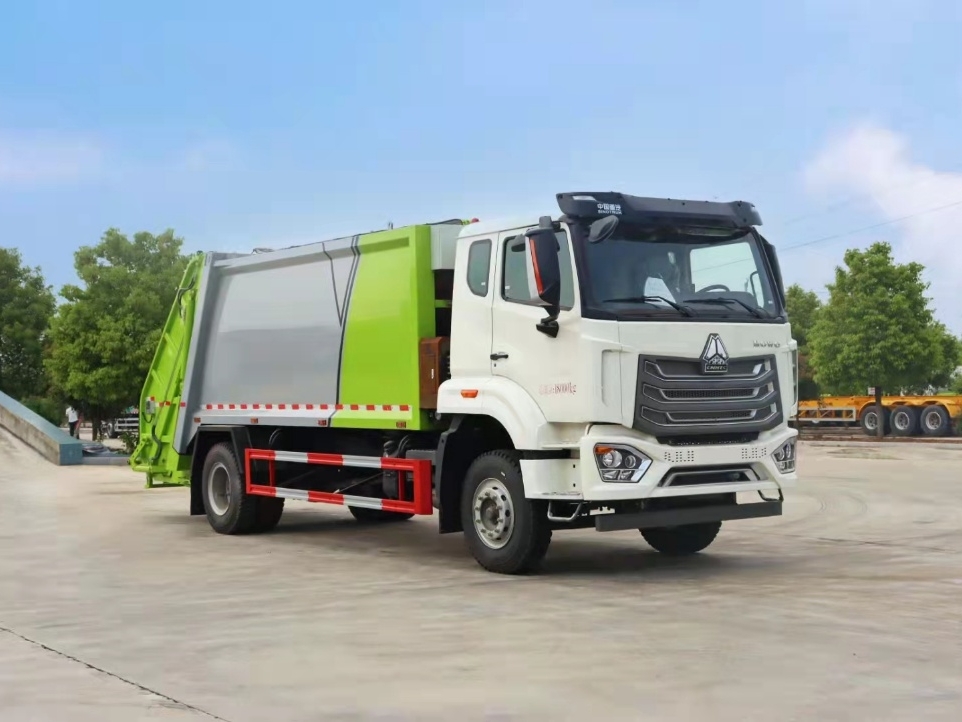

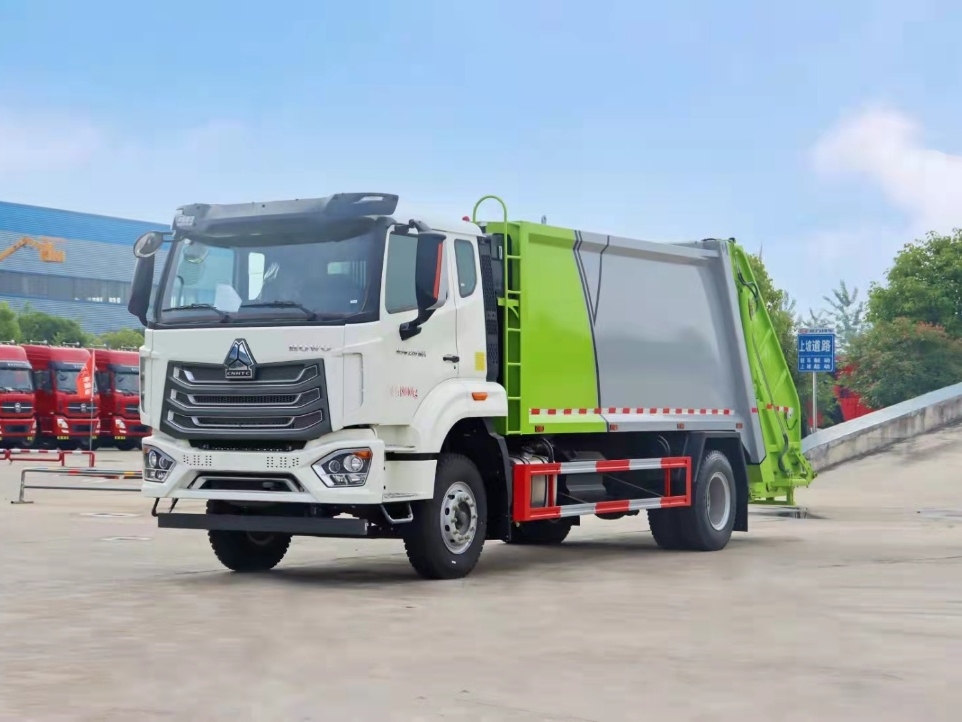

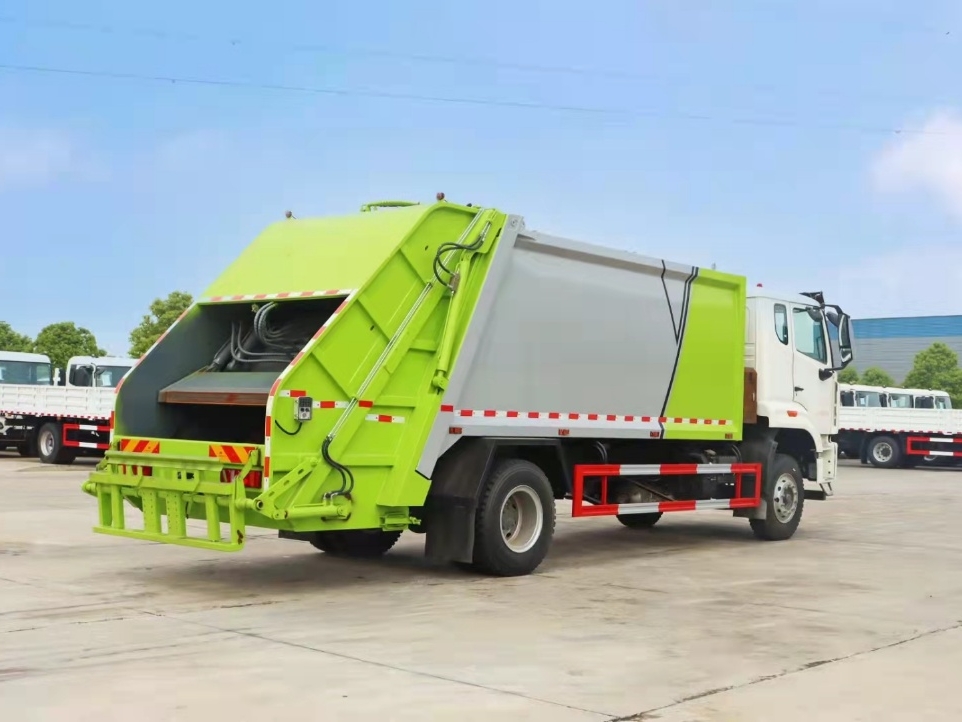

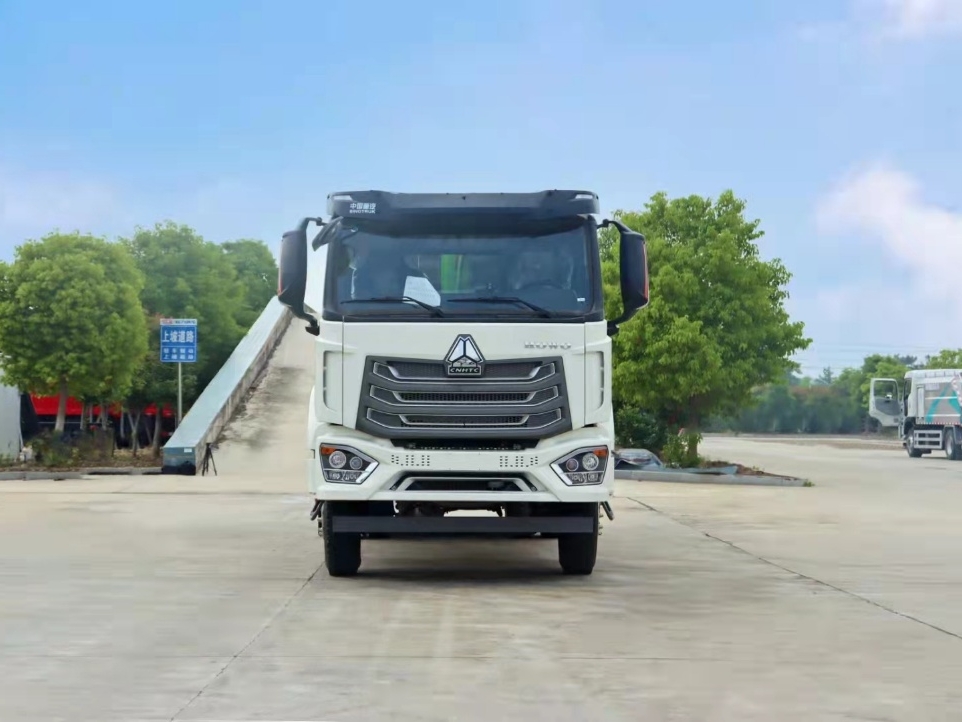

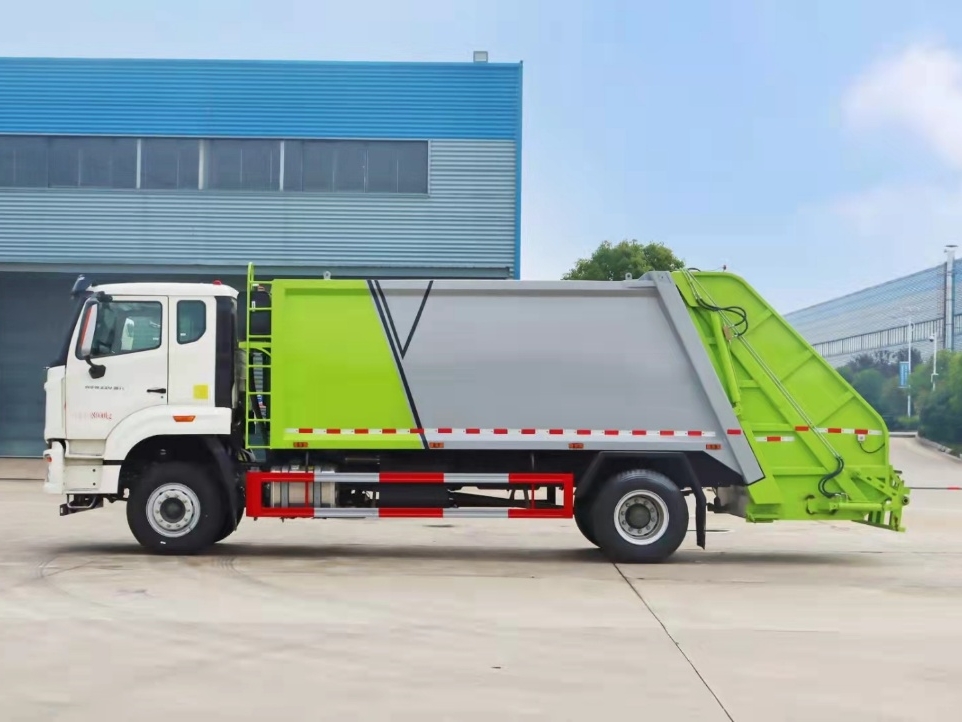

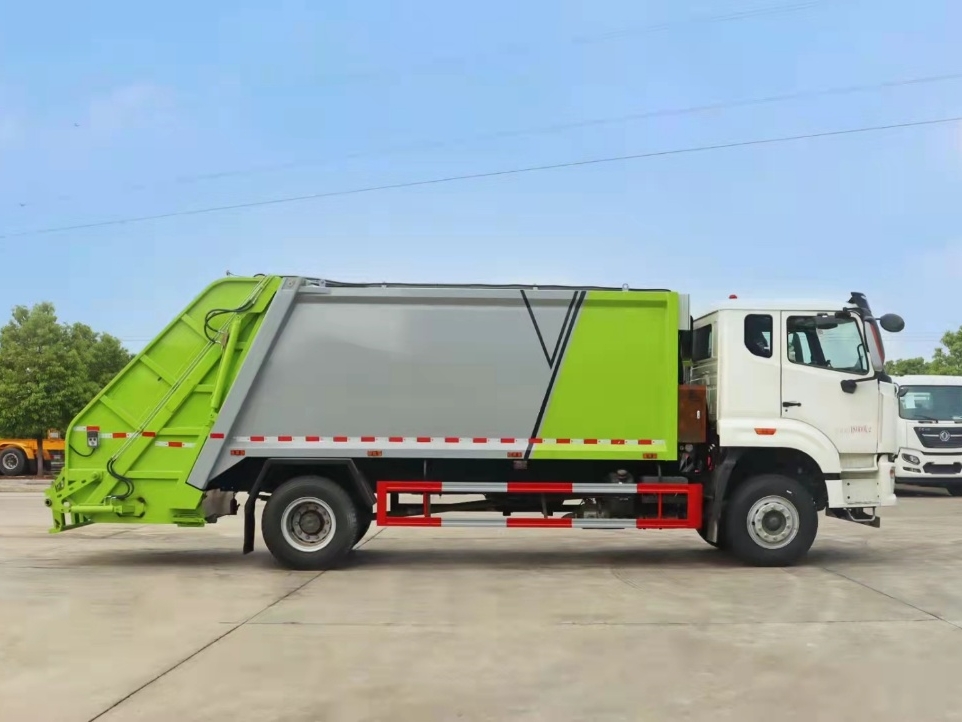

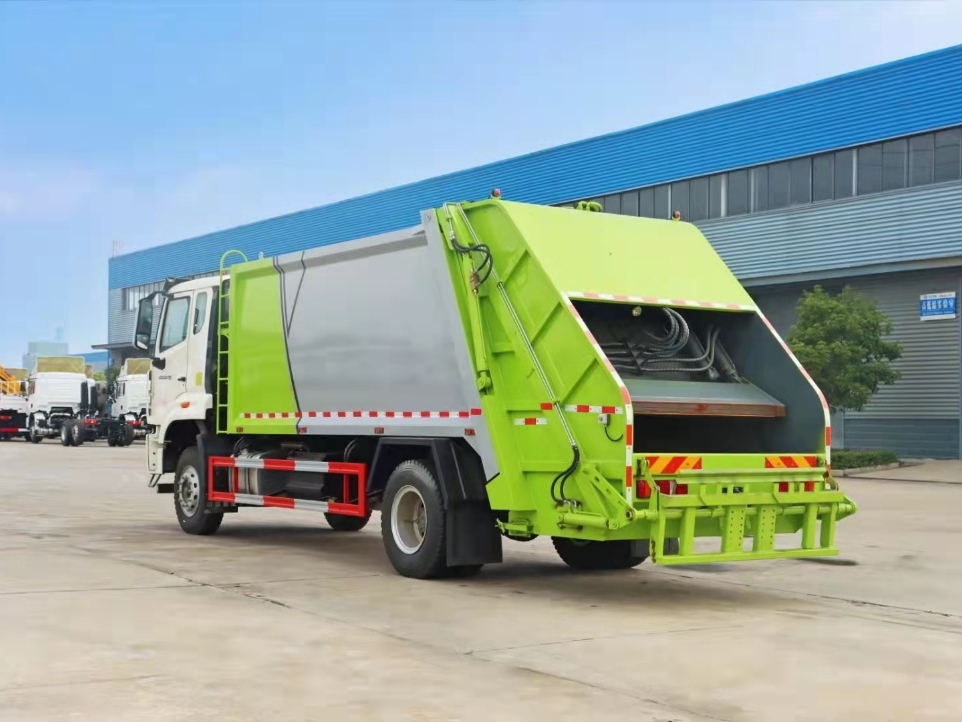

4X2 Sinotruk Howo 18m³ Compressed Garbage Truck

Chassis configuration:

Wheelbase: 5100mm
Engine: Weichai 220 horsepower
Transmission: HOWO 8-speed
Tire: 10.00 steel wire tire

Other information:
Flip style: Flip bucket/floor bucket/triangular bucket/swing arm style
Skateboard structure: Built in skateboard
Box volume: 18 cubic meters
Operation mode: manual+electric control+remote control
One cycle: 17-18
Unloading time:<25 seconds
Special instructions: Equipped with Hepres oil cylinder, Hefei Anhui liquid oil pump, Yangzhou Zhongmei multi way valve, and standard passive compaction valve.

Product Name： 4X2 Sinotruk Howo 18m³ Compressed Garbage Truck
Driving Type： 4x2
Garbage container volume(cbm)： 18m³
Gross vehicle weight(Kg)： 18000(Kg)

Product Features

4X2 Sinotruk Howo 18m³ Compressed Garbage Truck

Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.

Upper configuration:
Compressed garbage truck configuration:
1. The new curved box body increases the box body capacity, making the whole vehicle more beautiful. The box body is made of carbon steel, and the bottom box and filler are made of thickened steel plates, which are wear-resistant and have a long service life. It is treated with three layers of paint odor coating.
2. Loading cycle time ≤ 25S: garbage disposal time<≤ 25S
The lifting angle of the packing is ≥ 95 °, the compression ratio is 1/3-1/2, and the upper part has bidirectional compression and dynamic compression functions.
3. The new structure is equipped with an enlarged filler, a flashlight integrated operation mode, a driver's cab operation, a one key unloading function in the driver's cab, a noise controller, and a tail device that can be optionally equipped with a garbage flipping bucket, a hanging bucket flipping plate, or a large landing bucket.
4. CA bus control method, dual system control with photoelectric switch and delay, reduces failure rate and facilitates maintenance.
5. Equipped with night lighting device, models with 6 or more square meters are equipped with dual sewage tanks, sewage tank drainage ball valves and drainage covers, increased drainage pipes to prevent splashing, and humanized design.
6. Standard selection: Wesen Bole oil cylinder, Wesen Bole multi way valve, compaction valve (back pressure valve) as standard across the range, pump brand as standard across all models: Wanye hydraulic pump (advantages: wear resistance, long service life, large flow rate)

Product parameters

Product Name	4X2 Sinotruk Howo 18m³ Compressed Garbage Truck
Driving Type	4x2
Garbage container volume(cbm)	18m³
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	10700,10900,11000,11200,11500(Kg)
Rated weight(kg)	7170,7105,6970,6905,6870,6805,6670,6605,6370,6305(Kg)
Wheelbase(mm)	5100(mm)
Overall Dimension(mm)	8900,9100,9300,9600,9800,8950,9150,9650×2550×3250(mm)
Engine	WP7H220E62, Weichai 220hp
Axle Quantity	2
Transmission Type	Howo 8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	10.00R20 18PR, 6+1 spare
Cab	Sinotruk Howo cab
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
