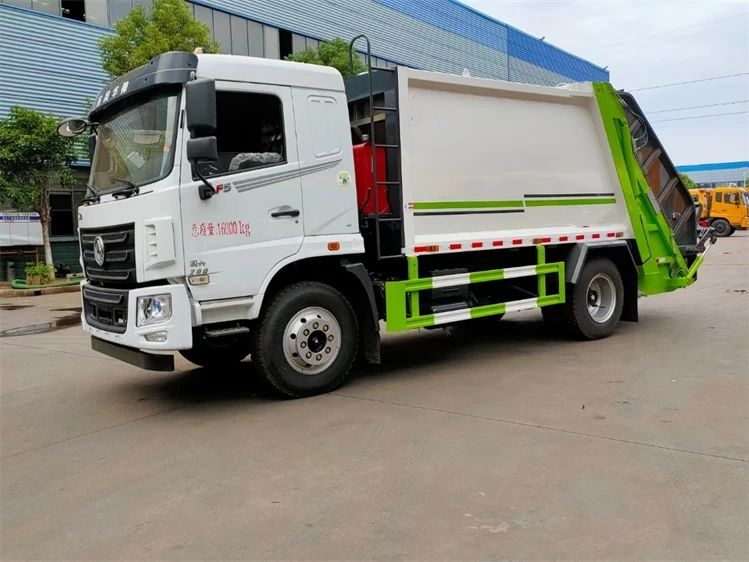

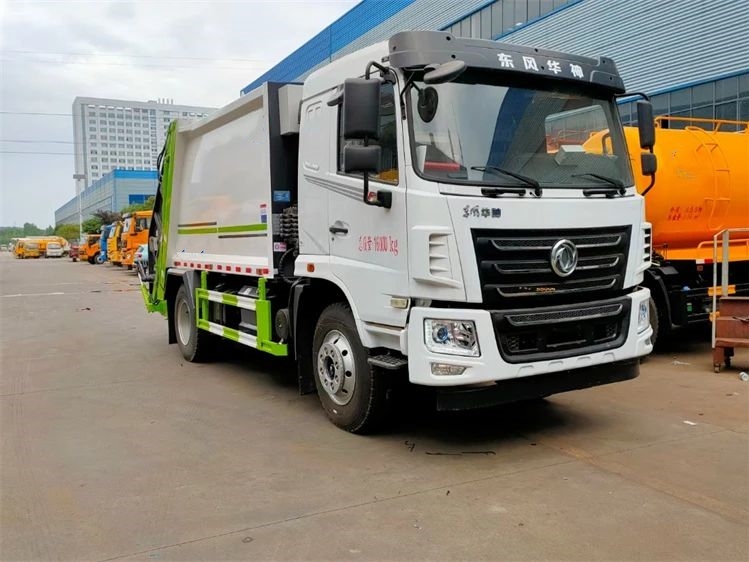

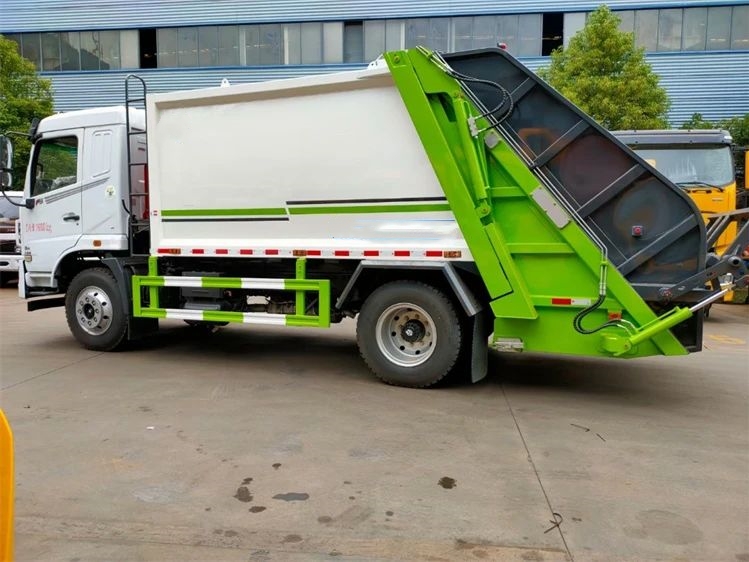

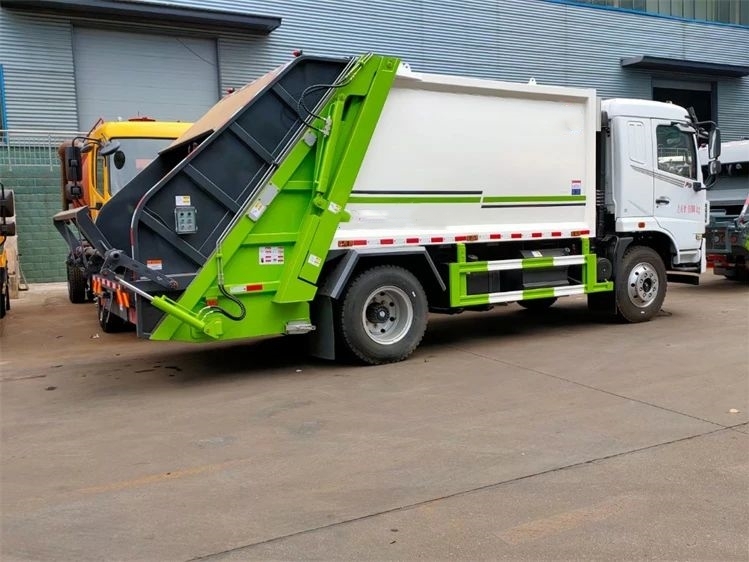

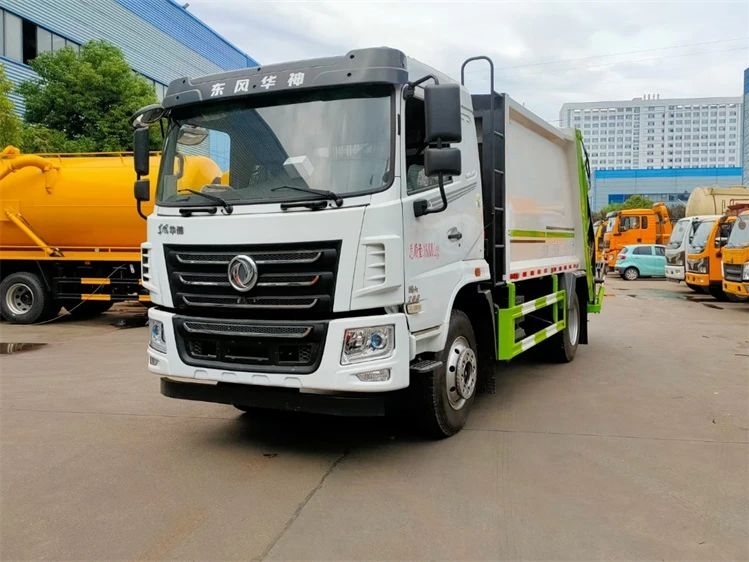

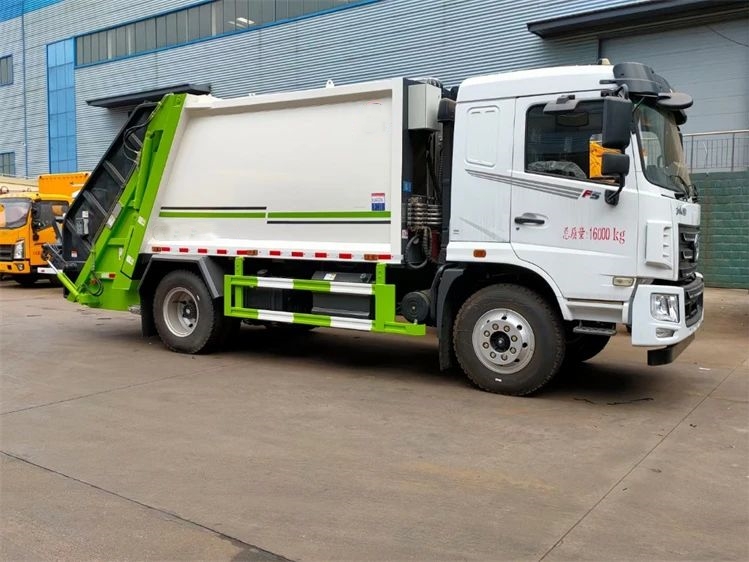

Dongfeng Huashen F5 12m³ Compressed Garbage Truck

Chassis configuration:

Cab: Dongfeng Huashen F5
Engine: Yuchai 6-cylinder 200 horsepower National VI engine
Transmission: Fast 8-speed gearbox
Wheelbase: 4500mm
Front axle: 4.5T
Rear axle: 9T
Frame: 250mm
Tire: 10.00R20 steel wire tire
Other configurations: original air conditioning, airbag seats, electric glass doors and windows, central control car lock, air brake, original ABS, directional assistance, etc

Product Name： Dongfeng Huashen F5 12m³ Compressed Garbage Truck
Driving Type： 4x2
Garbage container volume(cbm)： 12m³
Gross vehicle weight(Kg)： 18000(Kg)

Product Features

Dongfeng Huashen F5 12m³ Compressed Garbage Truck

Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.

Product parameters

Product Name	Dongfeng Huashen F5 12m³ Compressed Garbage Truck
Driving Type	4x2
Garbage container volume(cbm)	12m³
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	9865,10100,10800(Kg)
Rated weight(kg)	8005,7940,7770,7705,7070,7005(Kg)
Wheelbase(mm)	4500(mm)
Overall Dimension(mm)	8970,8770,8930,8360,8160,7960×2550×3290,3260(mm)
Engine	Yuchai 6-cylinder 200 horsepower
Axle Quantity	2
Transmission Type	Fast 8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	10.00R20 steel wire tire, 6+1 spare
Cab	Dongfeng Huashen F5
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
