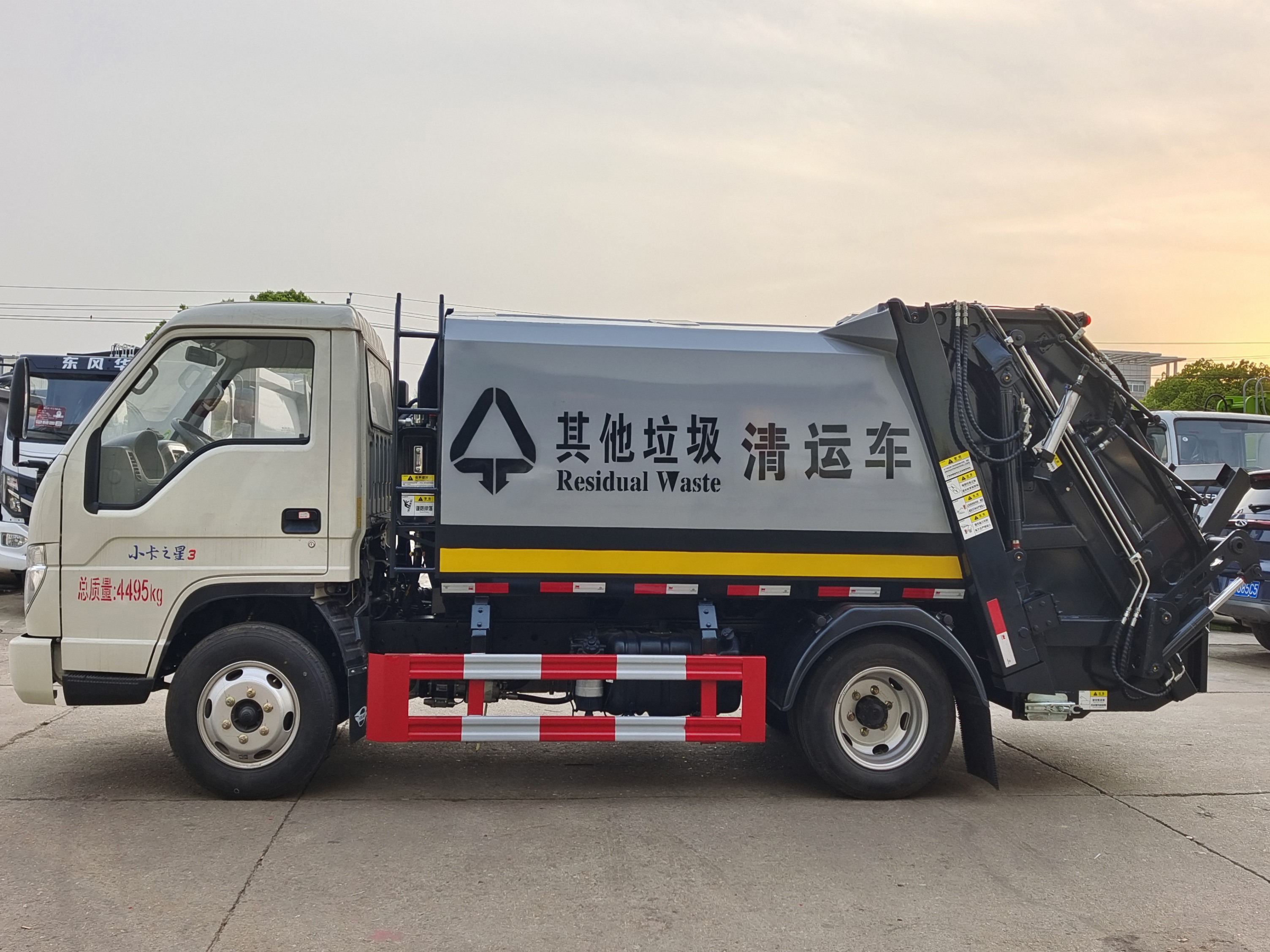

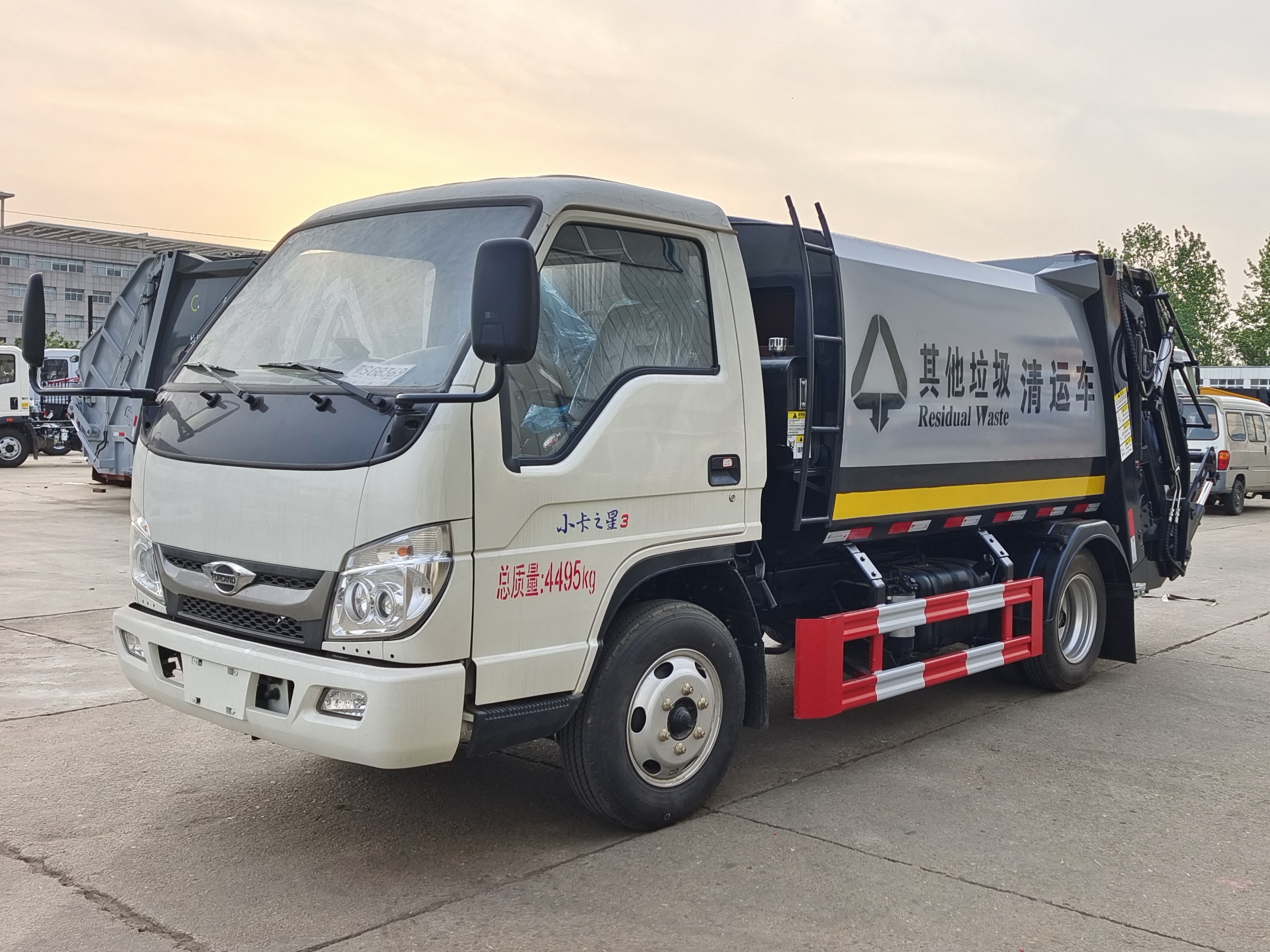

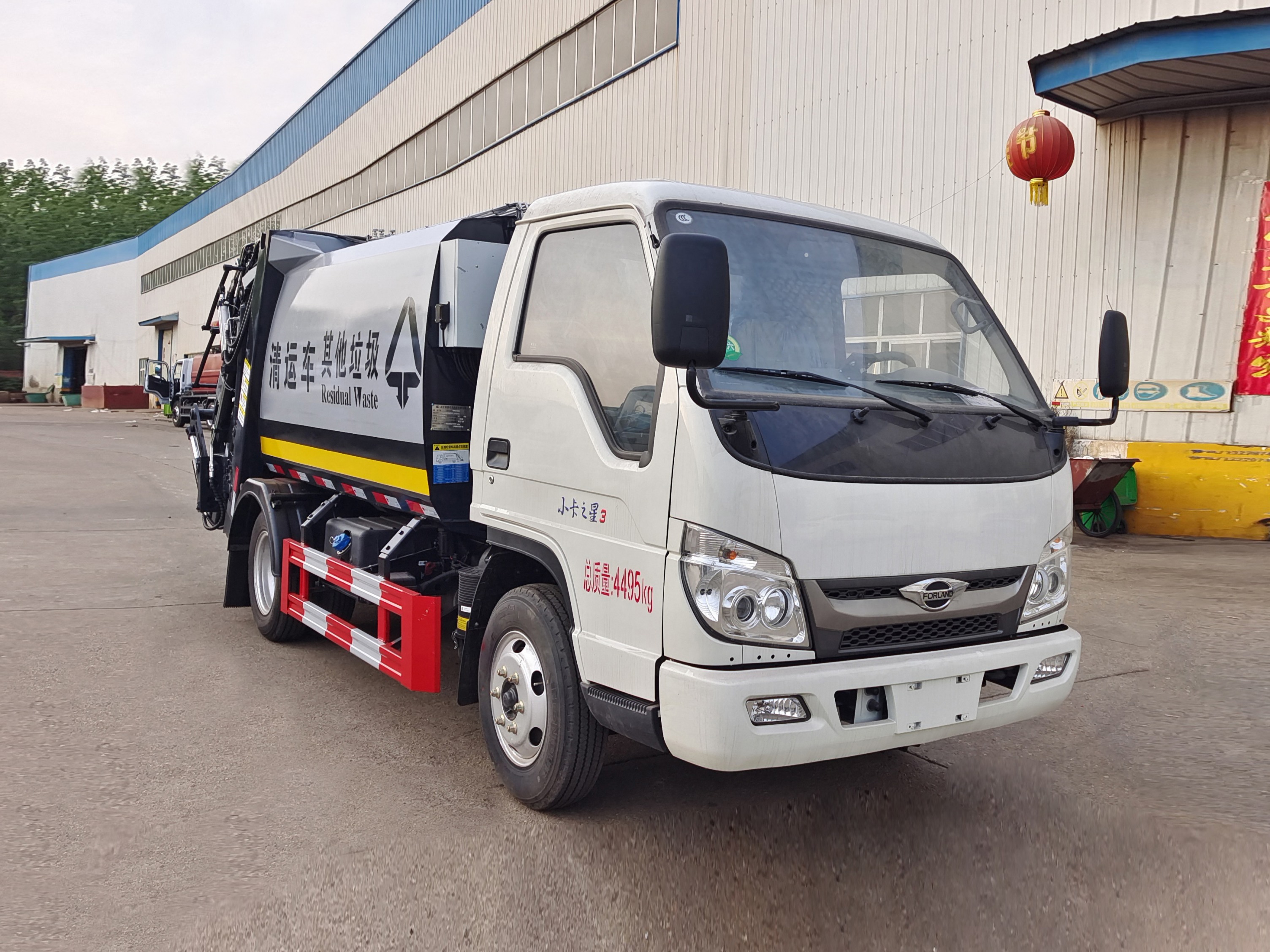

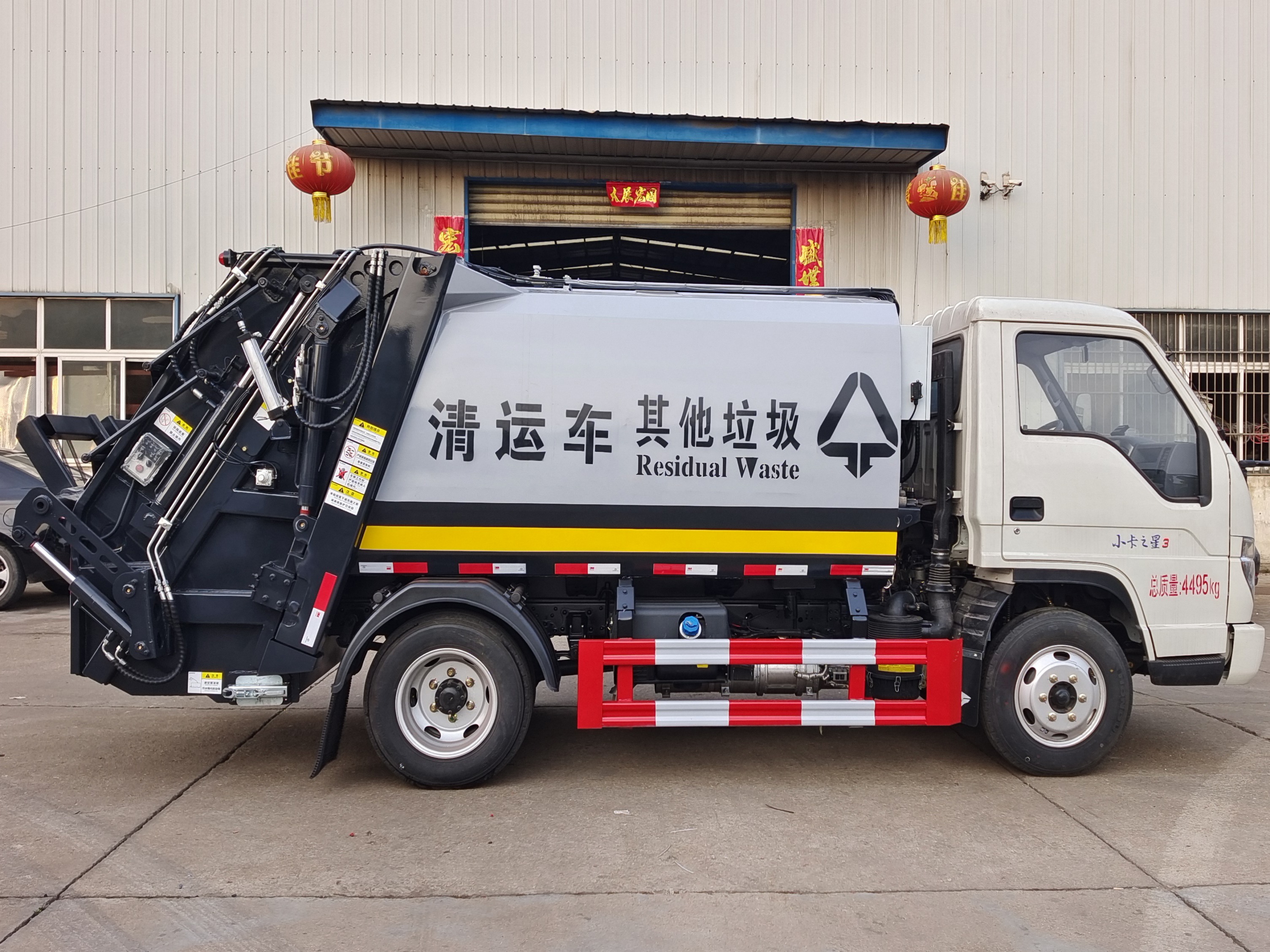

FOTON Xiaoka Star 3 5m³-6m³ compressed garbage truck

Chassis configuration:

The chassis adopts the original chassis of the Foton Xiaokazhixing 3 environmental sanitation vehicle series, with a single row front flip, a full diesel 115/132 horsepower engine, a 5TS32-5 gearbox, a 2850 wheelbase, 6.50R16 tires, dynamic rotation, ABS, adjustable steering wheel, electronic flameout, cruise control, adjustable headlights, brake arm adjustment, and air brake.

Product Name： FOTON Xiaoka Star 3 5m³-6m³ compressed garbage truck
Driving Type： 4x2
Garbage container volume(cbm)： 5m³-6m³
Gross vehicle weight(Kg)： 4495(Kg)

Product Features

FOTON Xiaoka Star 3 5m³-6m³ compressed garbage truck

Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.

Upper configuration:

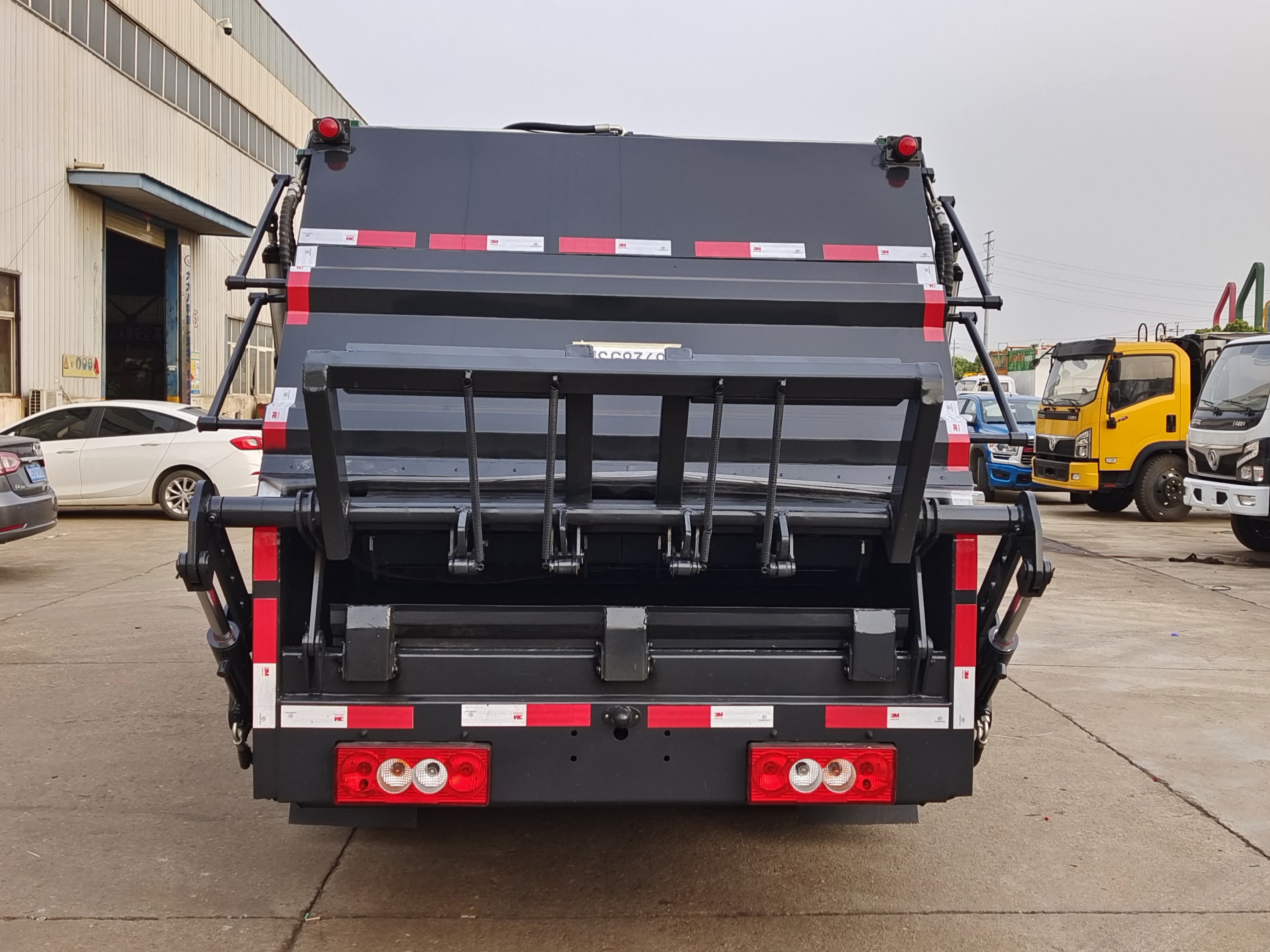

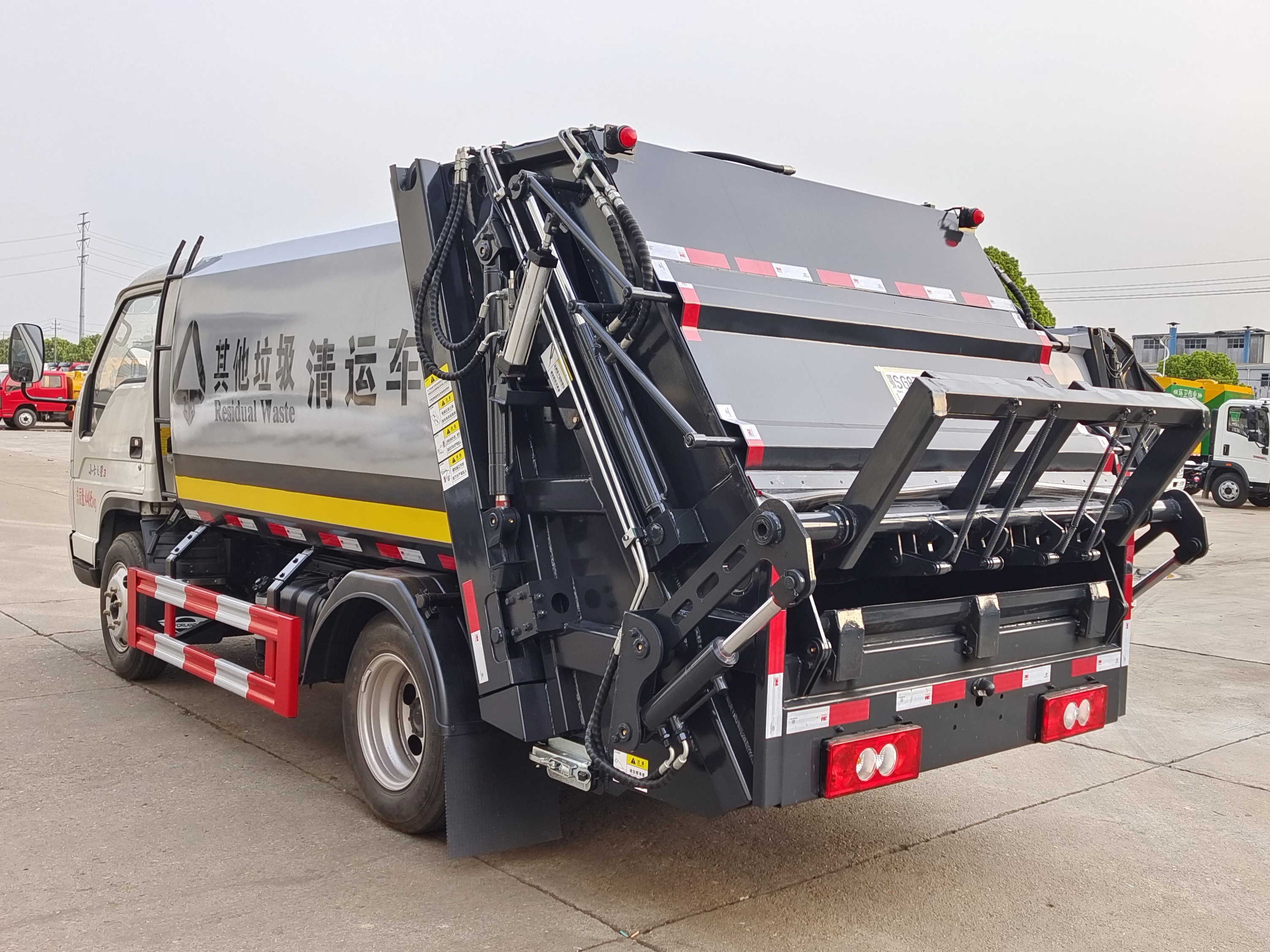

Adopting T700 high-strength board arc-shaped box, with a 2mm edge and 3mm bottom, lightweight design, large capacity, blue label, not overweight, and optional height for entering the basement. The hydraulic mechanism consists of a box body, loading mechanism, compression mechanism, unloading mechanism, oil pump, oil cylinder, control valve, etc. The loading mechanism consists of a bracket, a connecting rod mechanism, a cam, a hook, etc., and it undergoes bi-directional peristaltic compression. Domestic well-known brand hydraulic systems (Anhui Wanye Pump, Hunan Changsha Domestic Famous Multi way Valve, Compression Special Customized Oil Cylinder, Zhejiang Jiashan Power Takeoff); The same CAN bus control system is used for centralized electronic control inside the driver's cab and outside the vehicle; Vehicle high position clearance lights/edge lights/work lighting, equipped with wireless remote control and pressure doubling valve for convenient operation.

Product parameters

Product Name	FOTON Xiaoka Star 3 5m³-6m³ compressed garbage truck
Driving Type	4x2
Garbage container volume(cbm)	5m³-6m³
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	3865(Kg)
Rated weight(kg)	500(Kg)
Wheelbase(mm)	2850(mm)
Overall Dimension(mm)	5995×2000,2160,2200×2250,2600,2700(mm)
Engine	Quanchai 115/132 horsepower
Axle Quantity	2
Transmission Type	5-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	6.50R16LT 10PR, 6+1 spare
Cab	FOTON Xiaoka Star 3 cab
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
