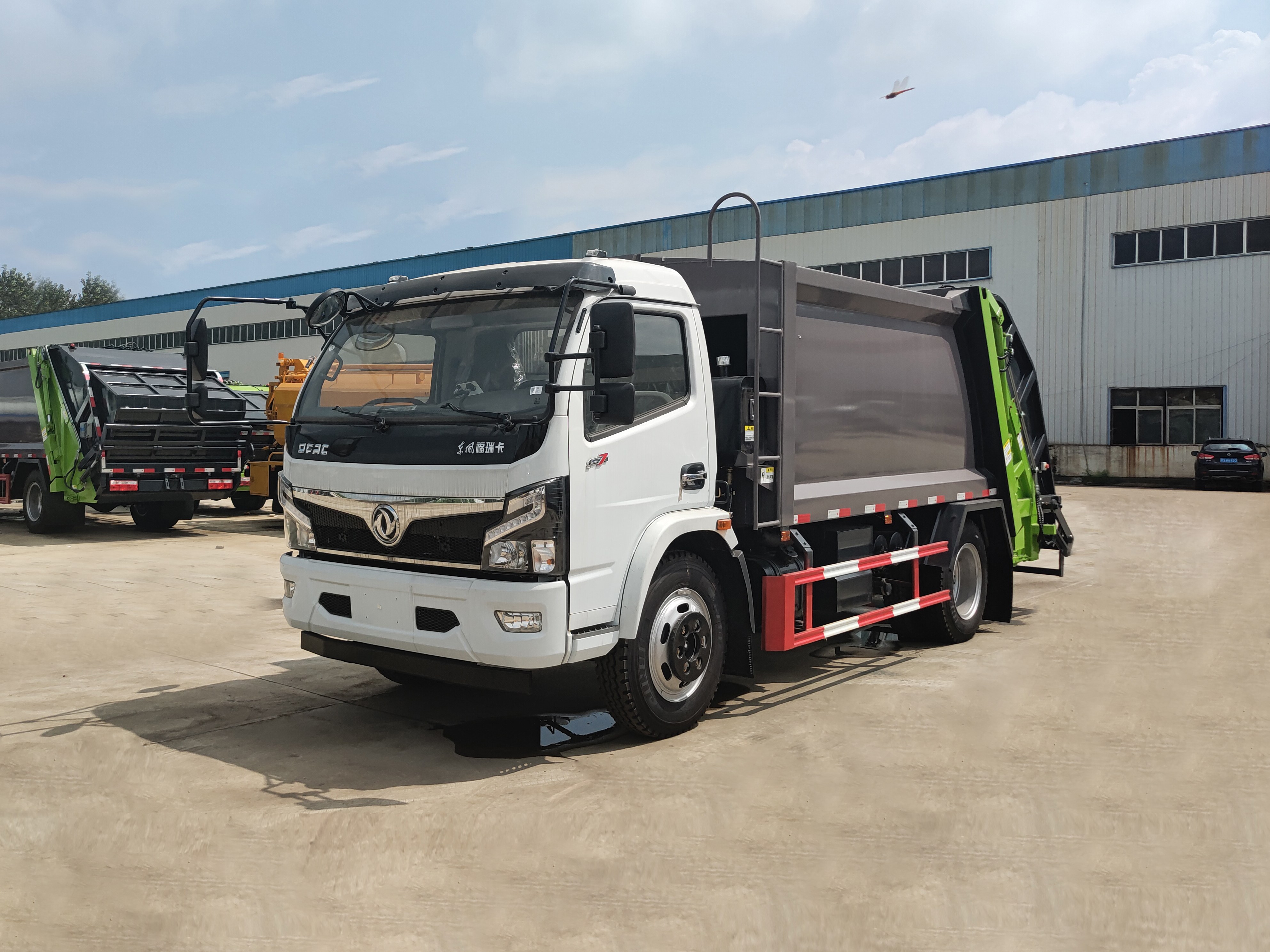

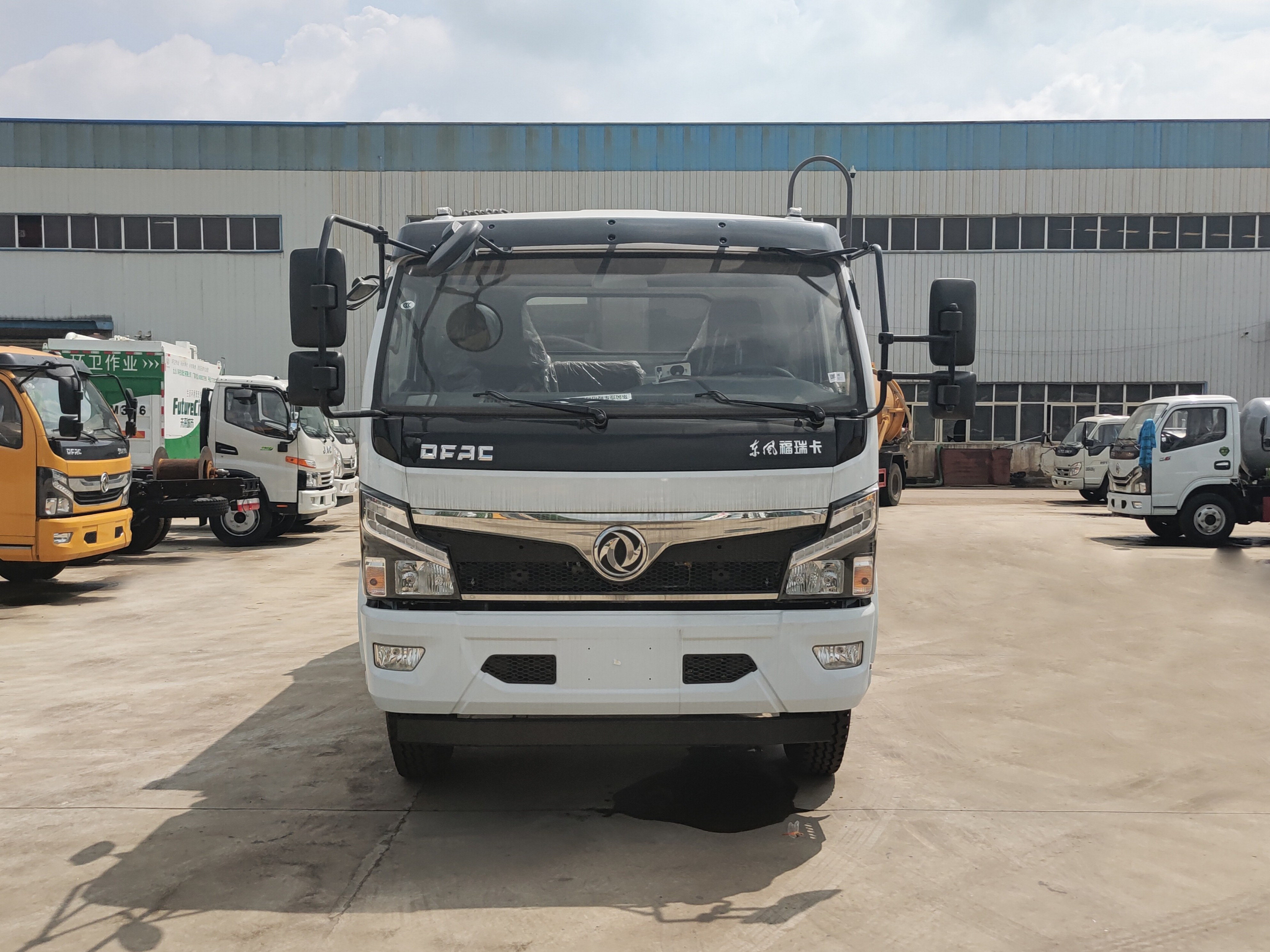

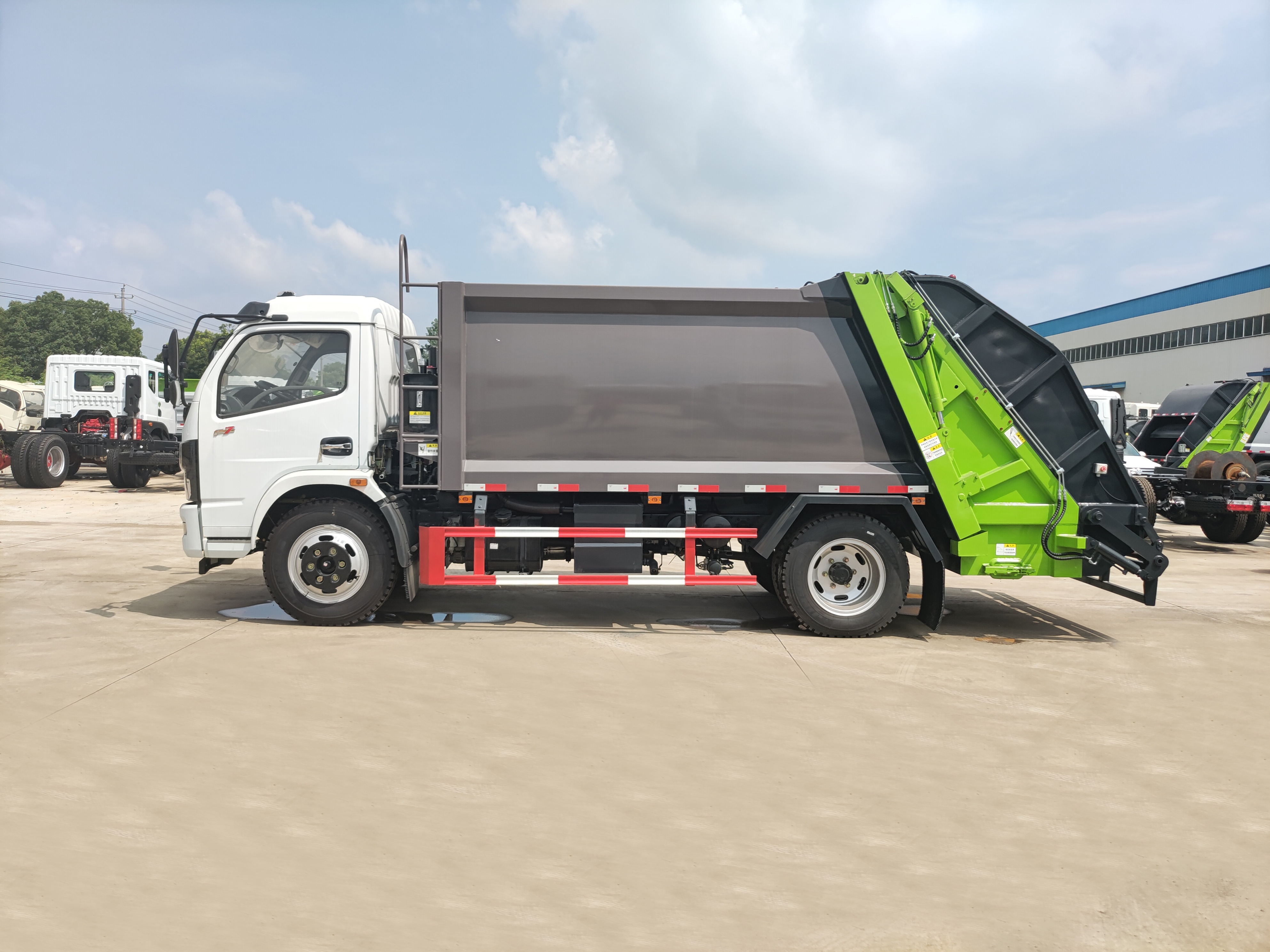

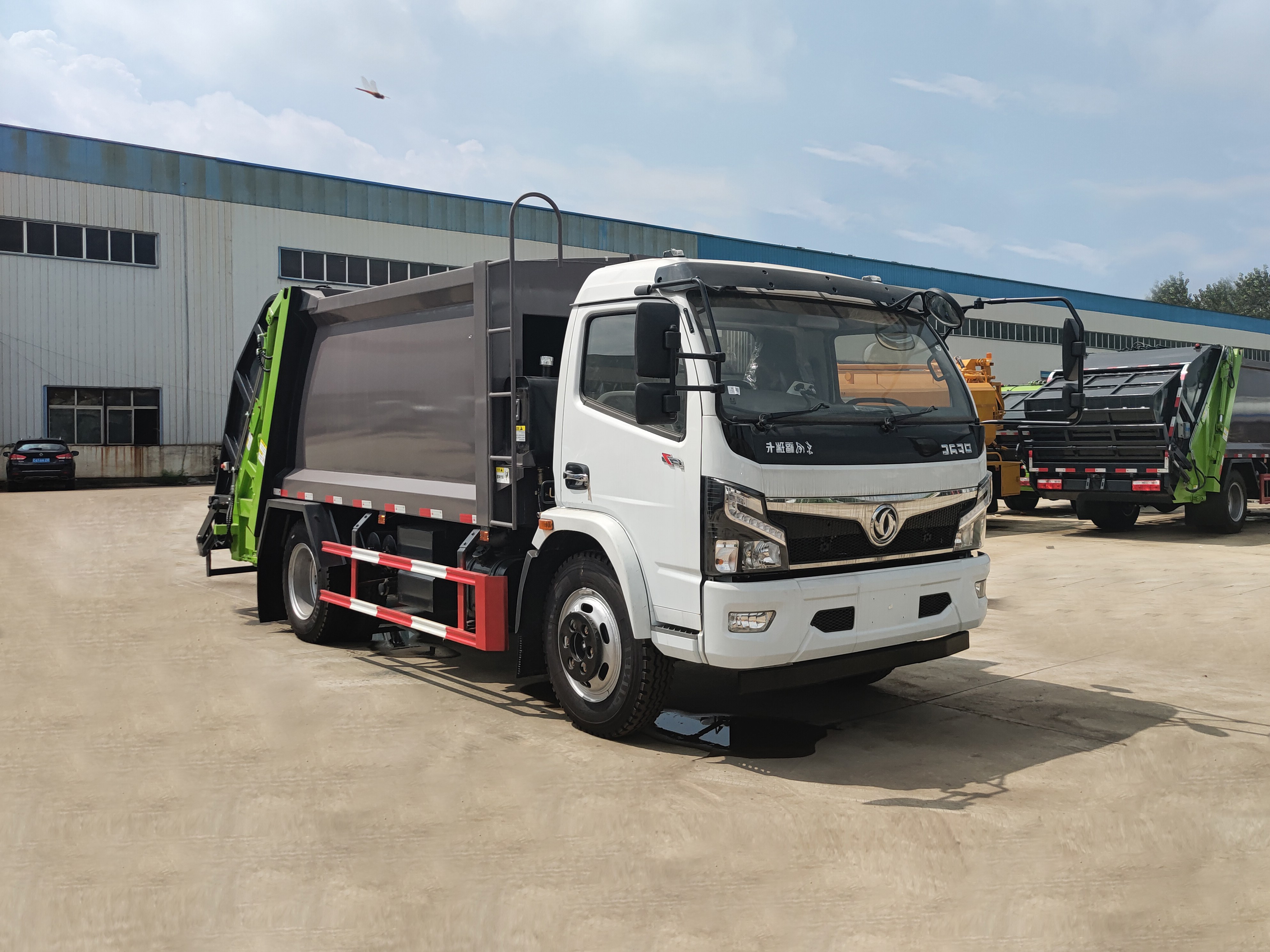

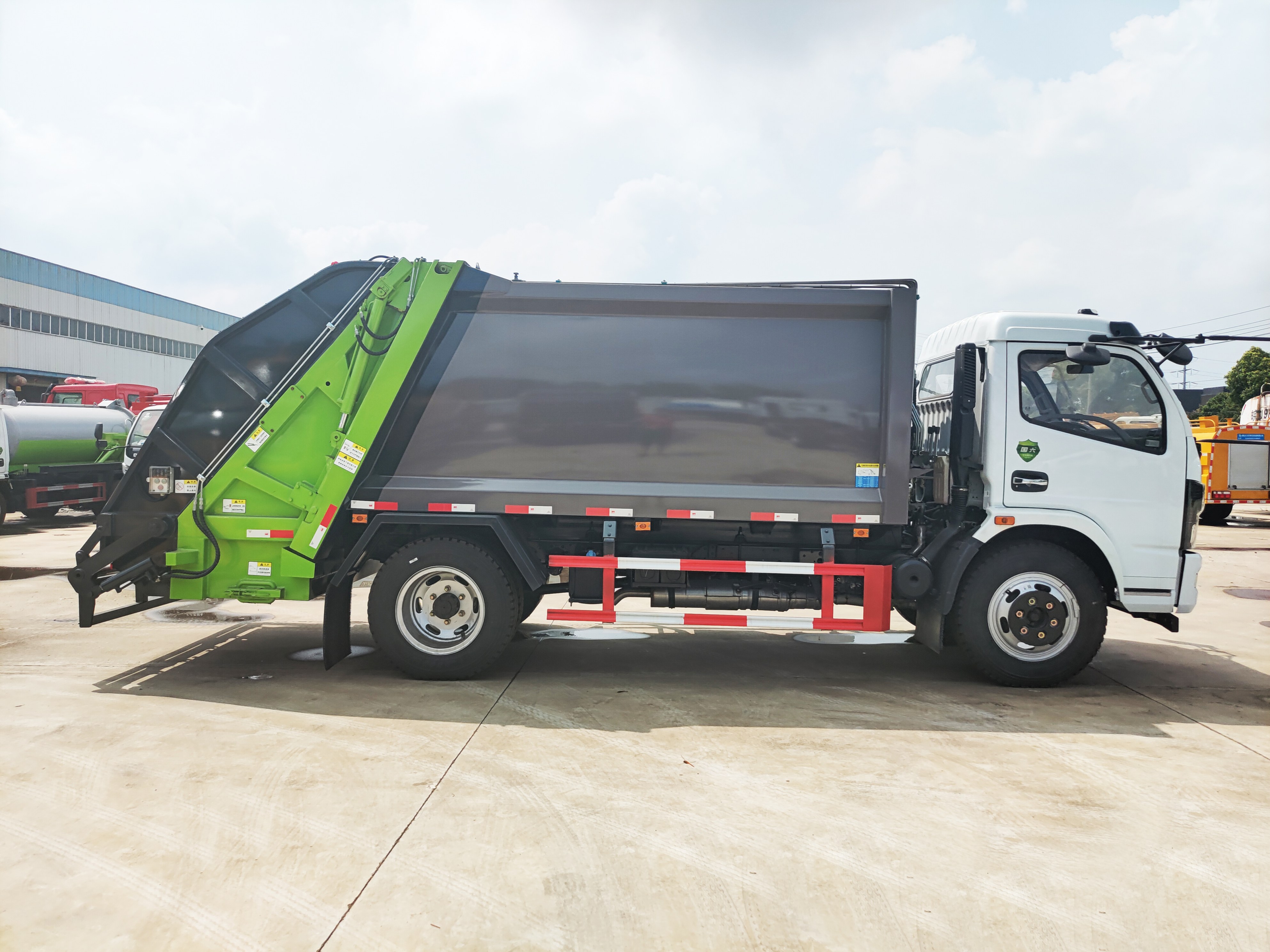

Dongfeng F7 4X2 10m³ Compressed Garbage Truck

Chassis configuration:

D25TCIF1 engine, Wanliyang 6-speed gearbox, 2030 single row cab, 2.2T front axle, 4.2T rear axle, 188X6X800mm single-layer beam, 8.25R20 steel tires, air brake, ABS, air conditioning, electric doors and windows, central locking.

Product Name： Dongfeng F7 4X2 10m³ Compressed Garbage Truck
Driving Type： 4x2
Garbage container volume(cbm)： 10m³
Gross vehicle weight(Kg)： 11995(Kg)

Product Features

Dongfeng F7 4X2 10m³ Compressed Garbage Truck

Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.

Top features:

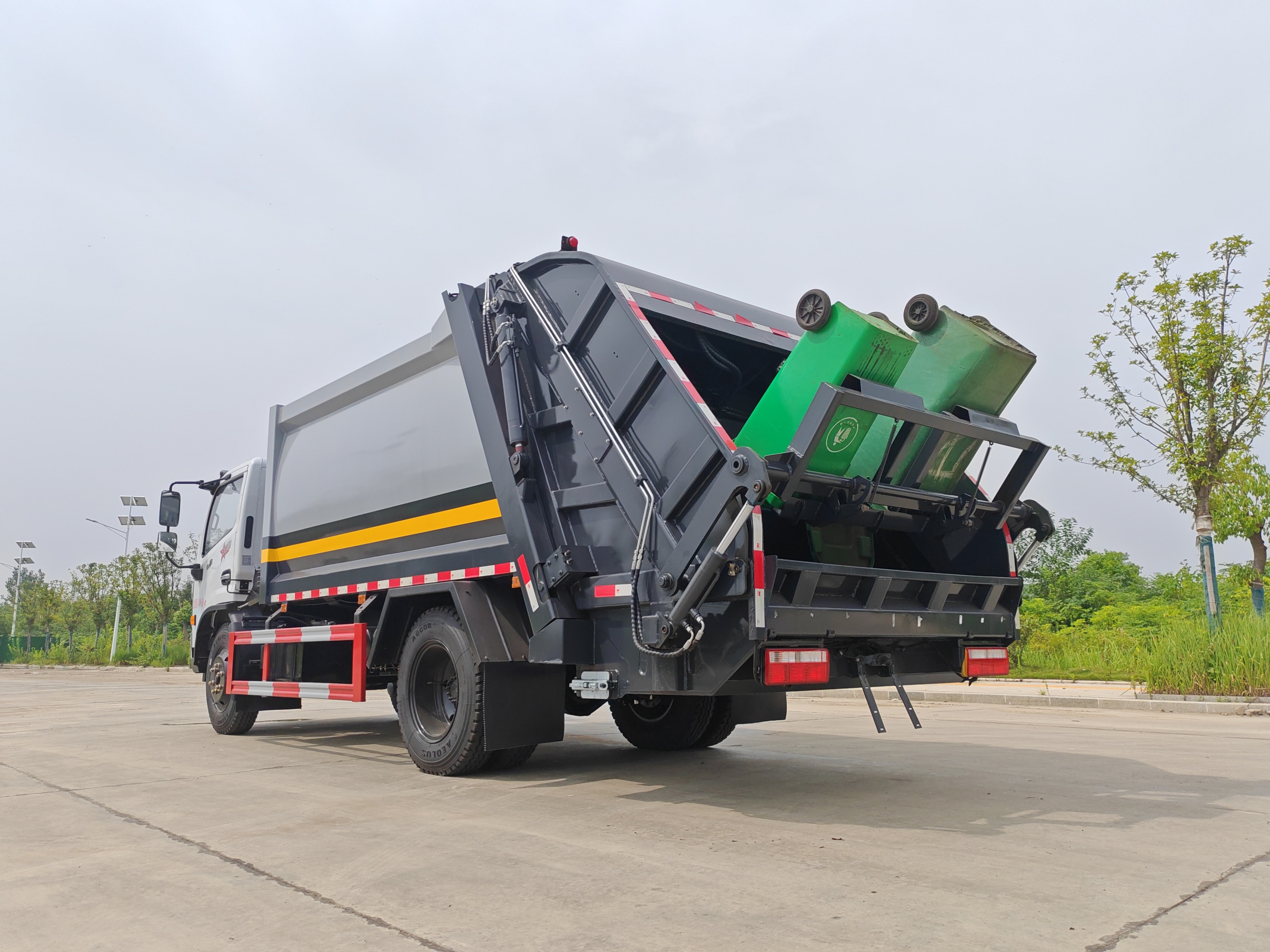

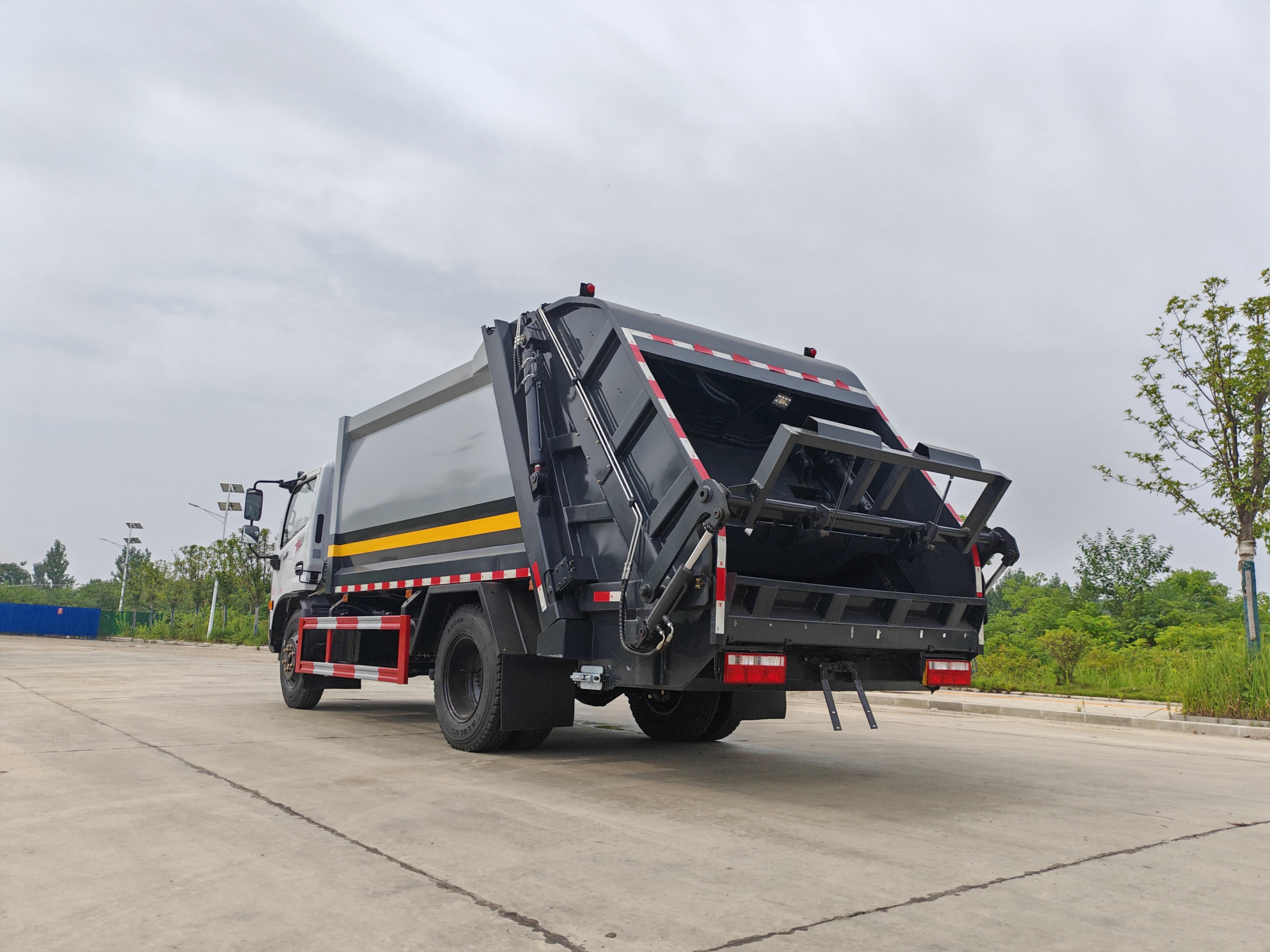

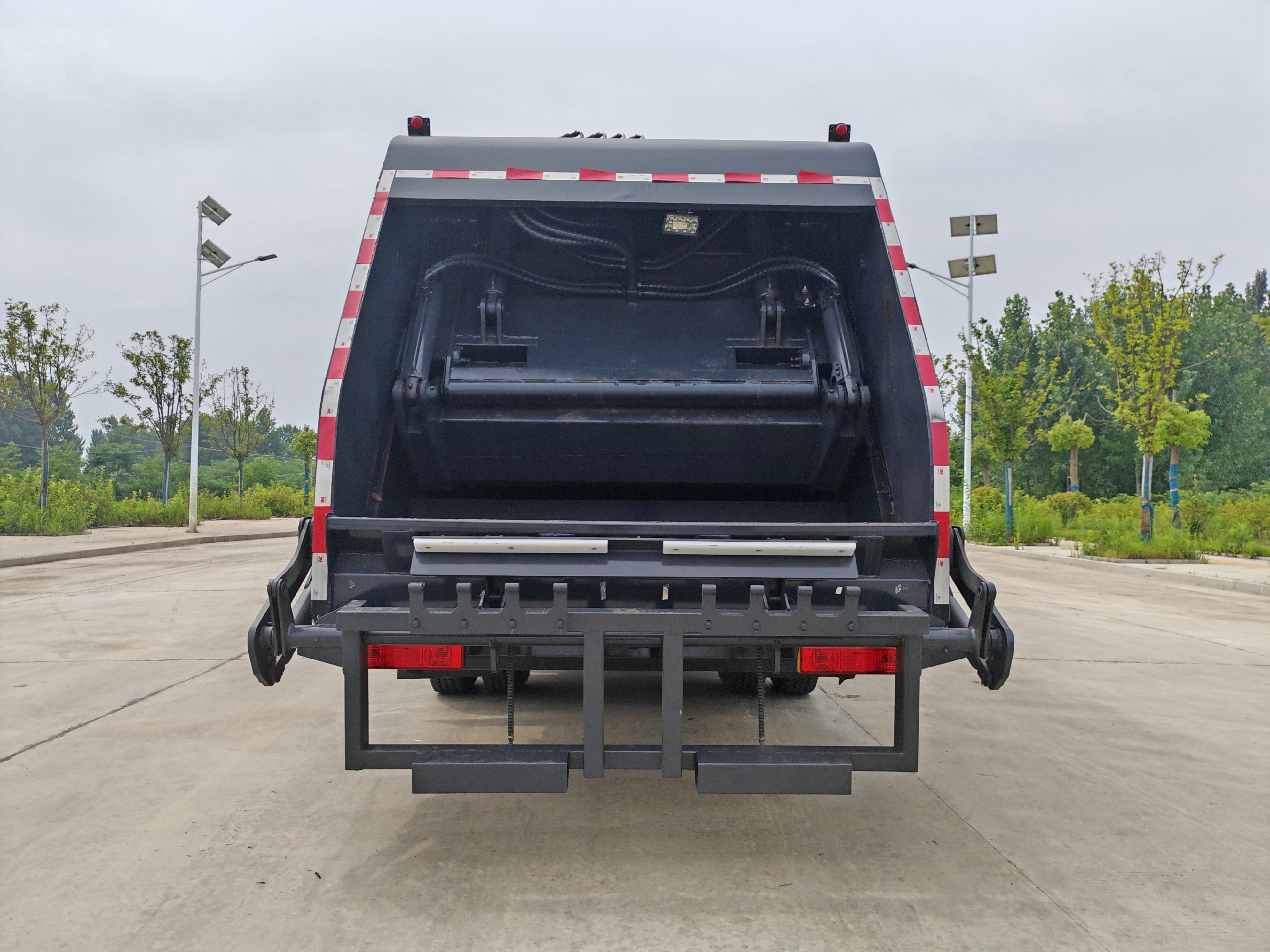

The Q345 manganese steel high-strength plate arc-shaped box is used, with a side of 4mm and a bottom of 5mm. It is composed of a hydraulic mechanism consisting of a box body, a loading mechanism, a compression mechanism, a unloading mechanism, an oil pump, an oil cylinder, a control valve, etc. The loading mechanism consists of a bracket, a connecting rod mechanism, a cam, a hook, etc., and it undergoes bi-directional peristaltic compression. Domestic well-known brand hydraulic systems (Anhui Wanye Pump, Hunan Changsha Domestic Famous Multi way Valve, Compression Special Customized Oil Cylinder, Zhejiang Jiashan Power Takeoff); The same CAN bus control system is used for centralized electronic control inside the driver's cab and outside the vehicle; Vehicle high position clearance lights/edge lights/work lighting, equipped with a pressure doubling valve as standard.

Product parameters

Product Name	Dongfeng F7 4X2 10m³ Compressed Garbage Truck
Driving Type	4x2
Garbage container volume(cbm)	10m³
Gross vehicle weight(Kg)	11995(Kg)
Curb weight(Kg)	8000,7300(Kg)
Rated weight(kg)	3800,3865,4500,4565(Kg)
Wheelbase(mm)	3800(mm)
Overall Dimension(mm)	7700,7640,7580×2350×2870(mm)
Engine	D25TCIF1, Yunnei 150hp, 110kw
Axle Quantity	2
Transmission Type	Wanliyang 6-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	245/70R19.5,, 6+1 spare
Cab	Dongfeng F7 cab
Garbage container material	Q345 manganese steel high-strength plate arc-shaped box, with 5 mm edges and 6mm bottoms,
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
