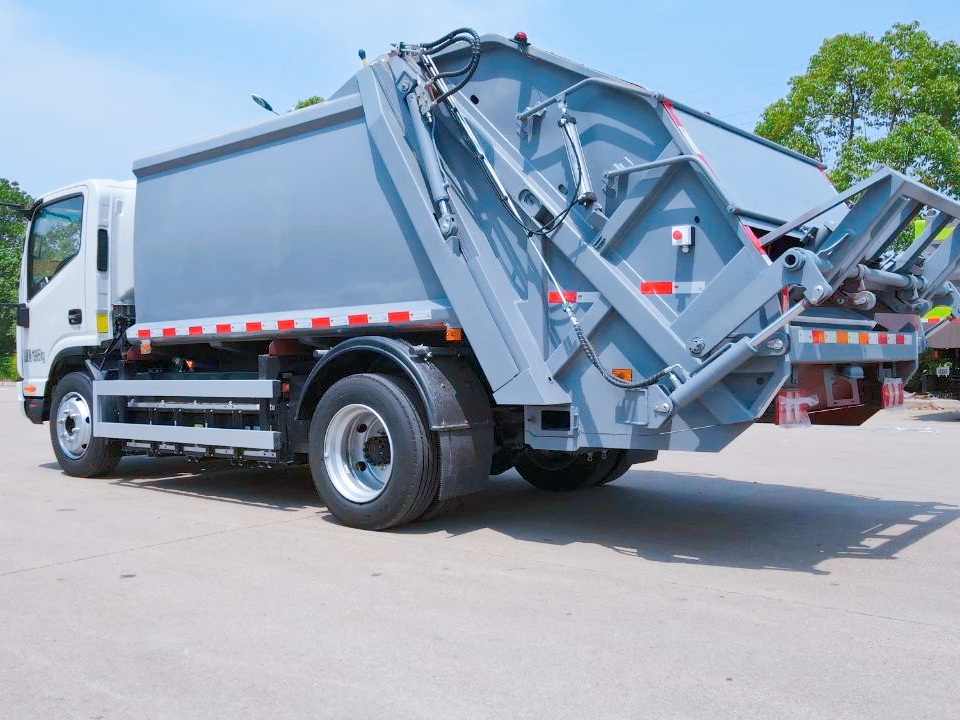

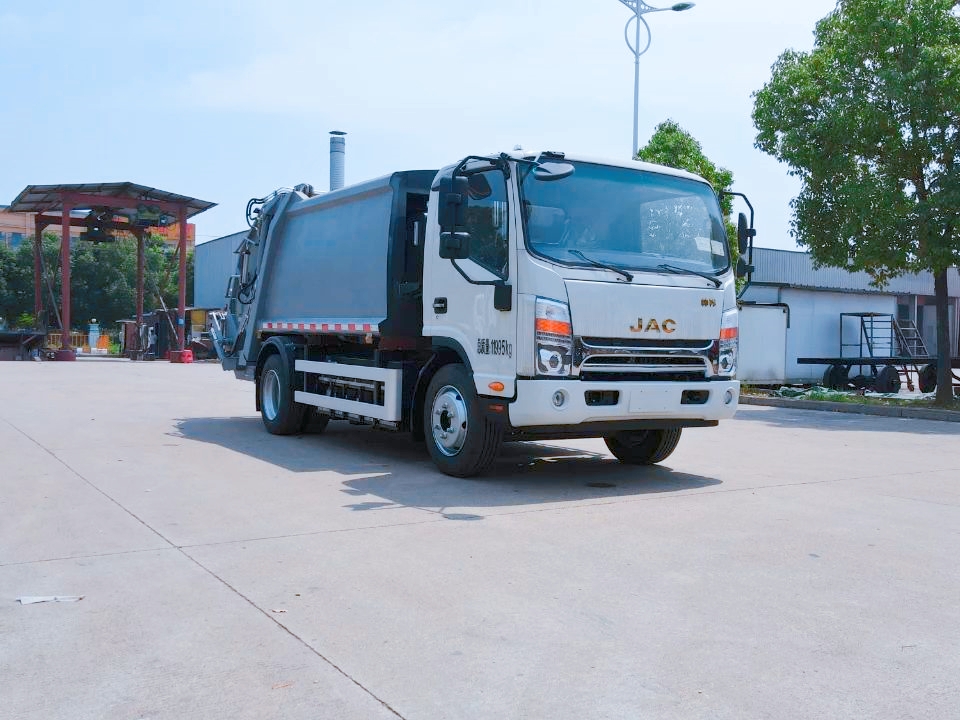

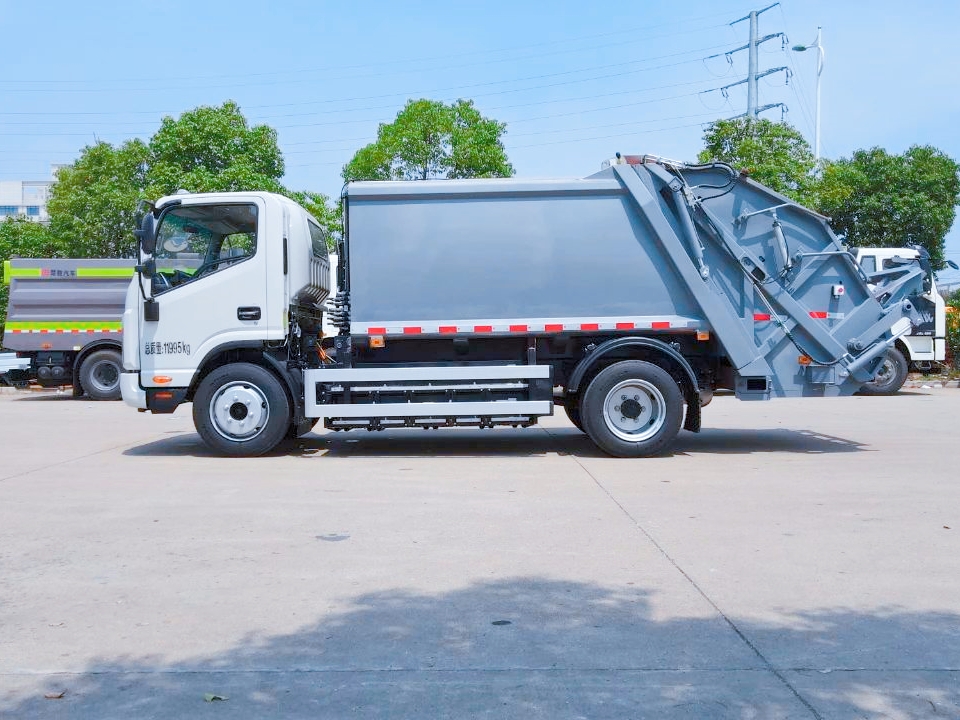

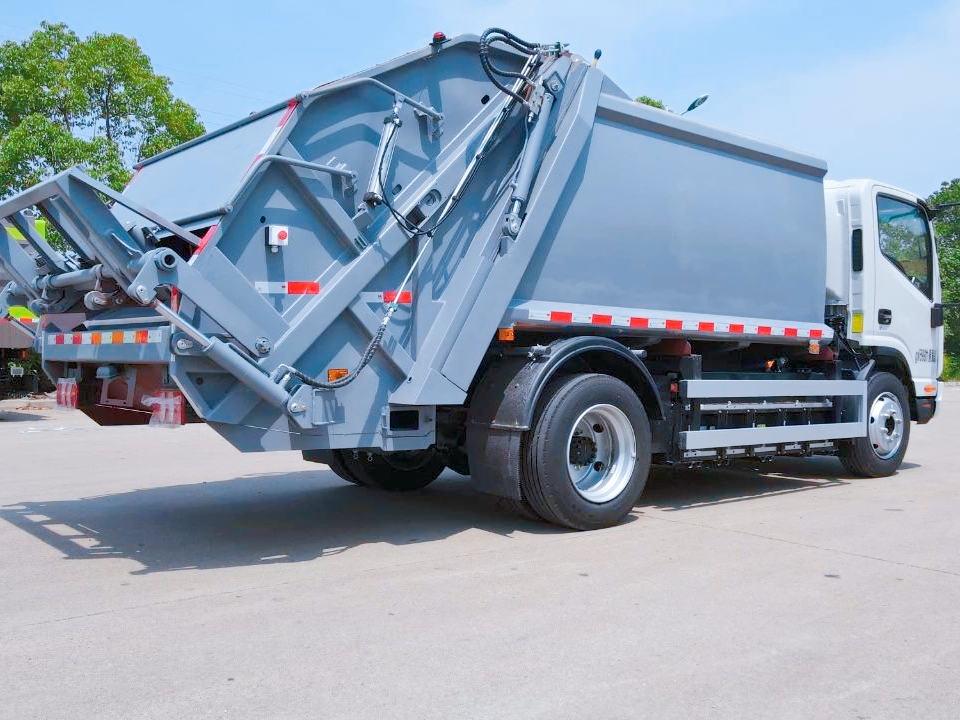

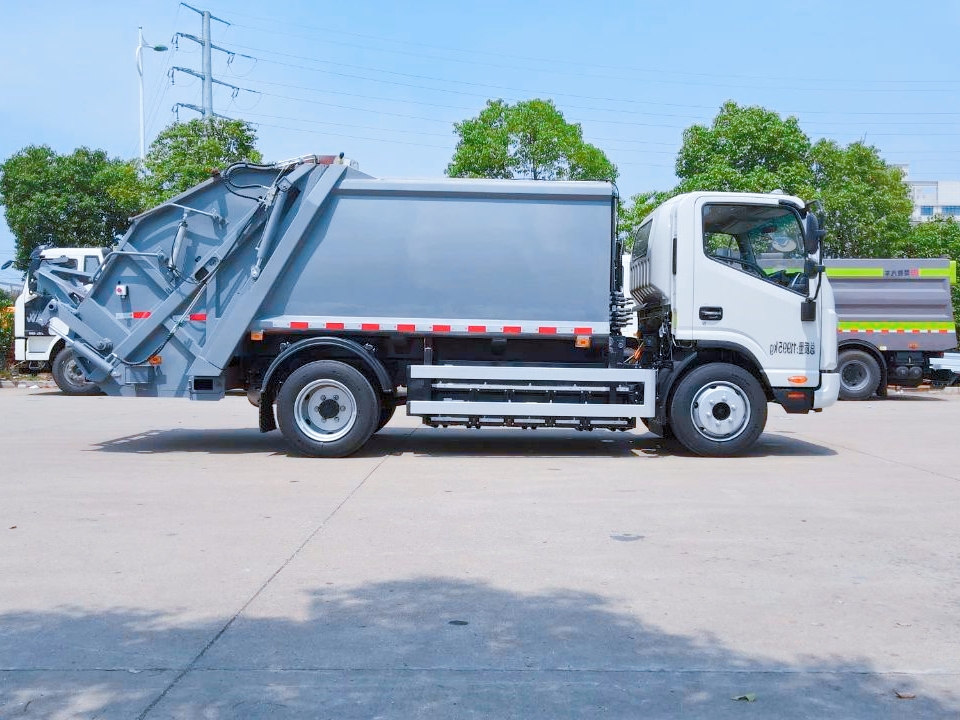

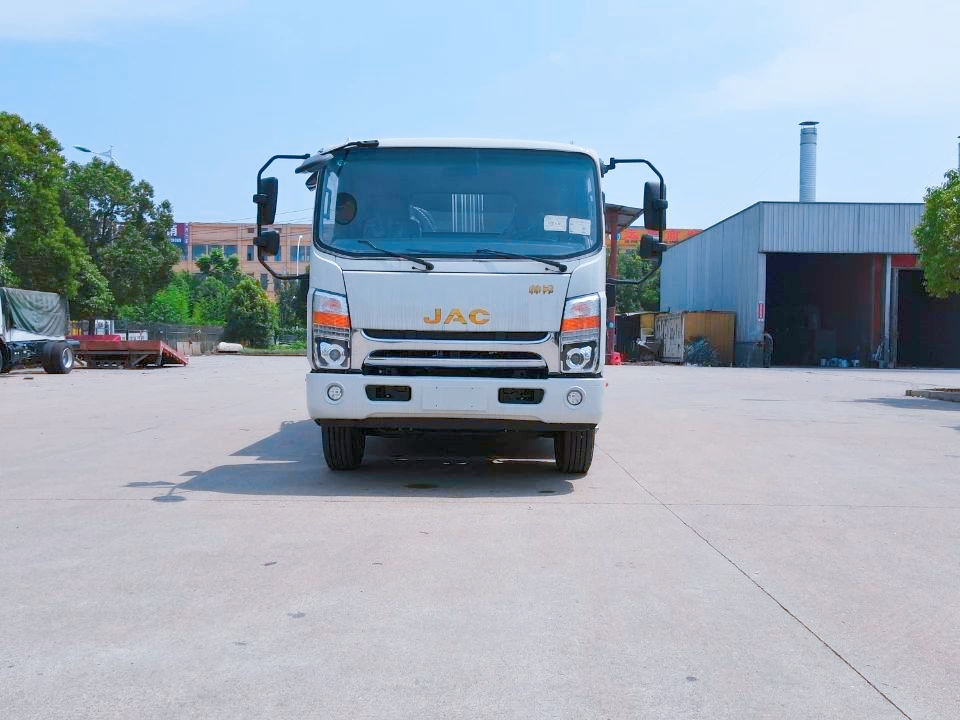

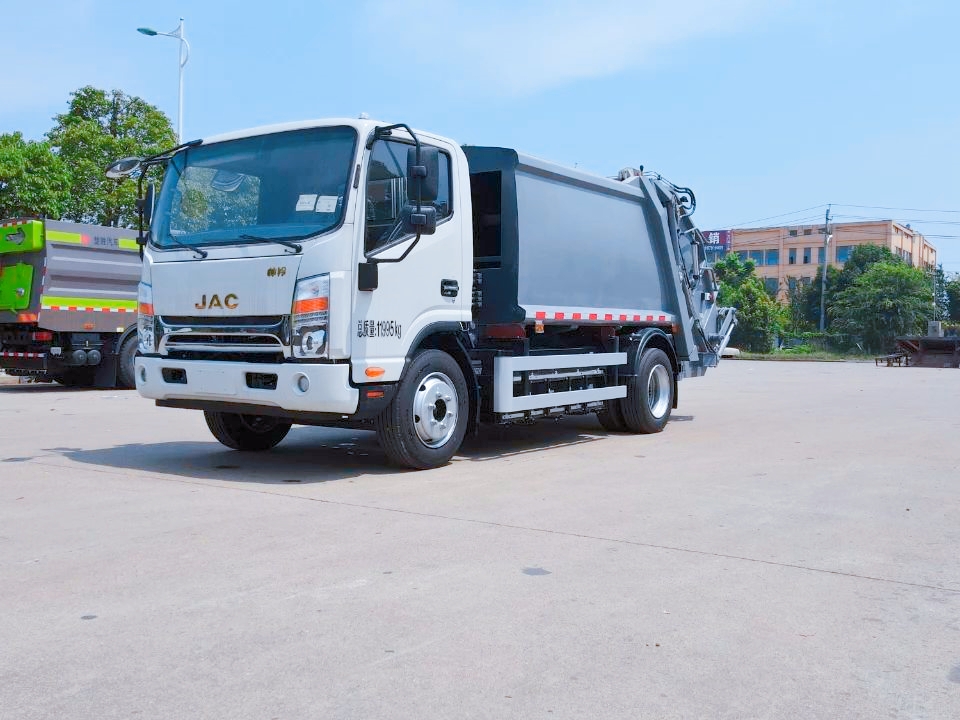

JAC pure electric compression garbage truck

Chassis configuration:

JAC Shuai Ling N721 wide body high-end environmental sanitation special chassis, 3365mm wheelbase, CATL Ningde Times total battery capacity of 162 degrees, motor Suzhou green control, permanent magnet synchronous motor power of 160KW, motor cooling method liquid cooling, automatic transmission, vehicle electronic control brand Lingdian, multifunctional steering wheel, instrument 3.5-inch TFT screen, MP5 large screen touch multimedia, LED automatic headlight steering auxiliary lighting, electrically heated rearview mirror, 245 vacuum tires. 7.2 ton rear axle.

Product Name： JAC pure electric compression garbage truck
Driving Type： 4x2
Garbage container volume(cbm)： 7m³
Gross vehicle weight(Kg)： 11995(Kg)

Product Features

JAC pure electric compression garbage truck

Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.

Top features:
1. The effective volume of the box is 7 cubic meters, and the filling device is 0.8 cubic meters. Advanced and comprehensive high-voltage distribution management ensures the high voltage safety and system stability of the entire vehicle.
2. Adopting the "CAN bus+dedicated controller mode", it has a high degree of automation, good reliability, low failure rate, long service life, and automatically accelerates the driving motor in various working states, reducing power loss and improving product economy.
3. The garbage bin is designed with a "fully sealed" structure, and the sealing at the interface between the filler and the garbage bin is achieved through a multi pass sealing strip and a labyrinth sealing structure, providing dual protection to completely prevent sewage dripping.
4. Suitable for 240L/660L plastic bucket type, 300L iron bucket type, 800L iron bucket type, tipping bucket type, lifting bucket type, and flip bucket type feeding mechanisms, basically covering the mainstream forms of garbage collection in China.
5. The steel plates that come into direct contact with garbage, such as filling devices, are made of high-quality and corrosion-resistant steel with a long service life.
The main specialized equipment of the vehicle consists of a box, a filler assembly, a compression system, etc., used for garbage collection and transportation.

Product parameters

Product Name	JAC pure electric compression garbage truck
Driving Type	4x2
Garbage container volume(cbm)	7m³
Gross vehicle weight(Kg)	11995(Kg)
Curb weight(Kg)	7420(Kg)
Rated weight(kg)	4380(Kg)
Wheelbase(mm)	3365(mm)
Overall Dimension(mm)	6640,6790,7020×2320×2600(mm)
Engine	TZ370XS-LKM1108
Axle Quantity	2
Transmission Type	AMT
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	245/70R19.5 16PR, 6+1 spare
Cab	JAC cab
Garbage container material	Q345 manganese steel high-strength plate arc-shaped box, with 5 mm edges and 6mm bottoms,
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
