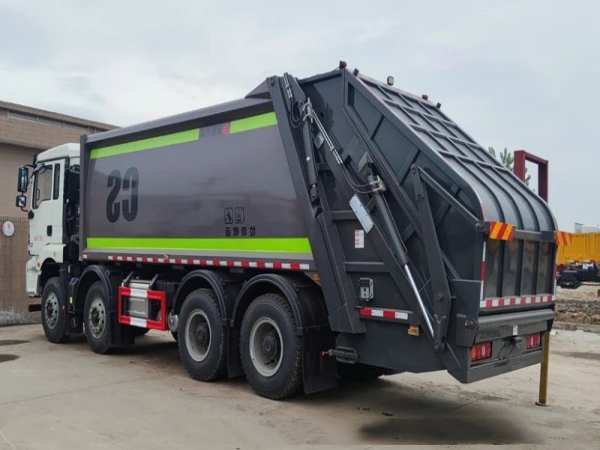

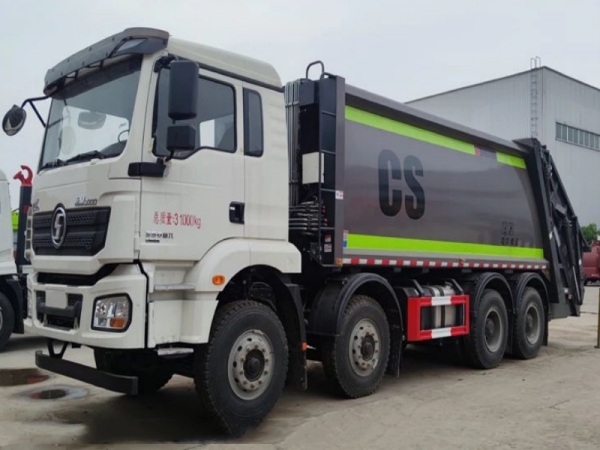

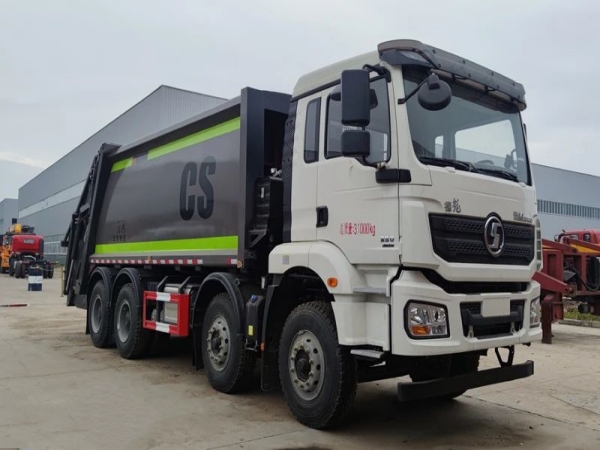

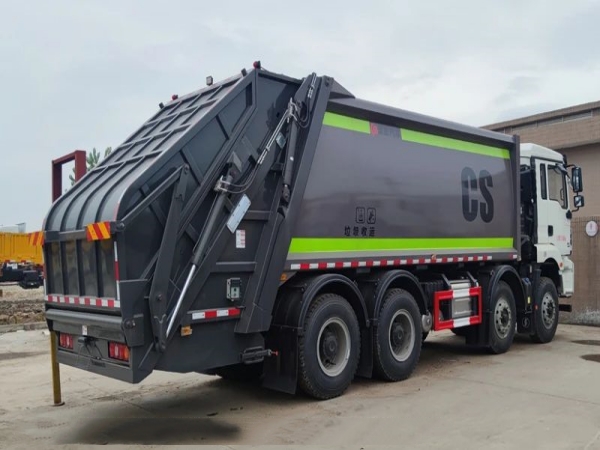

Shacman Delong 8x4 compressed garbage truck

Chassis configuration:

1. Engine: Weichai 350 horsepower

2.Transmission type: 12-speed gearbox

3.Wheelbase: 1800+3000+1400(mm)

4.Tyre: 11.00R20 18PR,12.00R20 18PR,12R22.5 18PR, 12+1 spare

5 Other: Shacman Delong cab

Product Name： Shacman Delong 8x4 compressed garbage truck
Driving Type： 8x4
Garbage container volume(cbm)： The maximum volume can reach 22m³
Gross vehicle weight(Kg)： 31000(Kg)

Product Features

Shacman Delong 8x4 compressed garbage truck

Compressed garbage truck: composed of a sealed garbage bin, hydraulic system, and operating system, it compresses and pours itself. During the compression process, all the sewage enters the sewage tank, which completely solves the problem of secondary pollution in garbage transportation.

Characteristic:

① Large sewage capacity: There are two sewage tanks on the side of the frame and the lower part of the filler, making full use of the vehicle space, with a maximum sewage capacity of up to 850L.
② High adaptability: Different users can choose to install different flipping bucket (hopper) mechanisms according to different garbage collection methods: flipping standard garbage iron bin ZBT59003-88 (300 liters), plastic garbage bin (240 liters, 660 liters, 1100 liters), semi sealed triangle (800 liters), fully sealed floor bucket (1500L) and lifting bucket swing arm mechanism.
③ Corrosion resistance and strong rigidity: The main components such as garbage bins, shovels, and fillers that come into contact with garbage are made of high-strength steel or wear-resistant steel, with outstanding overall structural performance and strong overall rigidity and wear resistance.

Product parameters

Product Name	Shacman Delong 8x4 compressed garbage truck
Driving Type	8x4
Garbage container volume(cbm)	The maximum volume can reach 22m³
Gross vehicle weight(Kg)	31000(Kg)
Curb weight(Kg)	16800,17200(Kg)
Rated weight(kg)	14070,14005,13670,13605(Kg)
Wheelbase(mm)	1800+3000+1400(mm)
Overall Dimension(mm)	10350,10550,10750×2550×3450(mm)
Engine HP	Weichai 350 horsepower
Axle Quantity	4
Transmission Type	12-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	11.00R20 18PR,12.00R20 18PR,12R22.5 18PR, 12+1 spare
Cab	Shacman Delong cab
Garbage container material	Q345 manganese steel high-strength plate arc-shaped box, with 5 mm edges and 6mm bottoms,
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
