4X2 JAC Junling V7 Kitchen Refuse Truck

Chassis configuration:

Cab: Junling V7 Cab
Engine: Yunnedwei D30TCIF2, power: 120KW (163 horsepower)
Transmission: Anhui Xingrui Transmission, LC6T450， Six speed gearbox
Wheelbase: 3845mm
Front/rear axle (T): 3/7.2
Tire: 750R16LT 14PR steel wire tire
Frame section (mm): 214x70x (5+3) double-layer beam
Standard configuration: air brake, dynamic steering, original air conditioning, central locking, electric doors and windows, remote key, multifunction steering wheel, LED daytime running lights, boneless wipers ABS、Automatic arm adjustment, exhaust brake PTO

Product Name： 4X2 JAC Junling V7 Kitchen Refuse Truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 8280(Kg)
Curb weight(Kg)： 4650,4850(Kg)

Product Features

4X2 JAC Junling V7 Kitchen Refuse Truck

Kitchen refuse truck, also known as meal waste truck, kitchen waste truck or swill truck, is a type of garbage truck used for collecting and transporting household waste, food waste (swill) and urban sludge.

Installation configuration :

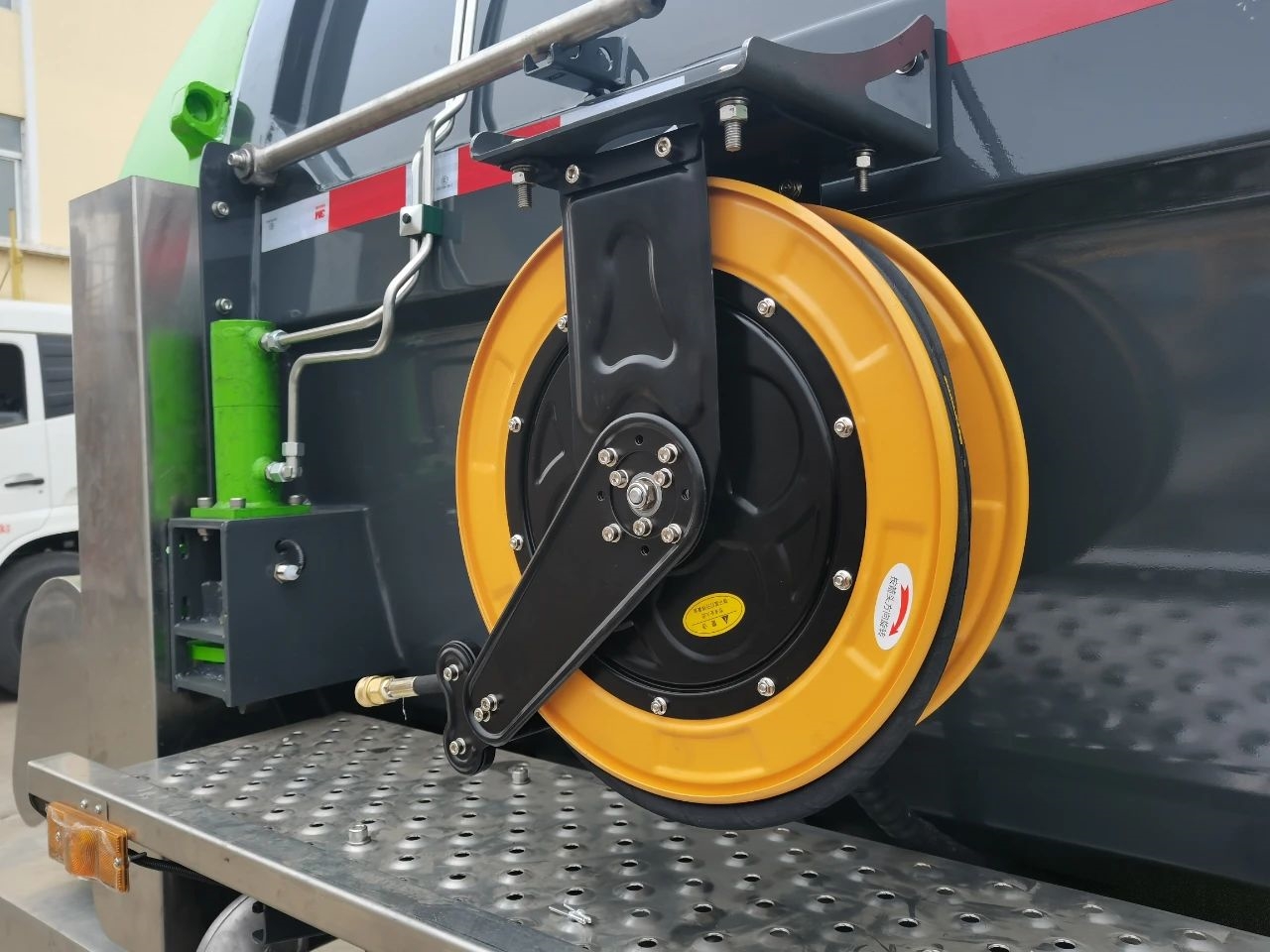

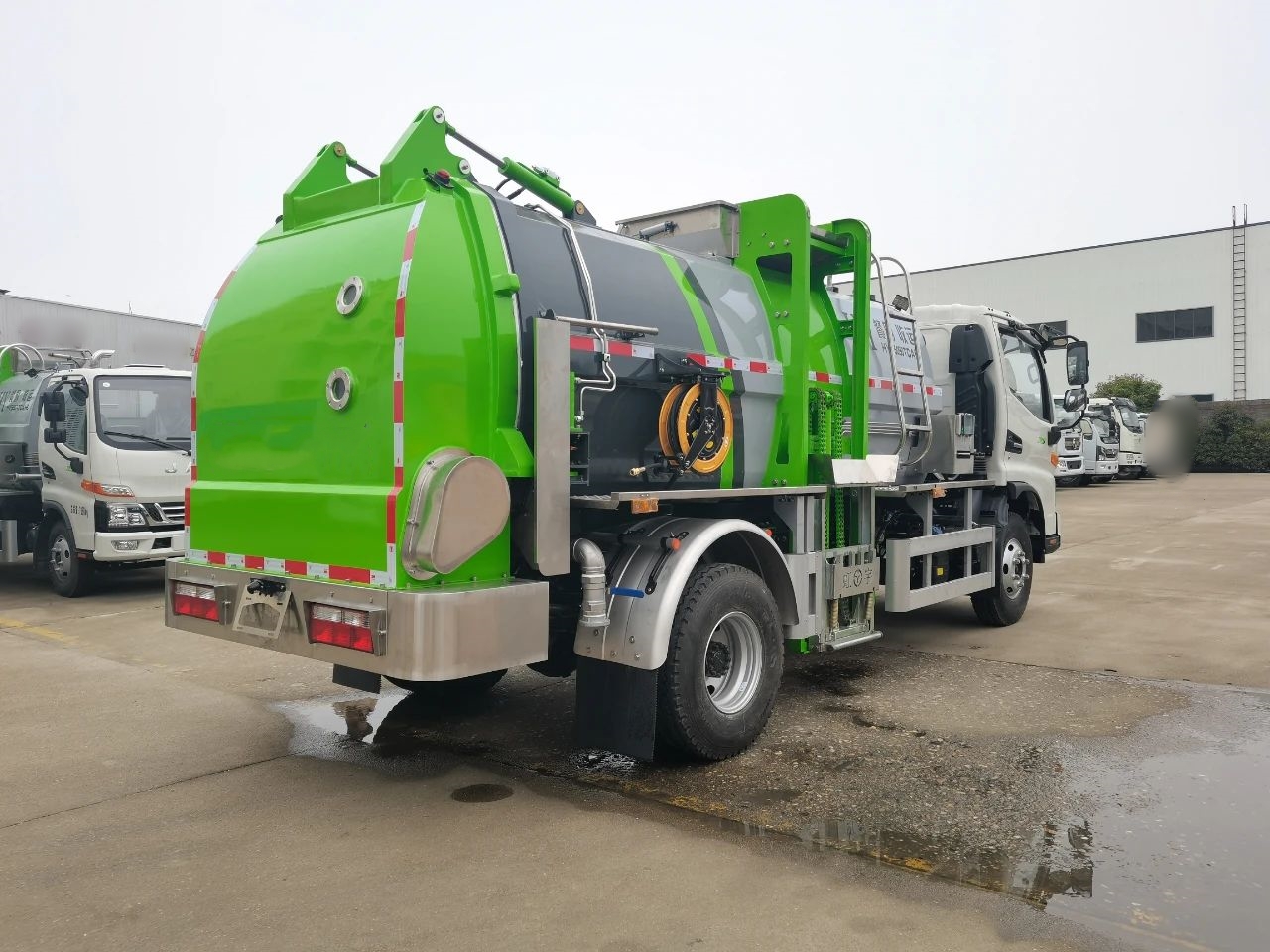

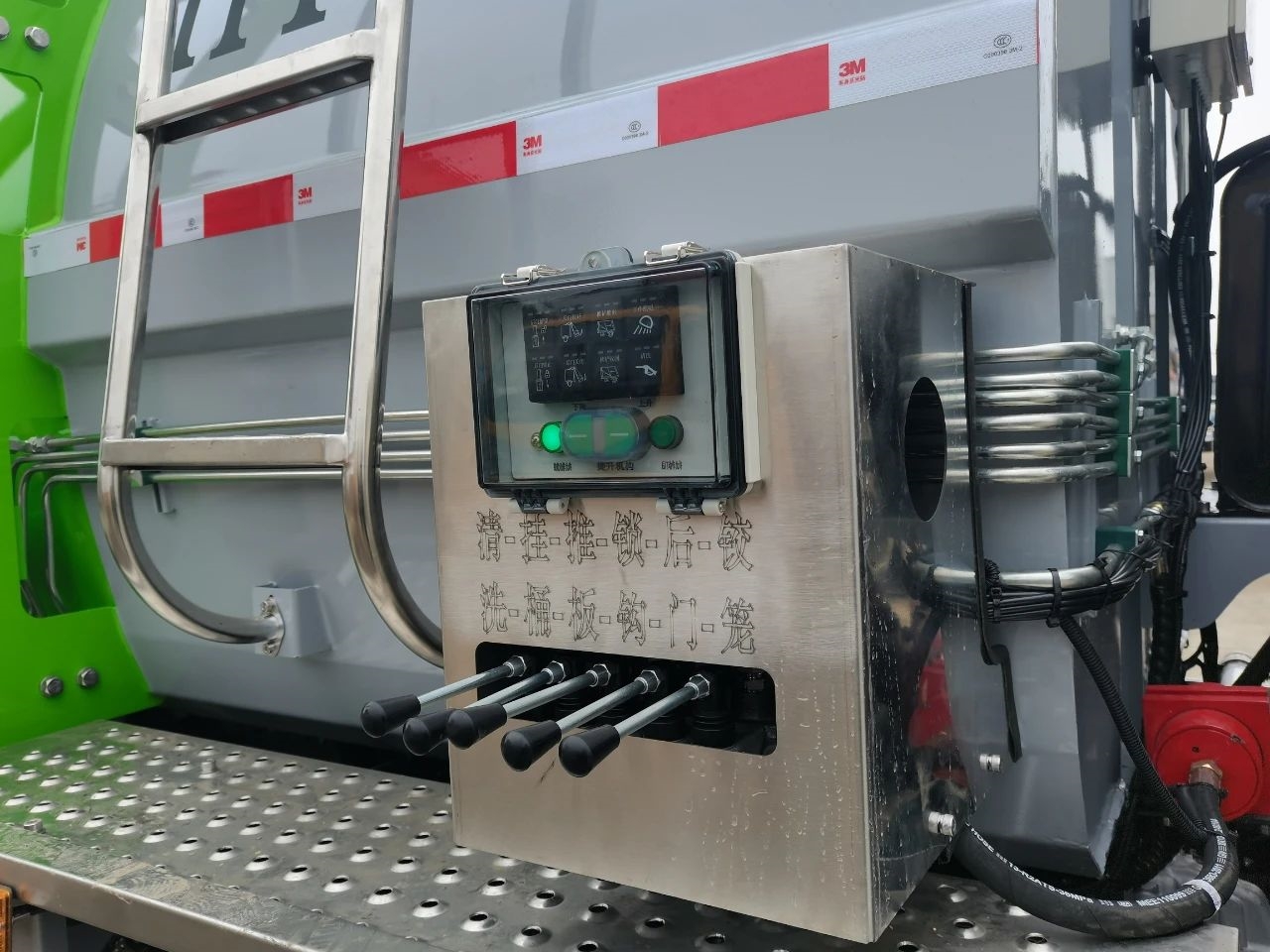

Using Q710 high-strength steel, with a 2mm edge and 4mm bottom, lightweight design and large capacity. The reinforced square tank body adopts a well-known domestic brand hydraulic system (domestic well-known oil pump, Hunan Changsha domestic well-known multi way valve, customized oil cylinder for kitchen and kitchen use, Zhejiang Jiashan power take-off), with a hydraulic opening and locking of the back cover, a sealing strip on the back cover, and an adjustable hydraulic locking pin to ensure no water leakage. The chain hoist can hang 120L/240L standard plastic trash cans with smooth loading.

Product parameters

Product Name	4X2 JAC Junling V7 Kitchen Refuse Truck
Driving Type	4×2
Gross vehicle weight(Kg)	8280(Kg)
Curb weight(Kg)	4650,4850(Kg)
Rated weight(kg)	4600,4850,5000(Kg)
Wheelbase(mm)	3845(mm)
Overall Dimension(mm)	5995×2150×2920,2820(mm)
Engine	Yunnei Dewei 163hp
Axle Quantity	2
Transmission Type	Anhui Xingrui 6-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	700R16LT 14PR steel wire tire, 6+1 spare
Cab	JAC Junling V7 cab
Volume(m³)	8m³
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
