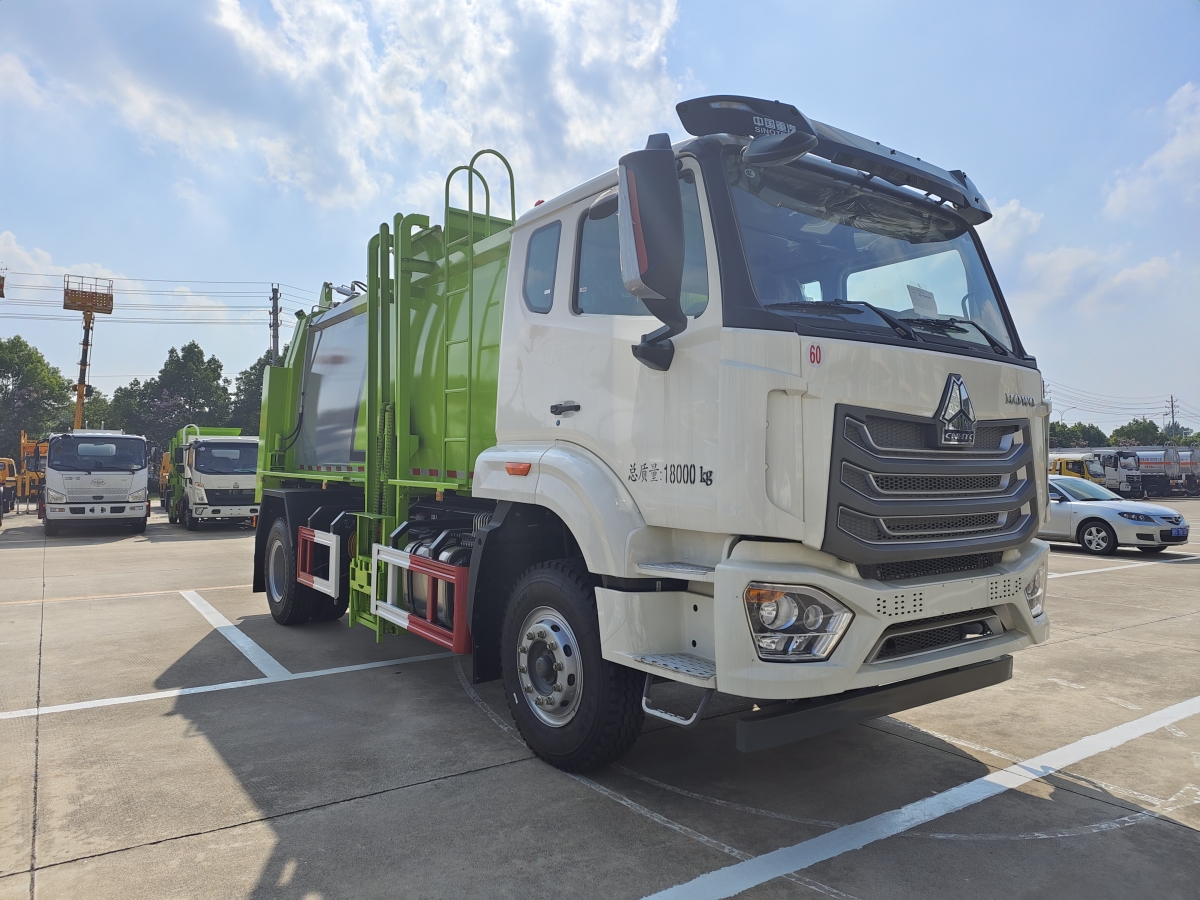

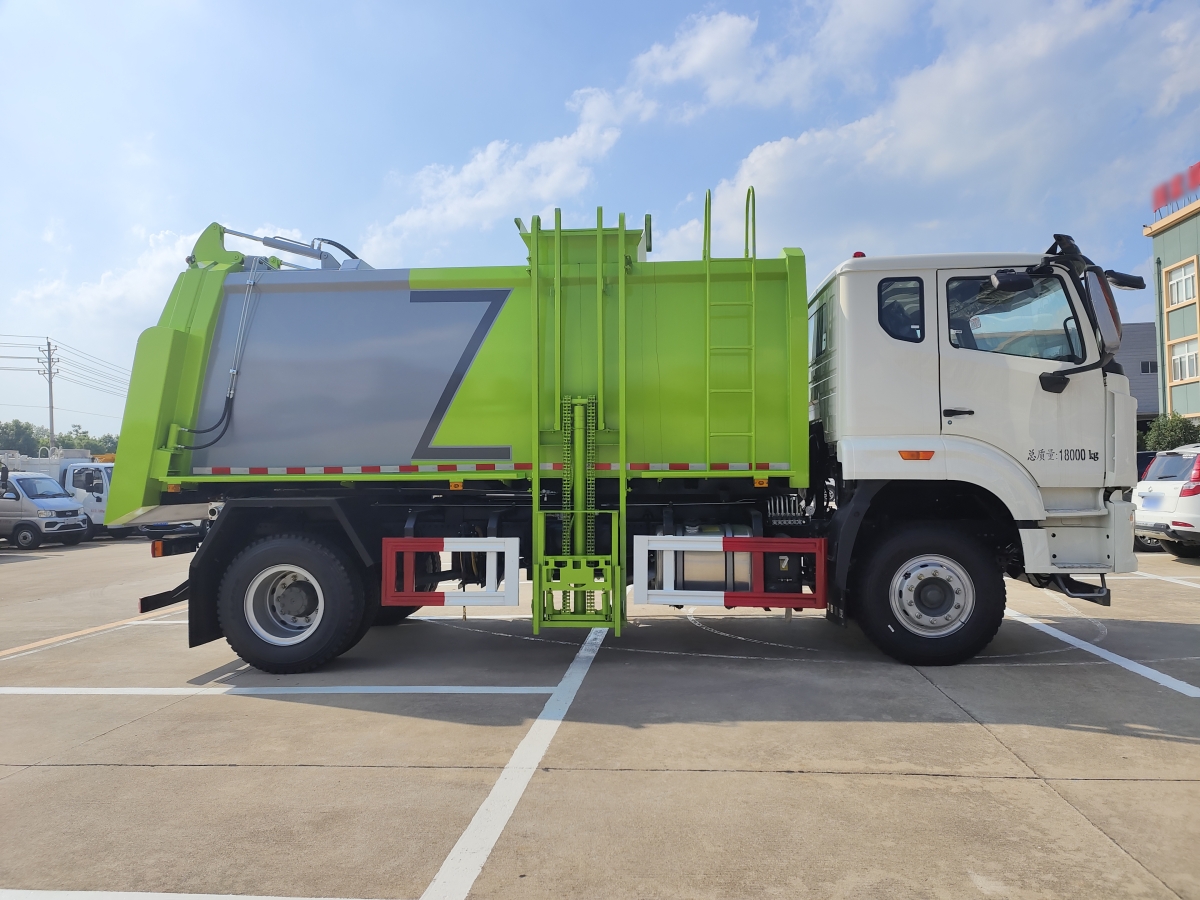

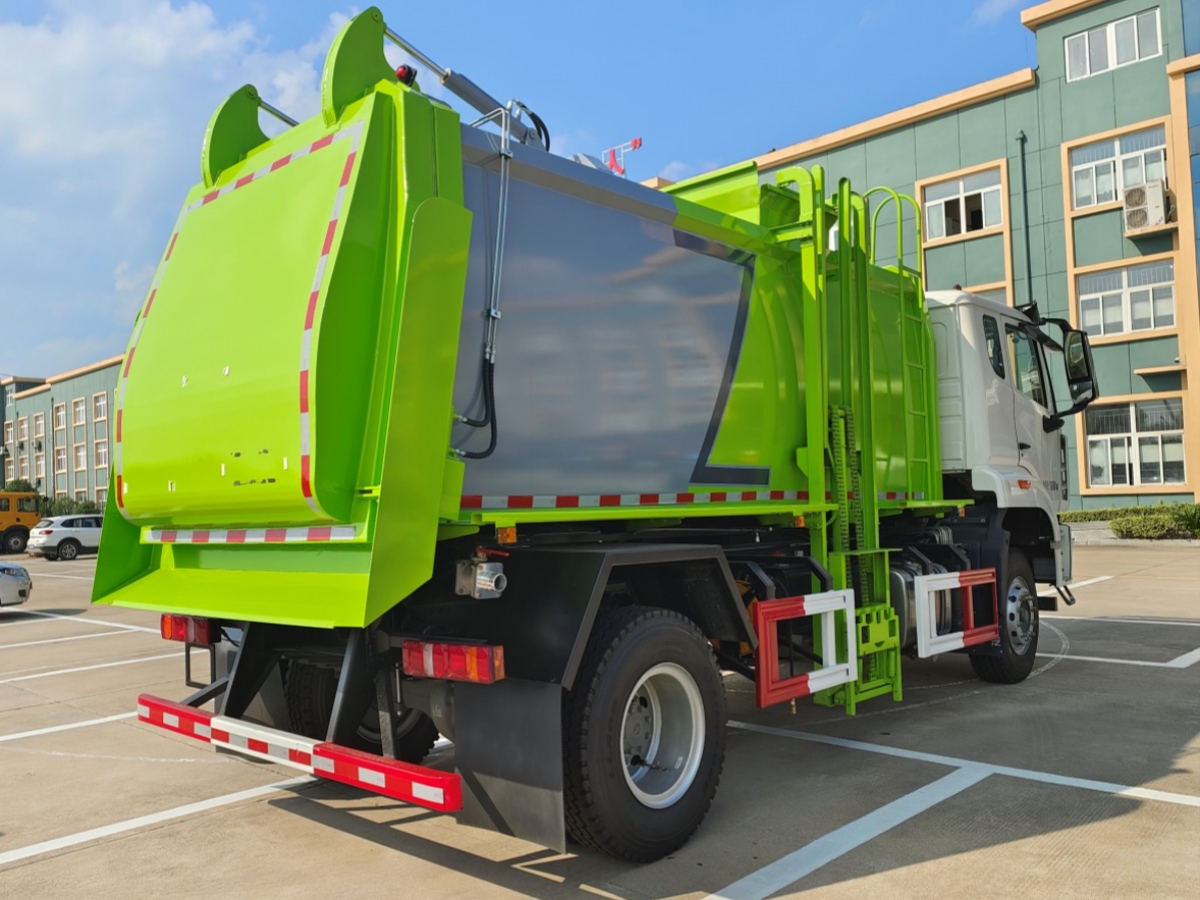

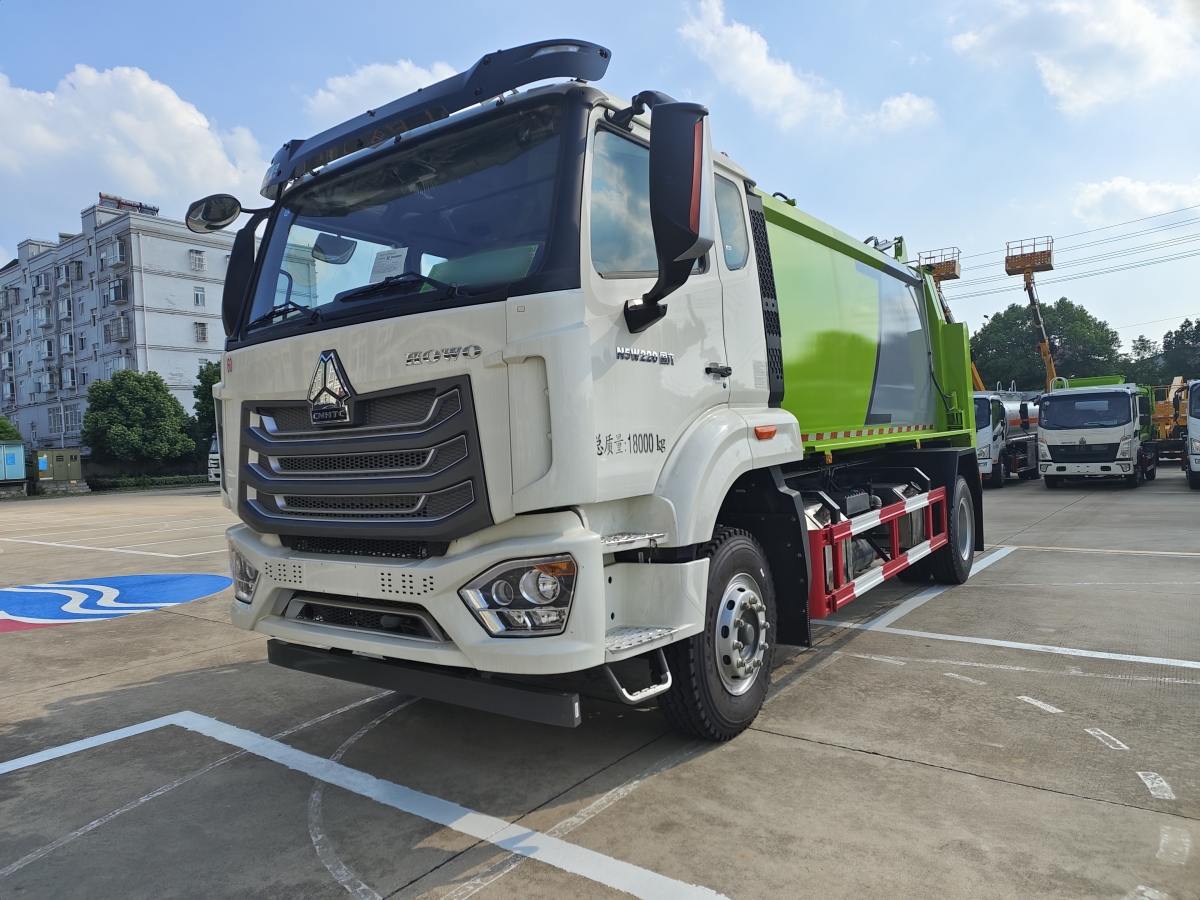

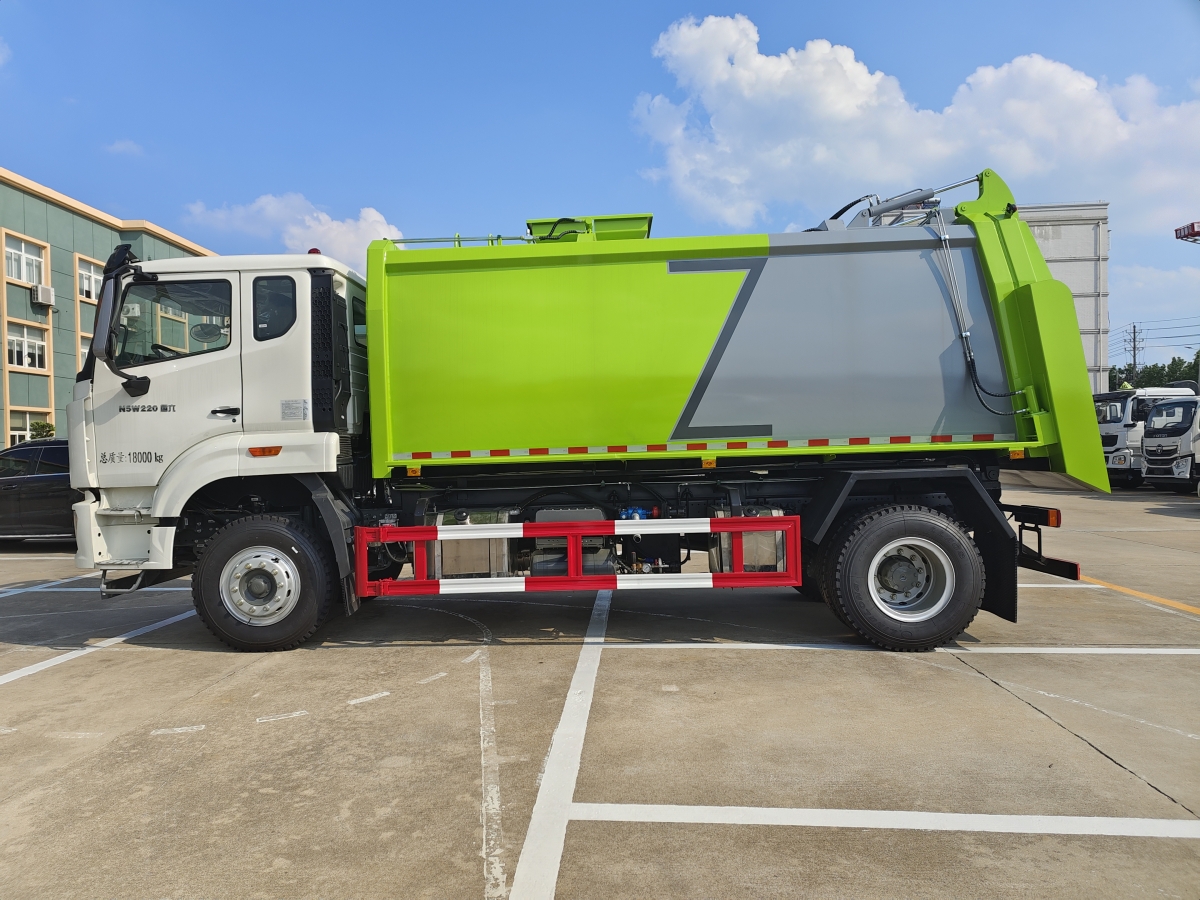

Sinotruk HOWO 15m³ Multifunctional Kitchen Waste Truck

Chassis configuration:

The engine is a Weichai 220 horsepower National VI engine. Howo 8-speed gearbox with synchronizer and power take-off, German MAN 11 ton long-lasting oil rear axle 250mm (7+4) straight through double-layer beam, 10.00R20 all steel wire tire (with spare tire), 7/7+3 thickened and widened leaf spring airbag seat, automatic electronic control constant temperature air conditioning, automatic headlights, central locking, electric doors and windows, remote key ABS、 Aluminum alloy fuel tank.

Product Name： Sinotruk HOWO 15m³ Multifunctional Kitchen Waste Truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 18000(Kg)
Curb weight(Kg)： 8550,8750,8850(Kg)

Product Features

Sinotruk HOWO 15m³ Multifunctional Kitchen Waste Truck

Kitchen waste truck, also known as meal waste truck, kitchen waste truck or swill truck, is a type of garbage truck used for collecting and transporting household waste, food waste (swill) and urban sludge.

Installation configuration :

1) Integrated square box with a capacity of 15 cubic meters, capable of lifting and unloading materials.

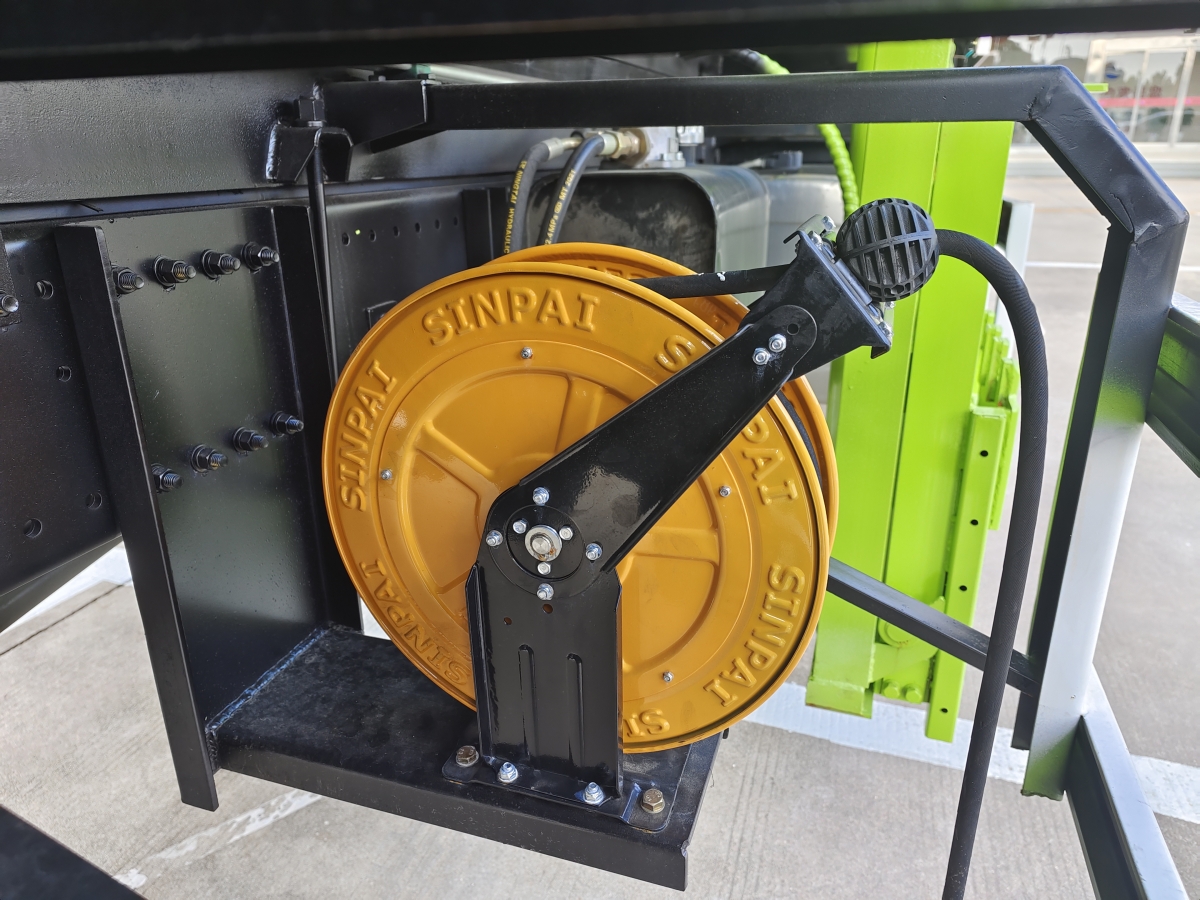

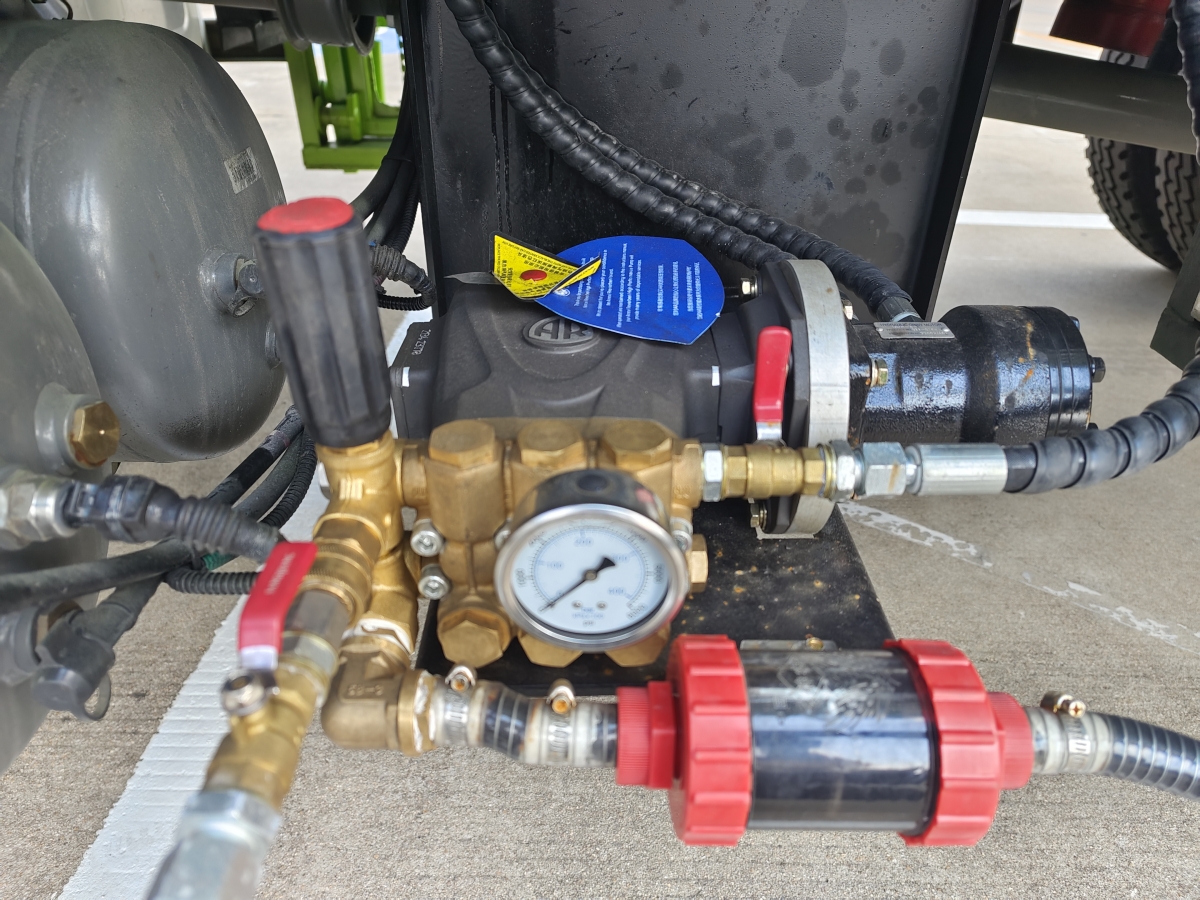

2) Equipped with oil pumping device, high-pressure cleaning device, automatic bucket washing device, clean water tank, sewage tank, and oil storage tank. It can achieve multi-purpose use of one vehicle, clean and tidy, and improve economic efficiency.
3) The optional box body is made of T700 high-strength alloy steel, fully welded as a whole, which greatly improves the strength of the box body while being lightweight.
4) The accessories include Jiashan power take-off, Changyuan hydraulic oil pump, and Zhongmei multi way valve.
5) Equipped with an electronic control operating system, the cab integrates electronic control, allowing for the lifting of the box from both the cab and the elevator side. The elevator can be raised and lowered, and the tailgate can be opened and closed.

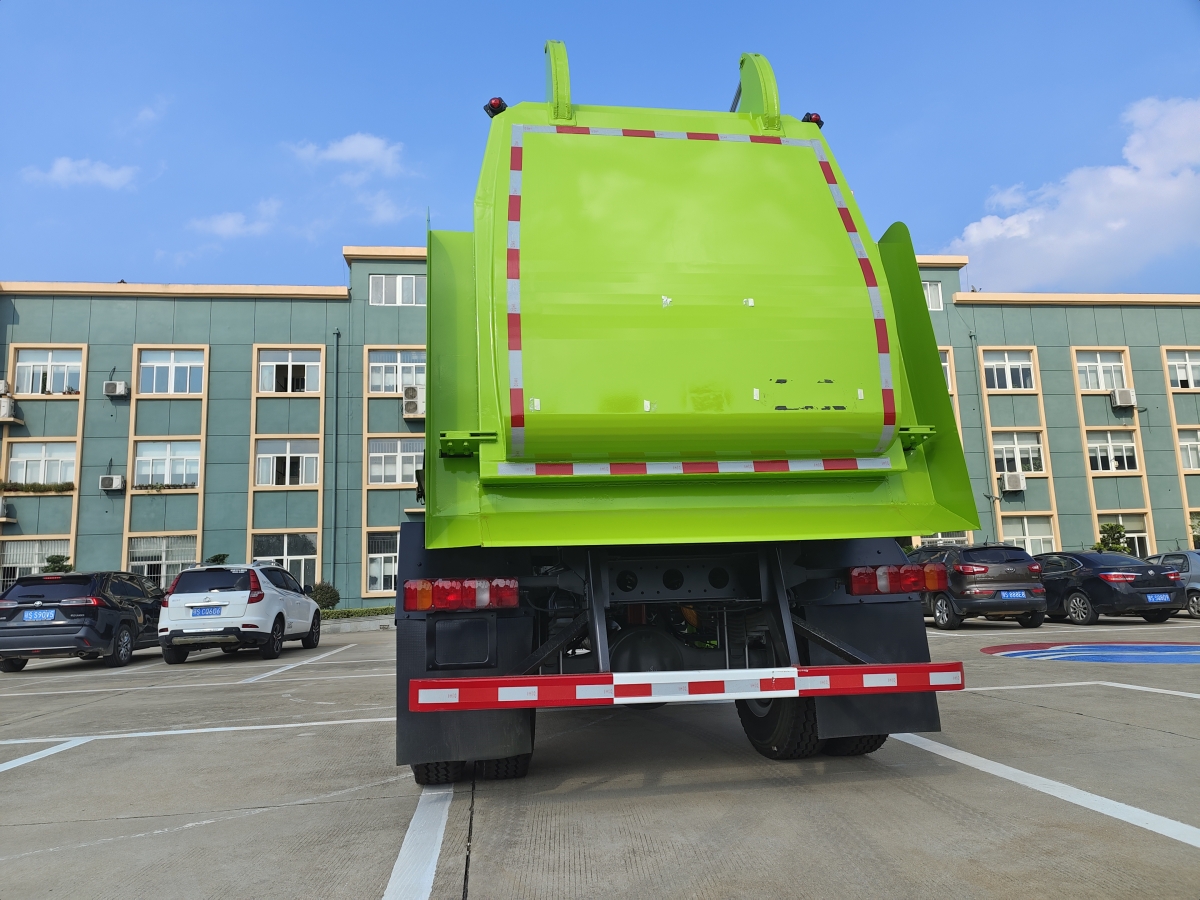

6) The tailgate is fully sealed with a hydraulic lock. On the basis of the original self loading and unloading box, 2 multi way valves, 2 sequential valves, and 2 locking oil cylinders are added. The top and waist of the tailgate are automatically adjusted by 4 hydraulic oil cylinders, providing better sealing effect and effectively preventing oil and water leakage.
7) Equipped with a double chain hoist and a stable hoist track to prevent the garbage bin from swinging during lifting. The 120-240L round and square buckets can be lifted. The top compartment door of the box is sealed, and the right rear of the box is equipped with a DN65 drain ball valve and a quick plug female connector.

Product parameters

Product Name	Sinotruk HOWO 15m³ Multifunctional Kitchen Waste Truck
Driving Type	4×2
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	8550,8750,8850(Kg)
Rated weight(kg)	9320,9255,9120,9055,9020,8955(Kg)
Wheelbase(mm)	4700(mm)
Overall Dimension(mm)	7650×2550×3460,3520,3620(mm)
Engine	WP4.6NQ220E61,Weichai 220hp
Axle Quantity	2
Transmission Type	Howo 8-speed transmission
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	10.00 steel wire tire, 6+1 spare
Cab	Sinotruk HOWO NX has a wide body and wide sleeper, a four point suspension cab, airbag seats, and is stable and comfortable.
Volume(m³)	15m³
Tank body	The box is made of T700 high-strength alloy steel
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
