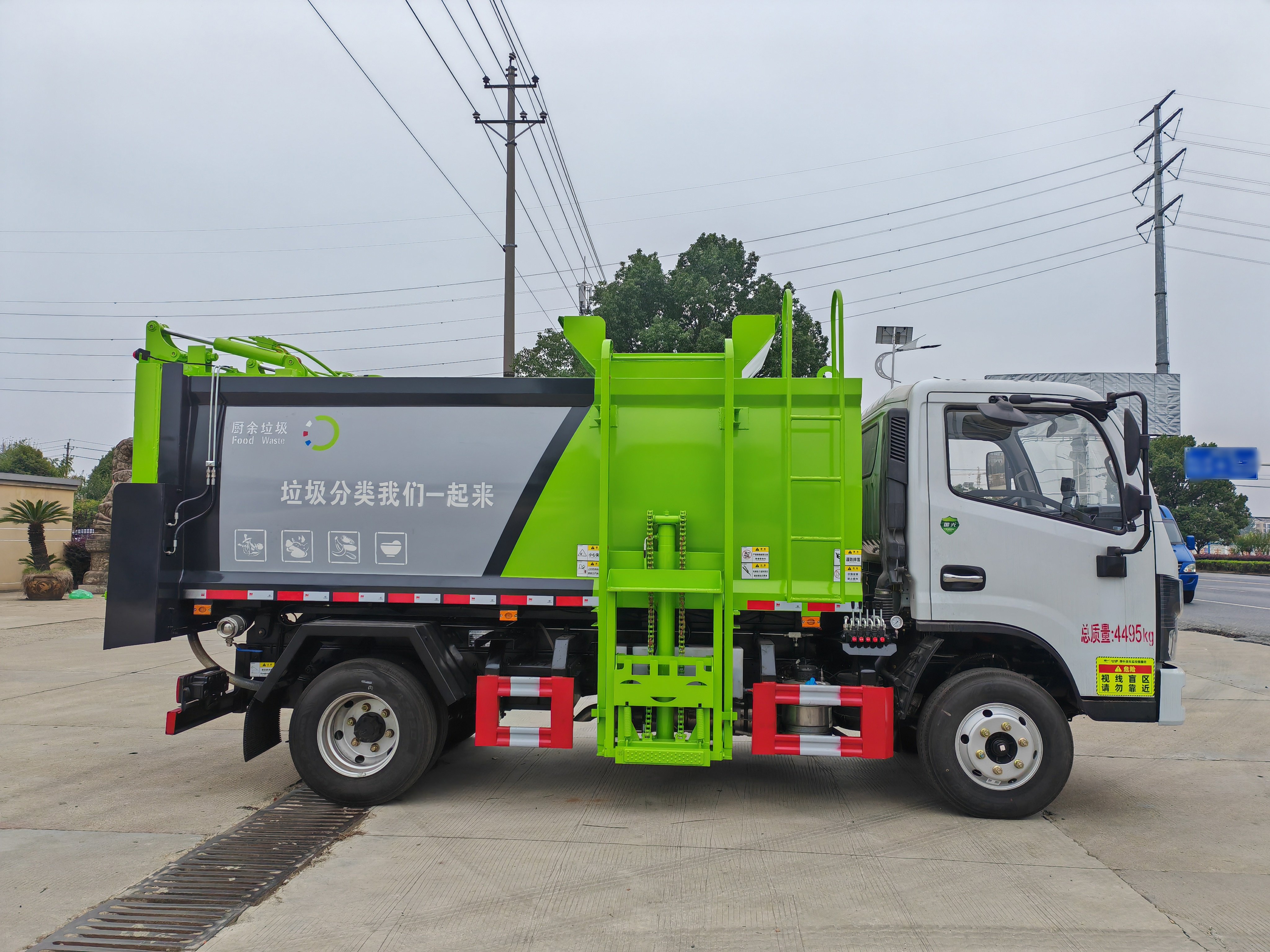

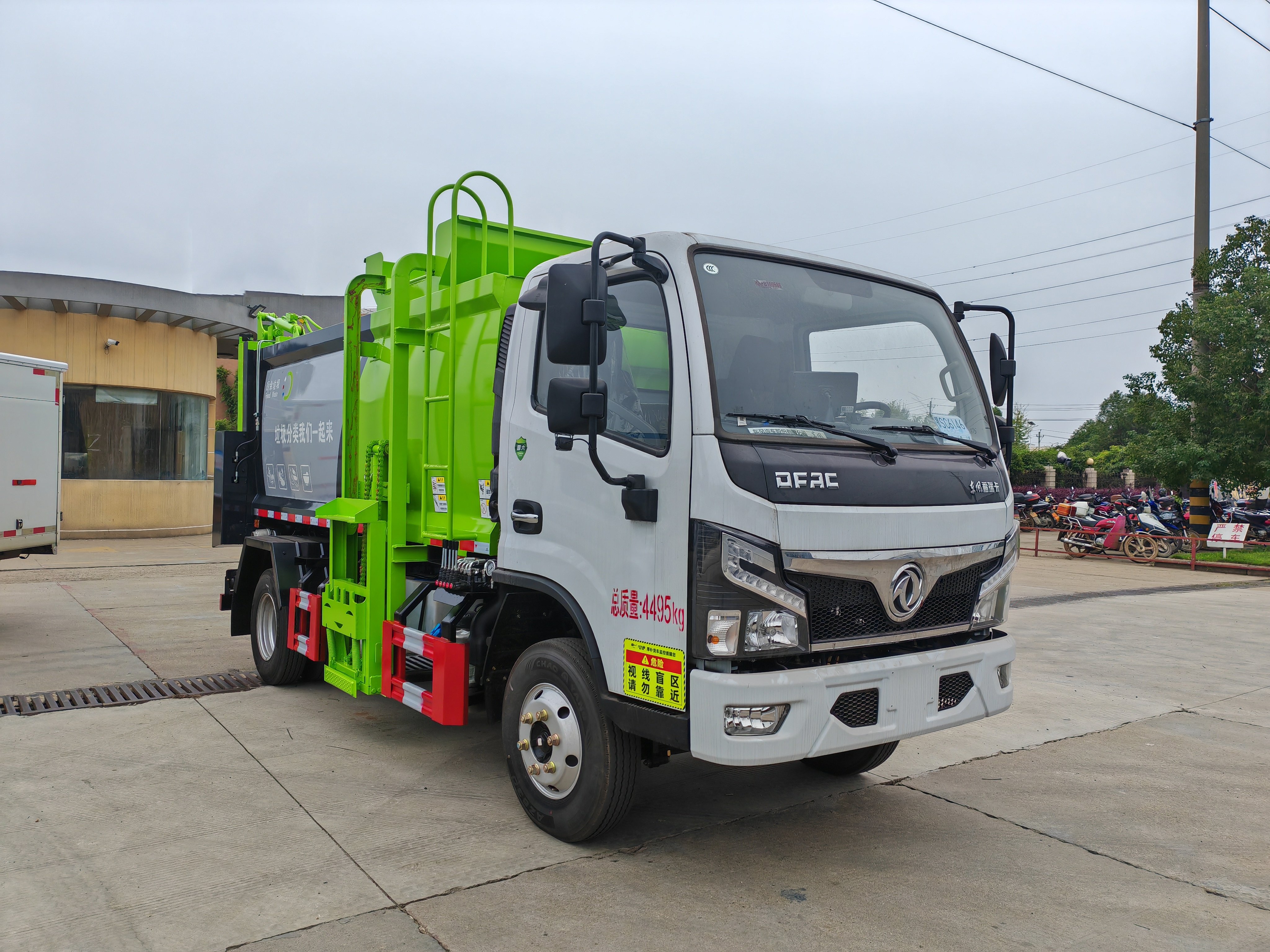

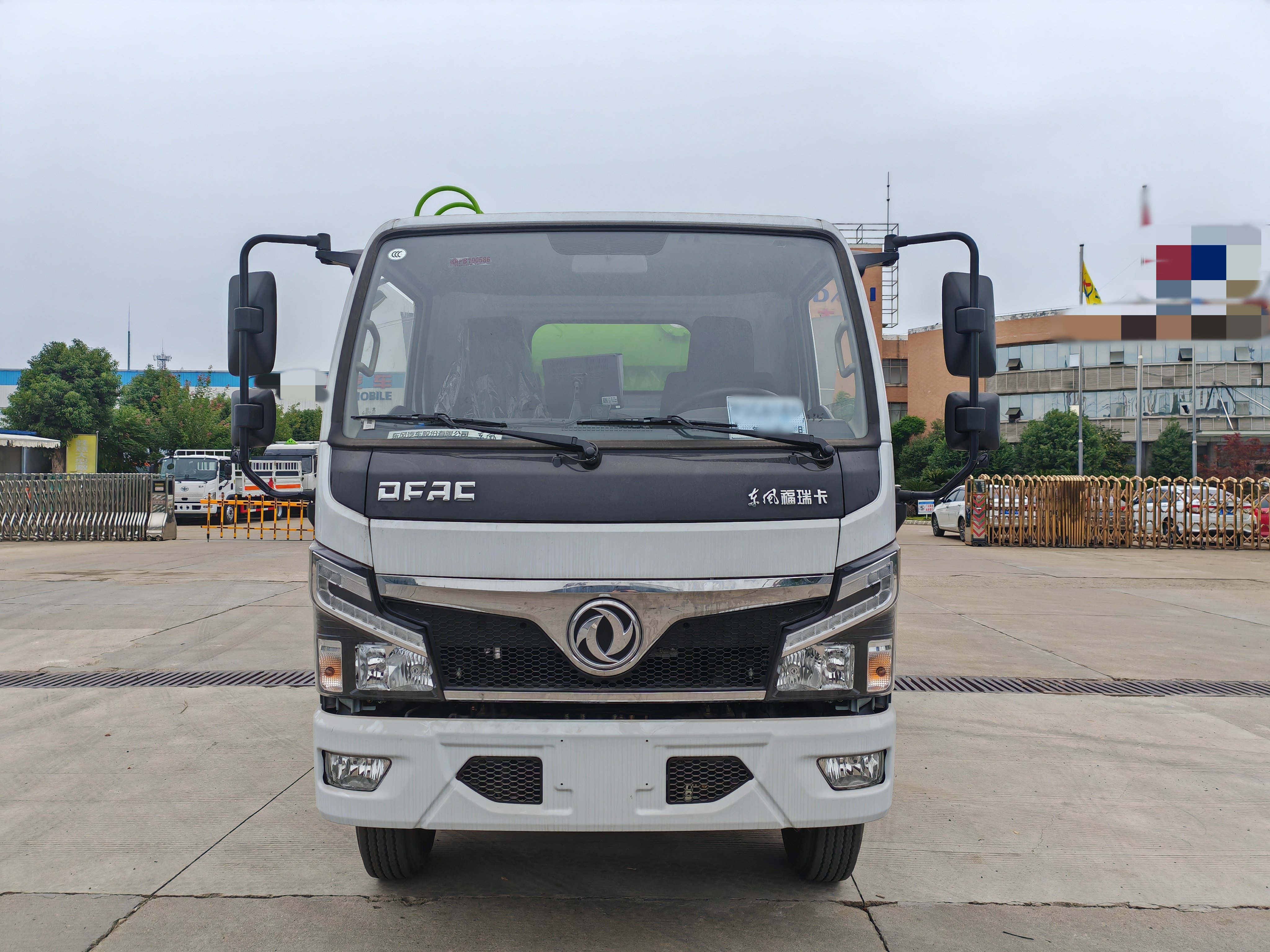

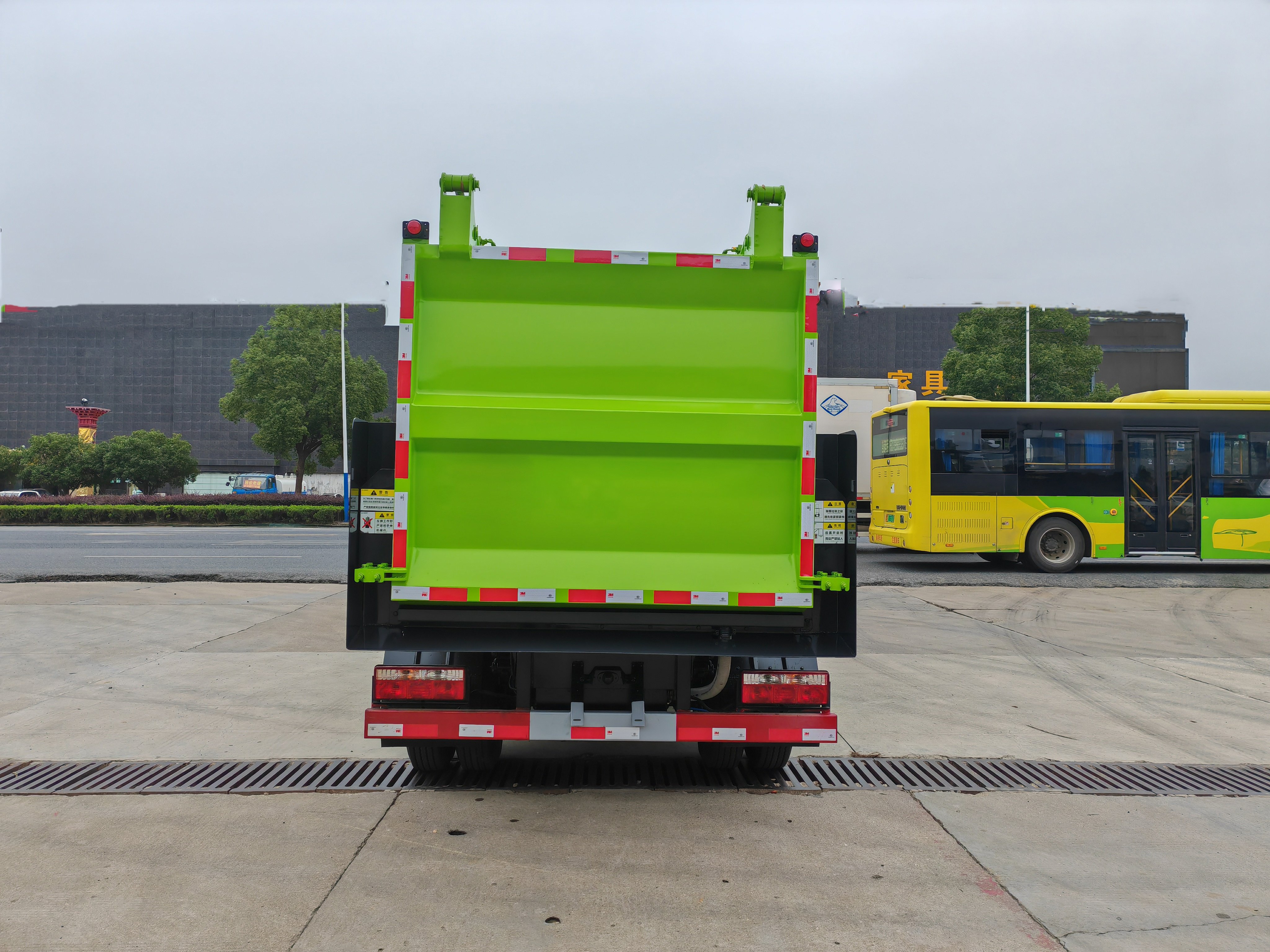

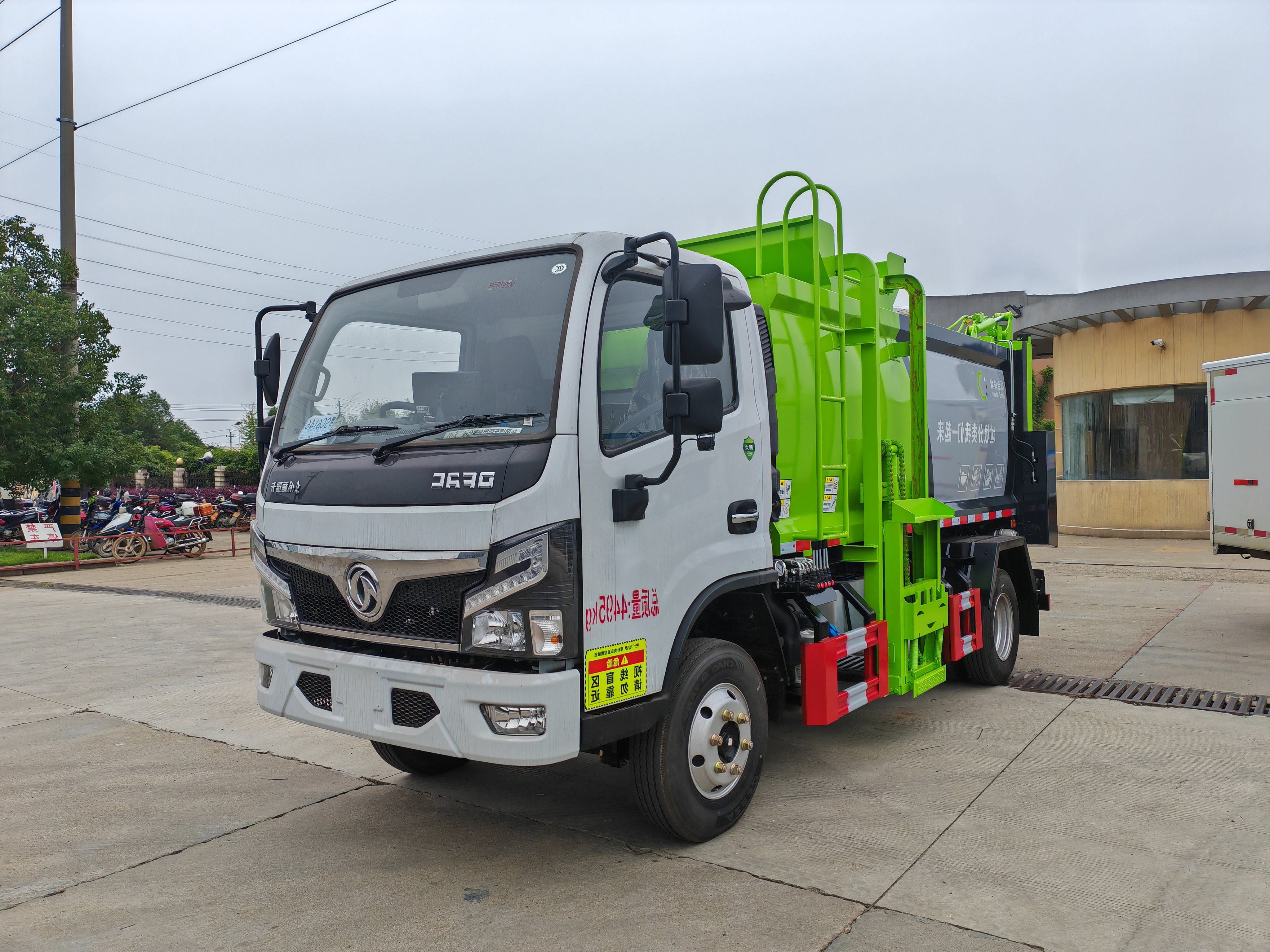

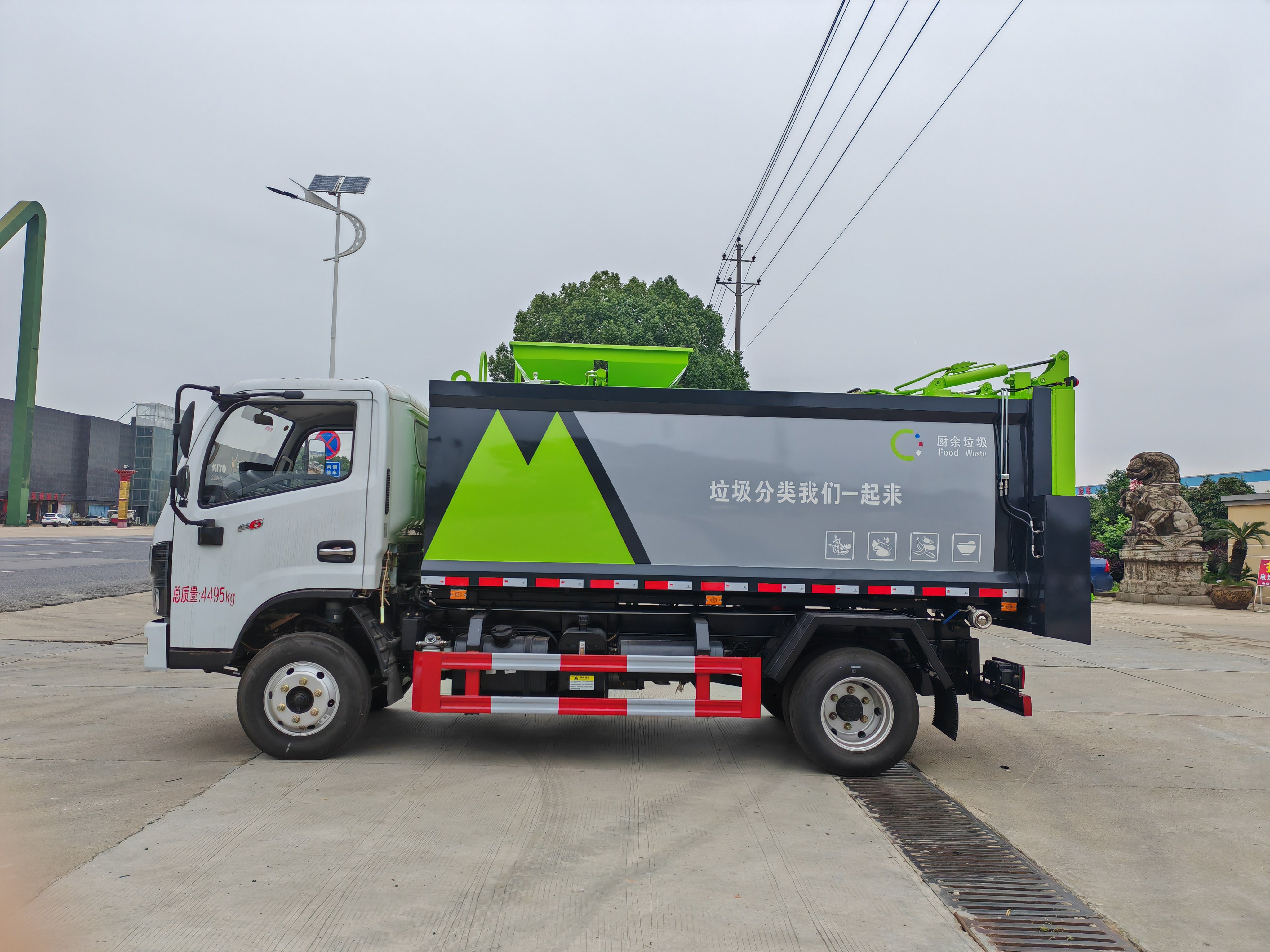

Dongfeng F6 7.5m³ Kitchen Waste Truck

Chassis configuration:

Dongfeng F6 cab, CA4DB1-113E, Xichai 130 horsepower engine, Wanliyang 6-speed gearbox, 3308mm wheelbase, 1730 single row cab, 2T front axle, 3.5T rear axle, 7.00R16 steel wire tires, 188X (5+3) X750mm double-layer beam, air brake, ABS， Electric doors and windows, central locking.

Product Name： Dongfeng F6 7.5m³ Kitchen Waste Truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 4495(Kg)
Curb weight(Kg)： 3850(Kg)

Product Features

Dongfeng F6 7.5m³ Kitchen Waste Truck

Kitchen waste truck, also known as meal waste truck, kitchen waste truck or swill truck, is a type of garbage truck used for collecting and transporting household waste, food waste (swill) and urban sludge.

Installation configuration :

Using Q710 high-strength steel, with a 2mm edge and 4mm bottom, lightweight design and large capacity. The reinforced square tank body adopts a well-known domestic brand hydraulic system (domestic well-known oil pump, Hunan Changsha domestic well-known multi way valve, customized oil cylinder for kitchen and kitchen use, Zhejiang Jiashan power take-off), with a hydraulic opening and locking of the back cover, a sealing strip on the back cover, and an adjustable hydraulic locking pin to ensure no water leakage. The chain hoist can hang 120L/240L standard plastic trash cans with smooth loading.

Product parameters

Product Name	Dongfeng F6 7.5m³ Kitchen Waste Truck
Driving Type	4×2
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	3850(Kg)
Rated weight(kg)	515(Kg)
Wheelbase(mm)	3308(mm)
Overall Dimension(mm)	5780×2170×2780(mm)
Engine	CA4DB1-113E6, Xichai 130hp
Axle Quantity	2
Transmission Type	Wanliyang 6-speed transmission
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16 steel wire tire, 6+1 spare
Cab	Dongfeng F6 cab
Volume(m³)	7.5m³
Tank body	Using Q710 high-strength steel, with a 2mm edge and a 4mm bottom
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
