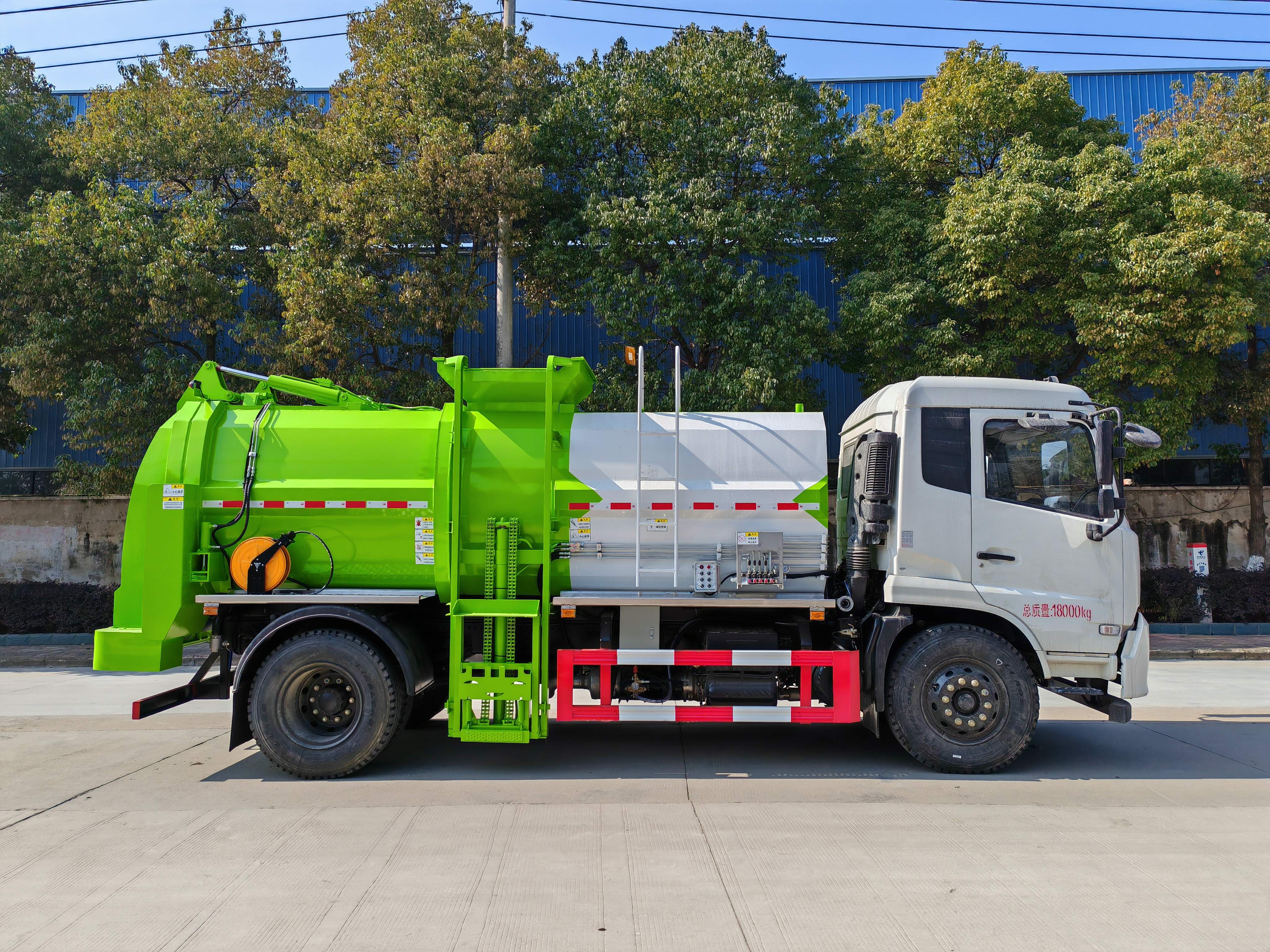

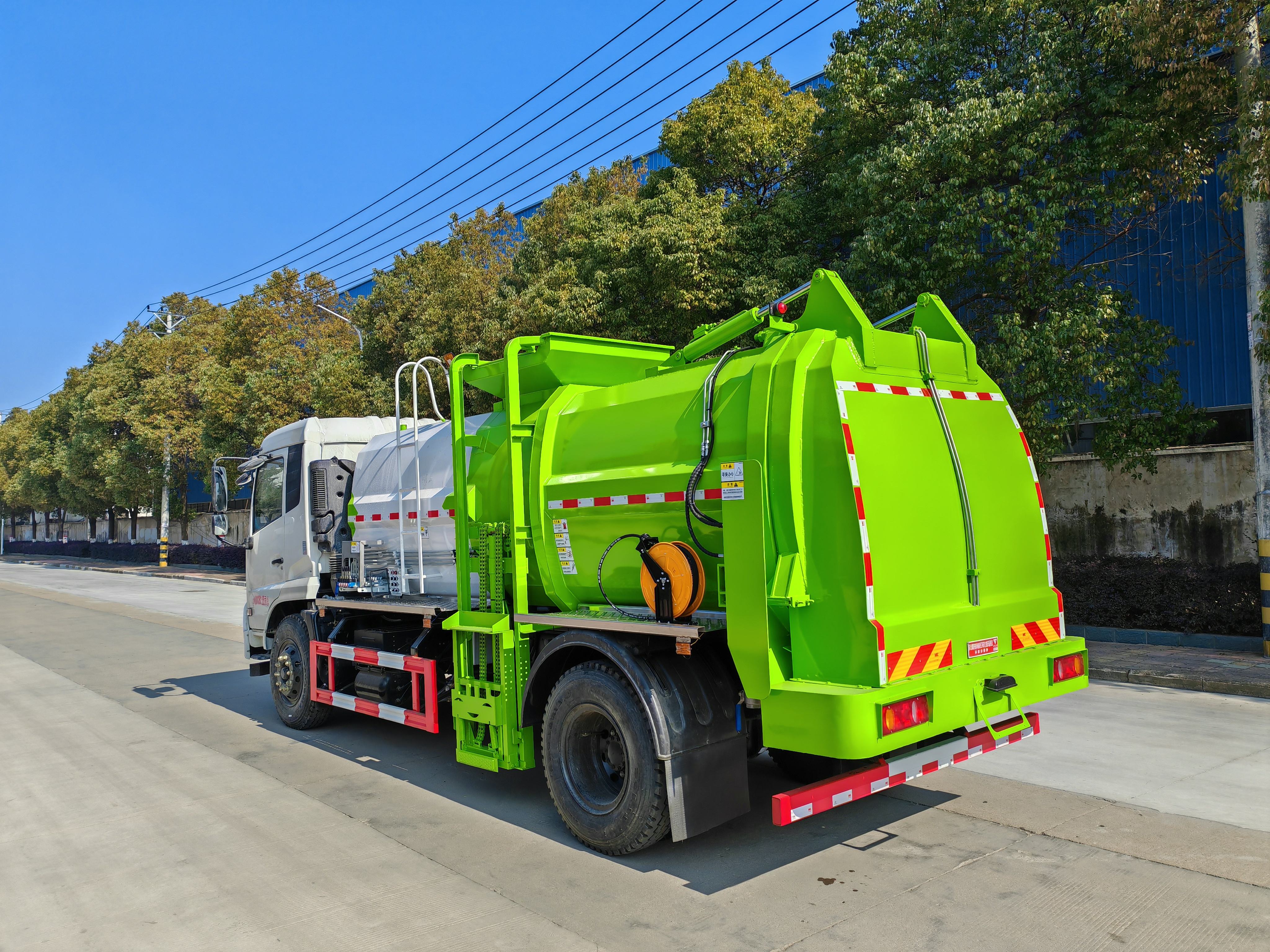

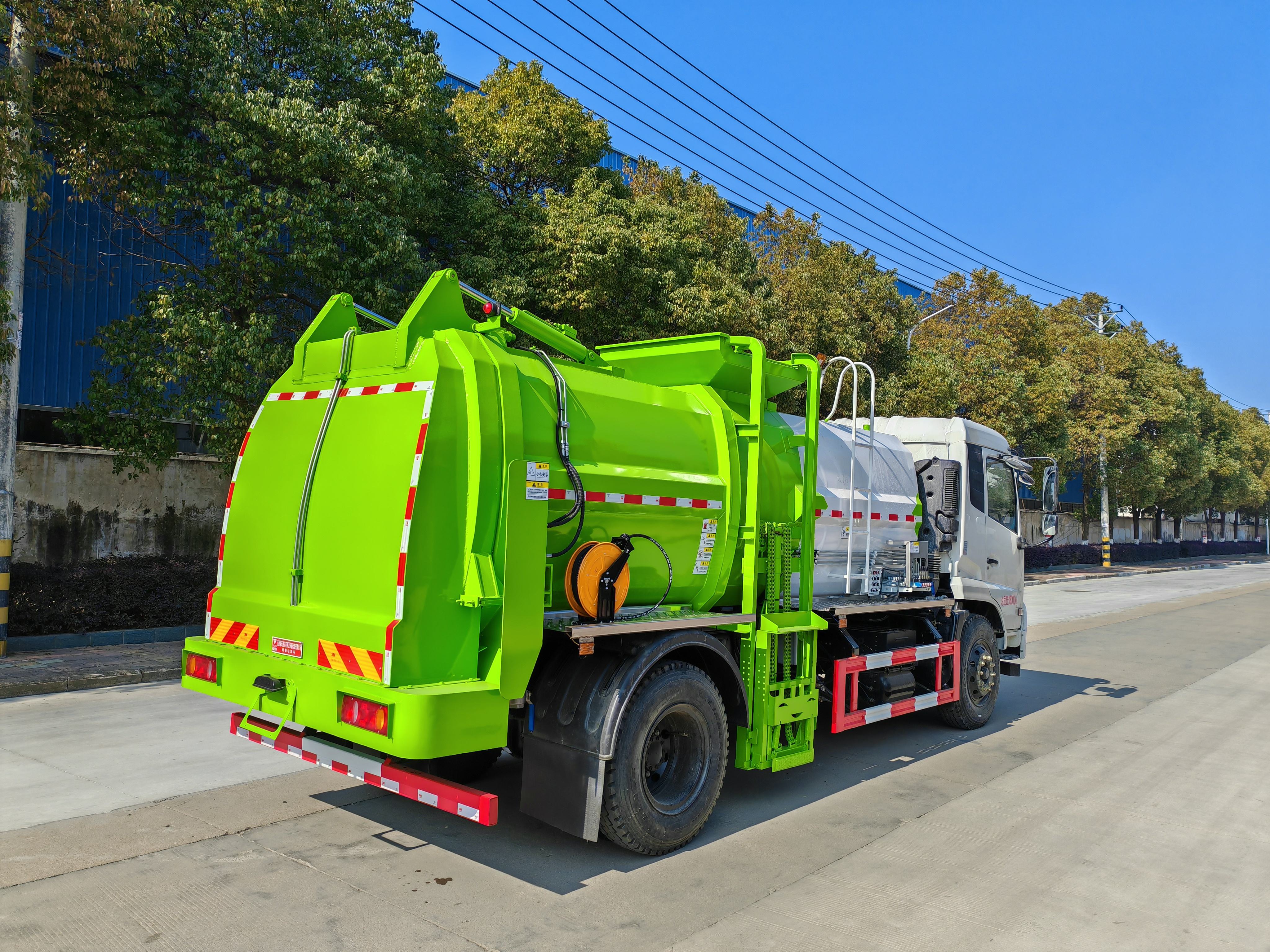

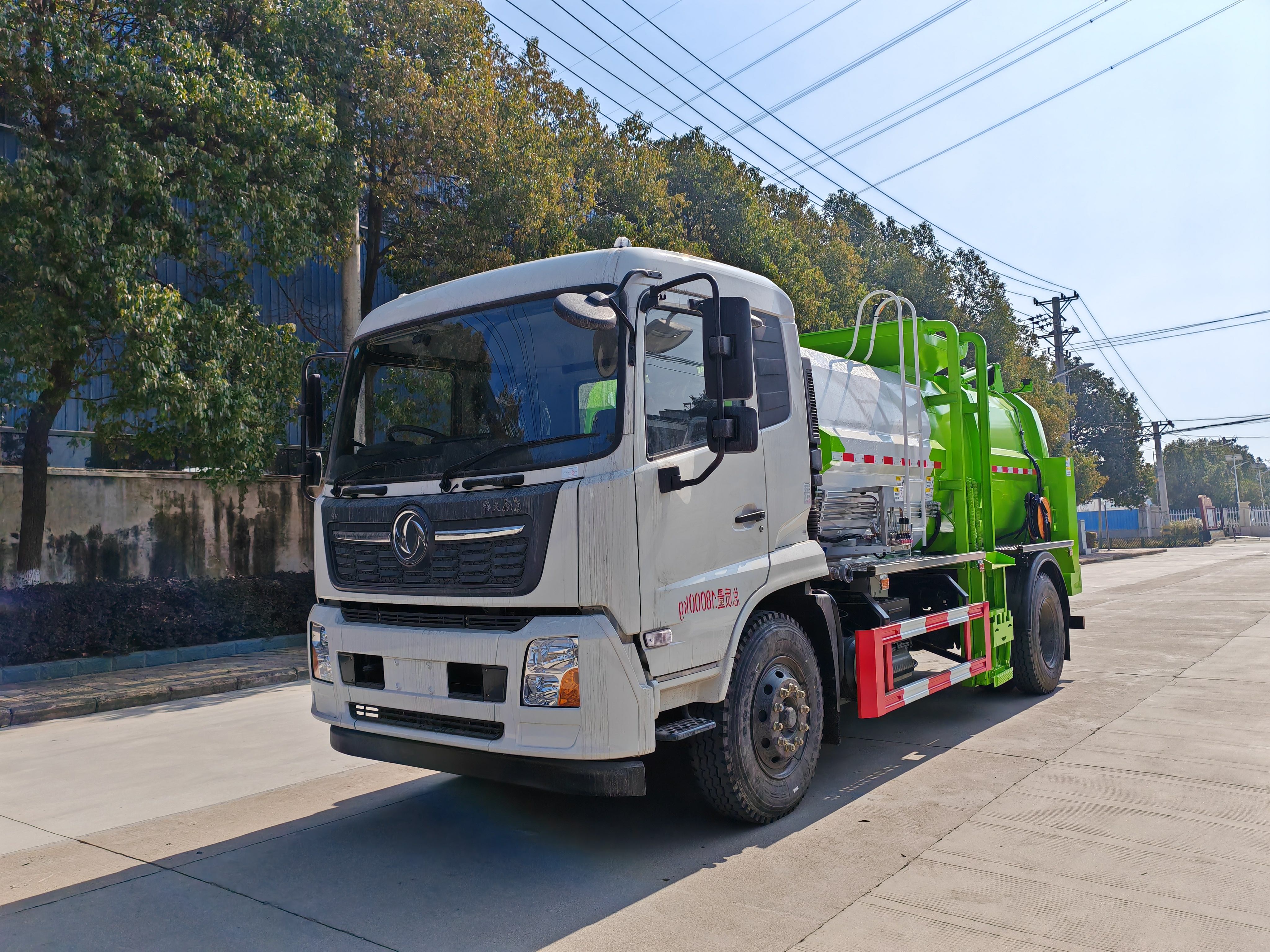

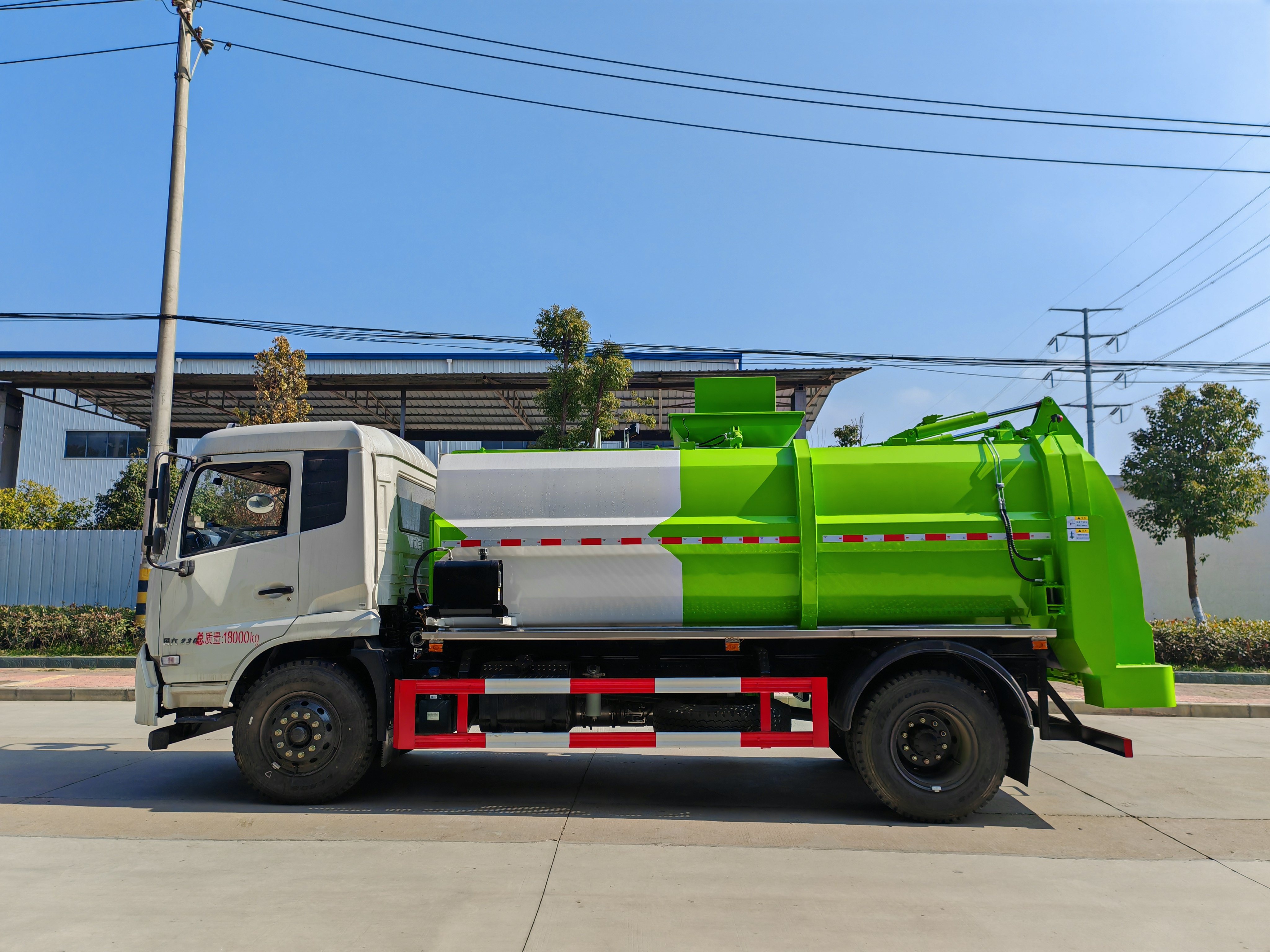

Dongfeng Tianjin 12m³/13m³/14m³ kitchen waste truck

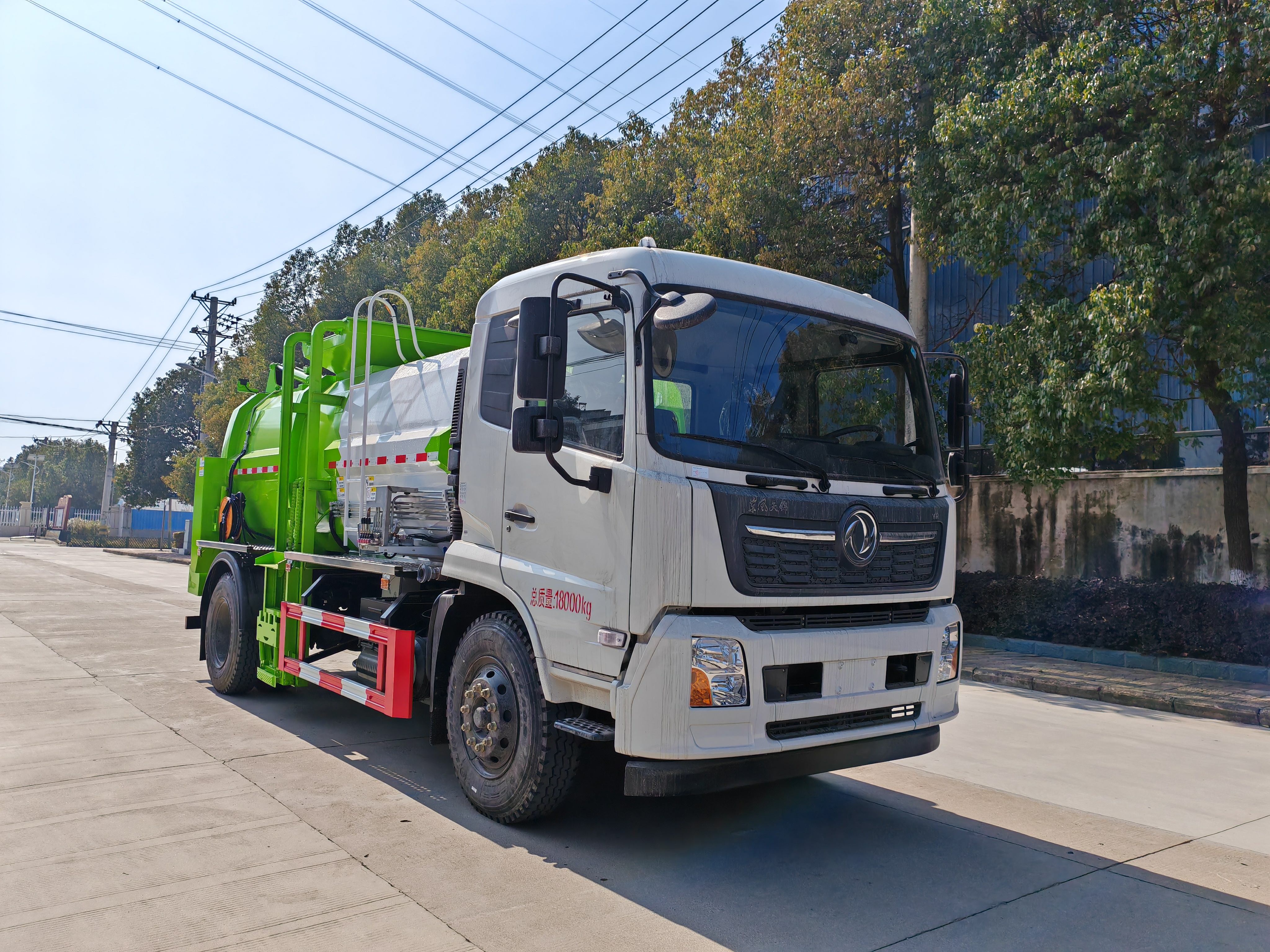

Chassis configuration: Dongfeng Tianjin original chassis, B6.2NS6B230 engine, Shaanxi Gear 8JS95E-C box, 2315 cab, 4.5T front axle, 10T rear axle, 10.00 steel wire tires, 250mm beam, air brake, air conditioning, electric doors and windows, central locking.

Product Name： Dongfeng Tianjin 12m³/13m³/14m³ kitchen waste truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 18000kg
Curb weight(Kg)： 9000,8700,8500kg

Product Features

Food waste truck,also known as meal waste truck, kitchen waste truck or swill truck, is a type of garbage truck used for collecting and transporting household waste, food waste (swill) and urban sludge.

Installation configuration :

Upper configuration:Made of Q710 high-strength steel, with a 4mm edge and 5mm bottom, reinforced square tank body, using well-known domestic hydraulic systems (domestic well-known oil pump, Hunan Changsha domestic well-known multi way valve, customized oil cylinder for kitchen use, Zhejiang Jiashan power take-off),
1. Equipped with a push plate filter to achieve the function of dry wet separation, and a push plate for unloading;
2. Equipped with a high-pressure pump and a high-pressure reel, it achieves the function of high-pressure cleaning;
3. Equipped with PLC electronic control system and wireless remote control, making operation more convenient;

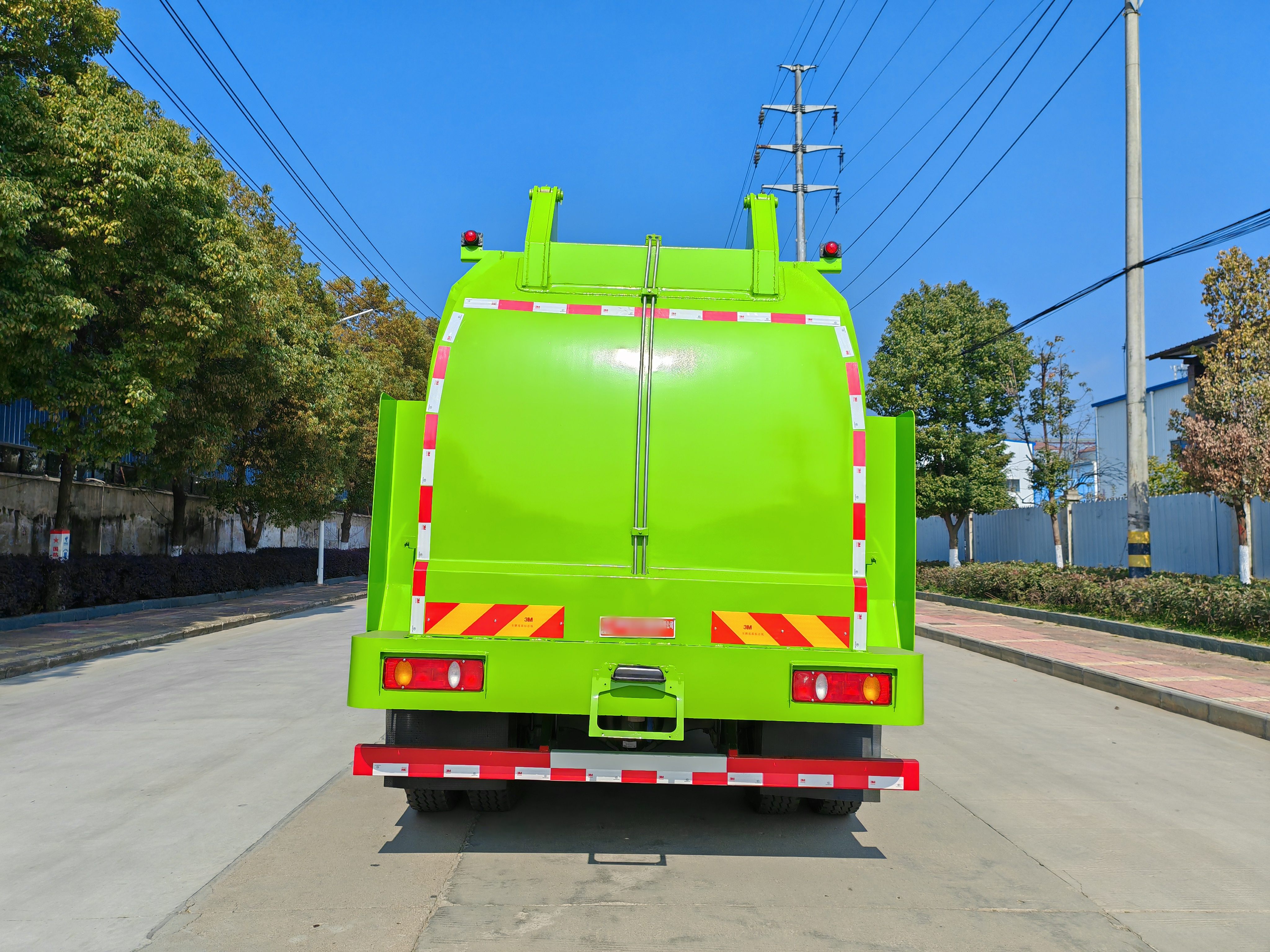

4. The back cover is hydraulically opened and locked, with a sealing strip and an adjustable hydraulic locking pin to ensure no water leakage. 5. Optional pull rod or chain hoist, capable of hanging 120L/240L standard plastic trash cans.
Note:The kitchen waste truck can be equipped with functions such as dry wet separation, high-pressure cleaning, electronic control, heating, etc. according to usage needs. Please confirm the configuration requirements before placing an order.
Top optional simple configuration:

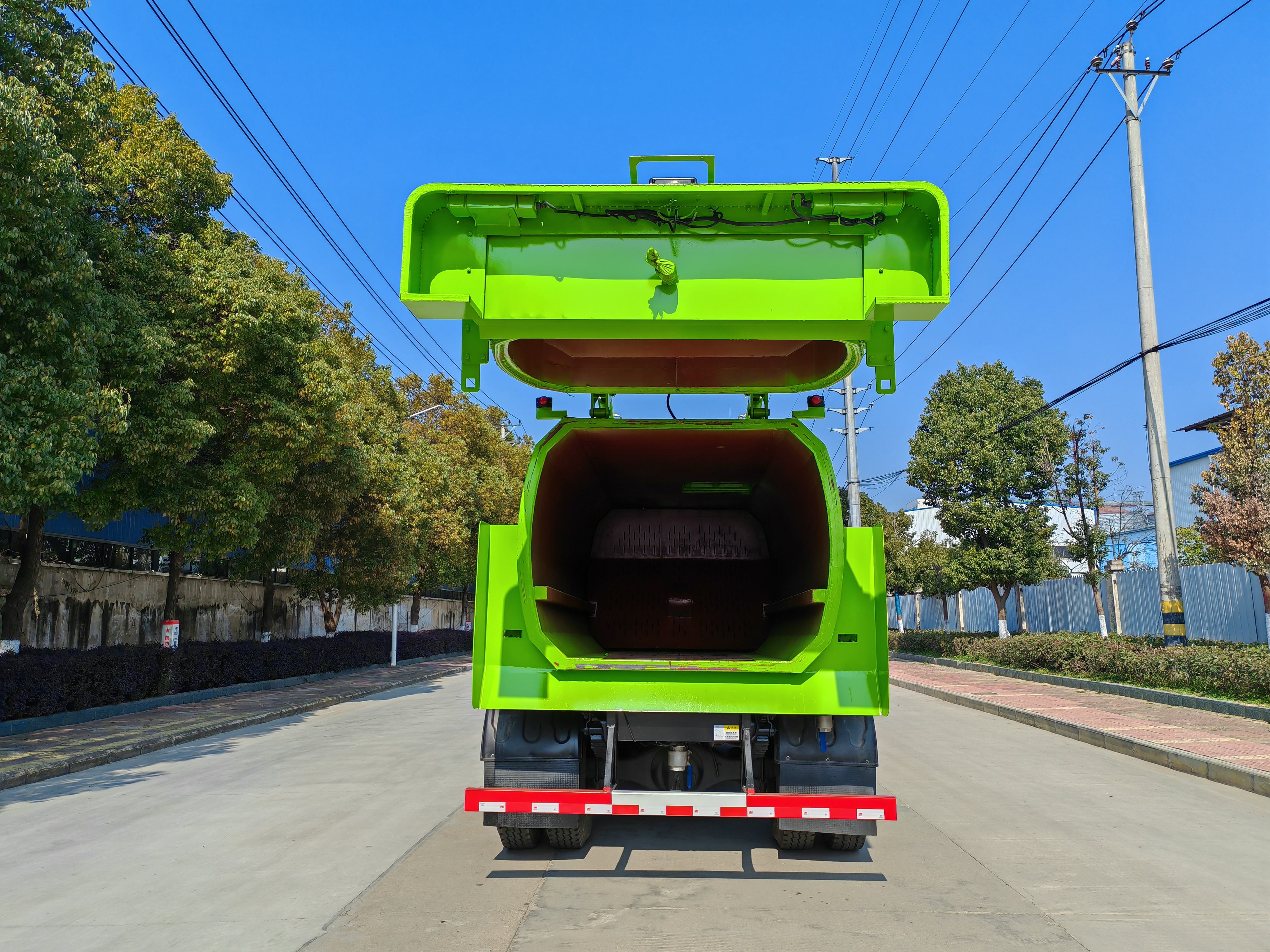

1. The back cover is hydraulically opened and locked, with a sealing strip and an adjustable hydraulic locking pin to ensure no water leakage.

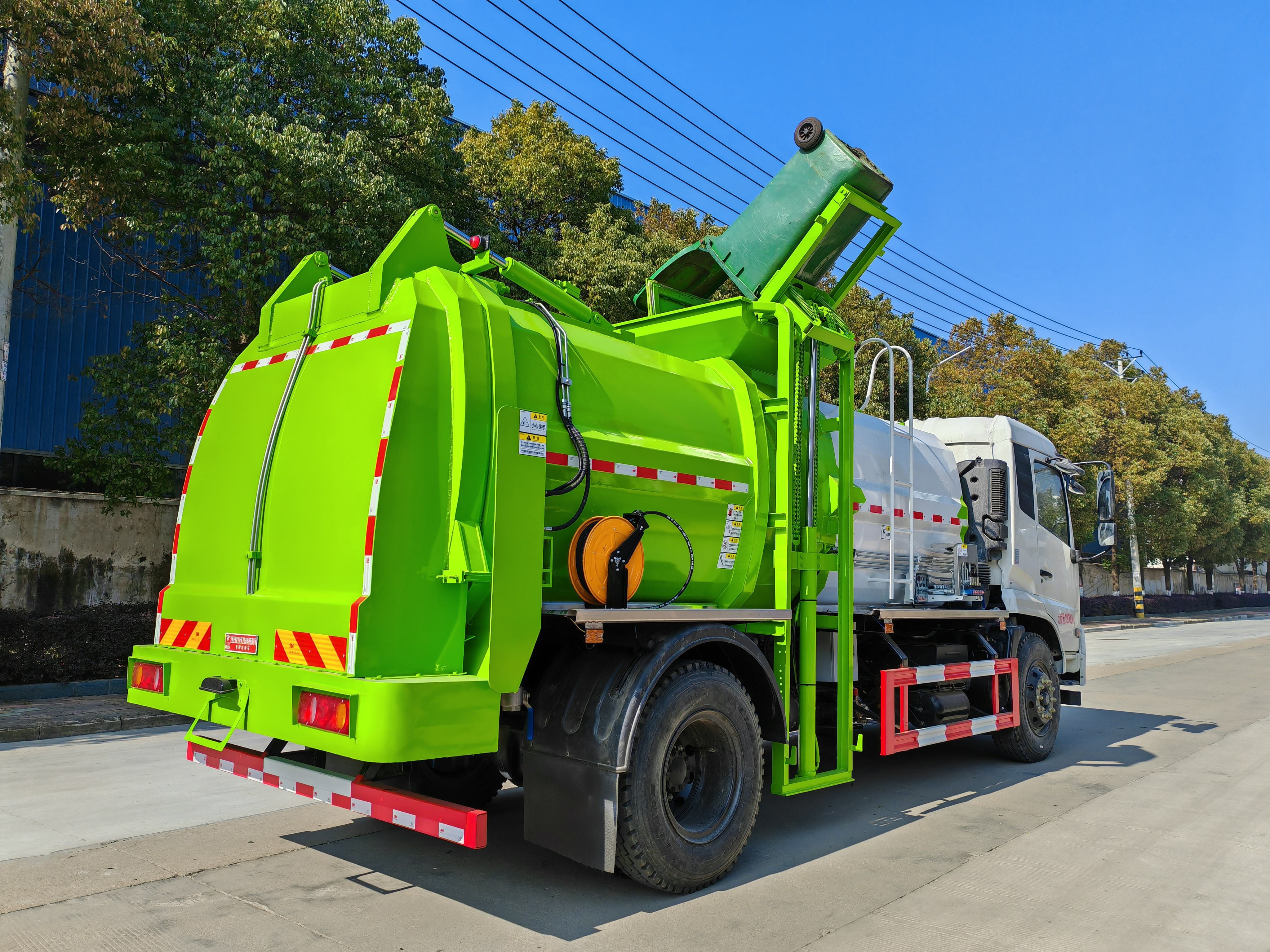

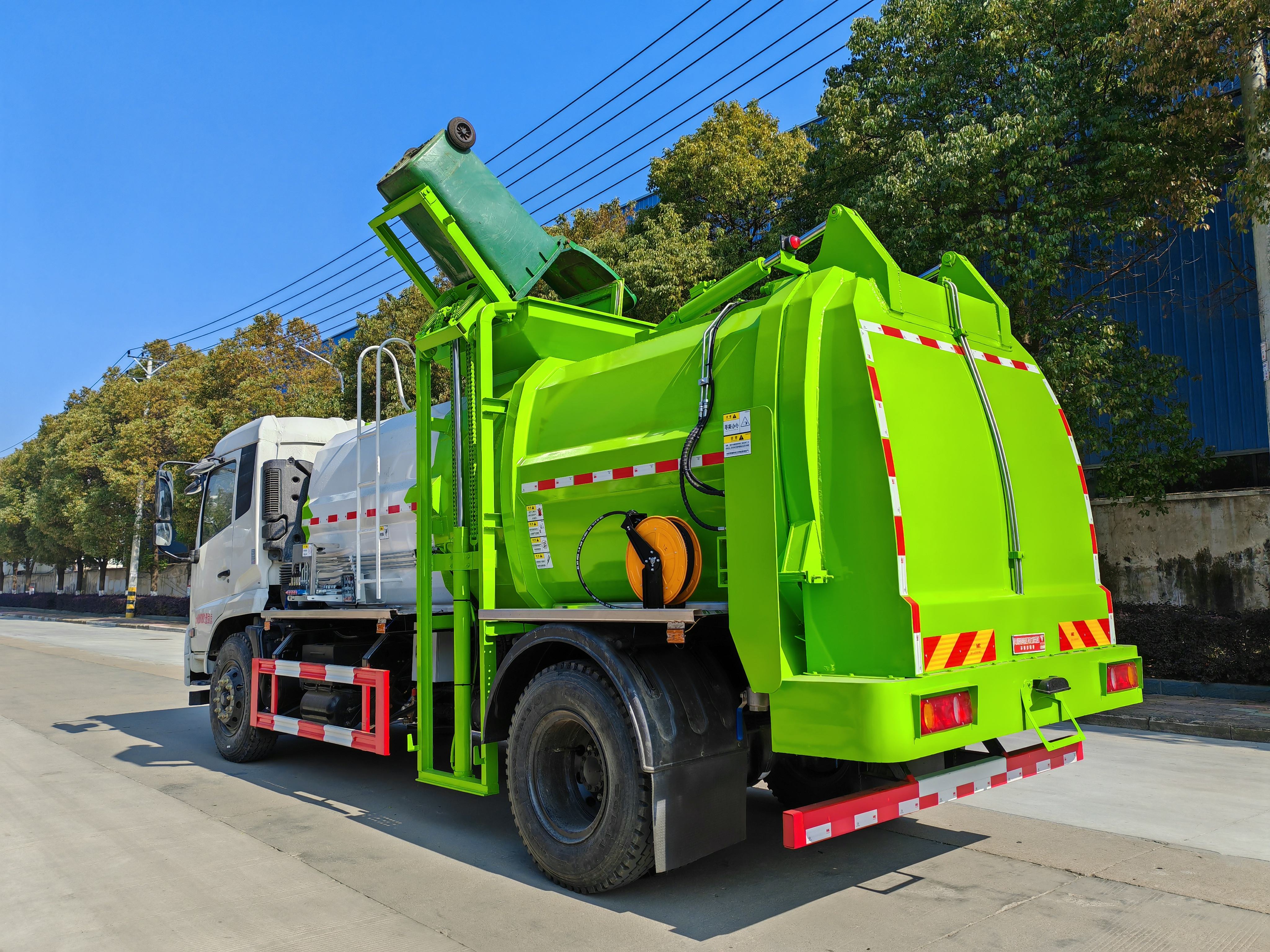

2. Optional pull rod or chain hoist, capable of hanging 120L/240L standard plastic trash cans.
3. Mid mounted double top lifting unloading, the unloading angle can be adjusted according to demand.
4. Having a wireless remote control is more convenient for operation.

Product parameters

Product Name	Dongfeng Tianjin 12m³/13m³/14m³ kitchen waste truck
Driving Type	4×2
Gross vehicle weight(Kg)	18000kg
Curb weight(Kg)	9000,8700,8500kg
Rated weight(kg)	8805,8870,9105,9170,9305,9370kg
Wheelbase(mm)	3950/4500/4700mm
Overall Dimension(mm)	7800×2500,2550×3100,3300,3400,3500,3600mm
Engine	Cummins 230 horsepower/DDI 210 horsepower
Axle Quantity	2
Transmission Type	8-speed transmission
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	10.00 steel wire tire, 6+1 spare
Cab	Dongfeng Tianjin cab
Volume(m³)	12m³/13m³/14m³
Tank body	Using Q710 high-strength steel, with 3mm edge plates and 4mm bottom plates
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
