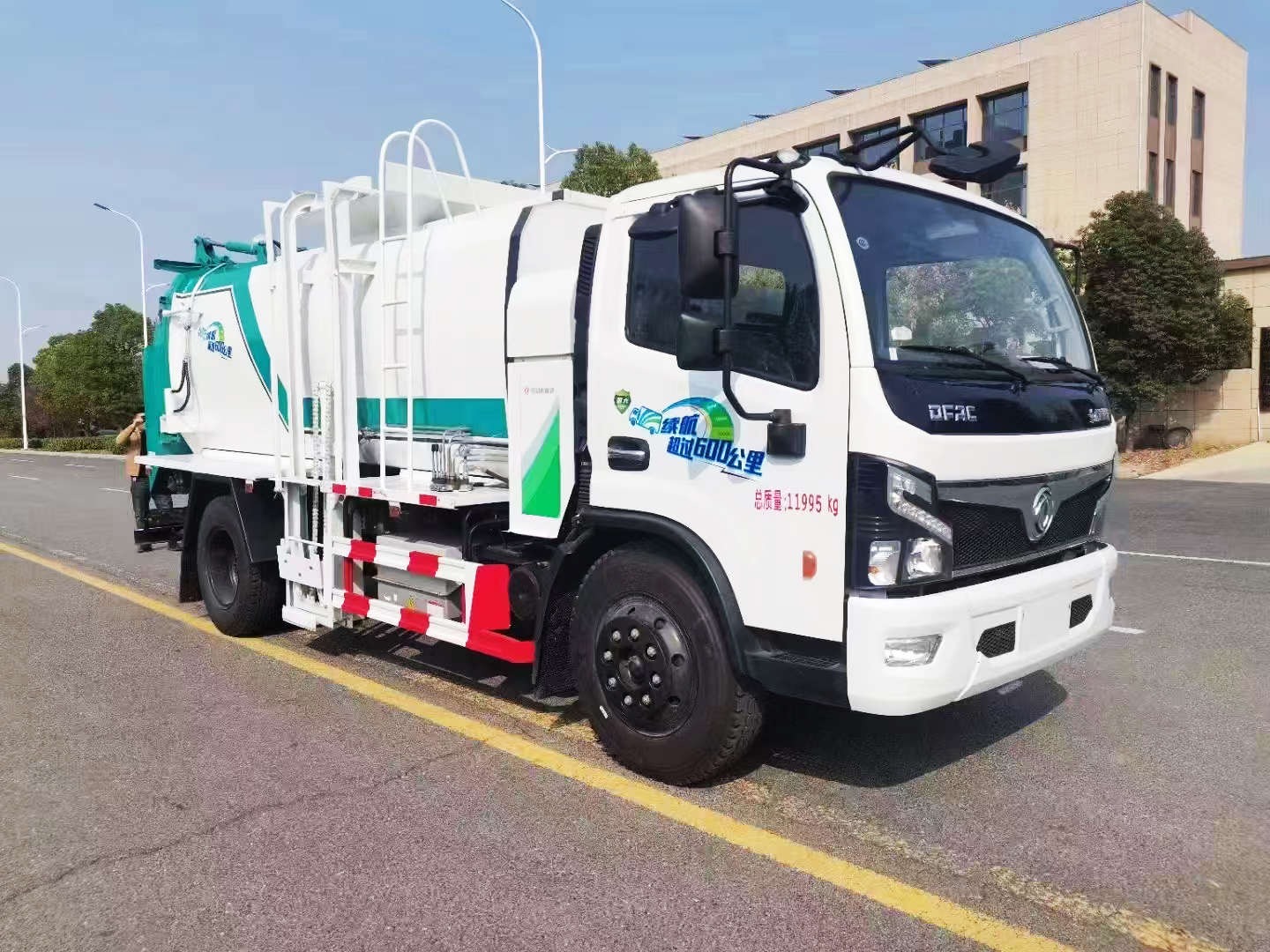

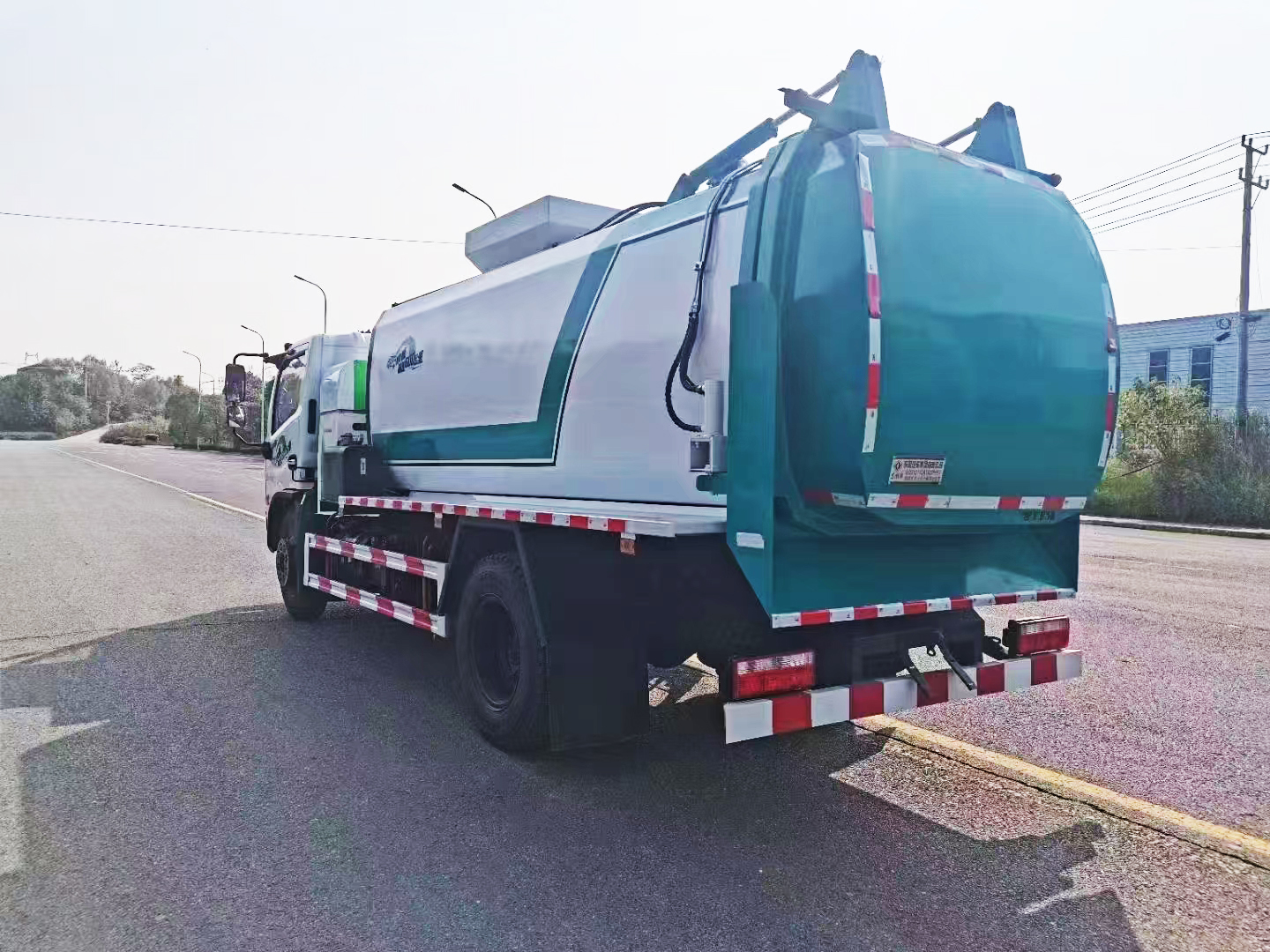

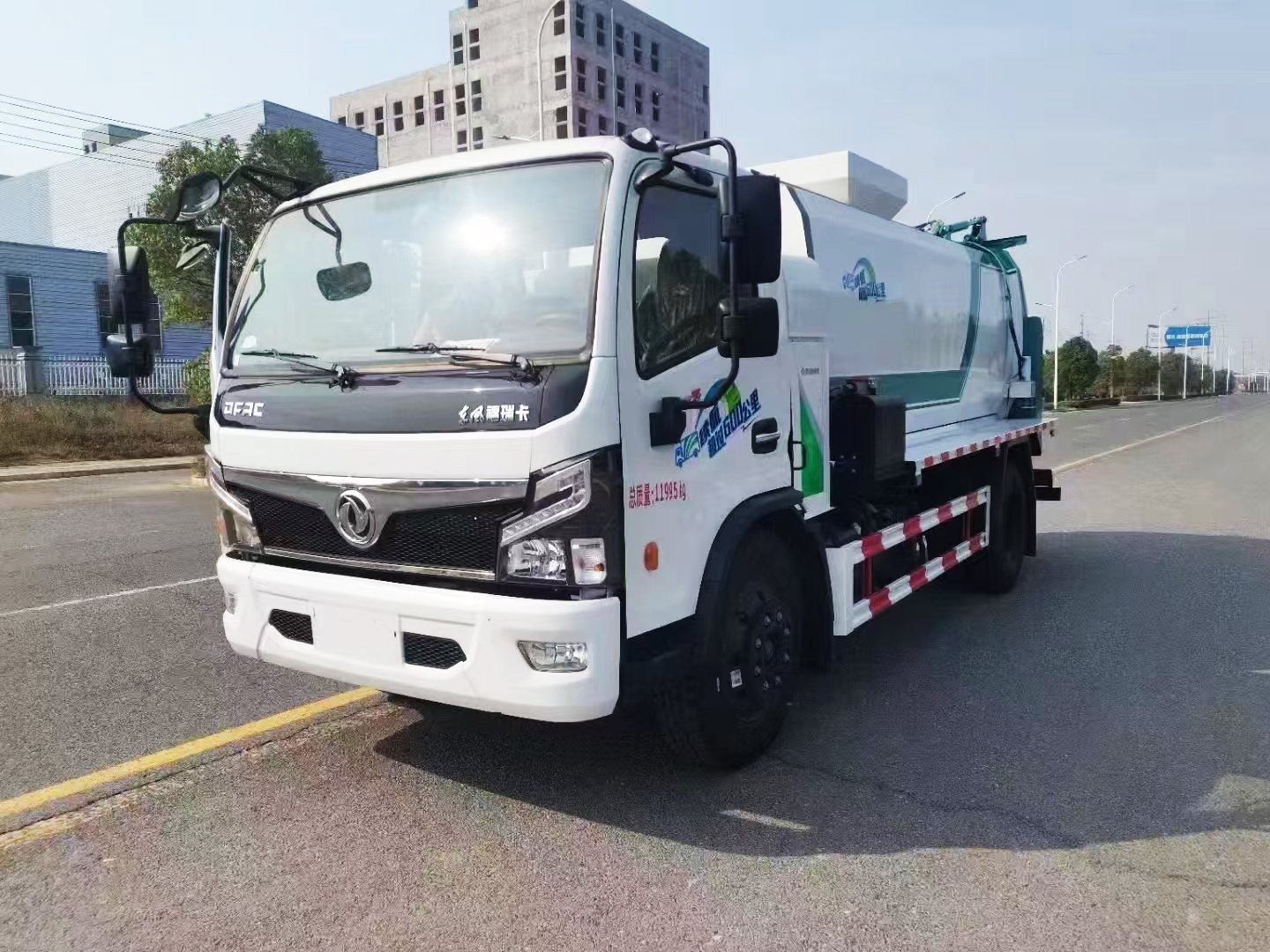

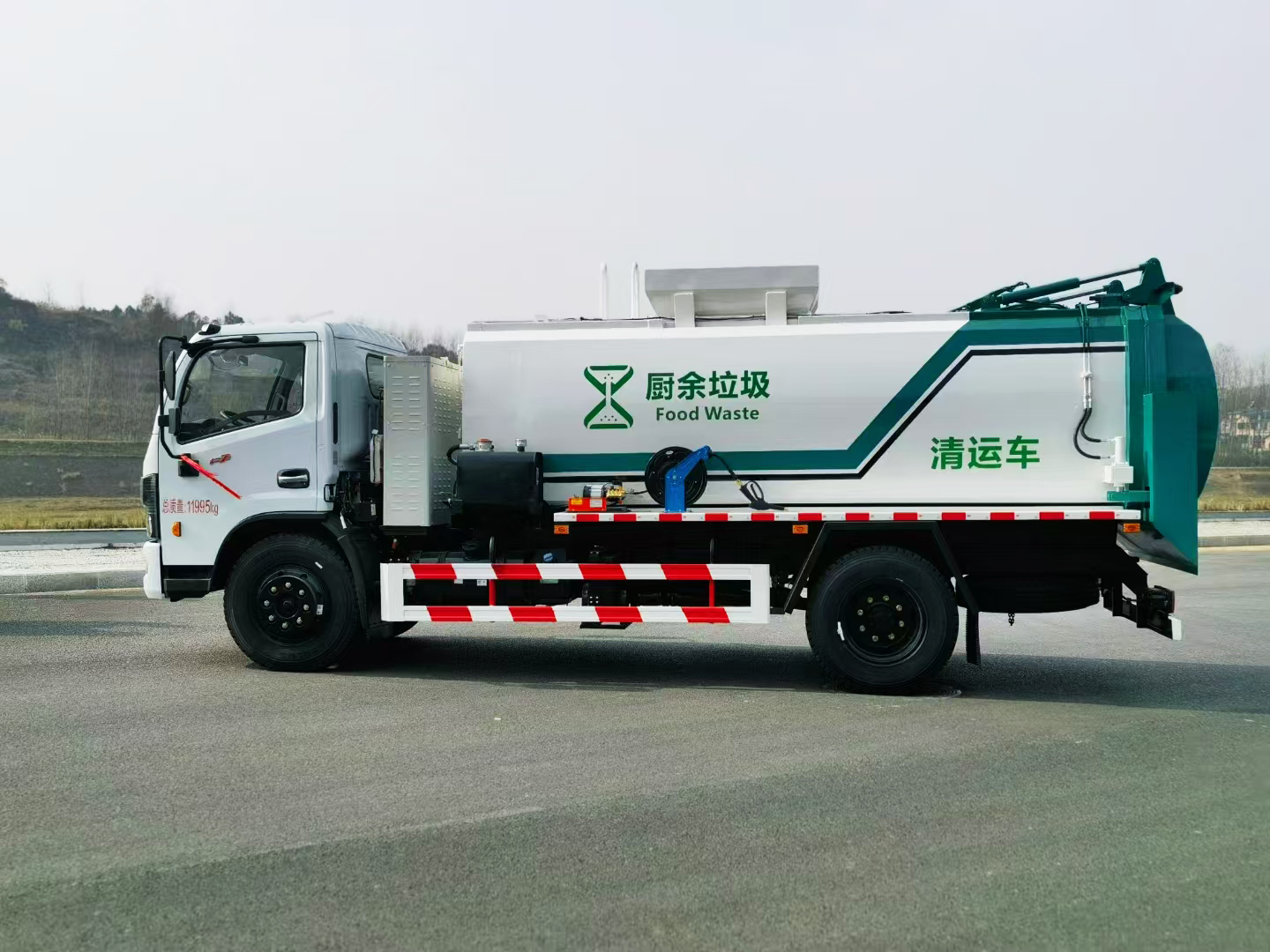

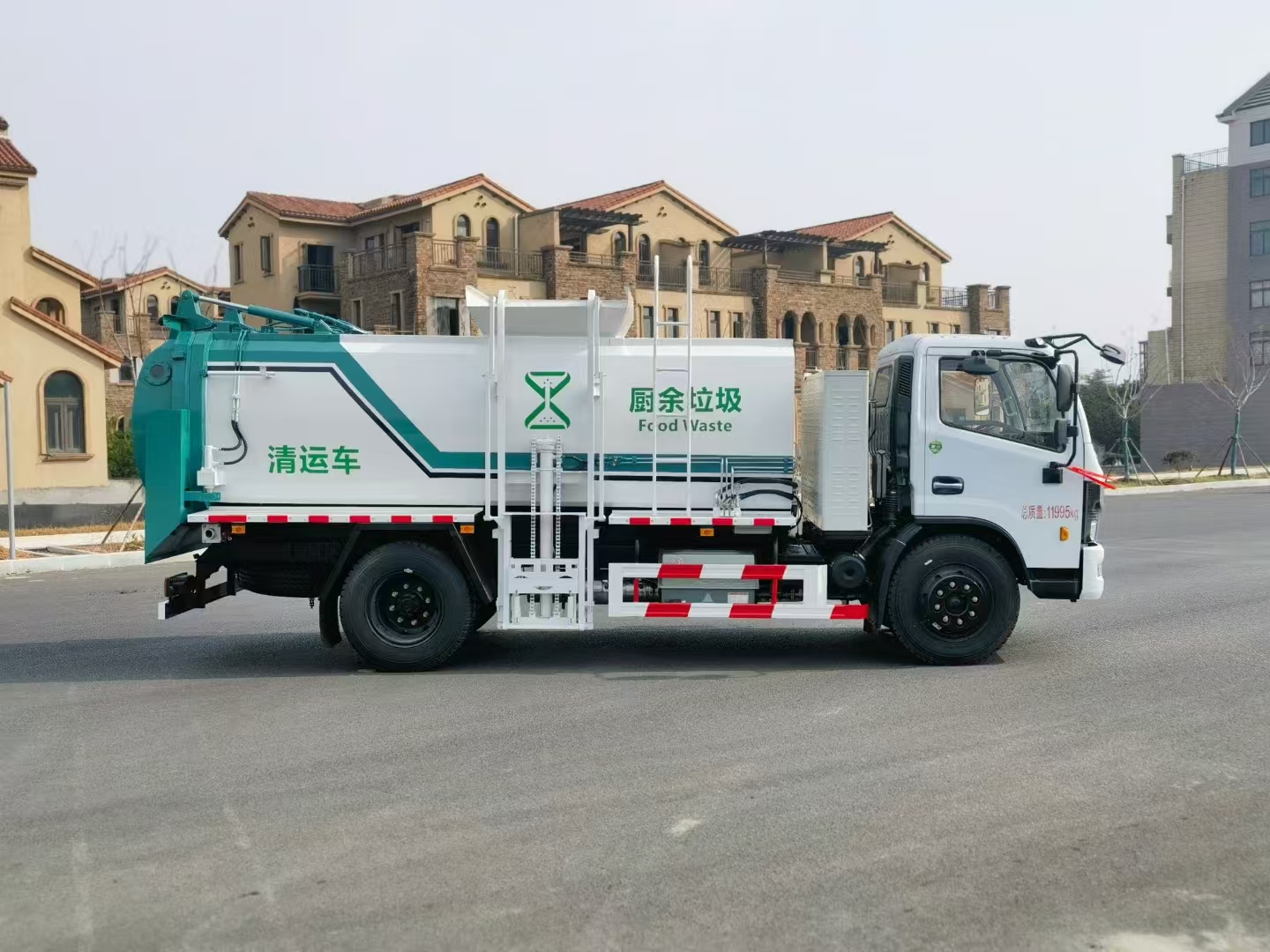

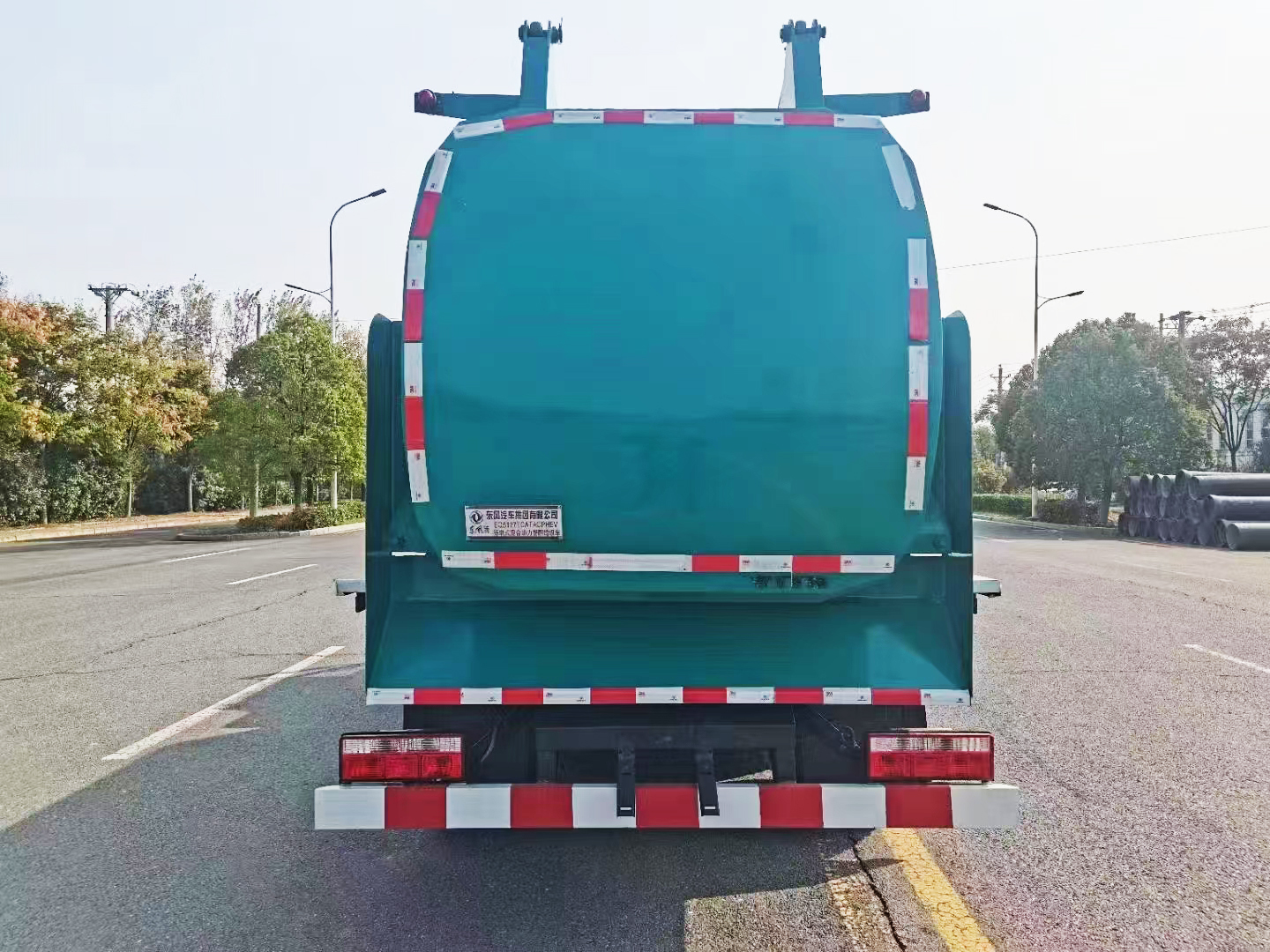

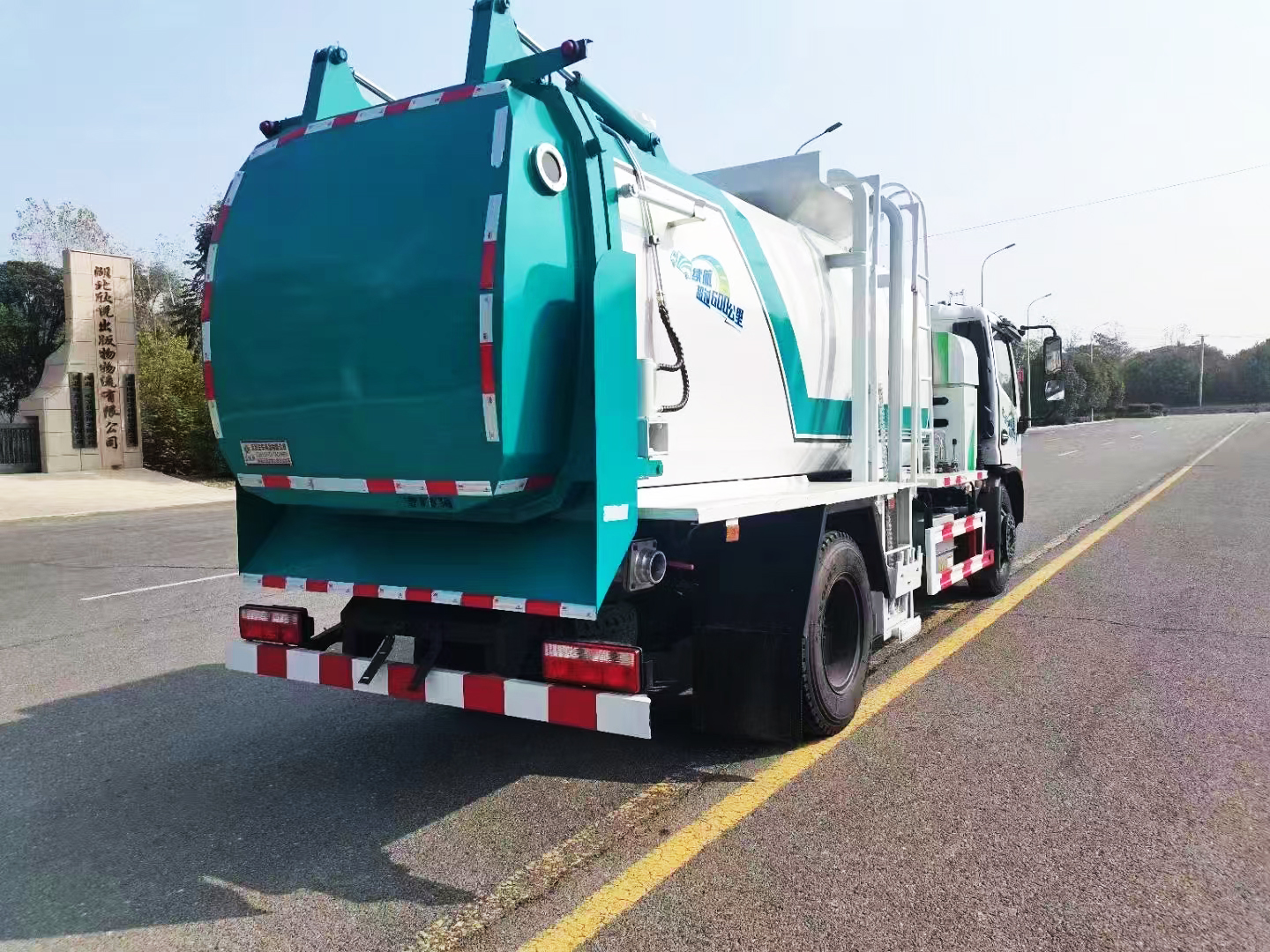

Dongfeng F7 12 ton diesel/electric hybrid power kitchen waste truck

Chassis configuration:

Chassis 3970 wheelbase, vehicle configuration: 2030mm single row cab, Yunnei D25 engine, 150P horsepower, 7-speed automatic transmission, front and rear axles: 2.7T/5.5T, 8/10+7, 8.25R20 tires, battery back, lithium iron phosphate 17.2 degrees, motor 25/55kw, 120/260N M. 188 * (6+4) frame, steel wheel rims, iron fuel tank, iron air storage tank, power steering, air conditioning, electric doors and windows, central locking system, ABS, and air brake. Equipped with power take-off and panoramic 360 function.

Product Name： Dongfeng F7 12 ton diesel/electric hybrid power kitchen waste truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 11995(Kg)
Curb weight(Kg)： 6500(Kg)

Product Features

Dongfeng F7 12 ton diesel/electric hybrid power kitchen waste truck

Food waste truck,also known as meal waste truck, kitchen waste truck or swill truck, is a type of garbage truck used for collecting and transporting household waste, food waste (swill) and urban sludge.

Installation configuration :

1. Made of Q710 high-strength steel, with a 3mm edge and 4mm bottom, reinforced square tank body,
2. Adopting well-known domestic brand hydraulic systems (domestic well-known oil pumps, Hunan Changsha domestic well-known multi way valves, customized oil cylinders for kitchen use, Zhejiang Jiashan power take-off),
3. ① Chain hoist, capable of hanging 120L/240L standard plastic trash cans. ② The back cover is hydraulically opened and locked, with a sealing strip and an adjustable hydraulic locking pin to ensure no water leakage Mid mounted double top lifting unloading, the unloading angle can be adjusted according to demand Having a wireless remote control is more convenient for operation.

Product parameters

Product Name	Dongfeng F7 12 ton diesel/electric hybrid power kitchen waste truck
Driving Type	4×2
Gross vehicle weight(Kg)	11995(Kg)
Curb weight(Kg)	6500(Kg)
Rated weight(kg)	5300(Kg)
Wheelbase(mm)	39700(mm)
Overall Dimension(mm)	7250×2250×3050(mm)
Engine	Diesel/electric hybrid power
Axle Quantity	2
Transmission Type	7-speed manual automatic transmission
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	8.25R20, 6+1 spare
Cab	Dongfeng F7
Volume(m³)	9m³
Tank body	Using Q710 high-strength steel, with 3mm edge plates and 4mm bottom plates
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
