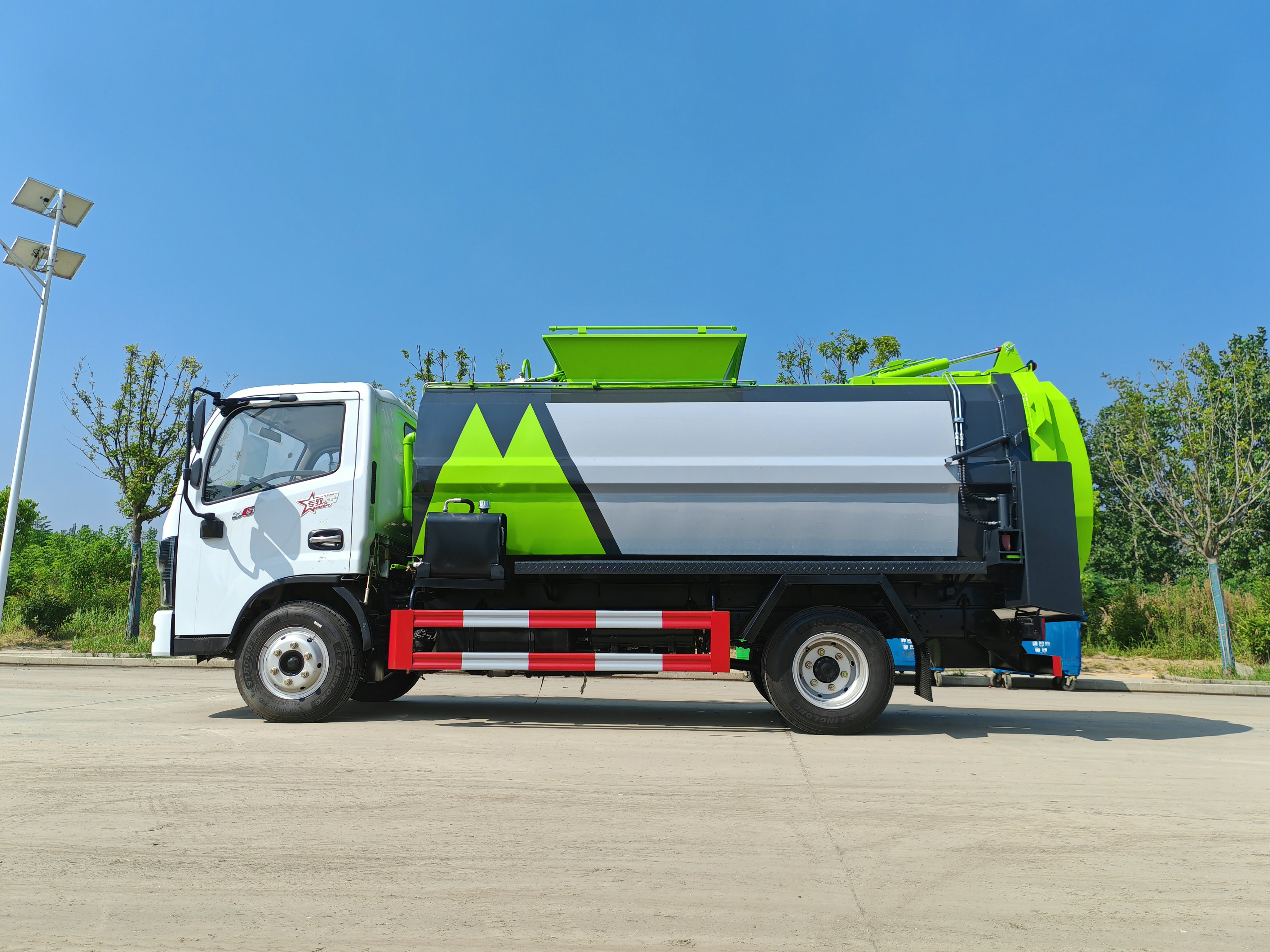

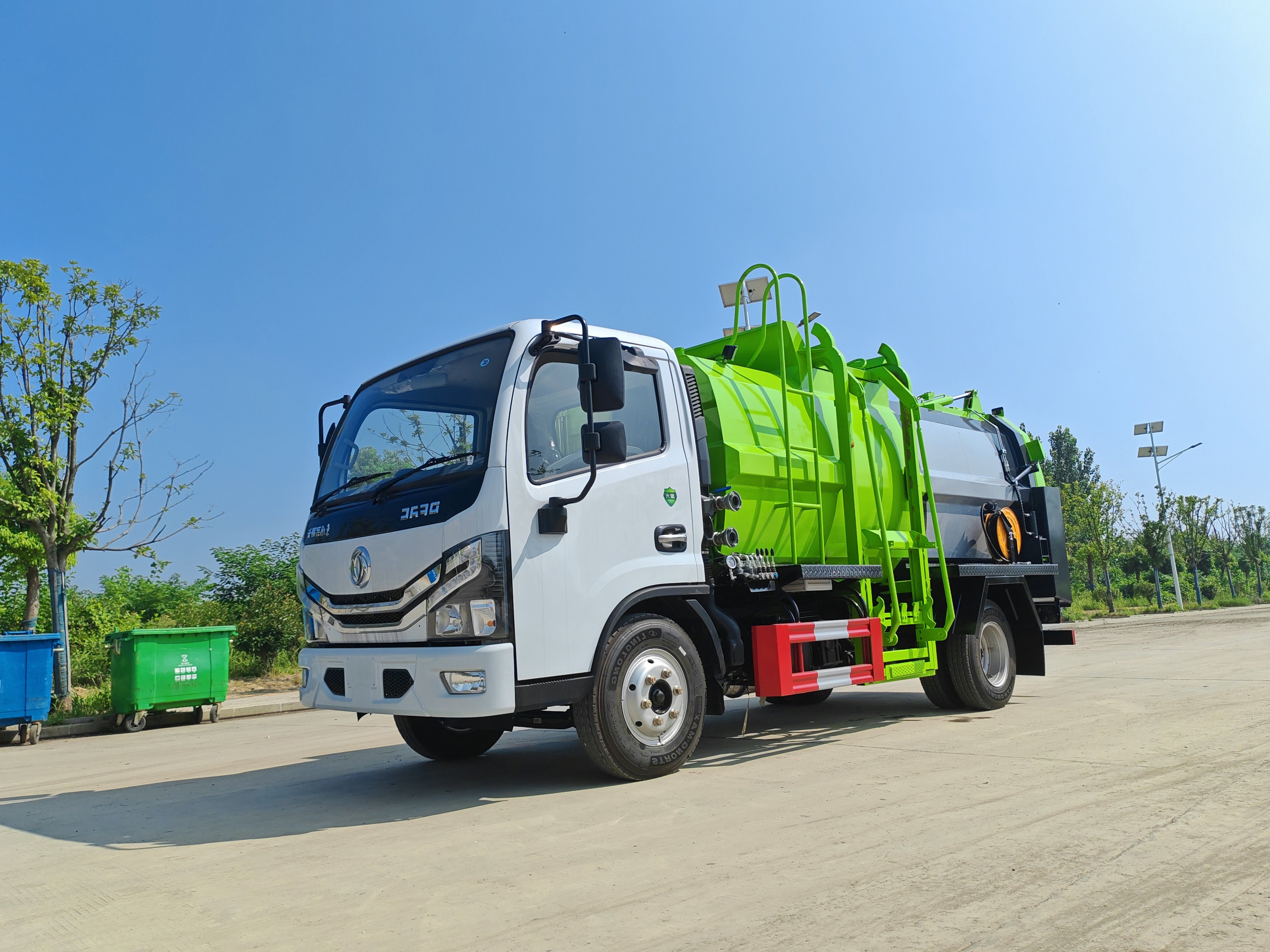

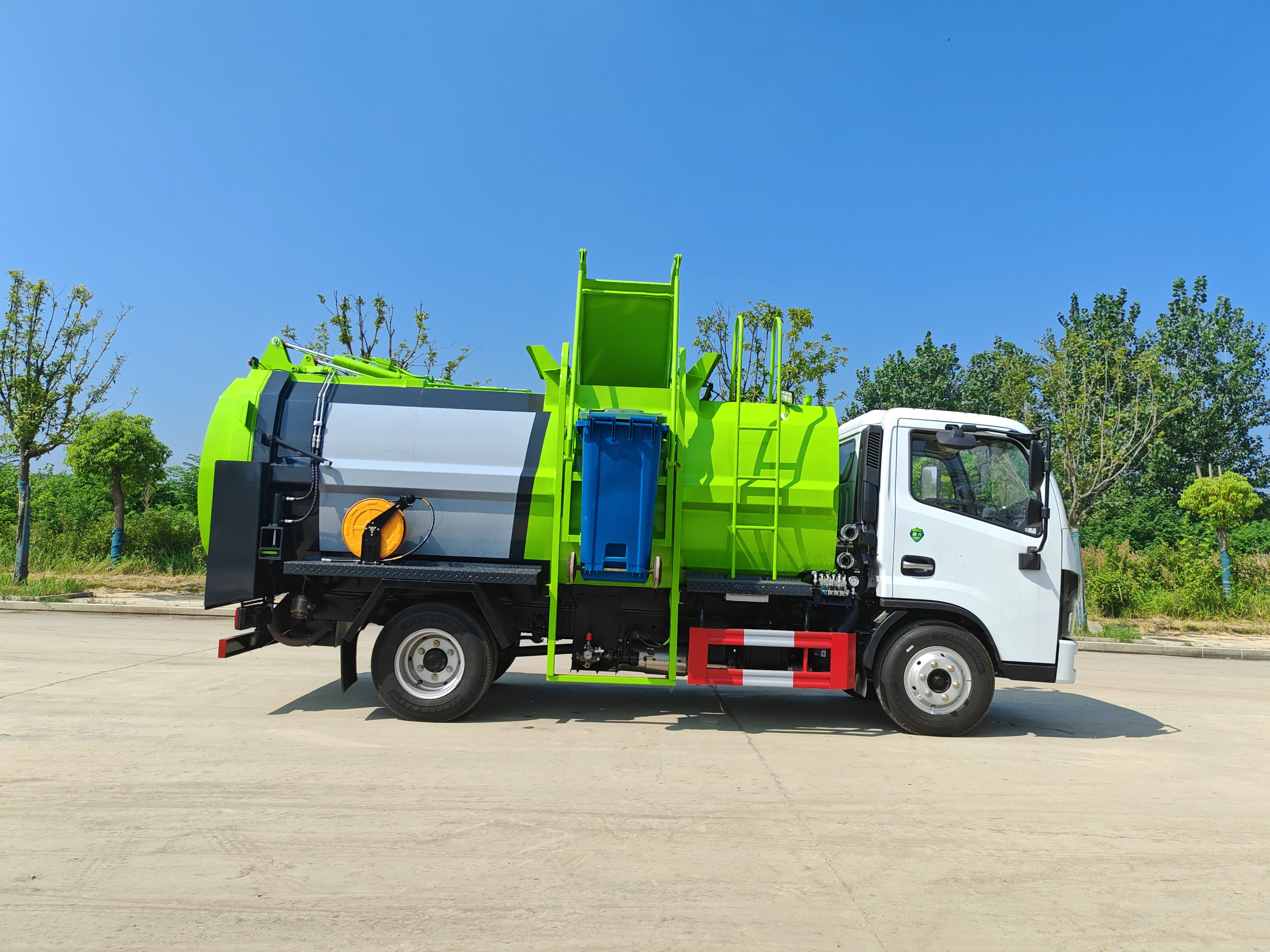

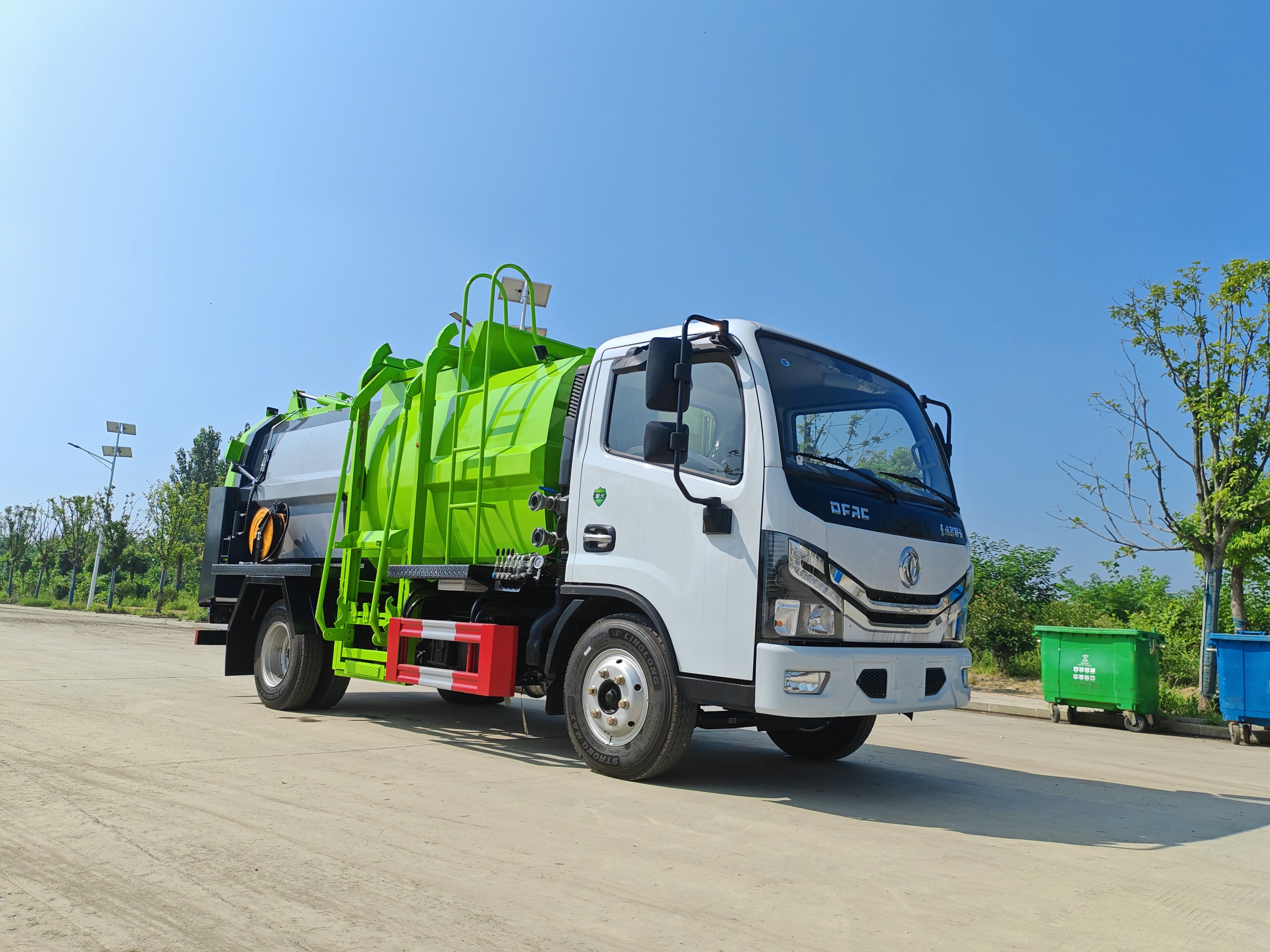

Dongfeng D6 4×2 Food Waste Truck

Chassis configuration:

Dongfeng Dorica D6 cab, Wanliyang 6-speed transmission, 1730 single row cab, 2T front axle, 3.5T rear axle, 7.00R16 wire tire air brake ABS, air conditioning, electric doors and windows, central locking. Wheelbase: 3308mm. Engine: Yuchai 140 horsepower/Quanchai 136 horsepower

Product Name： Dongfeng D6 4×2 Food Waste Truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 4495(Kg)
Curb weight(Kg)： 3850(Kg)

Product Features

Dongfeng D6 4×2 Food Waste Truck

Food waste truck,also known as meal waste truck, kitchen waste truck or swill truck, is a type of garbage truck used for collecting and transporting household waste, food waste (swill) and urban sludge.

Installation configuration :

1. Made of Q710 high-strength steel, with 2 edges and 4 bottoms, lightweight design, large capacity, blue label, not overweight.
2- Reinforced square tank body,

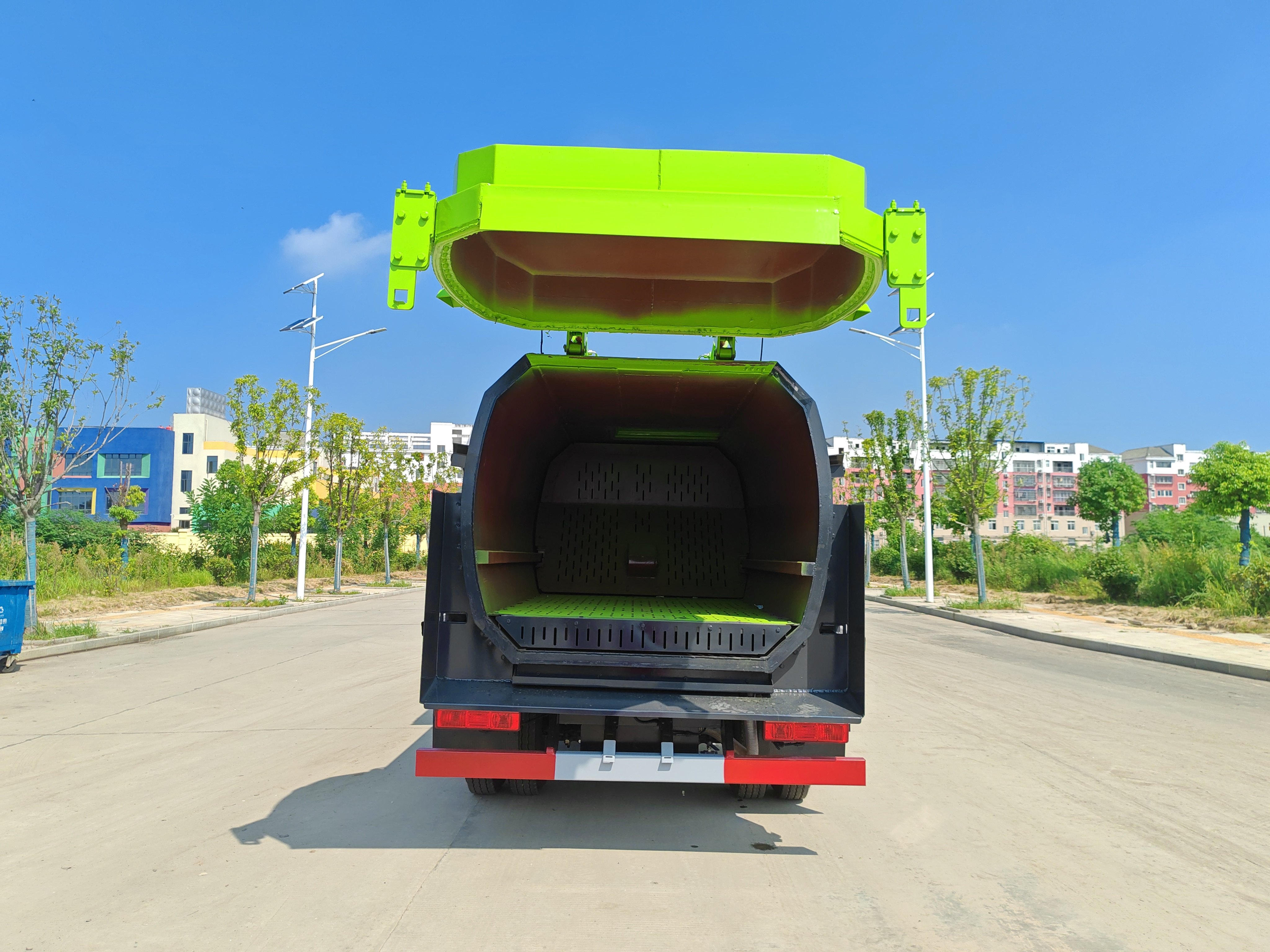

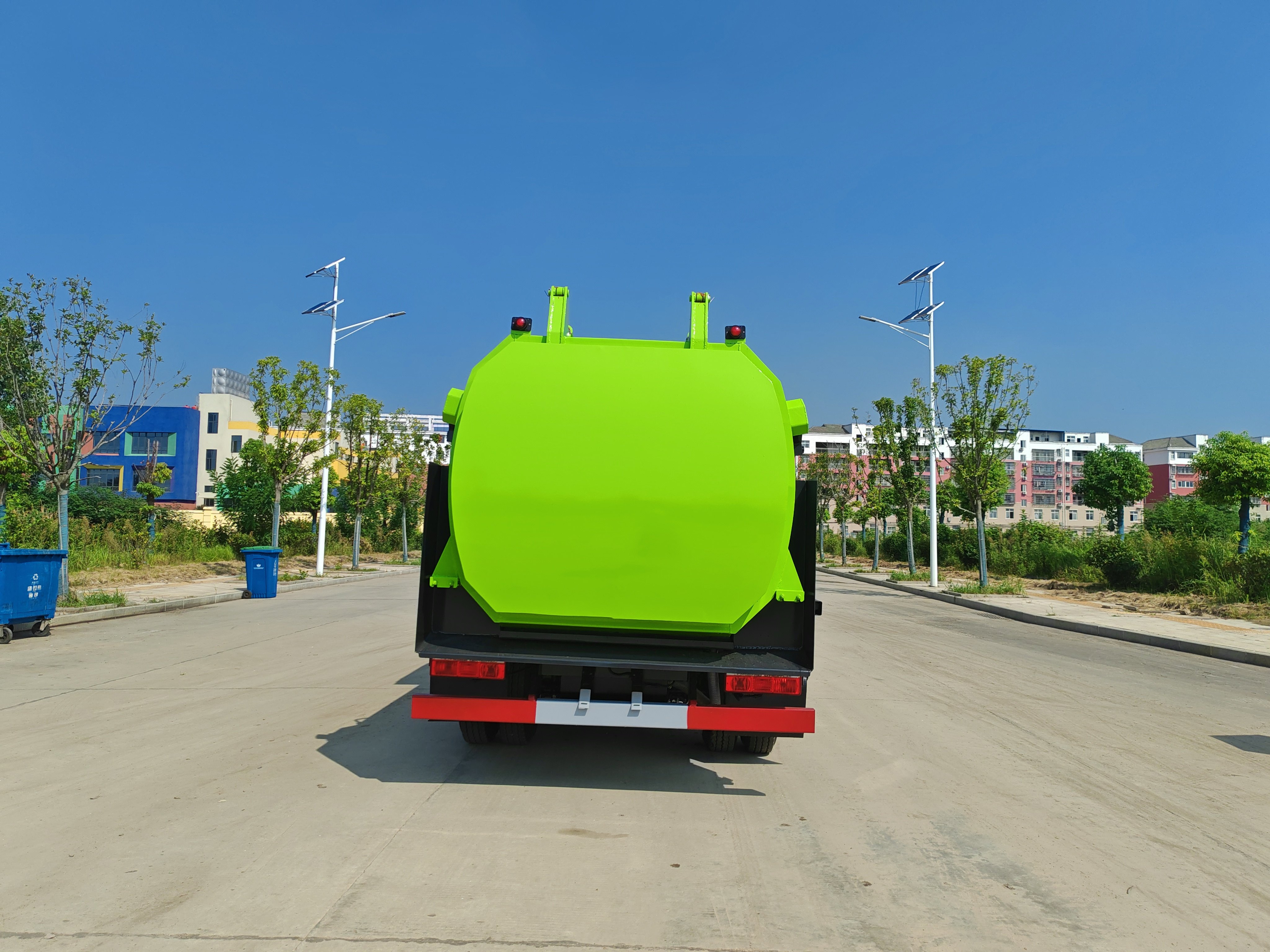

3. Adopting a well-known domestic brand hydraulic system (domestic well-known oil pump, Hunan Changsha domestic well-known multi way valve, customized oil cylinder for kitchen and kitchen use, Zhejiang Jiashan power take-off), the back cover is hydraulically opened and locked, with a sealing strip and an adjustable pin hydraulic lock to ensure no leakage.

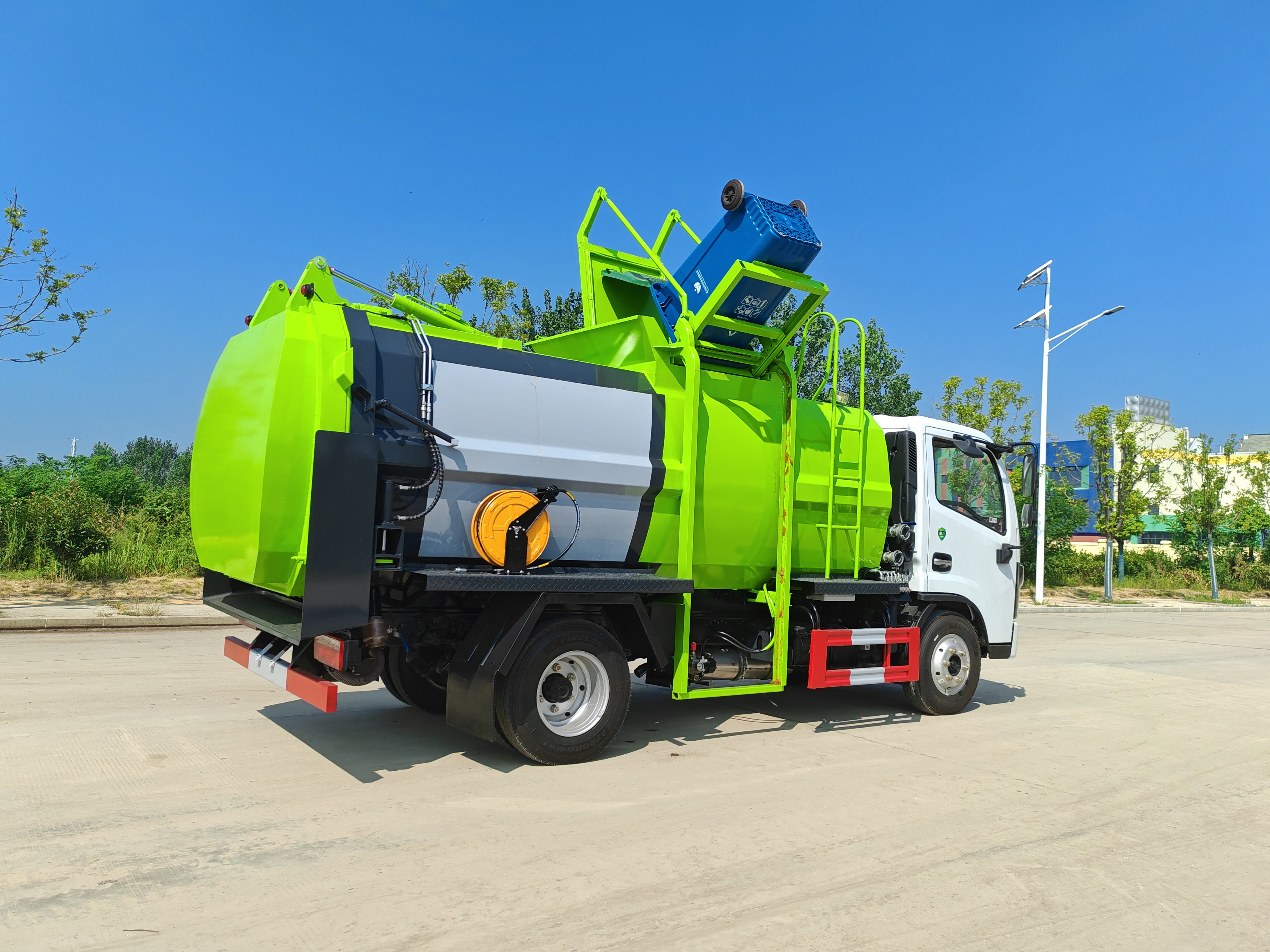

The mechanical linkage pull rod elevator can hang 120L/240L standard plastic trash cans, ensuring smooth loading.
5 optional features:
① Optional dry wet separation: equipped with a push plate filter to achieve dry wet separation function (push plate unloading, optional lifting function)

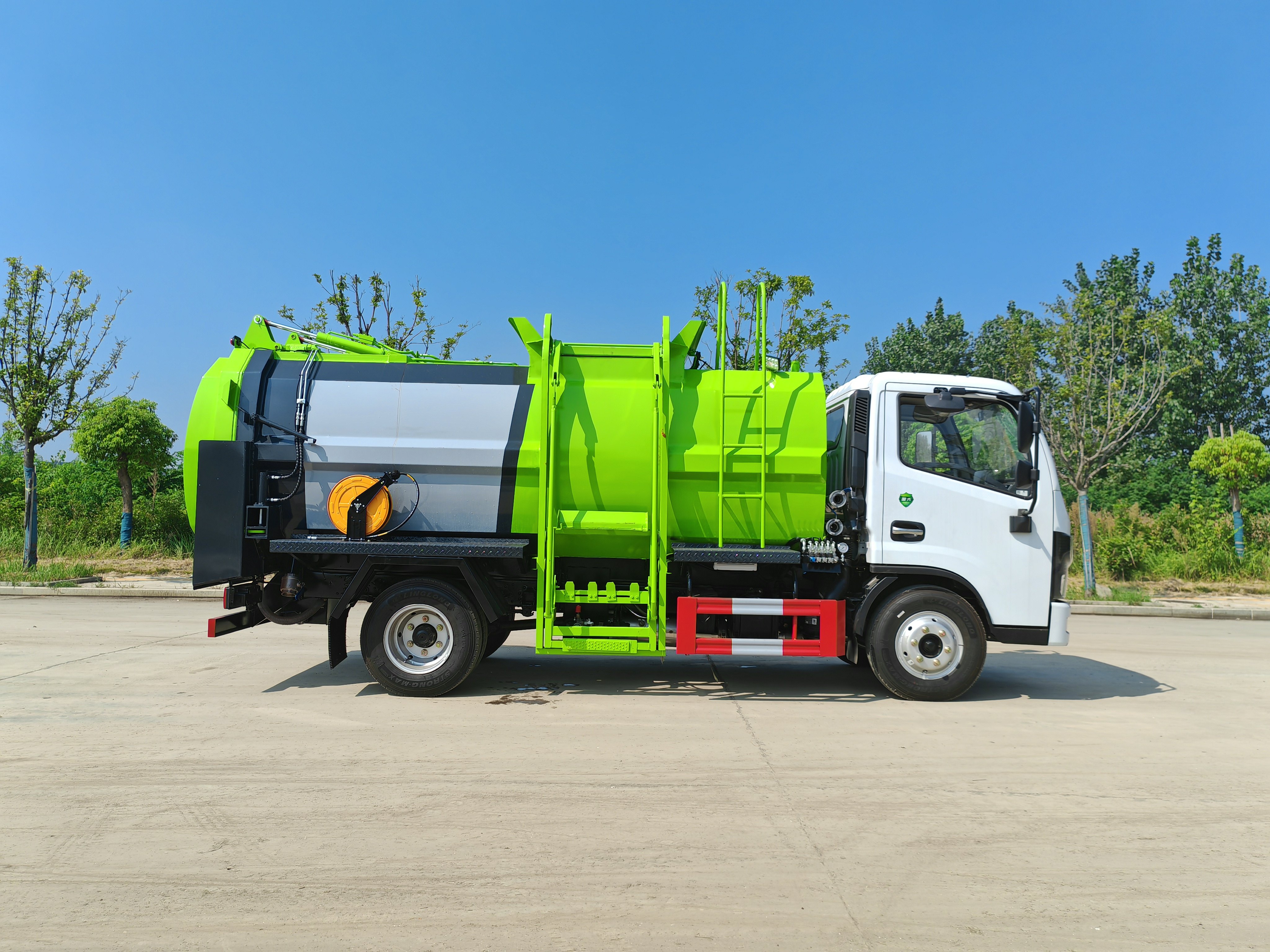

② Optional high-pressure cleaning: equipped with a high-pressure pump and a high-pressure reel, achieving the function of high-pressure cleaning

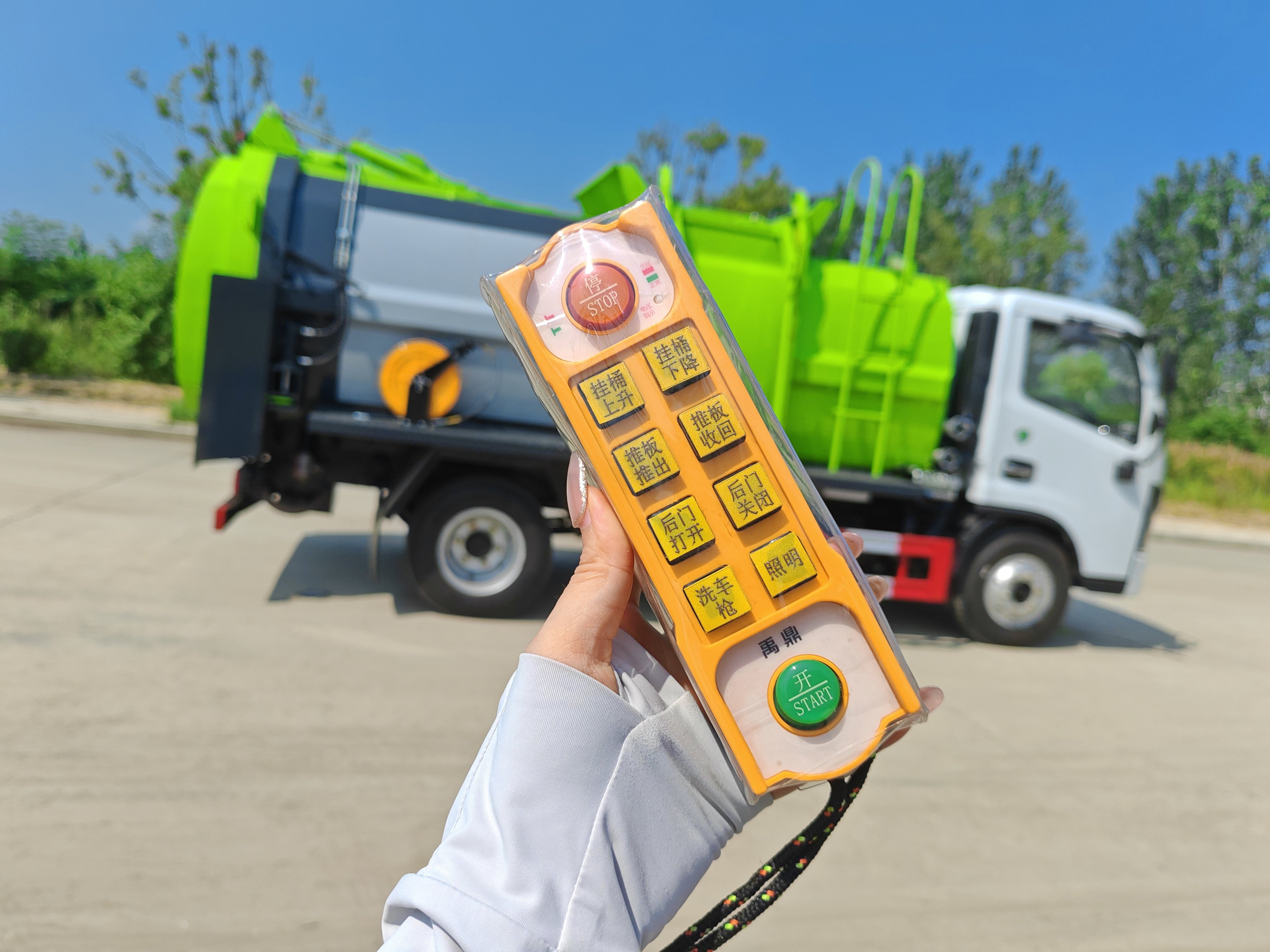

③ Optional electronic control system: with PLC electronic control system

Product parameters

Product Name	Dongfeng D6 4×2 Food Waste Truck
Driving Type	4×2
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	3850(Kg)
Rated weight(kg)	515(Kg)
Wheelbase(mm)	3365(mm)
Overall Dimension(mm)	5780×2170×2780(mm)
Engine brand & model	Yuchai 140 horsepower/Quanchai 136 horsepower
Axle Quantity	2
Transmission Type	Wanliyang 6-speed gearbox,
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16 steel wire tire, 6+1 spare

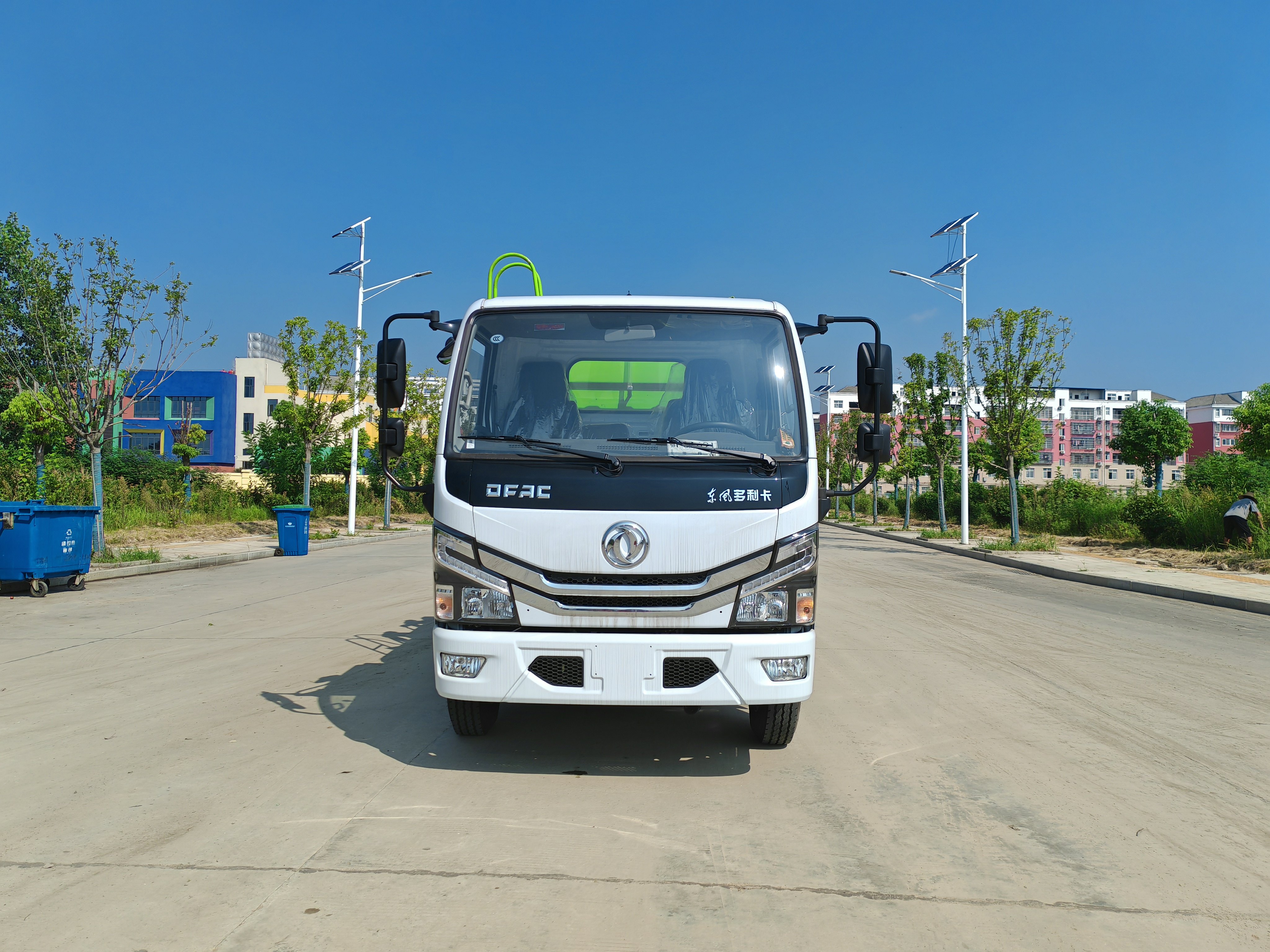

Cab	Dongfeng Dorica D6
Volume(m³)	8m³
Tank body	Using Q710 high-strength steel, with 2mm edge plates and 4mm bottom plates
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
