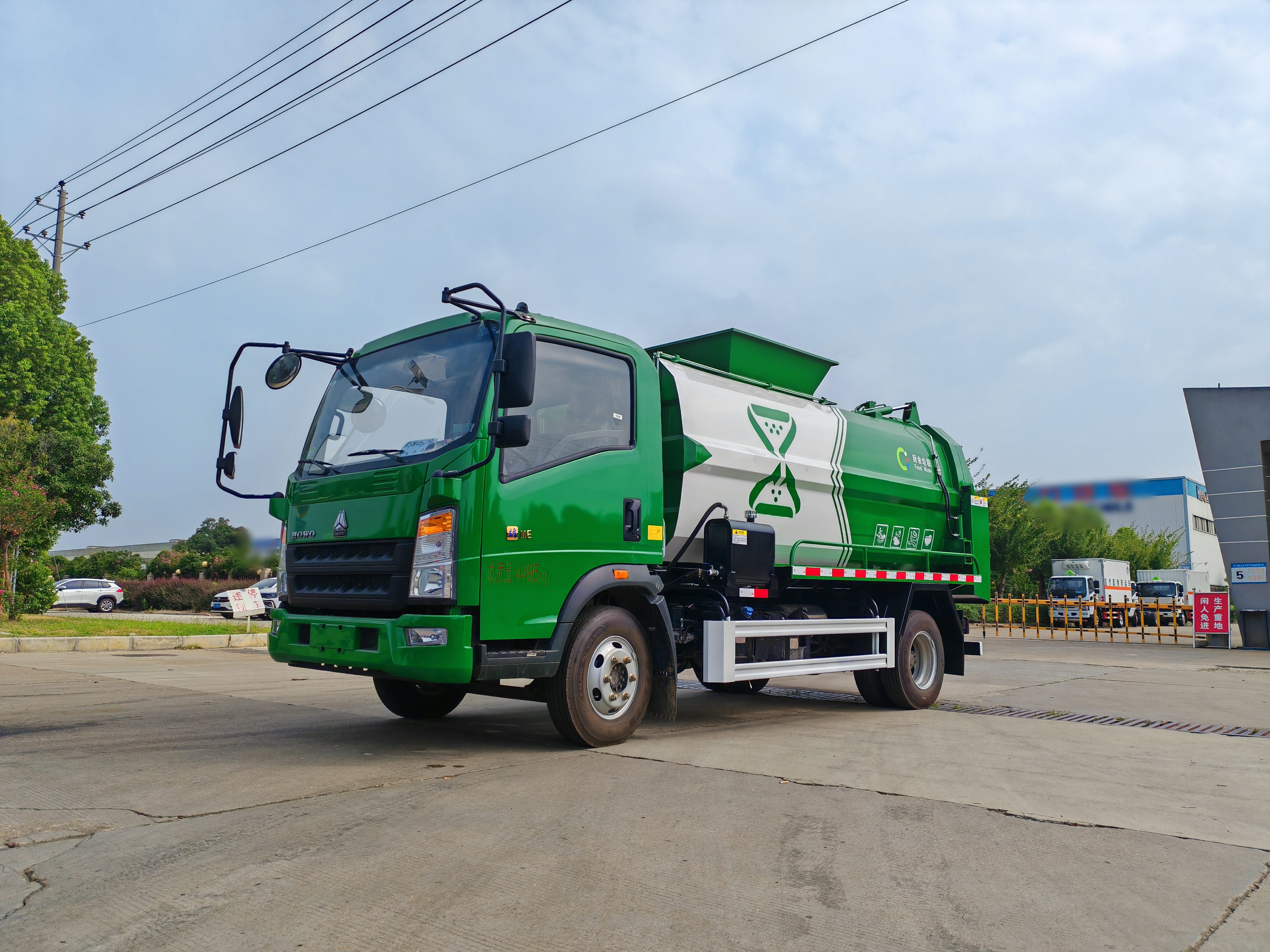

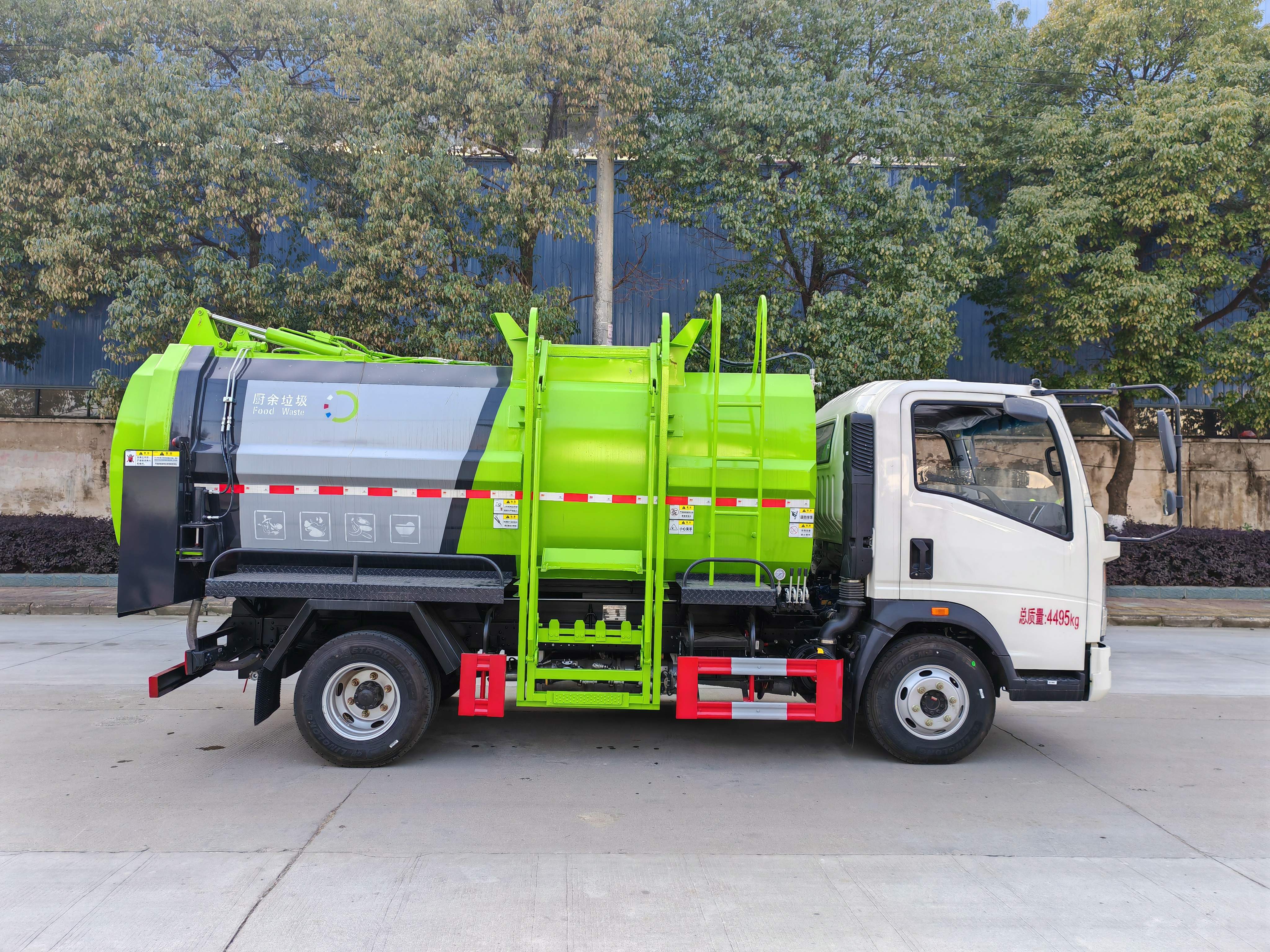

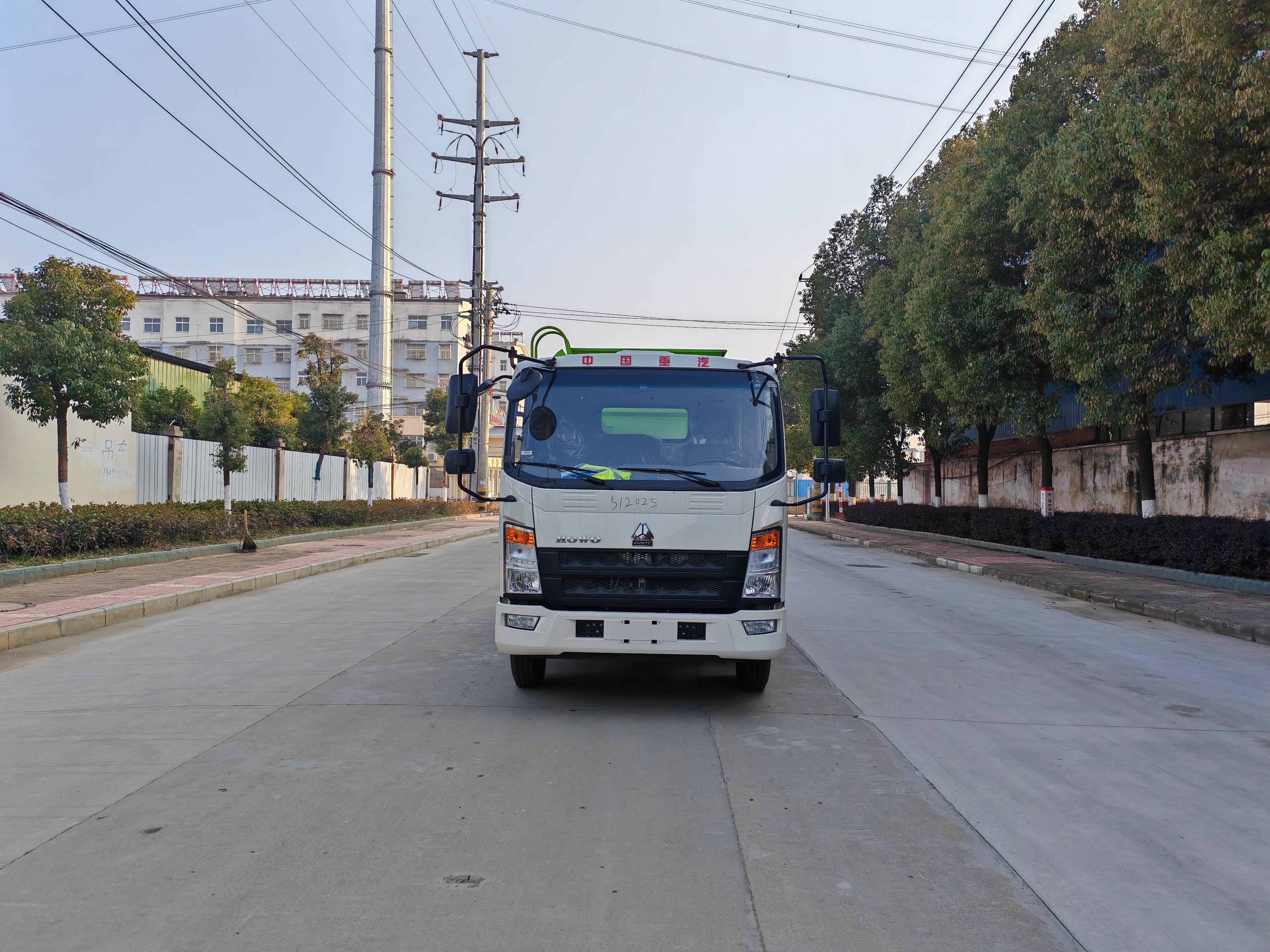

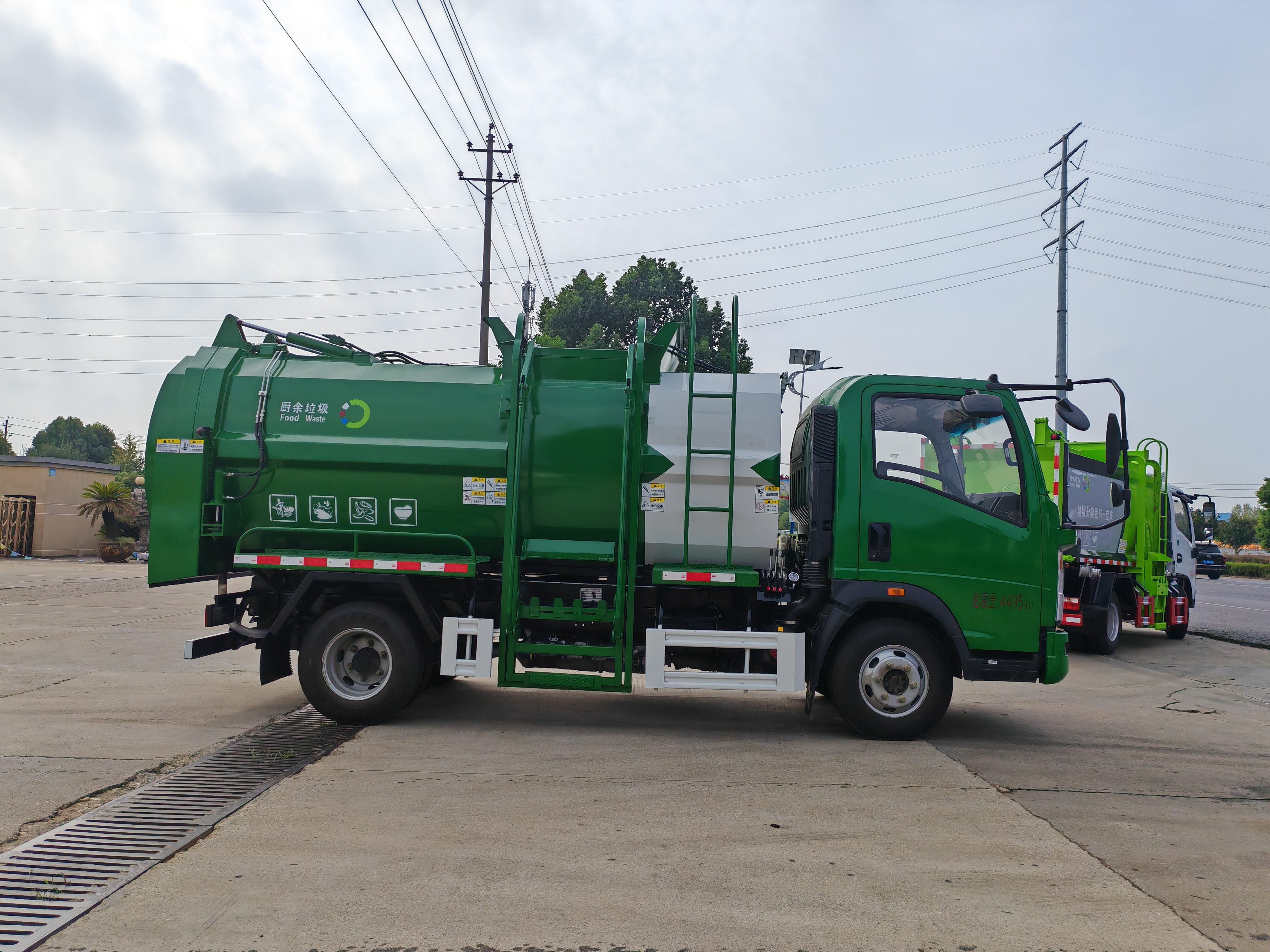

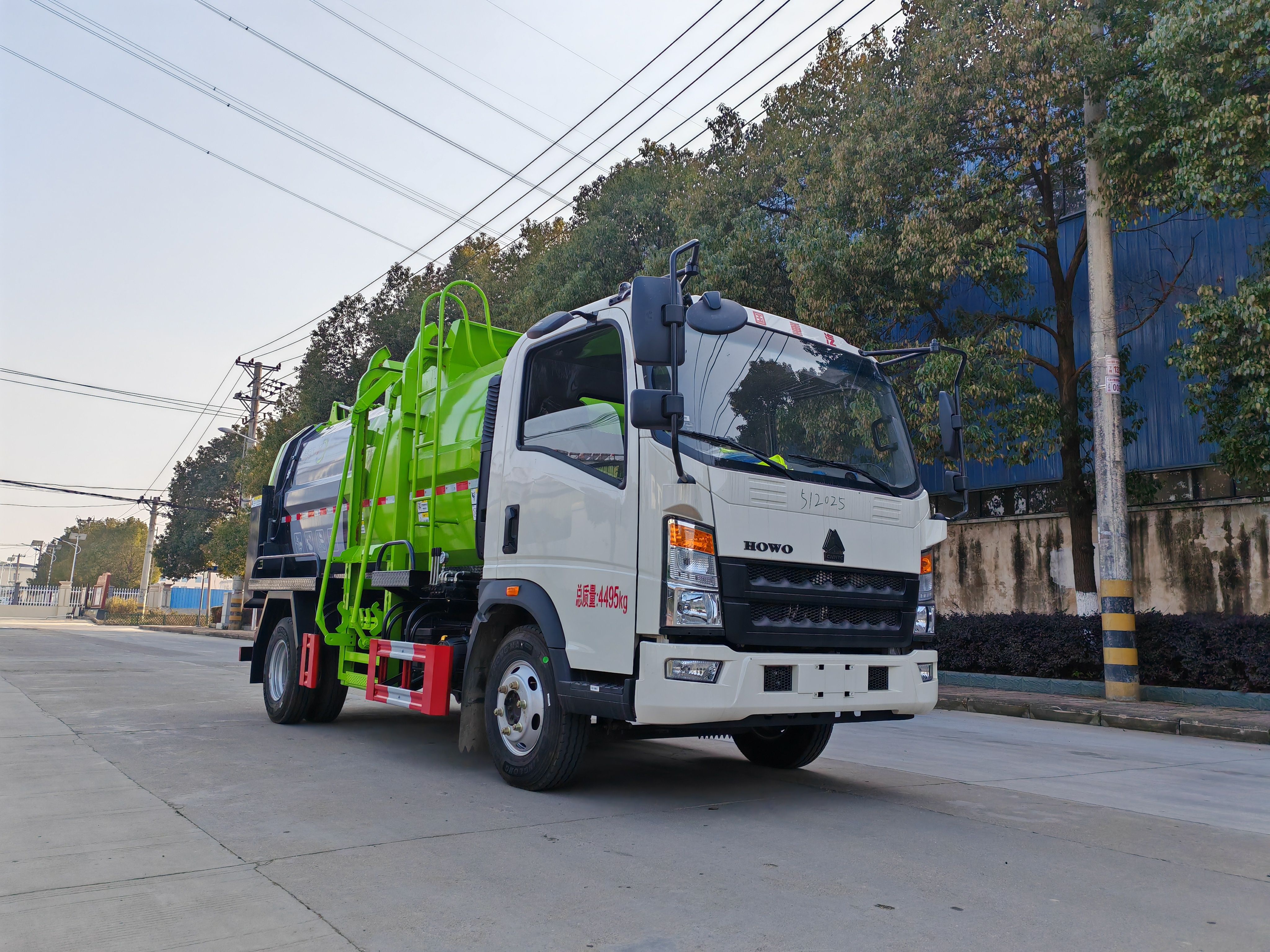

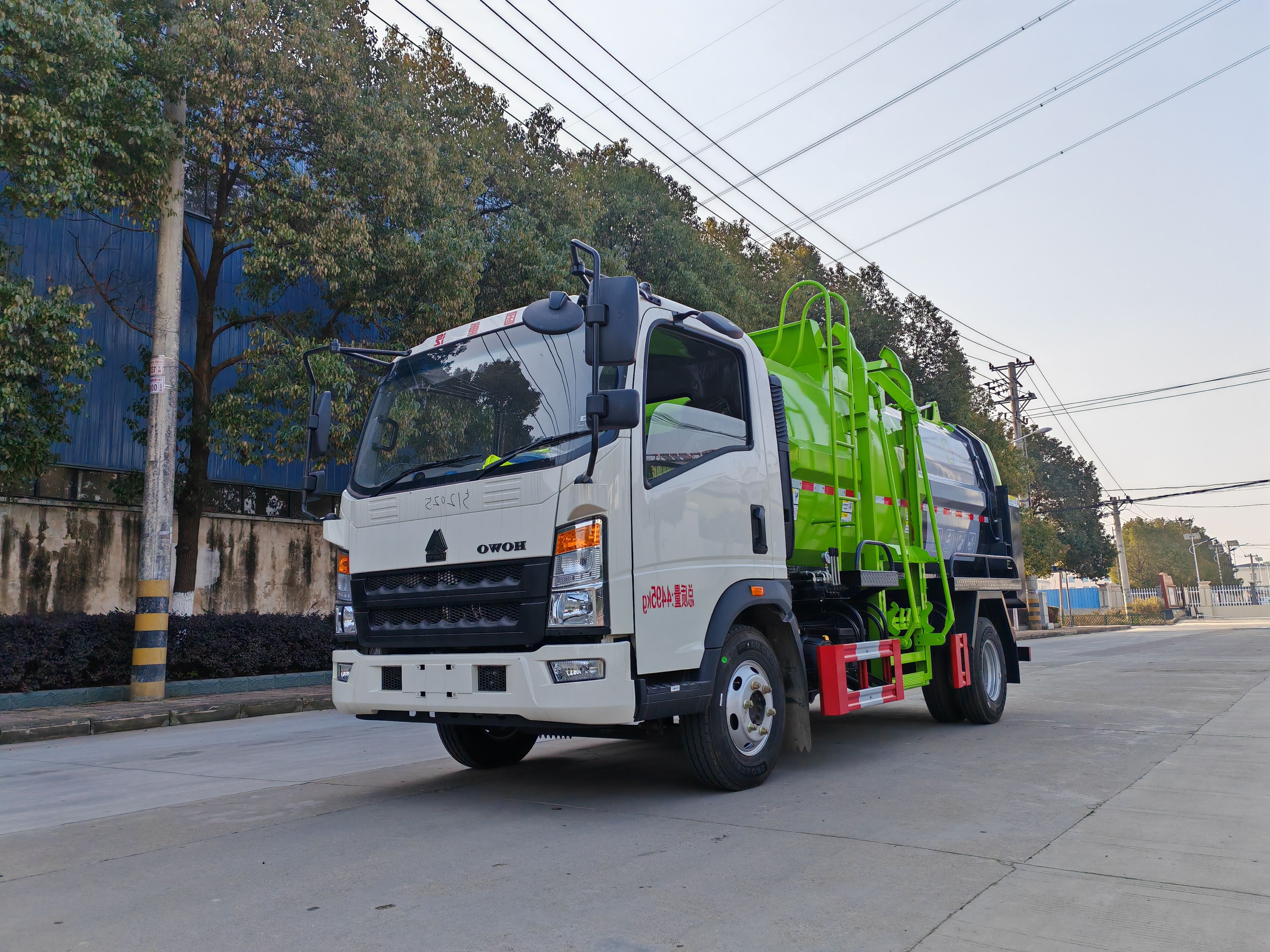

Sinotruk Howo 4×2 Food Waste Truck

Chassis configuration:Equipped with a heavy-duty HOWO 1900mm wide cab, 3280mm wheelbase, Weichai 140/145 horsepower, color screen instrument panel, leather seats, 6-speed or 8-speed gearbox, 7.00R16 steel tires, air horn, remote key, central locking, air conditioning, electric doors and windows, power steering, ABS, 24V battery, and air brake.

Product Name： Sinotruk Howo 4×2 Food Waste Truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 4495(Kg)
Curb weight(Kg)： 3850(Kg)

Product Features

Food waste truck,also known as meal waste truck, kitchen waste truck or swill truck, is a type of garbage truck used for collecting and transporting household waste, food waste (swill) and urban sludge.

Installation configuration of Sinotruk Howo 4×2 Food Waste Truck

Made of Q710 high-strength steel, with a 2mm edge and 4mm bottom, lightweight design, large capacity, blue label, not overweight, and optional height for entering the basement. Reinforced square tank body, using well-known domestic hydraulic systems (domestic well-known oil pump, Hunan Changsha domestic well-known multi way valve, customized oil cylinder for kitchen use, Zhejiang Jiashan power take-off)

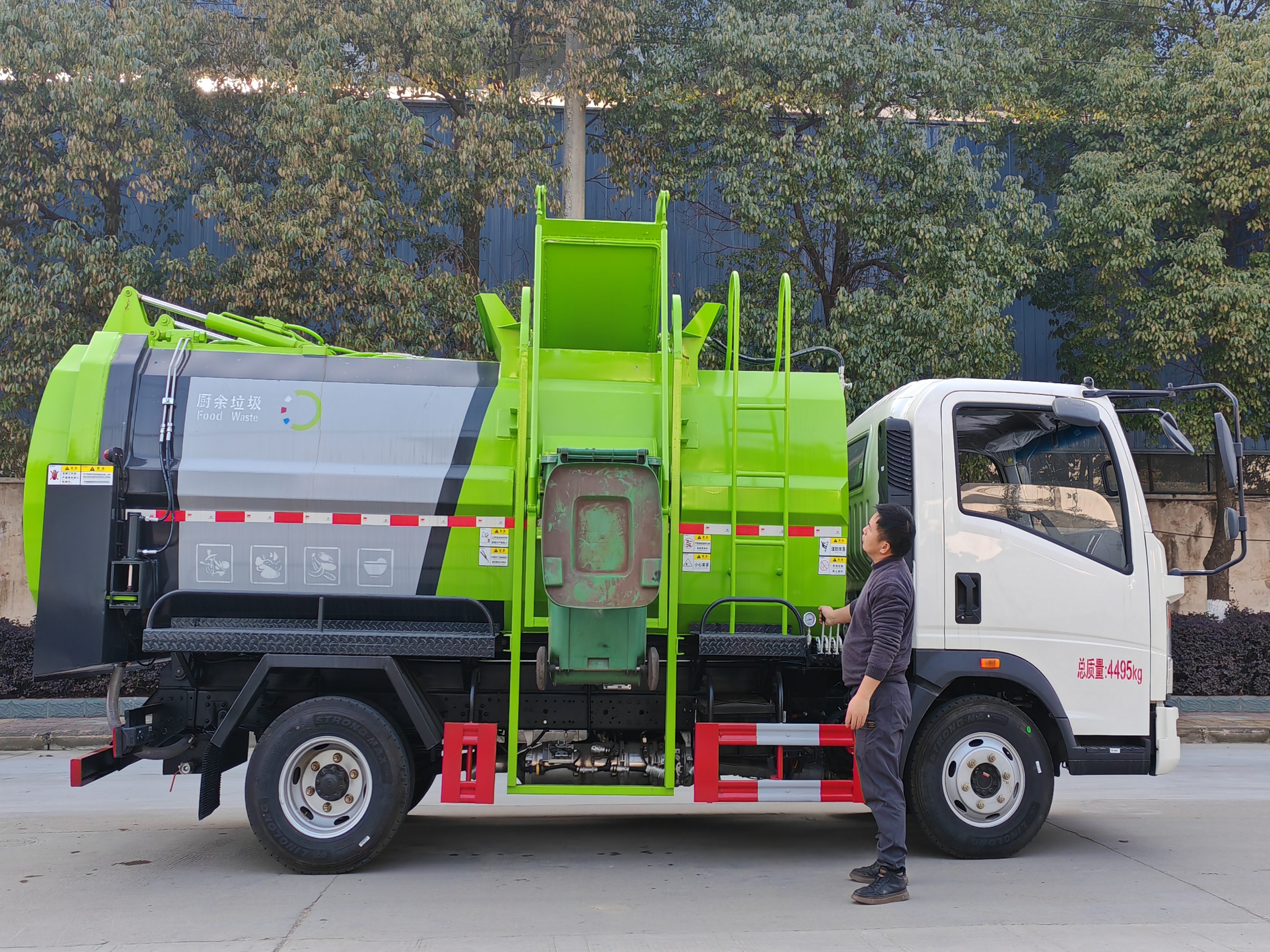

① Pull rod elevator, capable of hanging 120L/240L standard plastic trash cans.

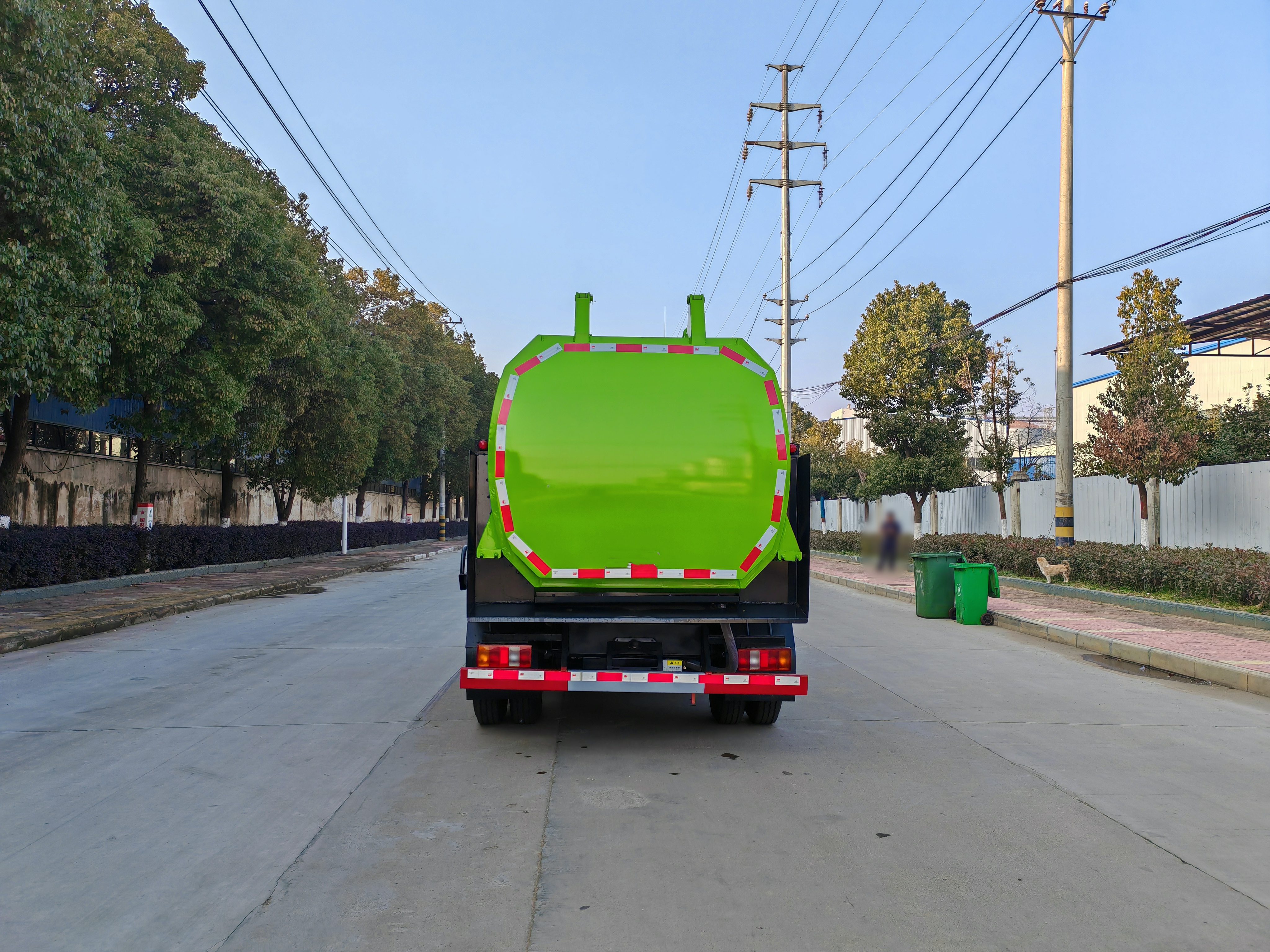

② The back cover is hydraulically opened and locked, with a sealing strip and an adjustable hydraulic locking pin to ensure no water leakage.

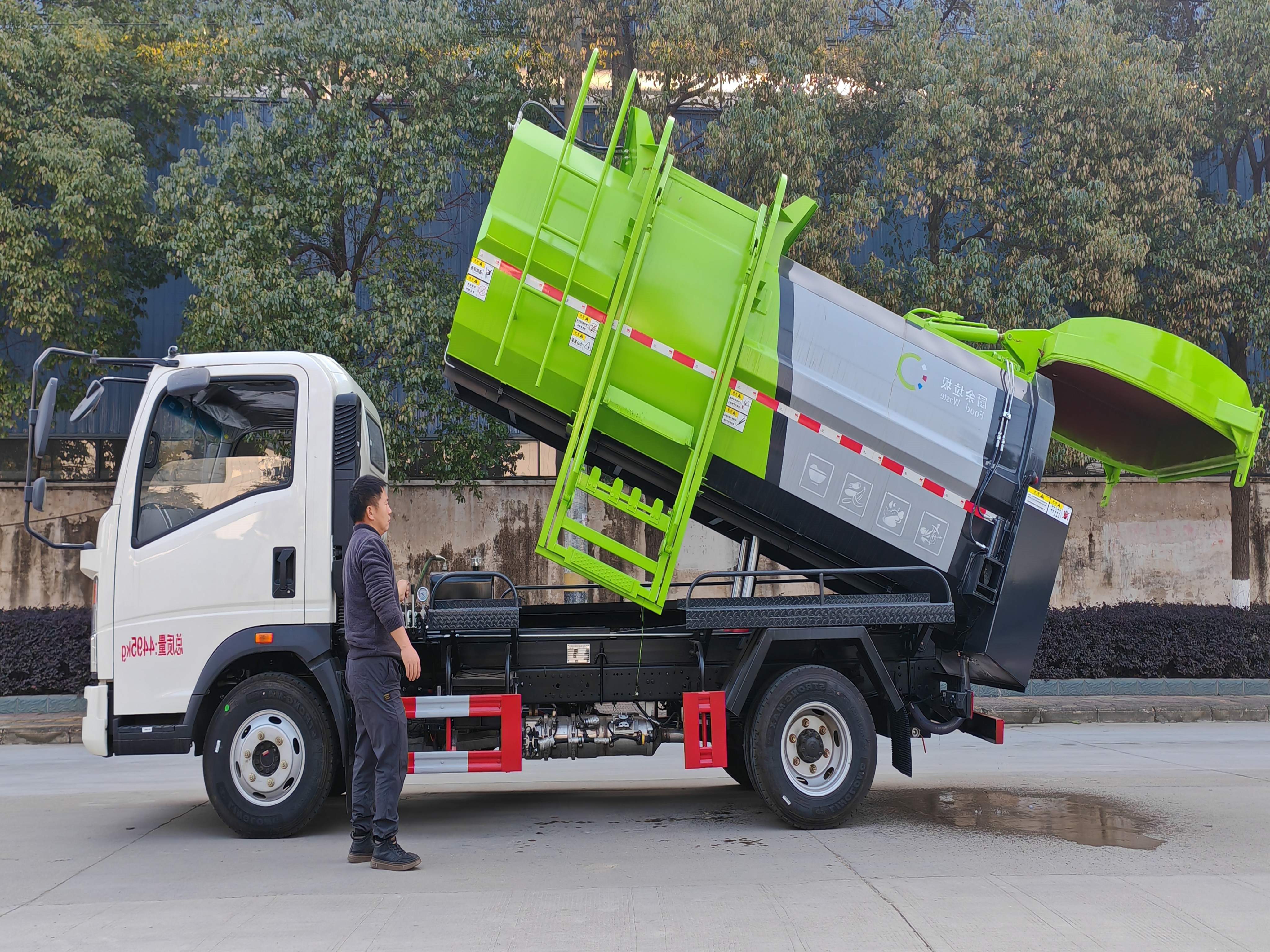

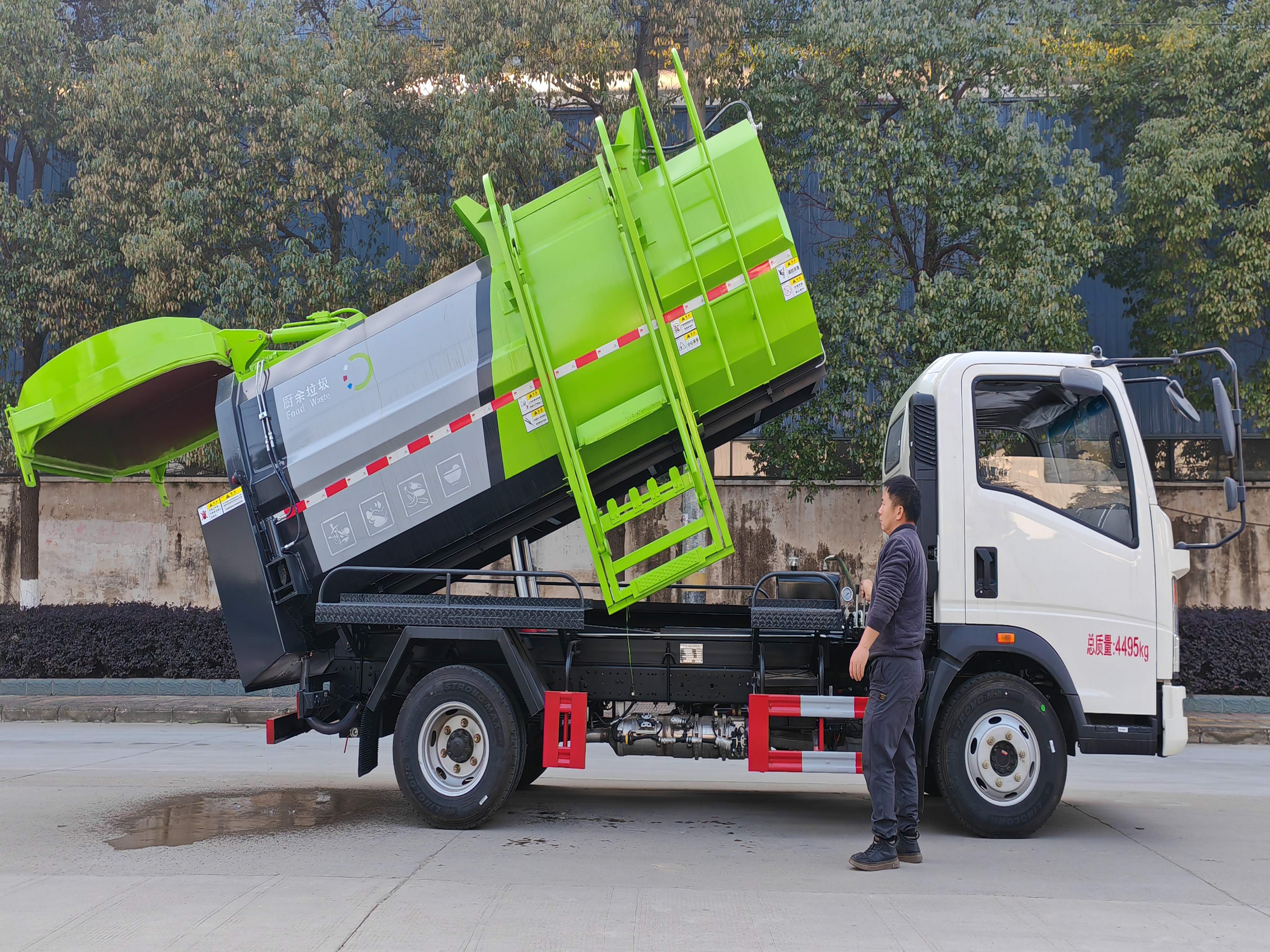

③ Mid mounted double top lifting unloading, the unloading angle can be adjusted according to demand.
④ Having a wireless remote control is more convenient for operation.

Product parameters

Product Name	Sinotruk Howo 4×2 Food Waste Truck
Driving Type	4×2
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	3850(Kg)
Rated weight(kg)	515,450(Kg)
Wheelbase(mm)	3280(mm)
Overall Dimension(mm)	5995×2200×2780,2450(mm)
Engine brand & model	Weichai 140/145 horsepower
Axle Quantity	2
Transmission Type	6-speed gearbox/8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16 steel wire tire, 6+1 spare
Cab	HOWO 1900mm spacious cab, remote key, central locking, air conditioning, electric doors and windows
Volume(m³)	8m³
Tank body	Using Q710 high-strength steel, with 2mm edge plates and 4mm bottom plates
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
