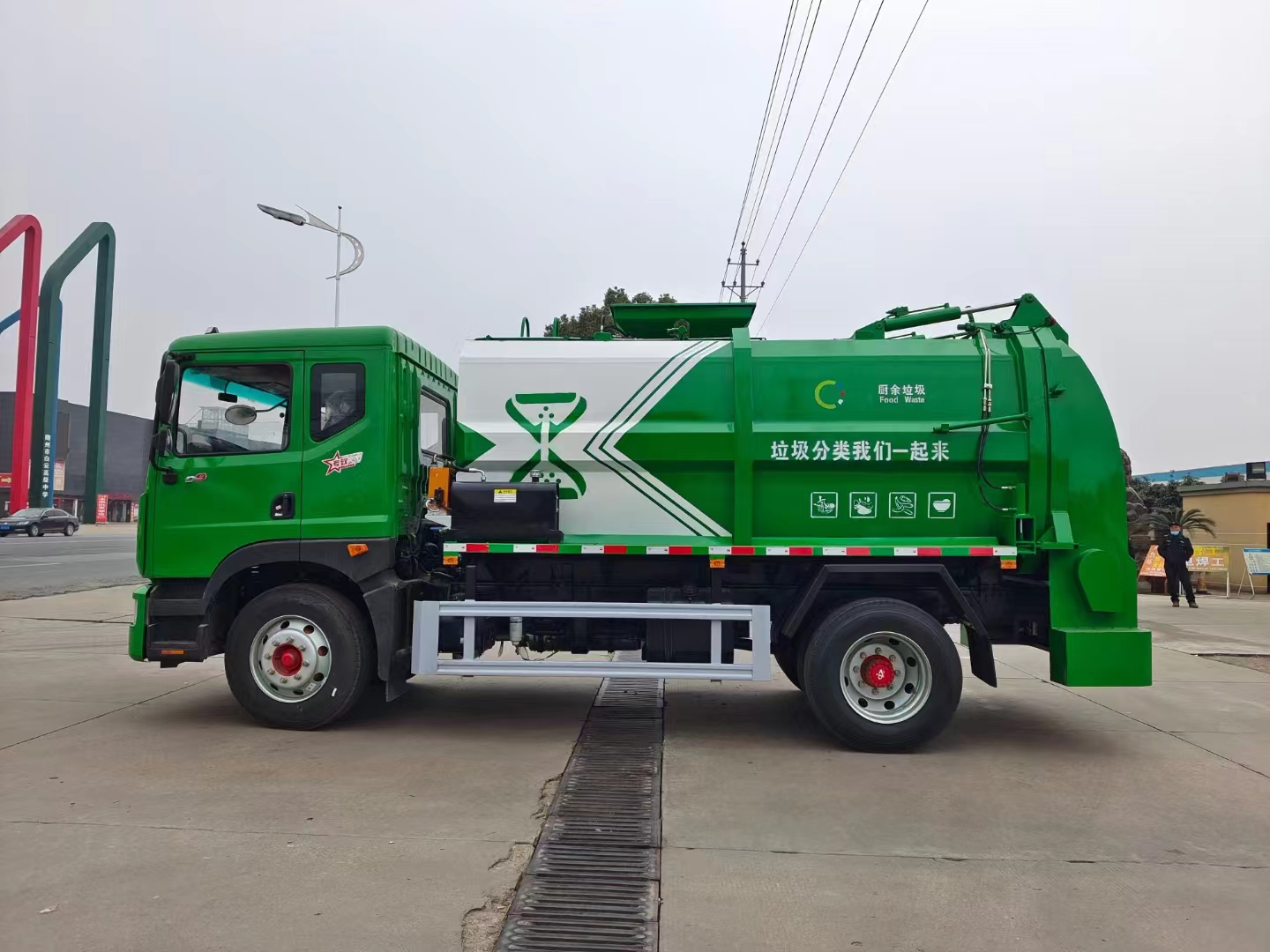

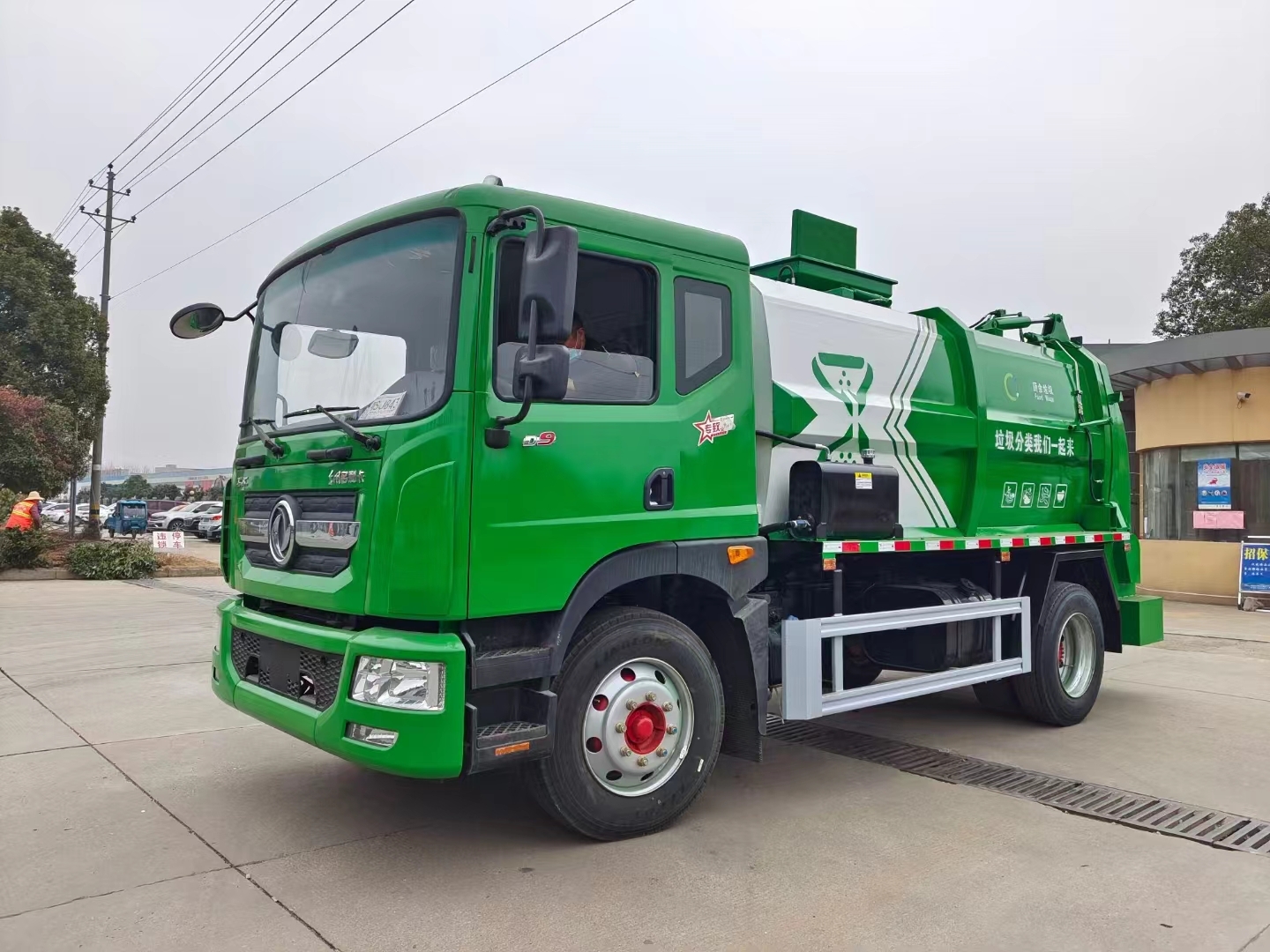

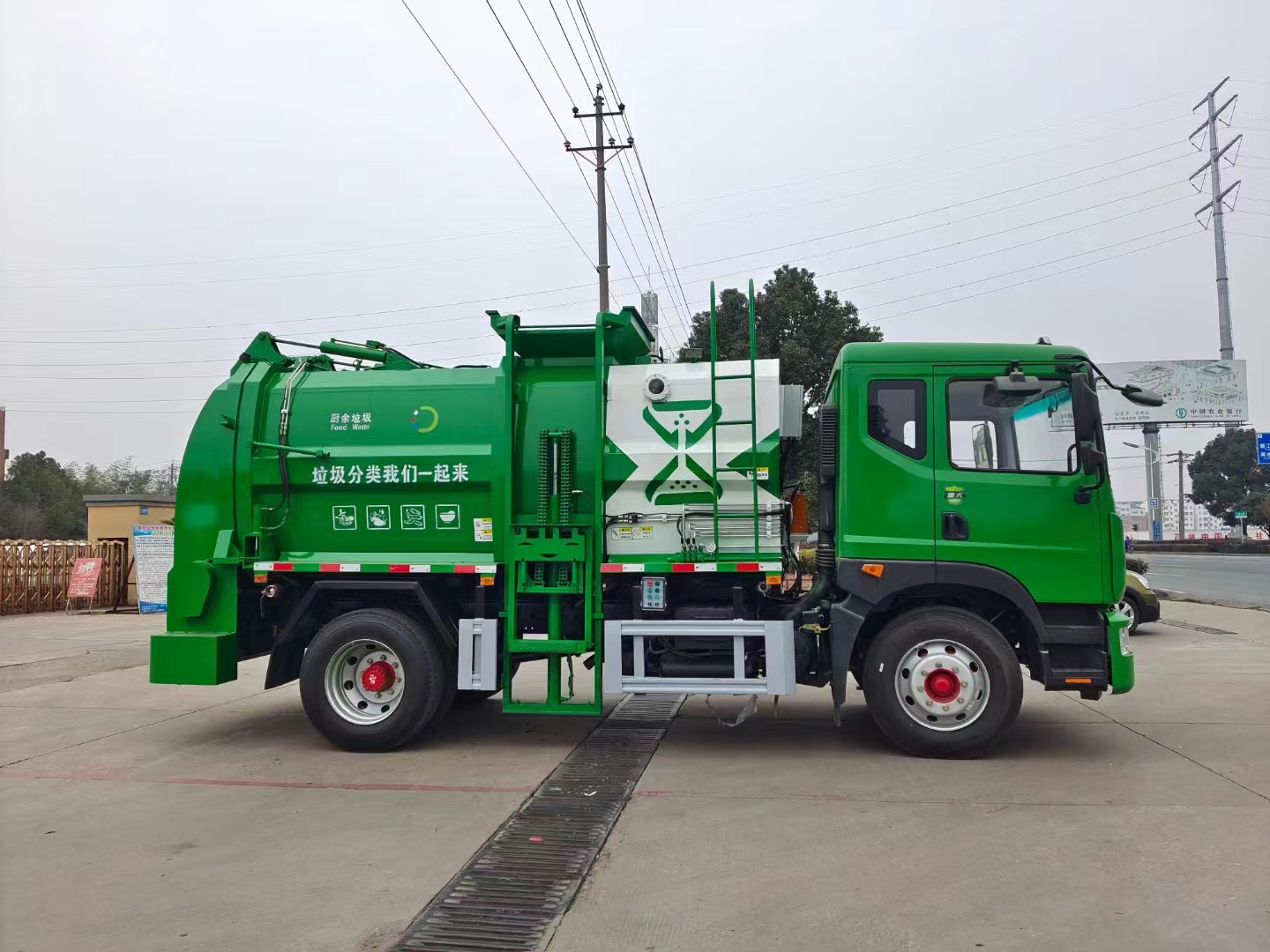

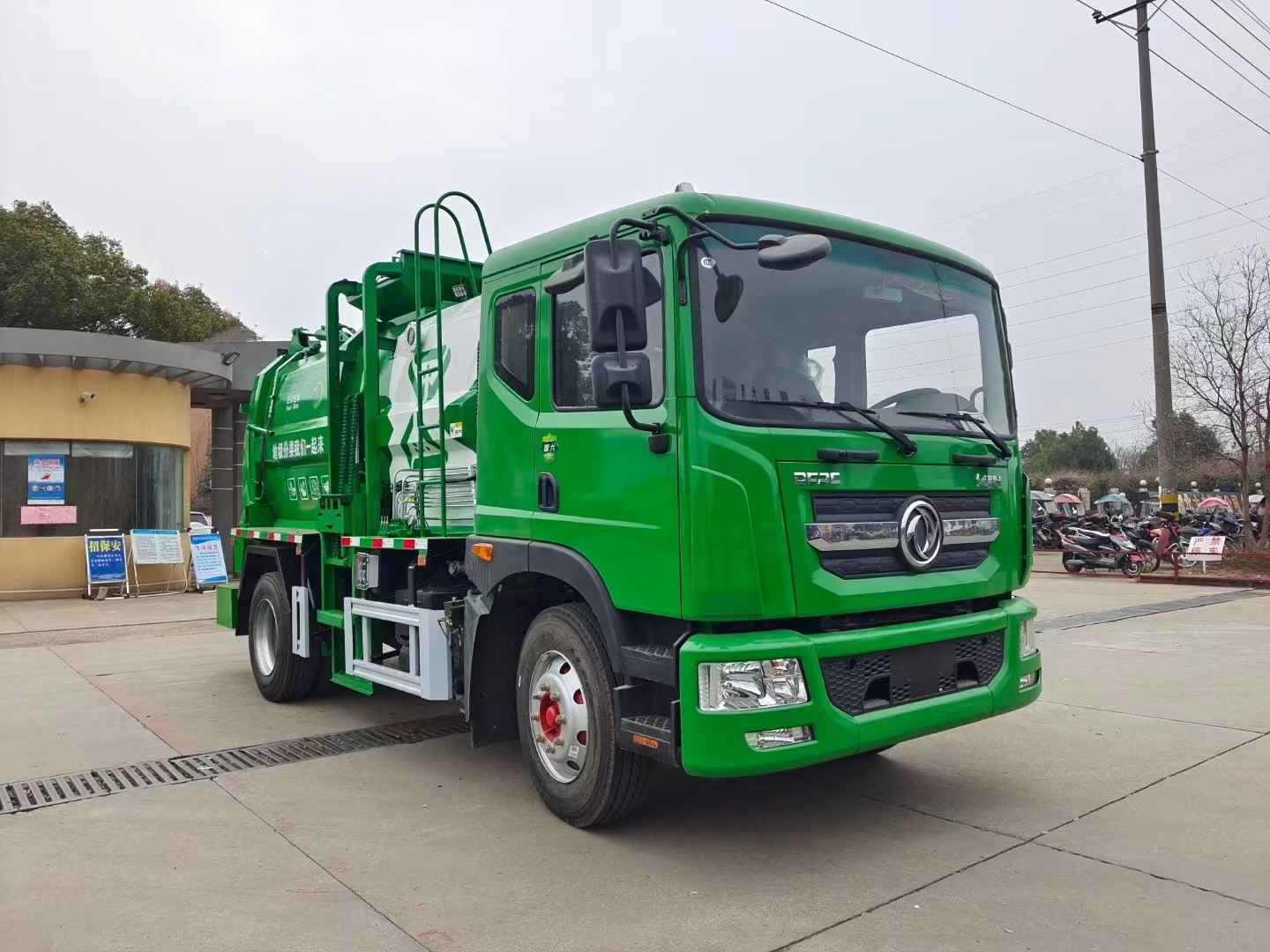

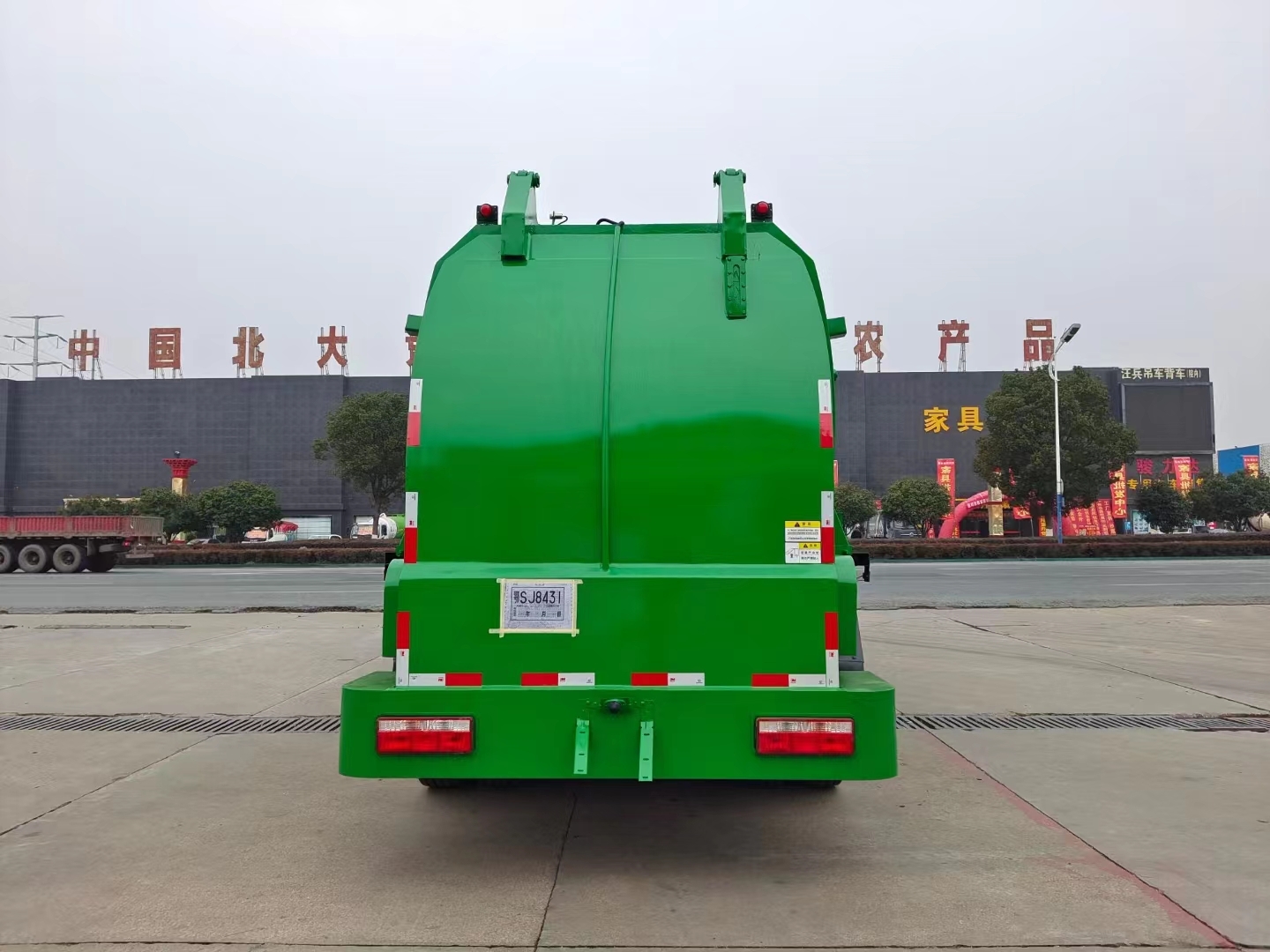

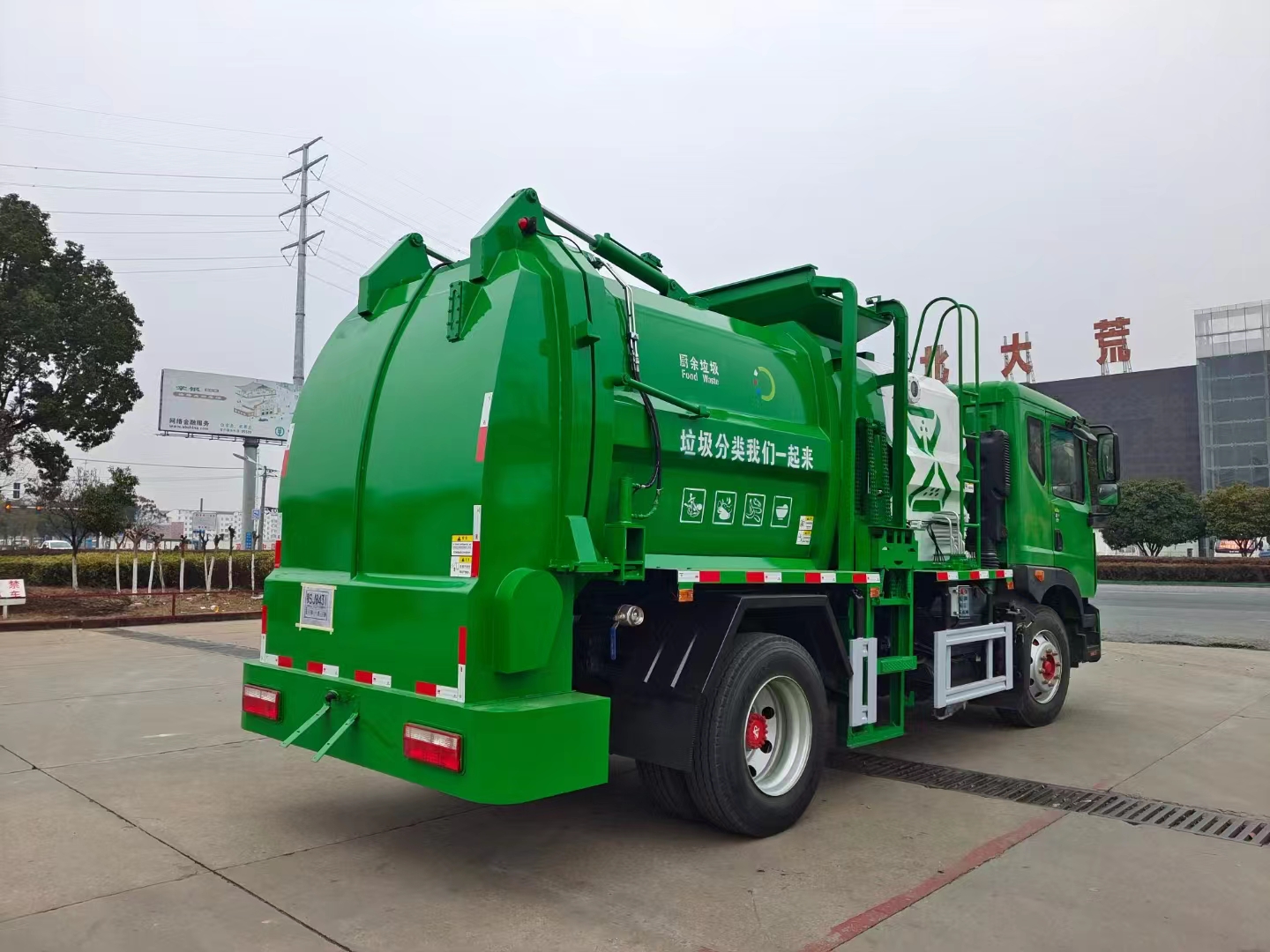

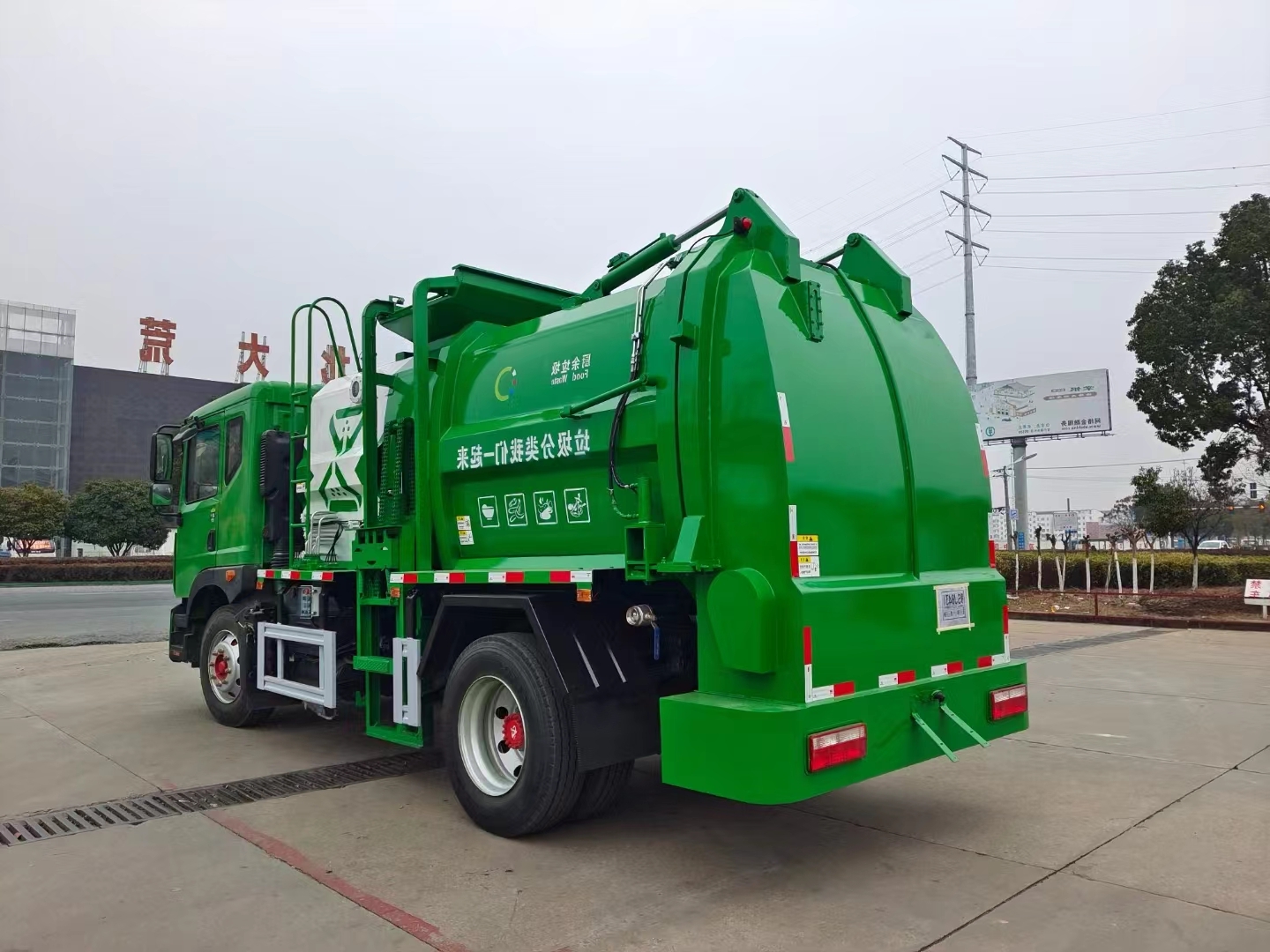

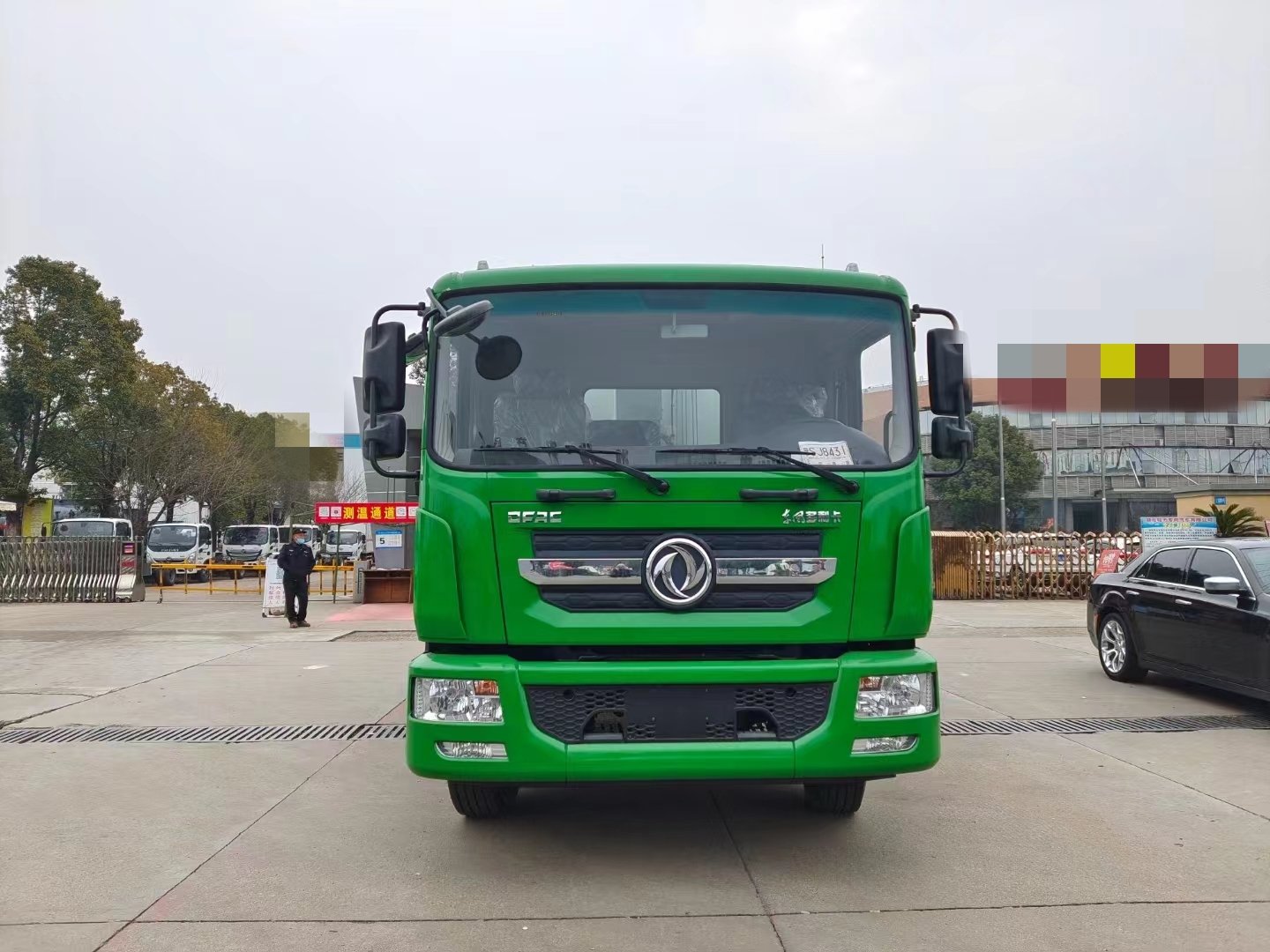

Dongfeng D9 4×2 Food Waste Truck

Chassis configuration 1:Dongfeng Dorica D9 original chassis, D4.0NS6B195 engine, wheelbase 3950/4500mm, Fast 8-speed transmission, 2315 cab, 3.9T front axle, 8T rear axle, 275/80R22.5 vacuum tires, 250mm beam, air brake, air conditioning, electric doors and windows, central locking.

Chassis configuration 2:Dongfeng Dorica D9 original chassis, B6.2NS6B230 engine, wheelbase 3950/4500mm, Fast 8-speed transmission, 2315 cab, 4.5T front axle, 10T rear axle, 10.00 steel tires, 250mm beam, air brake, air conditioning, electric doors and windows, central locking.

Product Name： Dongfeng D9 4×2 Food Waste Truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 18000(Kg)
Curb weight(Kg)： 8380,9100(Kg)

Product Features

Dongfeng D9 4×2 Food Waste Truck

Food waste truck,also known as meal waste truck, kitchen waste truck or swill truck, is a type of garbage truck used for collecting and transporting household waste, food waste (swill) and urban sludge.

Installation configuration of Dongfeng D9 4×2 Food Waste Truck

Made of Q710 high-strength steel, with 4 sides and 5 bottoms, a reinforced square tank body, and equipped with a well-known domestic hydraulic system (including a well-known domestic oil pump, a well-known multi way valve in Changsha, Hunan, a customized oil cylinder for kitchen use, and a power take-off in Jiashan, Zhejiang),

1. Equipped with a push plate filter to achieve the function of dry wet separation, and a push plate for unloading;

2. Equipped with a high-pressure pump and a high-pressure reel, it achieves the function of high-pressure cleaning;

3. Equipped with PLC electronic control system and wireless remote control, making operation more convenient;

4. The back cover is hydraulically opened and locked, with a sealing strip and an adjustable hydraulic locking pin to ensure no water leakage.

5. Optional pull rod or chain hoist, capable of hanging 120L/240L standard plastic trash cans.

Note:Kitchen waste trucks can be equipped with functions such as dry wet separation, high-pressure cleaning, electronic control, heating, etc. according to usage needs

Product parameters

Product Name	Dongfeng D9 4×2 Food Waste Truck
Driving Type	4×2
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	8380,9100(Kg)
Rated weight(kg)	9490,9425,8770,8705(Kg)
Wheelbase(mm)	3950/4500(mm)
Overall Dimension(mm)	7450,7000×2500,2550×3200,3100(mm)
Engine brand & model	D4.0NS6B195, Cummins 195 horsepower
Axle Quantity	2
Transmission Type	FAST 8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	275/80R22.5 vacuum tires, 6+1 spare
Cab	Dongfeng D9 cab, air conditioning, electric doors and windows, central locking system
Volume(m³)	10m³/12m³
Tank body	Made of Q710 high-strength steel, with side plate thickness of 4mm and bottom plate thickness of 5mm, reinforced square tank body
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
