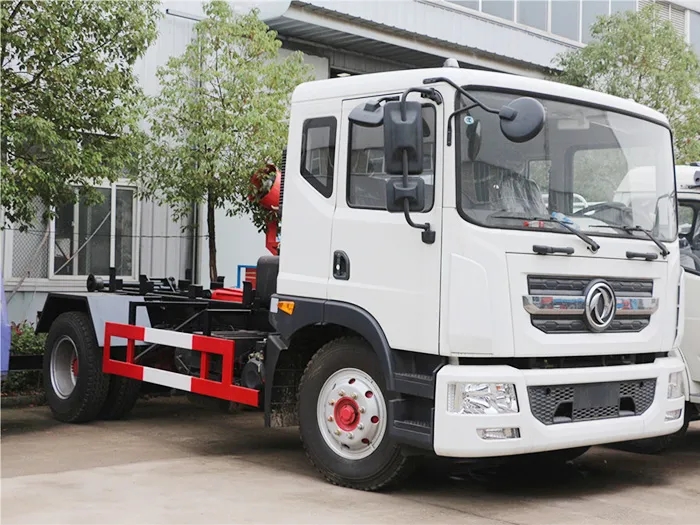

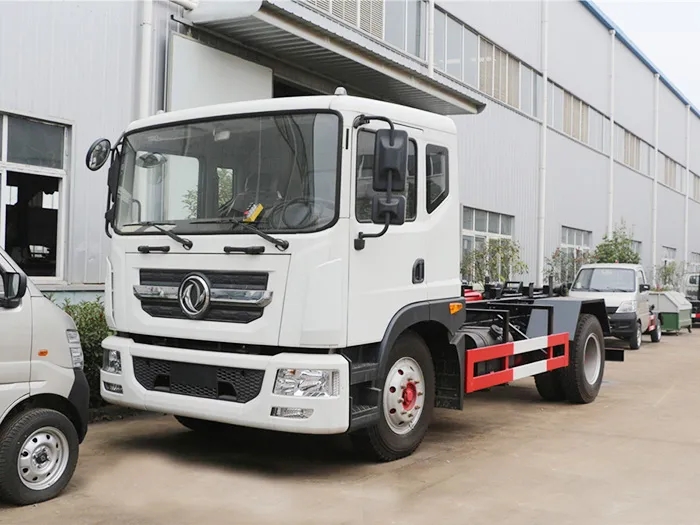

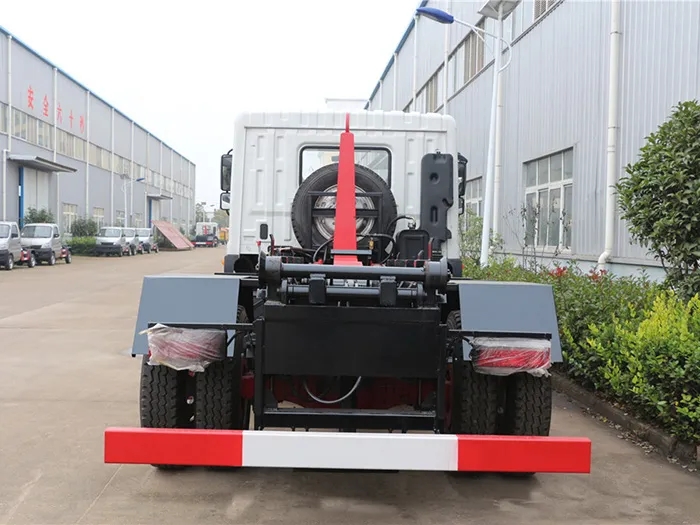

Dongfeng D9 12m³ hook arm garbage truck

Hook arm garbage truck is composed of hook arm hydraulic system, hook arm garbage box, etc. One hook arm garbage truck can be equipped with several hook arm garbage boxes, which can realize the joint operation of a vehicle and multiple garbage boxes and cyclic transportation,which fully improves the transportation capacity of the vehicle.

Hook arm garbage box is made of high quality carbon steel, strong anddurable. The garbage box can get on and off the vehicle by itself, and dump the garbage by itself, and the working cycle time of one loading andunloading is ≤50S.

Basic configuration of hook arm garbage truck:
1-Rolling pulley
2-Arm hook
3-Locking hook
4-Parallel bar design
5-One click control
6-way valve system

Product Name： Dongfeng D9 12m³ hook arm garbage truck
Driving Type： 4×2
Weight /Volume：
Garbage container volume(cbm)： 12

Product Features

Dongfeng D9 12m³ hook arm garbage truck

The types of garbage trucks include: compression garbage truck, self dumping garbage truck, swing arm garbage truck, pull arm garbage truck, hook arm garbage truck (box detachable garbage truck), sealed garbage truck, hanging bucket garbage truck (self loading and unloading garbage truck)

Hook arm garbage truck: also known as a detachable garbage truck, the garbage compartment is connected or separated from the chassis through a hook arm device. It can replace different garbage compartments as needed, with high flexibility, suitable for garbage collection in residential areas, schools, and other places.

Product parameters

Product Name	Dongfeng D9 12m³ hook arm garbage truck
Driving Type	4×2
Weight /Volume
Garbage container volume(cbm)	12
Rated payload weight(kg)	7020
Dimensions
Wheelbase(mm)	3950,4500,4700,3400,3700,5200,5600
Overall Dimension(mm)	7050,6500x2470x3050
Engine
Engine brand & model	Commins & ISB180 50
Displacement(L)/Power(kw)	5.9L/132KW
Chassis
Axle Quantity	2
Transmission Type	8 forward gears and 1 rear gear
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	9.00R20,10.00R20, 6 with a spare
Cab
Standard configuration	D9 cab
Air conditioning	YES
Performance parameter
Garbage container material	carbon steel or stainless steel
Standard configuration	1.The hook arm garbage bin is made up of a frame, an opening cylinder, pulleys, a rear door, and several frames welded to steel plates. 2.The garbage bin body can be made of carbon steel or stainless steel, and the interior is treated with epoxy resin for corrosion prevention.
Other	The matching garbage bin can be customized.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
