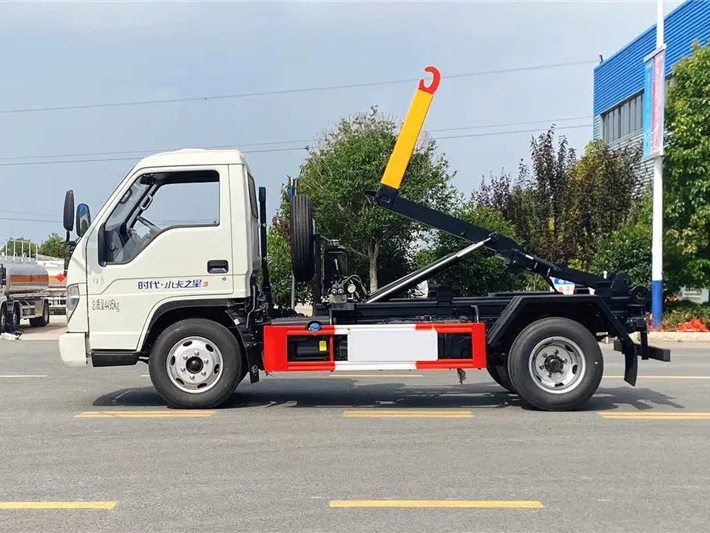

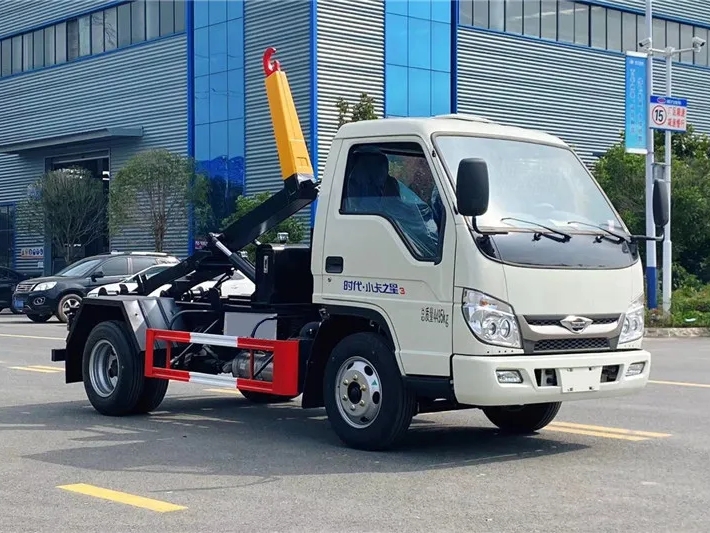

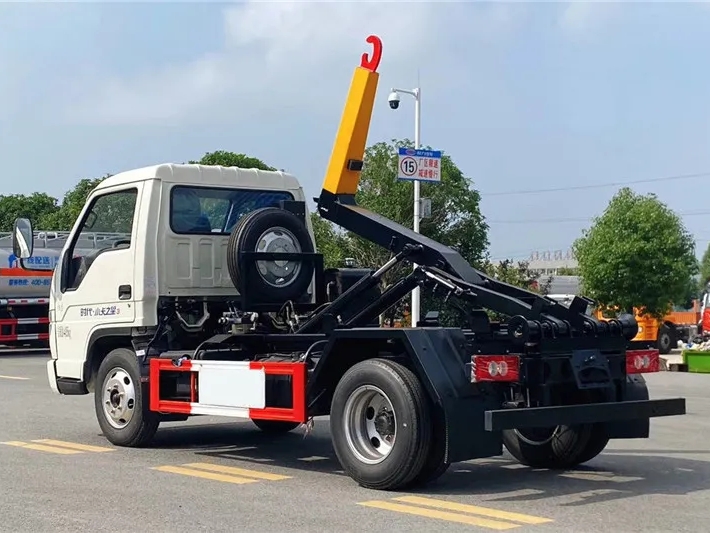

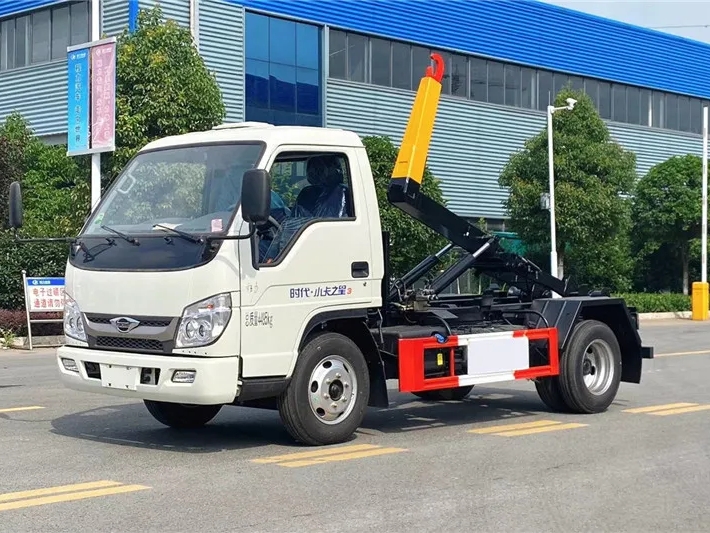

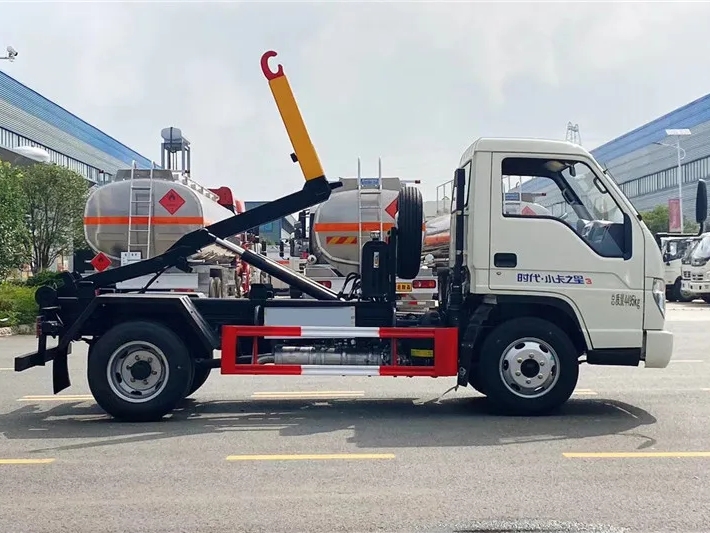

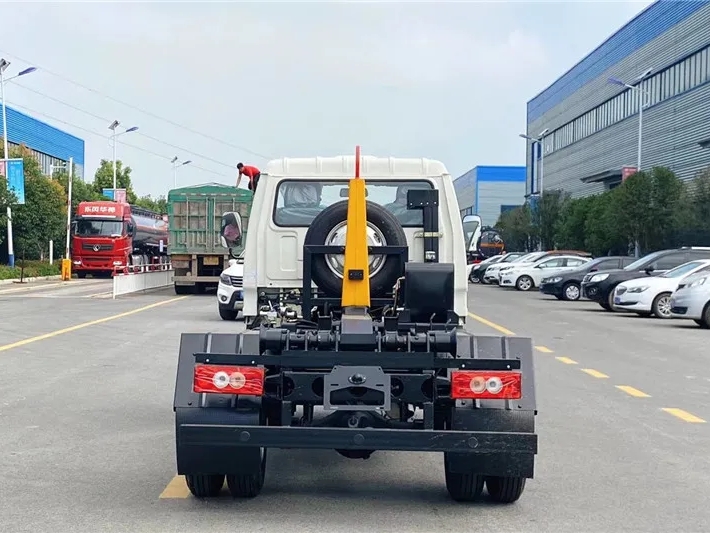

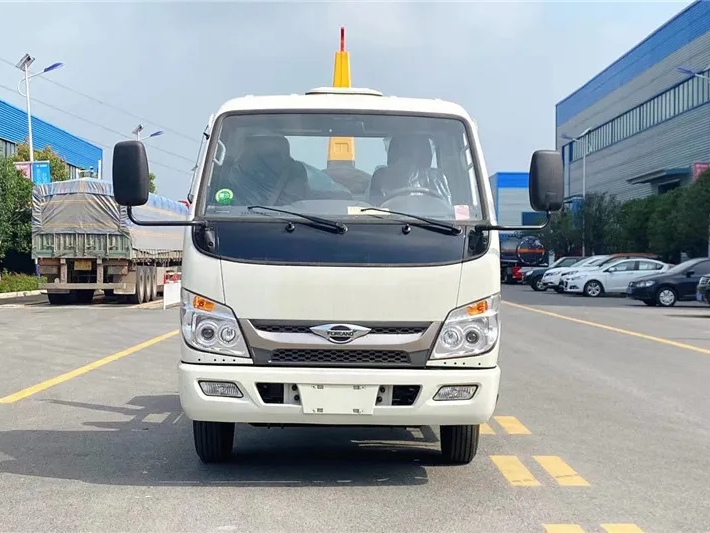

FOTON 3cbm 4cbm 5cbm hook arm refuse truck

Hook arm garbage truck is composed of hook arm hydraulic system, hook arm garbage box, etc. One hook arm garbage truck can be equipped with several hook arm garbage boxes, which can realize the joint operation of a vehicle and multiple garbage boxes and cyclic transportation,which fully improves the transportation capacity of the vehicle.

Hook arm garbage box is made of high quality carbon steel, strong anddurable. The garbage box can get on and off the vehicle by itself, and dump the garbage by itself, and the working cycle time of one loading andunloading is ≤50S.

Basic configuration of hook arm garbage truck:
1-Rolling pulley
2-Arm hook
3-Locking hook
4-Parallel bar design
5-One click control
6-way valve system

Product Name： FOTON 3cbm 4cbm 5cbm hook arm refuse truck
Driving Type： 4×2
Weight /Volume：
Garbage container volume(cbm)： 3/4/5

Product Features

FOTON 3cbm 4cbm 5cbm hook arm refuse truck

The types of garbage trucks include: compression garbage truck, self dumping garbage truck, swing arm garbage truck, pull arm garbage truck, hook arm garbage truck (box detachable garbage truck), sealed garbage truck, hanging bucket garbage truck (self loading and unloading garbage truck)

Hook arm garbage truck: also known as a detachable garbage truck, the garbage compartment is connected or separated from the chassis through a hook arm device. It can replace different garbage compartments as needed, with high flexibility, suitable for garbage collection in residential areas, schools, and other places.

Product parameters

Product Name	FOTON 3cbm 4cbm 5cbm hook arm refuse truck
Driving Type	4×2
Weight /Volume
Garbage container volume(cbm)	3/4/5
Rated payload weight(kg)	2115
Dimensions
Wheelbase(mm)	2850
Overall Dimension(mm)	4860X1910X2140
Engine
Engine brand & model	Quanchai & Q23-115C60
Displacement(L)/Power(kw)	2.3L/85KW
Chassis
Axle Quantity	2
Transmission Type	5 forward gears and 1 rear gear
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	6.50R16LT 10PR, 6 with a spare
Cab
Standard configuration	FOTON cab
Air conditioning	YES
Performance parameter
Garbage container material	carbon steel or stainless steel
Standard configuration	1.The hook arm garbage bin is made up of a frame, an opening cylinder, pulleys, a rear door, and several frames welded to steel plates. 2.The garbage bin body can be made of carbon steel or stainless steel, and the interior is treated with epoxy resin for corrosion prevention.
Other	The matching garbage bin can be customized.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
