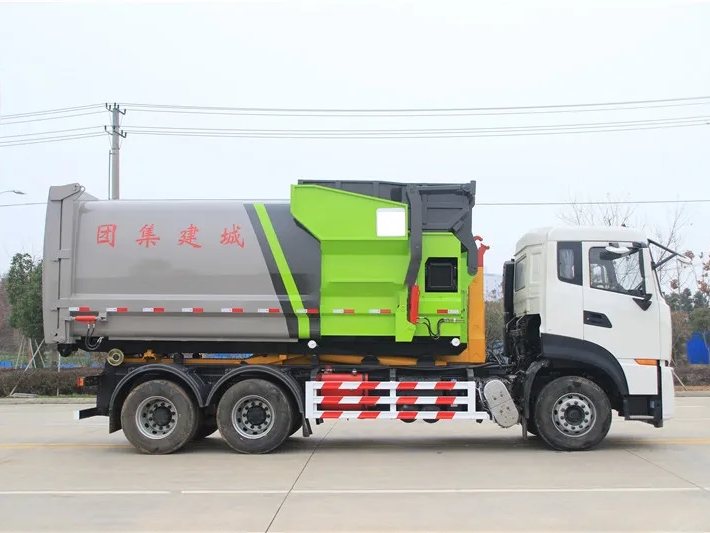

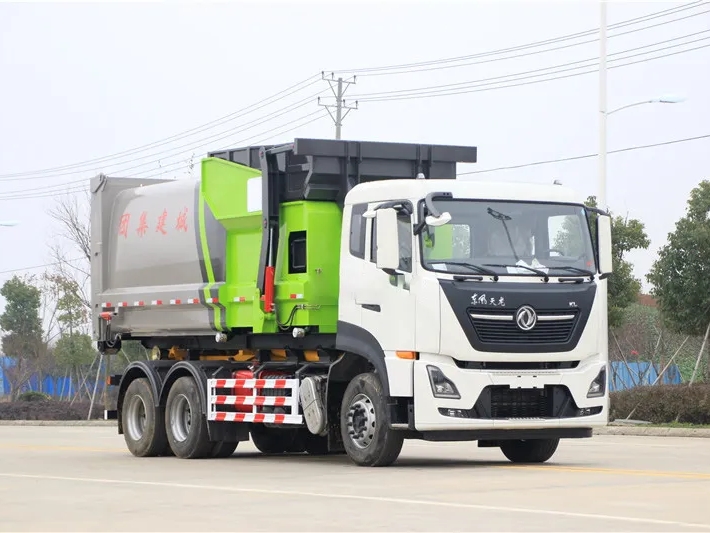

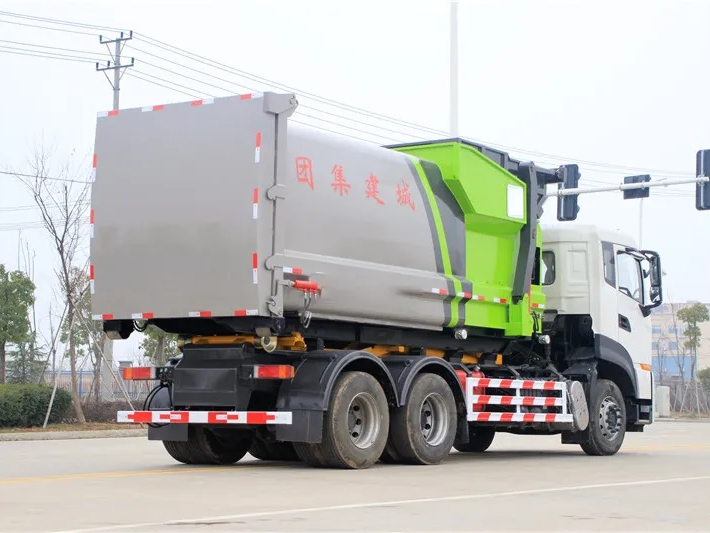

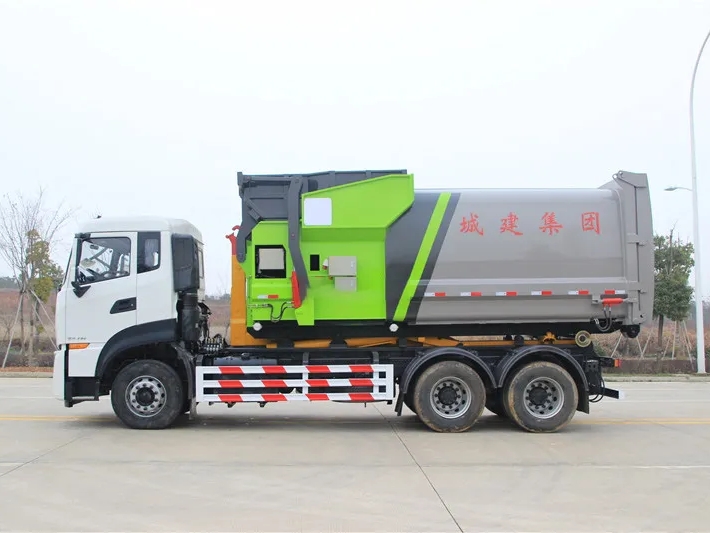

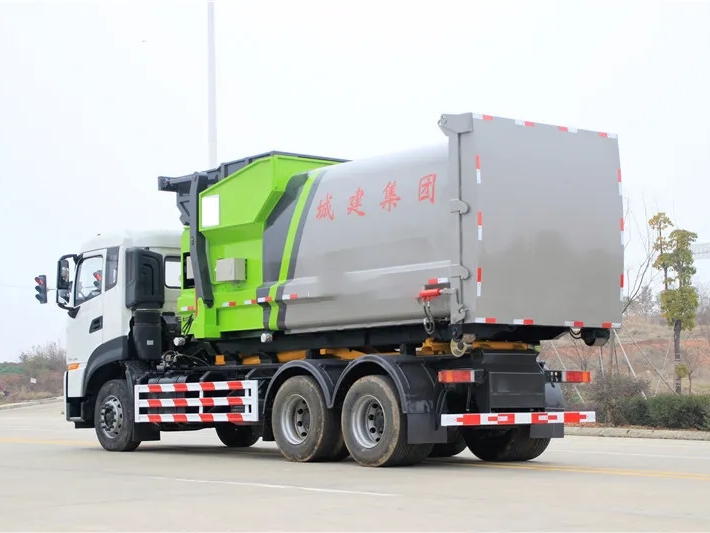

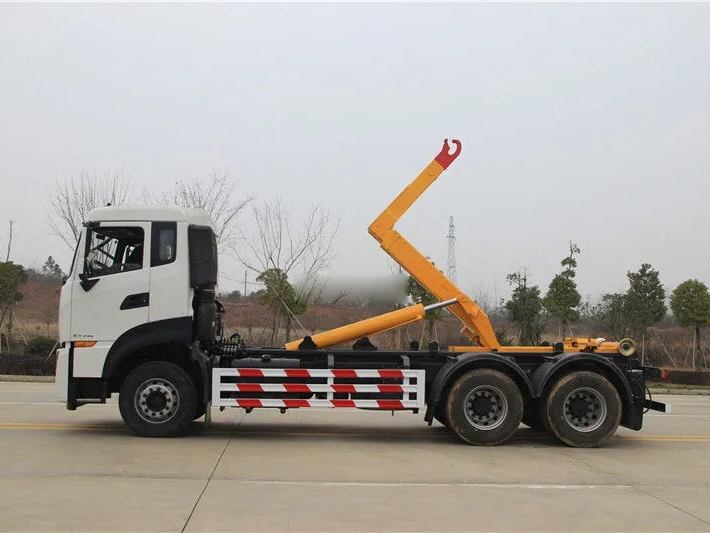

Dongfeng 6x4 25T hook arm garbage vehicle

Hook arm garbage truck is composed of hook arm hydraulic system, hook arm garbage box, etc. One hook arm garbage truck can be equipped with several hook arm garbage boxes, which can realize the joint operation of a vehicle and multiple garbage boxes and cyclic transportation,which fully improves the transportation capacity of the vehicle.

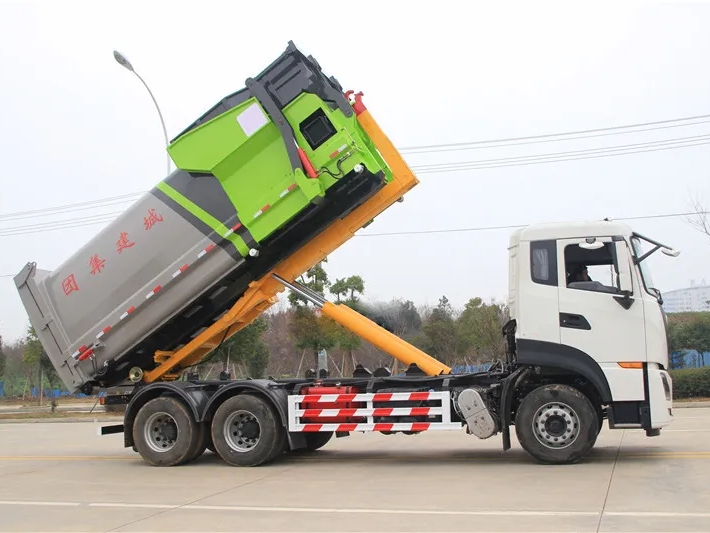

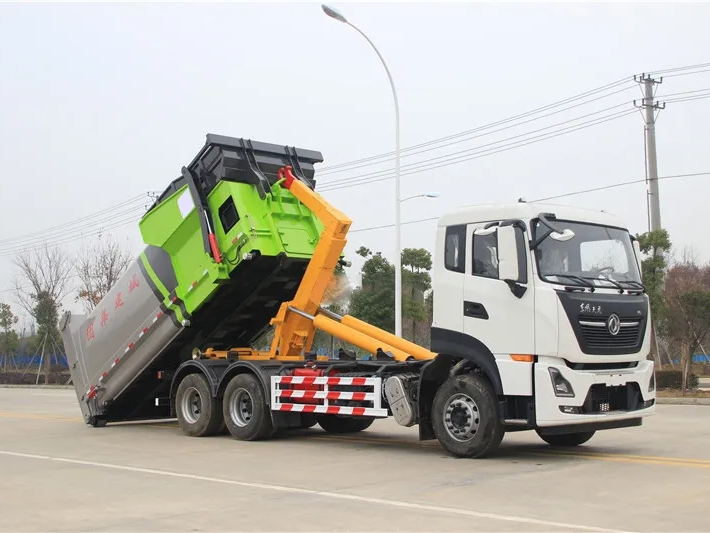

Hook arm garbage box is made of high quality carbon steel, strong anddurable. The garbage box can get on and off the vehicle by itself, and dump the garbage by itself, and the working cycle time of one loading andunloading is ≤50S.

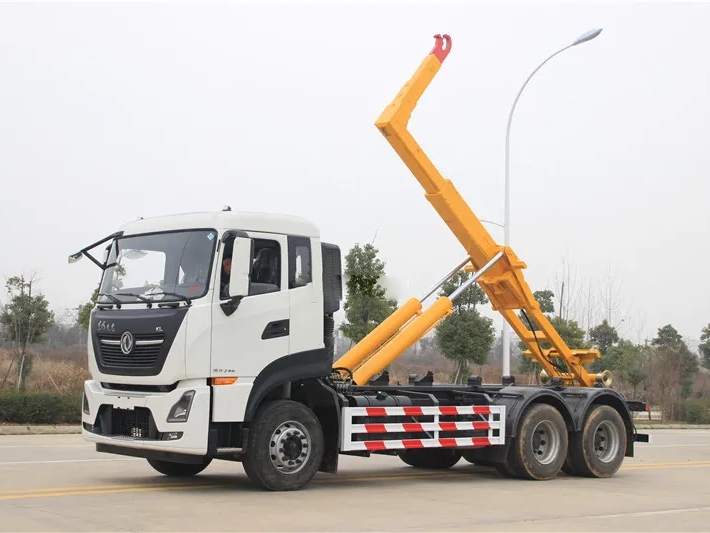

Basic configuration of hook arm garbage truck:
1-Rolling pulley
2-Arm hook
3-Locking hook
4-Parallel bar design
5-One click control
6-way valve system

Product Name： Dongfeng 6x4 25T hook arm garbage vehicle
Driving Type： 6x4
Weight /Volume： As below
Garbage container volume(cbm)： 18m³-20m³ mobile compressed garbage bin or 18m³-28m³ multi functional garbage bin

Product Features

Dongfeng 6x4 25T hook arm garbage vehicle

The types of garbage trucks include: compression garbage truck, self dumping garbage truck, swing arm garbage truck, pull arm garbage truck, hook arm garbage truck (box detachable garbage truck), sealed garbage truck, hanging bucket garbage truck (self loading and unloading garbage truck)

Hook arm garbage truck: also known as a detachable garbage truck, the garbage compartment is connected or separated from the chassis through a hook arm device. It can replace different garbage compartments as needed, with high flexibility, suitable for garbage collection in residential areas, schools, and other places.

Product parameters

Product Name	Dongfeng 6x4 25T hook arm garbage vehicle
Driving Type	6x4
Weight /Volume	As below
Garbage container volume(cbm)	18m³-20m³ mobile compressed garbage bin or 18m³-28m³ multi functional garbage bin
Rated payload weight(kg)	13270
Dimensions	As below
Wheelbase(mm)	4350+1350
Overall Dimension(mm)	8530×2500×3140
Engine	As below
Engine brand & model	Commins/D6.7NS6B290
Displacement(L)/Power(kw)	6.7L/213kw
Chassis	As below
Axle Quantity	3
Transmission Type	8 forward gears and 1 reverse gear
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	6.50R16LT 10PR, 10 with a spare
Cab	As below
Standard configuration	Dongfeng tianlong cab
Air conditioning	YES
Performance parameter	As below
Garbage container material	carbon steel or stainless steel
Standard configuration	1.The hook arm garbage bin is made up of a frame, an opening cylinder, pulleys, a rear door, and several frames welded to steel plates. 2.The garbage bin body can be made of carbon steel or stainless steel, and the interior is treated with epoxy resin for corrosion prevention.
Other	The matching garbage bin can be customized.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
