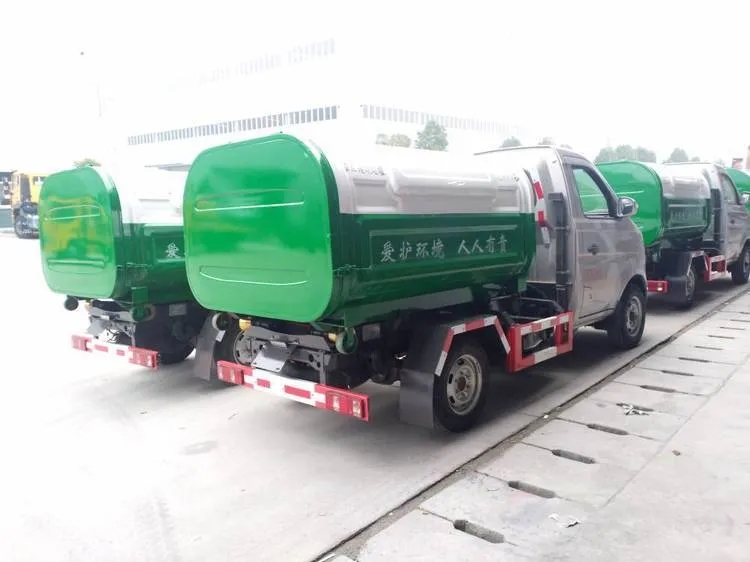

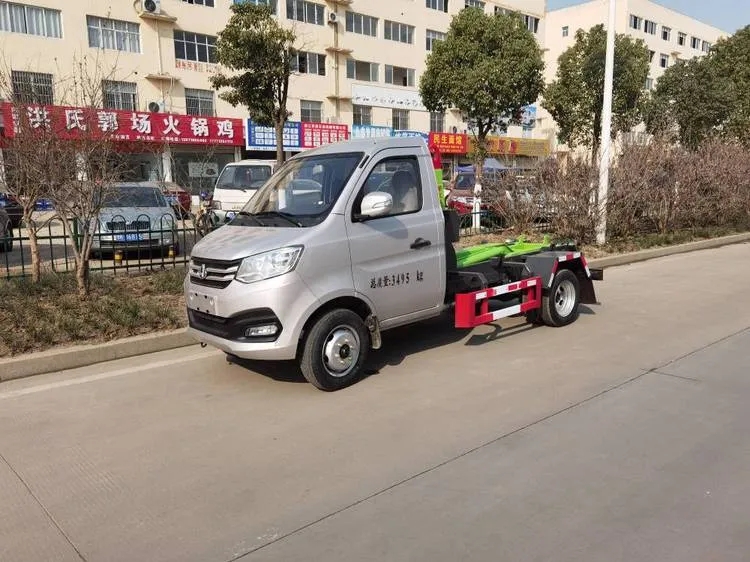

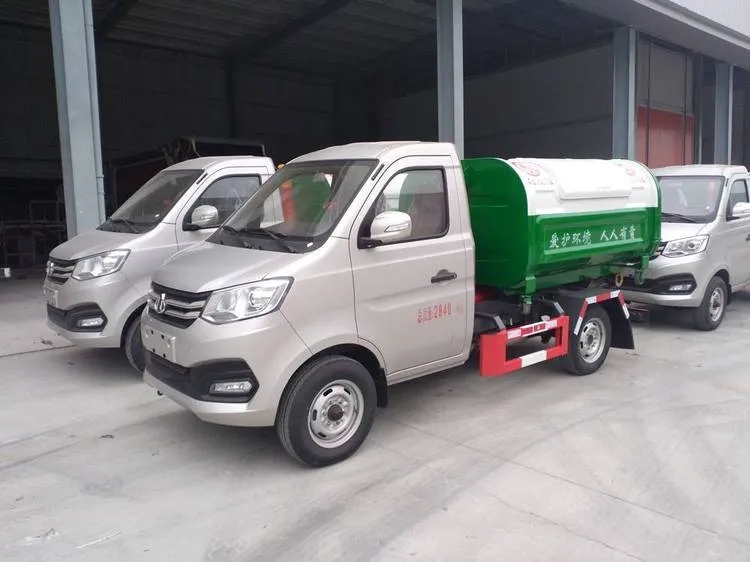

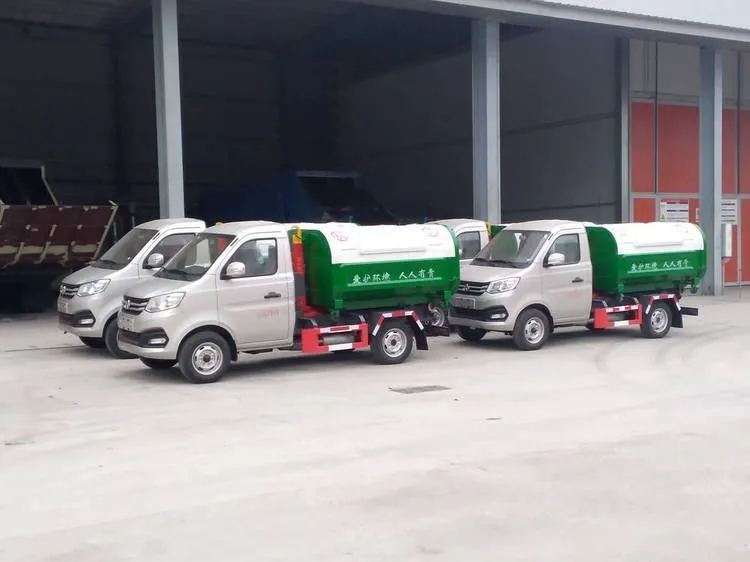

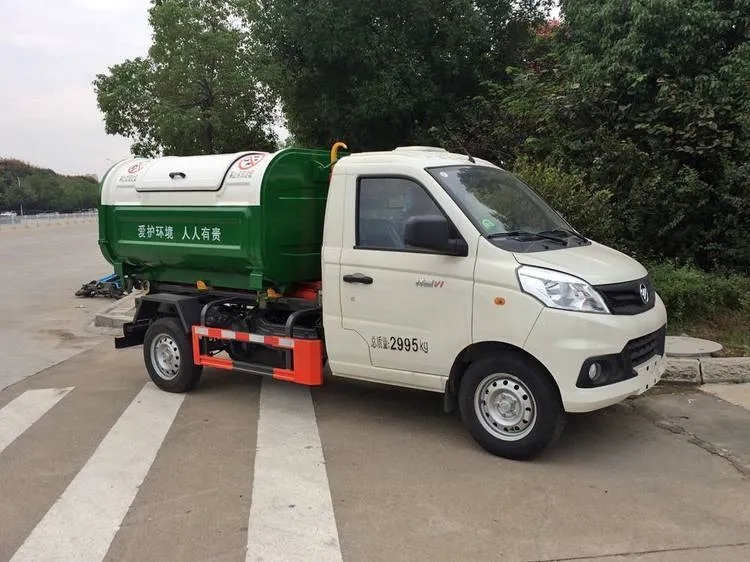

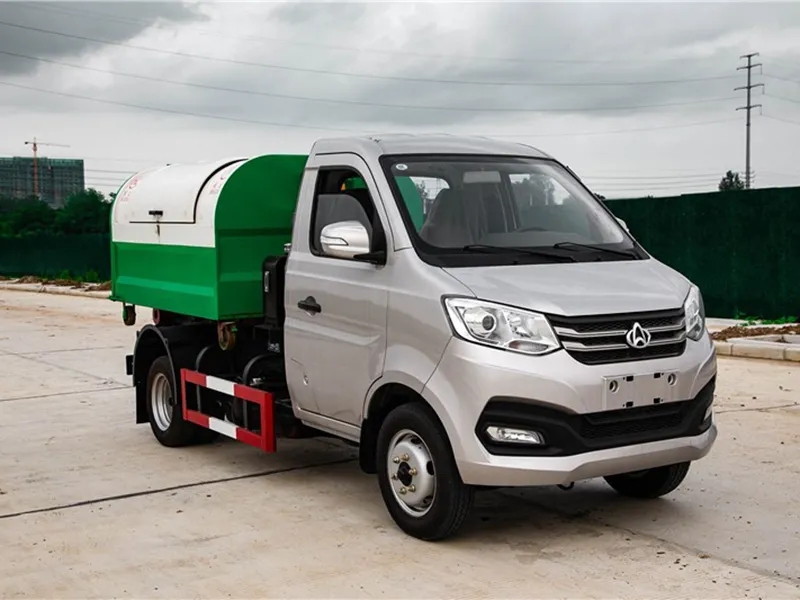

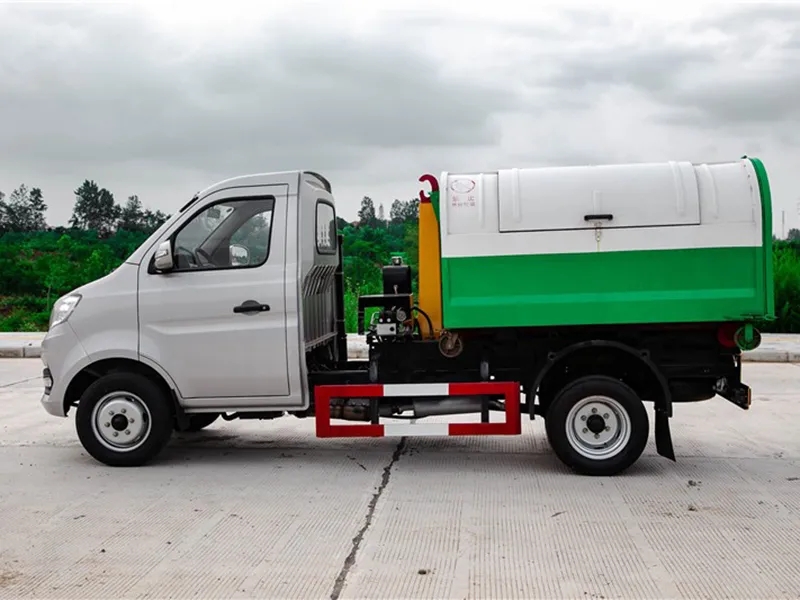

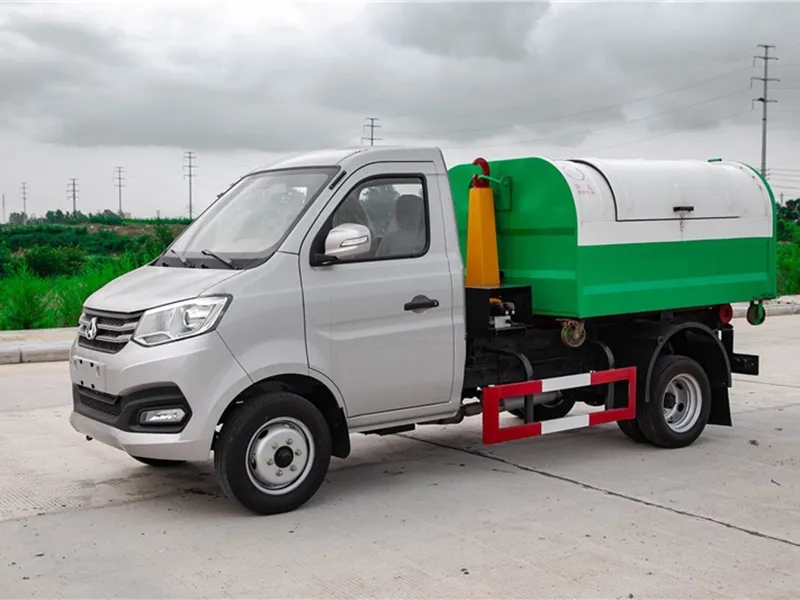

Chang'an 3.5 cbm hook arm garbage truck

Hook arm garbage truck is composed of hook arm hydraulic system, hook arm garbage box, etc. One hook arm garbage truck can be equipped with several hook arm garbage boxes, which can realize the joint operation of a vehicle and multiple garbage boxes and cyclic transportation,which fully improves the transportation capacity of the vehicle.
Hook arm garbage box is made of high quality carbon steel, strong anddurable. The garbage box can get on and off the vehicle by itself, and dump the garbage by itself, and the working cycle time of one loading andunloading is ≤50S.

Product Name： Chang
Driving Type： 4×2
Weight /Volume：
Garbage container volume(cbm)： 3.5

Product Features

The types of garbage trucks include: compression garbage truck, self dumping garbage truck, swing arm garbage truck, pull arm garbage truck, hook arm garbage truck (box detachable garbage truck), sealed garbage truck, hanging bucket garbage truck (self loading and unloading garbage truck)

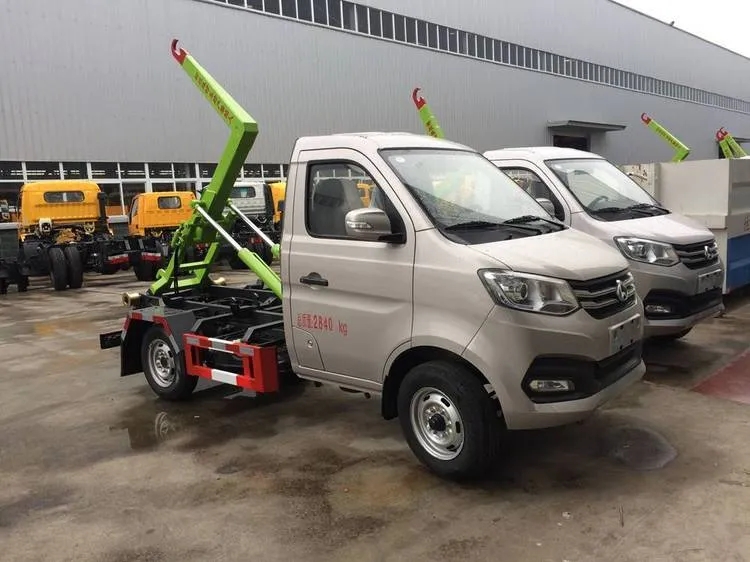

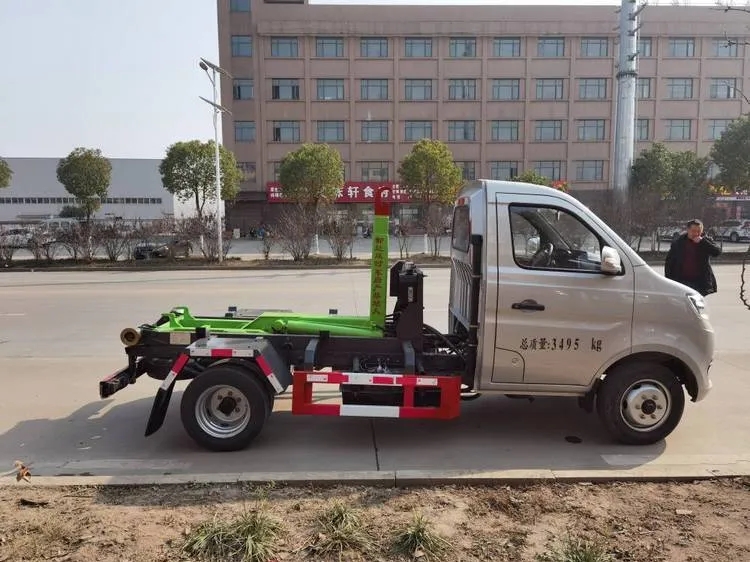

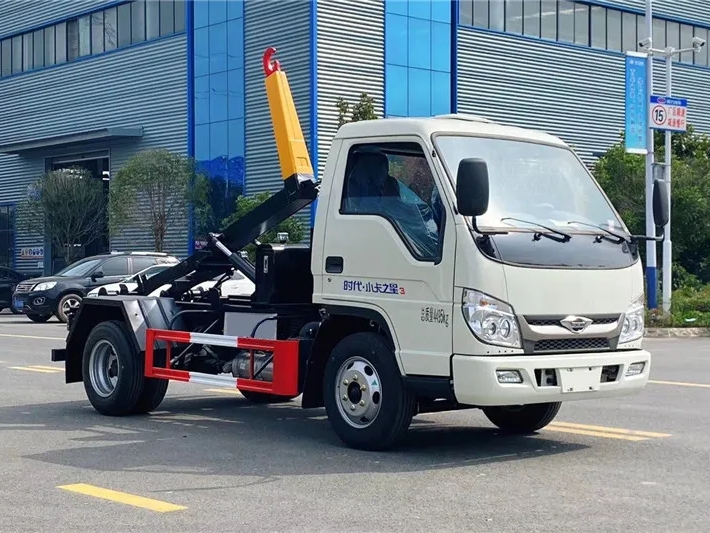

Hook arm garbage truck: also known as a detachable garbage truck, the garbage compartment is connected or separated from the chassis through a hook arm device. It can replace different garbage compartments as needed, with high flexibility, suitable for garbage collection in residential areas, schools, and other places.

Product parameters

Product Name	Chang
Driving Type	4×2
Weight /Volume
Garbage container volume(cbm)	3.5
Rated payload weight(kg)	700
Dimensions
Wheelbase(mm)	2900
Overall Dimension(mm)	4260×1660×1920
Engine
Engine brand & model	JL473Q
Displacement(L)/Power(kw)	1.243/92
Chassis
Axle Quantity	2
Transmission Type	5 forward gears and 1 rear gear
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	175/70R14LT, 6 with a spare
Cab
Standard configuration	Chang An cab
Air conditioning	YES
Performance parameter
Garbage container material	carbon steel or stainless steel
Standard configuration	1.The hook arm garbage bin is made up of a frame, an opening cylinder, pulleys, a rear door, and several frames welded to steel plates. 2.The garbage bin body can be made of carbon steel or stainless steel, and the interior is treated with epoxy resin for corrosion prevention.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
