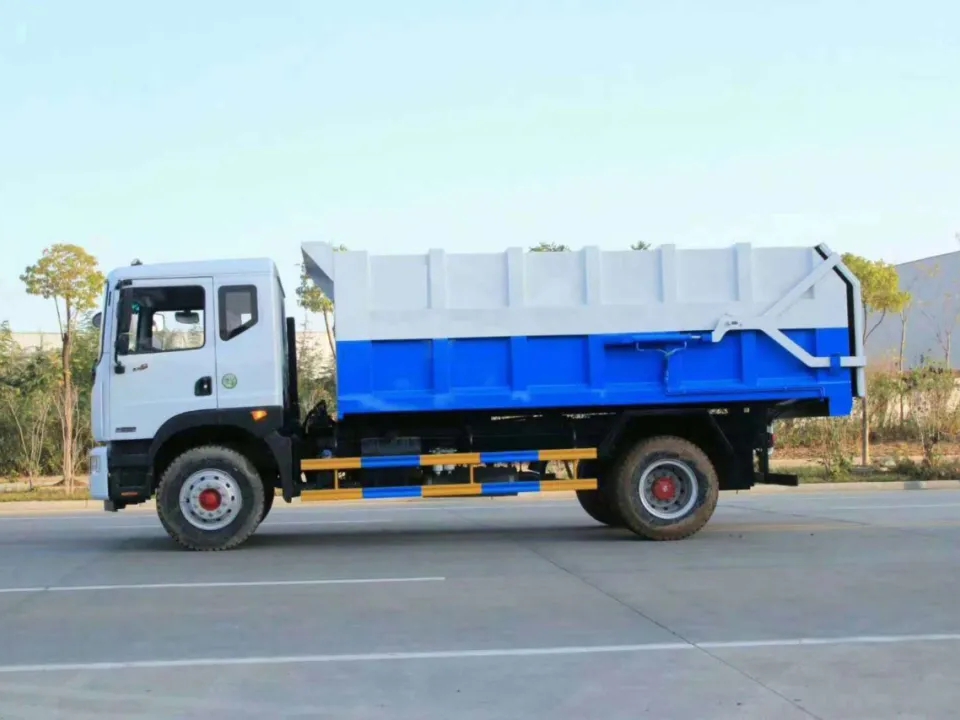

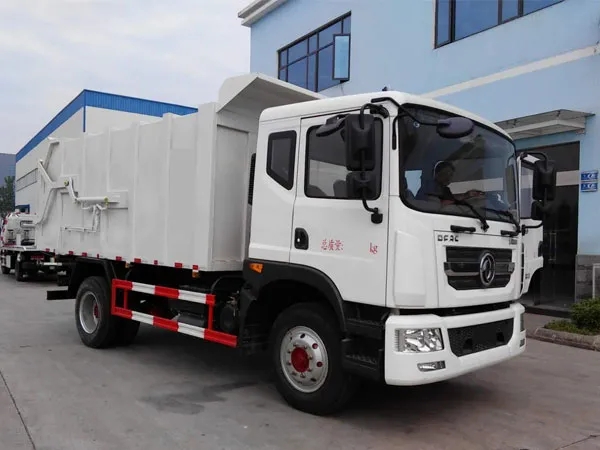

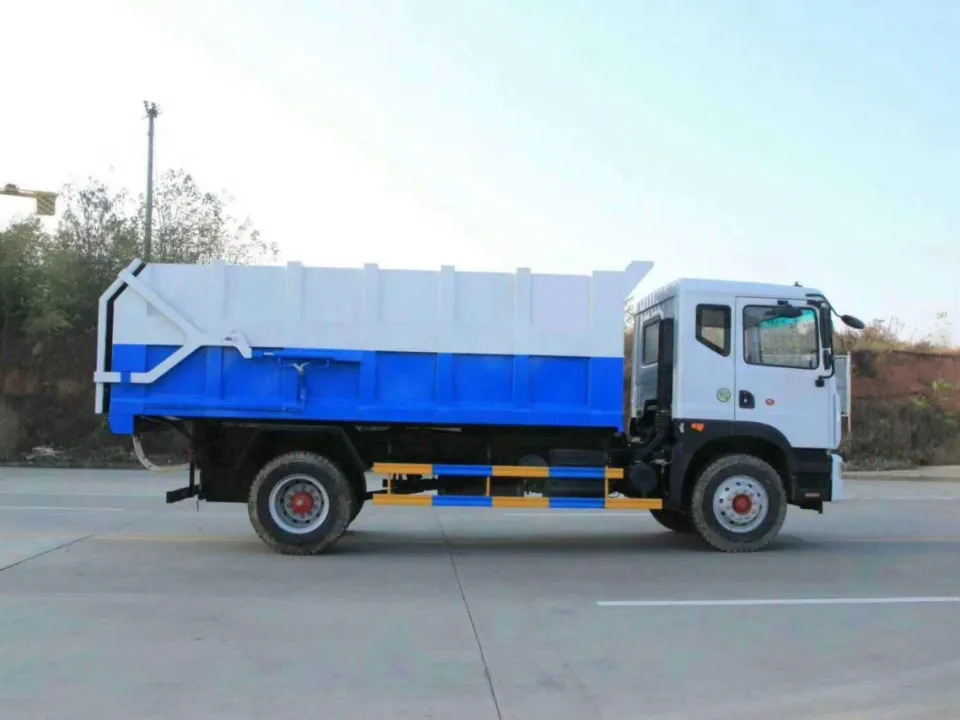

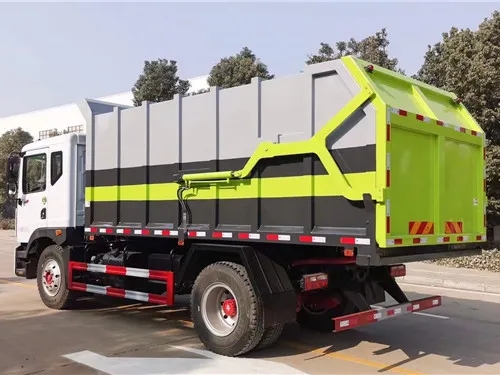

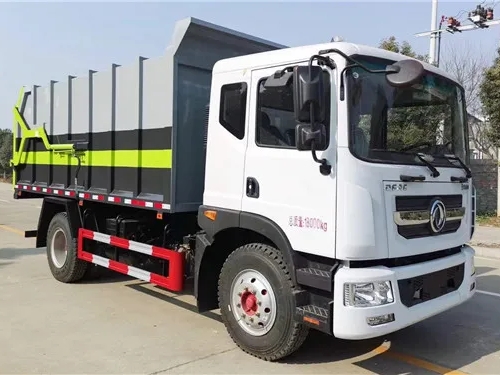

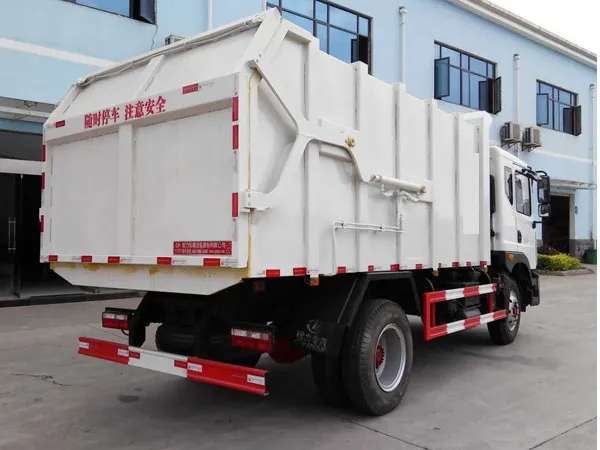

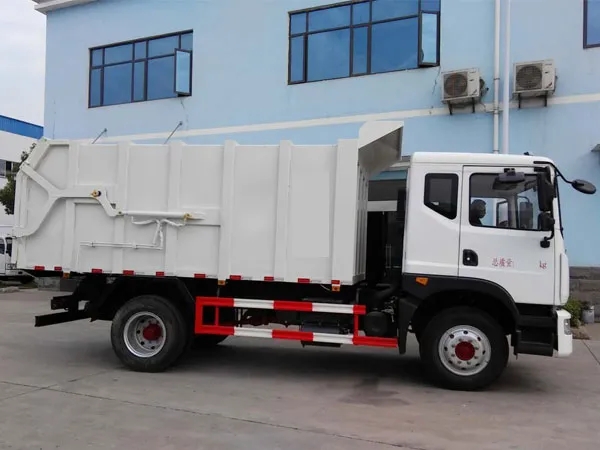

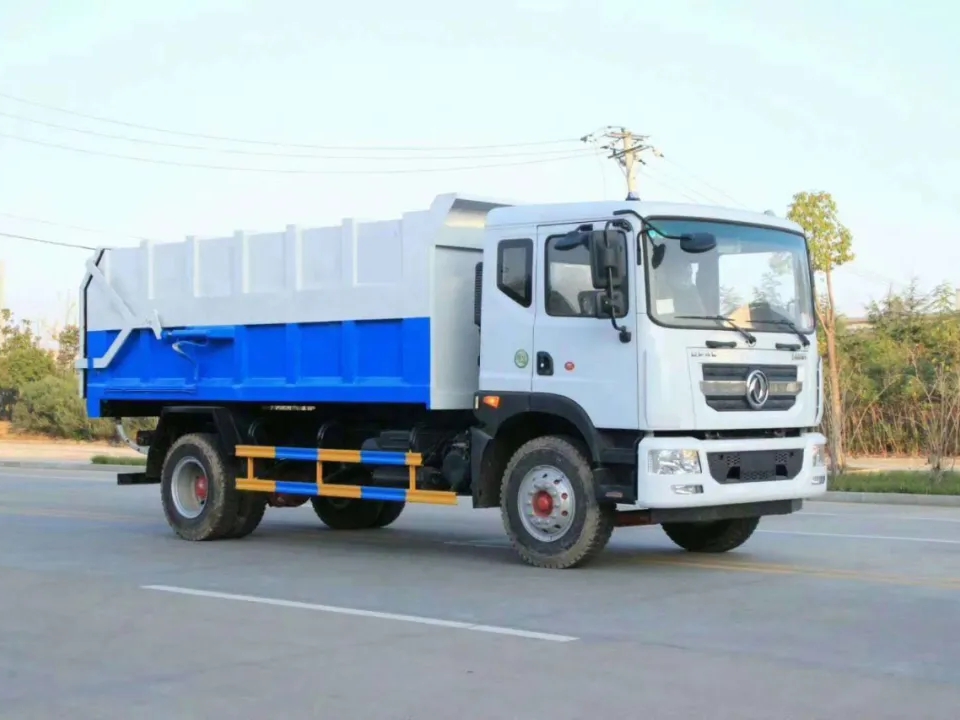

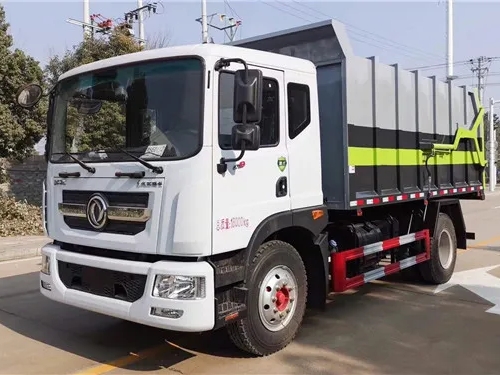

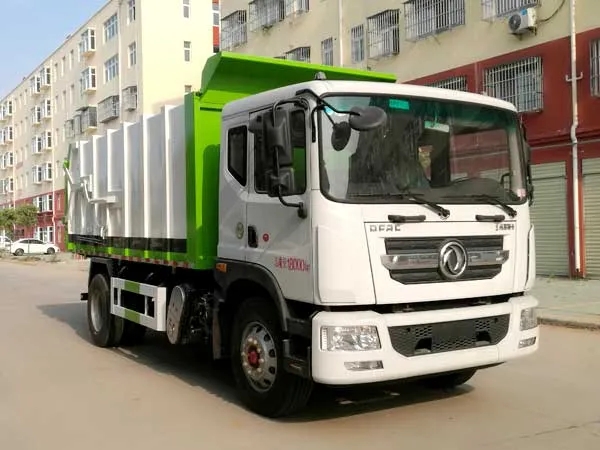

Dongfeng D9 self dumping docking garbage truck

Chassis configuration: D9 cab, equipped with a National VI Cummins 195 horsepower or 230 horsepower/Yuchai 200 horsepower diesel engine, wheelbase 4500mm, eight speed gearbox, 10.00R16 steel wire tires, air brake, dynamic rotation, clutch assist, ABS, front disc brake, and speed limit device.

The vehicle consists of a chassis, a dump cylinder, a rear door cylinder, an attached frame, a garbage bin, and a rear door swing rod. The box is square in shape, made of carbon steel material, with a 5mm edge and a 5mm bottom. The top is sealed, and the rear door of the box is hydraulically opened. The bottom is lifted and unloaded with double bars. It comes standard with a domestic oil pump, multi way valve, power take-off, hydraulic cylinder, and oil pump.

Product Name： Dongfeng D9 self dumping docking garbage truck
Driving Type： 4×2
Weight /Volume：
Garbage container volume(cbm)： 15 or 17

Product Features

Dongfeng D9 self dumping docking garbage truck

The types of garbage trucks include: compression garbage truck, self dumping garbage truck, swing arm garbage truck, pull arm garbage truck, hook arm garbage truck (box detachable garbage truck), sealed garbage truck, hanging bucket garbage truck (self loading and unloading garbage truck)

Docking garbage truck, also known as garbage compression station docking garbage truck, is a specialized vehicle used for garbage transfer and unloading operations in urban garbage compression stations.

Product parameters

Product Name	Dongfeng D9 self dumping docking garbage truck
Driving Type	4×2
Weight /Volume
Garbage container volume(cbm)	15 or 17
Rated payload weight(kg)	7020
Dimensions
Wheelbase(mm)	3950,4500
Overall Dimension(mm)	7050,6500x2470x3050
Engine
Engine brand & model	Commins & ISB180 50
Displacement(L)/Power(kw)	5.9L/132KW
Chassis
Axle Quantity	2
Transmission Type	8 forward gears and 1 rear gear
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	9.00R20,10.00R20, 6 with a spare
Cab
Standard configuration	D9 cab
Air conditioning	YES
Performance parameter
Garbage container material	High quality carbon steel plate fully sealed welded structure
Standard configuration	Made of high-quality carbon plates of national standard thickness from Wugang, with a 3mm thick edge and 4mm thick bottom skeleton carriage. The skeleton carriage is designed and manufactured according to the optimized outer frame style that can withstand the maximum pressure.
Other	The matching garbage bin can be customized.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
