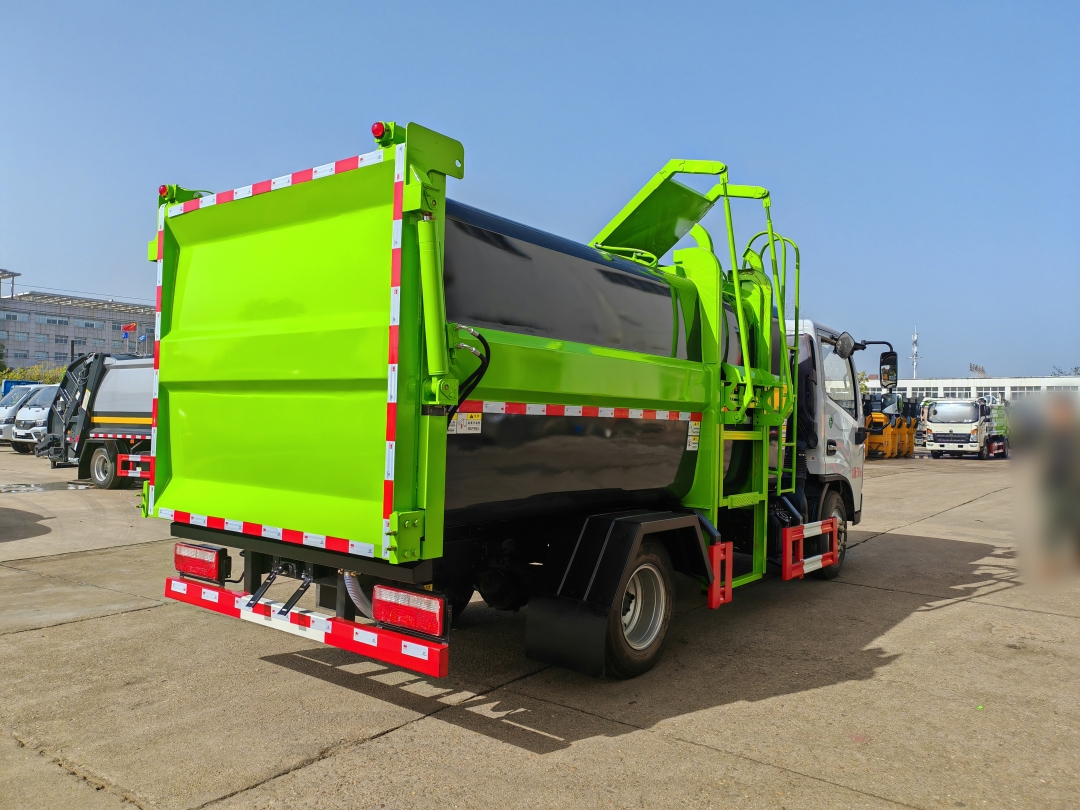

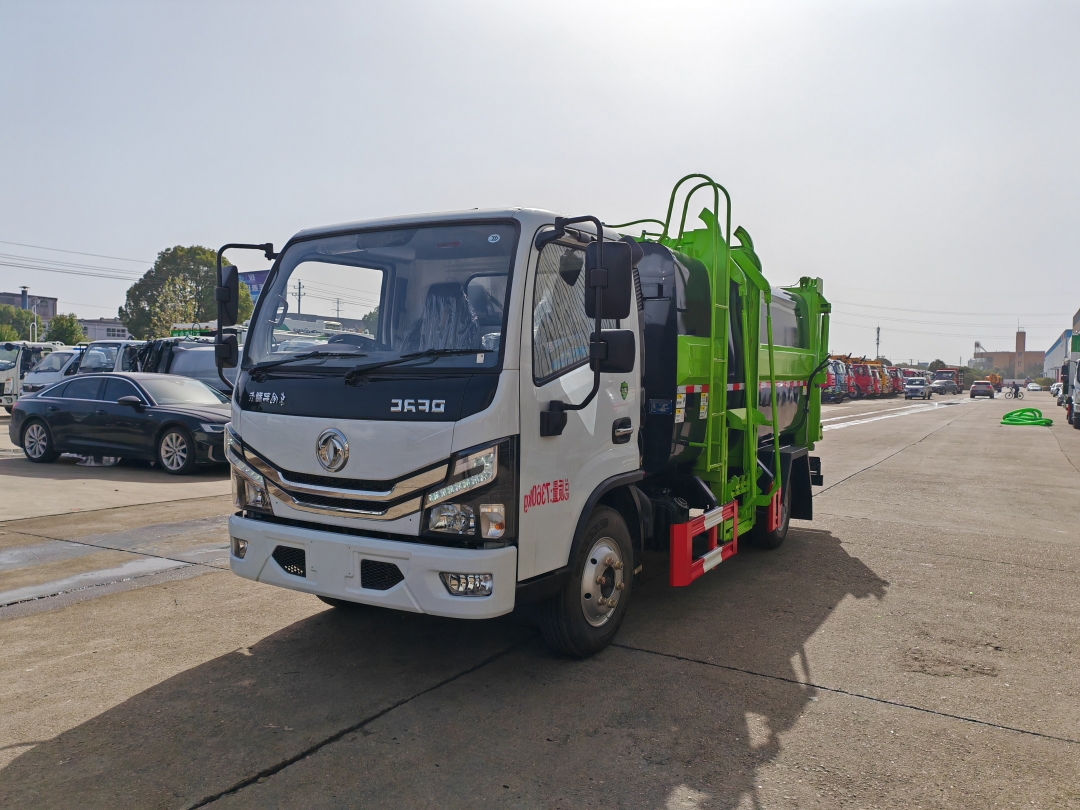

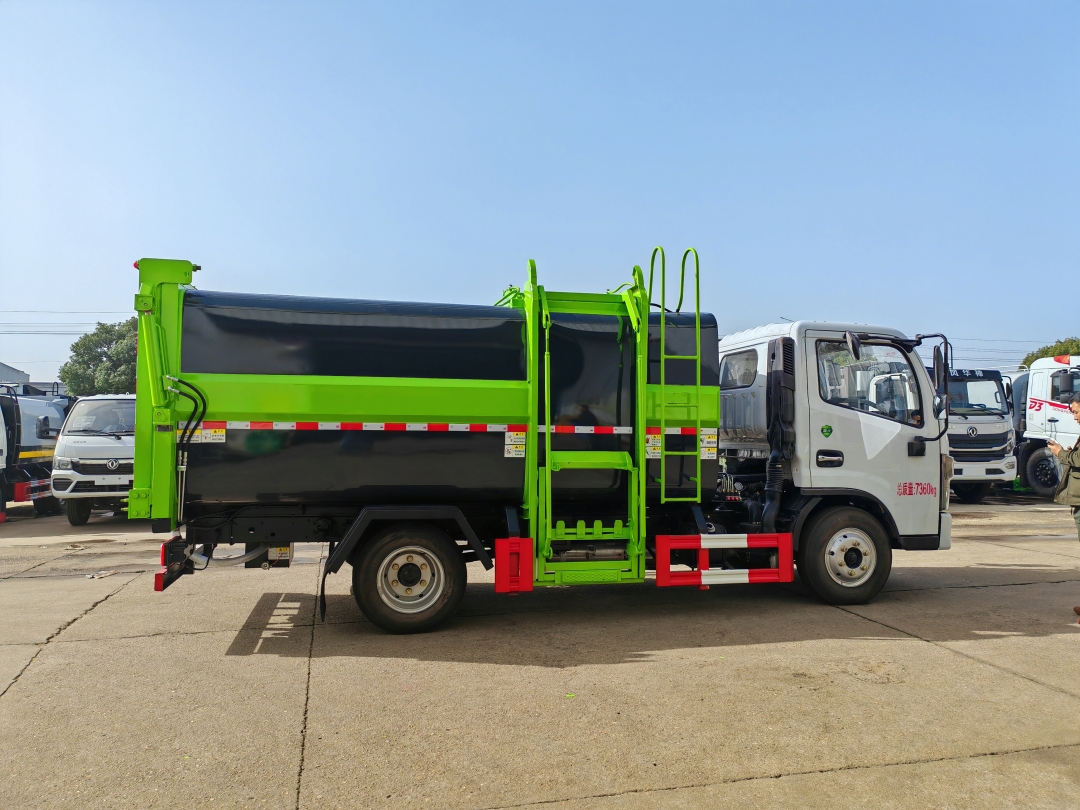

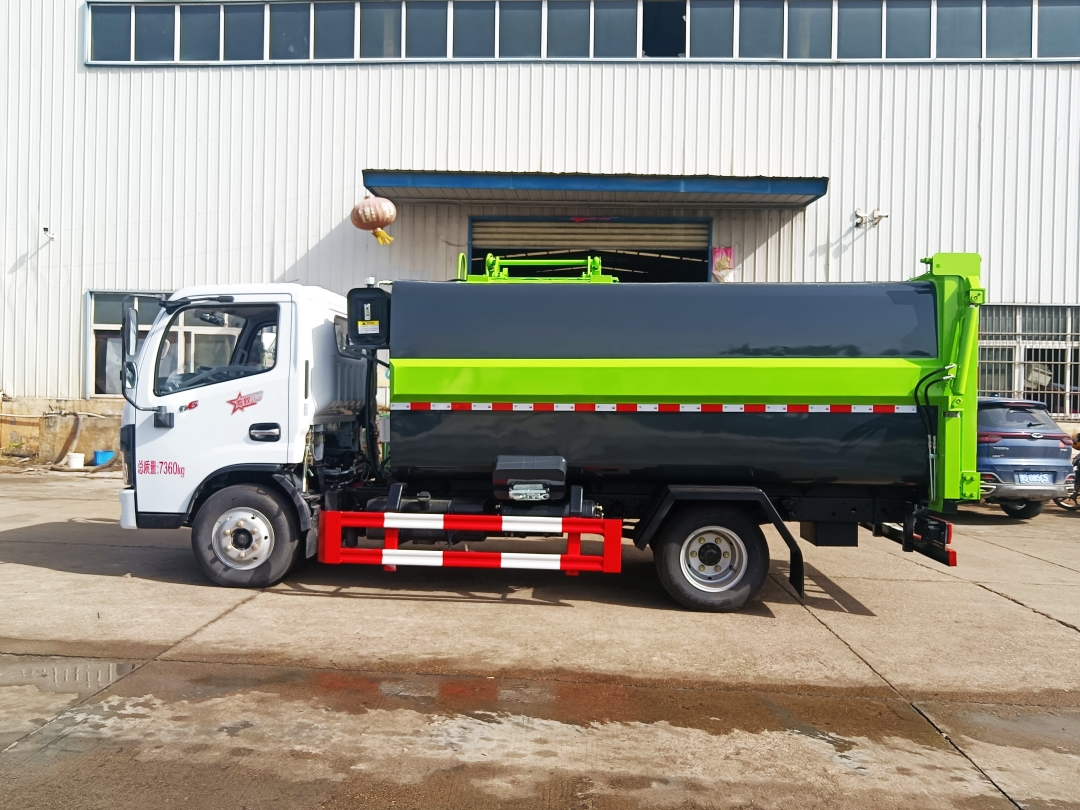

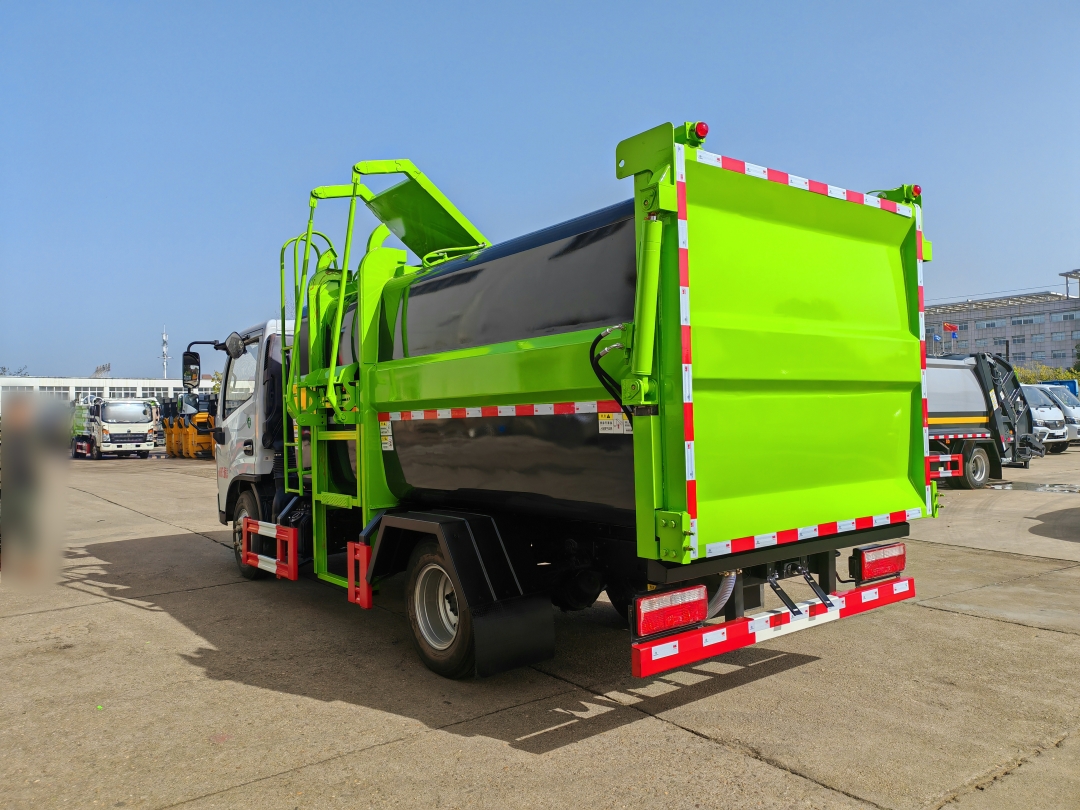

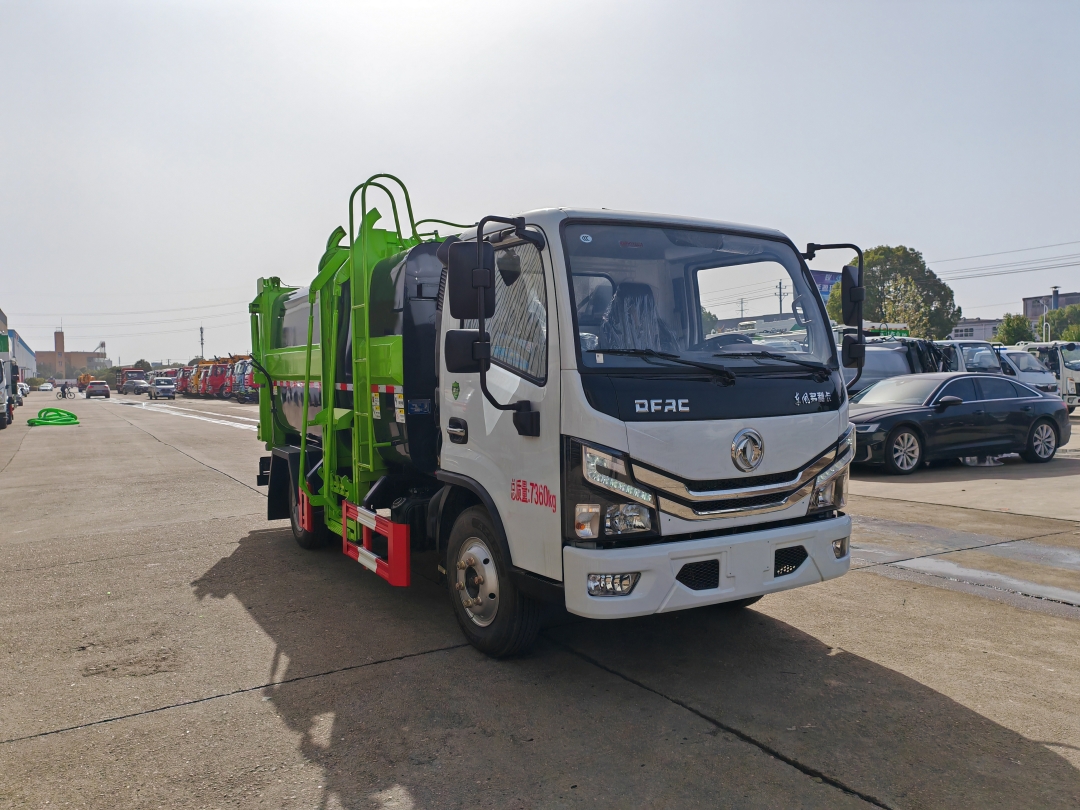

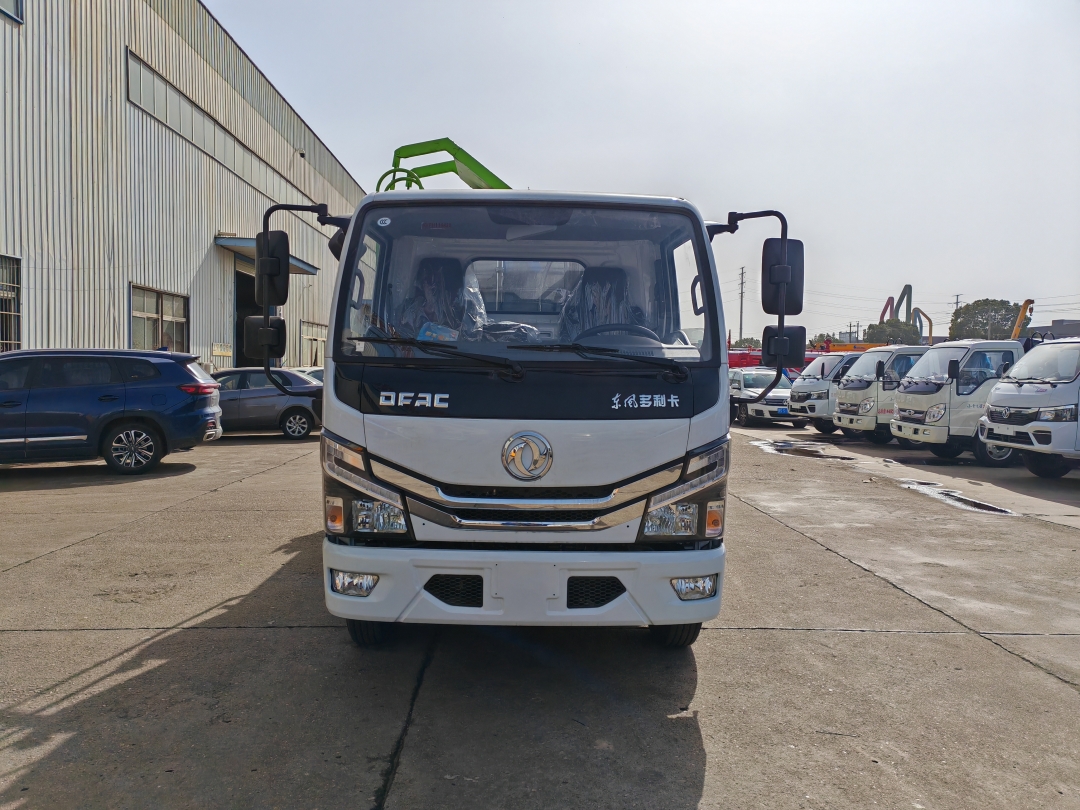

Dongfeng D6 7.5m³ hanging bucket garbage truck

Chassis configuration: Wanliyang 6-speed transmission, 1730 single row cab, 2T front axle, 3.5T rear axle, 7.00R16 steel wire tires, air brake, ABS, air conditioning, electric doors and windows, central locking. Wheelbase: 3308mm, engine: Quanchai 136, Yuchai 140 horsepower.

Product Name： Dongfeng D6 7.5m³ hanging bucket garbage truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 4495(Kg)
Curb weight(Kg)： 3850(Kg)

Product Features

Bucket hanging garbage truck: also known as self loading and unloading garbage truck, refuse collecting truck ,it pours the garbage in the garbage bin into the carriage through a specialized bucket hanging device. This garbage truck is easy to operate and suitable for collecting garbage from scattered trash cans.

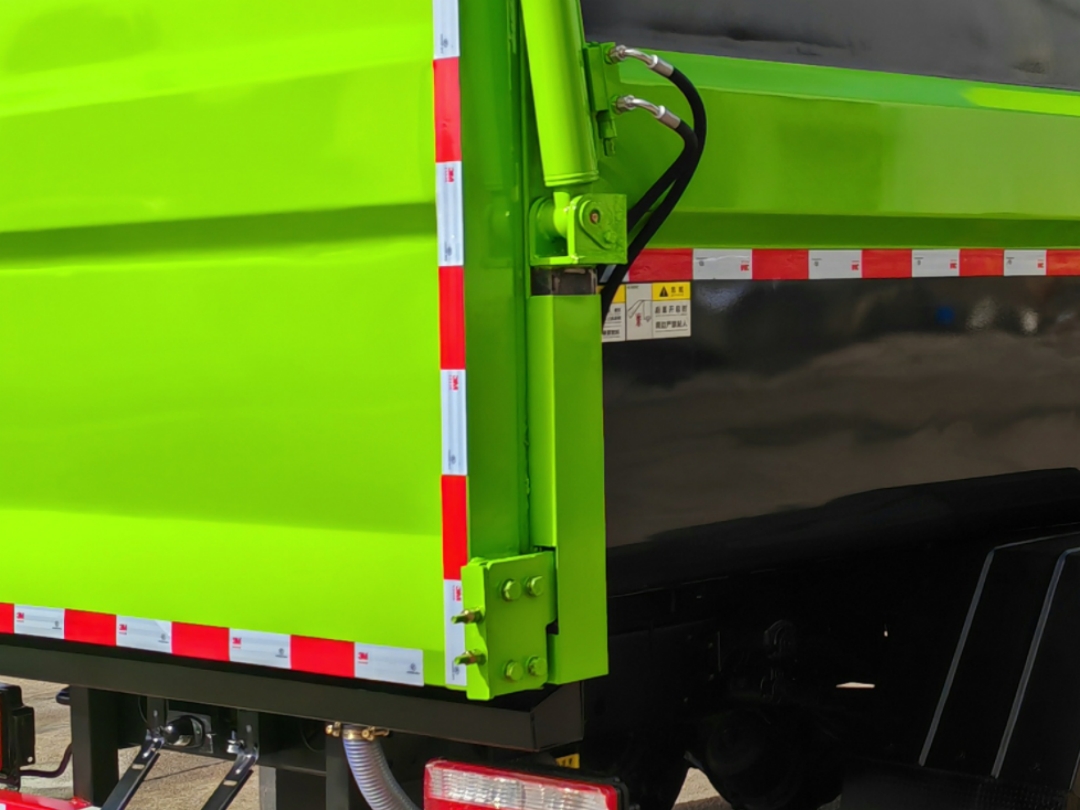

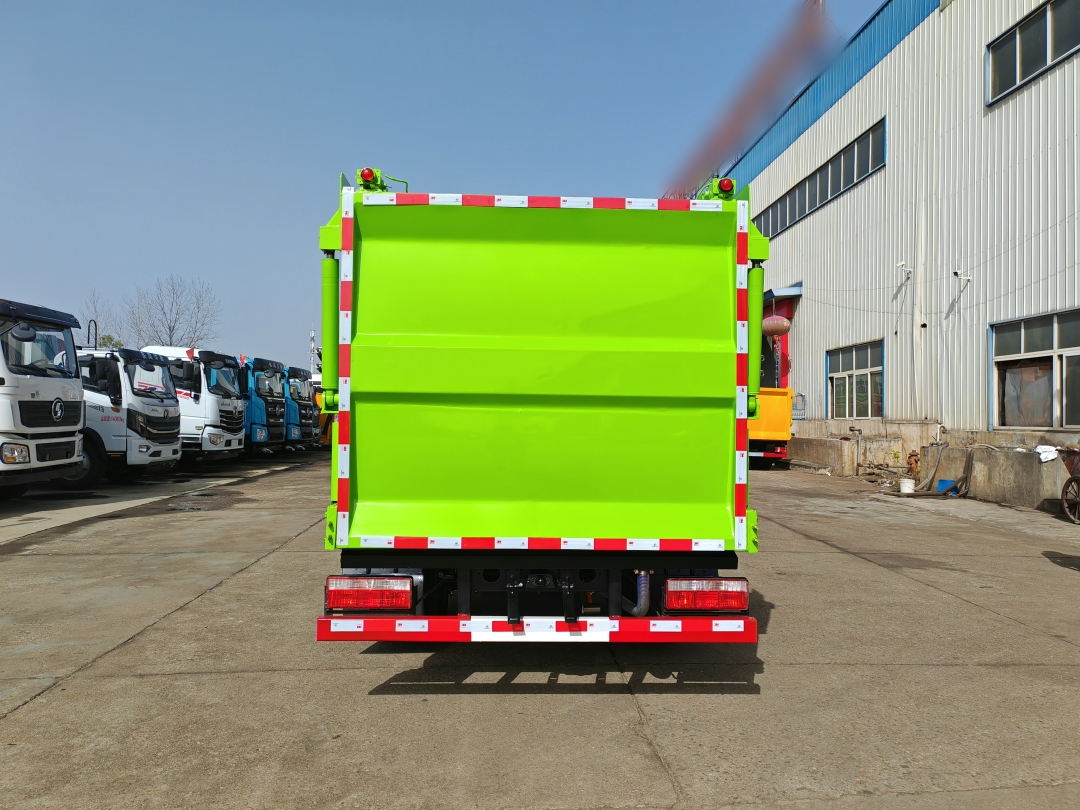

Upper configuration: The upper box body is a new type of reinforced circular arc shape, made of Q345B manganese steel with a thickness of 2 sides and 4 bottoms. The box body has a capacity of 7.5 cubic meters and is equipped with a pull rod elevator that can hang 120L or 240L garbage cans. The rear door is hydraulically locked in reverse, and the middle mounted double top lifting and unloading system uses well-known domestic hydraulic systems (Anhui Wanye pump, Hunan Changsha Zhongmei multi way valve, Hengli customized oil cylinder, Zhejiang Jiashan power take-off). A sewage tank and sewage tank are installed at the tail of the box body to effectively prevent secondary pollution of garbage.

Note: This vehicle is used for loading household waste. If the sealing of the rear door is not sufficient for loading kitchen waste, two sets of manual locks can be installed to closely follow the vehicle belt, and can be installed by oneself after the license plate is attached. Installing a push plate on a blue license plate will result in overweight, and it needs to be removed before being registered.

Product parameters

Product Name	Dongfeng D6 7.5m³ hanging bucket garbage truck
Driving Type	4×2
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	3850(Kg)
Rated weight(kg)	515(Kg)
Wheelbase(mm)	3308(mm)
Overall Dimension(mm)	5780×2170×2780(mm)
Engine brand & model	Q23-136E60,Quanchai 136hp/YCY24140-60,Yuchai 140hp
Displacement(L)/Power(kw)	2.3L/100KW, 2.36L/103kw
Axle Quantity	2
Transmission Type	Wanliyang 6-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16, 6+1 spare
Cab	D6 cab, air conditioning, electric doors and windows, central locking system.
Volume(m³)	7.5m³
Tank body	Reinforced square tank body, Q710 high-strength steel
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
