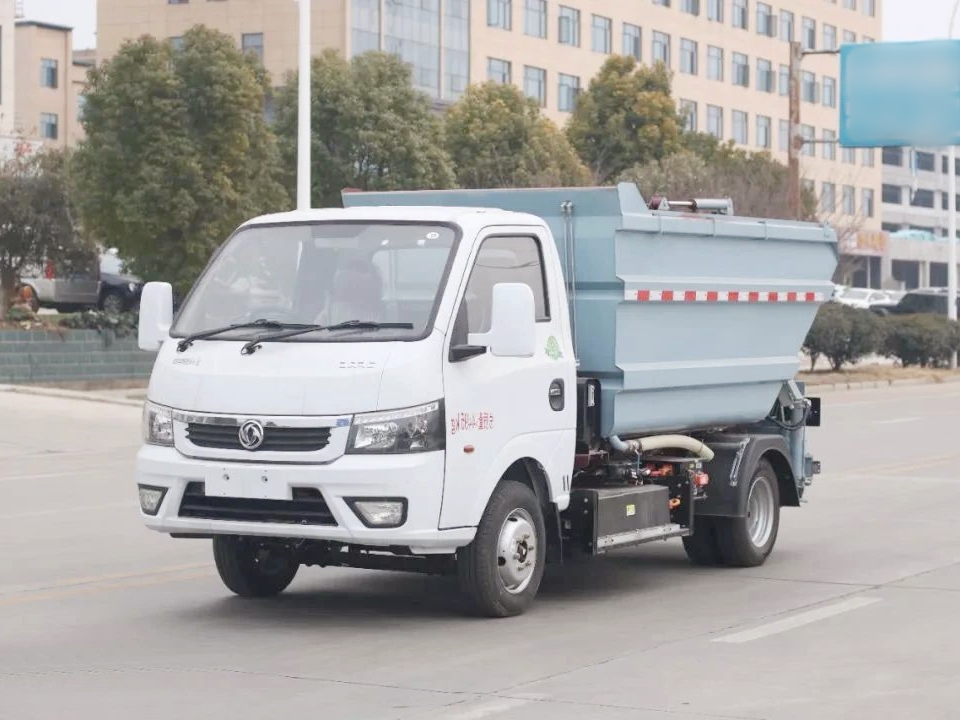

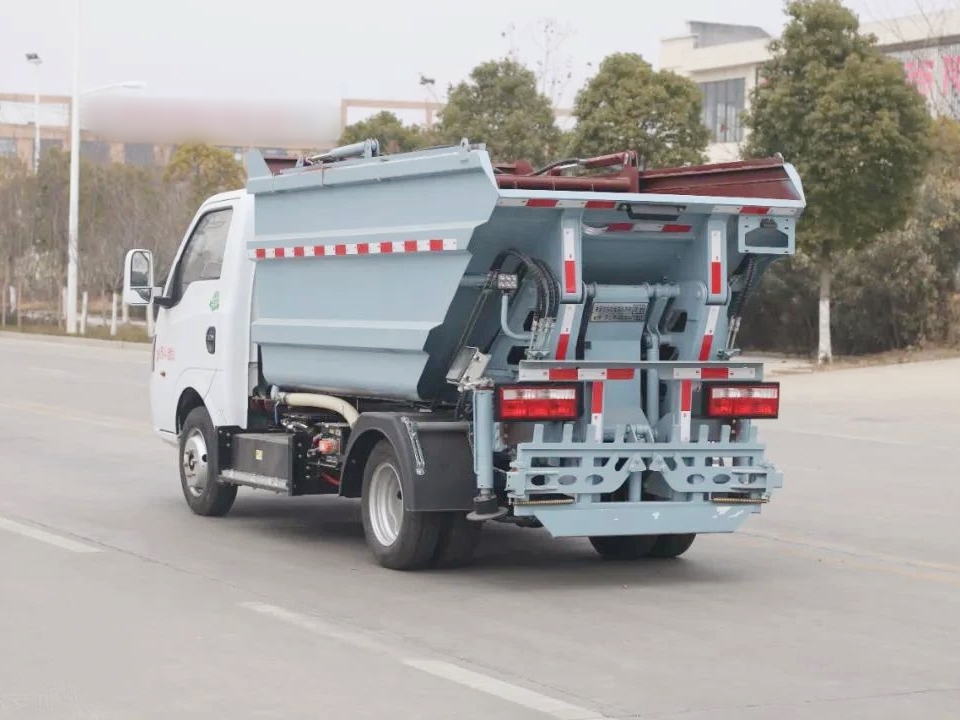

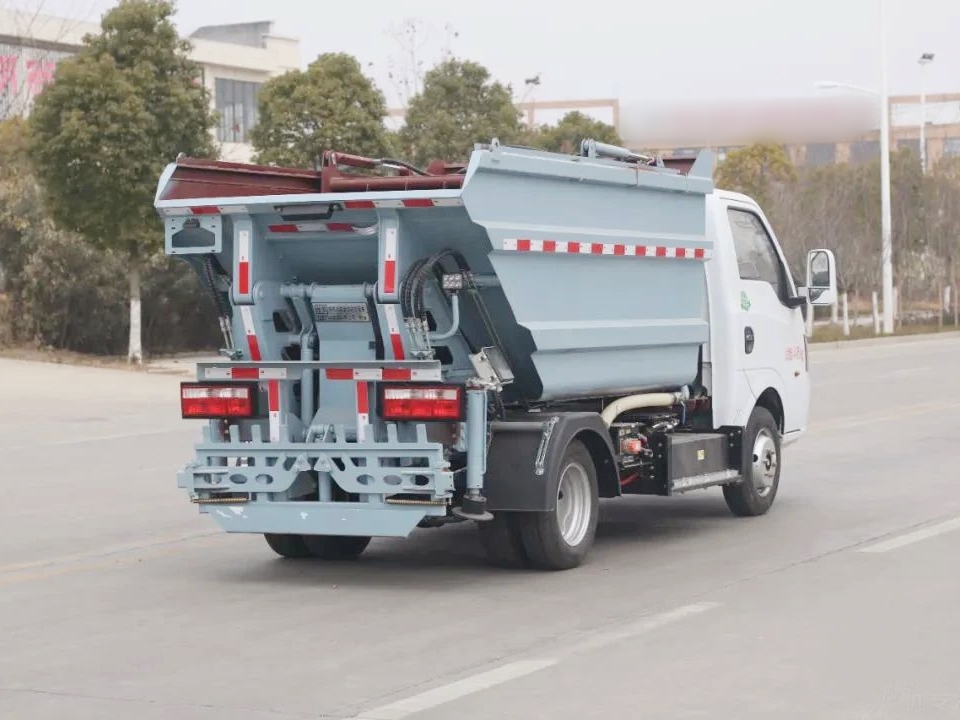

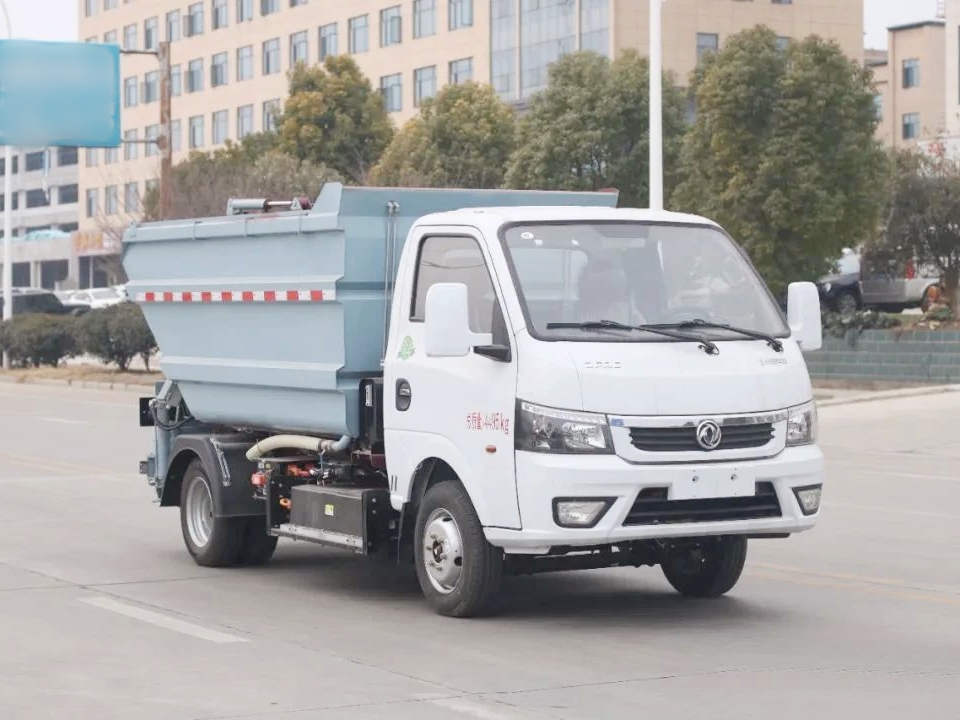

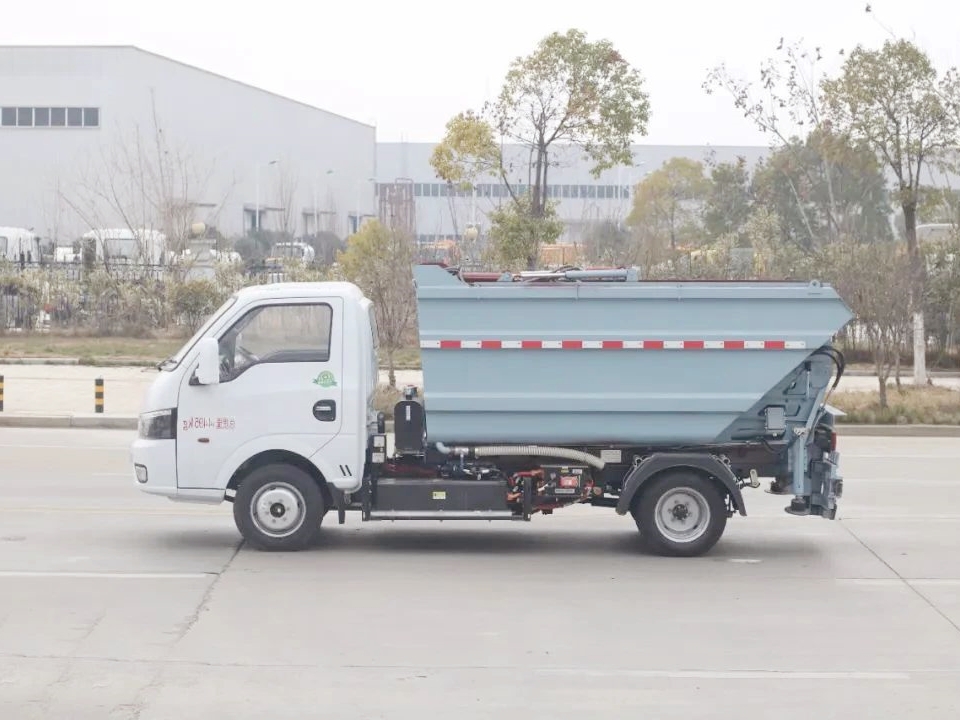

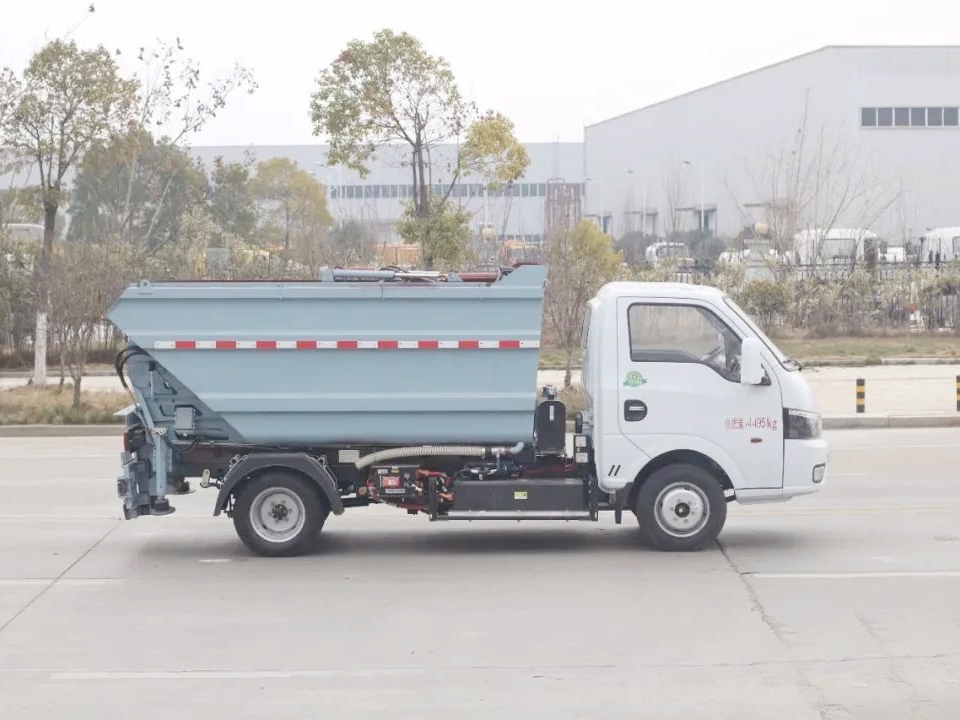

Dongfeng Tuyi 4m³ pure electric high-level dump garbage truck

Wheelbase (mm): 3000

Tire specification: 185R15 vacuum tire

Cab width (mm): 1650
Drive motor: permanent magnet synchronous
Motor power (Kw): 42/100
Battery type: CATL lithium iron phosphate
Total electricity consumption (KWh): 66.84
Battery layout form: side mounted
Charging time (h): 3
Front and rear axles (T): 1.5/3

Product Name： Dongfeng Tuyi 4m³ pure electric high-level dump garbage truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 4495(Kg)
Curb weight(Kg)： 3360(Kg)

Product Features

Dongfeng Tuyi 4m³ pure electric high-level dump garbage truck

Dump garbage truck also known as bucket hanging garbage truck, self loading and unloading garbage truck, refuse collecting truck ,it pours the garbage in the garbage bin into the carriage through a specialized bucket hanging device. This garbage truck is easy to operate and suitable for collecting garbage from scattered trash cans.

The high-level self loading and unloading garbage truck is modified from a second-class chassis with specialized working devices such as garbage bins, bucket flipping mechanisms, sub frames, hydraulic systems, and electronic control systems. Widely applicable to environmental sanitation, municipal administration, property communities, residential areas with high and concentrated garbage, urban streets, etc., it has a sealed self dumping function, hydraulic operation, and convenient intelligence.

Product parameters

Product Name	Dongfeng Tuyi 4m³ pure electric high-level dump garbage truck
Driving Type	4×2
Gross vehicle weight(Kg)	4495(Kg)
Curb weight(Kg)	3360(Kg)
Rated weight(kg)	1005(Kg)
Wheelbase(mm)	3000(mm)
Overall Dimension(mm)	5300,5500×1830×2200(mm)
Engine brand & model	TZ180XSA04
Battery type	CATL Lithium Iron Phosphate
Axle Quantity	2
Transmission Type	5-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	/
Tire Spec. & size	185R15 vacuum tire, 6+1 spare
Cab	Tuyi cab
Volume(m³)	4m³
Tank body	Reinforced square tank body, Q710 high-strength steel
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
