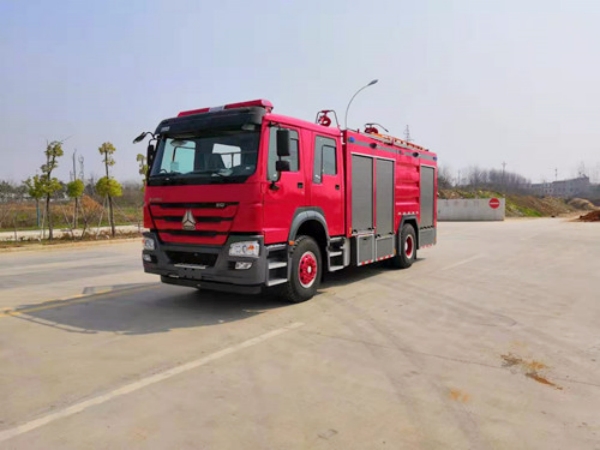

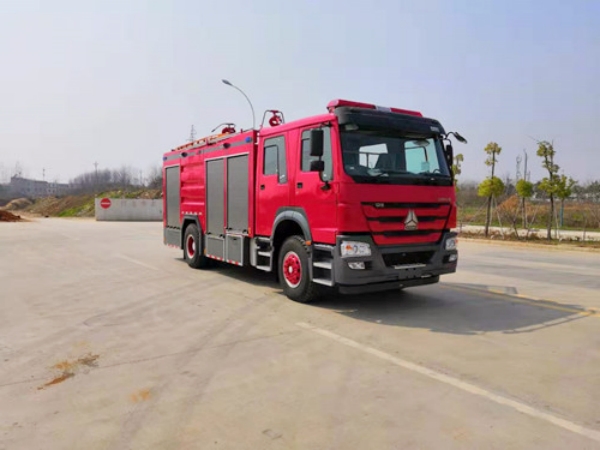

Sinotruk Howo 8T foam dry powder combined fire truck

Chassis configuration:

1.Engine: D10.31-50, 310hp

2.Transmission type: 9-speed gearbox

3.Wheelbase: 4600(mm)

4.Tyre: 1200R20 , 6+1 spare

5.Other: Sinotruk Howo cab

Product Name： Sinotruk Howo 8T foam dry powder combined fire truck
Driving Type： 4X2
Total weight（Kg)： 19450(Kg)
Curb weight(kg)： 6750(Kg)

Product Features

Sinotruk Howo 8T foam dry powder combined fire truck

The dry powder and foam fire truck is a fire extinguishing equipment that integrates the functions of foam fire truck and dry powder fire truck. It is mainly equipped with vehicle fire pump, water tank, foam liquid tank and dry powder extinguishing agent tank, which can spray dry powder and foam at the same time or in sequence.

Product parameters

Product Name	Sinotruk Howo 8T foam dry powder combined fire truck
Driving Type	4X2
Total weight（Kg)	19450(Kg)
Curb weight(kg)	6750(Kg)
Rated weight(kg)	12250(Kg)
person capacity	2+4 person
Wheel base(mm)	4600(mm)
Overall dimension(mm)	8880×2490×3630(mm)
Engine brand & model	D10.31-50, 310hp
Axle Quantity	2
Transmission Type	9-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	1200R20 , 6+1 spare
Cab	The cab is a fully steel frame welded structure, with the front of the passenger compartment connected to the cab and double row four door doors
Tank material	The material is made of high-quality carbon steel (Q235), with a plate thickness of 4mm, and an optional stainless steel tank body, which is durable and long-lasting
Liquid carrying capacity	Water 4000L, foam 2000KG, dry powder 2000L
Fire pump	1. Normal pressure fire pump model: CB10/60 vehicle fire pump, flow rate: 60L/s, pressure: 1.0MPa 2. Water diversion time ≤ 35s (7m suction depth), water ring water diversion, sandwich type full power take-off.
Fire cannon	Model: PL48 fire monitor, flow 48L/S/1MPa, foam range: ≥ 50m, water range ≥ 55m
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
