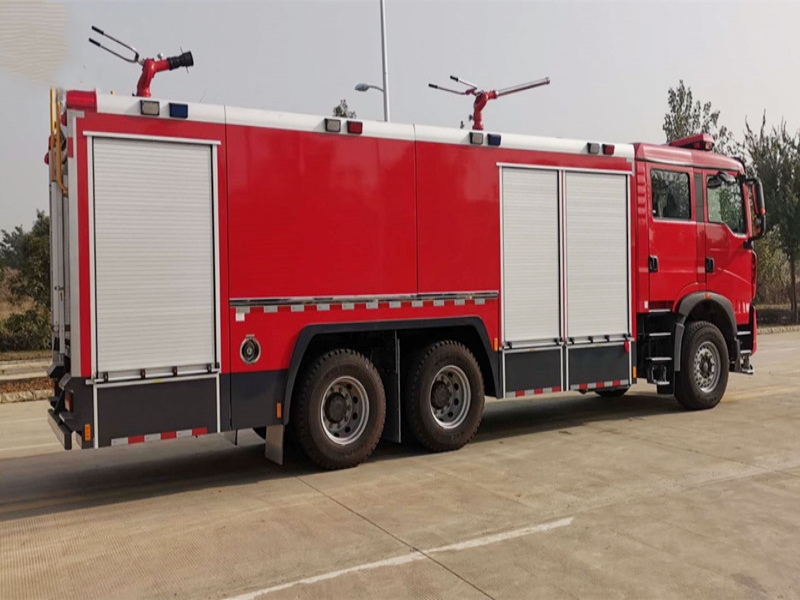

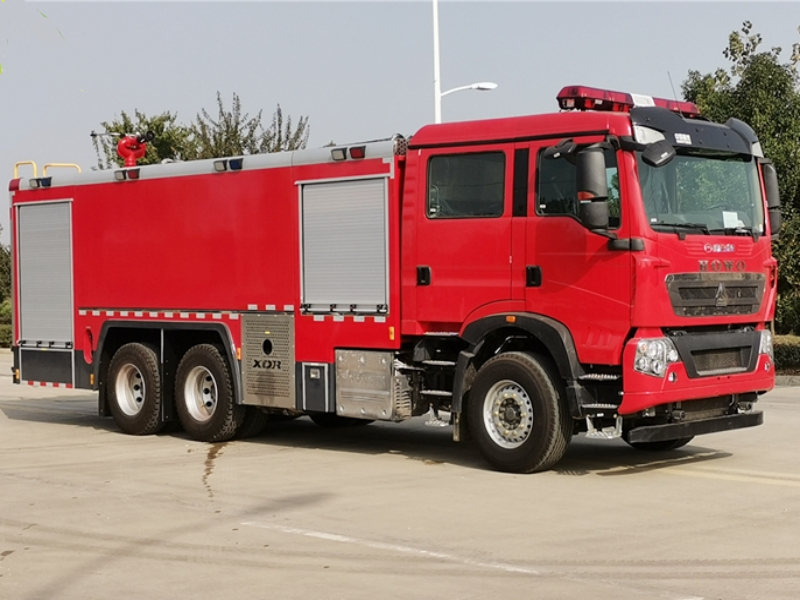

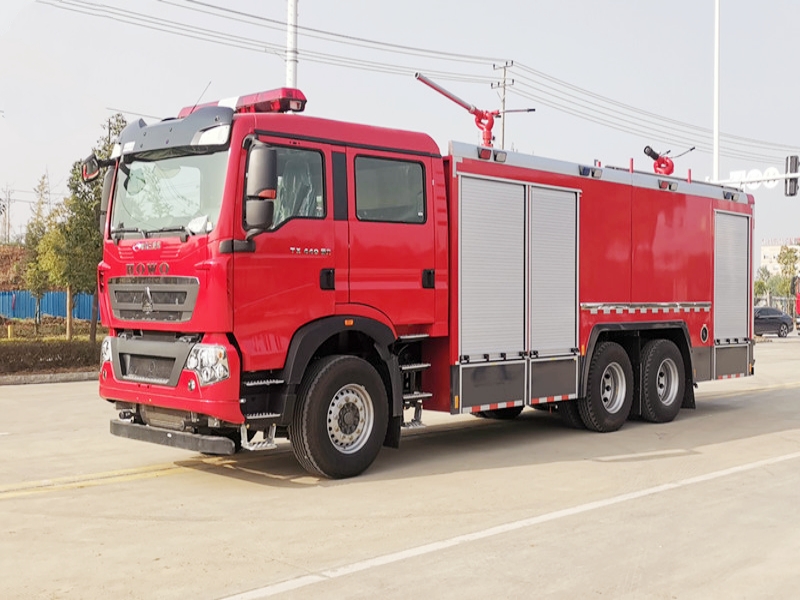

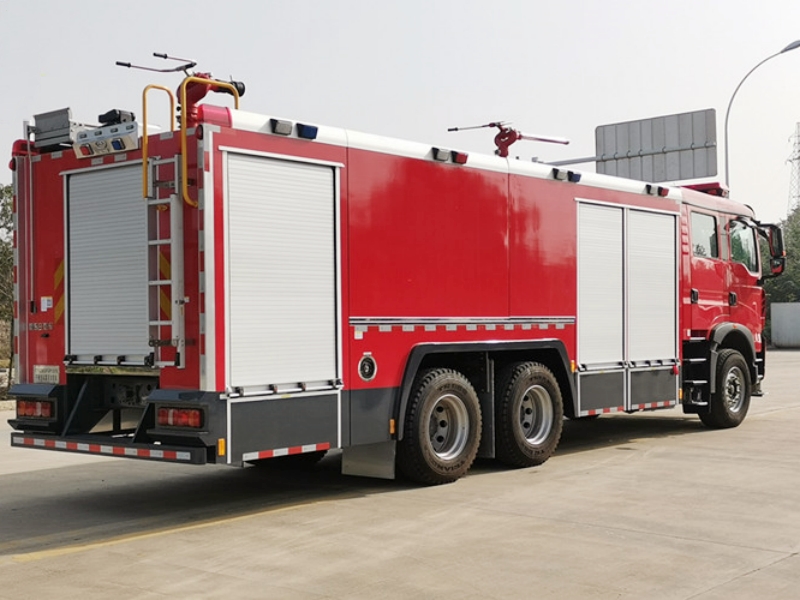

Sinotruk Howo 12t water foam dry powder combined fire truck

Chassis configuration:

1.Engine: MC11.44-60, Sinotruk 440hp

2.Transmission type: 10-speed gearbox

3.Wheelbase: 4600+1400(mm)

4.Tyre: 385/65R22.5 , 10+1 spare

5.Other: Sinotruk Howo cab

Product Name： Sinotruk Howo 12t water foam dry powder combined fire truck
Driving Type： 6X4
Total weight（Kg)： 29730(Kg)
Curb weight(kg)： 16930(Kg)

Product Features

Sinotruk Howo 12t water foam dry powder combined fire truck

The dry powder and foam fire truck is a fire extinguishing equipment that integrates the functions of foam fire truck and dry powder fire truck. It is mainly equipped with vehicle fire pump, water tank, foam liquid tank and dry powder extinguishing agent tank, which can spray dry powder and foam at the same time or in sequence.

Product parameters

Product Name	Sinotruk Howo 12t water foam dry powder combined fire truck
Driving Type	6X4
Total weight（Kg)	29730(Kg)
Curb weight(kg)	16930(Kg)
Rated weight(kg)	12350(Kg)
person capacity	2+4 person
Wheel base(mm)	4600+1400(mm)
Overall dimension(mm)	10200×2550×3620(mm)
Engine brand & model	MC11.44-60, Sinotruk 440hp
Axle Quantity	3
Transmission Type	10-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	385/65R22.5 , 10+1 spare
Cab	Howo cab, Flat head, four door double row cab, with four air breathing apparatus brackets installed on the rear seats
Liquid carrying capacity	Water 6000L, foam 2000KG, dry powder 3000L
Tank material	The water tank is made of high-quality Q235 carbon steel plate, the foam tank is welded with 304 stainless steel, and the dry powder tank body is made of Q345R.
Fire pump	CB20.10/30.60 fire pump
Fire cannon	West PL8/48 fire monitor
Fire cannon range	≥60m
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
