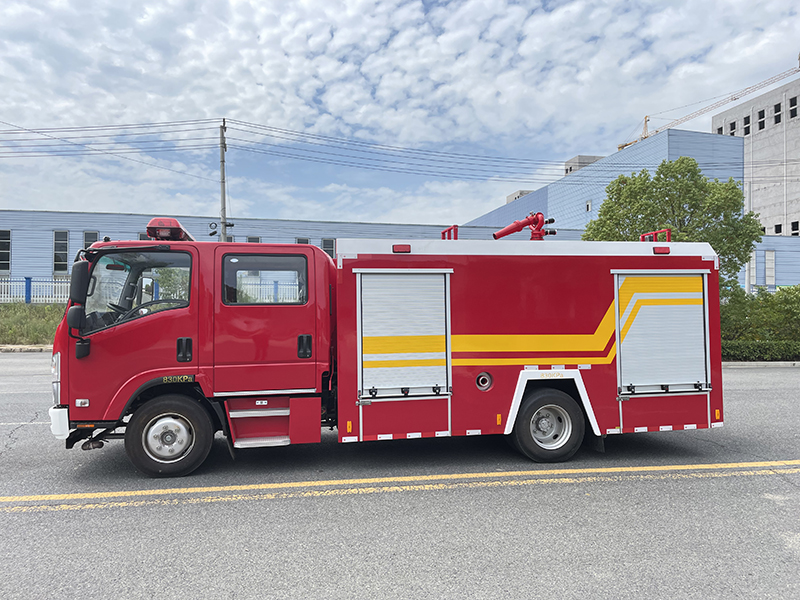

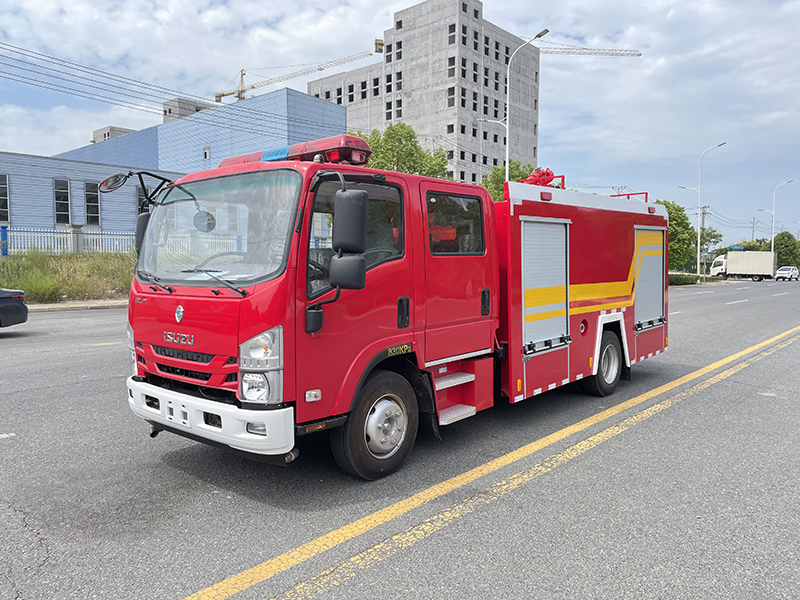

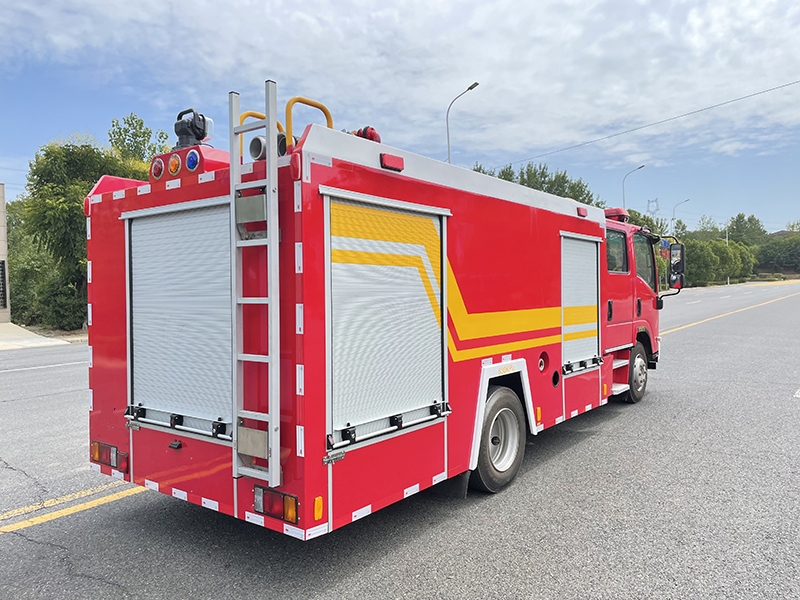

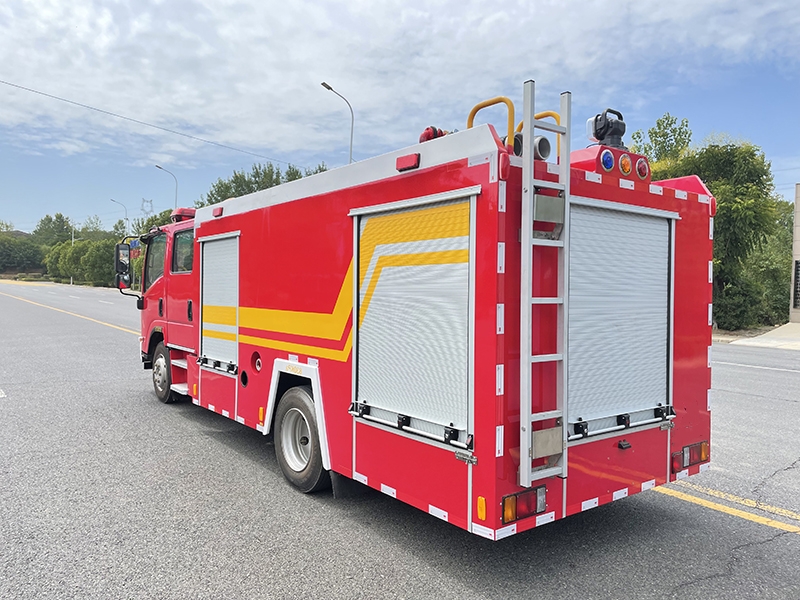

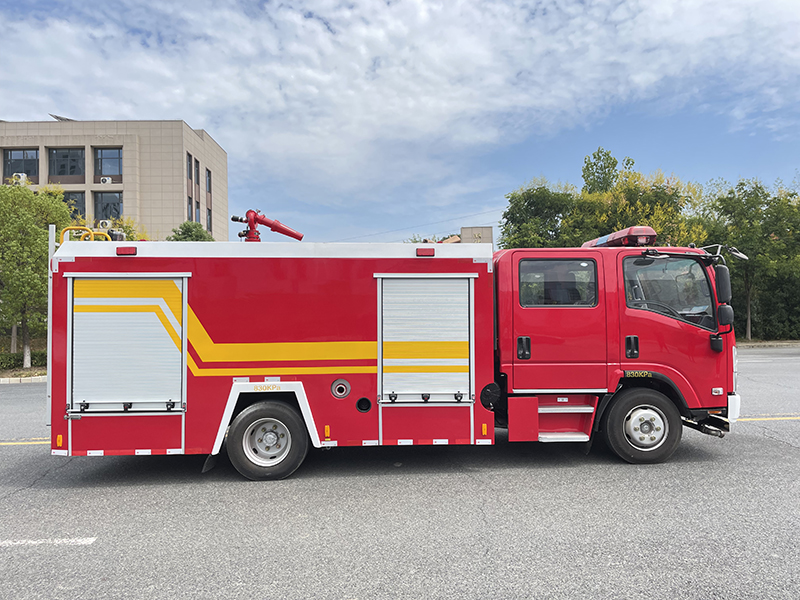

ISUZU 3.5-ton foam fire truck

Product description

The ISUZU 3.5-ton foam fire truck is modified from the Chongqing Isuzu 700P Class II chassis. The whole vehicle is composed of a fireman's cab and a car body. The cab is a double cab, which can accommodate 3+3 people. The car is an exposed tank structure. The front part of the car body is an equipment box, the middle part is a water tank and a foam tank, and the rear part is a pump room. The liquid carrier tank is made of carbon steel, internally sprayed with epoxy primer and epoxy asphalt paint, elastically connected with the chassis, with a water capacity of 2500kg and a foam capacity of 1029kg. It is equipped with CB20.10/15.30 medium and low pressure fire pump, with a rated flow of 30L/S. PS30 fire monitor is installed on the roof. The characteristics of this car are large liquid capacity, good handling, and easy maintenance. It can be widely used in public security fire brigades, factories, mines, communities, docks and other places to extinguish large-scale oil fires and general material fires.

Product Name： ISUZU 3.5-ton foam fire truck
Driving Type： 4X2
Total weight（Kg)： 10200(Kg)
Curb weight(kg)： 6200(Kg)

Product Features

ISUZU 3.5-ton foam fire truck

Foam fire truck is a special vehicle equipped with various fire-fighting equipment or extinguishing agents, mainly used for fire fighting and emergency rescue. It consists of a liquid tank, a pump room, an equipment box, a power output and transmission system, a piping system, and an electrical system. The foam fire truck is suitable for urban public security fire brigade, petrochemical industry, factories and mining enterprises, forests, ports, docks and other departments, especially for petrochemical and other dangerous fire sites.

Product parameters

Product Name	ISUZU 3.5-ton foam fire truck
Driving Type	4X2
Total weight（Kg)	10200(Kg)
Curb weight(kg)	6200(Kg)
Rated weight(kg)	3550(Kg)
Wheel base(mm)	3815(mm)
Overall dimension(mm)	6990×2200×2950(mm)
Engine brand & model	4HK1-TCG61，190HP
Axle Quantity	2
Transmission Type	6-speed gearbox, manual
Steering Type	LHD or RHD with power steering
Tire Spec. & size	235/75R17.5 16PR,8.25R20 14PR , 6+1 spare
Cab	Four door flat head all metal enclosed cab, original double row cab, panoramic curved windshield, front bumper, front combination light fixture, electric glass window, front grille lower cover.
Extinguishing Media	water/foam/dry-powder
Tank material	Made of high-quality carbon steel material (Q235), welded structure, equipped with longitudinal and anti sway plates, and treated with epoxy anti-corrosion. 304 stainless steel and PP materials can be selected
Tank volume	2.5 ton water+1 ton foam
Equipment box	The fire pump is located in the middle or rear of the box, with four water outlets on both sides of the pump room and new high-strength aluminum alloy rolling shutter doors on both sides of the equipment box. The equipment bracket adopts aluminum alloy profiles produced by European technology, with a fully internal hexagonal connection structure manufactured by a concealed tower connection, which is beautiful and durable.
Electrical configuration	The front end of the top of the fire truck cab is equipped with a long row of red warning lights, and a red circular warning light is installed on the top of the rear of the vehicle. There is one 24V and one 60W fire lighting lamp at the front and rear of the roof. The vehicle is equipped with red and blue matching flashing lights on both sides, safety sign lights and side reflectors installed below, front and rear clearance lights, and one turn signal light on each side. Lighting fixtures are installed in the passenger compartment, equipment box, and pump room.
Fire cannon	Shanghai CB10/30,
Fire pump	West PW30W
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
