Foton 4x2 6-ton foam fire truck

Product description

Foton foam fire truck is composed of Class II truck chassis, tank body, water pump, pipeline, instrument circuit system and other components. The car is equipped with aluminum alloy rear ladder (detachable). The pump room is at the rear of the car. The tank body is welded with steel plate. The water tank is made of high-quality carbon steel plate. The tank body is subject to anti-corrosion treatment. The water carrying capacity is 4.5 m3. The foam material is high-quality stainless steel plate, and the foam liquid carrying capacity is 1.5 m3. The CB10/30 fire pump equipped on the vehicle, PL8/24 dual-purpose fire monitor.

Product Name： Foton 4x2 6-ton foam fire truck
Driving Type： 4X2
Total weight（Kg)： 13590(Kg)
Curb weight(kg)： 7250(Kg)

Product Features

Foton 4x2 6-ton foam fire truck

Foam fire truck is a special vehicle equipped with various fire-fighting equipment or extinguishing agents, mainly used for fire fighting and emergency rescue. It consists of a liquid tank, a pump room, an equipment box, a power output and transmission system, a piping system, and an electrical system. The foam fire truck is suitable for urban public security fire brigade, petrochemical industry, factories and mining enterprises, forests, ports, docks and other departments, especially for petrochemical and other dangerous fire sites.

Product parameters

Product Name	Foton 4x2 6-ton foam fire truck
Driving Type	4X2
Total weight（Kg)	13590(Kg)
Curb weight(kg)	7250(Kg)
Rated weight(kg)	5890(Kg)
Wheel base(mm)	4300,4500,3800(mm)
Overall dimension(mm)	7745×2450×3280(mm)
Engine brand & model	WP4.1NQ190E61, Weichai 190hp
Axle Quantity	2
Transmission Type	6-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	air brake
Tire Spec. & size	8.25R20 16PR,9.00R20 16PR, 6+1 spare
Cab	Flat head, four door double row cab, with three air breathing apparatus brackets installed on the rear seats
Extinguishing Media	water/foam/dry-powder
Tank material	the water tank is made of high-quality carbon steel plate, and the foam tank is made of high-quality stainless steel plate
Tank volume	4500L water tank+1500L foam tank

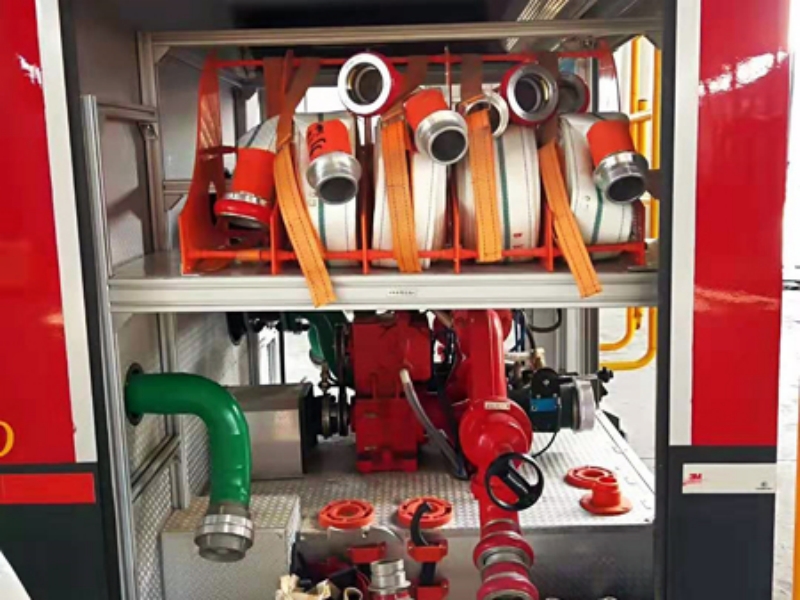

Equipment box	The fire pump is located in the middle or rear of the box, with four water outlets on both sides of the pump room and new high-strength aluminum alloy rolling shutter doors on both sides of the equipment box. The equipment bracket adopts aluminum alloy profiles produced by European technology, with a fully internal hexagonal connection structure manufactured by a concealed tower connection, which is beautiful and durable.
Electrical configuration	The front end of the top of the fire truck cab is equipped with a long row of red warning lights, and a red circular warning light is installed on the top of the rear of the vehicle. There is one 24V and one 60W fire lighting lamp at the front and rear of the roof. The vehicle is equipped with red and blue matching flashing lights on both sides, safety sign lights and side reflectors installed below, front and rear clearance lights, and one turn signal light on each side. Lighting fixtures are installed in the passenger compartment, equipment box, and pump room.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
