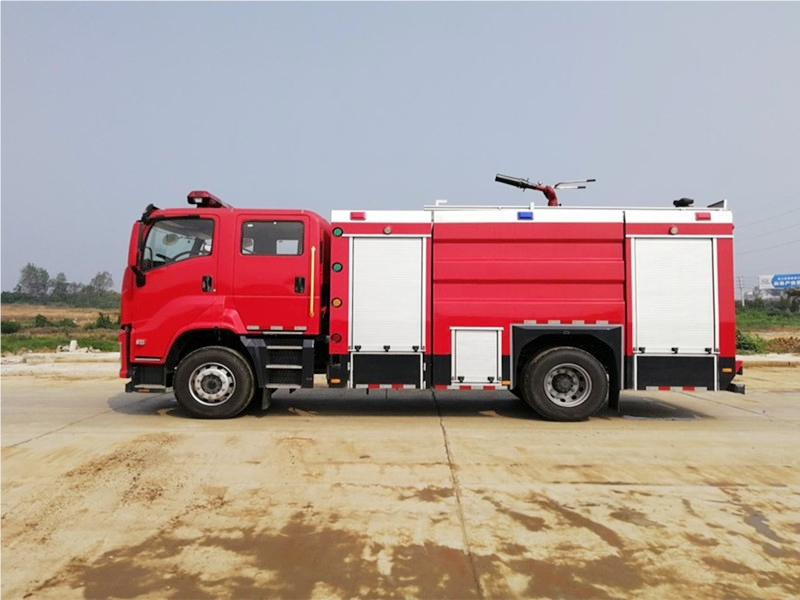

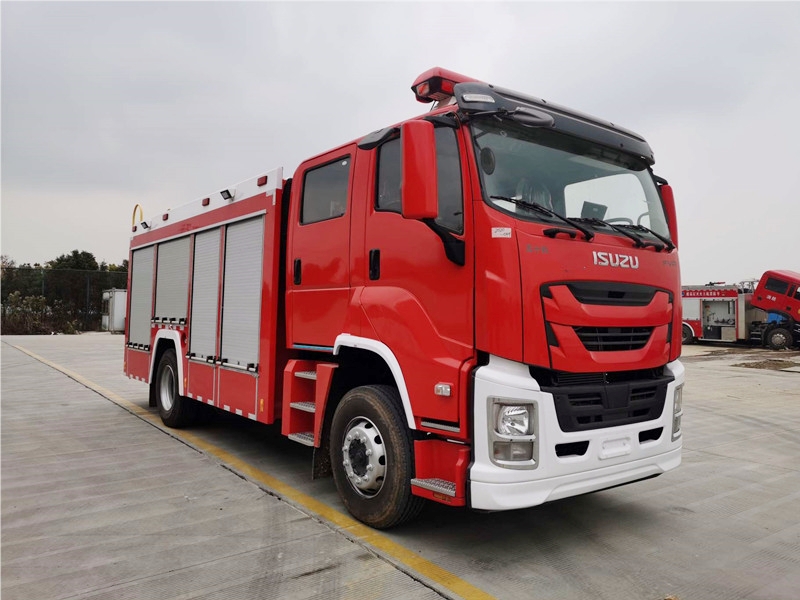

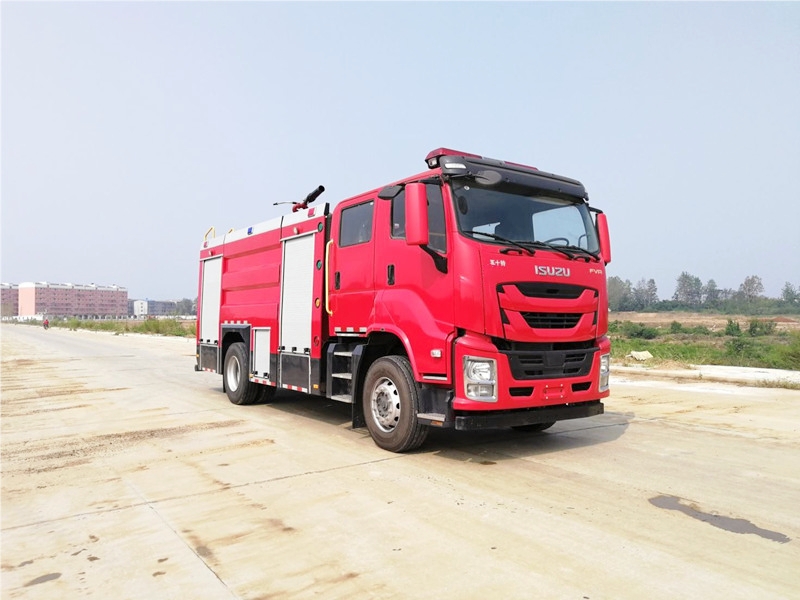

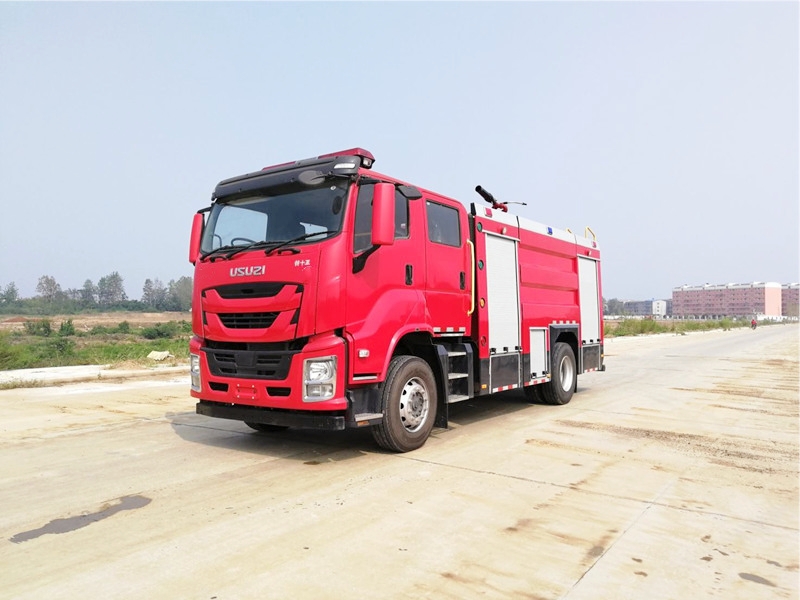

Isuzu 6-ton foam fire truck

Chassis configuration:

1. Engine: 6HK1-TCG61, 240hp

2.Transmission type: 6-speed gearbox

3.Tyre: 295/80R22.5 16PR, 6+1 spare

4.Wheelbase:4500,5550(mm)

5.Other: Four door flat head all metal enclosed cab, original double row cab, panoramic curved windshield, front bumper, front combination light fixture, electric glass window, and lower front bumper.

Product Name： Isuzu 6-ton foam fire truck
Driving Type： 4X2
Total weight（Kg)： 16900(Kg)
Curb weight(kg)： 10450(Kg)

Product Features

Isuzu 6-ton foam fire truck

Foam fire truck is a special vehicle equipped with various fire-fighting equipment or extinguishing agents, mainly used for fire fighting and emergency rescue. It consists of a liquid tank, a pump room, an equipment box, a power output and transmission system, a piping system, and an electrical system. The foam fire truck is suitable for urban public security fire brigade, petrochemical industry, factories and mining enterprises, forests, ports, docks and other departments, especially for petrochemical and other dangerous fire sites.
characteristic
• Low water consumption: foam fire trucks use high expansion foam to extinguish the fire, and the water consumption is small.
• High fire extinguishing efficiency: foam can quickly cover the fire source, isolate the air and effectively extinguish the fire.
• Strong adaptability: suitable for high-rise buildings, oil and other types of fires.

Product parameters

Product Name	Isuzu 6-ton foam fire truck
Driving Type	4X2
Total weight（Kg)	16900(Kg)
Curb weight(kg)	10450(Kg)
Rated weight(kg)	6000(Kg)
Wheel base(mm)	4500,5550(mm)
Overall dimension(mm)	8160×2540×3750(mm)
Engine brand & model	6HK1-TCG61, 240hp
Axle Quantity	2
Transmission Type	6-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	air brake
Tire Spec. & size	295/80R22.5 16PR, 6+1 spare
Cab	Four door flat head all metal enclosed cab, original double row cab, panoramic curved windshield, front bumper, front combination light fixture, electric glass window, and lower front bumper.
Extinguishing Media	water/foam/dry-powder
Tank material	Made of high-quality carbon steel material (Q235), welded structure, equipped with longitudinal and transverse anti sway plates, and treated with epoxy anti-corrosion. The foam tank is equipped with 304 stainless steel as standard, and the water tank can be made of 304 stainless steel
Tank volume	4m³ water tank+2m³ foam tank
Equipment box	The fire pump is located in the middle or rear of the box, with four water outlets on both sides of the pump room and new high-strength aluminum alloy rolling shutter doors on both sides of the equipment box. The equipment bracket adopts aluminum alloy profiles produced by European technology, with a fully internal hexagonal connection structure manufactured by a concealed tower connection, which is beautiful and durable.
Electrical configuration	The front end of the top of the fire truck cab is equipped with a long row of red warning lights, and a red circular warning light is installed on the top of the rear of the vehicle. There is one 24V and one 60W fire lighting lamp at the front and rear of the roof. The vehicle is equipped with red and blue matching flashing lights on both sides, safety sign lights and side reflectors installed below, front and rear clearance lights, and one turn signal light on each side. Lighting fixtures are installed in the passenger compartment, equipment box, and pump room.
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
