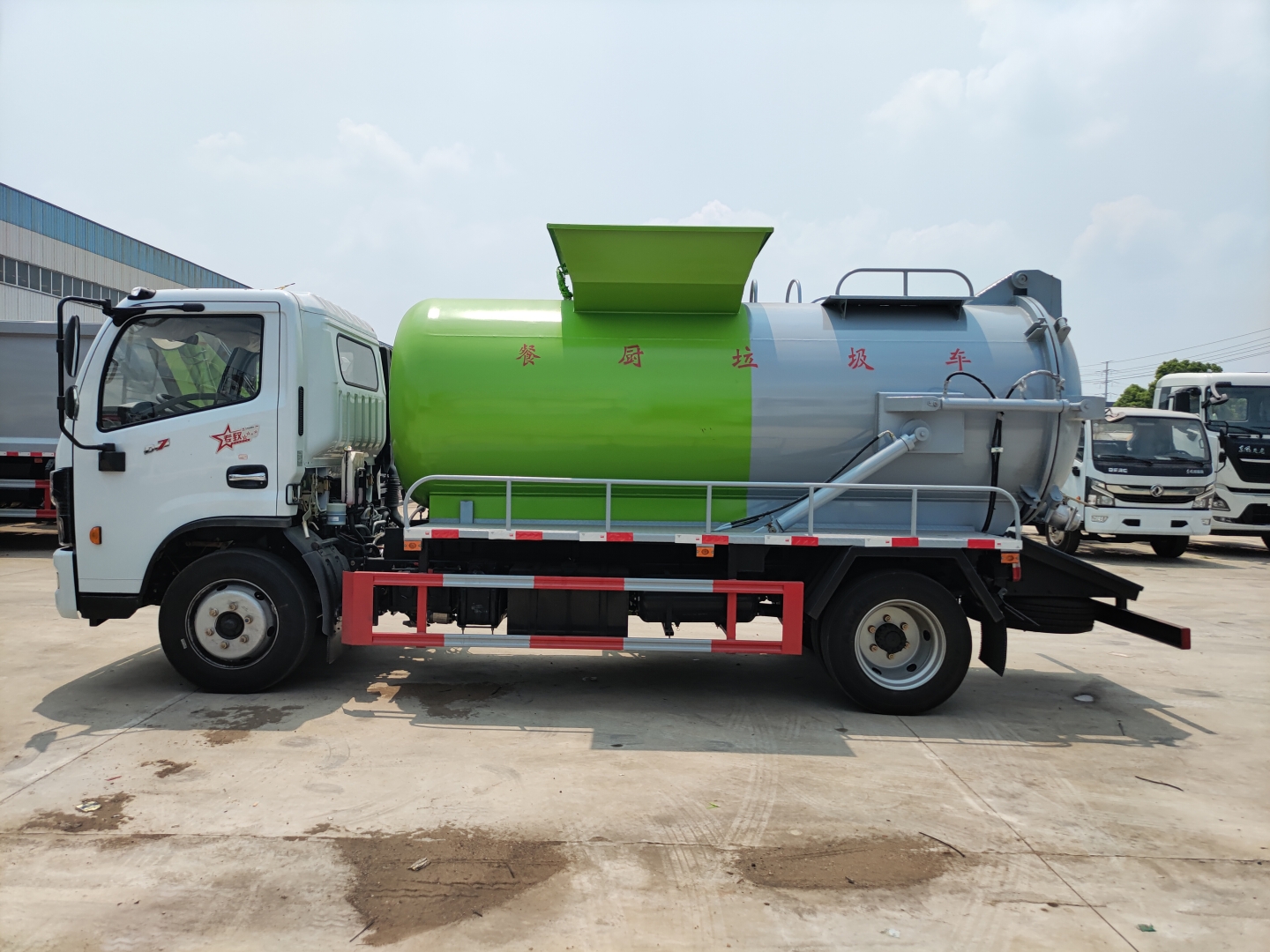

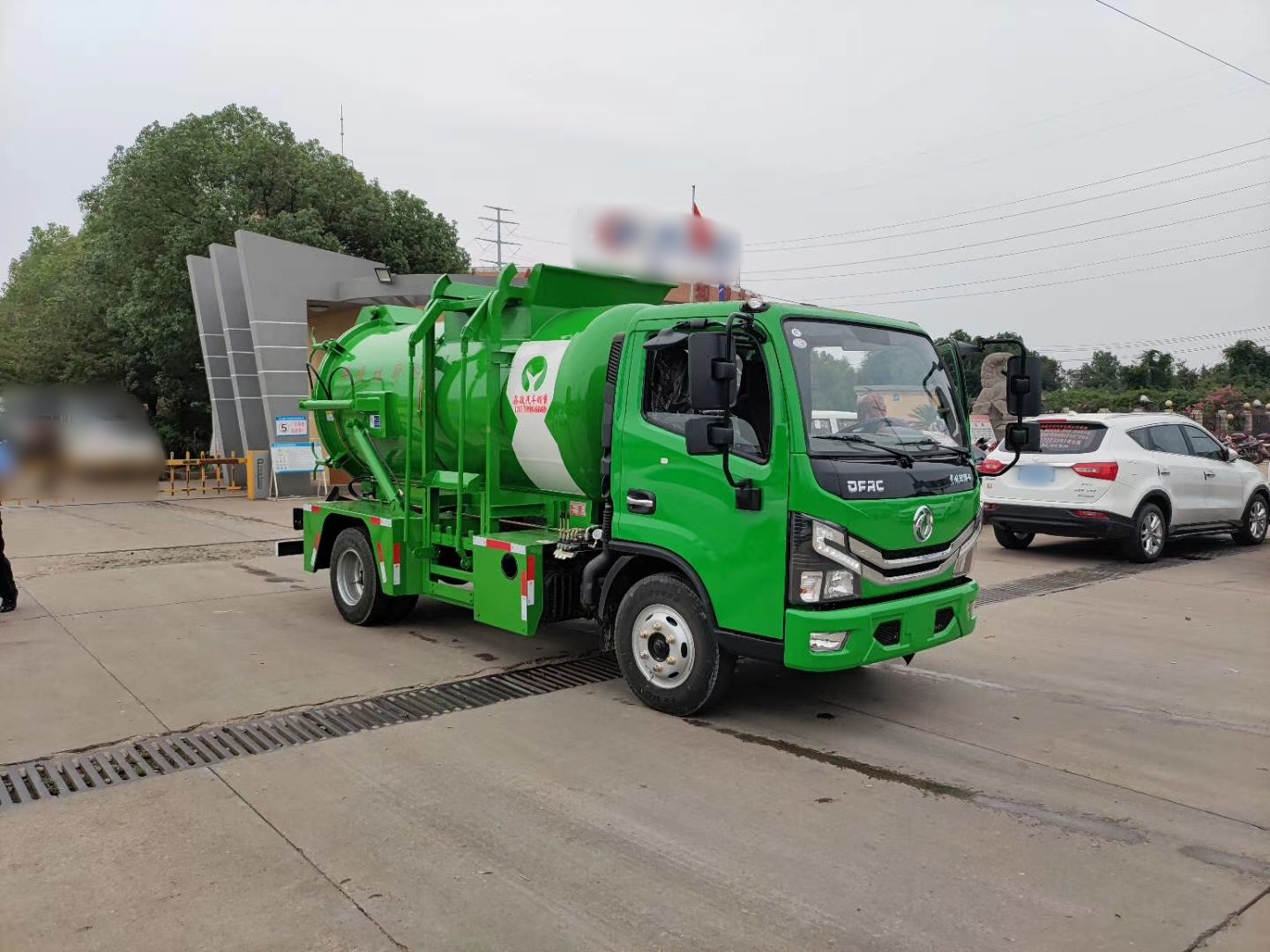

Dongfeng D7 4X2 Kitchen Waste Truck

Chassis configuration:

1.Engine: Quanchai 156HP/Yuchai 165 HP

2.Transmission type: Wanliyang 6-speed gearbox

3.Wheelbase: 3800(mm)

4.Tyre: 245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR,255/70R22.5 16PR, 6+1 spare

5.Other: Double layer straight through beam, air brake, factory air conditioning, electrician doors and windows, central locking system, multifunctional steering wheel, factory power take-off.

Product Name： Dongfeng D7 4X2 Kitchen Waste Truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 11995(Kg)
Curb weight(Kg)： 6150(Kg)

Product Features

Dongfeng D7 4X2 Kitchen Waste Truck

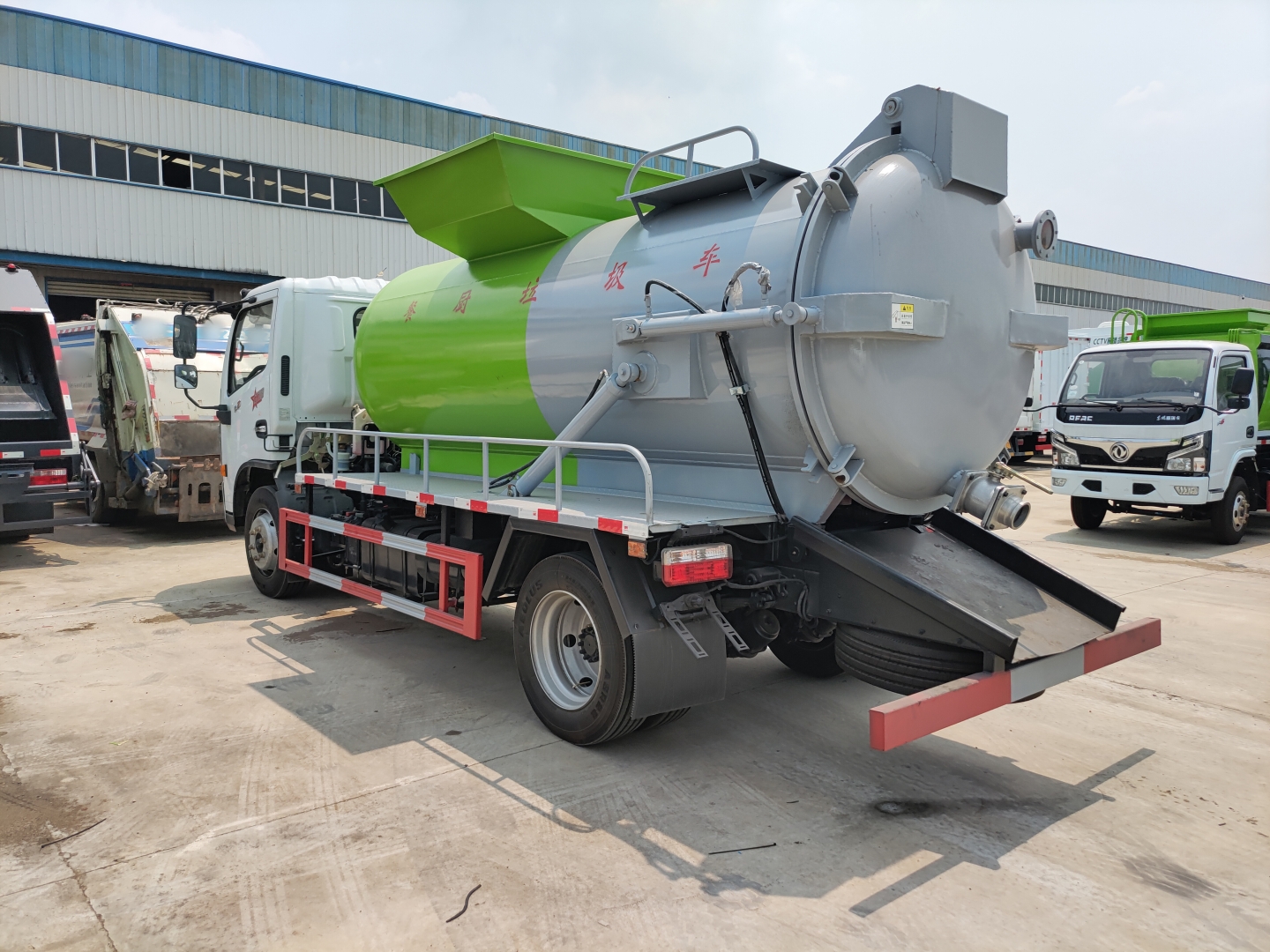

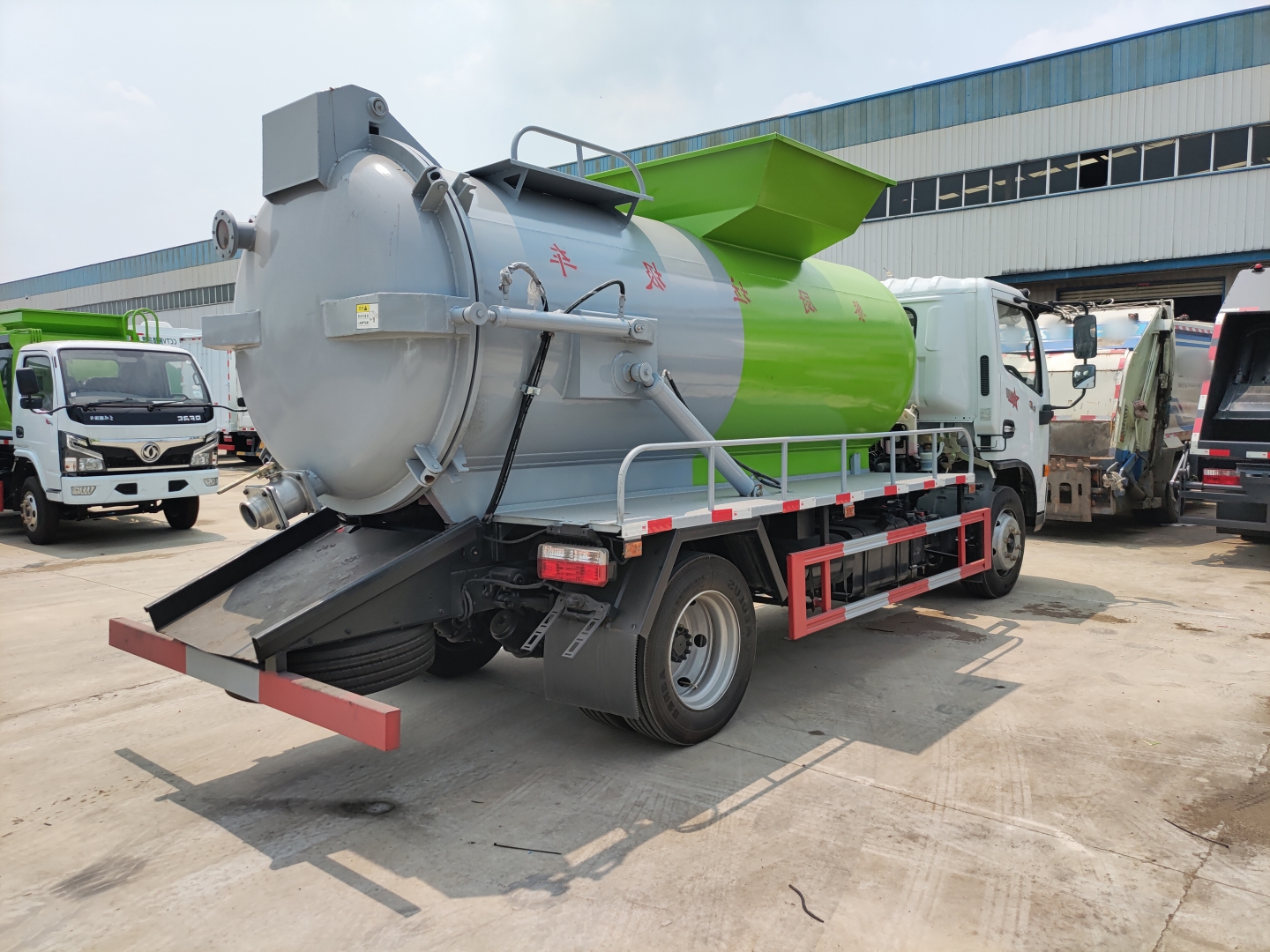

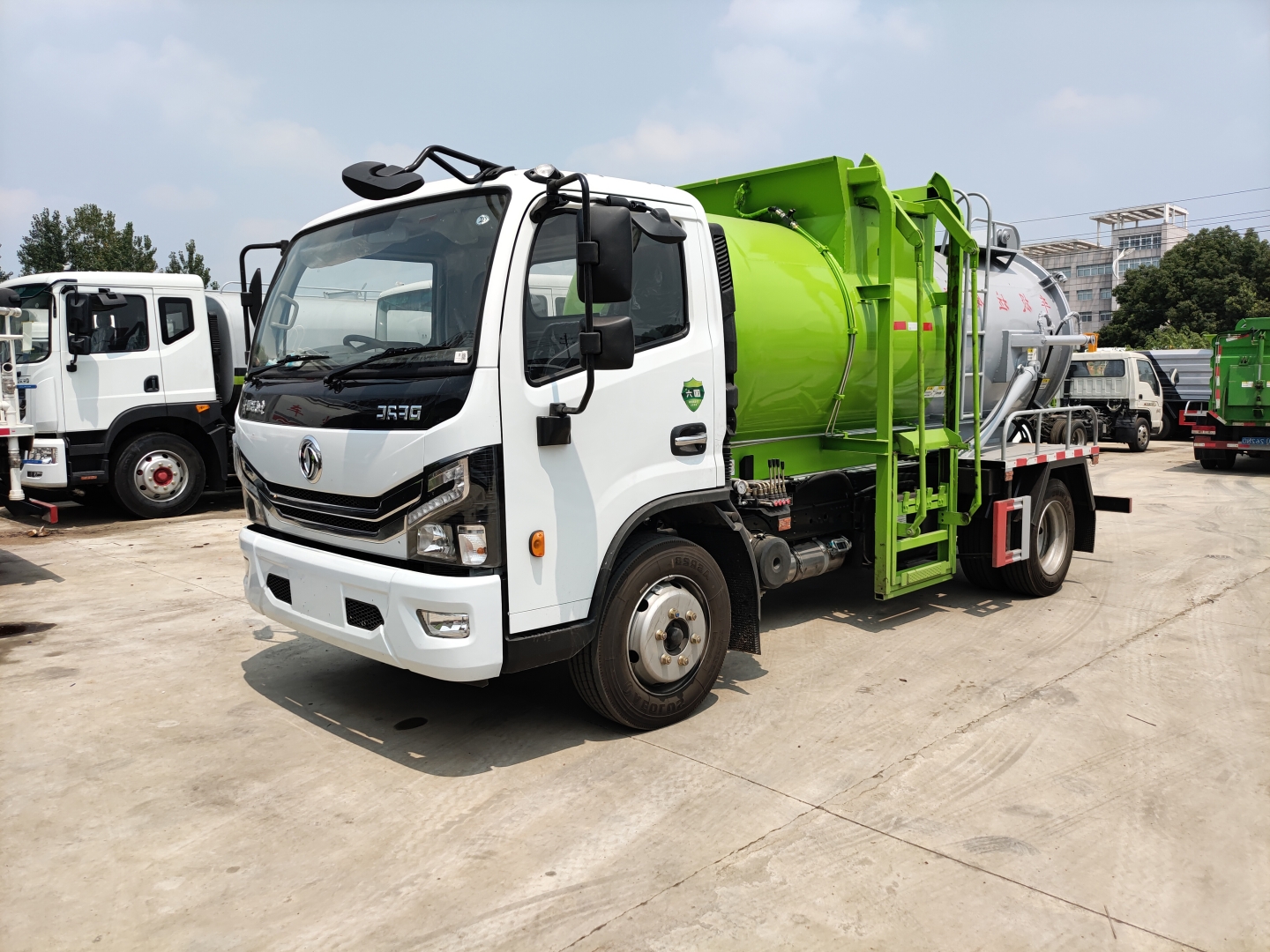

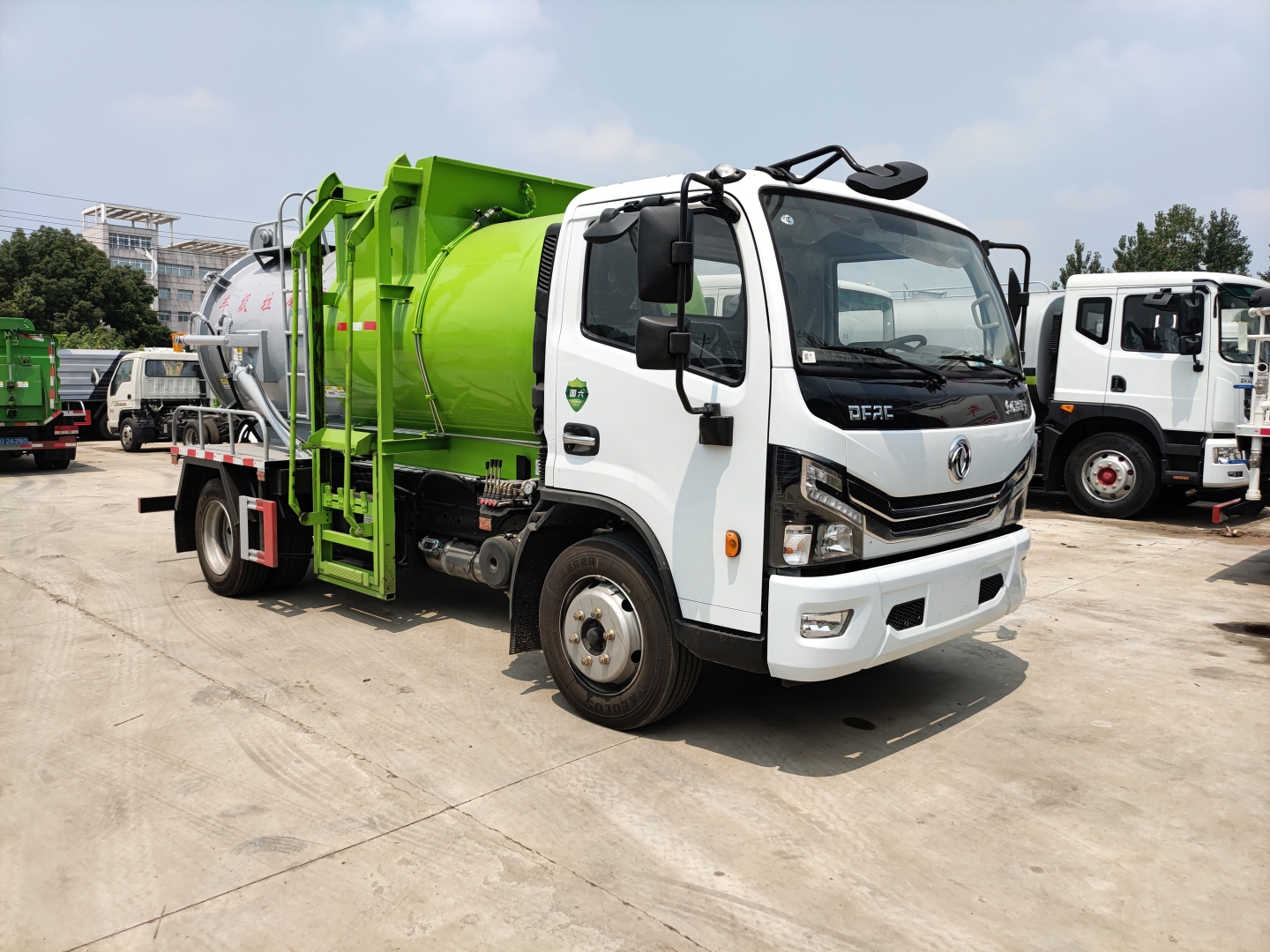

Kitchen waste truck, also known as meal waste truck, kitchen waste truck or swill truck, is a type of garbage truck used for collecting and transporting household waste, food waste (swill) and urban sludge.

Installation configuration :

The circular tank body is made of Q345 manganese steel high-strength plate, with a thickness of 6mm. It adopts a well-known domestic brand hydraulic system (domestic well-known oil pump, Hunan Changsha domestic well-known multi way valve, customized oil cylinder for kitchen and dining, Zhejiang Jiashan power take-off),

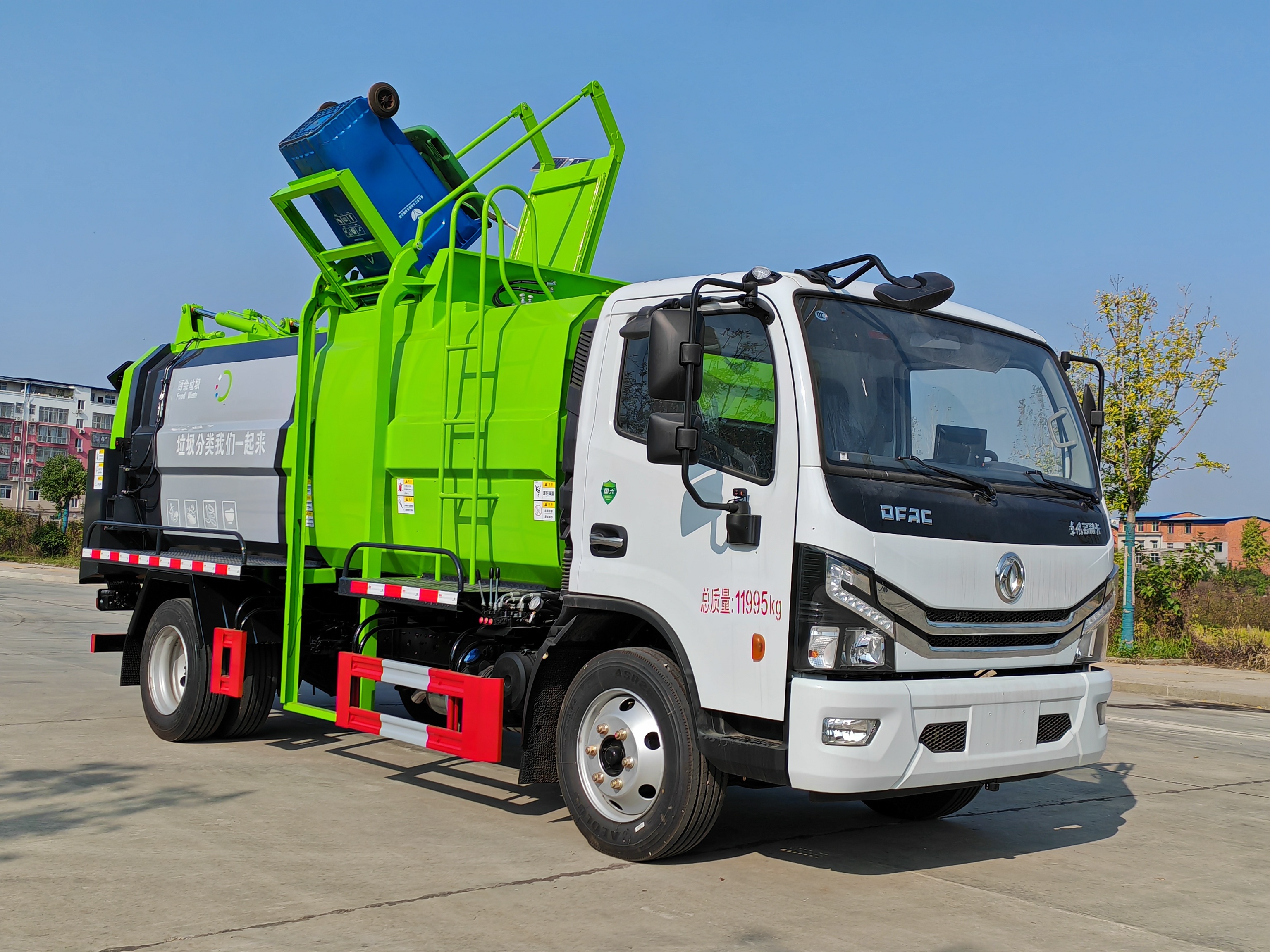

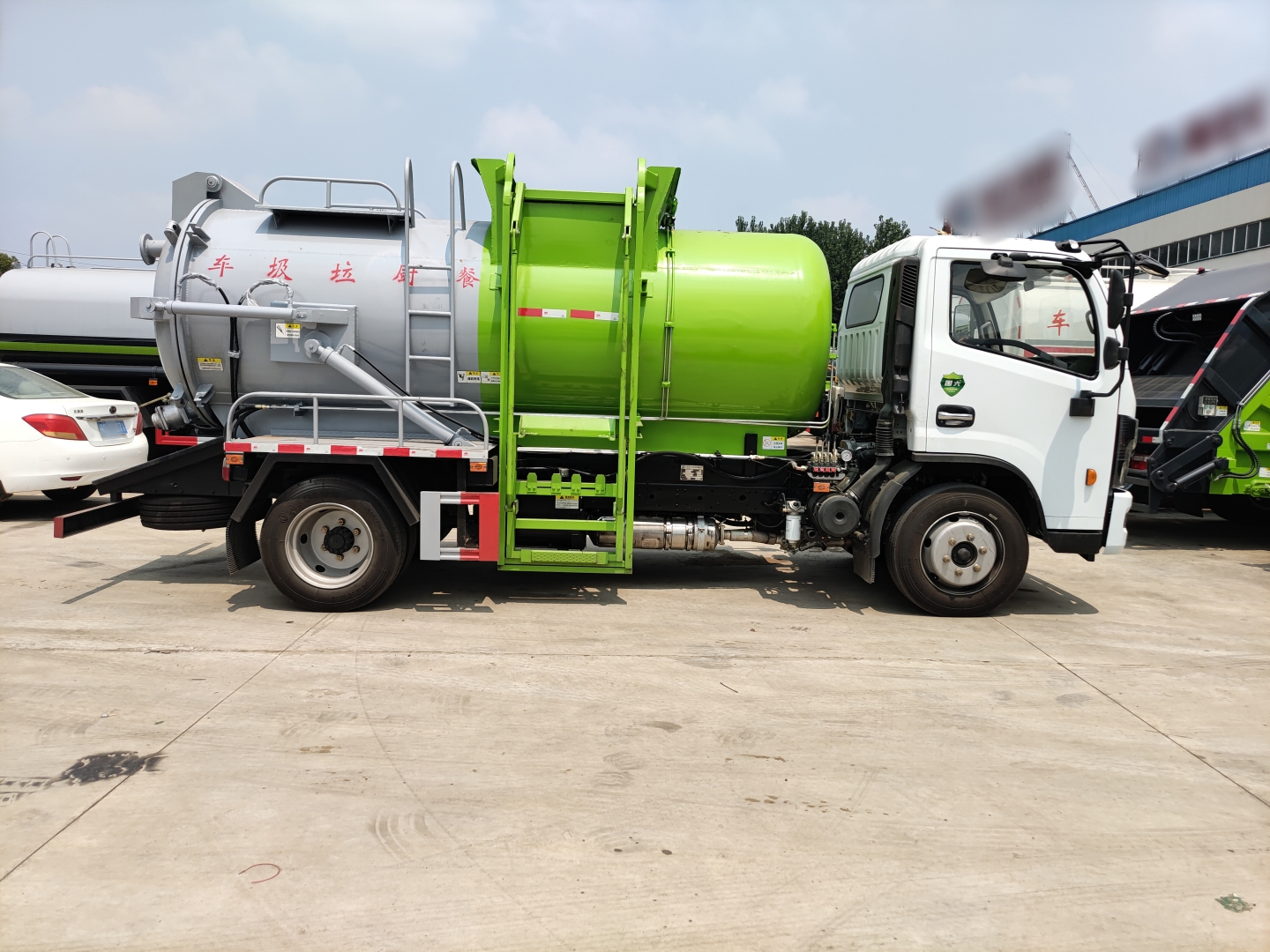

①Side lifting machine for loading, capable of hanging 120L/240L standard plastic trash cans, with a lid sealed with silicone sealing strip.
②Mid mounted double top hydraulic lifting, the tank body is lifted and unloaded after the back cover is opened.

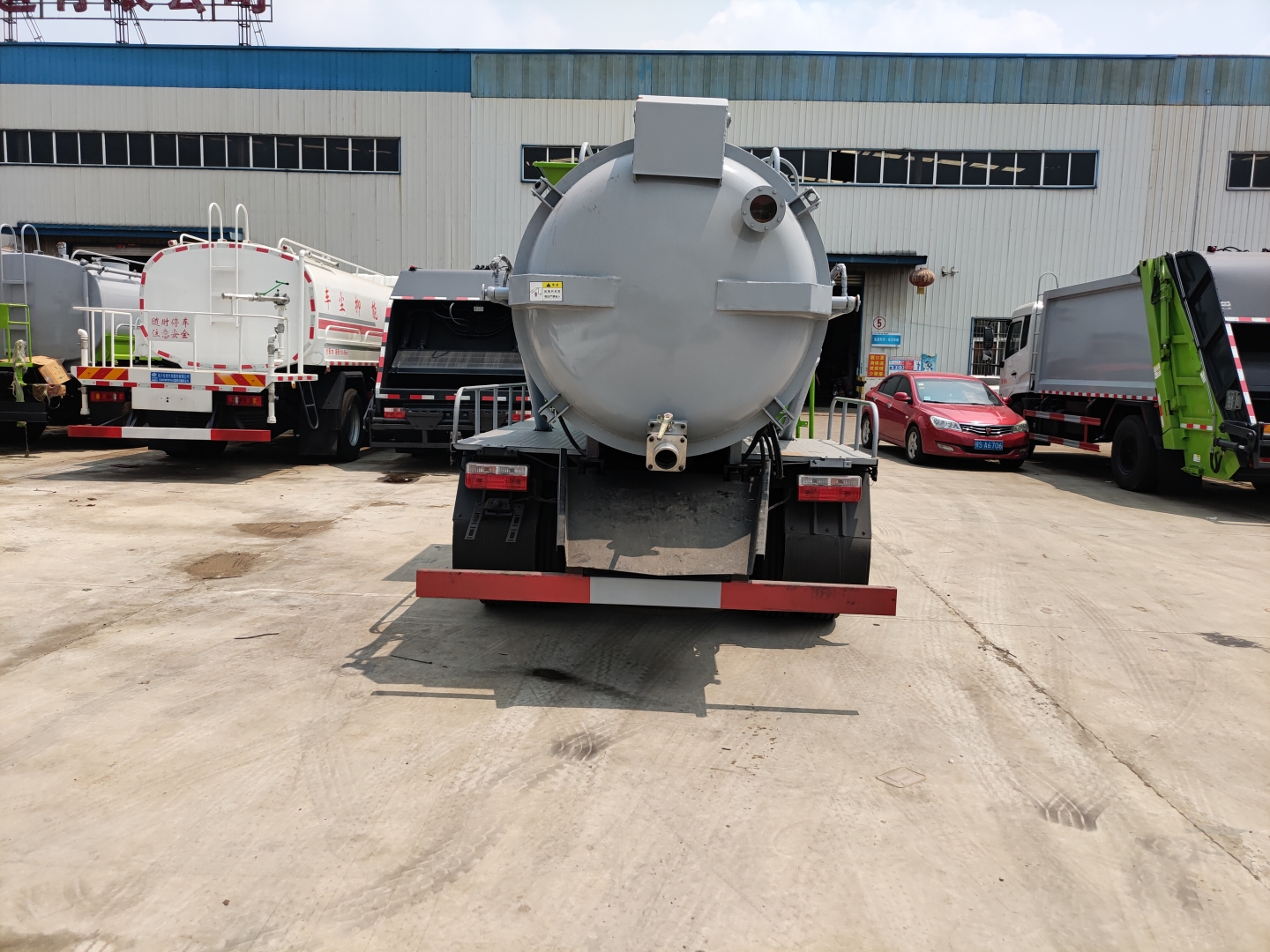

③The design of the back cover flange head includes hydraulic opening and hydraulic locking. The back cover is equipped with a sealing strip, and the straight through drain ball valve provides better sealing effect.

Product parameters

Product Name	Dongfeng D7 4X2 Kitchen Waste Truck
Driving Type	4×2
Gross vehicle weight(Kg)	11995(Kg)
Curb weight(Kg)	6150(Kg)
Rated weight(kg)	5650,5715(Kg)
Wheelbase(mm)	3800(mm)
Overall Dimension(mm)	6860,6360×2360×2950(mm)
Engine	Quanchai 156HP/Yuchai 165 HP
Axle Quantity	2
Transmission Type	Wanliyang 6-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR,255/70R22.5 16PR, 6+1 spare
Cab	Dongfeng D7 cab
Volume(m³)	8m³
Tank body	Q345 manganese steel high-strength plate circular tank body is used, with a thickness of 6mm,
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
