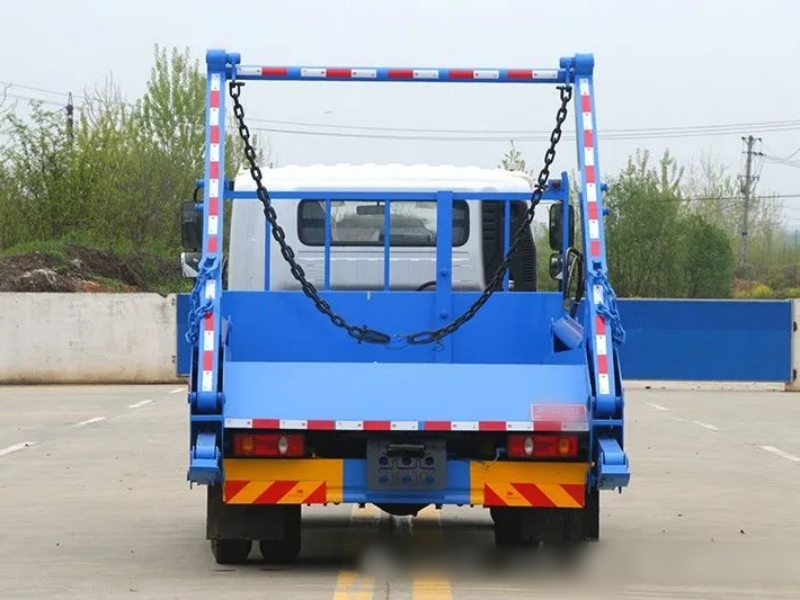

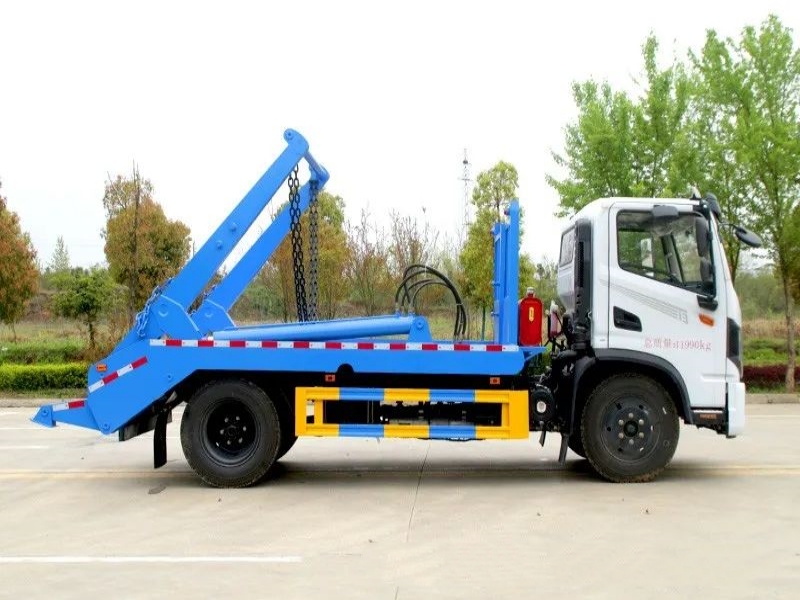

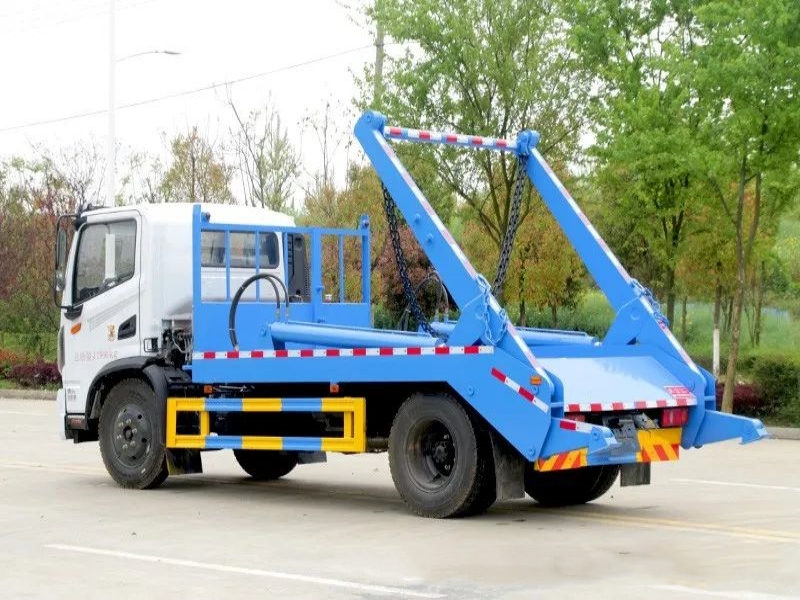

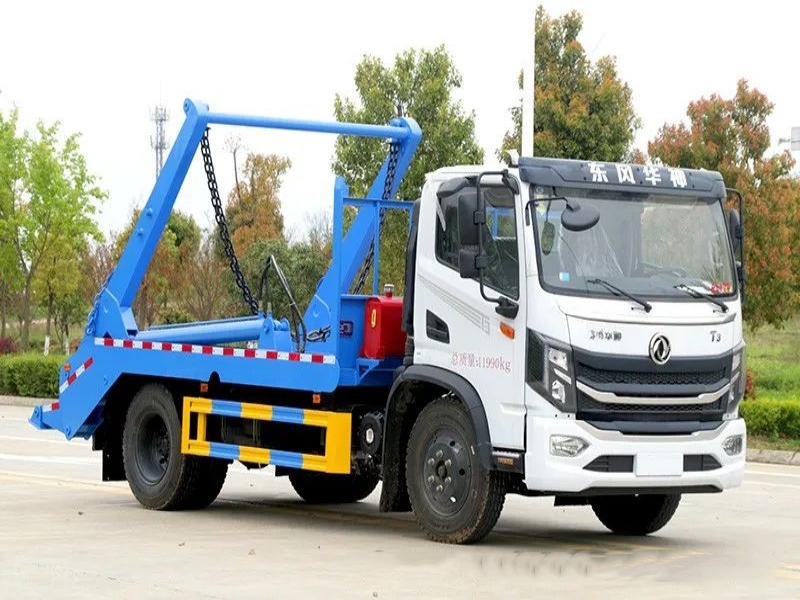

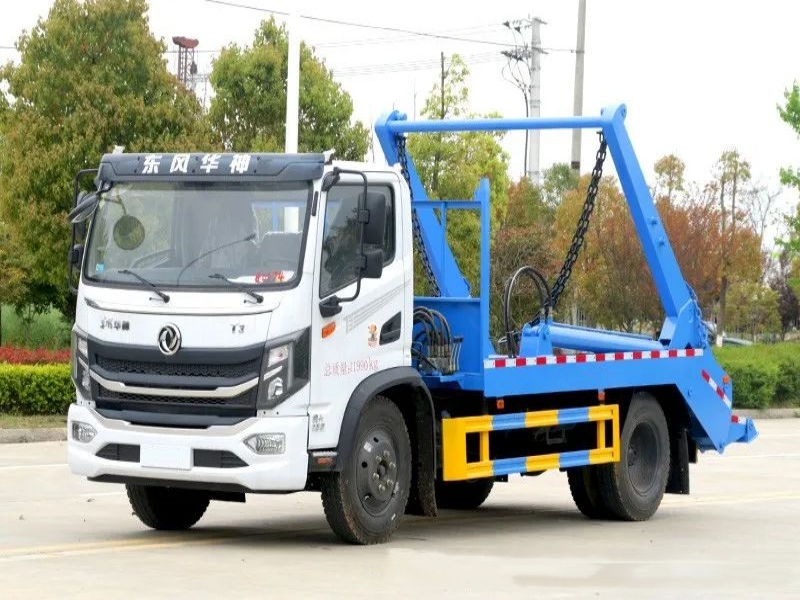

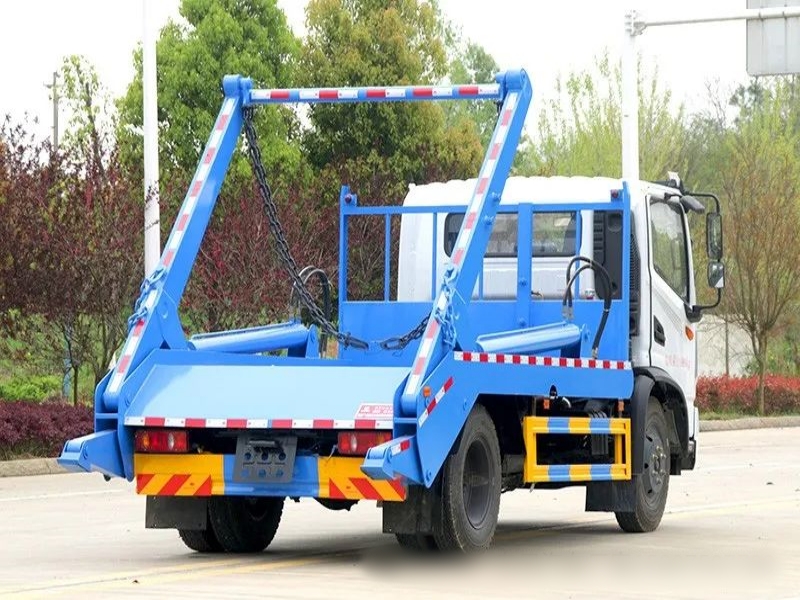

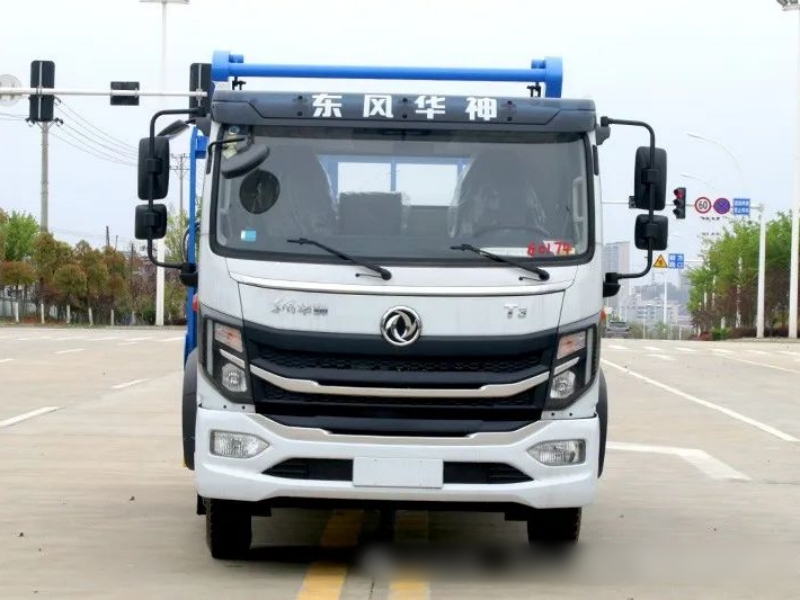

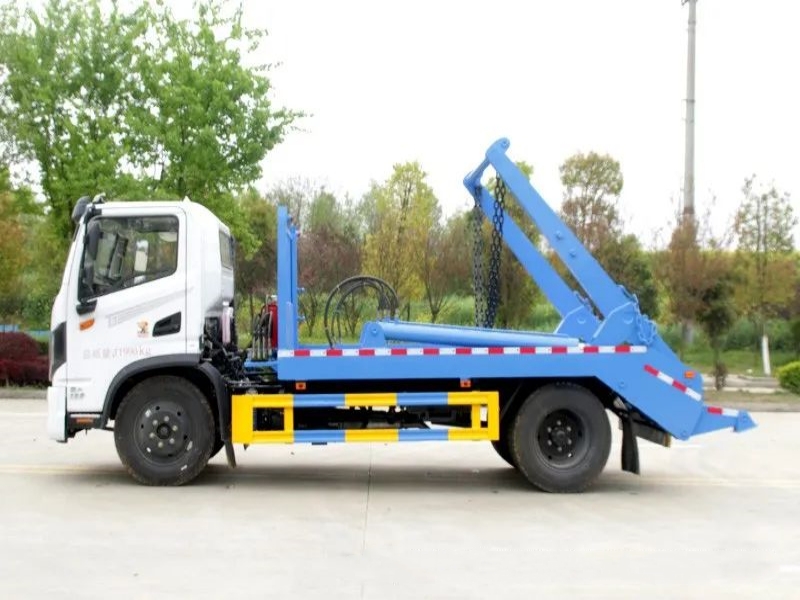

Dongfeng T3 4X2 6m³ Swing Arm Garbage Truck

Chassis configuration:

1. Engine: YCY30165-60/D25TCIF1

2.Transmission type: 8-speed gearbox

3.Wheelbase: 3800,3950,4500(mm)

4.Tyre: 8.25R20 14PR,8.25R20 16PR,245/70R19.5 16PR, 6+1 spare

5 Other: Dongfeng T3 cab
Installation configuration:

Matching garbage bin: 6 square meters
Hydraulic system pressure (MP): 6
Operation mode: Integrated electronic control/manual/flashlight
Upper and lower garbage bin operation time: ≤ 60 seconds

Product Name： Dongfeng T3 4X2 6m³ Swing Arm Garbage Truck
Driving Type： 4x2
Garbage container volume(cbm)： 6
Gross vehicle weight(Kg)： 11990(Kg)

Product Features

Dongfeng T3 4X2 6m³ Swing Arm Garbage Truck

Swing arm garbage truck: a garbage truck that lifts the garbage hopper and pours it into the carriage through hydraulic or mechanical swing arms. It can be equipped with multiple garbage bins for continuous operation, suitable for garbage collection in urban streets and residential areas.

Main features: The swing arm garbage truck has the advantages of simple and efficient garbage collection method, good environmental friendliness (no secondary pollution), reliable quality, low failure rate, easy maintenance, and low operating costs.

Product parameters

Product Name	Dongfeng T3 4X2 6m³ Swing Arm Garbage Truck
Driving Type	4x2
Garbage container volume(cbm)	6
Gross vehicle weight(Kg)	11990(Kg)
Curb weight(Kg)	5080,5330,5500(Kg)
Rated weight(kg)	6780,6715,6530,6465,6360,6295(Kg)
Wheelbase(mm)	3800,3950,4500(mm)
Overall Dimension(mm)	6900,6920,6950,6980,6800,6820,6850,6880×2350,2450,2480×2910,3010,3110,3250(mm)
Engine brand & model	YCY30165-60/D25TCIF1
Axle Quantity	2
Transmission Type	8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	8.25R20 14PR,8.25R20 16PR,245/70R19.5 16PR, 6+1 spare
Cab	Dongfeng T3 cab
Material of swing arm bucket	High quality WISCO materials
Component	Composed of chassis, garbage bin, power take-off, multi way directional valve, swing arm, hydraulic system, operating system, etc.
Garbage bin	divided into pit type swing arm garbage bin and ground type swing arm garbage bin (trapezoidal bucket, square bucket, sealed bucket)
Hydraulic system	composed of oil tank, oil pump, multi way directional valve, hydraulic cylinder, oil filter and pipeline, this system can achieve various specialized functions for loading and unloading garbage.
Operating system	Through this system, various functions can be converted. The loading and unloading work can be completed by manipulating the handle of the multi way directional valve. (When operating the multi way directional valve, a power take-off should be attached to drive the oil pump to work)
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
