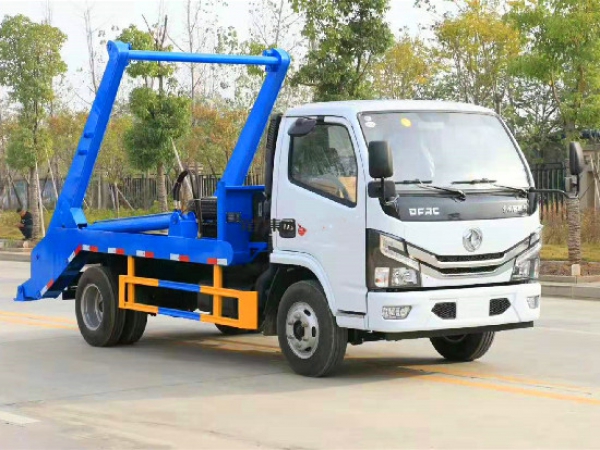

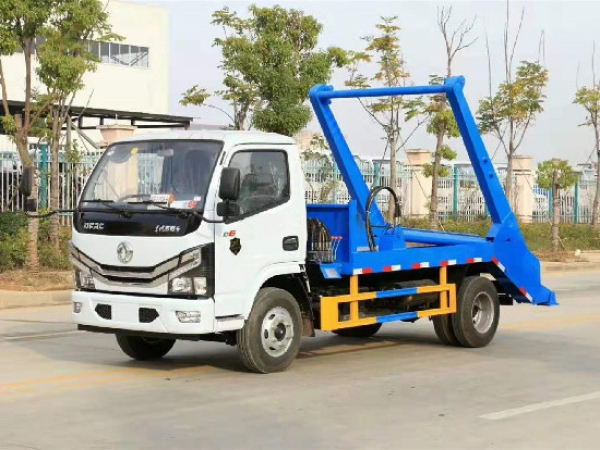

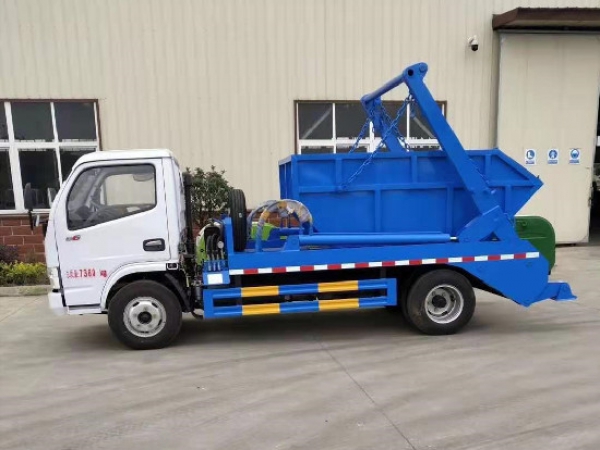

Dongfeng D7 4X2 Swing Arm Garbage Truck

Chassis configuration:

1. Engine: YCY24140-60, Yuchai 103hp

2.Transmission type: 6-speed gearbox

3.Wheelbase: 2700,2950,3308(mm)

4.Tyre: 7.00R16, 6+1 spare

5 Other: Dongfeng D7 cab
Installation configuration:

① The swing arm bucket is made of high-quality Wuhan Iron and Steel materials, with an effective volume of 5 cubic meters. It is equipped with a unified hydraulic lifting assembly and can be used to transport the national unified swing arm garbage bucket through the left and right arms. It can carry multiple buckets in one truck and has a self dumping function, achieving safety, stability, and reliable performance.

②The garbage bin body is divided into different forms of garbage bins configured according to swing arm and pit floor dual-use. It can be equipped with a sealing cover to prevent leakage, flying and pollution, to meet the requirements of different environments. It adopts advanced domestic technology and well-known industrial enterprise accessories, with reliable quality.

③ The rear of the vehicle is equipped with hydraulic support legs, enhancing the safety of the garbage hopper during unloading.

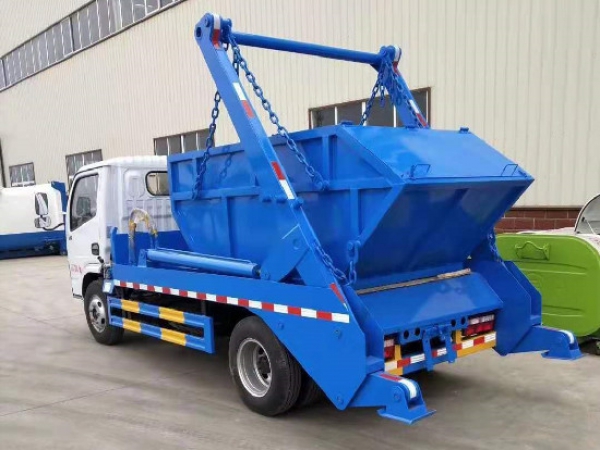

④ There are four dedicated unloading steel chains with lifting rings installed on the swing arm, saving space and facilitating operation. Four high-strength lifting hooks are welded on both sides of each garbage bin for safe and stable lifting and unloading.

Product Name： Dongfeng D7 4X2 Swing Arm Garbage Truck
Driving Type： 4x2
Garbage container volume(cbm)： 5
Gross vehicle weight(Kg)： 7360(Kg)

Product Features

Dongfeng D7 4X2 Swing Arm Garbage Truck

Swing arm garbage truck: a garbage truck that lifts the garbage hopper and pours it into the carriage through hydraulic or mechanical swing arms. It can be equipped with multiple garbage bins for continuous operation, suitable for garbage collection in urban streets and residential areas.

Main features: The swing arm garbage truck has the advantages of simple and efficient garbage collection method, good environmental friendliness (no secondary pollution), reliable quality, low failure rate, easy maintenance, and low operating costs.

Product parameters

Product Name	Dongfeng D7 4X2 Swing Arm Garbage Truck
Driving Type	4x2
Garbage container volume(cbm)	5
Gross vehicle weight(Kg)	7360(Kg)
Curb weight(Kg)	3950(Kg)
Rated weight(kg)	3280(Kg)
Wheelbase(mm)	2700,2950,3308(mm)
Overall Dimension(mm)	5995x2000x2910(mm)
Engine brand & model	YCY24140-60, Yuchai 103hp
Axle Quantity	2
Transmission Type	6-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	7.00R16, 6+1 spare
Cab	Dongfeng D7 cab
Material of swing arm bucket	High quality WISCO materials
Component	Composed of chassis, garbage bin, power take-off, multi way directional valve, swing arm, hydraulic system, operating system, etc.
Garbage bin	divided into pit type swing arm garbage bin and ground type swing arm garbage bin (trapezoidal bucket, square bucket, sealed bucket)
Hydraulic system	composed of oil tank, oil pump, multi way directional valve, hydraulic cylinder, oil filter and pipeline, this system can achieve various specialized functions for loading and unloading garbage.
Operating system	Through this system, various functions can be converted. The loading and unloading work can be completed by manipulating the handle of the multi way directional valve. (When operating the multi way directional valve, a power take-off should be attached to drive the oil pump to work)
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
