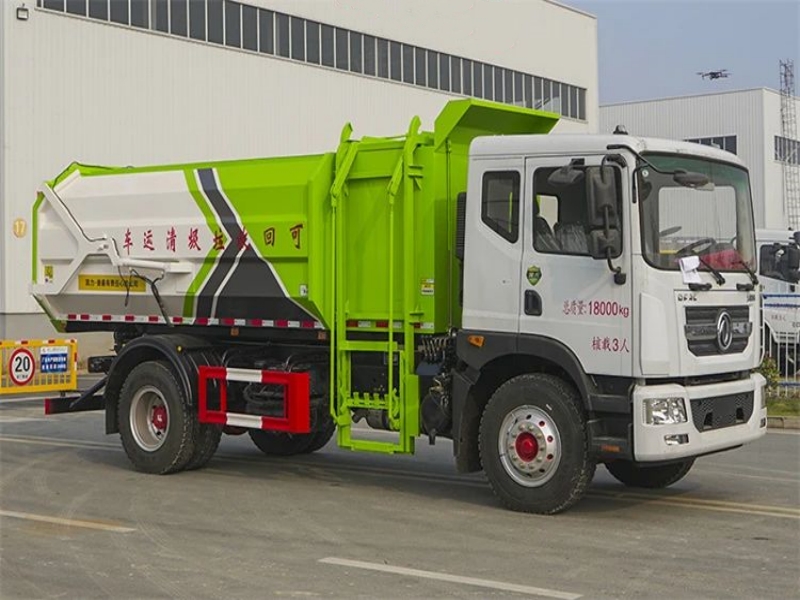

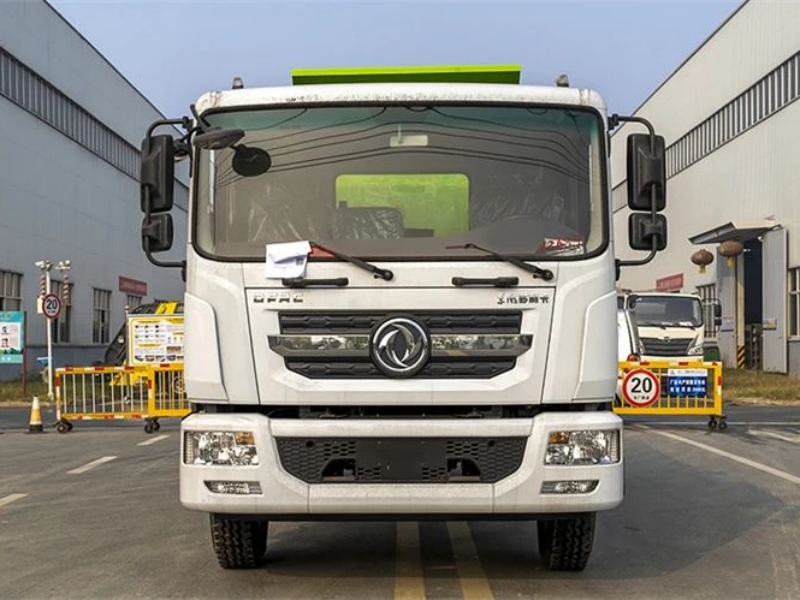

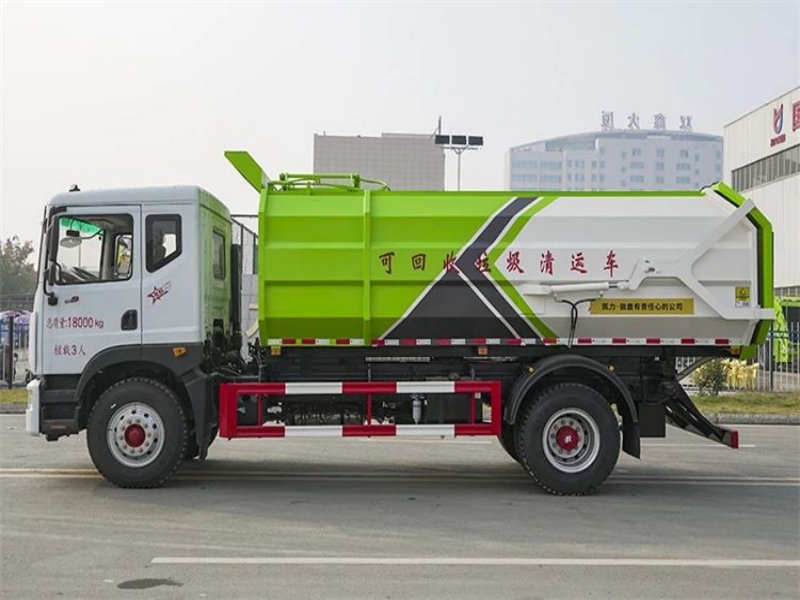

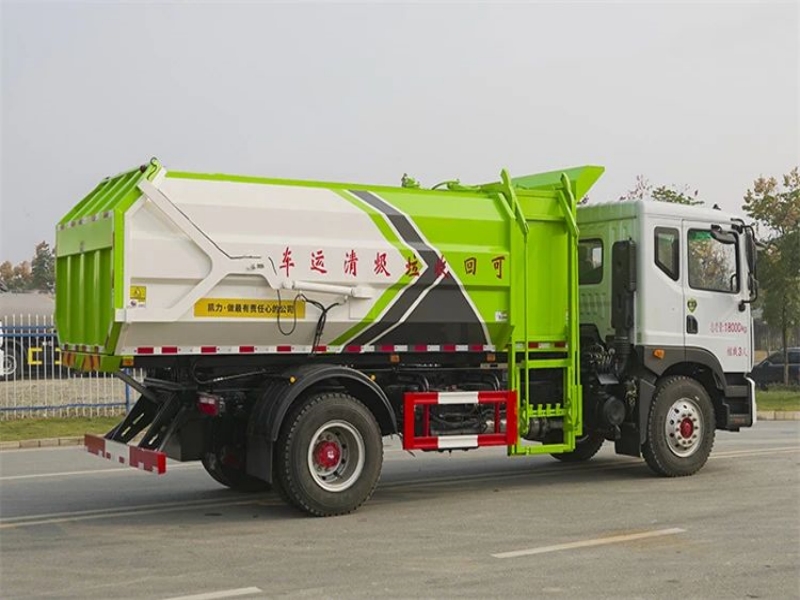

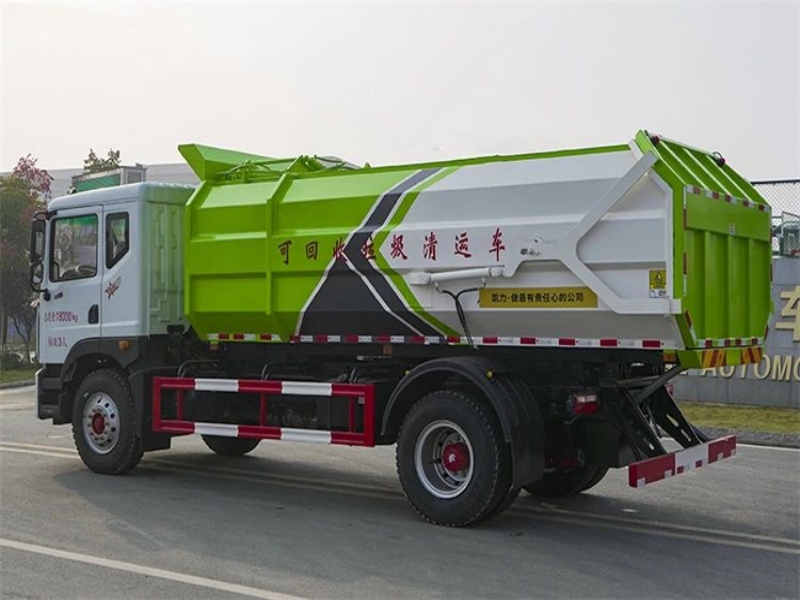

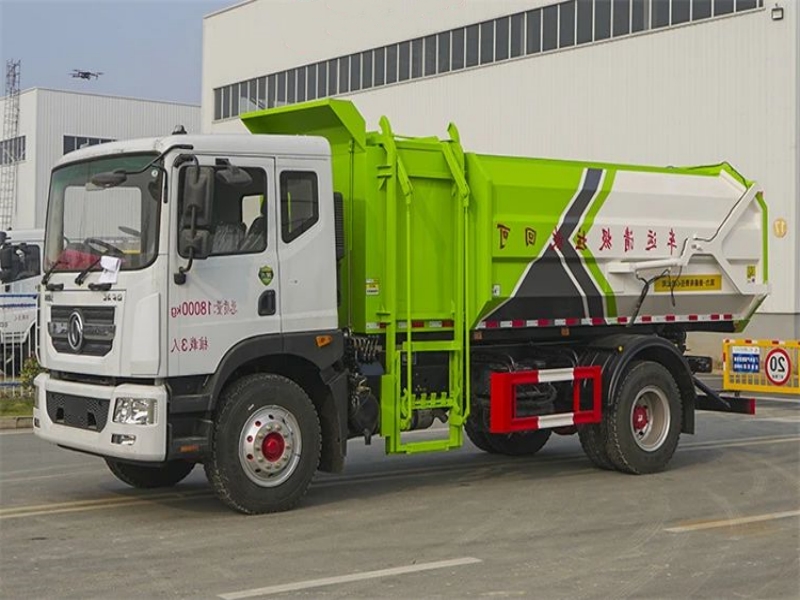

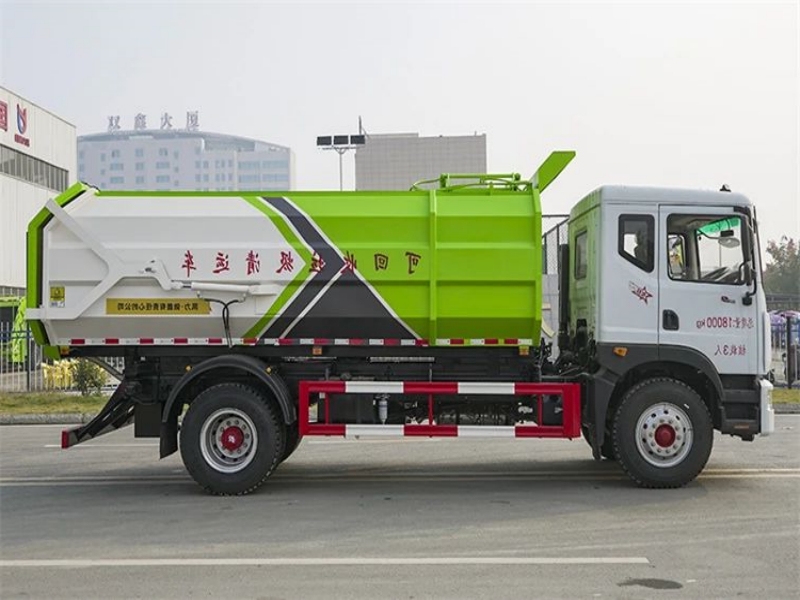

Dongfeng D9 Side mounted Bucket Garbage Truck

Chassis configuration:

1. Engine: B6.2NS6B230 , Cummins 230hp

2.Transmission type: FAST 8-speed gearbox

3.Wheelbase: 3950,4500(mm)

4.Tyre: 275/80R22.5 18PR, 6+1 spare

5.Other: Dongfeng D9 cab

Product Name： Dongfeng D9 Side mounted Bucket Garbage Truck
Driving Type： 4×2
Gross vehicle weight(Kg)： 18000(Kg)
Curb weight(Kg)： 8200,8600,7800(Kg)

Product Features

Dongfeng D9 Side mounted Bucket Garbage Truck

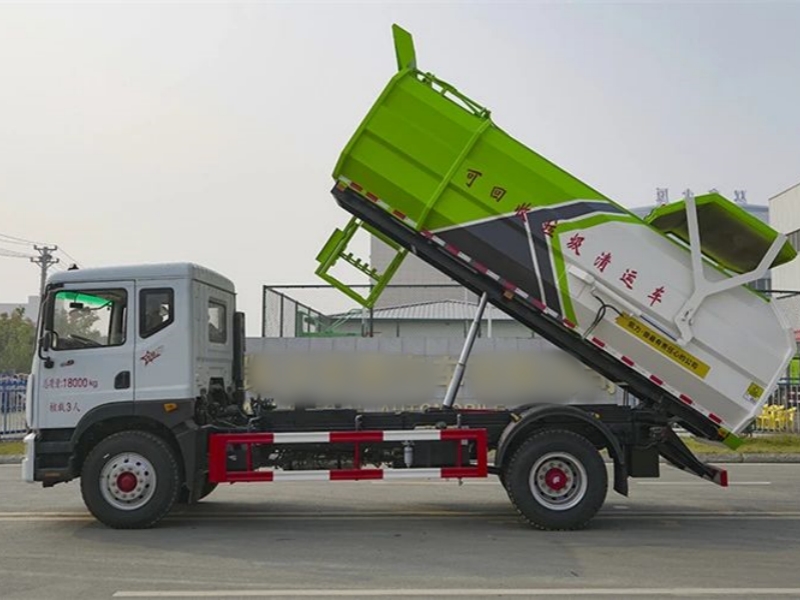

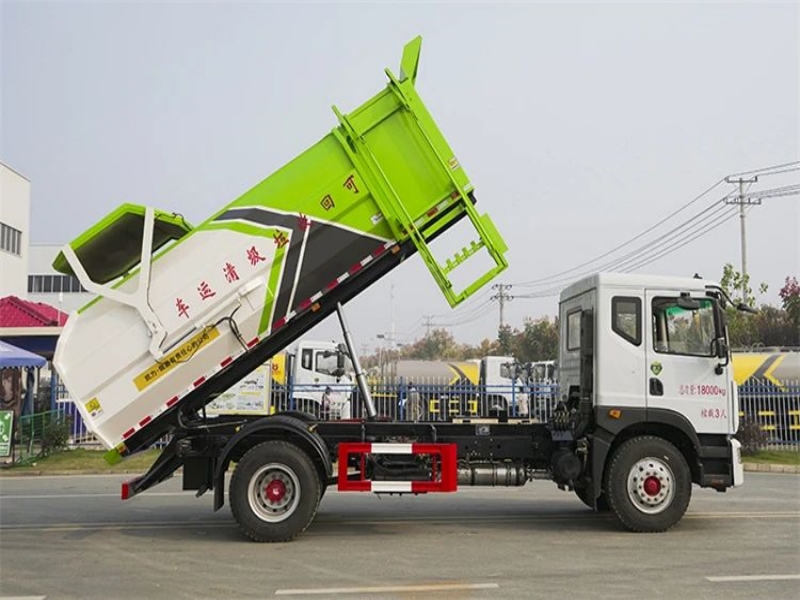

Side mounted bucket garbage truck is a vehicle specifically designed for collecting and transporting garbage, also known as a self loading and unloading garbage truck. Its main feature is to load the garbage bin from the side and compress the garbage into the vehicle through a self loading and unloading system. This type of vehicle is usually suitable for garbage collection in narrow areas such as urban alleys and rural roads.

Product parameters

Product Name	Dongfeng D9 Side mounted Bucket Garbage Truck
Driving Type	4×2
Gross vehicle weight(Kg)	18000(Kg)
Curb weight(Kg)	8200,8600,7800(Kg)
Rated weight(kg)	9670,9605,9270,9205,10070,10005(Kg)
Wheelbase(mm)	3950,4500(mm)
Overall Dimension(mm)	7300,7850×2500,2550×3100,3200,3300(mm)
Engine	B6.2NS6B230 , Cummins 230hp
Axle Quantity	2
Transmission Type	FAST 8-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	Air brake
Tire Spec. & size	275/80R22.5 18PR, 6+1 spare
Cab	Dongfeng D9 cab
Volume(m³)	/

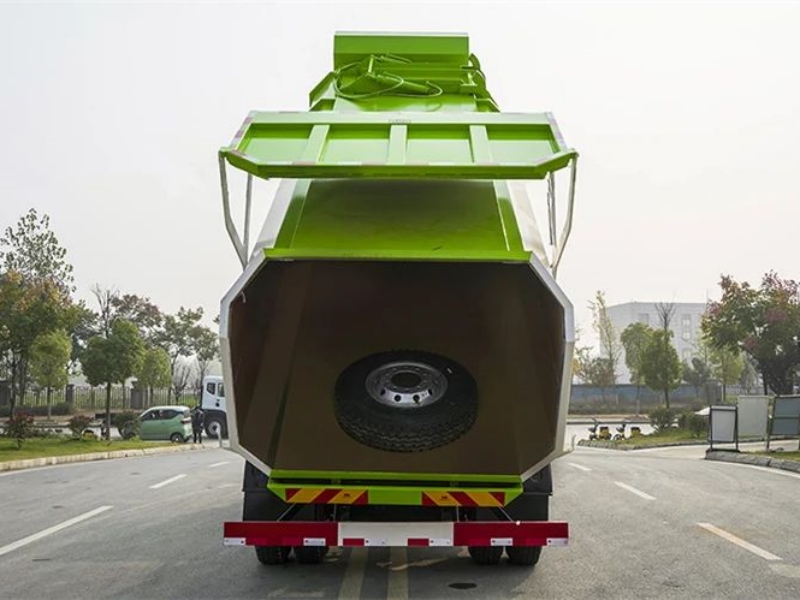

Tank body	Reinforced square tank body, Q710 high-strength steel
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
