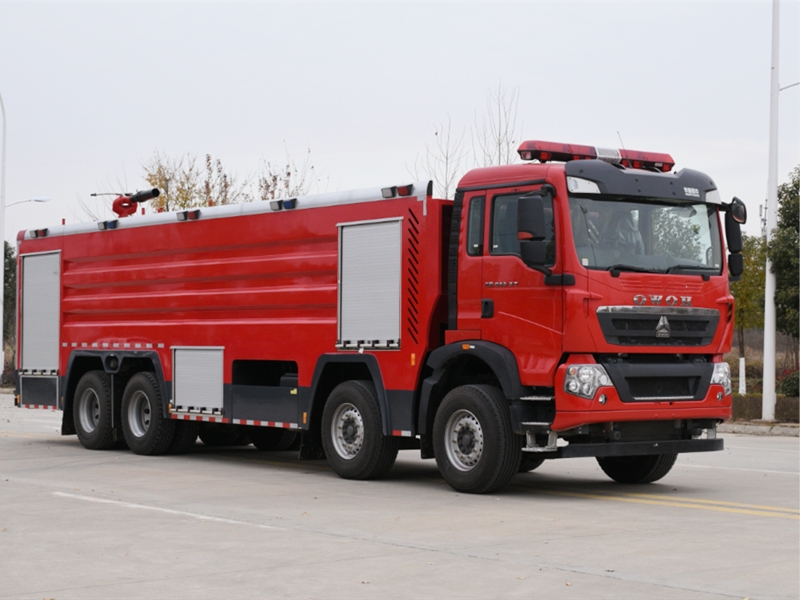

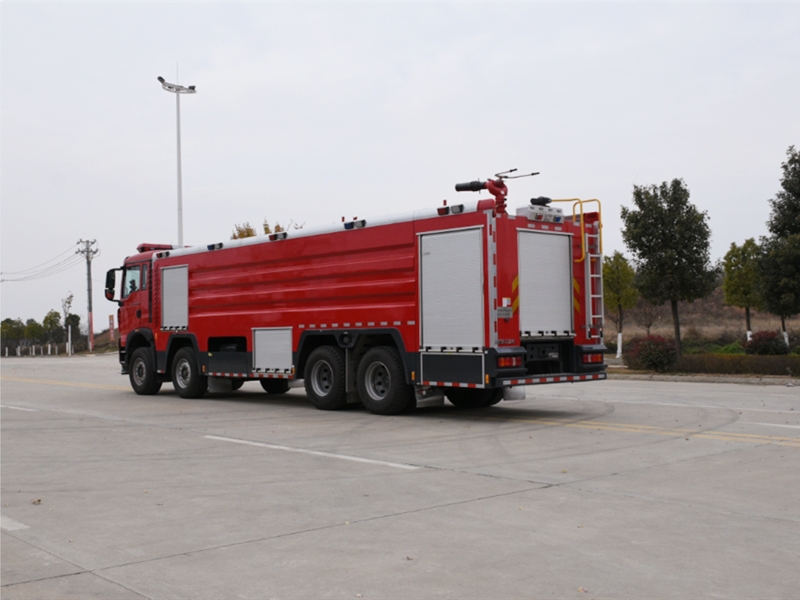

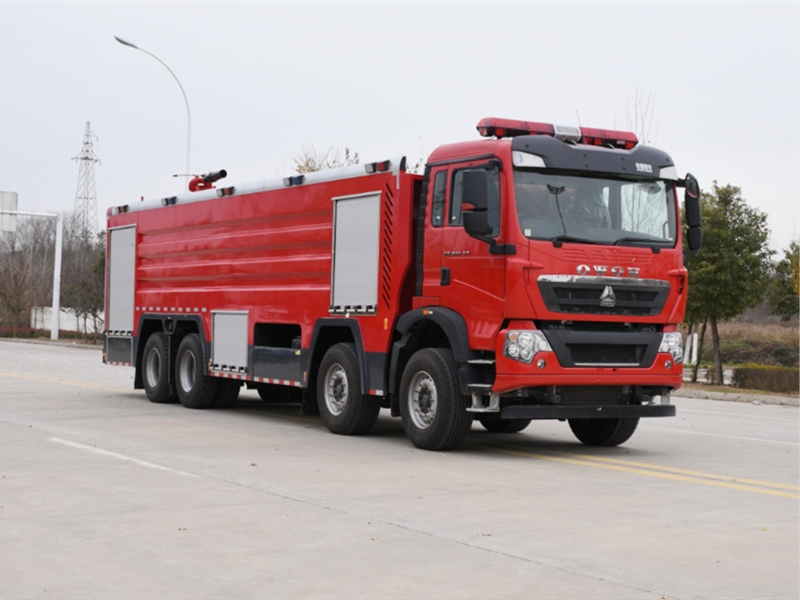

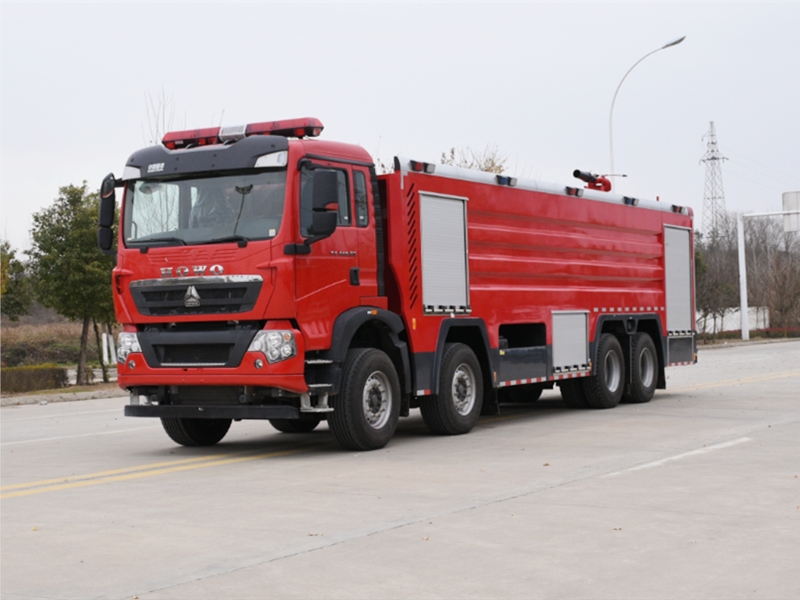

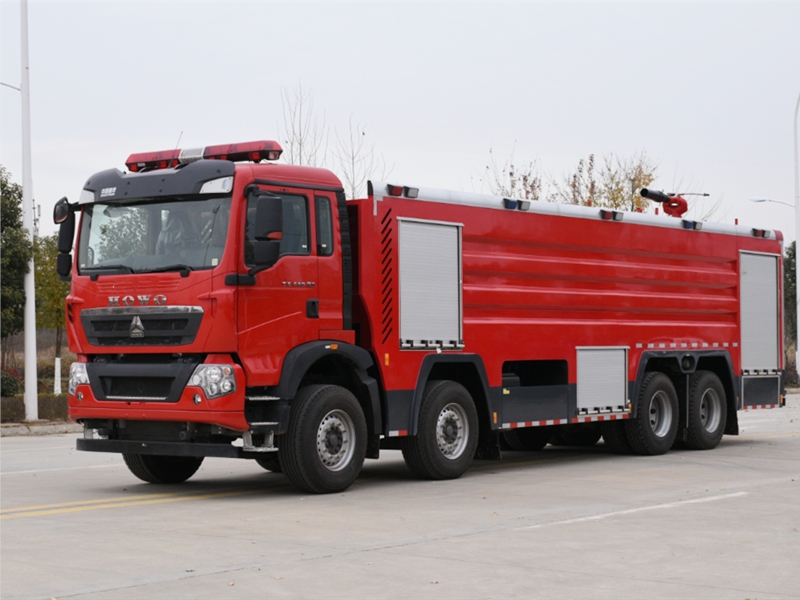

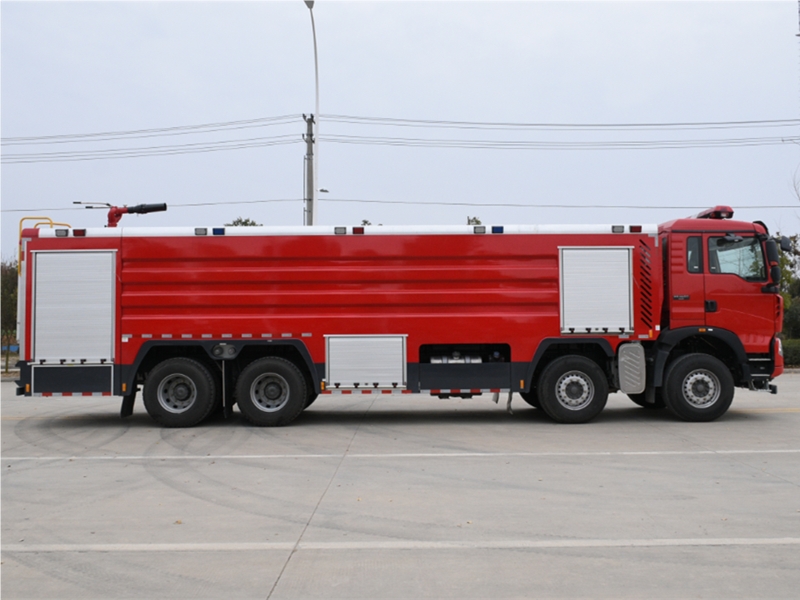

Sinotruk Howo 24t foam fire truck

Product description

The Sinotruck Howo 24t foam fire truck is modified from the original chassis of a heavy-duty truck in our factory. The vehicle has a compact structure: the dedicated parts consist of a liquid tank, pump room, equipment box, power output and transmission system, pipeline system, electrical system, etc. It is widely used in public security fire prevention teams, petrochemicals, factories and mining enterprises, forests, ports, docks and other departments. It can quickly approach the fire scene to carry out firefighting battles, extinguish fires, and is an ideal firefighting equipment.

Product Name： Sinotruk Howo 24t foam fire truck
Driving Type： 8X4
Total weight（Kg)： 42600(Kg)
Curb weight(kg)： 18050(Kg)

Product Features

Sinotruk Howo 24t foam fire truck

Foam fire truck is a special vehicle equipped with various fire-fighting equipment or extinguishing agents, mainly used for fire fighting and emergency rescue. It consists of a liquid tank, a pump room, an equipment box, a power output and transmission system, a piping system, and an electrical system. The foam fire truck is suitable for urban public security fire brigade, petrochemical industry, factories and mining enterprises, forests, ports, docks and other departments, especially for petrochemical and other dangerous fire sites.

Product parameters

Product Name	Sinotruk Howo 24t foam fire truck
Driving Type	8X4
Total weight（Kg)	42600(Kg)
Curb weight(kg)	18050(Kg)
Rated weight(kg)	24400(Kg)
Wheel base(mm)	1950+4625+1350(mm)
Overall dimension(mm)	11920x2540x3660(mm)
Engine brand & model	MC11.44-60, 440hp
Axle Quantity	4
Transmission Type	12-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	385/65R22.5 , 12+1 spare
Cab	Sinotruk Howo cab, all steel frame welded structure
Extinguishing Media	water/foam/dry-powder
Tank material	Made of high-quality carbon steel material (Q235), welded structure, equipped with longitudinal and anti sway plates, and treated with epoxy anti-corrosion. 304 stainless steel and PP materials can be selected
Tank volume	20 ton water+4 ton foam
Equipment box	The fire pump is located in the middle or rear of the box, with four water outlets on both sides of the pump room and new high-strength aluminum alloy rolling shutter doors on both sides of the equipment box. The equipment bracket adopts aluminum alloy profiles produced by European technology, with a fully internal hexagonal connection structure manufactured by a concealed tower connection, which is beautiful and durable.
Electrical configuration	The front end of the top of the fire truck cab is equipped with a long row of red warning lights, and a red circular warning light is installed on the top of the rear of the vehicle. There is one 24V and one 60W fire lighting lamp at the front and rear of the roof. The vehicle is equipped with red and blue matching flashing lights on both sides, safety sign lights and side reflectors installed below, front and rear clearance lights, and one turn signal light on each side. Lighting fixtures are installed in the passenger compartment, equipment box, and pump room.
Fire cannon	Model: PL8/80 fire monitor, flow rate 80L/S/1MPa, water range:≥80m, foam:≥70m
Fire pump	1. Normal pressure fire pump model: CB10/100 vehicle fire pump, flow rate: 100L/s, pressure: 1.0MPa2, water intake time ≤ 35s (7m suction depth), water ring water intake sandwich full power take-off
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
