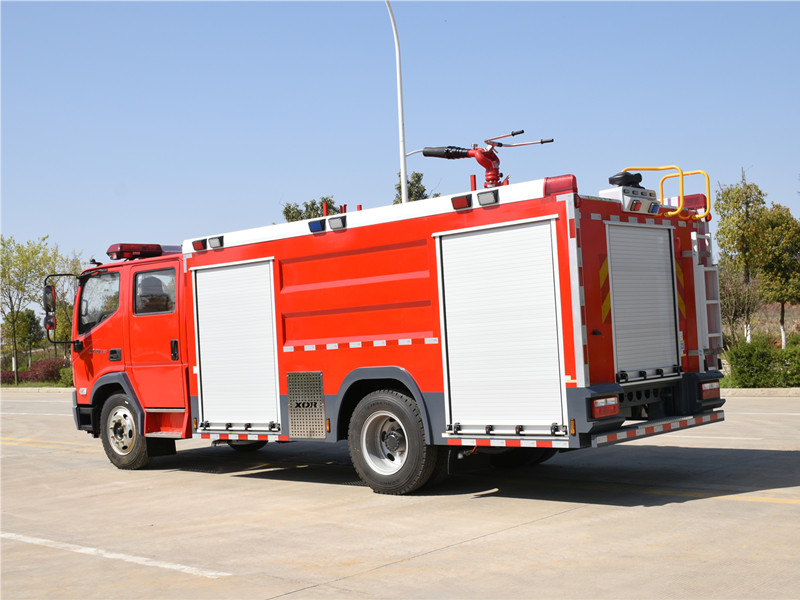

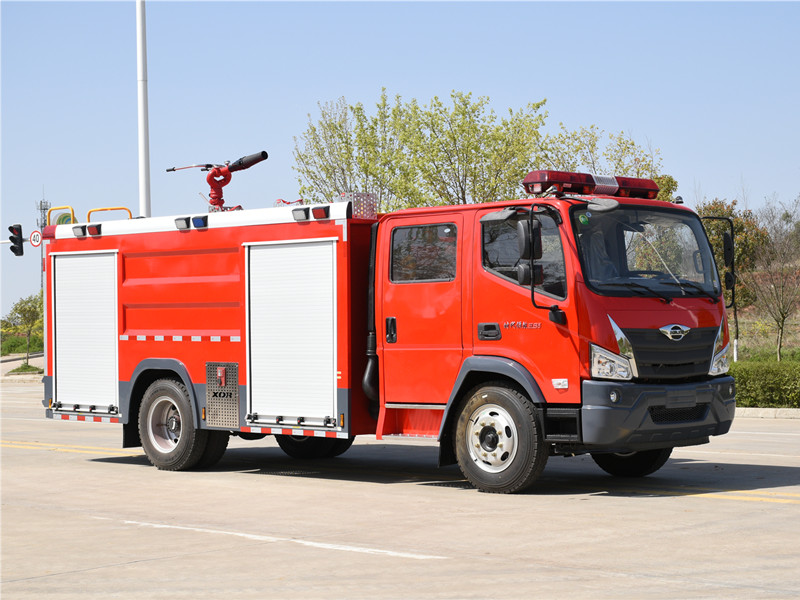

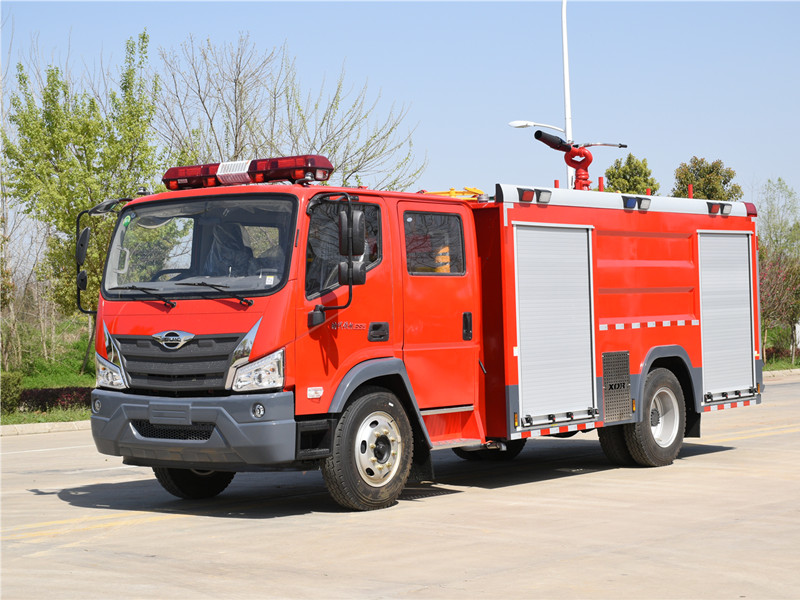

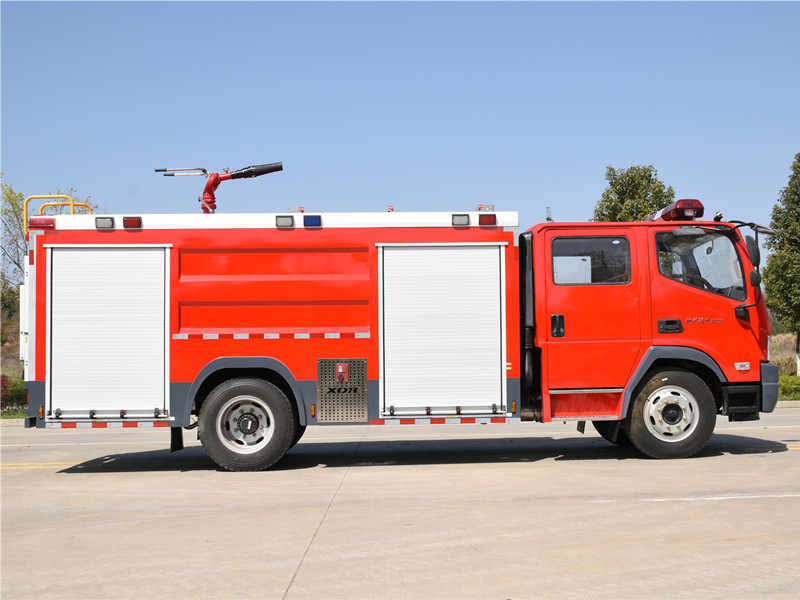

Foton 4X2 6-ton water tank fire truck

Product description

The Dongfeng 8-ton water tank fire truck is modified from the Dongfeng chassis. The vehicle consists of two main parts: the firefighter's cabin and the body. The cabin is an original double row and can accommodate 3+3 people. The vehicle has a hidden tank structure, with equipment boxes on both sides of the body, tank bodies in the middle, and a pump room in the rear. The carrier tank is made of high-quality carbon steel, coated with epoxy primer and epoxy asphalt paint internally, and connected to the chassis with elastic connection. It can carry 8200kg of water and is equipped with CB10/40-RS atmospheric pressure fire pump produced by Shanghai Rongshen Fire Equipment Co., Ltd. with a rated flow of 40L/S. The roof is equipped with PS8/40W vehicle fire monitor produced by Chengdu West Fire Machinery Co., Ltd. The biggest features of this car are a large liquid load, good handling, and easy maintenance. It can be widely used in public security fire brigades, factories, mines, communities, docks and other places to extinguish large-scale oil fires and general material fires.

Product Name： Foton 4X2 6-ton water tank fire truck
Driving Type： 4X2
Total weight（Kg)： 16400(Kg)
Curb weight(kg)： 9250(Kg)

Product Features

Foton 4X2 6-ton water tank fire truck

Water tank fire truck refers to a vehicle equipped with not only fire pumps and equipment, but also large capacity water storage tanks, water guns, water cannons, etc., which can transport water and firefighters to the fire scene for independent firefighting. The following is a detailed introduction about water tank fire trucks:
1. Main purpose: Water tank fire trucks can directly extinguish fires by absorbing water from water sources, or supply water to other fire trucks and firefighting spray equipment. They can also be used as water supply and water delivery vehicles in water scarce areas. It is suitable for extinguishing general fires and is a regular firefighting vehicle used by public security fire brigades and specialized fire brigades in enterprises and institutions.
2. Classification: According to the different types of water pumps configured, water tank fire trucks can be divided into low-pressure water tank fire trucks, medium and low-pressure water tank fire trucks, and high and low-pressure water tank fire trucks. Different types of water tank fire trucks have varying technical performance, head, and flow rate to meet the firefighting needs of different scenarios.
3. Configuration and Parameters: The configuration of a water tank fire truck usually includes a fire pump, water storage tank, water gun, water cannon, etc. Specific parameters such as the material and capacity of the carrier tank, the model, flow rate, and head of the fire pump may vary depending on the vehicle model and usage. For example, some car models may use high-quality carbon steel as the material for the liquid tank, with a water capacity of several tons, and be equipped with high-performance fire pumps to meet firefighting needs.
4. Applicable scenarios: Water tank fire trucks are widely used in urban public security fire brigades, petrochemicals, factories and mines, forests, ports, docks and other departments. They can not only carry out firefighting operations in urban environments, but also patrol complex terrains such as hills, mountains, depressions, and river valleys, detecting fires in a timely manner and extinguishing small fires.
5. Characteristics and advantages: Water tank fire trucks have strong off-road performance, good passability, flexible maneuverability, fast speed, and good handling. These advantages enable water tank fire trucks to quickly respond and effectively extinguish fires in various complex environments, providing strong support for firefighting work.

Product parameters

Product Name	Foton 4X2 6-ton water tank fire truck
Driving Type	4X2
Total weight（Kg)	16400(Kg)
Curb weight(kg)	9250(Kg)
Rated weight(kg)	6700(Kg)
Wheel base(mm)	4700(mm)
Overall dimension(mm)	8230×2510×3470(mm)
Engine brand & model	B6.2NS6B230, Cummins 230hp
Axle Quantity	2
Transmission Type	9-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	295/80R22.5, 6+1 spare
Cab	Dongfeng D9 cab
Extinguishing Media	water/foam/dry-powder
Tank material	High quality carbon steel, internally sprayed with epoxy primer and epoxy asphalt paint
Tank volume	8m³ water tank
Onboard equipment	Onboard equipment Fire hose, water injection hose, DC water gun, multifunctional water gun, dry powder fire extinguisher, water collector, water separator, suction pipe wrench, rubber hammer, protective belt bridge, above ground fire hydrant wrench, underground fire hydrant wrench, water hose strap, water hose hook, fire axe, fire suction pipe, suction pipe filter, reducer interface
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
