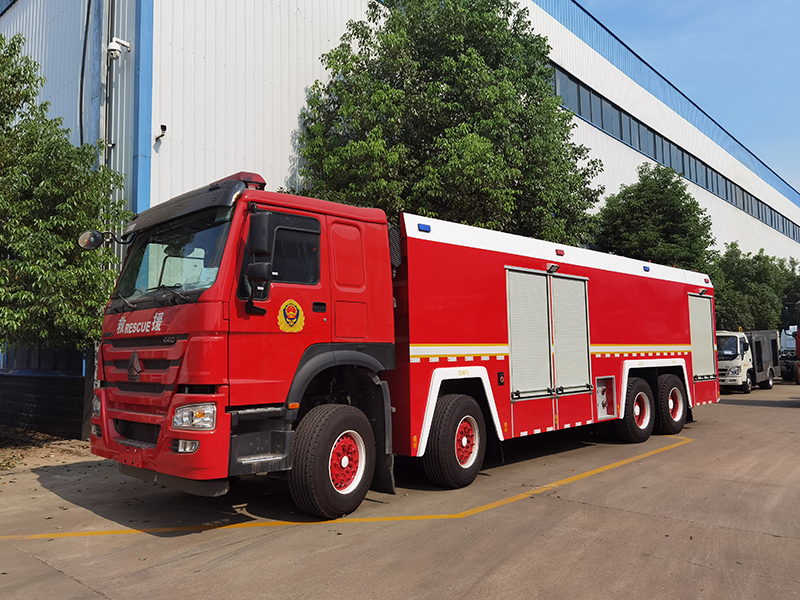

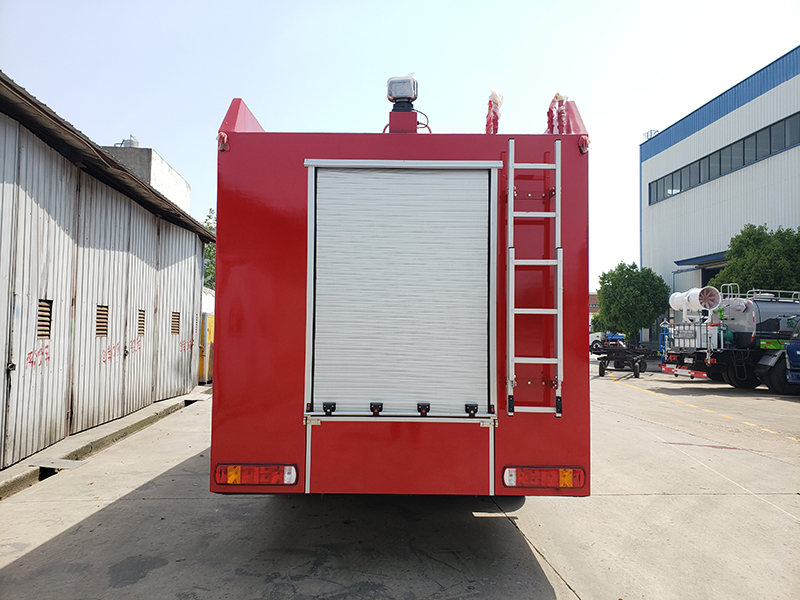

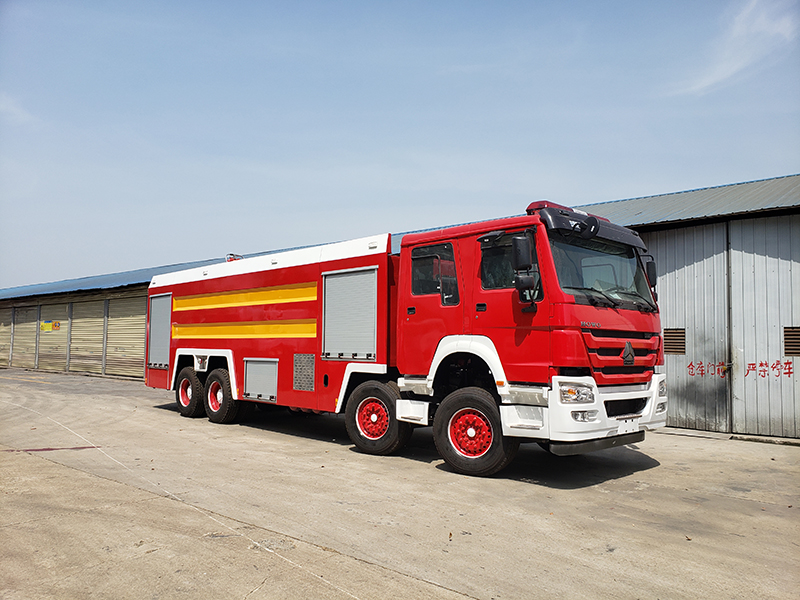

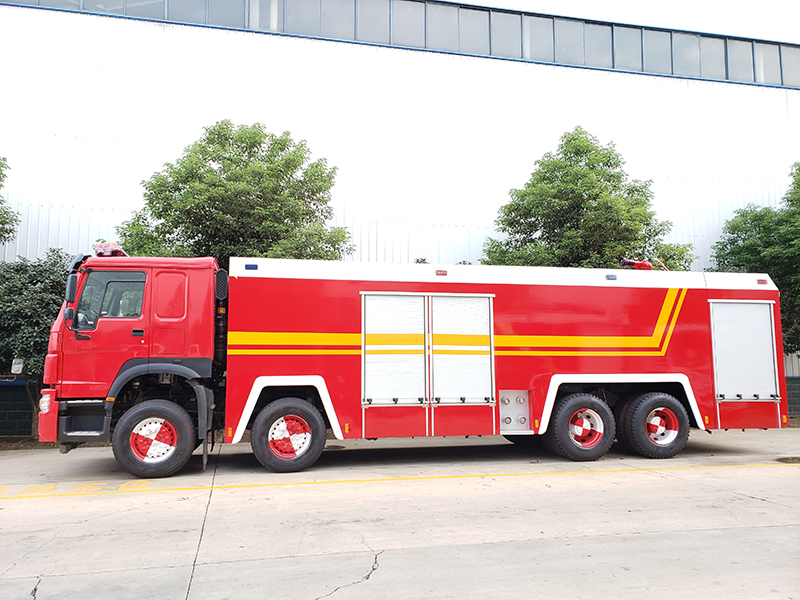

Sinotruk Howo 8X4 23-ton Water Tank Fire Truck

Chassis configuration:

(1)Engine: D10.34-50, Sinotruk 340HP

(2)Wheelbase: 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400,2150+4300+1350,2150+4275+1400(mm)

(3)Transmission Type:12-speed gearbox
(4)Tire models: 385/65R22.5/315/80R22.5,385/65R22.5/12.00R20,385/65R22.5/12.00-20, 12+1 spare

(5)Other: Sinotruk Howo cab

Product Name： Sinotruk Howo 8X4 23-ton Water Tank Fire Truck
Driving Type： 8X4
Total weight（Kg)： 41000(Kg)
Curb weight(kg)： 17300(Kg)

Product Features

4x2 Dongfeng 2 ton water tank fire truck

Water tank fire truck is a vehicle specifically used for firefighting or other emergency rescue purposes.
Water tank fire truck, also known as fire truck, is a vehicle specifically used for firefighting or other emergency rescue purposes.
A water tank fire truck refers to a vehicle equipped not only with fire pumps and equipment, but also with large capacity water storage tanks, water guns, water cannons, etc. Water and firefighters can be transported to the fire scene for independent firefighting.

Product parameters

Product Name	Sinotruk Howo 8X4 23-ton Water Tank Fire Truck
Driving Type	8X4
Total weight（Kg)	41000(Kg)
Curb weight(kg)	17300(Kg)
Rated weight(kg)	23550(Kg)
Wheel base(mm)	1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400,2150+4300+1350,2150+4275+1400(mm)
Overall dimension(mm)	11900×2500×3635(mm)
Engine brand & model	D10.34-50, Sinotruk 340HP
Axle Quantity	4
Transmission Type	12-speed gearbox
Steering Type	LHD or RHD with power steering
Brake system	air brake
Tire Spec. & size	385/65R22.5/315/80R22.5,385/65R22.5/12.00R20,385/65R22.5/12.00-20, 12+1 spare
Cab	Sinotruk Howo cab
Extinguishing Media	water/foam/dry-powder
Tank material	Carbon steel or stainless steel and aluminum alloy plate
Tank volume	23m³ water tank
Onboard equipment	Onboard equipment Fire hose, water injection hose, DC water gun, multifunctional water gun, dry powder fire extinguisher, water collector, water separator, suction pipe wrench, rubber hammer, protective belt bridge, above ground fire hydrant wrench, underground fire hydrant wrench, water hose strap, water hose hook, fire axe, fire suction pipe, suction pipe filter, reducer interface
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
