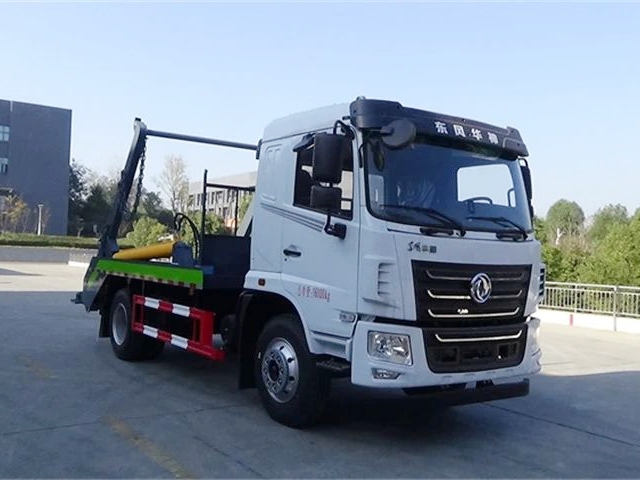

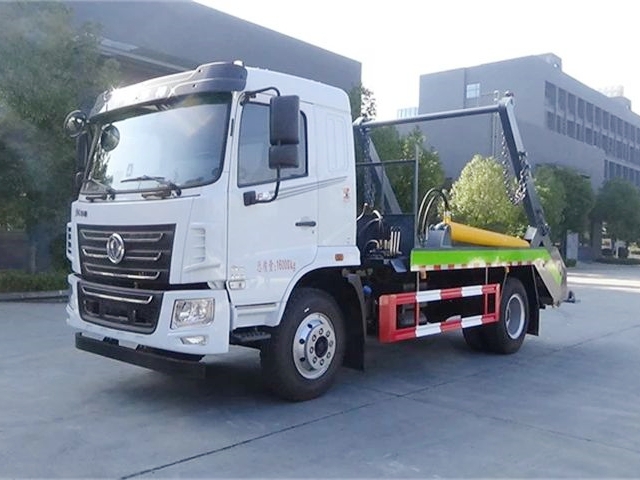

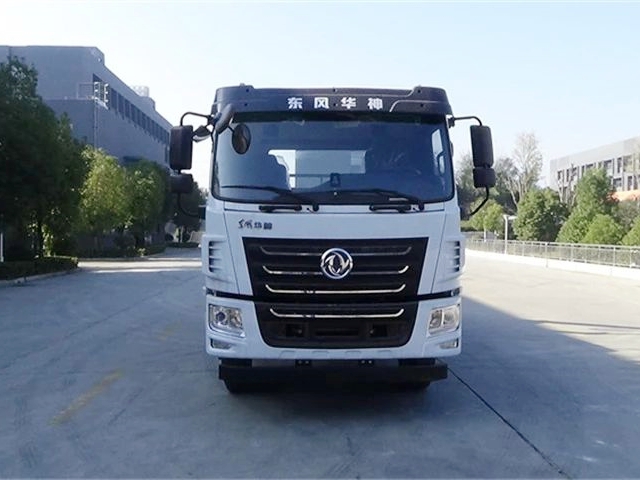

Dongfeng Huashen 4X2 swing arm garbage truck

Chassis configuration:

(1)Engine: YCY30165-60, Yuchai 165hp

(2)Wheelbase: 3950(mm)

(3)Transmission Type: Shaanxi Gear 8-speed Transmission
(4)Tire models: 9.00R20 16PR , 6+1 spare

(5)Other: Dongfeng Huashen cab, 2.8T front axle, 7.8T rear axle, original air conditioning, airbag seats, remote key, electric glass.

Product Name： Dongfeng Huashen 4X2 swing arm garbage truck
Driving Type： 4x2
Garbage container volume(cbm)： 6-8(cbm)
Gross vehicle weight(Kg)： 16000(Kg)

Product Features

Dongfeng Huashen 4X2 swing arm garbage truck

Swing arm garbage truck: a garbage truck that lifts the garbage hopper and pours it into the carriage through hydraulic or mechanical swing arms. It can be equipped with multiple garbage bins for continuous operation, suitable for garbage collection in urban streets and residential areas.

Main features: The swing arm garbage truck has the advantages of simple and efficient garbage collection method, good environmental friendliness (no secondary pollution), reliable quality, low failure rate, easy maintenance, and low operating costs.

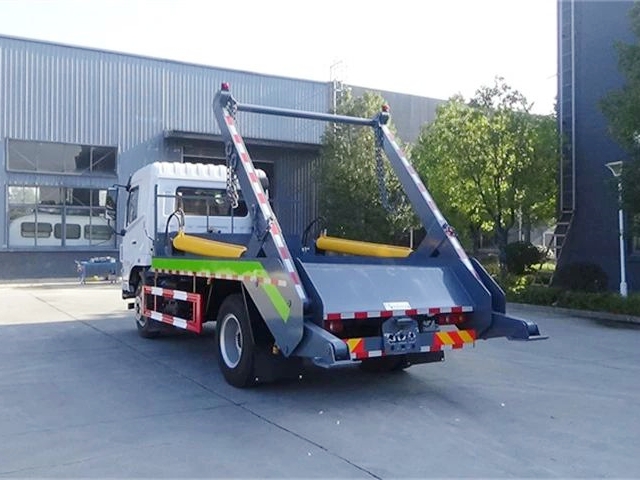

The vehicle is composed of a car chassis, a boom, a boom oil cylinder, a lifting iron chain, support legs, support leg oil cylinders, a base plate, and a multi way directional valve. The boom is connected to the base plate, the movable end of the boom oil cylinder is connected to the boom, and the fixed end is connected to the base plate; The extension and retraction of the boom oil cylinder can rotate the boom around the hinge point, achieving the lifting and self dumping of the garbage bin. The extension and retraction of the support leg cylinder can cause the support legs to extend and retract, stabilizing the entire vehicle.

This vehicle can lift the garbage in the underground garbage bin and the garbage bin together onto the vehicle for transportation, and can also self dump, reducing the labor intensity of workers. The collection and transportation method of this garbage truck is widely used in the world, which can achieve multiple boxes per truck, greatly reducing equipment costs and space, etc; The functions of its dedicated devices are all powered by the car engine and achieved manually or electronically through hydraulic mechanisms. The body of the vehicle is welded with high-quality carbon steel plates, which have the advantages of high strength, light weight, and no secondary pollution.

Product parameters

Product Name	Dongfeng Huashen 4X2 swing arm garbage truck
Driving Type	4x2
Garbage container volume(cbm)	6-8(cbm)
Gross vehicle weight(Kg)	16000(Kg)
Curb weight(Kg)	6340(Kg)
Rated weight(kg)	9530,9465(Kg)
Wheelbase(mm)	3950(mm)
Overall Dimension(mm)	7570,7430,7405,7370×2520×3390(mm)
Engine	YCY30165-60, Yuchai 165hp
Axle Quantity	2
Transmission Type	Shaanxi Gear 8-speed Transmission
Steering Type	LHD or RHD with power steering
Tire Spec. & size	9.00R20 16PR , 6+1 spare
Cab	Dongfeng Huashen cab
Material of swing arm bucket	High quality WISCO materials
Component	Composed of chassis, garbage bin, power take-off, multi way directional valve, swing arm, hydraulic system, operating system, etc.
Garbage bin	divided into pit type swing arm garbage bin and ground type swing arm garbage bin (trapezoidal bucket, square bucket, sealed bucket)
Hydraulic system	composed of oil tank, oil pump, multi way directional valve, hydraulic cylinder, oil filter and pipeline, this system can achieve various specialized functions for loading and unloading garbage.
Operating system	Through this system, various functions can be converted. The loading and unloading work can be completed by manipulating the handle of the multi way directional valve. (When operating the multi way directional valve, a power take-off should be attached to drive the oil pump to work)
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
