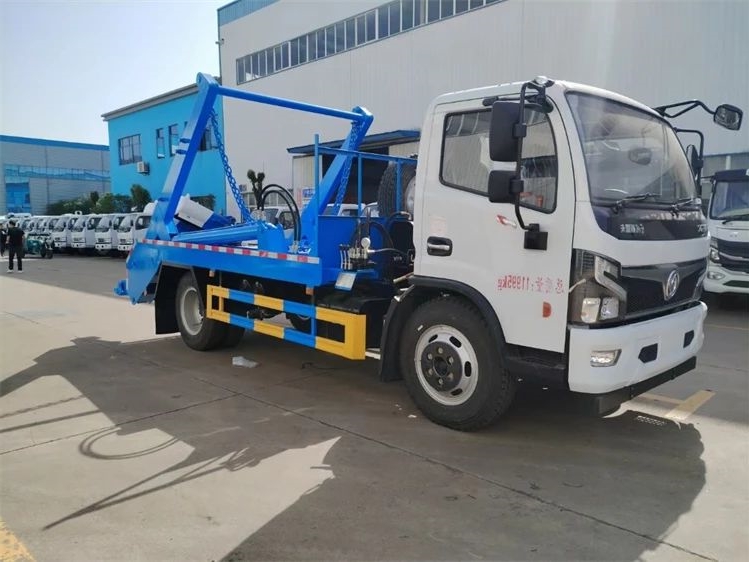

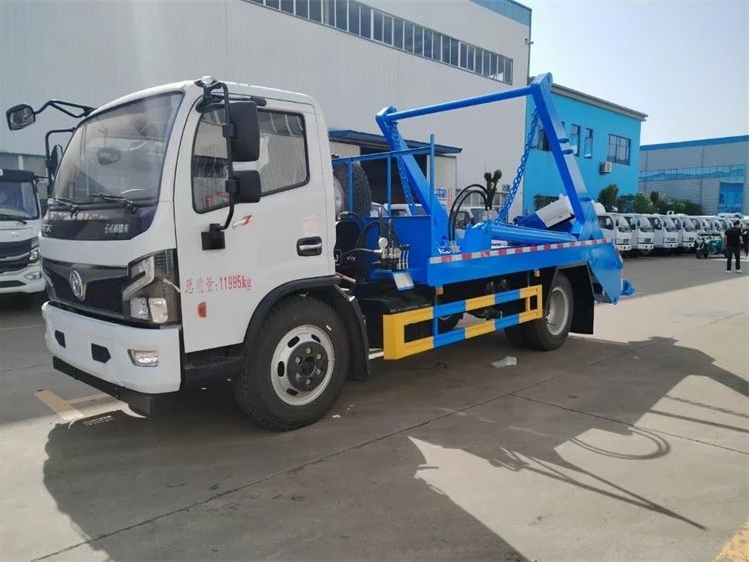

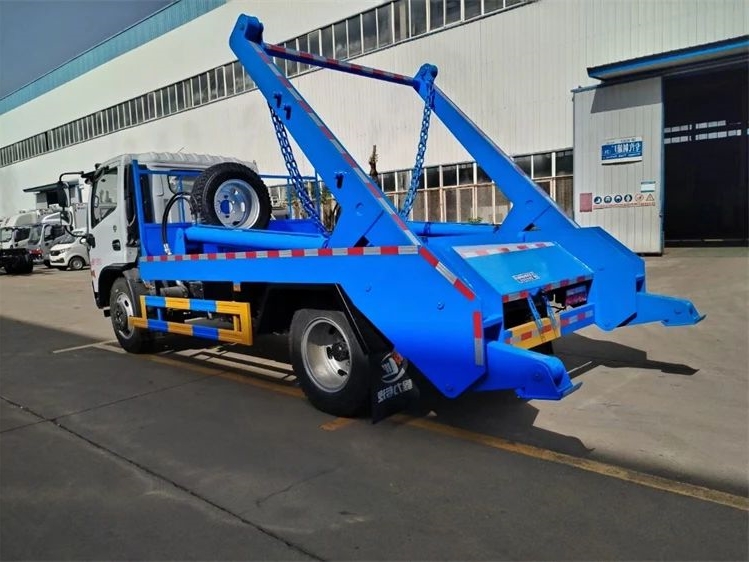

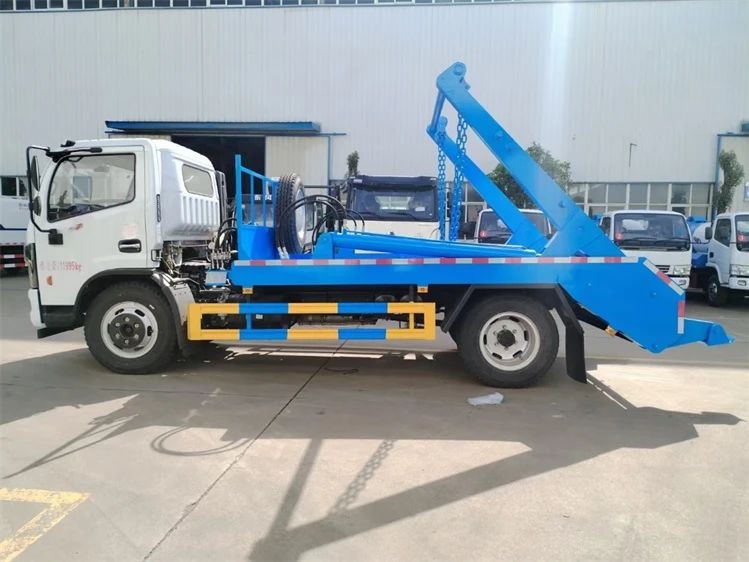

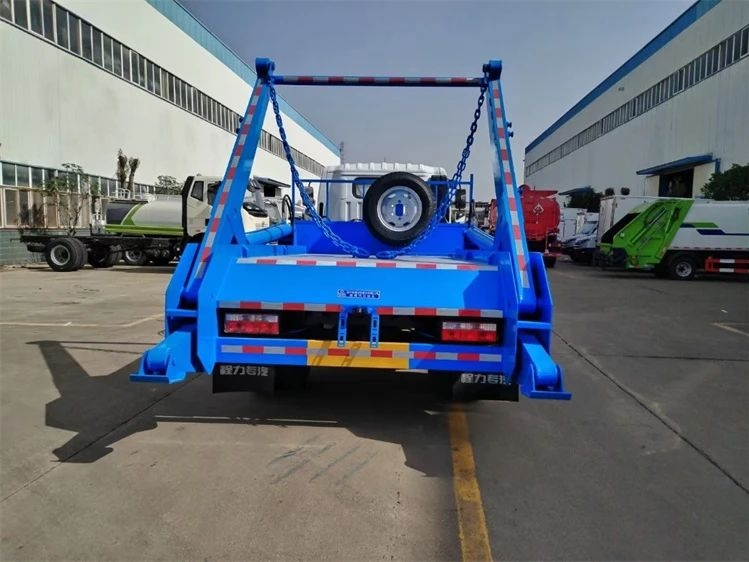

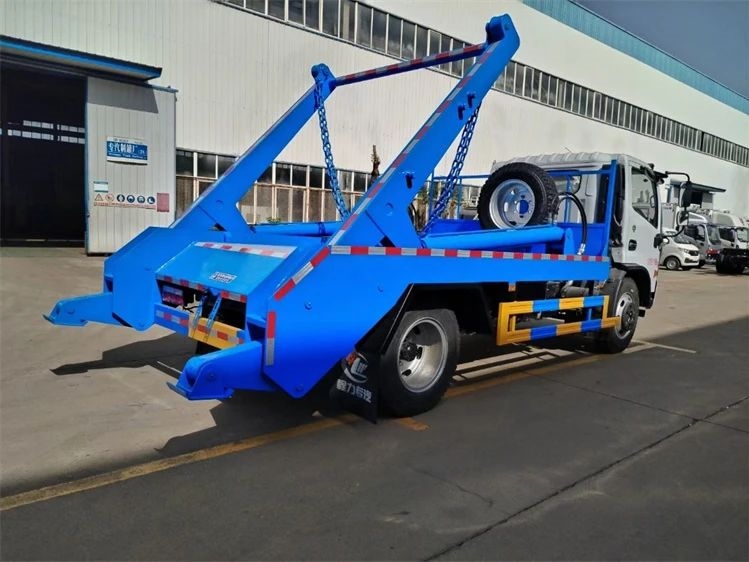

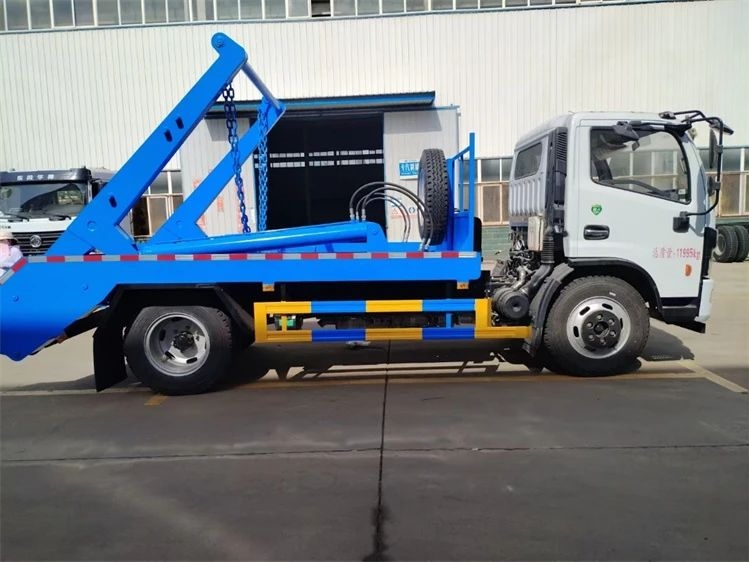

Dongfeng F7 8-ton swing arm garbage truck

Chassis configuration:

(1)Engine: YCY30165-60/D30TCIF1

(2)Wheelbase: 3800(mm)

(3)Transmission Type:8-speed gearbox
(4)Tire models: 8.25R20/16PR、245/70R19.5 , 6+1 spare

(5)Axle: 2.7T front axle, 5.5T rear axle.

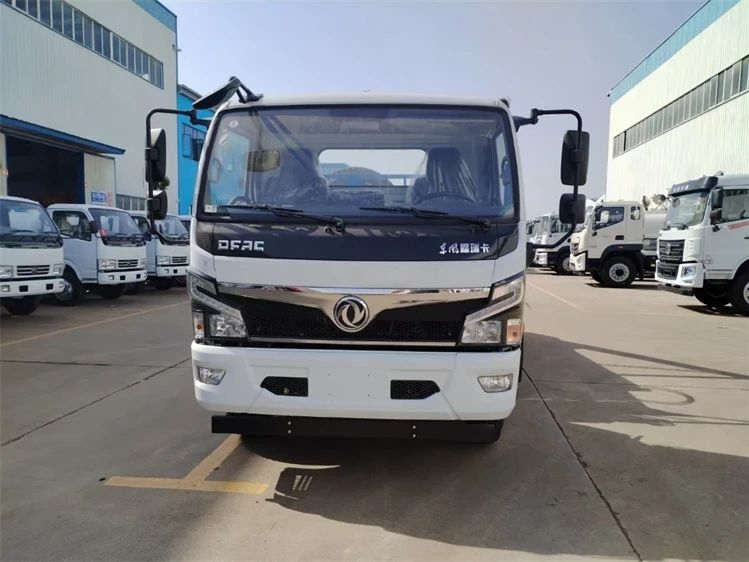

(6)Other: Dongfeng F7 cab , electric doors and windows, remote key, multifunctional steering wheel, original air conditioning, air brake.

Product Name： Dongfeng F7 8-ton swing arm garbage truck
Driving Type： 4x2
Garbage container volume(cbm)： 8-10(cbm)
Gross vehicle weight(Kg)： 11995(Kg)

Product Features

Dongfeng F7 8-ton swing arm garbage truck

Swing arm garbage truck: a garbage truck that lifts the garbage hopper and pours it into the carriage through hydraulic or mechanical swing arms. It can be equipped with multiple garbage bins for continuous operation, suitable for garbage collection in urban streets and residential areas.

Main features: The swing arm garbage truck has the advantages of simple and efficient garbage collection method, good environmental friendliness (no secondary pollution), reliable quality, low failure rate, easy maintenance, and low operating costs.

Installation configuration:
(1)The bottom plate is welded with 12 # low-alloy channel steel, 50 angle steel, 8mm, 5nm steel plates, etc. It is mainly used for placing garbage bins, supporting the boom, etc.
(2)The boom is composed of steel plates and welded into a box structure, and the lifting and self unloading functions of the garbage bin are achieved through the action of hydraulic cylinders.
(3)The supporting legs are made of steel plates and welded into a box structure, mainly used to support the ground and ensure the stability and safety of the entire vehicle.
(4)The hydraulic cylinder action of the vehicle is controlled by a manual hydraulic multi way valve, which controls the cylinder action. Simple and reliable operation, easy to maintain.
(5)The hydraulic system consists of an oil tank and filtration system, an oil pump, a multi way directional valve, a one-way throttle valve, an oil cylinder, oil pipes, etc. The power of the system comes from the engine, which splits the power through the power take-off and drives the gear pump to work. The gear pump sucks in hydraulic oil from the hydraulic oil tank through the oil suction filter, and the multi way valve (located outside the cab and at the front of the trunk) supplies oil. When the multi way valve is working, it causes the boom cylinder and leg cylinder to move. When the hydraulic cylinder is not working, the hydraulic oil flows directly back to the oil tank through the multi way valve.

Product parameters

Product Name	Dongfeng F7 8-ton swing arm garbage truck
Driving Type	4x2
Garbage container volume(cbm)	8-10(cbm)
Gross vehicle weight(Kg)	11995(Kg)
Curb weight(Kg)	5000,4700(Kg)
Rated weight(kg)	6800,6865,7100,7165(Kg)
Wheelbase(mm)	3800(mm)
Overall Dimension(mm)	6880,6930×2370×3220(mm)
Engine	YCY30165-60/D30TCIF1
Axle Quantity	2
Transmission Type	8-speed gearbox
Steering Type	LHD or RHD with power steering
Tire Spec. & size	8.25R20/16PR、245/70R19.5 , 6+1 spare
Cab	Dongfeng F7 cab
Material of swing arm bucket	High quality WISCO materials
Component	Composed of chassis, garbage bin, power take-off, multi way directional valve, swing arm, hydraulic system, operating system, etc.
Garbage bin	divided into pit type swing arm garbage bin and ground type swing arm garbage bin (trapezoidal bucket, square bucket, sealed bucket)
Hydraulic system	composed of oil tank, oil pump, multi way directional valve, hydraulic cylinder, oil filter and pipeline, this system can achieve various specialized functions for loading and unloading garbage.
Operating system	Through this system, various functions can be converted. The loading and unloading work can be completed by manipulating the handle of the multi way directional valve. (When operating the multi way directional valve, a power take-off should be attached to drive the oil pump to work)
Notice	The above information is for reference only, and vehicles can be customized depending on your requirements.
